Maxtor Standalone DVR 2007 Manuale utente

S TANDA L O N E DV R

2007 MAR. Ver 1.1

4 CHANNEL

空白頁

4CH STANDALONE DVR

-1-

CONTENT

1、FEATURE

2、SPECIFICATIONS

3、INSTALLATION

4、FRONT PANEL

5、OPERATING MANUAL

6、VIEW CONTROL

7、PLAYBACK CONTROL

8、RECORD CONTROL

9、4 CHANNEL RECORDING HOURS

10、DVR Viewer User Guide

HDD Compatibility:

Brand Name Capacity

Samsung 80GB / 160GB

Seagate 80GB / 160GB

Maxtor 80GB / 160GB

Warning !!

Please use the certified hard driver below

to avoid the compatibility problem.

4CH STANDALONE DVR

1、Definitely Standalone.

2、Real Time Refresh Rate.

3、Display While Recording.

4、Frame Recording & Quad Recording.

5、Compatible of NTSC/PAL format.

6、Advanced MJPEG.

7、Manual / Motion / Programmed

8、Search by Time / Date.

9、Watch dog feature.

10、HDD Volume Indicator.

11、Can use USB to link PC, Player can search Time to Play、

saving and take photos functions.

12、Internal motion detect feature.

13、Remote Control.

14、Support Audio Recording.

1、FEATURE

-2-

4CH STANDALONE DVR

2、SPECIFICATIONS

OPERATION SYSTEM

Video Input

Video Input Channel

Video Output Channel

Display Frame

Recording Frame

Rate(QUAD)

Recording Frame

Rate(EACH)

Recording Mode

Resolution

Compression Format

HDD

Backup Device

MOTION DETECT

LOSS DETECT

BUZZER OUTPUT

Brightness adjust

Contrast adjust

USB Output

System a monitor

Power supply

Dimension

Weight

Audio Function

Embedded RTOS

NTSC/PAL

4CH Composite

1CH Composite

400G X 1 (Max)

VCR

Time / Date / Event

YES

Power recover auto restore record mode

DC 12V / 4A(AC110V-240V 50/60HZ)

220mm x 288mm x 48mm (W x D x H)

1.5KG

Audio Input/Output Real Line Recording

And Playing

NTSC 120 fps (4x30 fps)

PAL 100 fps (4x25 fps)

NTSC Max. 30 fps

PAL Max. 25 fps

NTSC Max. 7.5fps(30 fps/4)

PAL Max. 6.25fps(25 fps/4)

Continuous / Motion / Programmed

Display NTSC 720x480

PAL 720 x 576

Recording NTSC 640x224

PAL 640x272

Advanced Low 12K Bytes / Frame

MJPEG Normal 15K Bytes / Frame

High 20K Bytes / Frame

Mode

Full screen

-3-

4CH STANDALONE DVR

3、INSTALLATION

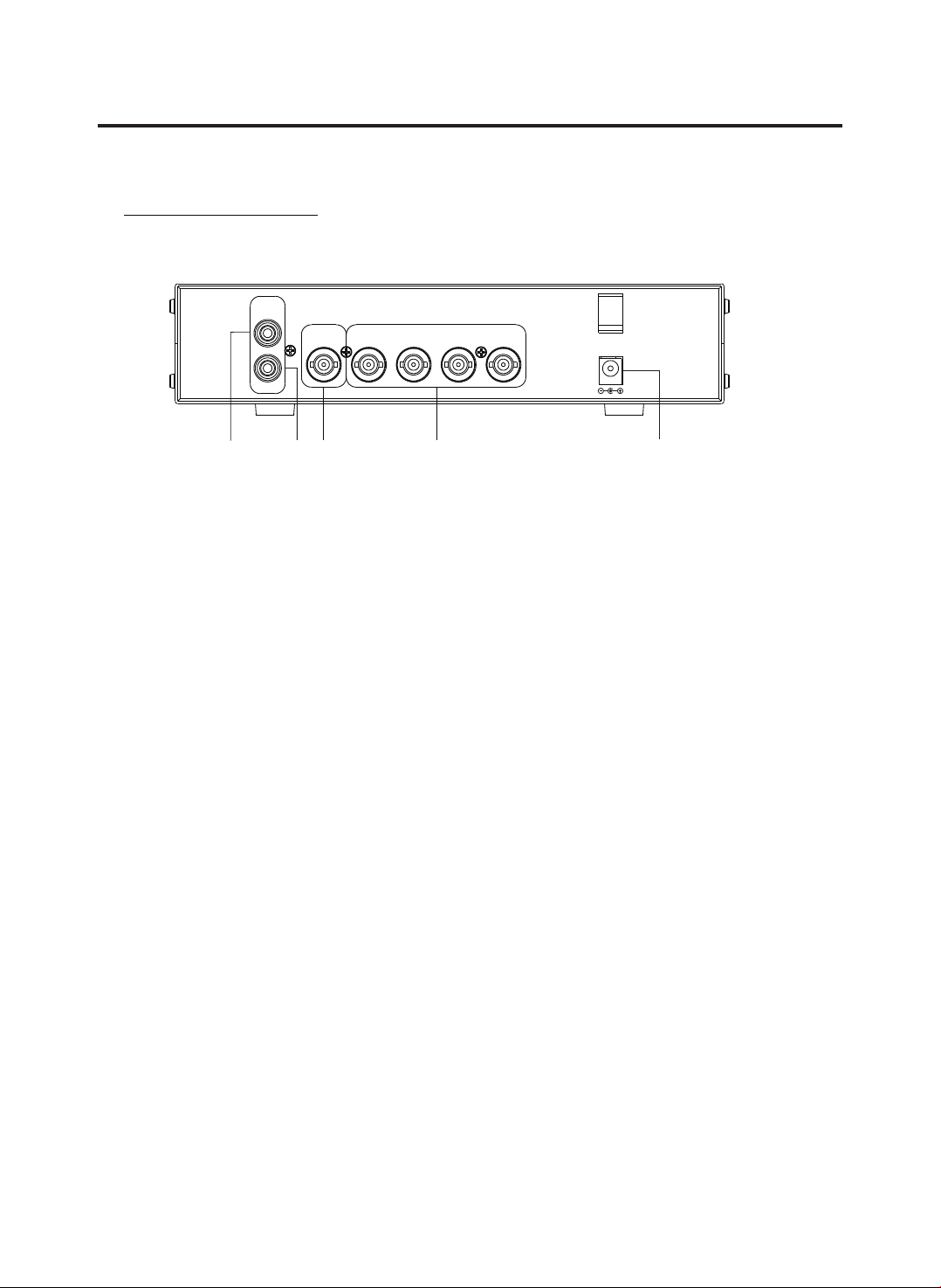

REAR PANEL

( )

(2) Audio Output.

(3) Video Output : Corresponding to Video Input.

(4) Video IN : Cameras to Video Input.

(5)

1 Audio Input.

Power Input : Please use the power supply attached

Adaptor : DC-12V / 4A

-4-

(1)(2)(3)(4)(5)

DC12V

CH4CH3CH2CH1

VIDEO IN

VIDEO OUT

AUDIO

OUT

4CH STANDALONE DVR

4、FRONT PANEL

-5-

(10)

( 2 )

(1)

( 4 )

( 3 )

( 5 )

( 6 )

( 7 )

( 8 )

( 9 )

(11) (12)

(1) USB PORT

(2) Record Indicator

(3) HDD Indicator

(4) Move Up / Camera 1 Display

(5) Move Left / Camera 2 Display

(6) Move Down / Camera 3 Display

(7) Move Right / Camera 4 Display / Select

(8) Menu / Show Percentage of the hard Drive recorded

(9) Play / Pause

(10) Record / Stop

(11) Fast Reverse / Mute

(12) Fast Forward / Sequence Switch

4CH STANDALONE DVR

-6-

5、OPERATING MANUAL (MAIN MENU)

SYSTEM SETUP

MAIN MENU

SYSTEM SETUP

CAMERA SETUP

RECORD SETUP

RECORD SCHEDULE

MOTION SETUP

HARD DRIVE SETUP

SYSTEM RESTORE

Select this item to change password :

CURRENT PASSWORD :______

NEW PASSWORD :______

CONFIRM PASSWORD :______

PASSWORD SETUP

*Use the view control button on the front panel to input the number.

( ) : SELECT ( ) : SET ( ) : EXIT

SYSTEM STANDARD :﹝ PAL﹞

BUZZER ALARM TIME : 2

LOSS ALARM : ON

AUDIO RECORD :

AUDIO MUTE : ﹝OFF﹞

AUDIO INPUT VOLUME : 8

AUDIO OUTPUT VOLUME : 8

PASSWORD SETUP

TIME SETUP

﹝ ﹞

﹝OFF﹞

( ) : SELECT ( ) : SET ( ) : EXIT

Press to select items, use to enter.

Press to exit

Press to select items, use to enter.

Press to exit

(1) When the new password is accepted, you will receive a

message that inform you. PASSWORD CHANGED

(2) If the password was not accepted, you will receive a

message that inform you. NO PASSWORD CHANGED

4CH STANDALONE DVR

-7-

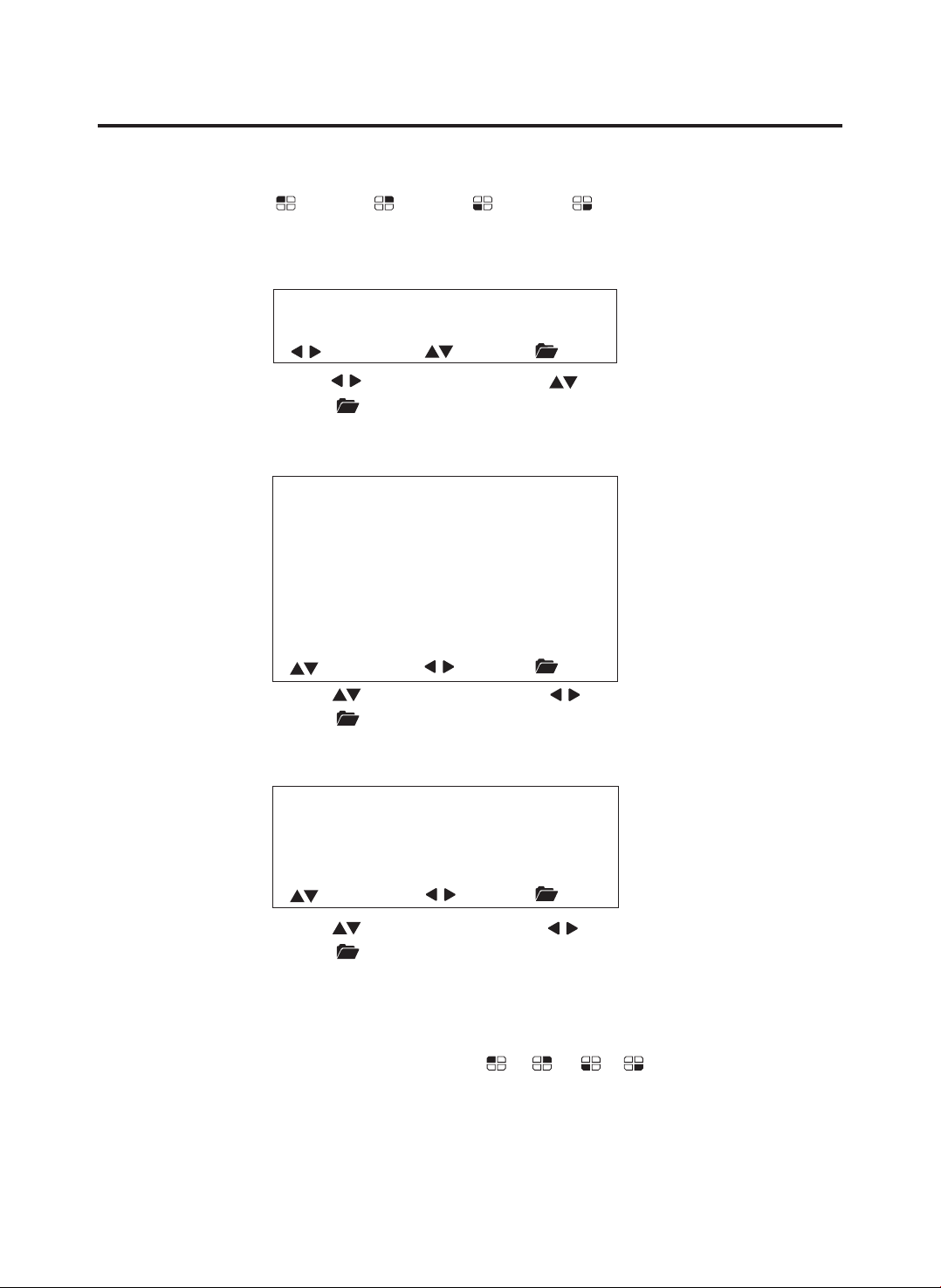

Select this item to set up current time.

TIME SET

2004/12/17 18:00:30

TIME SETUP

CAMERA SETUP

CAMERA : CH1

LIVE ON/OFF : ON

RECORD ON/OFF : ON

BRIGHT SETUP : 5

CONTRAST SETUP : 5

COLORS SETUP : 5

AUTO SWITCHING : 2

RECORD SETUP

RECORD MODE :EACH

VIDEO QUALITY :NORMAL

RECORD FRAME RATE :30

RECORD SETUP

(1) Record Setup:EACH MODE (frame recording),

QUAD MODE (quad recording).

(2) Video Quality: video quality selection: High, Normal, Low

(3) Record Frame Rate: QUAD MODE frame rate alternatives as follows:

Enable Audio Record → 30、15、10、7、5、4 fps.

Disable Audio Record → 30、15、10、7、5、4、3、2、1 fps.

In this mode 、、、 invalid.

Each Mode frame rate alternatives as follows:

Maximum : 7.5 fps each camera Totally :30 fps = 7.5 x 4 CH

is:"1" is:"2" is:"3" is:"4”

Press to select items, use to enter.

Press to exit

Press to select items, use to enter.

Press to exit

Press to select items, use to enter.

Press to exit

( ):SELECT ( ):SET ( ):EXIT

4CH STANDALONE DVR

-8-

(1)Range: 0-24 hrs.

(2)Set ”T” for continuous recording.

(3)Set “M” for motion recording.

(4)Set up ”-” to disable the recording.

RECORD SCHEDULE

MOTION SETUP

MOTION SETUP MENU

CHANNEL-1 SENSITIVITY 0 (OFF)

CHANNEL-2 SENSITIVITY 0 (OFF)

CHANNEL-3 SENSITIVITY 3 .

CHANNEL-4 SENSITIVITY 5 .

Press to select items, use to enter.

Press to exit
