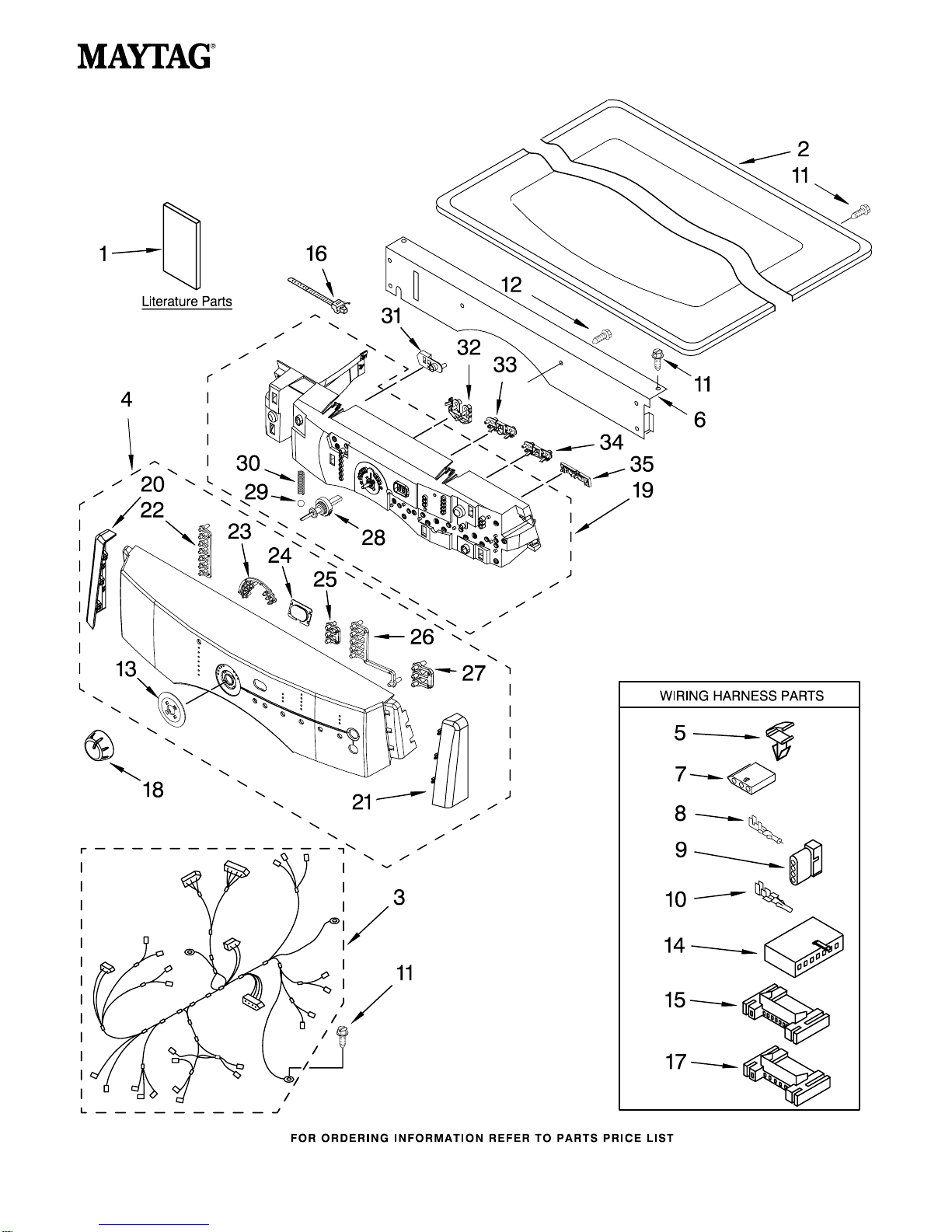

TOP AND CONSOLE PARTS

For Model: MGD9700SQ0, MGD9700SB0

(White) (Black)

Gas Dryer

2−08 Printed in U.S.A. (LAN) Part No. 8181445 Rev. C

TOP AND CONSOLE PARTS

For Model: MGD9700SQ0, MGD9700SB0

(White) (Black)

8181445

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

Use & Care Guide

W10150638

English

W10150639

Spanish

W10049500

Tech Sheet

W10099080

Guide,

Quick Start

2 Top

8519251 White

8579997 Black

3 8299950 Harness, Main

4 Panel, Console

(Includes Bezel,

Light Indicators

& Endcaps)

W10098940

White

W10098960

Black

5 3394427 Clip, Harness

6 8519271 Bracket, Console

7 353424 Connector, Sensor

8 94614 Terminal

9 3936144 Plug, Terminal

10 94613 Terminal

11 3390647 Screw, 8−18 x 1/2

12 488886 Screw, 8−18 x 1/2

13 8542690 Bezel, Cycle

14 3936150 Connector,

7−Circuit

15 3395683 Connector,

(Motor)

16 3391018 Tie, Cable

17 2203186 Connector,

5−Circuit

W10133964

Knob, Assembly

19 8558455 User Interface

(Includes

Illus. 28, 29

& 30)

20 EndCap (LH)

8562598 White

8580135 Black

21 EndCap (RH)

8562597 White

8580134 Black

22 8542682 Light Indicator

(Status)

23 8542683 Light Indicator

(Cycle)

24 8542691 Lens, Display

25 8542684 Light Indicator

(Dryness Level)

26 8542685 Light Indicator

(Temperature)

27 8542686 Light Indicator

(XCare/EOC)

28 8542717 Shaft,

Cycle Selector

29 8542716 Bearing, Knob

30 8542715 Spring, Knob

31 Pushbutton,

(Control)

W10133970

Silver

(For White Model)

8580140 Silver

(For Black Model)

32 Pushbutton,

(Drytime)

W10100390

White

8579989 Silver

33 Pushbutton,

(Dryness/Temp)

8562604 White

8579991 Silver

34 Pushbutton,

(XCare/EOC)

8562605 White

8579993 Silver

35 Pushbutton,

(Start/Cancel)

W10133971

Silver

(For White Model)

8579994 Silver

(For Black Model)

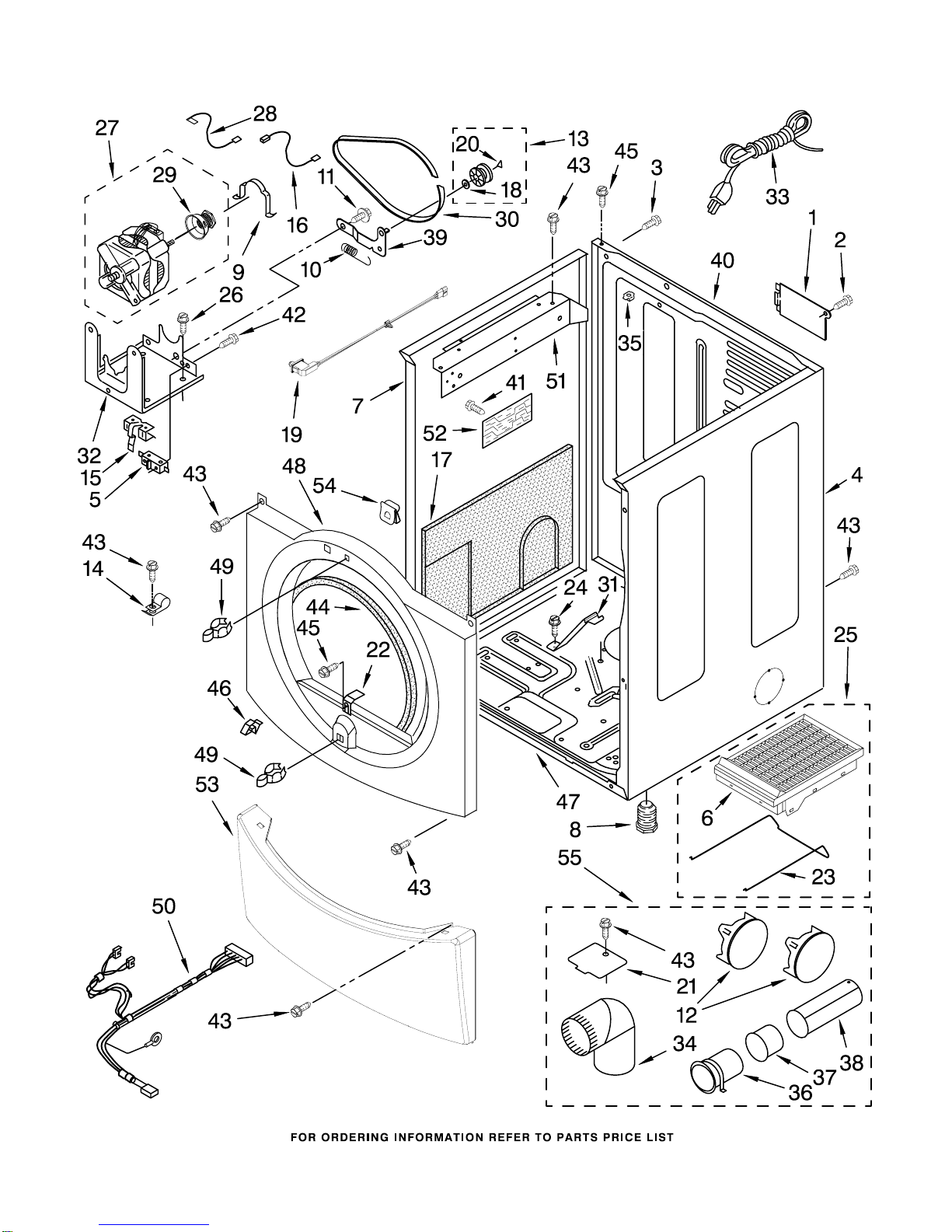

CABINET PARTS

For Model: MGD9700SQ0, MGD9700SB0

(White) (Black)

8181445

CABINET PARTS

For Model: MGD9700SQ0, MGD9700SB0

(White) (Black)

8181445

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8317340 Cover,

Terminal Block

2 3390814 Screw, 8−18 x 3/8

3 8533974 Screw, 10−32 x 5/8

(Ground)

4 Panel, Side (R.H.)

W10139003

White

W10139010

Black

5 3394881 Switch, Broken

Belt

6 8521959 Dry Rack

(Top)

7 Panel, Side (L.H.)

W10138989

White

W10138996

Black

8 3392100 Foot, Dryer

279810 Foot − Optional

(Extended Length

Package Of 2)

(Not Included)

9 660658 Clamp, Motor (2)

10 3387374 Spring, Idler

11 3389420 Retainer, Idler

12 Plug, Multivent

697750 White

3388309 Black

13 3388672 Pulley Assembly

14 3978776 Bracket,

Gas Pipe

15 8066120 Lever, Snap

Switch

W10167612

Wire, Belt Switch

W10128772

Sound Panel

W10121334

Washer

W10128087

Assembly,

Door Switch

20 690997 Tri Ring

21 8066115 Cover−Plate

22 8529053 Ramp, Door

23 8521961 Dry Rack

Support

24 693995 Screw, 8−18 x 3/8

25 8521957 Dry Rack

Assembly

26 343641 Screw, 10−16 x 1/2

27 8538263 Motor Assembly

60 HZ.

28 3398948 Wire, Jumper

(Broken Belt

Switch)

29 8578220 Pulley 60 HZ.

30 3387610 Belt, Drive

31 8529757 Bracket, Burner

32 3387118 Bracket, Motor

33 3401401 Cord, Power

34 49026 4" − 90 Elbow

35 692400 Nut, Push−In

36 8563747 Exhaust Pipe

& Bracket

37 8563750 Exhaust Pipe

(Short)

38 8563749 Exhaust Pipe

(Long)

39 3388674 Idler Bracket

W10133207

Panel, Rear

41 3400826 Screw, 8−18 x 3/4

42 98129 Screw,

6−20 x 1 1/16

43 3390647 Screw, 8−18 x 1/2

44 3387242 Seal, Front Panel

45 3393008 Screw, 10−16 x 1/2

46 8519459 Clip, Toe Panel

47 8519207 Base, Cabinet

48 Front Panel

(Includes

Illus. 44)

8565907 White

8579973 Black

49 696144 Strike, Door (2)

50 8299929 Harness,

Digital Interface

51 8519273 Bracket, Control

52 8546219 Control Board

53 Toe, Panel

W10116271

White

W10116273

Black

54 62825 Clip S−Type

Optional Parts Not Included

Dryer Exhaust Kit

(For Side & Bottom Venting)

55 279818 White

279820 Black

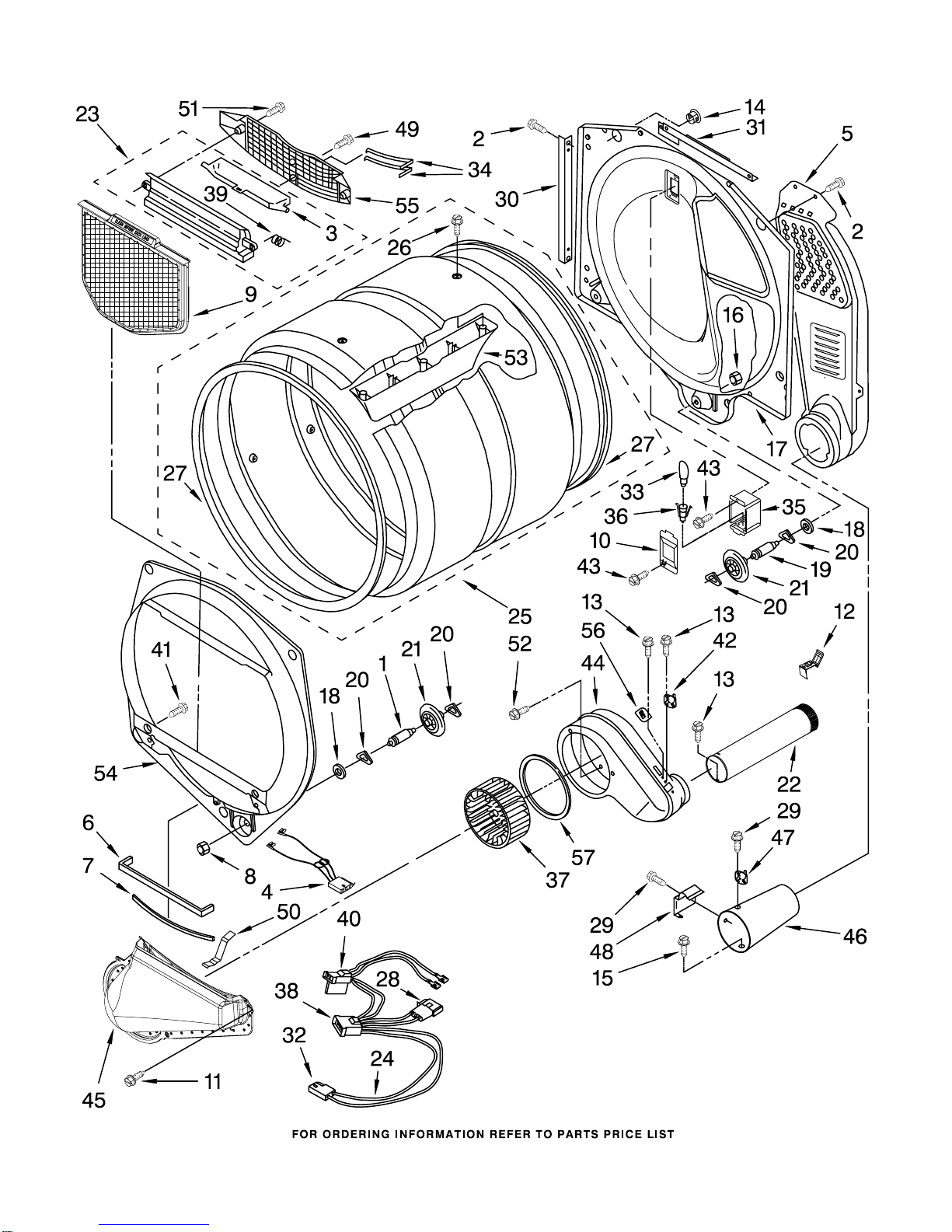

BULKHEAD PARTS

For Model: MGD9700SQ0, MGD9700SB0

(White) (Black)

8181445

BULKHEAD PARTS

For Model: MGD9700SQ0, MGD9700SB0

(White) (Black)

8181445

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8575324 Shaft, R.H. Thread

2 3390647 Screw, 8−18 x 1/2

3 3394984 Door, Lint

Screen

4 3406653 Harness, Sensor

5 3394346 Air Duct Assembly

6 697813 Seal, Outlet

Housing

7 697814 Seal, Drum Front

8 3934666 Nut,3/8 x 16(R.H.)

W10049370

Lint, Screen

10 3402841 Lens,

Drum Light

11 489463 Screw, 8−18 x 5/8

12 8572105 Clip, Exhaust

Pipe

13 8533971 Screw, 8−18 x 5/16

14 8529007 Plug,

Rear Bulkhead

15 693995 Screw, 8−18 x 3/8

W10001120

Nut, 3/8−16 (L.H.)

17 8520836 Bulkhead, Rear

18 3387459 Washer, Support

19 8575325 Shaft, L.H. Thread

20 690997 Ring, Tri

21 8536973 Roller, Support

22 8563745 Exhaust Pipe

23 3394985 Housing, Outlet

24 3401850 Harness, Gas

W10113138

Complete Drum

Assembly

W10109200

Screw, 11−16 x 3/4

W10166807

Seal, Drum

28 353424 Plug, 3−Way

29 90767 Screw, 8−18 x 3/8

30 8519221 Channel Bracket,

Rear Bulkhead (2)

31 8571651 Bracket, Upper

Rear Bulkhead

32 717252 Plug, 2−Way

33 3406124 Bulb, Light

34 3387223 Electrode, Sensor

35 3977373 Bracket,

Drum Light

W10136369

Socket Assembly

37 697772 Wheel, Blower

38 3403498 Connector,

3−Position

39 3394986 Spring, Lint

Screen Door

40 3403499 Connector,

2−Position

41 695240 Screw, 8−18 x 1/2

42 8577274 Thermistor

43 487909 Screw, 8−15 x 1/2

44 8544362 Housing, Blower

45 8066168 Lint Duct Assembly

46 8066047 Funnel, Burner

47 8573028 Thermostat,

High−Limit 205 F

(96 C)

48 338906 Sensor, Radiant

49 3357011 Screw, 10−16 x 1/2

50 8066208 Clip−Spring

51 3387230 Screw, 10−16 x 1

52 359625 Screw, 8−18 x 1/2

W10113136

Baffle, Drum

54 8519245 Bulkhead, Front

55 8299979 Grill, Outlet

56 3392519 Thermal Fuse

57 697770 Seal, Cover Plate

USE WITH TYPE 1 − NATURAL

AND TYPE 4 LIQUEFIED PROPANE AND BUTANE GASES

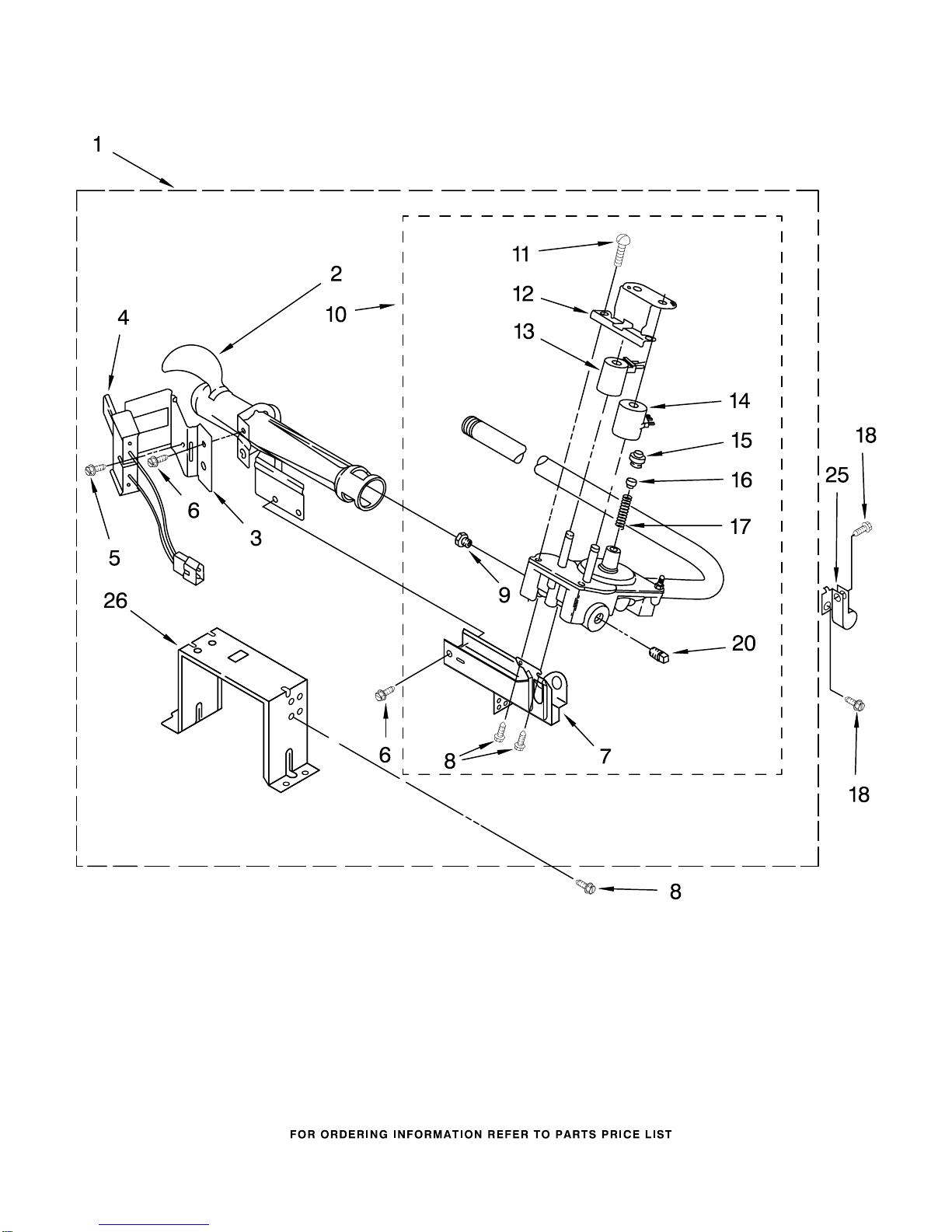

8576353 BURNER ASSEMBLY

BA−153A

For Model: MGD9700SQ0, MGD9700SB0

(White) (Black)

8181445

Illus. Part

No. No. DESCRIPTION

BA−153A

8576353 BURNER ASSEMBLY

USE WITH TYPE 1 − NATURAL

AND TYPE 4 LIQUEFIED PROPANE AND BUTANE GASES

1 8576353 Burner Assembly

60 Hz.

(Type 1)

(White Rodgers)

2 688617 Tube, Burner

3 694298 Bracket, Ignitor

4 686590 Ignitor

5 3393909 Screw & Washer

(8−32 x 7/8)

6 343641 Screw, 10−16 x 1/2

7 3389871 Base, Burner

8 3387057 Screw,

8−18 x 3/8

9 Orifice, Burner

15418 Type 1

15422 Type 4 (Butane)

234867 Type 4 (Propane)

W10118347

Valve, Gas

60 Hz. (Complete)

(Includes Pipe &

Illus. #7).

11 694421 Screw,

8−32 x 1/2 (2)

12 694538 Bracket, Coil

13 694540 Coil, 60 Hz.

(2 Terminal)

(Main)

14 694539 Coil, 60 Hz.

(Split)

(3 Terminal)

(Pilot Position)

15 694424 Leak, Limiter

16 694423 Screw, Regulator

Adjustment

17 694422 Spring, Regulator

18 3390647 Screw, 8−18 x 1/2

20 239822 Plug, Pipe

25 3387561 Clamp, Pipe

26 3389889 Bracket, Support

Following Parts Not Illustrated

8576846 Conversion Kit

(Type (1)

to Type (4) LPG).

For Model: MGD9700SQ0, MGD9700SB0

(White) (Black)

88181445

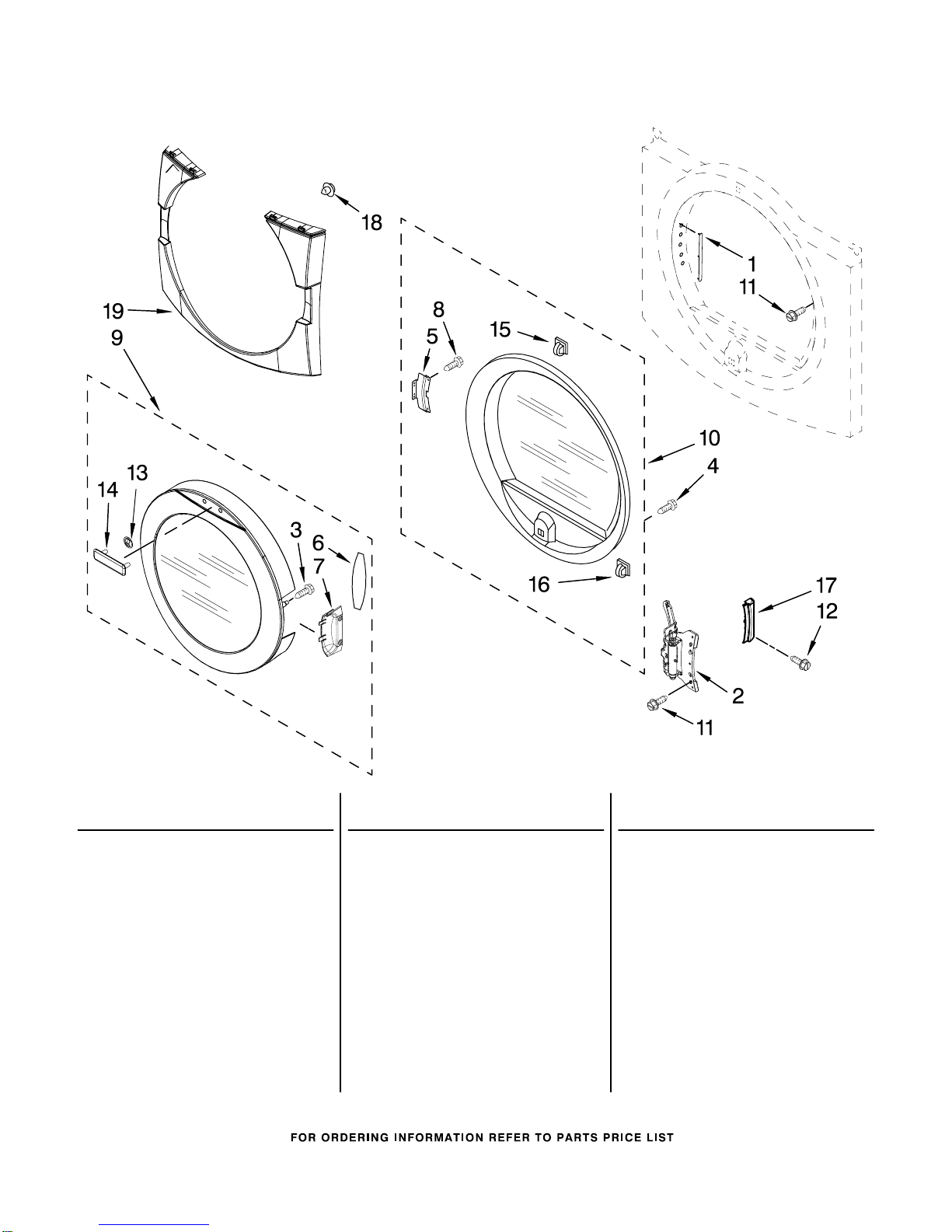

DOOR PARTS

For Model: MGD9700SQ0, MGD9700SB0

(White) (Black)

8181445

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8563855 Plug, Strip

W10111141

Door Hinge

Assembly

3 8533957 Screw, 10−16 x 1/2

4 9742177 Screw, 8−18 x 5/8

5 8529539 Bracket, Handle

6 8541011 Pad, Door Handle

W10133974

Handle, Door

8 3393008 Screw, 10−16 x 1/2

9 Door & Window

Assembly

(Includes

Illus. 6, 7,

13 & 14)

W10133985

Silver

(For White Model)

W10098830

Silver

(For Black Model)

10 8557501 Inner Door

Assembly

(Includes

Illus. 5, 8

15 & 20)

11 355515 Screw,

8−18 x 11/16

12 3400859 Screw, 8−18 x 7/32

13 8558182 Nut, Push−On (2)

W10116209

Badge

15 690081 Catch,

Door Assembly (1)

16 3389441 Catch,

Door Assembly (1)

17 Cover−Hinge,

Rotating

8566486 White

8579980 Black

18 8547091 Clip, Trim Panel

19 Trim & Clip

Assembly

8562596 White

8579981 Black

OPTIONAL PARTS (NOT INCLUDED)

For Model: MGD9700SQ0, MGD9700SB0

(White) (Black)

8181445

Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

72032 Black

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

350938 Primer, Gray

786020 Black

ACCESSORY PARTS

8529894 Kit,

Hold Down

8541503 Kit,

Stack Assembly

8522199 Kit, Dryer

Vent Testing

80047 Kit,

Dryer Repair
