TOP AND CONSOLE PARTS

For Model: MGDE500VW2

(White)

11−09 Printed in U.S.A. (MP) (eeb) Part No. W10303329 Rev. A

29" GAS DRYER

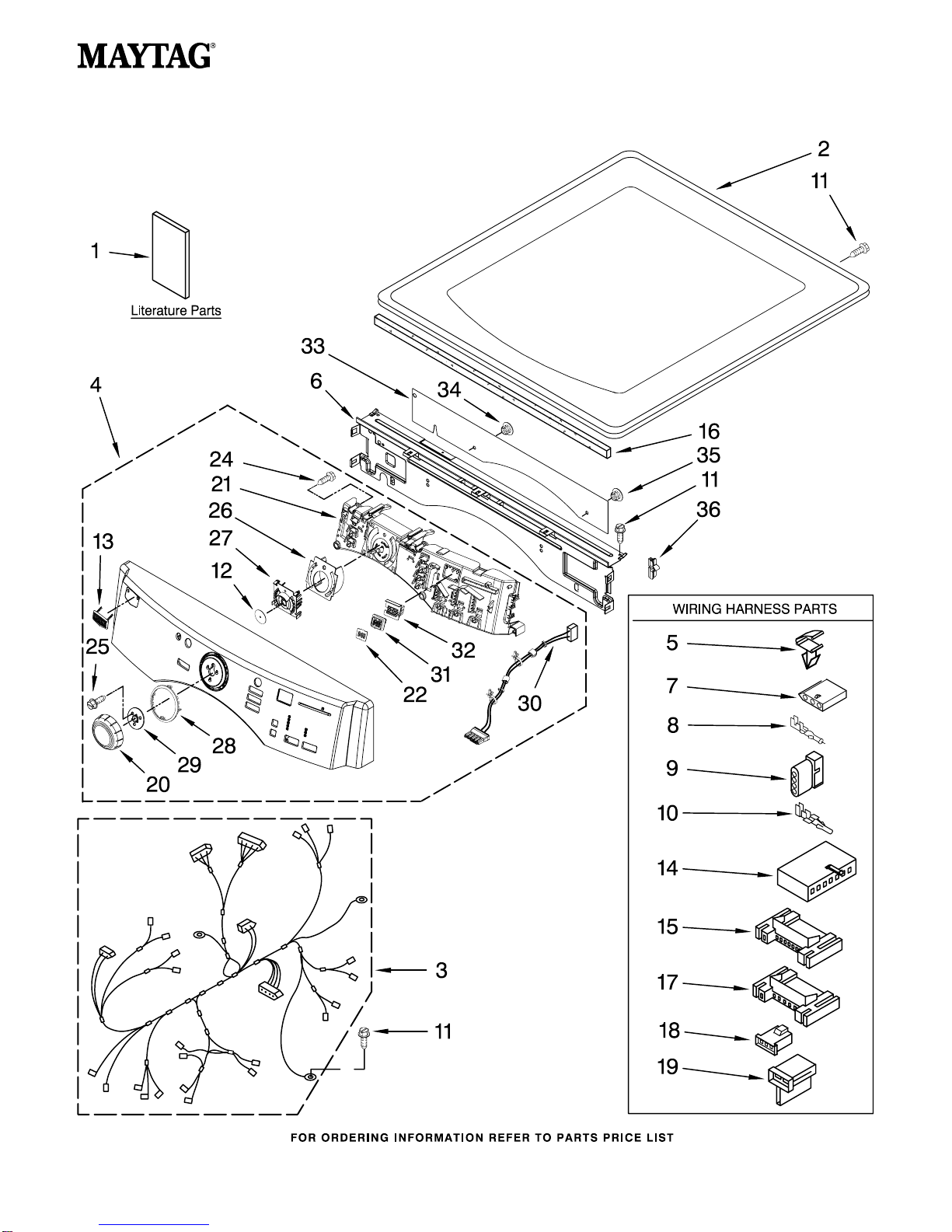

TOP AND CONSOLE PARTS

For Model: MGDE500VW2

(White)

W10303329

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10239302

Use & Care Guide

W10255469

Installation

Instructions

W10258377

Tech Sheet

2 3980634 Top

W10111069

Harness, Main

W10246750

Console Assembly

5 3394427 Clip, Harness

W10215656

Bracket, Console

(Includes No. 16)

7 353424 Connector, Sensor

8 94614 Terminal

9 3936144 Plug, Terminal

10 94613 Terminal

11 3390647 Screw, 8−18 x 1/2

12 8572039 Seal,

User Interface

W10177245

Medallion

14 3936150 Connector,

7−Circuit

15 3395683 Connector,

(Motor)

W10112267

Foam, Seal

Control Bracket

17 2203186 Connector,

5−Circuit

18 3403498 Connector,

3−Position

(Gas Valve)

19 3403499 Connector,

2−Position

(Gas Valve)

W10164576

Knob

W10269025

Techbox Assembly

W10171504

Foil−Display

24 8540282 Screw

25 8540513 Screw

W10170295

Frame−Light Guide

W10170293

Guide, Light

Cycle Internal

W10164567

Cycle, Light Guide

W10172298

Bushing, Knob

W10242907

Power Cable

User Interface

W10164578

Guide, Light

(3−Way Digital)

W10171502

Frame−Light

(Guide Display)

W10215674

Shield,

Console Bracket

W10216201

Plug−Hole 1/4"(2)

W10216202

Plug−Hole 5/16"(1)

W10214555

Plug−Connector

Frame

CABINET PARTS

For Model: MGDE500VW2

(White)

W10303329

CABINET PARTS

For Model: MGDE500VW2

(White)

W10303329

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8317340 Cover,

Terminal Block

2 3390814 Screw, 8−18 x 3/8

3 8533974 Screw, 10−32 x 5/8

(Ground)

W10192446

Panel, Side (R.H.)

W10246525

Switch, Broken

Belt

W10192435

Panel, Side (L.H.)

7 3392100 Foot, Dryer

279810 Foot − Optional

(Extended Length

Package Of 2)

(Not Included)

8 660658 Clamp, Motor (2)

9 3387374 Spring, Idler

10 3389420 Retainer, Idler

11 Plug, Multivent

49252 White

W10151499

Midnight Grey

12 3388672 Pulley Assembly

13 3978776 Bracket,

Gas Pipe

14 343641 Screw, 10−16 x 1/2

W10244141

Panel, Rear

W10123956

Sound Panel

W10121334

Washer, Flat

Plastic

W10128087

Assembly,

Door Switch

19 690997 Tri Ring

20 8066115 Cover−Plate

21 8529053 Ramp, Door

W10246269

Toe Panel

W10174746

Control Board

24 8538263 Motor Assembly

60 HZ.

25 8563727 Bracket, Control

26 8578220 Pulley 60 HZ.

W10112954

Belt, Drive

28 8529757 Bracket, Burner

W10242878

Bracket, Motor

30 3401401 Cord, Power

31 49026 4" − 90 Elbow

32 693995 Screw, 8−18 x 3/8

33 8563747 Exhaust Pipe

& Bracket

34 8563750 Exhaust Pipe

(Short)

35 8563749 Exhaust Pipe

(Long)

36 3388674 Idler Bracket

37 62825 Clip, S−Type (3)

W10221445

Trim−Ring

Assembly

(Includes:

Item 44)

W10242903

Harness,

Digital Interface

40 3390647 Screw, 8−18 x 1/2

41 3387242 Seal, Front Panel

42 3357011 Screw, 10−16 x 1/2

43 8519459 Clip, Toe Panel

W10129065

Trim−Clip Metal

W10239098

Base, Cabinet

W10153275

Front Panel

47 696144 Strike, Door (2)

48 90767 Screw, 8−18 x 3/8

Optional Parts Not Included

Dryer Exhaust Kit

(For Side & Bottom Venting)

49 279818 White

W10186596

Midnight Grey

BULKHEAD PARTS

For Model: MGDE500VW2

(White)

W10303329

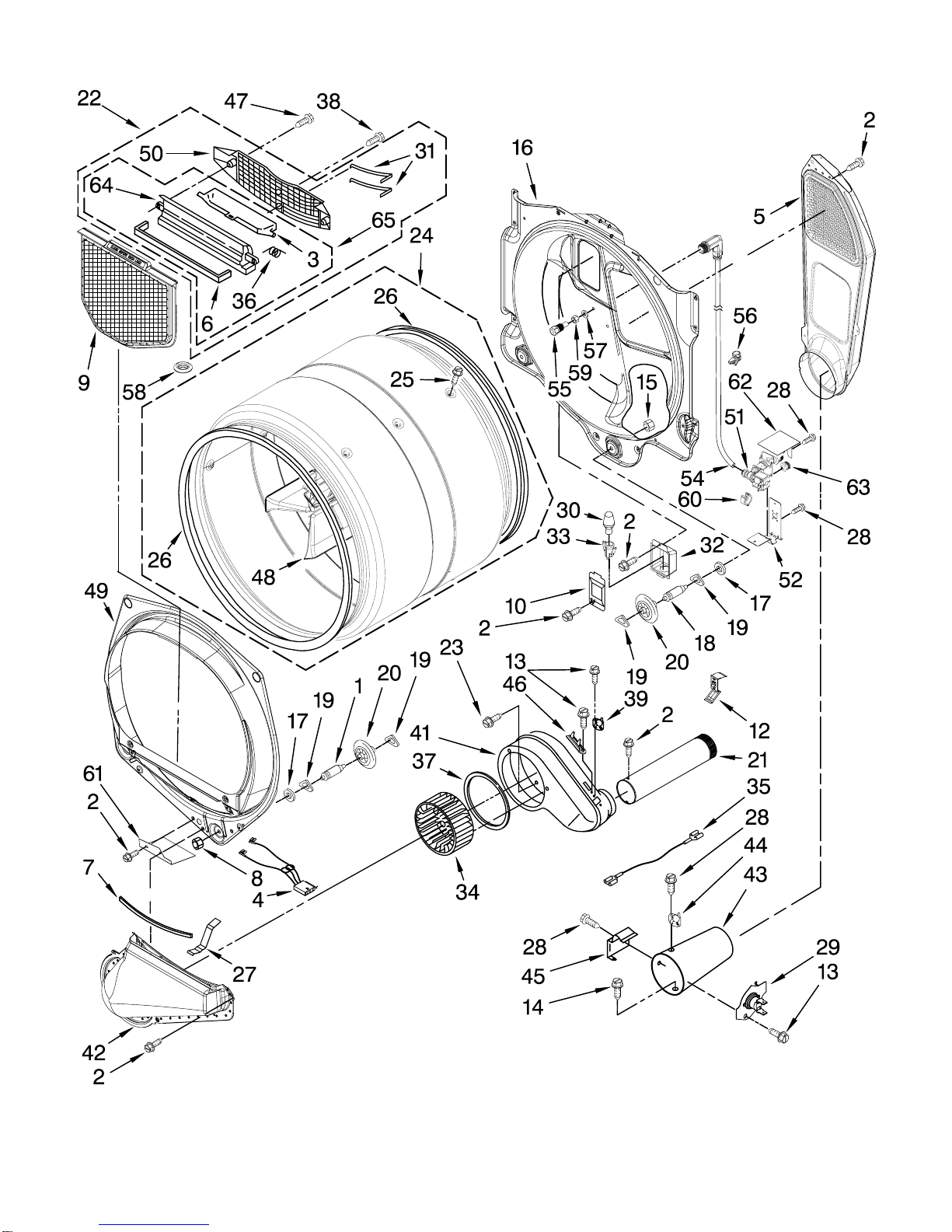

BULKHEAD PARTS

For Model: MGDE500VW2

(White)

W10303329

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8575324 Shaft, R.H. Thread

2 3390647 Screw, 8−18 x 1/2

W10153413

Door, Lint

Screen

4 3406653 Harness, Sensor

5 3394346 Air Duct Assembly

6 697813 Seal, Outlet

Housing

7 697814 Seal, Drum Front

8 3934666 Nut,3/8 x 16(R.H.)

W10049370

Lint, Screen

10 3402841 Lens,

Drum Light

12 8572105 Clip, Exhaust

Pipe

13 8533971 Screw, 8−18 x 5/16

14 693995 Screw, 8−18 x 3/8

W10001120

Nut, 3/8−16 (L.H.)

W10133857

Bulkhead, Rear

17 3387459 Washer, Support

18 8575325 Shaft, L.H. Thread

19 690997 Ring, Tri

20 8536973 Roller, Support

21 8563745 Exhaust Pipe

W10253353

Outlet Grill

Housing Assembly

(Complete)

23 489463 Screw, 8−18 x 5/8

W10181466

Complete Drum

Assembly

W10219342

Screw, 8−16 x 1/2

W10166807

Seal, Drum

27 8066208 Clip−Spring

28 90767 Screw, 8−18 x 3/8

29 8573713 Thermal−Cutoff

30 3406124 Bulb, Light

31 3387223 Electrode, Sensor

32 8578825 Bracket,

Drum Light

W10214261

Socket Assembly

34 697772 Wheel, Blower

35 3401710 Jumper−Tco

Hi−Limit

36 3394986 Spring, Lint

Screen Door

37 697770 Seal, Cover Plate

38 695240 Screw, 8−18 x 1/2

39 8577274 Thermistor

41 8544362 Housing, Blower

42 8066168 Lint Duct Assembly

43 8573824 Funnel, Burner

44 3391912 Thermostat

Hi Limit

45 338906 Sensor, Radiant

46 3392519 Thermal−Fuse

(91C)

47 3387230 Screw, 10−16 x 1

48 697693 Baffle, Drum

W10252304

Bulkhead, Front

W10153412

Grille, Outlet

W10044596

Valve, Water Inlet

(Includes Illus,

52 & 62 )

W10044597

Bracket, Valve

W10044598

Hose

W10277503

Nozzle, Spray

Steam

56 3391018 Tie Cable

W10044579

Washer, Nozzle

W10128544

Caplug

W10044628

Brass Nut

W10044615

Clip,

Push−To−Connect

W10128629

Shield, Blower

Housing

(Includes,

Illus. 2 )

W10184825

Cover, Inlet

Valve

W10044605

Coupling, Hose

W10153414

Outlet Housing

W10153423

Outlet Housing

Assembly

W10293911 BURNER ASSEMBLY

BA−159

USE WITH TYPE 1 − NATURAL, TYPE 2 − MIXED,

AND TYPE 4 − LIQUEFIED PROPANE AND BUTANE GASES

For Model: MGDE500VW2

(White)

W10303329

USE WITH TYPE 1 − NATURAL, TYPE 2 − MIXED,

AND TYPE 4 − LIQUEFIED PROPANE AND BUTANE GASES

Illus. Part

No. No. DESCRIPTION

W10293911 BURNER ASSEMBLY

BA−159

W10293911

Burner Assembly

60 Hz.

(Type 1 & 2)

2 688617 Tube, Burner

3 694298 Bracket, Ignitor

4 686590 Ignitor

5 3393909 Screw & Washer

(8−32 x 5/8)

6 343641 Screw, 10−16 x 1/2

7 3389871 Base, Burner

8 3387057 Screw,

8−18 x 3/8 (3)

9 15418 Orifice, Burner

Type 1

W10175144

Valve, Gas

60 Hz. (Complete)

(Includes Pipe &

Illus. No. 7 )

W10295524

Sleeve−Magnetic

12 3389889 Bracket, Support

W10273784

Coil, 60 Hz.

14 3978776 Clamp, Pipe

326049536

Screw, Coil

16 3390647 Screw, 8−18 x 1/2

W10295523

Plug, Pipe

Following Parts Not Illustrated

W10293913

Conversion Kit

(Type 1 and 2)

to Type (4) L.P.G.

For Model: MGDE500VW2

(White)

W10303329

DOOR PARTS

For Model: MGDE500VW2

(White)

W10303329

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Label, Hinge Hole

W10085210

White

W10085230

Silver

W10139920

Door Hinge

Assembly

W10180119

Cover,

Door Hinge

4 3400224 Screw,1/4−20 x 0.5

5 8519356 Retainer−Window

(Upper)

6 8519354 Retainer−Window

(Lower)

W10193522

Handle Ring

W10159996

Screw,

10−24 x 5/16

W10048910

Screw−Plug

10 8578229 Inner Door

11 355515 Screw,

8−18 x 11/16

W10193530

Door Assembly

Outer (Includes

3,7,13,19,20,21,

23)

W10180117

Door Mask

Assembly

14 8577819 Door Assembly

Inner (Includes

2,4,5,6,8,9,10,

15,16,17,18,22)

15 8566254 Window

16 8579662 Seal, Window

17 3393258 Screw,

10−16 x 3/64

W10139457

Seal, Door

W10180118

Door, Intermediate

W10180120

Shield, Door

W10153281

Pad−Foam Frame

22 690081 Door Catch

W10171571

Screen, Door

24 9742177 Screw,8−18 x 5/8

OPTIONAL PARTS (NOT INCLUDED)

For Model: MGDE500VW2

(White)

W10303329

Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

W10218248

Green Metallic

W10218245

Magna Red

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

350938 Primer, Gray

PAINT, BULK (1 qt.)

799344 White (Uncut)

ACCESSORY PARTS

8529894 Hold Down Kit

8522199 Kit, Dryer

Vent Testing

80047 Kit,

Dryer Repair

8579666A Kit,

Door Reversing

Miscellaneous Parts Bag

W10206708

Bag Assembly

(Contains,

The Following )

89503 Hose Inlet,

5’Hose

353362 Filter Washer

350027 Hose Inlet,

2’Hose

W10242307

Washer

W10044604

Connector,

Hose "Y"
