Maytag MSD2554VEA - 25 cu. Ft. Refrigerator Guida alla risoluzione dei problemi

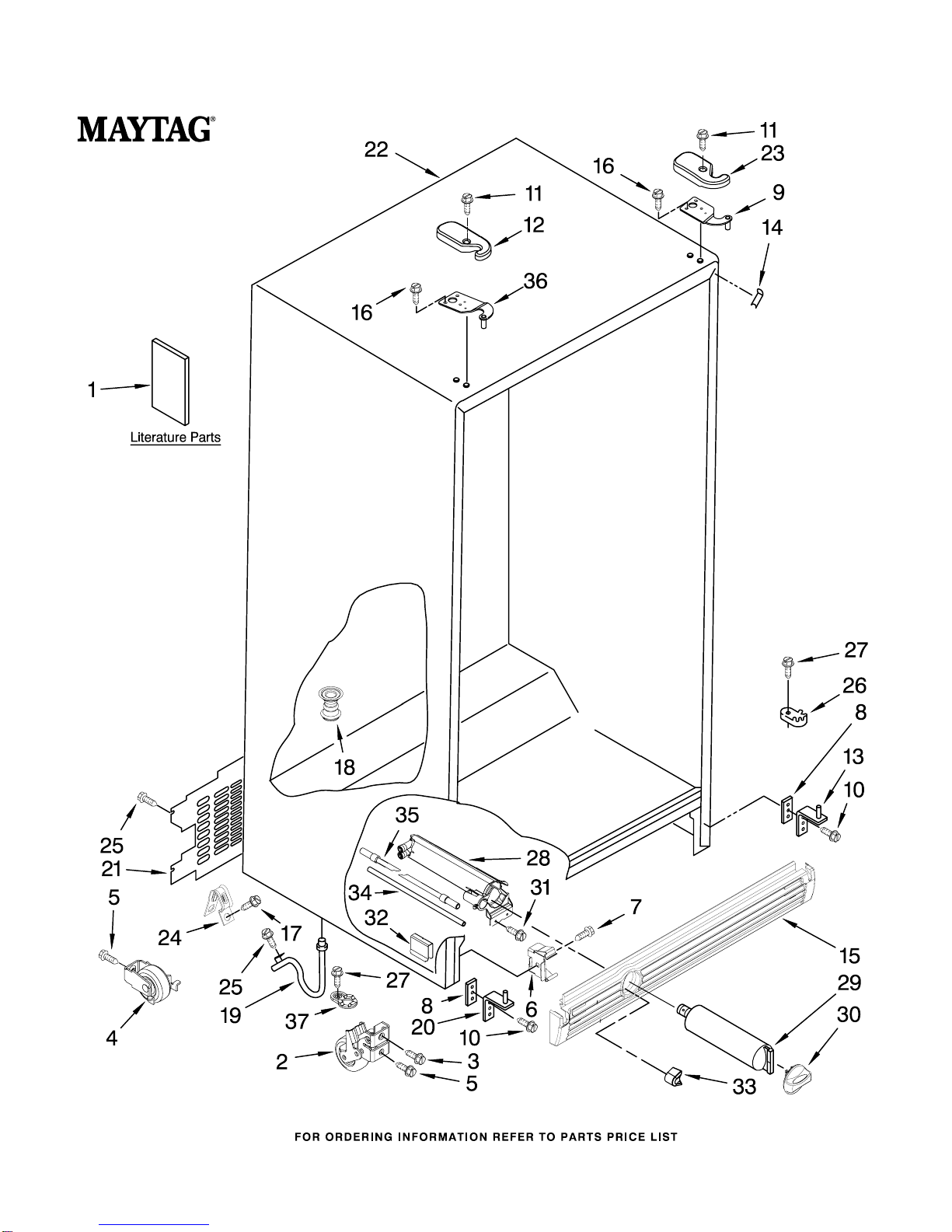

CABINET PARTS

For Models: MSD2554VEW00, MSD2554VEB00, MSD2554VEQ00, MSD2554VEY00, MSD2554VEA00

(White) (Black) (Biscuit) (Stainless) (Monochromatic Satina)

08−08 Printed In U.S.A. (wam)(bay)(psw) Part No. W10216699 Rev. A

REFRIGERATOR

CABINET PARTS

For Models: MSD2554VEW00, MSD2554VEB00, MSD2554VEQ00, MSD2554VEY00, MSD2554VEA00

(White) (Black) (Biscuit) (Stainless) (Monochromatic Satina)

W10216699

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10181247

Energy Guide

W10159882

Owner’s Manual

W10180857

Service and Wiring

Sheet

W10181247

Instruction Sheet

(Door Removal)

2 2174748 Front Roller (2)

3 3400517 Screw

4 2196236 Rear Roller (2)

5 489427 Screw

6 2155013 Clip, Grille

7 489478 Screw

8 2209697 Shim

9 2203771 Hinge Top (RC)

10 3400113 Screw

11 8281227 Screw

12 Hinge Cover (FC)

W10138581

White

W10138582

Black

W10138583

Biscuit

W10138584

Apollo Grey

13 2217075 Bottom Hinge (RC)

14 Filler, Wrapper

2201014 White

2201017 Black

2254507 Apollo Grey

15 Grille

2323580W White

2323580B Black

2323580T Biscuit

2323580MG

Midnight Grey

16 489497 Screw

17 489464 Screw

18 2304888 Drain Fitting

19 2304937 Extension Tube

20 2323833 Bottom Hinge (FC)

21 2188735 Cover, Unit

22 Cabinet (Not A

Serviceable Part)

23 Hinge Cover (RC)

W10138576

White

W10138577

Black

W10138578

Biscuit

W10138579

Apollo Grey

24 549193 Clamp, Service

Cord

25 489084 Screw

26 2155311 Door Closer,

Lower Cam (RC)

27 489483 Screw

W10121138

Housing, Water

Filter

29 8212650 Water Filter

30 Cap, Water

Filter

2260502W White

2260502B Black

2260502T Biscuit

2260502MG

Midnight Grey

31 489500 Screw

32 2260519 Block, Housing

Support

33 Button, Water

Filter

2260503W White

2260503B Black

2260503T Biscuit

2260503MG

Midnight Grey

34 2255012 Tube, Filter

Outlet

35 2319867 Tube, Filter

Inlet

36 2203770 Hinge Top (FC)

37 2223751 Door Closer

Lower Cam (FC)

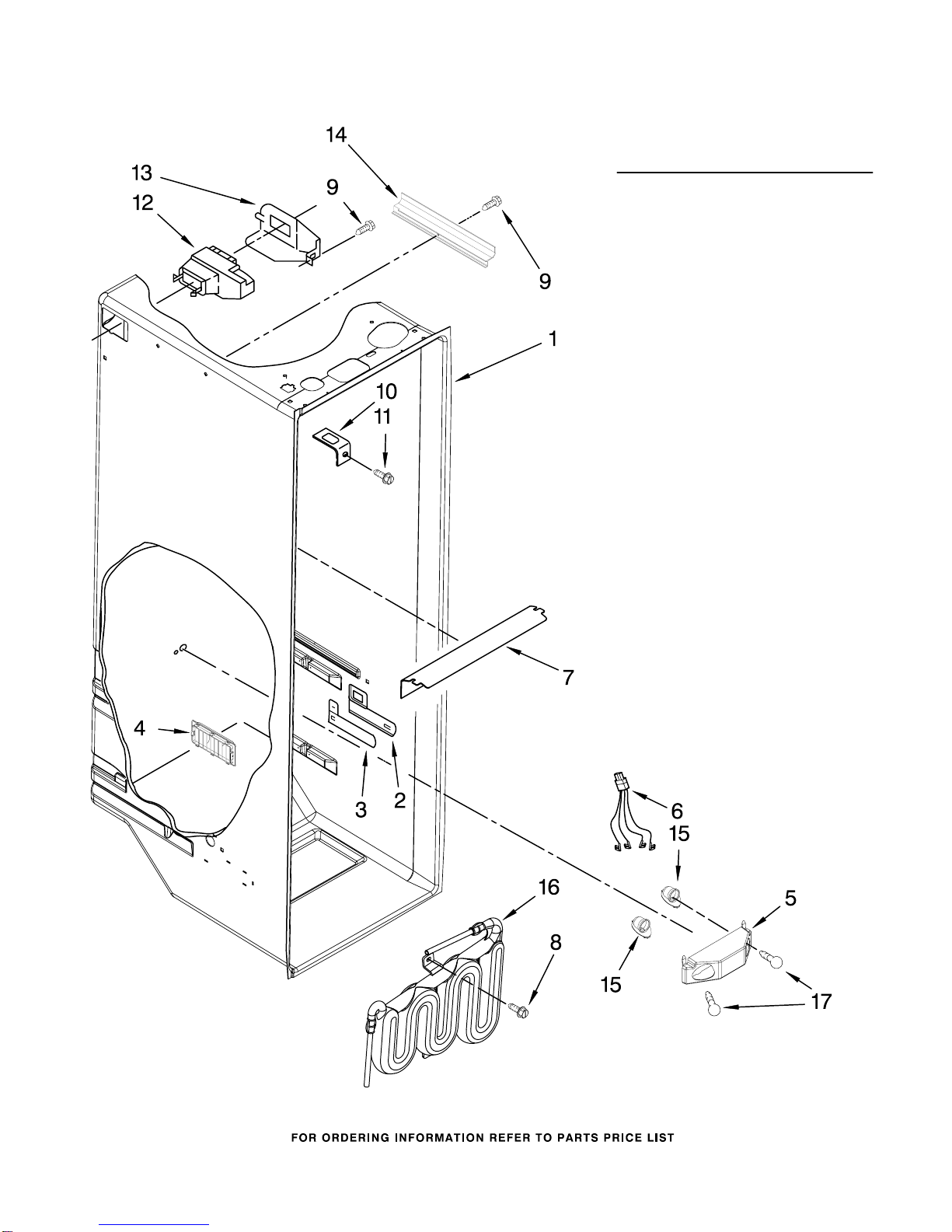

REFRIGERATOR LINER PARTS

For Models: MSD2554VEW00, MSD2554VEB00, MSD2554VEQ00, MSD2554VEY00, MSD2554VEA00

(White) (Black) (Biscuit) (Stainless) (Monochromatic Satina)

W10216699

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

W10175967

Escutcheon, Meat

Pan Control

3 2182757 Slide Meat

Pan Control

4 2257741 Louver

5 2256035 Bracket,

Dual Crisper

Light

6 2311637 Wire Harness,

Dual Crisper

7 2209769 Light Lens

8 488280 Screw

9 486298 Screw (2)

10 2256085 Bracket Retainer

11 489290 Screw

12 2209754 Air Diffuser

Assembly

13 2152019 Air Diffuser

Cover

14 2150331 Cover, Wiring

15 2162085 Socket

16 2307107 Reservoir

17 2311792 Light Bulb

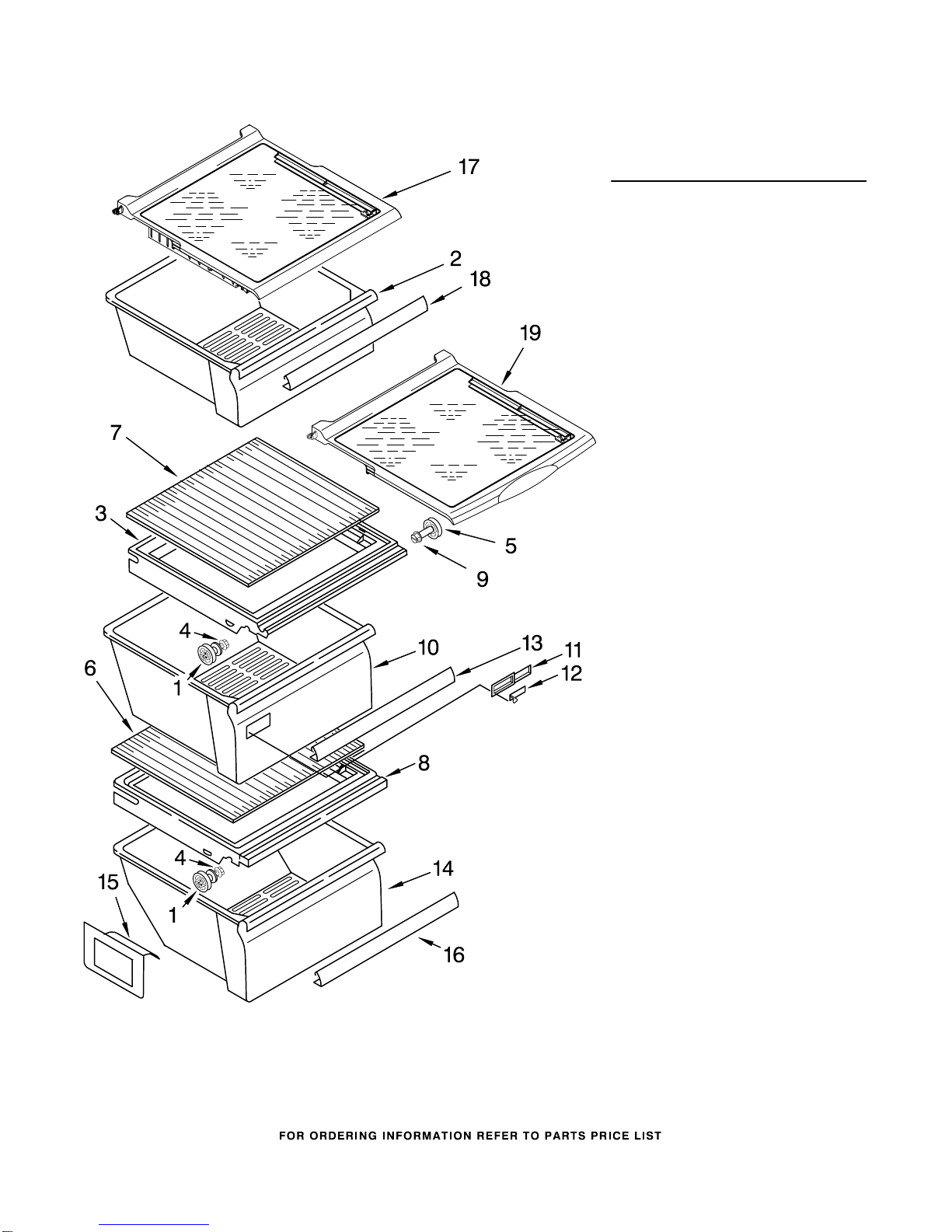

REFRIGERATOR SHELF PARTS

For Models: MSD2554VEW00, MSD2554VEB00, MSD2554VEQ00, MSD2554VEY00, MSD2554VEA00

(White) (Black) (Biscuit) (Stainless) (Monochromatic Satina)

W10216699

Illus. Part

No. No. DESCRIPTION

1 2196485 Stud Assembly

2 2309518 Snack Bin

3 2209698 Cover, Crisper

4 3400894 Screw

5 2196483 Stud Assembly

6 2179259 Glass, Meat Cover

7 2174150 Glass, Cover

8 2311726 Cover, Meat Pan

9 8281158 Screw

10 2188652 Crisper Pan

11 2179343 Body, Humidity

Control

12 2179342 Slide, Humidity

Control

13 2255593 Trim, Handle

14 2188654 Meat Pan

15 2179350 Deflector

16 2255592 Trim, Handle

W10122938

Shelf, Snack Bin

18 2309519 Trim, Handle

19 2309524 Shelf Assembly,

Spillguard (2)

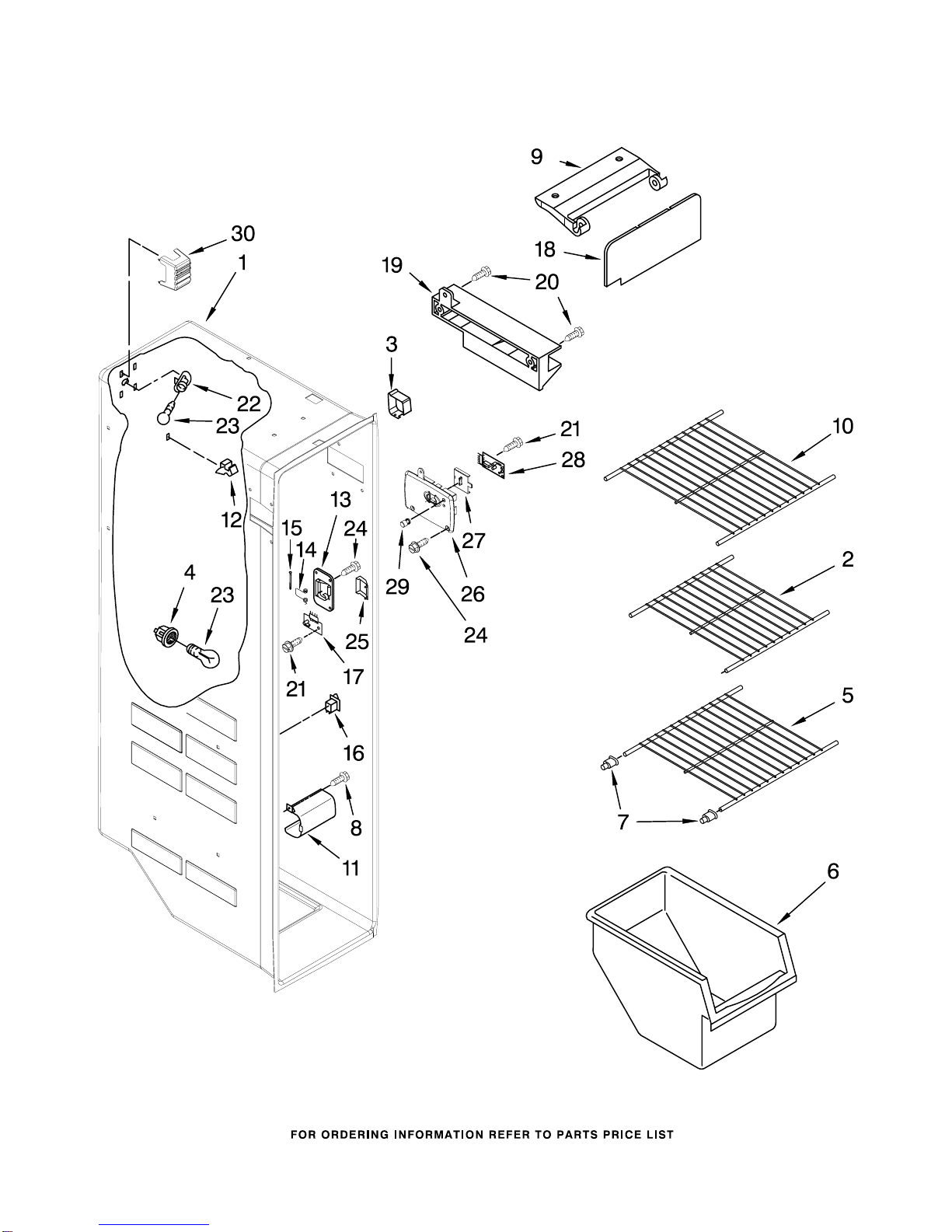

FREEZER LINER PARTS

For Models: MSD2554VEW00, MSD2554VEB00, MSD2554VEQ00, MSD2554VEY00, MSD2554VEA00

(White) (Black) (Biscuit) (Stainless) (Monochromatic Satina)

W10216699

FREEZER LINER PARTS

For Models: MSD2554VEW00, MSD2554VEB00, MSD2554VEQ00, MSD2554VEY00, MSD2554VEA00

(White) (Black) (Biscuit) (Stainless) (Monochromatic Satina)

W10216699

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 2312041 Shelf

Upper

3 2303234 Shield Wiring

4 2155597 Socket, Light

5 2309597 Shelf

6 2309757 Freezer Bin

W10130299

Cup, Shelf (16)

8 3400893 Screw

9 2198641 Bracket, Ice Maker

Cover

10 2309596 Shelf (2)

11 2212340 Light Lens

12 842534 Clip, Air Duct (2)

13 2198587 Cover, Emitter

14 2198635 Spring

15 2198634 Pin

16 1115373 Switch, Rocker Arm

17 2220398 P.C. Board

Emitter

18 2255720 Cover, Ice Maker

19 2212321 Slide, Ice Maker

Mounting

20 489478 Screw

21 489214 Screw

22 2162085 Light Socket

23 2311792 Light Bulb

24 8281185 Screw

25 2198633 Flipper

W10173569

Cover, Receiver

27 2315398 Slide, Ice Maker

Shut Off

28 2255114 P.C. Board,

Receiver

29 2198643 Lens

30 2198589 Light Shield

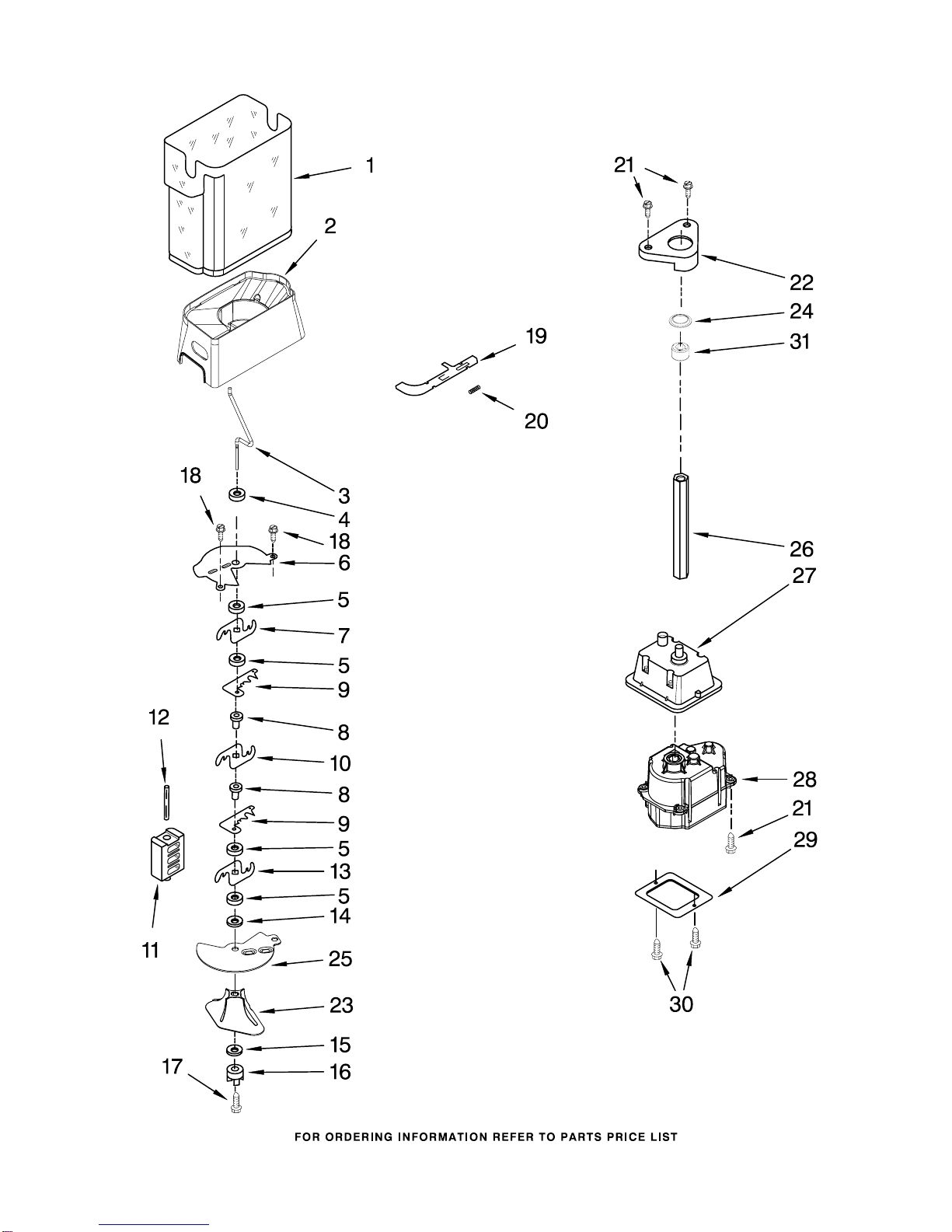

MOTOR AND ICE CONTAINER PARTS

For Models: MSD2554VEW00, MSD2554VEB00, MSD2554VEQ00, MSD2554VEY00, MSD2554VEA00

(White) (Black) (Biscuit) (Stainless) (Monochromatic Satina)

W10216699

MOTOR AND ICE CONTAINER PARTS

For Models: MSD2554VEW00, MSD2554VEB00, MSD2554VEQ00, MSD2554VEY00, MSD2554VEA00

(White) (Black) (Biscuit) (Stainless) (Monochromatic Satina)

W10216699

Illus. Part

No. No. DESCRIPTION

1 2198573 Ice Bin

W10170127

Crusher Bin

3 2317240 Auger

4 2258220 Washer

5 1119007 Spacer, Flat (4)

6 2317248 Cover, Crusher

7 2257024 Blade, Rotary

8 1119005 Spacer, Step (2)

9 2257020 Blade, Fixed

10 2257023 Blade, Rotary

11 2317239 Block, Blade

12 489229 Roll Pin

13 2257022 Blade, Rotary

14 489235 Washer, Plain

15 2198661 Washer, Coupling

16 2188918 Coupling

17 8281164 Screw

18 3400065 Screw

19 2317277 Latch, Bin

20 2198608 Spring, Latch

21 8281163 Screw

22 2188919 Holder

23 2317243 Wiper

24 2198628 Seal

25 2317250 Divider, Chamber

26 2188916 Drive Shaft

27 2322488 Enclosure, Motor

28 2322580 Dispenser, Motor

29 2212305 Cover

30 489478 Screw

31 2315559 Sleeve, Coupling

100

W10204467

Ice Container

(Complete)

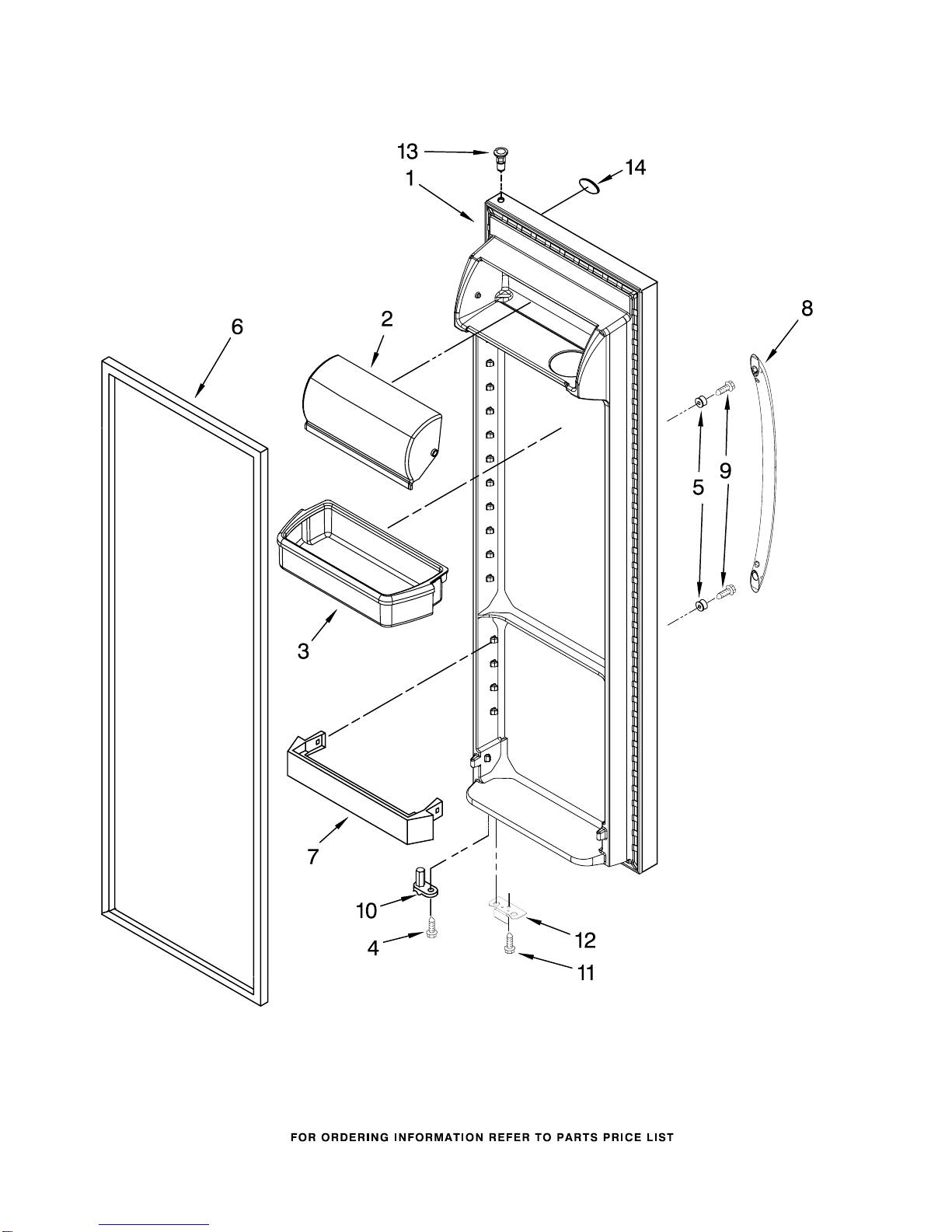

REFRIGERATOR DOOR PARTS

For Models: MSD2554VEW00, MSD2554VEB00, MSD2554VEQ00, MSD2554VEY00, MSD2554VEA00

(White) (Black) (Biscuit) (Stainless) (Monochromatic Satina)

W10216699

REFRIGERATOR DOOR PARTS

For Models: MSD2554VEW00, MSD2554VEB00, MSD2554VEQ00, MSD2554VEY00, MSD2554VEA00

(White) (Black) (Biscuit) (Stainless) (Monochromatic Satina)

W10216699

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(Includes Item #6)

W10172362

White

W10172363

Black

W10172364

Biscuit

W10172369

Stainless

W10172476

Satina

2 2256101 Compartment Door

3 2304235 Shelf Bin (3)

4 3400012 Screw

5 2326259 Stud

6 Door Gasket,

Magnetic

2309528 Mist Beige

2309529 Black

2327163 Apollo Grey

7 2156022 Shelf Bin

8 Handle

(Includes #13)

67006114 White

67006115 Black

67006982 Biscuit

67006391 Stainless/Satina

9 488208 Screw (2)

10 2182178 Door Closer,

Upper Cam

11 489420 Screw

12 Bracket, Door Stop

2206629 Chrome

2206629B Black

13 2308091 Thimble−Top

14 2324038 Nameplate
