Maytronics Dolphin C5 Manuale utente

Dolphin C5 Pool Cleaner

8151656

Operating Instructions ............p. 1-8

Instrucciones de uso ...............p. 9-16

Instructions d’opération ..........p. 17-24

Dolphin C5 Pool Cleaner | Operating Instructions 1

Contents

1. INTRODUCTION ................................................................................. 2

2. SPECIFICATIONS ................................................................................ 2

3. WARNINGS AND CAUTIONS............................................................ 2

3.1. Warnings .................................................................................... 2

3.2. Cautions ..................................................................................... 2

4. POOL CLEANER PARTS...................................................................... 3

5. USING THE POOL CLEANER............................................................. 4

5.1. Set up ......................................................................................... 4

5.2. Putting the Pool Cleaner into the pool ................................... 5

5.3. Removing the Pool Cleaner from the pool ............................. 5

5.4. Maintenance .............................................................................. 6

5.5. Off-season storage.................................................................... 7

6. REMOTE CONTROL UNIT ................................................................ 8

CADDY ASSEMBLY ................................................................................. 25

Dolphin C5 Robotic Pool Cleaner

Operating Instructions

Dolphin C5 Pool Cleaner | Operating Instructions

Dolphin C5 Pool Cleaner

Operating Instructions

1. INTRODUCTION

Thank you for purchasing a Maytronics Robotic Pool Cleaner.

We are sure that your Maytronics Robotic Pool Cleaner will provide you with reliable, convenient and

cost effective pool cleaning. Its reliable ﬁltration in all pool conditions and all-surface climbing brush

enhance maximum pool hygiene.

The Robotic Pool Cleaners by Maytronics deliver advanced cleaning technology, long lasting

performance and easy maintenance.

2. SPECIFICATIONS

Motor protection: IP 68

Minimum depth: 2.6ft / 0.80m

Maximum depth: 16.4ft / 5m

3. WARNINGS AND CAUTIONS

3.1. Warnings

• Use the originally supplied power supply only

• Ensure the electrical outlet is protected by a ground fault interrupter (GFI) or an earth

leakage interrupter (ELI)

• Keep the power supply out of standing water

• Position the power supply at least 10ft / 3m away from the edge of the pool

• Do not enter the pool while the pool cleaner is working

• Unplug the power supply before servicing

3.2. Cautions

When not in use store the Pool Cleaner on the caddy in a shaded area.

Use the Pool Cleaner in the following water conditions only:

Chlorine Max 4 ppm

pH 7.0 - 7.8

Temperature 43-93°F / 6-34°C

NaCl Maximum = 5000 ppm

CAUTION

Dolphin C5 Pool Cleaner | Operating Instructions 3

caddy

Power Supply

Unit

Dolphin C5

Combined Brush

All surface climbing

brush ideal for most

pool surfaces

Wonder Brush

For smooth ceramics

(optional)

Remote Control Unit

Bottom lid and ﬁlter Bag

Filter bag options:

Fine - factory default

Ultra ﬁne - Optional

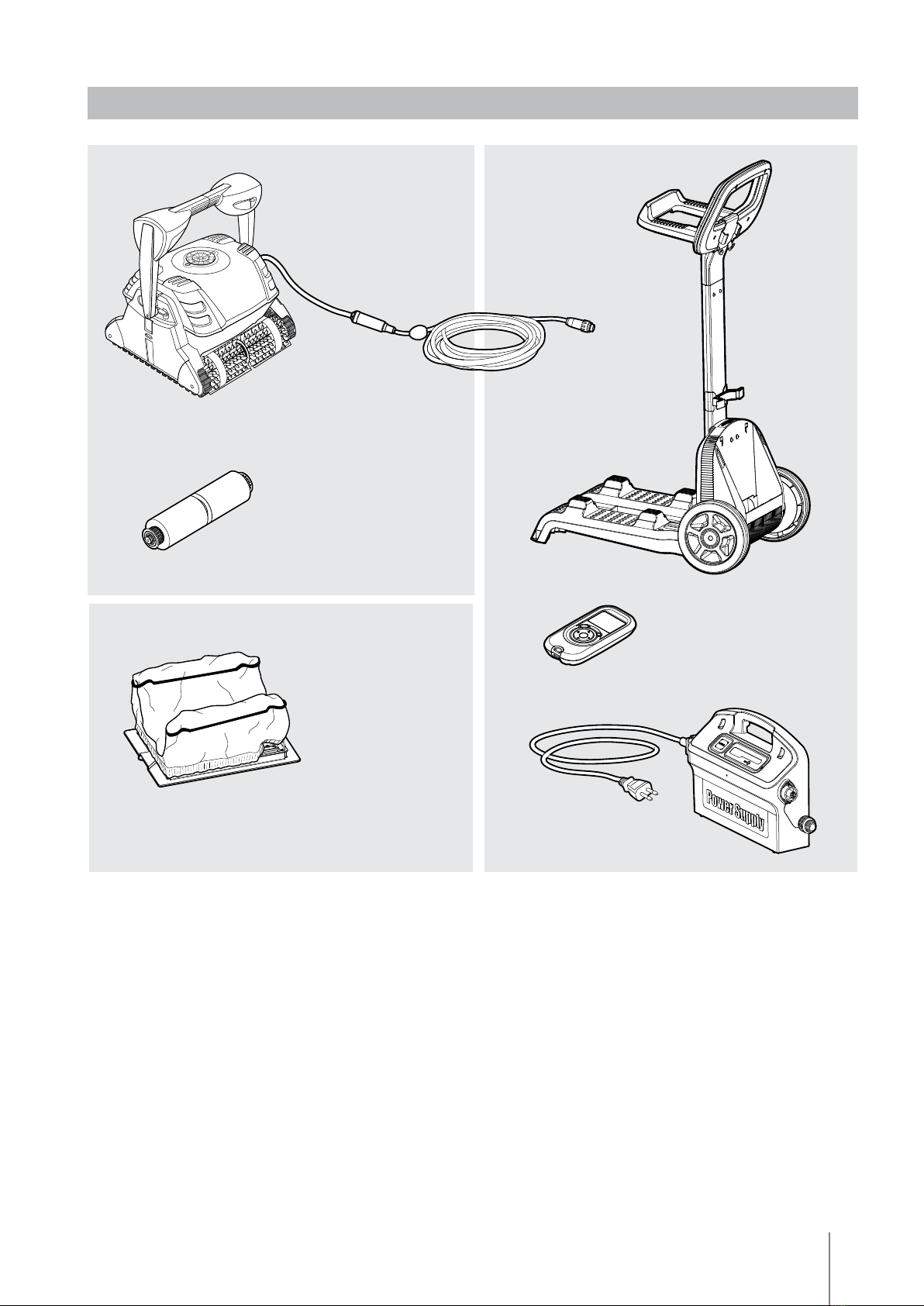

4. POOL CLEANER PARTS

Dolphin C5 Pool Cleaner | Operating Instructions

Change diagonal handle position

for water line sideway movement.

To adjust the handle angle:

A. Press the latch down and hold

it in position.

B. Move the handle to the desired

position and release the latch

to hold the handle in place.

Attach the floating cable to the

power supply by inserting it with the

notch on the connector (1) lined up

with the groove in the socket on the

power supply and turning clockwise (2).

5. USING THE POOL CLEANER

5.1. Set Up

1,2: Normal advance

More efﬁcient cleaning

action on water-line.

3,4: Fast advance

Fast speed – for faster

but less efﬁcient cleaning

action on water-line.

GFI/ELI

10ft/3m

104°F Max

40°C Max

Unwind the cable and stretch it out

completely so that it has no kinks.

Remove the plastic coverings before use.

Before using the Pool Cleaner for the ﬁrst time perform the following steps.

Dolphin C5 Pool Cleaner | Operating Instructions 5

Turn the power supply ON.

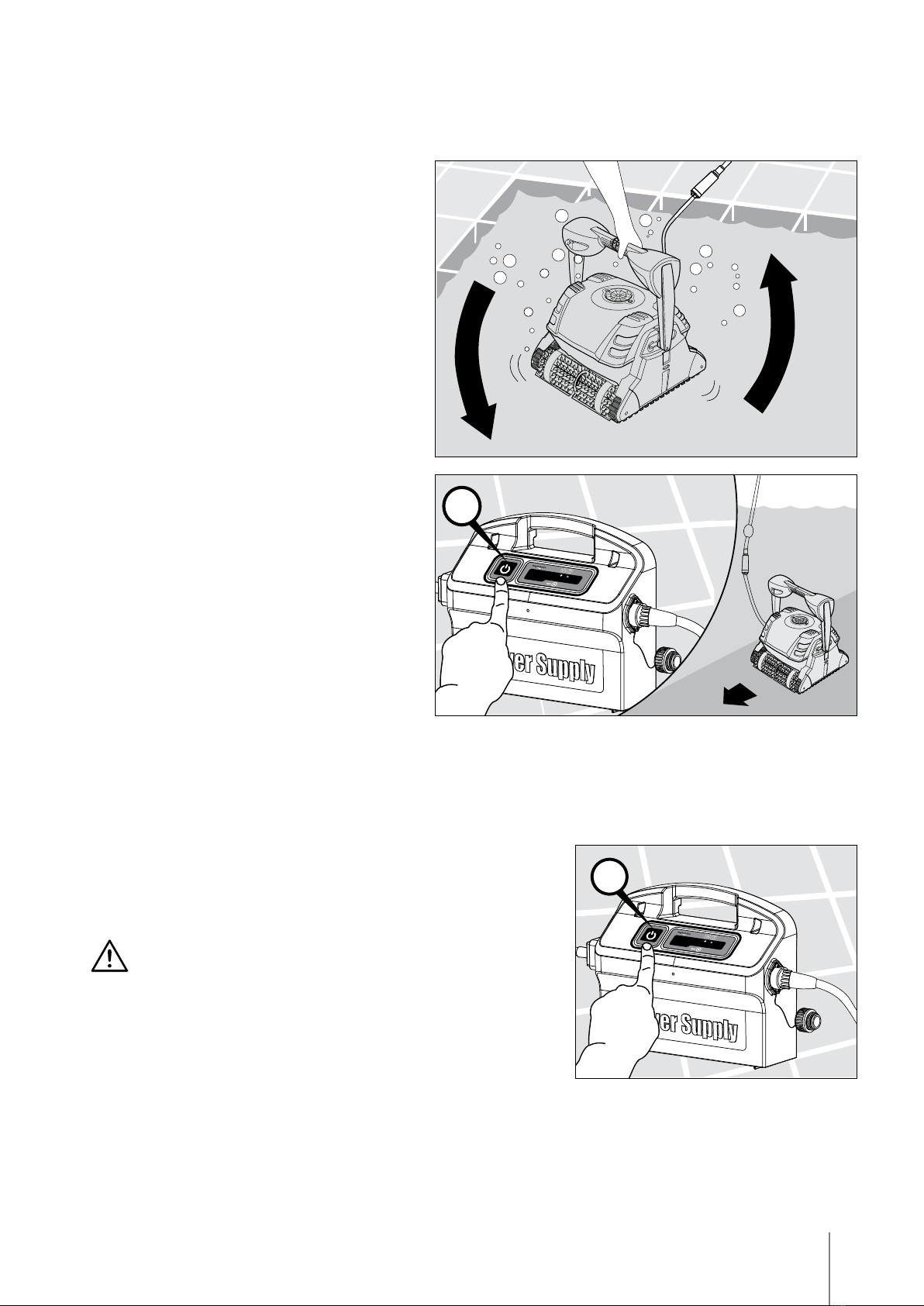

5.2. Putting the Pool Cleaner into the pool

5.3. Removing the Pool Cleaner from the pool

CAUTION

Turn OFF and unplug the power supply.

Shake the robot from side to side or turn

it upside down to release trapped air.

Let it sink to the pool floor.

If the foam climbing rings on the brushes are dry soak them in water until soft.

The robot will perform automatic shut-off at the end of the cleaning cycle.

OFF

Dolphin C5 Pool Cleaner | Operating Instructions

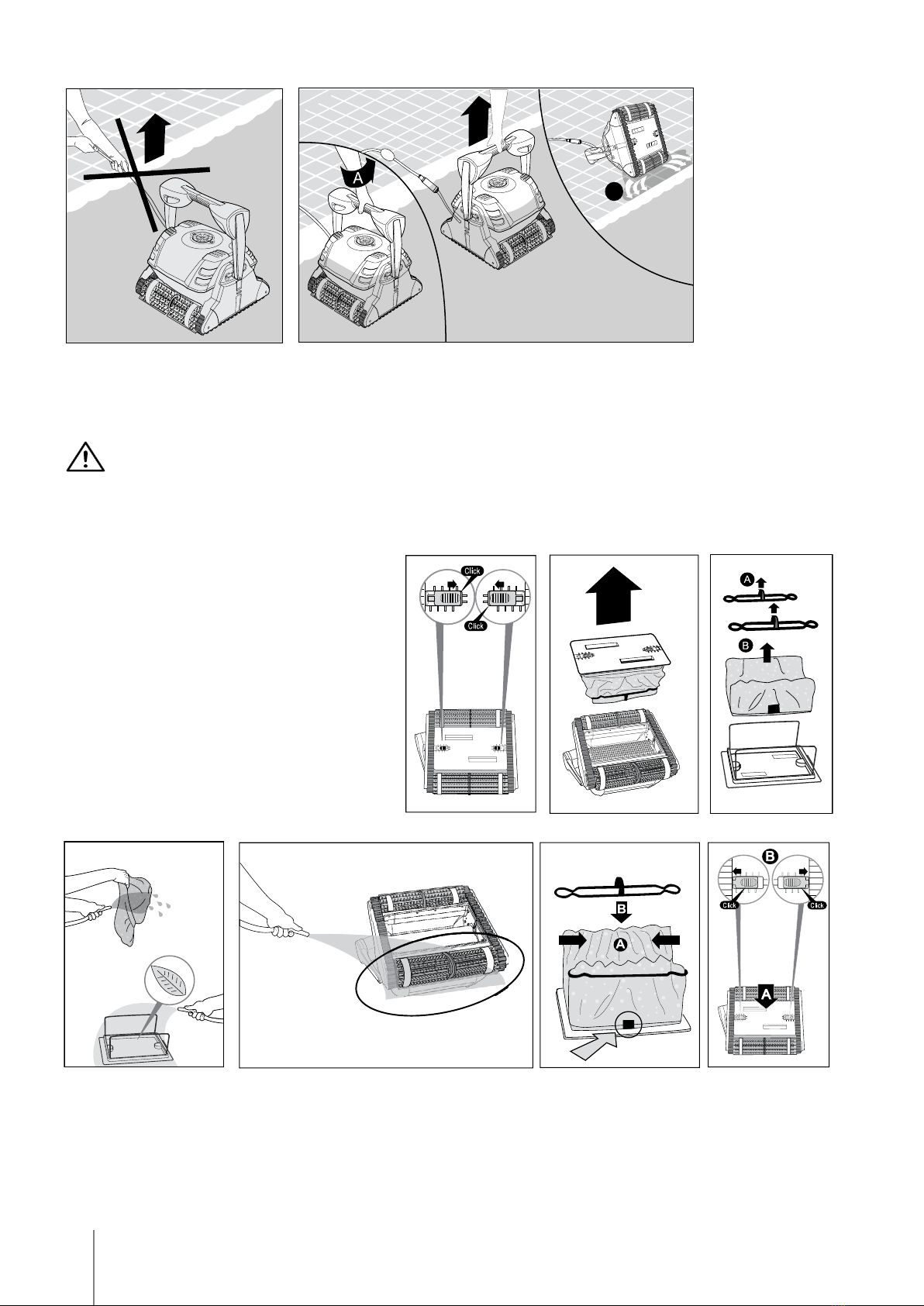

Using the ﬂoating cable, bring the Pool Cleaner to the pool’s edge.

Clean the filter bag with a hose.

Periodically clean the brushes with a hose.

It is recommended to periodically wash

the filter bag in a washing machine.

Use gentle cycle program.

5.4. Maintenance

CAUTION

DO NOT PULL THE POOL CLEANER FROM THE POOL USING THE CABLE.

Dolphin C5 Pool Cleaner | Operating Instructions 7

If you notice debris

trapped in the

impeller, open

the impeller and

remove the debris.

If the pool cleaner will not be in use for an extended

period, perform the following storage steps:

• Make sure that no water is left in the pool cleaner

• Thoroughly clean the ﬁlter bag and insert in place

• Roll up the cable so that it has no kinks and place

on the caddy

• Store the pool cleaner upright on the caddy in

a protected area out of direct sun/rain/frost at a

temperature of between 41˚-113˚F / 5˚-45˚C

5.5. Off-season storage

Cleaning the impeller

Unplug the power supply.

To remove the

kinks, stretch

the cable out

completely and let

it sit for at least a

day in the sun.

Cable

Dolphin C5 Pool Cleaner | Operating Instructions

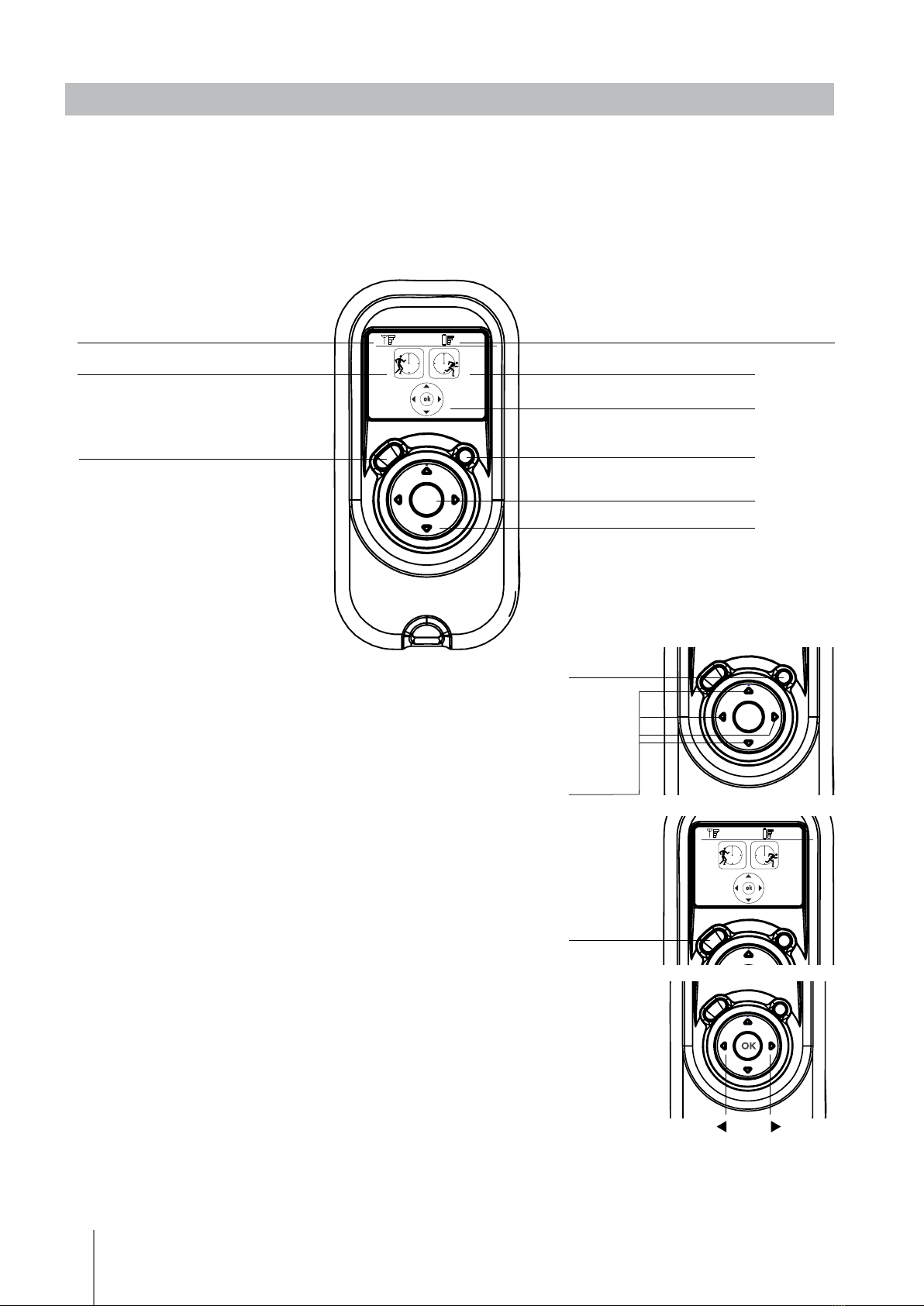

6. REMOTE CONTROL UNIT

Maytronics Cycle Selector Remote Control

The Remote Control Unit offers two operation modes - Automatic mode and Manual direction mode.

In Automatic cleaning mode, the fast or regular cleaning cycle can be selected.

In Manual direction mode, the pool cleaner direction can be controlled manually.

The Control Panel of the Remote Control Unit

Manually controlling the

direction of the Pool Cleaner

1. Press the ON/OFF button once - The Remote Control Unit will

start-up in Manual direction control mode.

2. To manualy control the direction of the pool cleaner, utilise the

Direction control arrows.

Exiting Manual Direction Control Mode and set the

Automatic Mode

To exit the Manual direction control mode press the Manual/

Automatic Selection button ONCE only.

The Digital screen will light up and the two (regular/fast) icons

will show up.

To choose regular or fast cleaning cycle use the right or left arrows.

When you reach the required function press the Set/OK button.

Note: After 2 minutes, if no button is pressed the Remote Control Unit will shut-down and the Pool cleaner

will continue to work as started.

Radio reception meter -

If no black lines show you should move

closer to the power supply unit

Set/OK button

Direction control arrows

Battery level meter -

When the icon ﬂashes, change the batteries

Fast cleaning cycle

Manual control indicator

Manual/Automatic mode

select button ON/OFF button

Regular cleaning cycle

Direction

control

arrows

ON/OFF

button

Manual/

Automatic

mode select

button

Arrows
