MB QUART NAUTIC NF1-116SB Manuale di istruzioni

If you are replacing an older or inferior speaker, the

location is chosen for you. Make sure the speaker ts

properly in the hole for the old speaker.

If you are creating your own new location, you must be

careful to verify that there is sufcient depth to mount the

speaker.

Choose a suitable

mounting location

Speaker Mounting Location

Speaker Dimensions

CAUTION

Always consider consulting a professional audio installer

before installing new speakers. Many manufacturers locate

speakers behind interior panels that require special tools to

remove. Be careful and take your time.

If you are using the speaker wire supplied with your new

speakers make sure that you run the speaker wires only

through safe areas. Do not let speaker wire make contact with

metal edges or hot engine components.

Congratulations on your choice of a MBQuart speaker.

This “Quick Start” Installation guide is meant to help

you complete a basic installation. For more detailed

information on system setting, speaker and subwoofer

conguration, and full specications by model, visit our

website at mbquart.com

It’s a good idea to conrm that you have purchased the

correct size speakers to t your application. If you have any

reservations about being able to complete the installation

yourself, we recommend contacting a professional.

A B C D

NF1-116SB/SW 7.5” (190.5) 1” (25.4) 1.125” (29) 5.25” (133.4)

Before you start

Once you are sure the speaker ts and has

adequate clearance, connect the positive and

negative wires to the proper terminals. Securely

screw the speaker into place.

Carefully select a route for the speaker wires. If

using existing speaker wires, conrm that the wire is

in good shape and not shorted.

Conrm t and

mount speaker

Route signal

Speaker installation

Wiring

Audio Signal

Negative

Audio Signal

Positive

Audio Signal

Negative

Audio Signal

Positive

Quick Start

Installation Guide

WARRANTY

Maxxsonics, LLC. warrants this product, to the original consumer purchaser, to be free from

defects in material and workmanship for a period of one (1) year from the date of purchase.

Maxxsonics, LLC. will, at it’s discretion, repair or replace defective products during the warranty

period. Components that prove to be defective in materials and workmanship under proper

installation and use must be returned to the original authorized Maxxsonics, LLC. retailer from

where it was purchased. A photocopy of the original receipt must accompany the product being

returned. The costs associated with removal, re-installation and freight are not the responsibility of

Maxxsonics, LLC. This warranty is limited to defective parts and specically excludes any incidental

or consequential damages connected therewith. To view the full warranty, please visit the website.

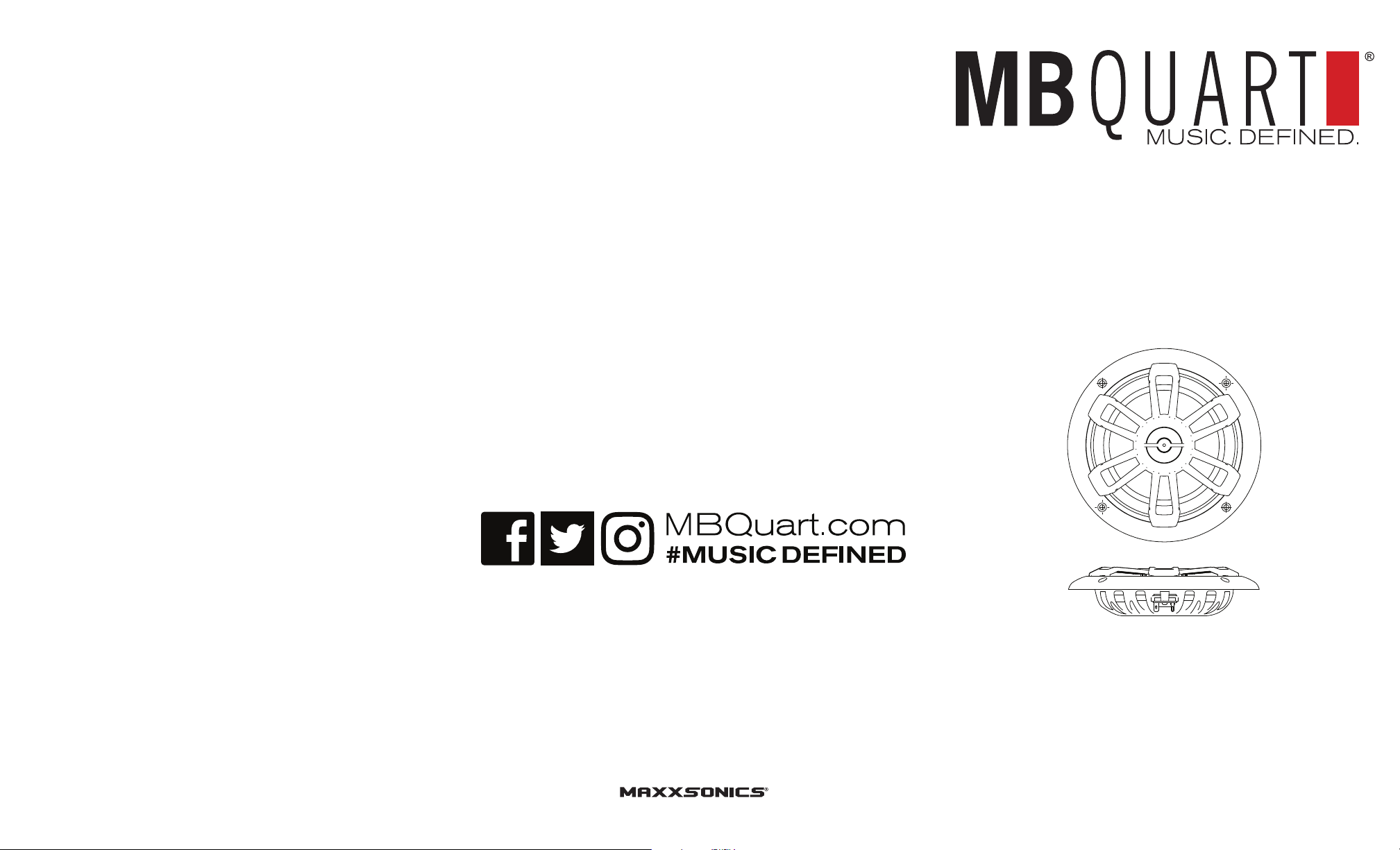

MB Quart products are designed and engineered in the USA by

www.maxxsonics.com

NF 1-116SBNF 1-116SB

NF 1-116SWNF 1-116SW

NAUTICNAUTIC

ULTRA COMPACT SPEAKERSULTRA COMPACT SPEAKERS

MBQ NF1-116SB/SW QSG 01 - rev1

NF1 SPEAKER ASSY.

DO NOT

SCALE DRAWING

0192-NF1-116.

SHEET 1 OF 2

11.15.2018

ZOFIA RYAN

SCALE: 1:2

REV

DWG. NO.

SIZE

DESCRIPTION:

DRAWN BY:

WHITE

AS PER BOM

FINISH:

MATERIAL:

DRAWN DATE:

851 E Park Ave, Libertyville,IL 60048

DIMENSIONS ARE IN MM

TOLERANCES:

ONE PLACE DECIMAL

0.1

TWO PLACE DECIMAL

0.5

UNLESS OTHERWISE

SPECIFIED:

NO SHARP CORNERS AND

EDGES.

PROPRIETARY AND CONFIDENTIAL

THE INFORMATION CONTAINED IN

THIS DRAWING IS THE SOLE PROPERTY

OF MAXXSONICS USA, INC.

ANY REPRODUCTION IN PART OR AS A

WHOLE WITHOUT THE WRITTEN

PERMISSION OF MAXXSONICS USA, INC.

IS PROHIBITED.
