Medeli DD403 Manuale utente

1Check the include items

Setup Guide

CYMBAL PADS BOX

Cymbal Pad x 1

for Hi-Hat

Cymbal Pad with choke x 2

for Crash & Ride

DRUM PADS BOX DRUM MODULE BOX

ACCESSORIES BOX

BASS DRUM PEDAL BOX

HI-HAT PEDAL BOX

Owner’s Manual

Drum Key

Setup Guide

AC Adaptor

Connection Cable X 9

Hexagon Key

WARNING:

Drum key can be pinched when adjusting clamps with drum key. Operate carefully.

Be careful around pipe ends, inside the pipe and screw ends. Metal shavings, etc. May injure your fingers.

Snare Pad x 1

Cymbal Holder x3 Drumsticks Handscrews x 2

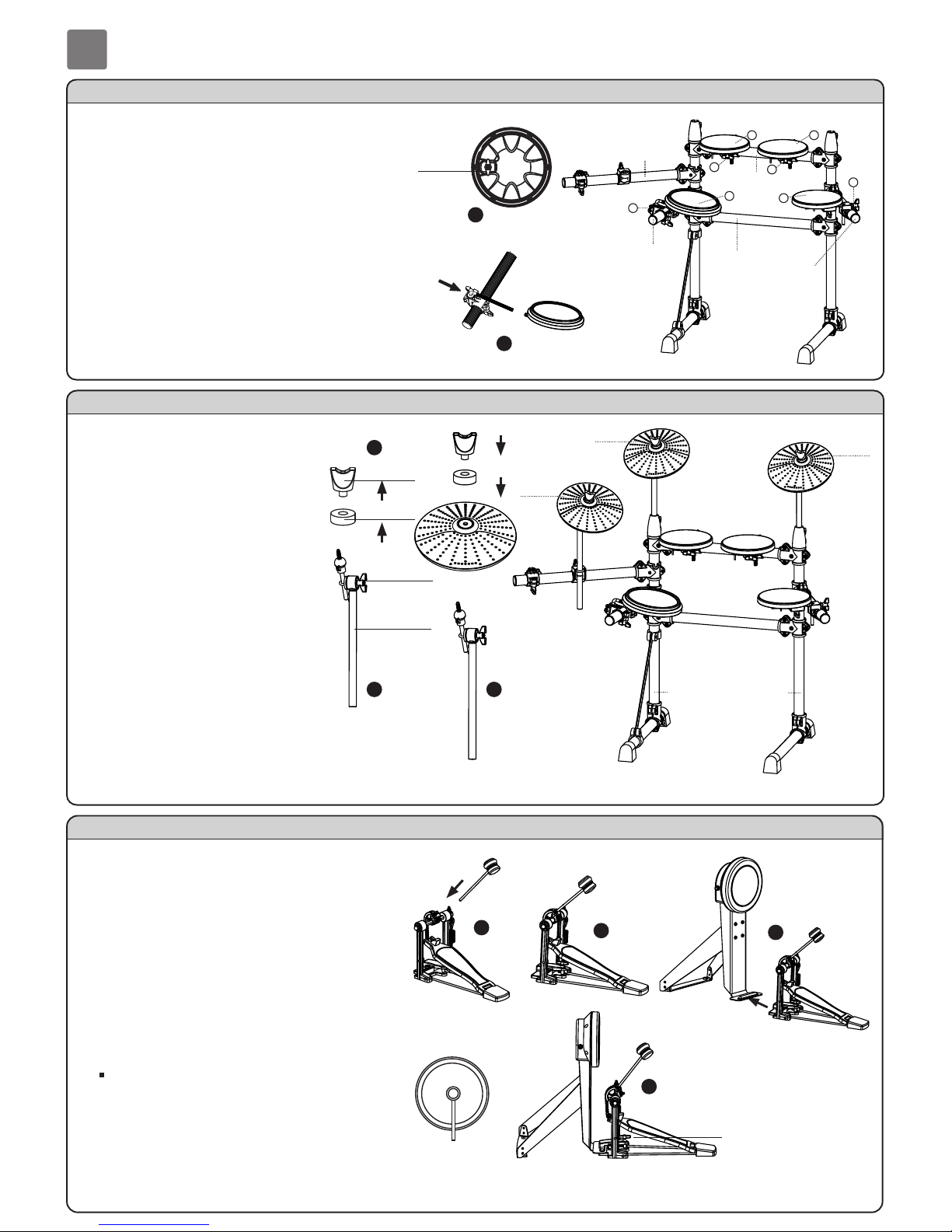

2Attach the Parts

Attach the Pads

1.Loosen wing nut on the holder

clamp, which is on the center

pipe(1),side arm(L2)and side

arm（R）.

2.Attach drum pads to the holder

clamp on center pipe(1),side

arm(L2),side arm(R) and tighten

wing nuts. Repeat for each pad.

Wing Nut

Attach the Cymbal Pads

1. Remove the wing nut and felt

washer from the cymbal tilter.

2. Place the cymbal pad, felt

washer, wing nut 3 assembly as

shown, and tighten the wing nut

3 to obtain an appropriate

amount of sway.

3. Adjust the cymbal pad position

with the wing nut 4.

Wing Nut 3

Felt Washer

Wing Nut 4

Cymbal Tilter

Assemble the Kick

1. Insert the beater to the beater holder on

the foot pedal.

2. Adjust the beater position and tighten

the beater with the drum key.

3. Attach the foot pedal to the kick pad.

4. Adjust the beat position and tighten the

wing nut.

Note:

Position the one beater in the center

of the kick pad kick .

123

Wing Nut

Center Pipe(1)

Side Arm(L1)

2 2

Side Arm(L2)

Side Arm(R)

Center Pipe(2)

Pillar(L) Pillar(R)

Hi-Hat

Crash

Ride

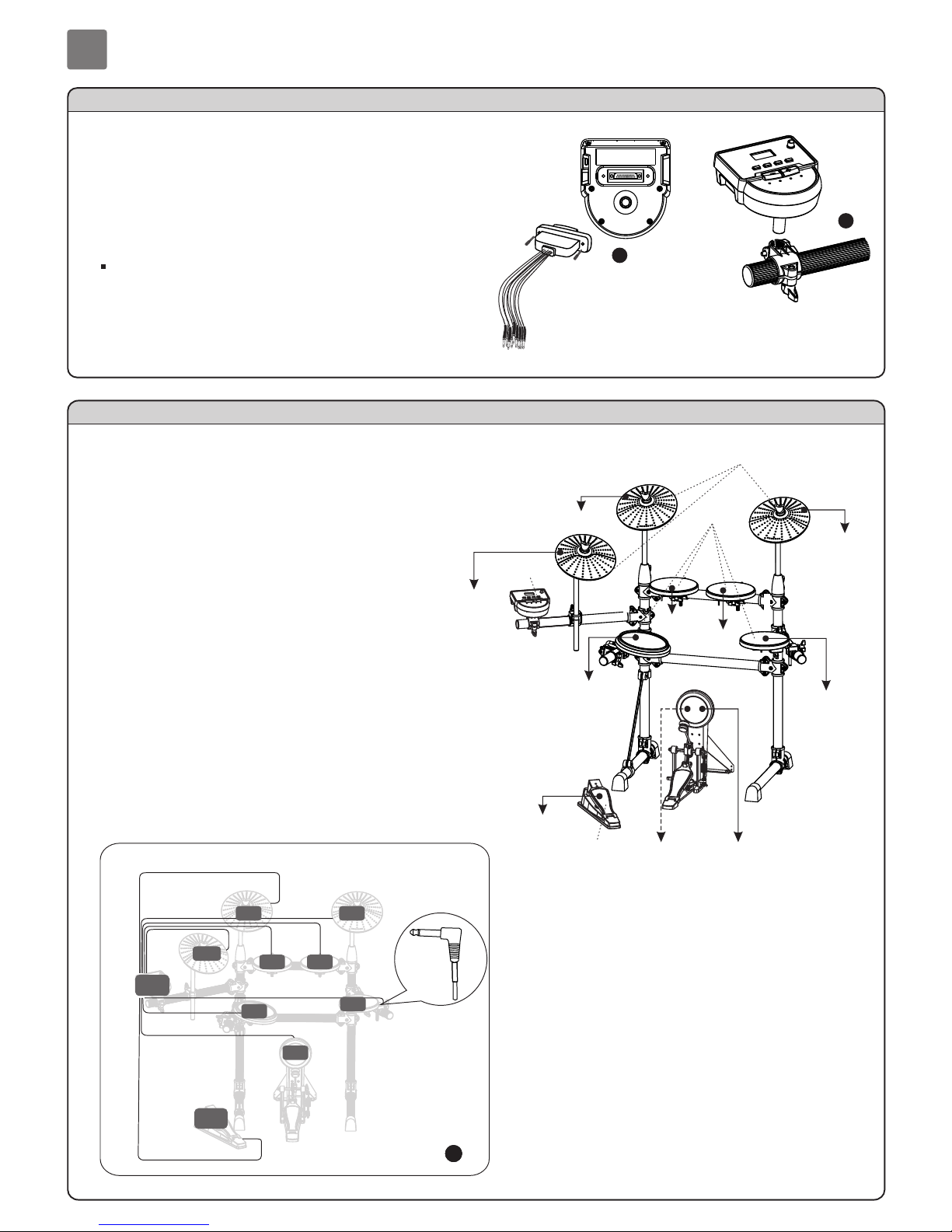

Attach the Drum Module

1. Connect the cable to the drum module as shown with

hands crews.

2. Attach the drum module to the mount holders on Side

Arm (L1), and firmly tighten the relevant wing nut.

Note:

Adjust the drum module position by moving the mount

holders as needed, and firmly tighten the relevant wing

nut.

Connection Procedure

1. Place the kick on the floor in the center of the rack as

shown.

2. Place the hi-hat pedal on the floor on your left side.

3. Connect the pads to the drum module with the marked

cables.

Are you ready? Let's enjoy playing it.

3Connect the Pads to the Drum Module

Hi-Hat

Drum

Module

Ride

Kick

Hi-Hat

Pedal

Make connections as shown in the illustration.

Tom 3

Crash

Tom2Tom1

Snare Tom3

Drum Module

Drum Pad

Cymbal Pad

PedalHi-Hat

control

Hi-Hat

To Kick

Tom 2To

Tom 3To

SnareTo

Tom 1To

Kick Pad

Hi-HatTo

To Crash

RideTo
