Medline MDS86410TRIG Manuale utente
Trigger walker with 5" (12.7 cm) wheels, Black
MDS86410TRIG
STEPBYSTEP
ASSEMBLY GUIDE.
2MEDLINE |MDS86410TRIG | PIC-00262 (Rev: 10-12-20)
A
C
What’s Included:
B
Front cross braces are
located near top of walker
toallow full stride
Easy-to-use, large,
triggermechanisms
Height adjustable leg
extensions w/ wheeled
glide brakes
• Weighs only 8 lbs (3.6 kg)
with wheels!
• Height adjustable
• 5" (12.7 cm) wheels for
smooth ride
1-800-MEDLINE (633-5463) |medline.com 3

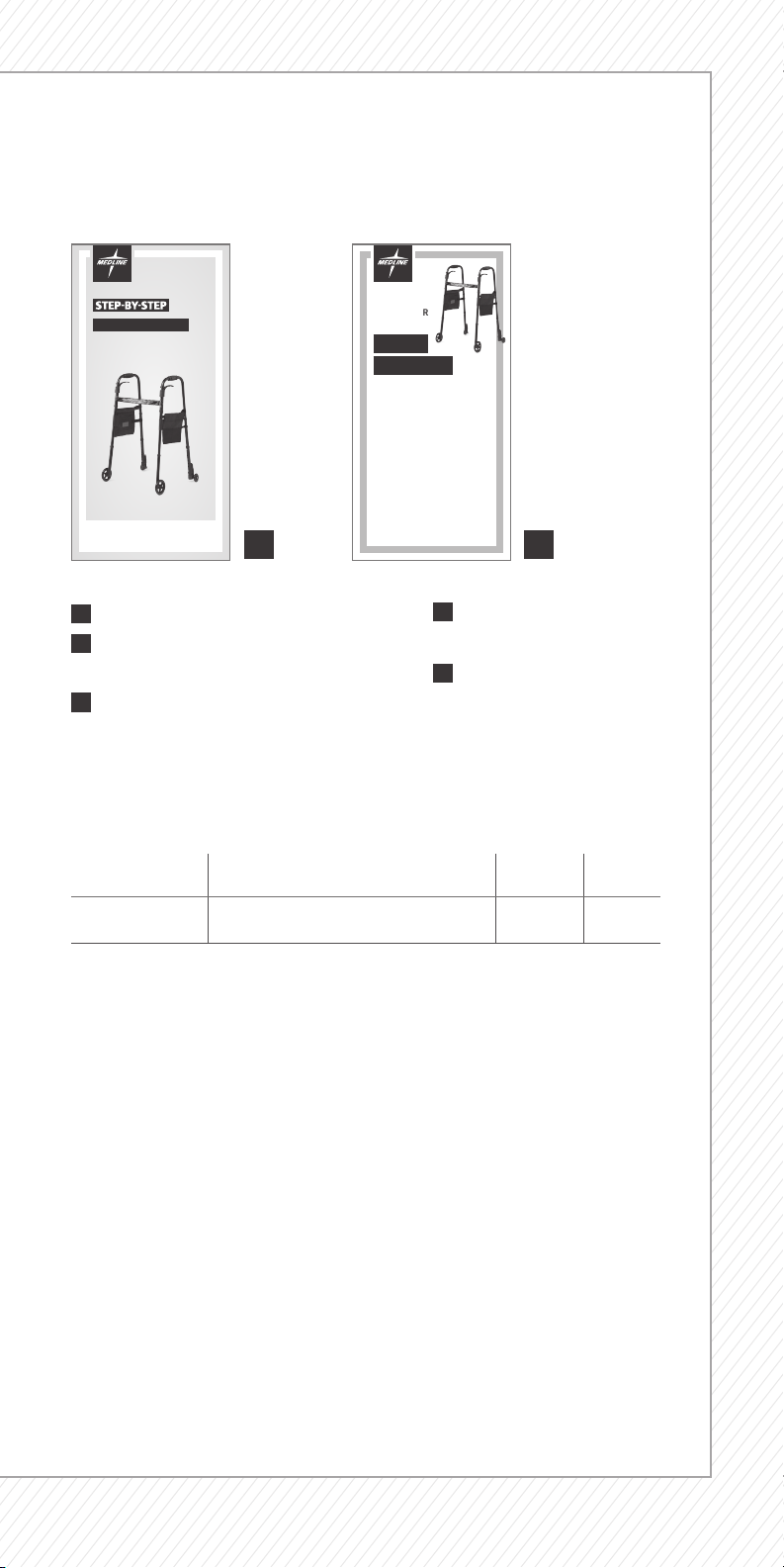

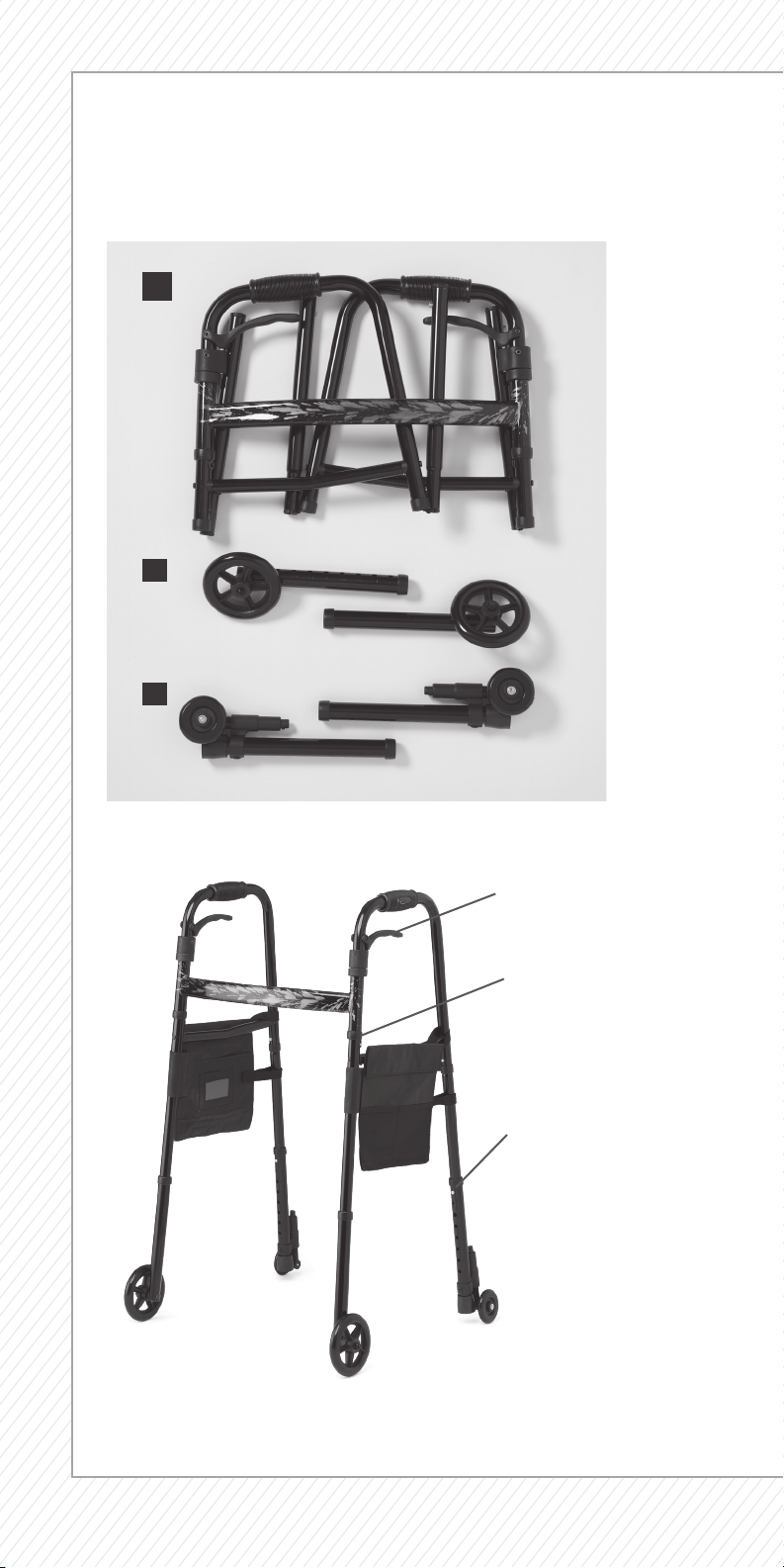

AWalker Frame
B2 Wheeled Extensions -
5" (12.7 cm) wheels
C2 Extensions w/ Wheeled Glide Brakes
DStep-By-Step
Assembly Guide
ESafety Guidelines
Trigger walker with 5" (12.7 cm) wheels, Black
MDS86410TRIG
ASSEMBLY GUIDE.
D E
This guide applies to the following walker:
Item Number Description Frame
Color
Weight
Capacity
MDS86410TRIG Folding trigger walker w/ 5" wheels &
wheeled glide brakes Black 300 lbs
(136 kg)
1-800-MEDLINE (633-5463) | medline.com 1
THE WALKER
SAFETY
GUIDELINES
Cautions
» For Safety, these precautions must be taken when using
this product.
» Before each use make sure:
Walker is adjusted to the correct height
Locking mechanisms and spring buttons are fully engaged
Tips are in good condition. Replace tips immediately if worn
or missing.
Walker sits level and all legs are adjusted to an equal height.
The product is only used as instructed by your
healthcare provider.
» Engage the lock and practice bending, reaching and transfers
on and off the walker.
» NEVER attempt a maneuver that has not been practiced.
» Be aware of your surroundings when operating the walker.
Look for hazards and avoid them.
» DO NOT exceed the maximum weight capacity listed on the
device and in the assembly guide or serious injury could result.
» DO NOT perform any adjustments while the walker is in use.
4MEDLINE |MDS86410TRIG | PIC-00262 (Rev: 10-12-20)

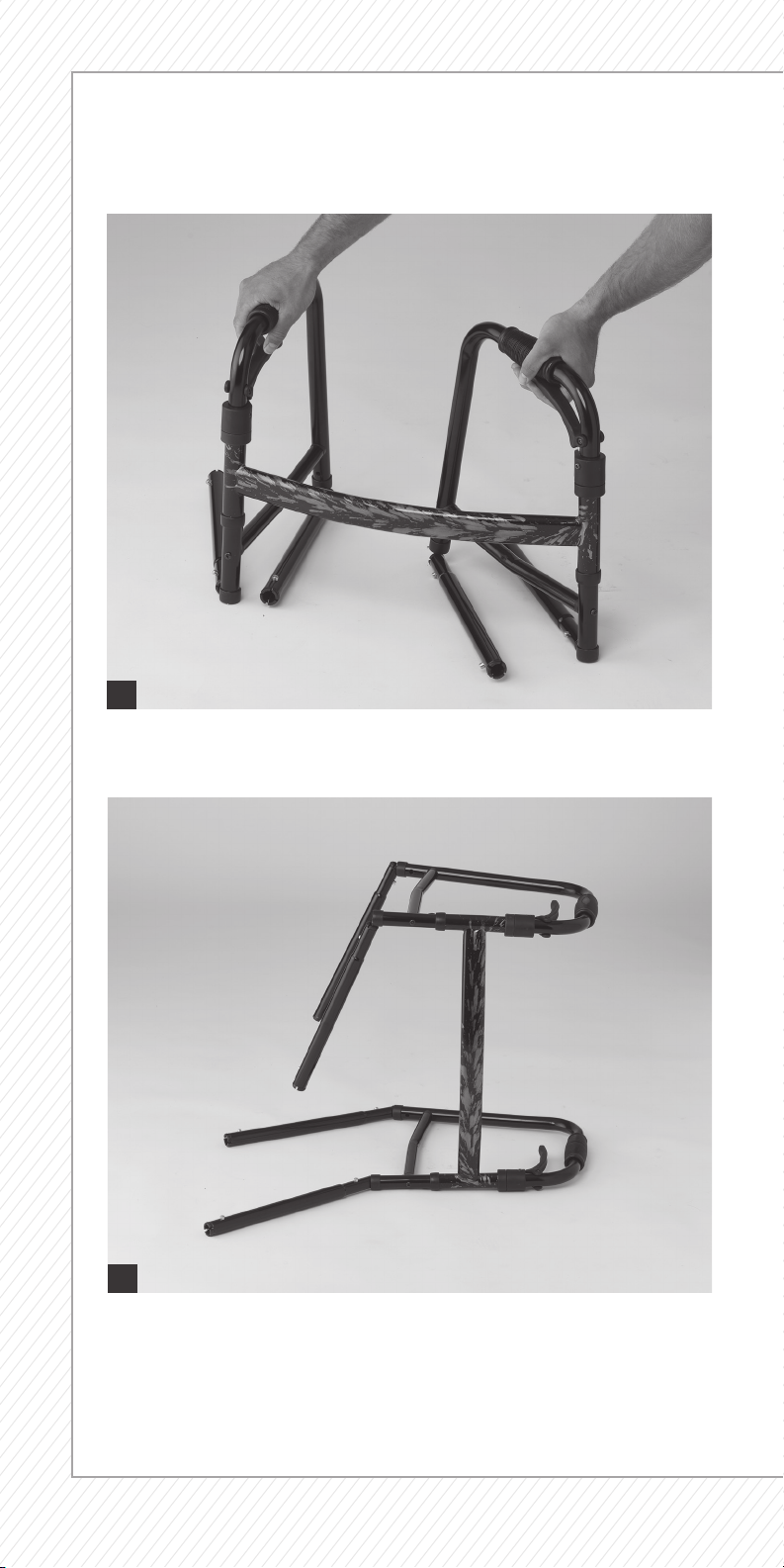

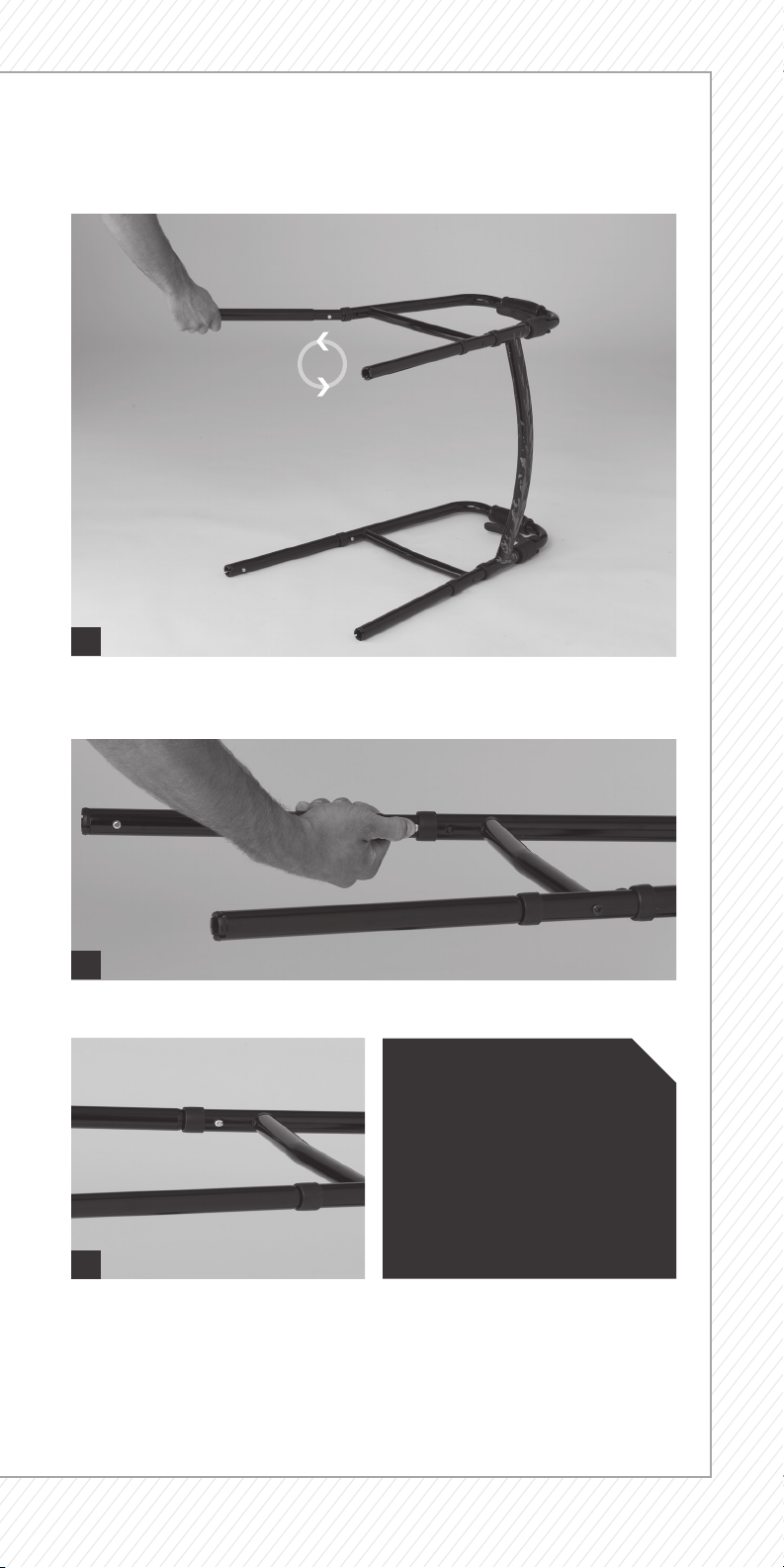

First: Open the Walker
Unfold frame completely ensuring the sides “click” and lock into place.
Lay walker on its side.
1
2
1-800-MEDLINE (633-5463) |medline.com 5
Next: Attach Front & Rear Legs
Pull front leg out of the clip attached to the frame and insert leg into the
bottom of frame.
Inserted leg not secure.
Inserted leg secure. Repeat step 1-3 for all the legs.
3
OUT
4
5
NOTE
Make sure pin is firmly
seated into plastic
collarslot.
6MEDLINE |MDS86410TRIG | PIC-00262 (Rev: 10-12-20)

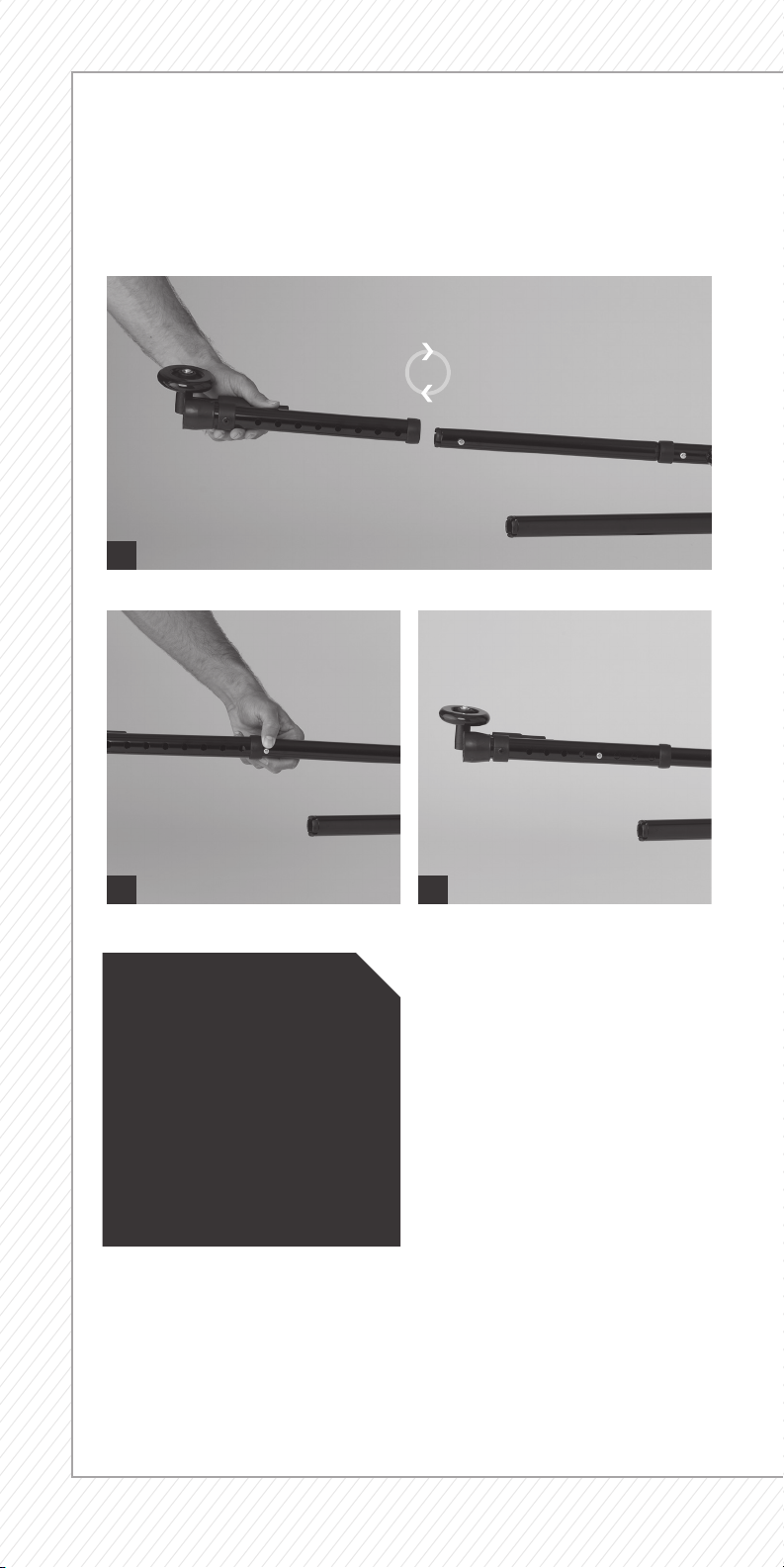

Turn walker on its side and depress push-button completely and install leg
extension onto leg in desired hole.
1
2 3
Now: Set Desired Height
NOTE
Make sure all 4 leg
extensions are set at
the same overall
desired height.
IN
1-800-MEDLINE (633-5463) |medline.com 7

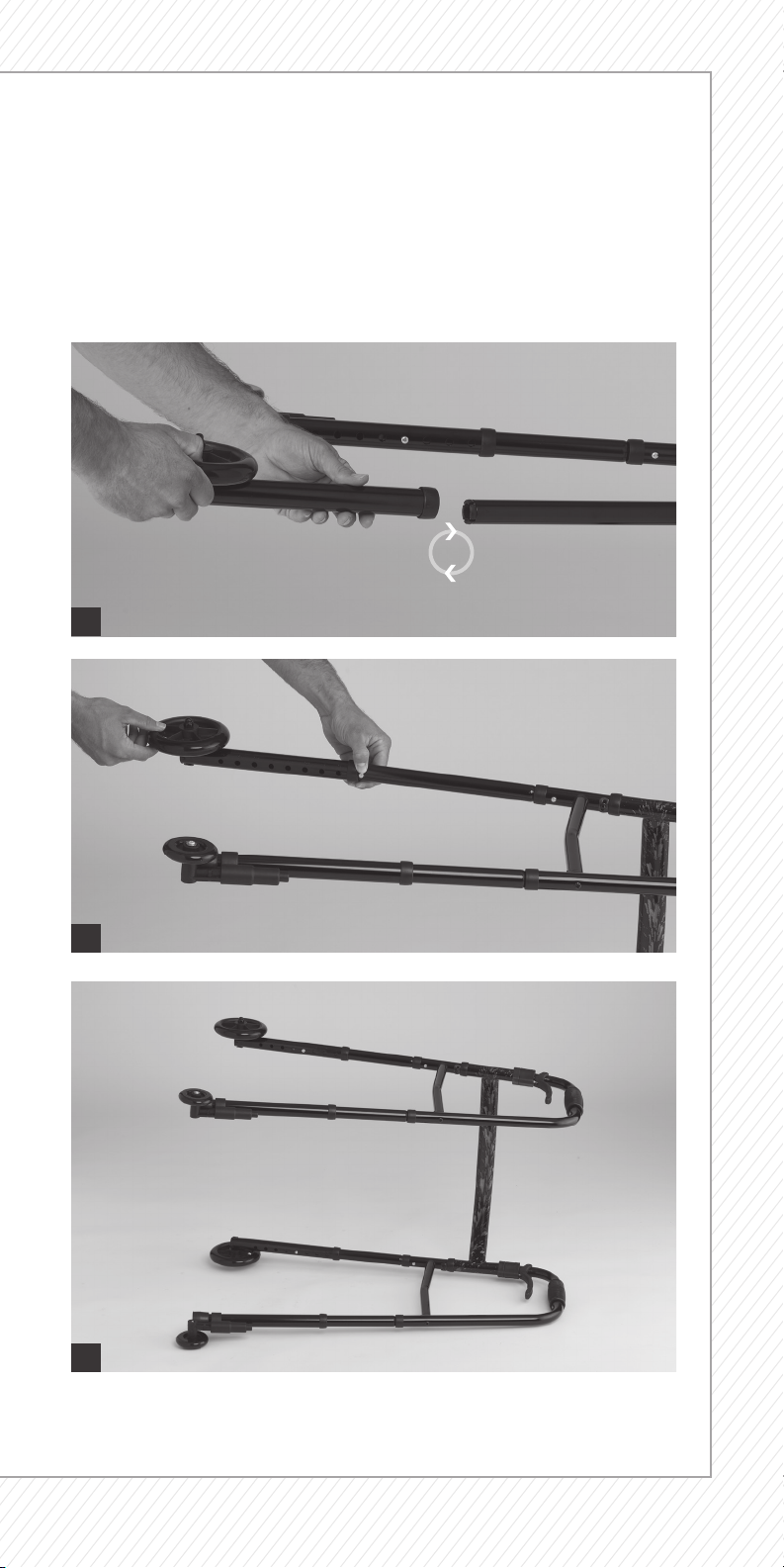

Turn walker on its side and depress push-button completely and install
5" (12.7 cm) wheeled-leg extension onto leg into desired hole. Make sure
push-button “clicks” into hole to ensure securing of leg extension to leg.
Attach 5" (12.7 cm) Wheeled-leg
Extensions (FRONT LEGS ONLY)
1
3
Push button on wheeled-leg extension is now fully engaged.
NOTE: Ensure the front wheels are positioned on the outside of walker leg
facing forward.
2
IN
8MEDLINE |MDS86410TRIG | PIC-00262 (Rev: 10-12-20)

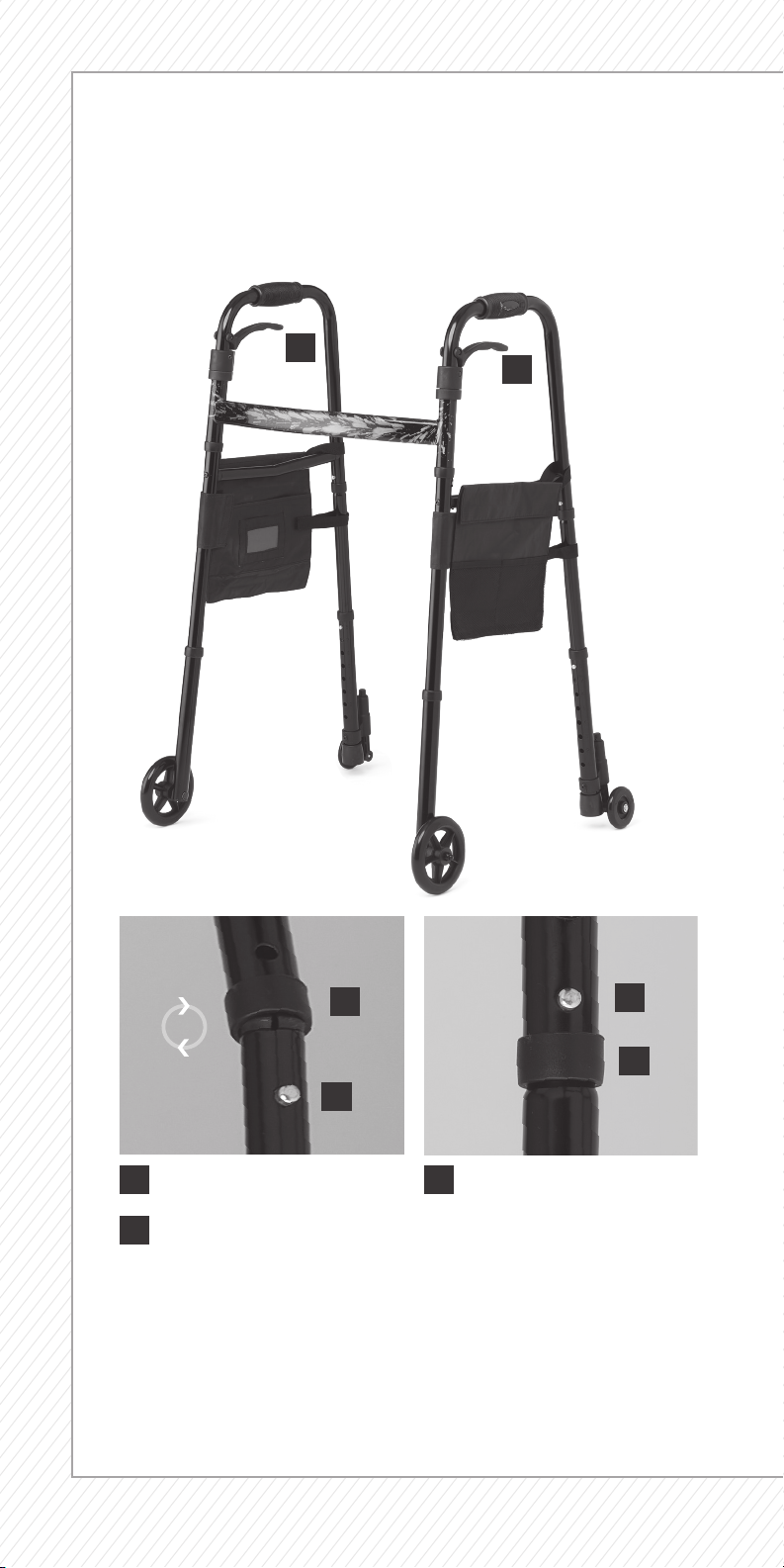

Walker Instructions
Easy “pull up” trigger release for opening and closing.
IMPORTANT SAFETY NOTICE:
Your walker features flip up legs that can be attached to the frame of the
walker for easy storage. Be sure that when the legs are turned down for use
as a walker, the leg pin is inserted into the lock collar as shown above. Be sure
to check the leg height adjustment hole position when setting up or folding for
storage in the carry bag to be sure all hole adjustment are the same.
A
AA
B
B
C
C
B
C
Trigger
Lock collar
Leg pin
IN
1-800-MEDLINE (633-5463) |medline.com 9

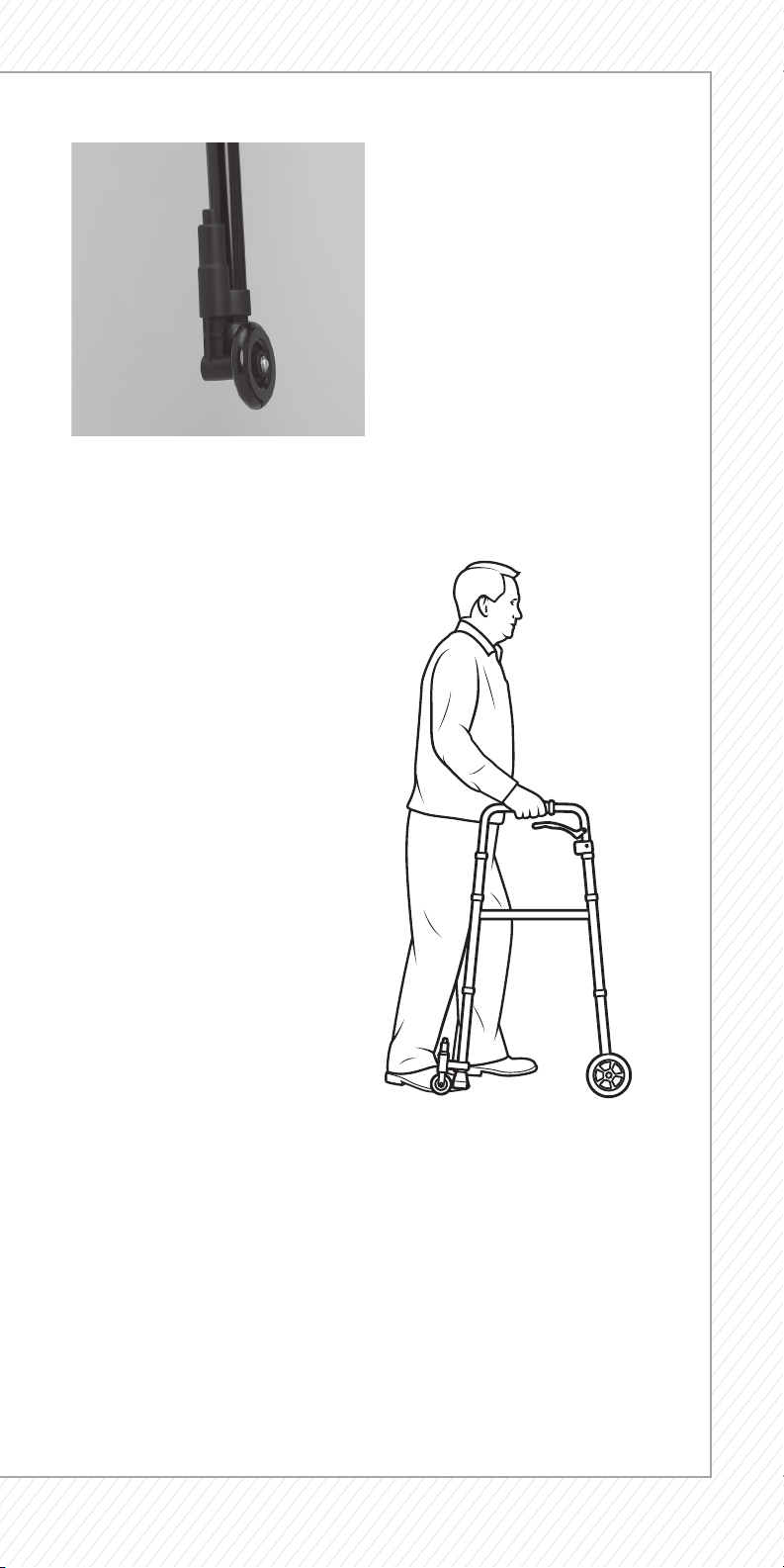

WHEELED GLIDE BRAKE
Be sure glide brake wheel is
positioned on outside of walker leg
facing forward.
Custom Walker Adjustments
With your arm extended down,
handle should be at wrist height.
With your hand placed on the
hand-grip, your elbow should be
flexed 20˚- 30˚.
CAUTION:
Be aware of the following:
- Electrical cords
- Liquids on floor
- Throw rugs
- Toys or debris
- Furniture
- Doors and door steps
- Gaps in floor
WARNING:
1. Use wheels on front legs only or on all four legs with appropriate rear
wheel brakes.
2. Do not push one side of the walker ahead and then other side without
lifting the walker first.
3. Do not use on stairs or escalators.
Maintenance:
Clean the grips with a mild soap detergent or household cleaner. Do not use an organic
solvent such as acetone, MEK, lacquer thinner, lighter fluid, dry cleaning fluid, gasoline or
turpentine, that may dissolve the plastic and cause the grip to loosen. Thoroughly dry the
product IMMEDIATELY with a towel.
Routine Inspection:
Prior to each use, ensure;
1. Walker is adjusted to the correct height
2. Walker sits level and all legs are adjusted to an equal height.
3. There is no frame damage
4. Locking mechanisms and spring buttons are fully engaged.
5. The walker does not have any loose hardware or components.
6. No components of the walker are missing.
7. No rust or corrosion is present on the walker
8. Locking mechanisms and spring buttons are fully engaged
9. Tips and wheels are in good condition. Replace tips immediately if worn or missing.
10. Glide brakes are functional and able to engage.
Do not use the walker if there are any issues with the above.
