Medline MDSUPWALK Manuale utente

MDSUPWALKR

MDSUPWALK

Step-by-Step

Assembly Guide

Guide d’assemblage

étape par étape

Guía de montaje

paso a paso

Upright Folding Walkerwith 5"Wheels

Marchette pliante verticale à roulettes

de 12,7 cm (5 po)

Andador plegable vertical con ruedas

de 5"

MDSUPWALKJR

2MEDLINE |MDSUPWALK MDSUPWALKR MDSUPWALKJR | PIC-00262 V1 090922

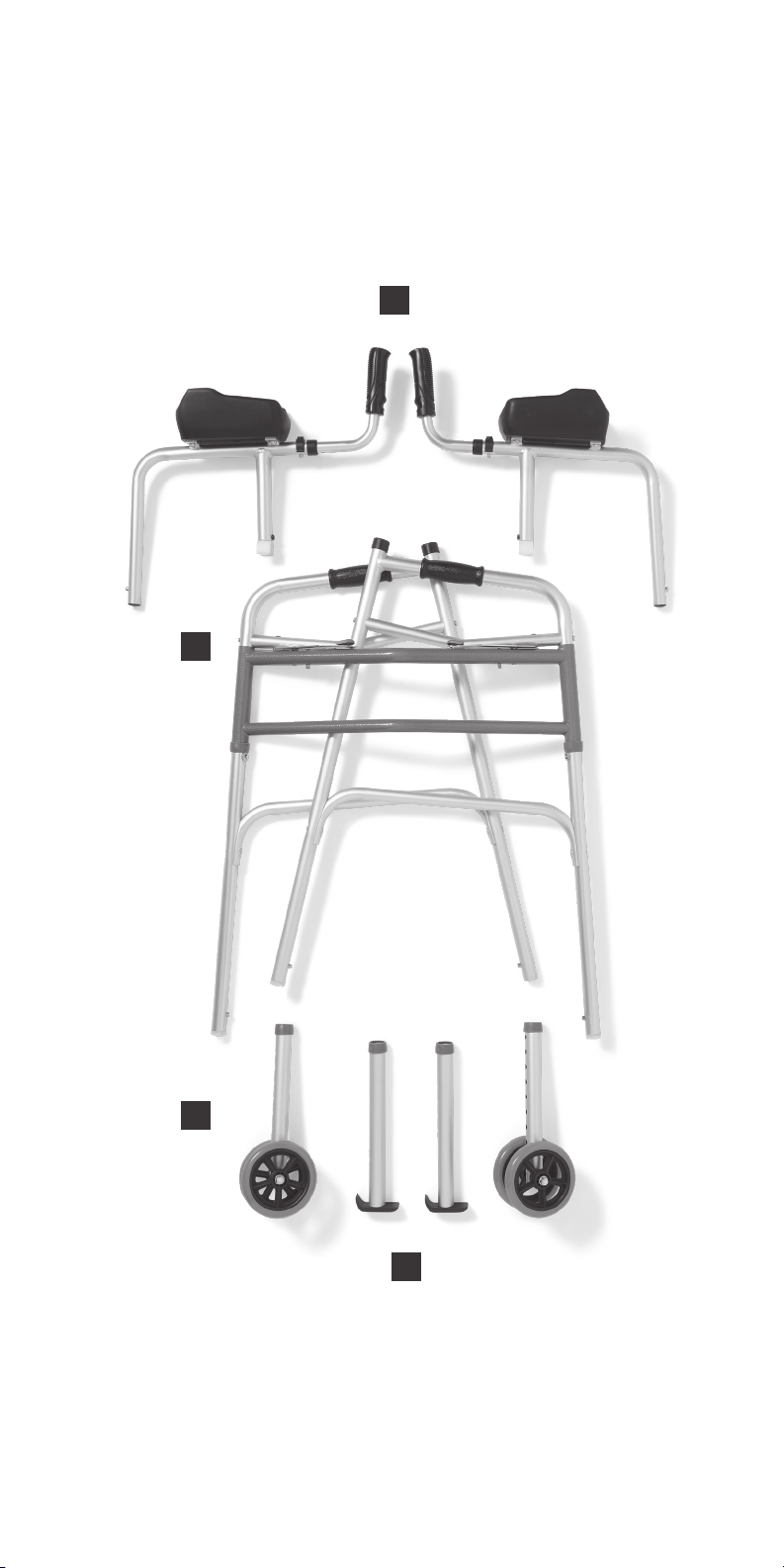

What’s Included:

1-800-MEDLINE (633-5463) |medline.com 3

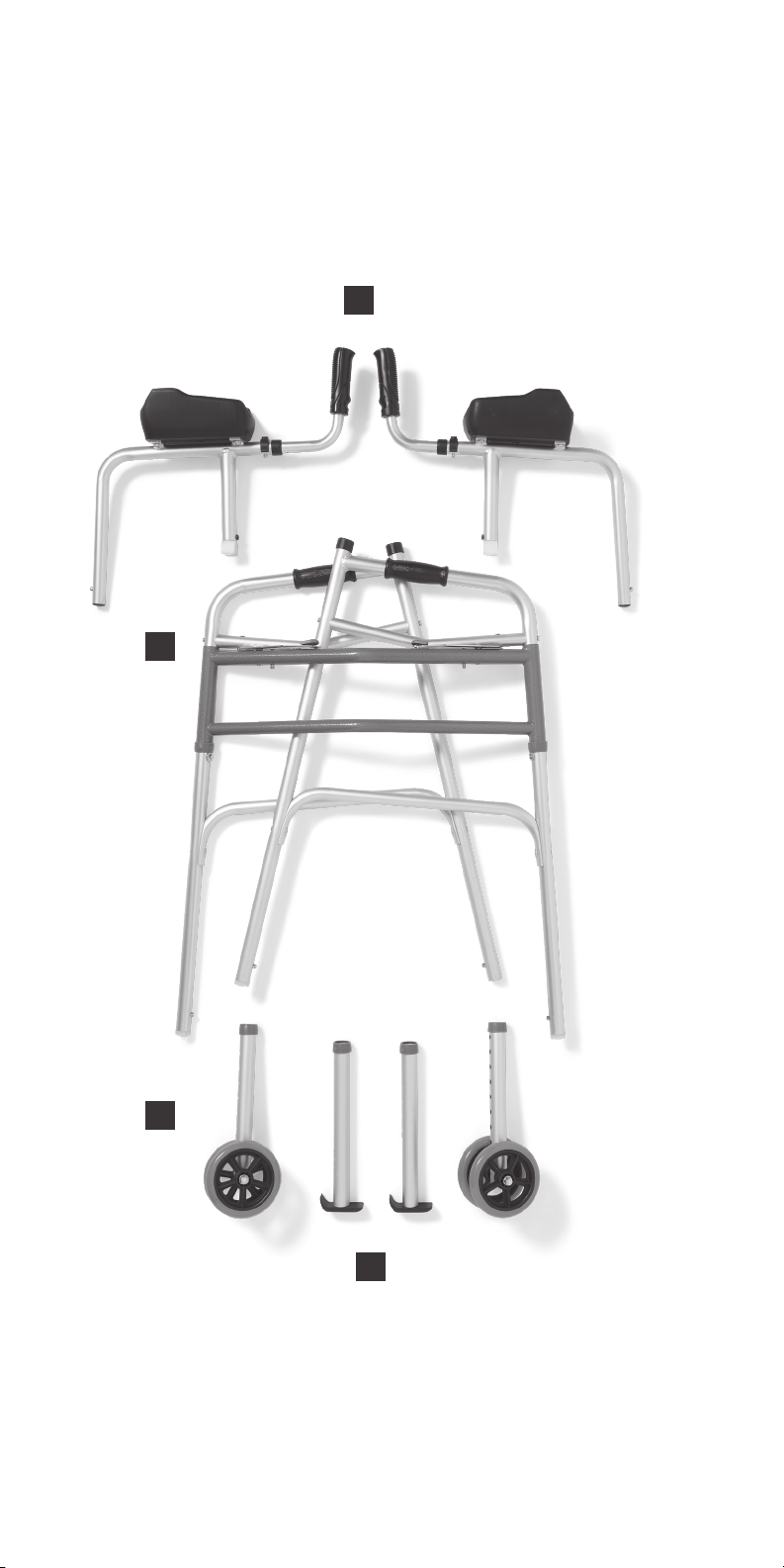

AWalker Frame

BWheeled Extensions

CExtensions w/ Glide Skis

D2 Armrest Attachments

EStep-By-Step Assembly Guide

FSafety Guidelines

E F

This guide applies to the following walker:

Item Number Description Frame

Color

Weight

Capacity

MDSUPWALK Folding upright walker with 5"wheels Chrome 300 lb

(136 kg)

MDSUPWALKR Folding upright walker with 5” wheels Red 300 lb

(136 kg)

MDSUPWALKJR Folding upright walker with 5” wheels,

Junior Chrome 300 lb

(136 kg)

MDSUPWALKR

MDSUPWALK

Step-by-Step

Assembly Guide

Guide d’assemblage

étape par étape

Guía de montaje

paso a paso

Upright Folding Walker with 5" Wheels

Marchette pliante verticale à roulettes

de 12,7 cm (5 po)

Andador plegable vertical con ruedas

de 5"

MDSUPWALKJR

Safety

Guidelines

Consignes de

sécurité

Pautas de seguridad

Upright Folding Walker with 5" Wheels

Marchette pliante verticale à roulettes

de 12,7 cm (5 po)

Andador plegable vertical con ruedas

de 5"

MDSUPWALKR

MDSUPWALK

MDSUPWALKJR

4MEDLINE |MDSUPWALK MDSUPWALKR MDSUPWALKJR | PIC-00262 V1 090922

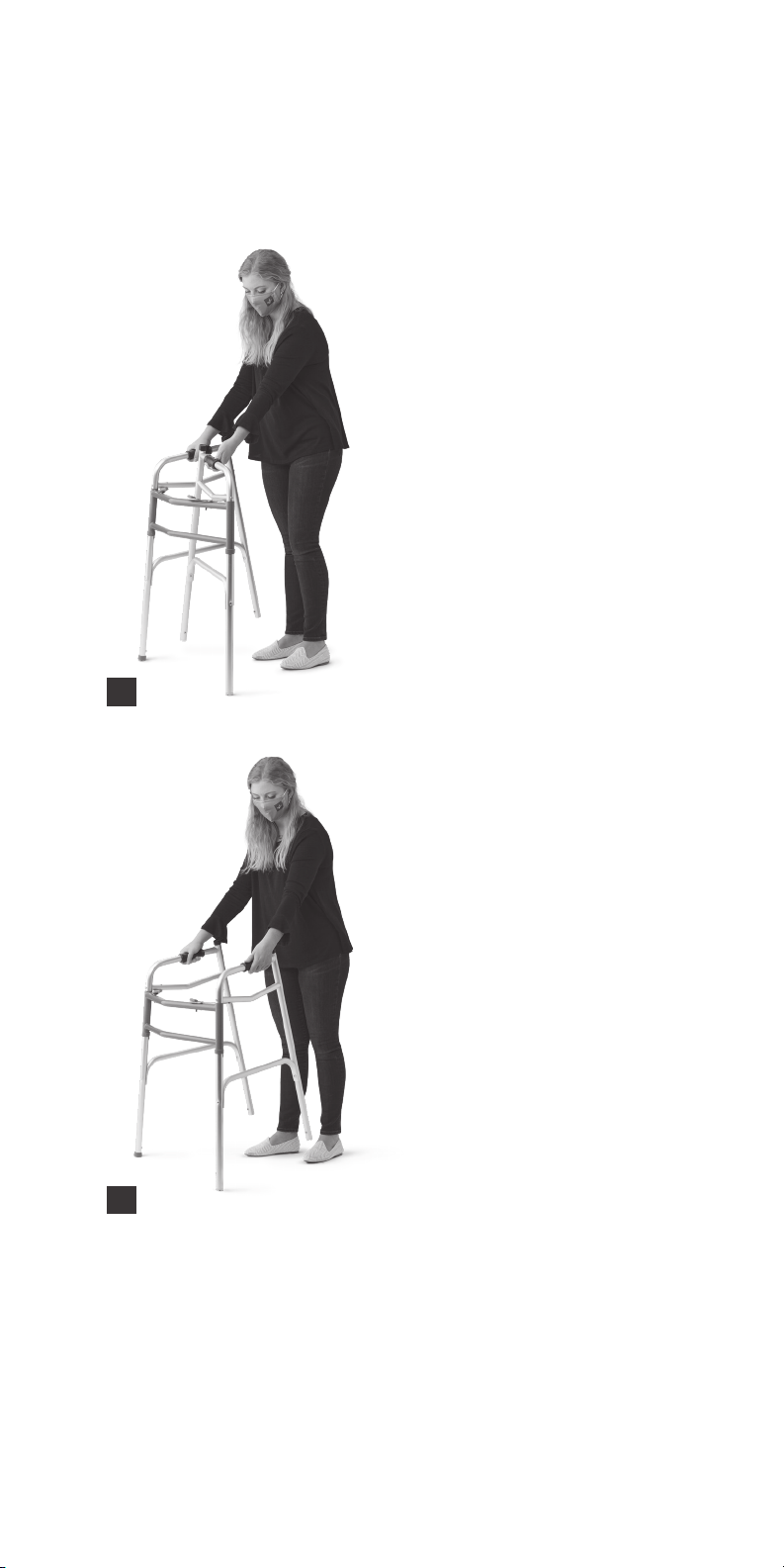

First: Open the Walker

Unfold frame completely ensuring the sides “click” and lock into place.

1-800-MEDLINE (633-5463) |medline.com 5

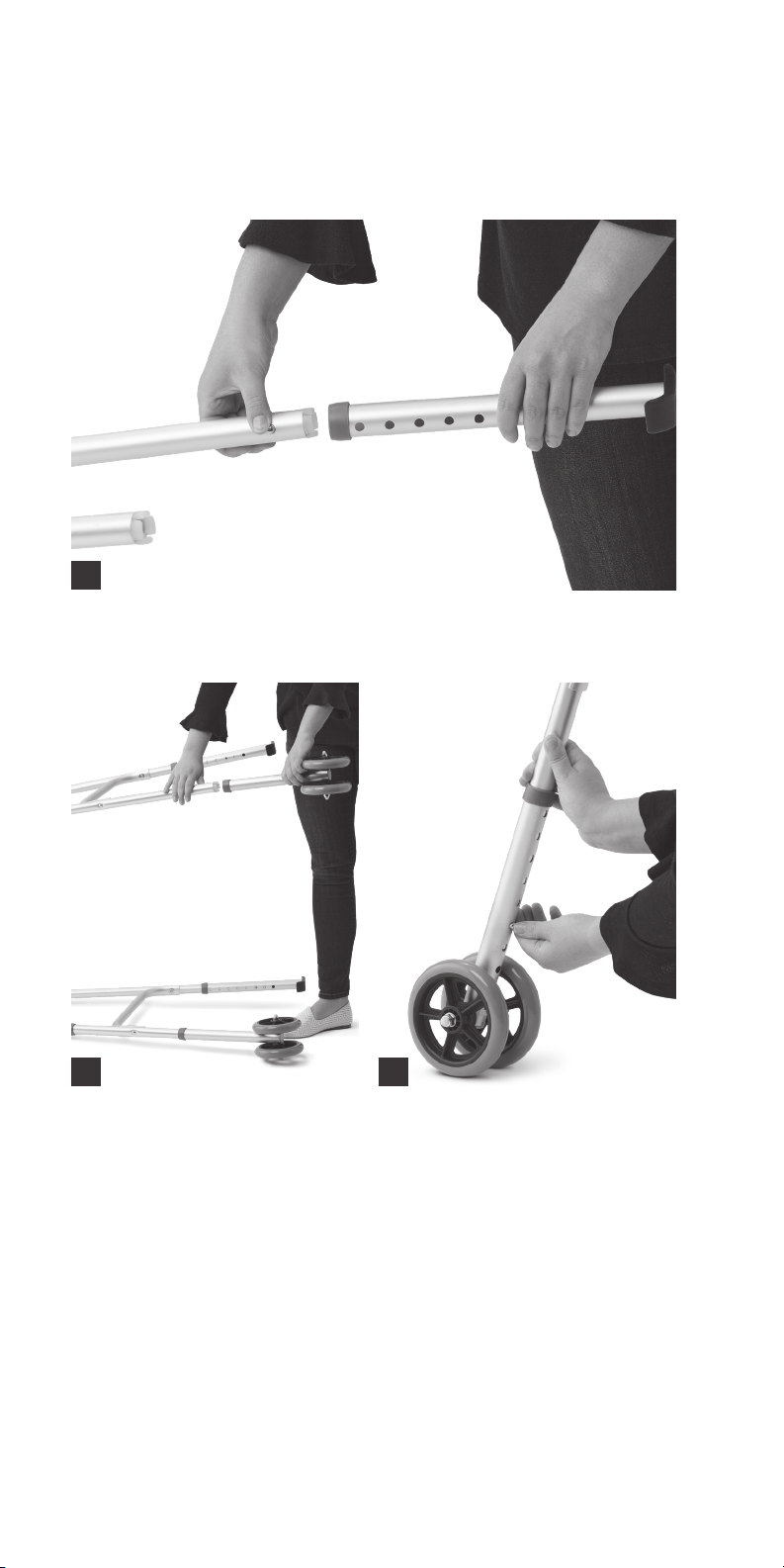

Next: Attach Front & Rear Legs

Insert leg with skis into the rear of the walker frame.

Insert leg w/ wheels labeled ‘R’ into the front of the walker frame

until secure.

Repeat for ‘L’ labeled leg.

2 3

6MEDLINE |MDSUPWALK MDSUPWALKR MDSUPWALKJR | PIC-00262 V1 090922

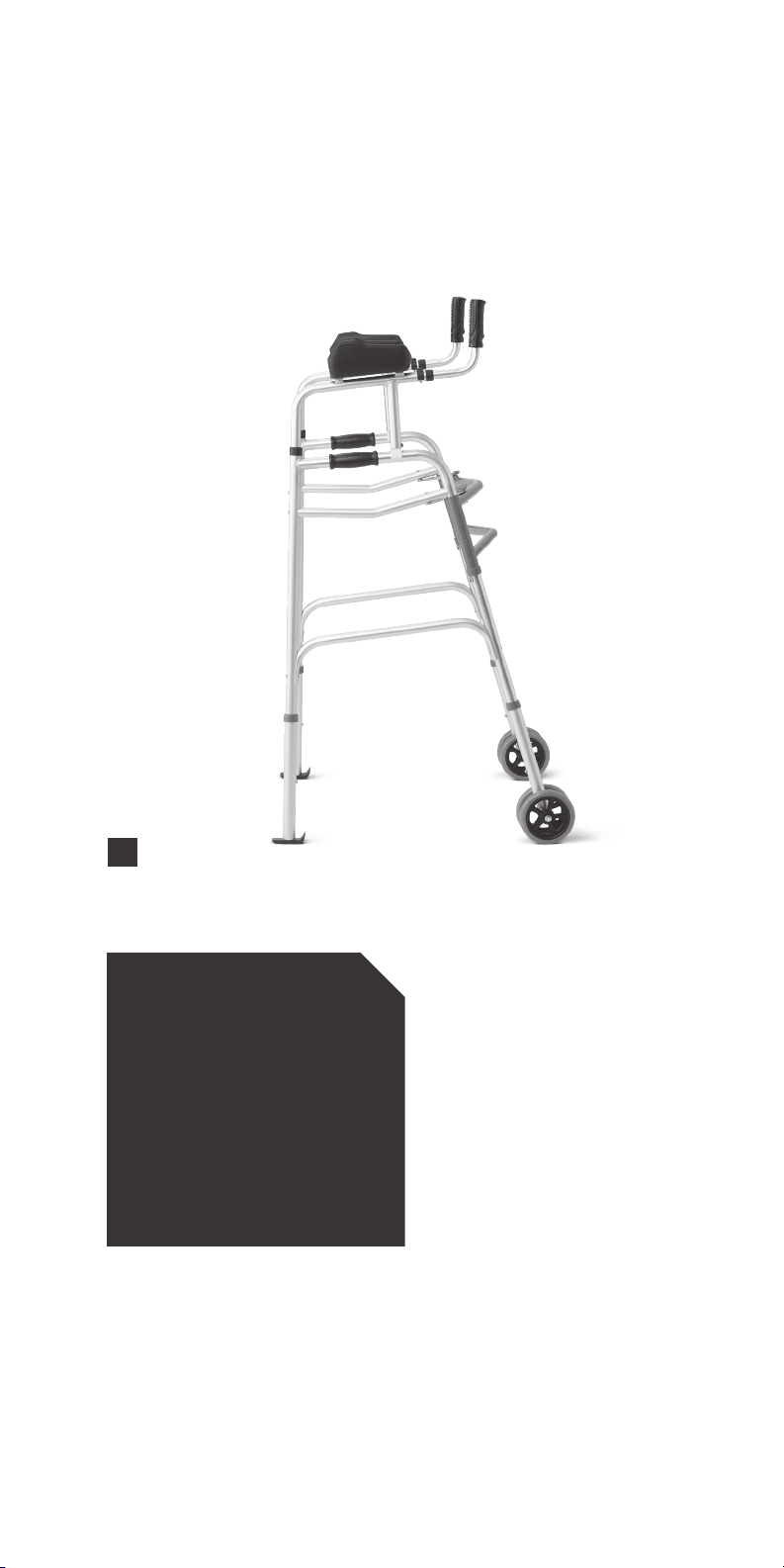

Check all four legs to make sure the push buttons are set at the same level.

Now: Set Desired Height

NOTE:

Make sure all 4 leg

extensions (with or without

wheels) are set at the same

overall desired height.

1-800-MEDLINE (633-5463) |medline.com 7

Press pushbutton and slide the longer tube into tubing on back of walker.

Lower armrest into tubing. Make sure pushbutton “clicks” into hole to

ensure it is locked. Snap front part of armrest onto horizontal bar of the

walker. Repeat on other side.

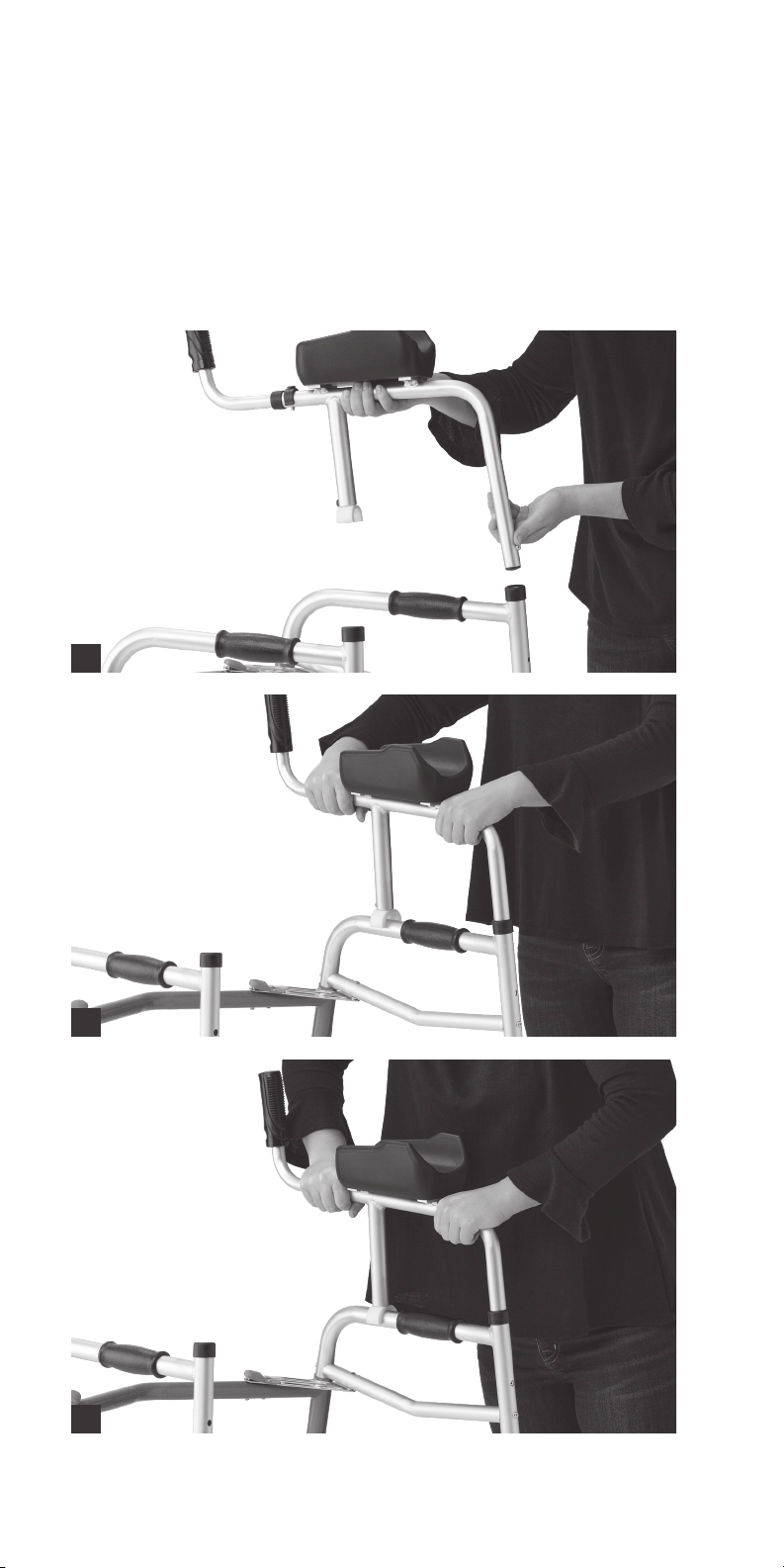

Attach Armrests

8MEDLINE |MDSUPWALK MDSUPWALKR MDSUPWALKJR | PIC-00262 V1 090922

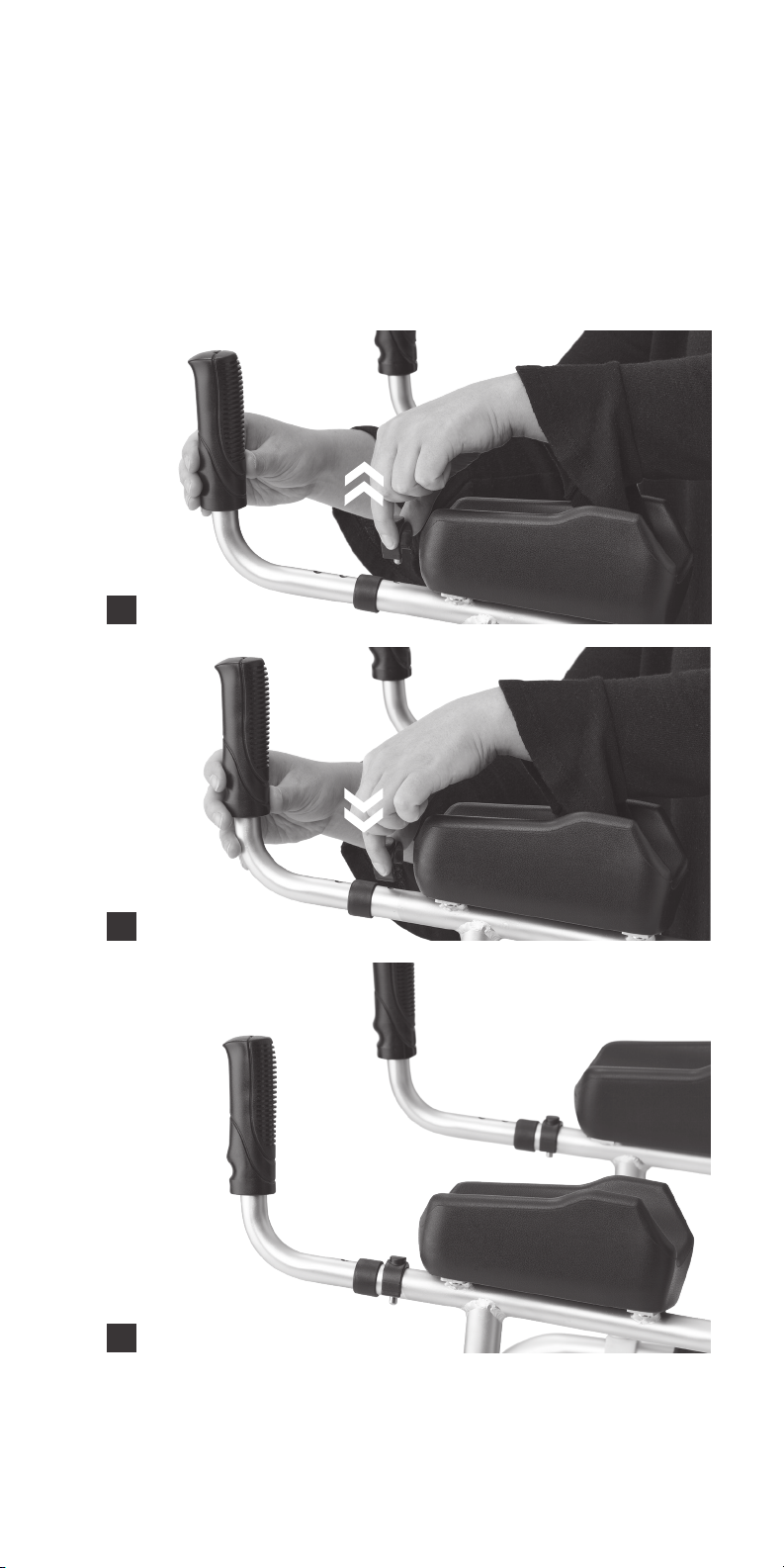

Remove C-clip and move handle to desired length. Insert c-clip to

secure handle.

Now: Set Desired Armrest

Handle Length

1-800-MEDLINE (633-5463) |medline.com 9

Contenu:

10 MEDLINE |MDSUPWALK MDSUPWALKR MDSUPWALKJR | PIC-00262 V1 090922

ACadre de la marchette

BRallonges à roues

CRallonges avec patins-skis

D2supports d’accoudoirs

EGuide d’assemblage étape

par étape

FConsignes de sécurité

E F

Ce guide concerne le modèle de marchette suivant:

Numéro d’article DESCRIPTION Couleur

du cadre

Capacité

de charge

MDSUPWALK Marchette pliable verticale

à roulettes de 12,7cm (5po) Chrome 136kg

(300lb)

MDSUPWALKR Marchette pliable verticale

à roulettes de 12,7cm (5po) Rouge 136kg

(300lb)

MDSUPWALKJR Marchette pliante verticale à

roulettes de 12,7cm (5po), junior Chrome 136kg

(300lb)

MDSUPWALKR

MDSUPWALK

Step-by-Step

Assembly Guide

Guide d’assemblage

étape par étape

Guía de montaje

paso a paso

Upright Folding Walker with 5" Wheels

Marchette pliante verticale à roulettes

de 12,7 cm (5 po)

Andador plegable vertical con ruedas

de 5"

MDSUPWALKJR

Safety

Guidelines

Consignes de

sécurité

Pautas de seguridad

Upright Folding Walker with 5" Wheels

Marchette pliante verticale à roulettes

de 12,7 cm (5 po)

Andador plegable vertical con ruedas

de 5"

MDSUPWALKR

MDSUPWALK

MDSUPWALKJR
