Megger BVM Cal kit Manuale utente

WWW.MEGGER.COM

User’s Manual

Art No. ZP-CJ01E Doc. CJ0125BE V02a 2019

BVM Cal kit

Calibration system for BVM units

Contents

1 Introduction

............................................................. 4

1.1 General............................................................... 4

Symbols on the instrument ................................. 4

1.2 Service and support ............................................ 4

Contact Information ........................................... 4

Checklist before calling/e-mailing for support......4

Shipping ............................................................. 4

1.3 The calibration kit includes.................................. 5

2 The BVM CAL kit

............................................................. 6

2.1 BVM CAL Box ..................................................... 6

Battery power..................................................... 6

Inserting batteries ............................................... 6

2.2 Other parts in the kit........................................... 7

BMV CAL Ref...................................................... 7

AC Adapter ........................................................ 7

Power & Signal Connector .................................. 7

USB Memory stick............................................... 7

Cables ................................................................ 7

2.3 Other equipment needed.................................... 7

Digital Multimeter (DMM)................................... 7

Computer........................................................... 7

3 Operation

............................................................. 8

3.1 Installing SW....................................................... 8

3.2 Connect and setup ............................................. 8

How to set COM port for the digital multim-

eter (DMM) (Agilent 34401A) or other equiva-

lent instrument ................................................... 8

How to set IP address for the digital multime-

ter (DMM) (Agilent 34410A or Keysight 34461A 9

3.3 Calibration........................................................ 10

3.4 Error messages.................................................. 11

Bad connection................................................. 11

Battery failure ................................................... 11

3.5 System calibration ............................................ 12

4 Speciﬁcations

........................................................... 14

BVM Cal kit

Calibration system for BVM units

NOTICE OF COPYRIGHT & PROPRIETARY RIGHTS

The contents of this manual are the property of Megger Sweden AB. No part of this work may be reproduced or transmitted in any form or

by any means, except as permitted in written license agreement with Megger Sweden AB. Megger Sweden AB has made every reasonable

attempt to ensure the completeness and accuracy of this document. However, the information contained in this manual is subject to change

without notice, and does not represent a commitment on the part of Megger Sweden AB. Any attached hardware schematics and technical

descriptions, or software listings that disclose source code, are for informational purposes only. Reproduction in whole or in part to create

working hardware or software for other than Megger Sweden AB products is strictly prohibited, except as permitted by written license

agreement with Megger Sweden AB.

This device contains software that is licensed under the General Public License (GPL). If requested, a copy of the source code licensed under

the GPL can be sent to you. Please e-mail your request to se-gplrequest@megger.com. Please note that no questions regarding the content

of the source code can be answered. You may be charged a fee covering the costs of sending you the source code.

TRADEMARK NOTICES

Megger® and Programma® are trademarks registered in the U.S. and other countries. All other brand and product names mentioned in this

document are trademarks or registered trademarks of their respective companies.

Megger Sweden AB is certiﬁed according to ISO 9001 and 14001.

User’s Manual

Postal address: Visiting address:

Megger Sweden AB Megger Sweden AB

Box 724 Rinkebyvägen 19

SE-182 17 DANDERYD SE-182 36 DANDERYD

SWEDEN SWEDEN

T+46 8 510 195 00

Eseinfo@megger.com

www.megger.com

CJ0125BE ZP-CJ01E BVM CAL KIT 3

1Introduction

1.1 General

This manual is valid for the BVM Cal Box kit and it is

designed for use for calibration of the Megger BVM

instruments.

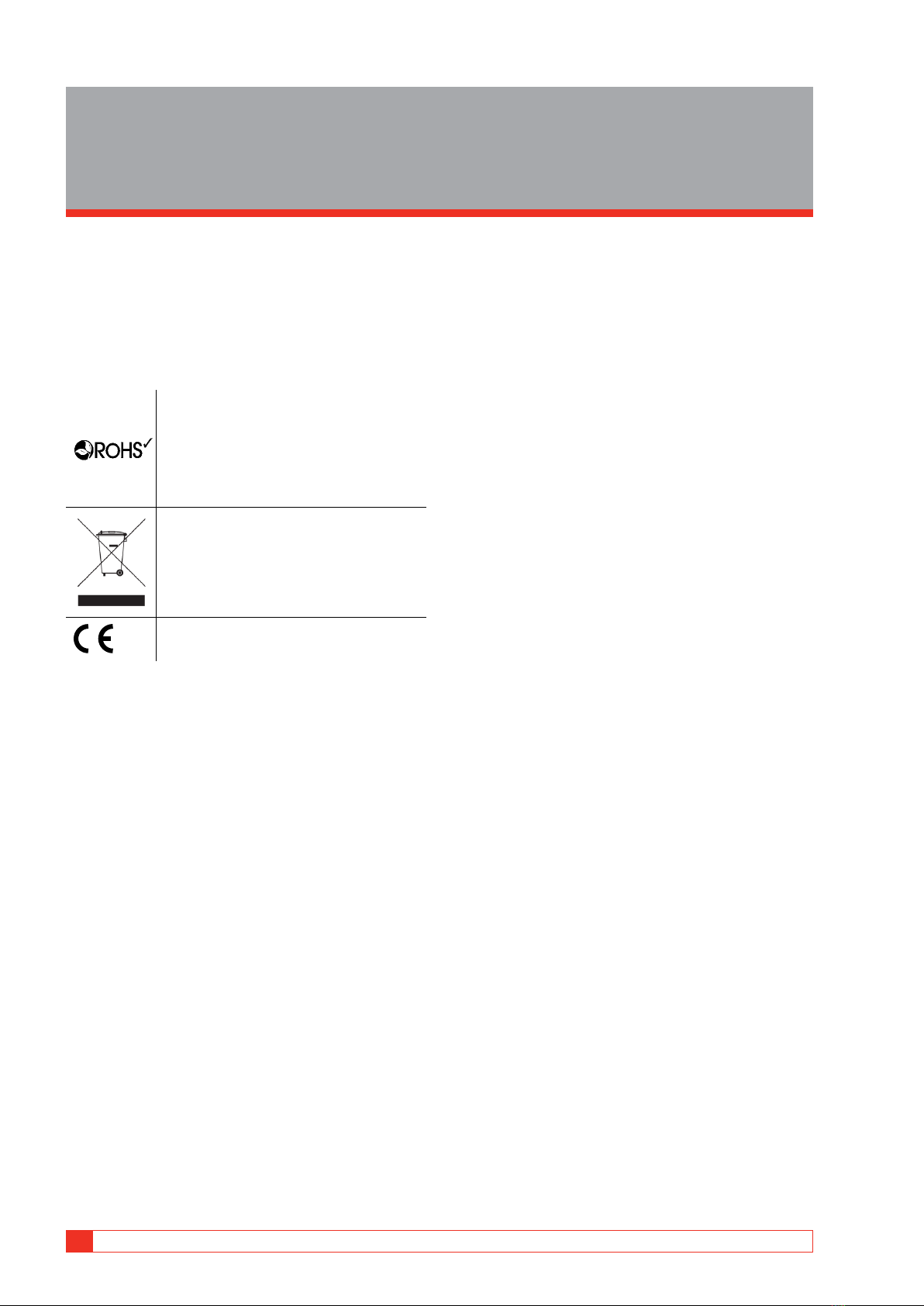

Symbols on the instrument

Rohs means restriction of hazard-

ous substances. This is a method of

addressing health and environmental

concerns that are posed by materials

and elements used in electronic equip-

ments.

WEEE, Waste Electrical and Electronic

Equipment. Please utilize your lo-

cal WEEE collection facilities in the

disposal of this product and otherwise

observe all applicable requirements.

Equipment complies with current EU

directives.

Important

1. Water and moisture. Do not use the instru-

ment near water. To prevent ﬁre or shock

hazard, do not expose the instrument to rain or

moisture.

2. Service. Do not attempt to service the instru-

ment yourself. If you attempt to service the

instrument yourself the warranty is no longer

valid.

3. Accessories. Do not use any accessories that

are not intended for use together with the

instrument.

4. Cleaning. Use a damp cloth for cleaning. Do

not use liquid cleaners or aerosol cleaners.

5. Servicing. Refer all servicing to Megger author-

ized personnel.

1.2 Service and support

For technical assistance please contact your local

Megger representative or direct your request to the

ofﬁce in Sweden.

Contact Information

Internet: www.megger.com

E-mail: support-sweden@megger.com

Tel: +46 8 510 195 00

Checklist before calling/e-mailing

for support

▪Read the manual

▪Try to repeat the operation if possible

▪Identify the instrument model, serial number and revision

of software.

Shipping

If you are going to send the instrument with parcel

service use the original transport box or one with

equivalent strength. Megger can not take responsibil-

ity for transport damages.

4BVM CAL KIT ZP-CJ01E CJ0125BE

1 INTRODUCTION

1.3 The calibration kit

includes

Qnty Item Part No.

1 BVM CAL Box CJ-90077

1 BVM CAL Reference MA-00272

1 Power and signal connector MA-00271

1 AC adapter

100 – 240 V AC to 24 V DC

HC-04220

1 USB Memory stick

BVM calib sw Agilent (CJ-8100X)

BVM calib sw Keysight (CJ-8110X)

HF-10020

5 Control cable, black, RJ45, 0.5 m GA-01100

2 Extension cable, black, 0.5 m 04-30050

2 Test cable, red, 0.5 m 04-35012

1 Test cable, black, 0.5 m 04-35010

1 User’s manual CJ0125XE

1 Transport case GD-00620

CJ0125BE ZP-CJ01E BVM CAL KIT 5

1 INTRODUCTION

2The BVM CAL kit

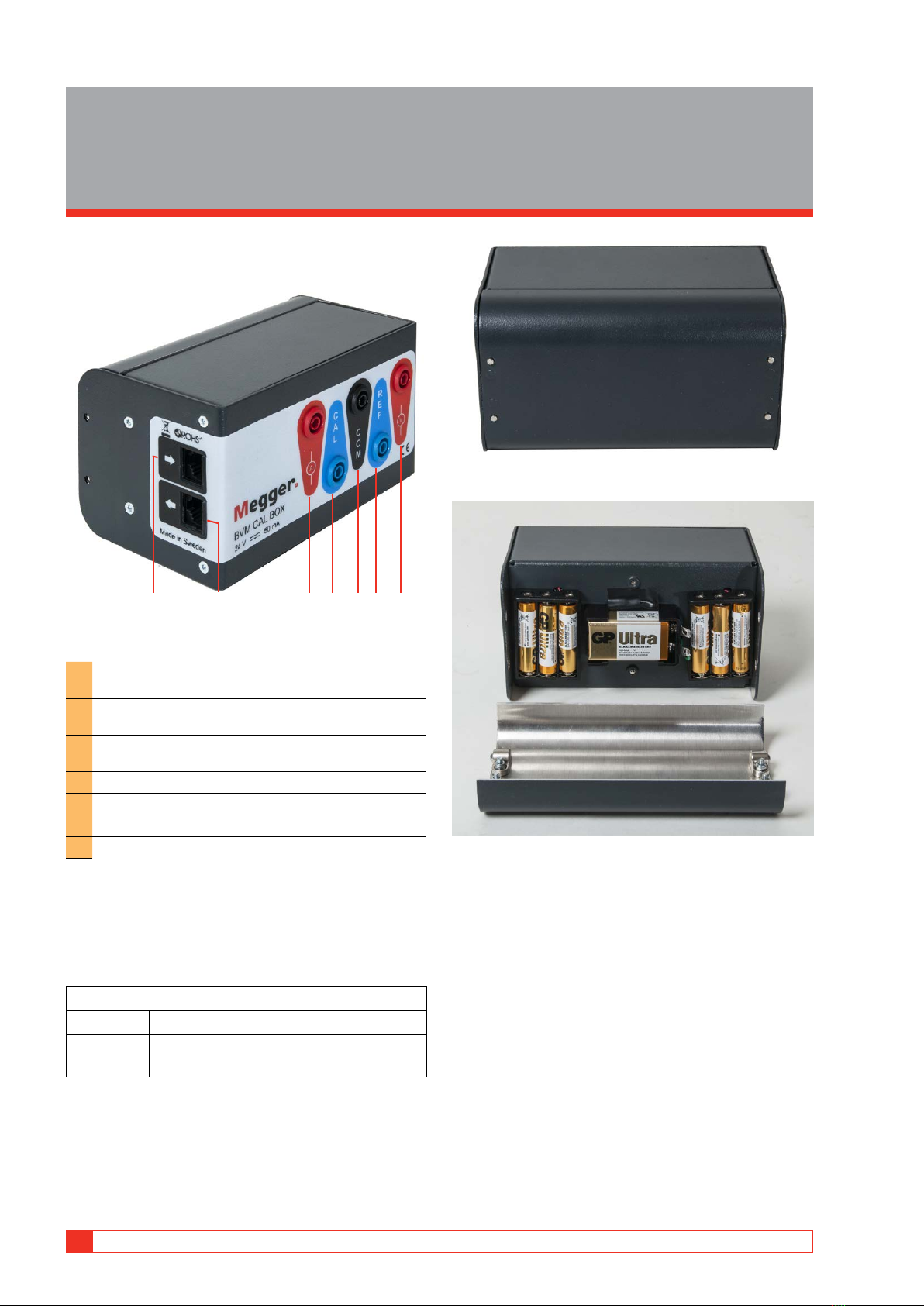

2.1 BVM CAL Box

1 2 3 4 5 6 7

1Input from Power and Signal Connector (To 1st BVM unit)

(RJ45 cable, Order No. GA-01100)

2Output to BVM unit (IN) unit for calibration

(RJ45 cable, Order No. GA-01100)

3Current measuring output to multimeter

Agilent 34401A or 34410A or Keysight 34461A

4Output to BVM unit for calibration

5Common output to multimeter

6Output to BVM CAL Ref unit

7Voltage measuring output to multimeter

Battery power

The BVM CAL Box is battery powered (non recharge-

able)and function as a voltage reference. The batteries

are located under the bottom cover. There are six AAA

batteries and one 9 V battery.

Recomended battery types

1.5 V AAA IEC LR03 / ANSI 24D / ANSI 24A

9 V IEC 6LR61 / ANSI 1604A or

IEC 6F22 / ANSI 1604D

Inserting batteries

1] Remove the lid at back by grabbing it and

pull backwards.

2] Insert the batteries, observe polarity.

3] Replace the lid by pushing it into place until

the snap locks will hold it.

6BVM CAL KIT ZP-CJ01E CJ0125BE

2 THE BVM CAL KIT

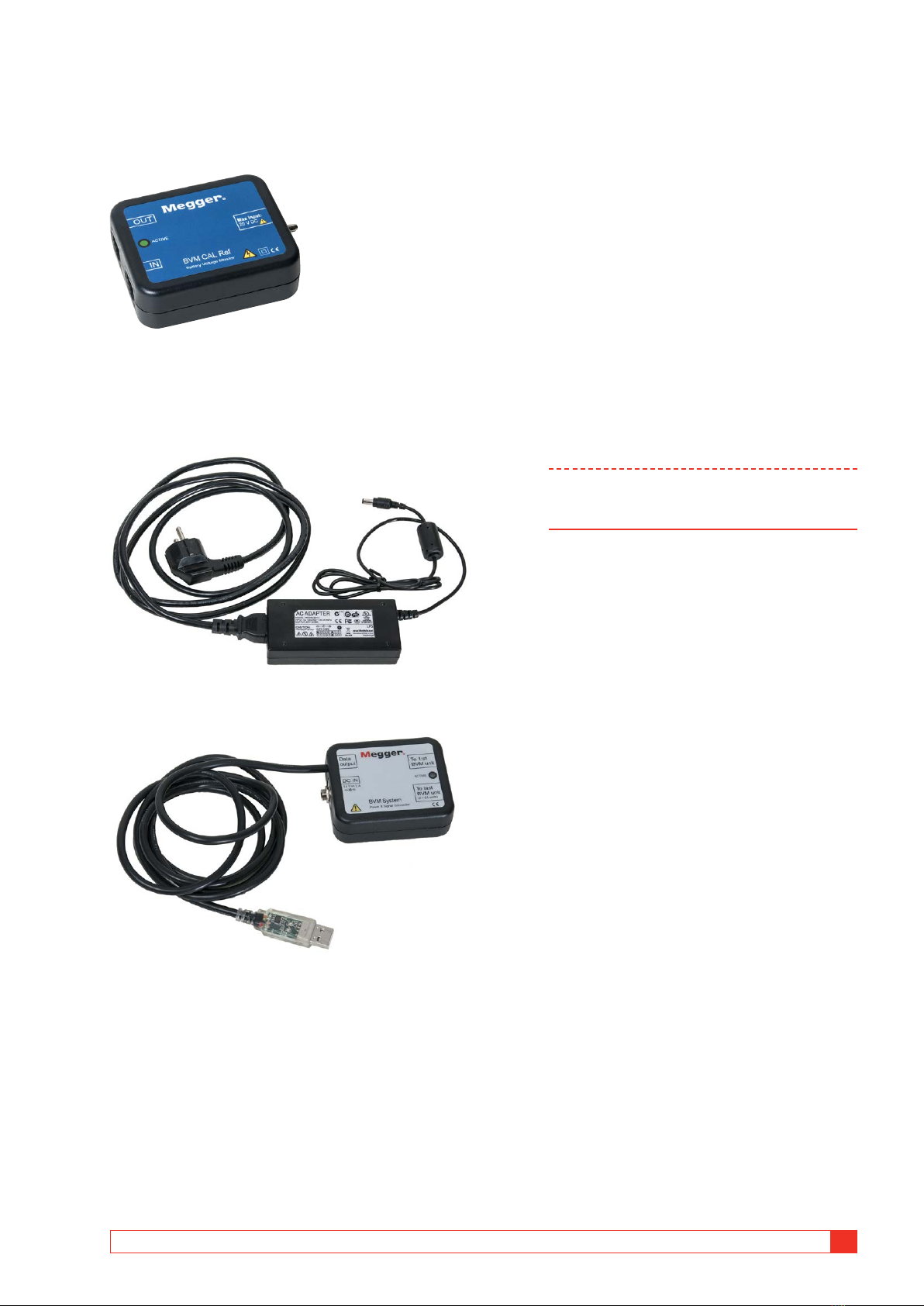

2.2 Other parts in the kit

BMV CAL Ref

AC Adapter

Power supply, 24 V, for the calibration system. Con-

nects to mains and output to Power and Signal Con-

nector.

Power & Signal Connector

USB Memory stick

The USB stick contains the BVM calibration software

and the User’s manual.

Cables

See section 1.3.

2.3 Other equipment

needed

Digital Multimeter (DMM)

The system is designed for use together with Agilent

34401A (connected via serial / COM-port) or Agilent

34410A (LAN / Ethernet connected). The system can

also be used with Keysight 34461A (LAN / Ethernet

connected). Probably also Keysight 34465A, but this

has not been tested.

Computer

PC with USB port and COM port or Ethernet port,

depending on type of DMM (see above).

Cable for connection between PC and DMM, depend-

ing on type of instrument (serial null modem cable or

Ethernet cable).

Note: If the PC is of an older model, and LAN /

Ethernet connected DMM is used, a crossover

Ethernet cable may be required.

CJ0125BE ZP-CJ01E BVM CAL KIT 7

2 THE BVM CAL KIT

3Operation

3.1 Installing SW

The software is installed from the USB drive. There are

two folders in the USB drive. Choose folder according

to the DMM that you have.

A] If you have a DMM type 34401A or 34410A,

open folder OLD_(Agilent).

B] If you have a DMM type 34461A, open folder

NEW_(Keysight).

1] Open folder BVM CAL SW, then double-click

setup.exe to install the software.

3.2 Connect and setup

Make connections as shown in the diagram in ﬁg-

ure3.2.1. Supported multimeters are: Agilent 34401A

serial connected or Agilent 34410A network con-

nected.

For use with Keysight 34461A, see ﬁgure 3.2.2

Note A null modem cable is needed for connection

of the Digital Multimeter.

How to set COM port for the

digital multimeter (DMM) (Agilent

34401A) or other equivalent

instrument

This step is optional.

1] Enter the COM port number.

BVM CAL Box

Computer

Laptop

(BMV CAL SW)

Power

supply

unit





Digital Multimeter

Agilent 34401A

A Com V/Ω

COM-port

To 1st

BVM unit

To mains

Figure 3.2.1 Connection diagram for calibration of BVM units using instrument with COM port

Power&Signal Connector

Data

output

DC IN

BVM

Unit for

calibration

OUT

BVM CAL Ref

OUT

USB port

COM port

8BVM CAL KIT ZP-CJ01E CJ0125BE

3 OPERATION

2] If you don’t enter a COM port number, the

software will search the PC for the COM port

that the DMM is connected to.

3] If the automatic search for right com port does

not work you can set it manually.

4] In MS Windows, open the “Control Panel”.

5] Select “Device Manager”.

6] Right-click on the port you want and select

“Properties”, “Port Settings”, “Advanced”,

Select the number on the COM-port (from

1-15).

Note The BVM Cal System can only handle COM-

ports from 1 to 15.

How to set IP address for the

digital multimeter (DMM) (Agilent

34410A or Keysight 34461A

This step is optional, but recommended.

1] Enter DMM IP address in BVM calib.

2] If you don’t enter an IP address, the software

will search for a connected DMM. Which will

take some time.

3] If the automatic search for right IP address

does not work you can set it manually.

4] It can be found by either starting PC Com-

mand window, then typing command

“ipconﬁg”, or by entering the menu on the

DMM (press buttons Shift, then Display (Util-

ity), then ﬁnd LAN settings, or refer to DMM

User’s manual).

The IP address is a series of digits separated

by dots. It is normally 169.254.aa.bb, where

aa and bb are numbers between 0 and 255.

Note It takes up to one minute to establish connec-

tion between PC and DMM.

5] Please refer to the manual for the DMM to

ﬁnd out how to get the IP-address for the

instrument.

BVM CAL Box

Computer

Laptop

(BMV CAL SW)

Power

supply

unit





Digital Multimeter

Agilent 34410A

Keysight 34461A

A Com V/Ω

To 1st

BVM unit

To mains

Figure 3.2.2 Connection diagram for calibration of BVM units using instrument with Ethernet port

Power&Signal Connector

Data

output

DC IN

BVM

Unit for

calibration

OUT

BVM CAL Ref

OUT

Ethernet-port

USB port

Ethernet port

CJ0125BE ZP-CJ01E BVM CAL KIT 9

3 OPERATION

3.3 Calibration

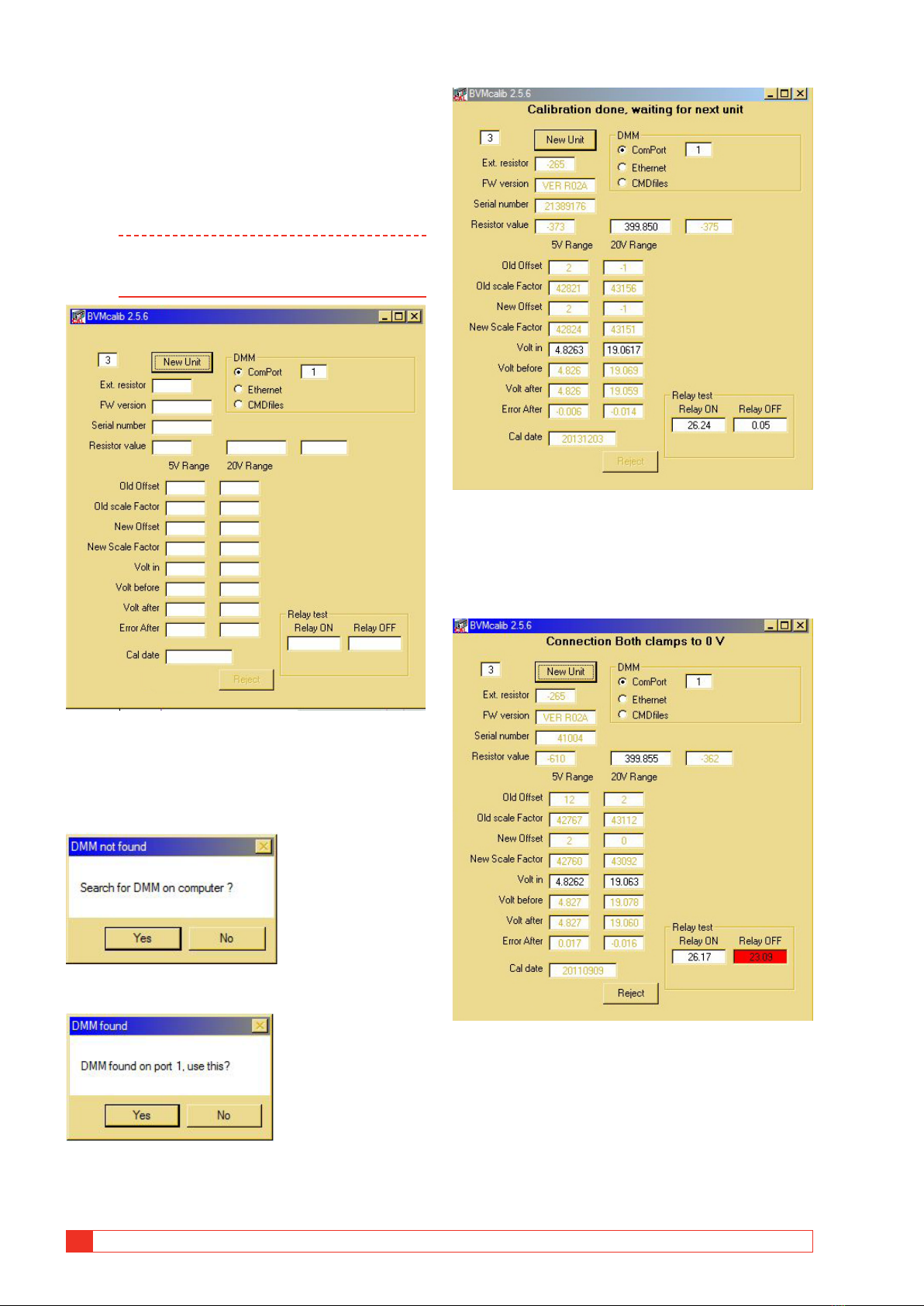

1] Start the BVMcalib SW as administrator.

2] Press “New Unit”.

3] Select connection type by clicking ComPort

or Ethernet.

Note If the port for the Digital Multimeter (DMM)

is not found you shall follow the steps 3 to 5

below.

The calibration will proceed and data are presented

subsequently.

When calibration is ready and if it is approved it is

automatically accepted and the new data are saved.

Logﬁles are saved in C:/ProgramFiles(x86)/BVMcalib.

4] Click “Yes”.

5] Click “Yes”.

The calibration will start.

6] Disconnect the calibrated BVM unit and con-

nect the next BVM unit.

If the BVM unit does not pass the calibration the

faulty value will be highlighted with red, see example

below.

7] You can try to run the calibration once

again to see if you get the same result. Click

“Reject” and then “New Unit” to run a new

calibration.

A defective unit should be replaced.

10 BVM CAL KIT ZP-CJ01E CJ0125BE

3 OPERATION

Indice

Altri manuali Megger Apparecchiature di prova

Megger

Megger MIT30 Manuale utente

Megger

Megger SVERKER 900 Guida rapida

Megger

Megger SR-98 Manuale utente

Megger

Megger Easyloc RxTx Manuale utente

Megger

Megger BMM500 Series Manuale utente

Megger

Megger VLF CR-40 Manuale utente

Megger

Megger MIT200 Series Manuale utente

Megger

Megger MIT400/2 Series Manuale utente

Megger

Megger ODEN AT Manuale utente

Megger

Megger HPA 100 AC Manuale utente

Megger

Megger S1-554/2 Manuale utente

Megger

Megger OTS 60AF/2 Manuale utente

Megger

Megger TTR320 Series Manuale utente

Megger

Megger MWA300 Series Manuale utente

Megger

Megger VLF CR-28 Manuale utente

Megger

Megger TPT320 Manuale utente

Megger

Megger Easytest 20 kV Manuale utente

Megger

Megger AVTMTTR100 Manuale utente

Megger

Megger PAT100 Series Manuale utente

Megger

Megger BITE 2 Manuale utente

Megger

Megger MFT70 Manuale utente

Megger

Megger Vidar Manuale utente

Megger

Megger DELTA 4000 Manuale utente

Megger

Megger BM11D Manuale utente

Manuali Apparecchiature di prova popolari di altre marche

SMART

SMART KANAAD SBT XTREME 3G Series Manuale utente

Agilent Technologies

Agilent Technologies BERT Serial Manuale utente

Agilent Technologies

Agilent Technologies N3280A Manuale utente

Vernier

Vernier Go Direct Voltage Manuale utente

Lifeloc

Lifeloc R.A.D.A.R. Manuale utente

Fluke

Fluke T5-600 Istruzioni per l'uso e l'installazione

Mercury

Mercury TSL01 Manuale utente

MAHA

MAHA MBT Series Manuale utente

Fuji Electric

Fuji Electric P-61 Manuale utente

ETC

ETC SealerAtor Manuale utente

Skyfine

Skyfine ETHYWAY V2 Manuale utente

Appion

Appion G5 Twin Manuale utente

PCB Piezotronics

PCB Piezotronics 8159-0112A Manuale utente

BW Technologies

BW Technologies MicroDock II Manuale utente

Sun Nuclear

Sun Nuclear 1027 Manuale utente

Biomark

Biomark HPR LITE READER Manuale utente

Hioki

Hioki 3169-20 Manuale utente

Ashcroft

Ashcroft ATE-100 Manuale utente
