MeiTrack MT88 Manuale utente

File Name:

MEITRACK MT88 User Guide

Creator:

Cavana Cheung

Project:

MT88

Creation Date:

Update Date:

2010-07-12

2011-01-22

Sub Project:

User Guide

Page:

1 of 5

Revision:

V1.03

Confidential:

External Documentation

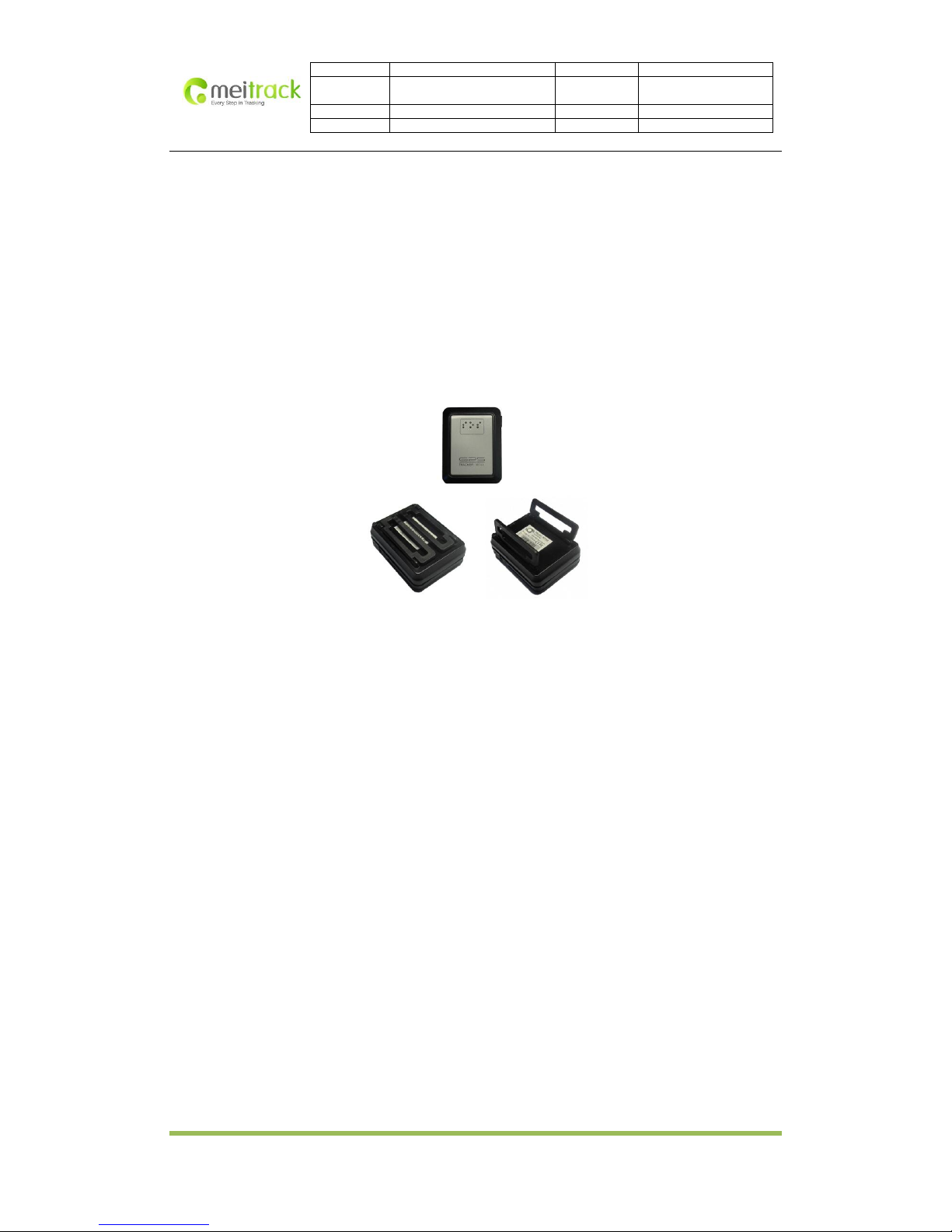

MEITRACK® MT88

USER GUIDE

File Name:

MEITRACK MT88 User Guide

Creator:

Cavana Cheung

Project:

MT88

Creation Date:

Update Date:

2010-07-12

2011-01-22

Sub Project:

User Guide

Page:

2 of 5

Revision:

V1.03

Confidential:

External Documentation

Table of Contents

1. Copyright and Disclaimer.................................................................................................................................. 3

2. Applications ...................................................................................................................................................... 3

3. Features ............................................................................................................................................................ 3

4. MT88 and its Accessories.................................................................................................................................. 4

5. View .................................................................................................................................................................. 4

6. Install SIM Card ................................................................................................................................................. 4

7. Charging............................................................................................................................................................ 4

8. LED Indications.................................................................................................................................................. 5

9. Unit Configuration ............................................................................................................................................ 5

File Name:

MEITRACK MT88 User Guide

Creator:

Cavana Cheung

Project:

MT88

Creation Date:

Update Date:

2010-07-12

2011-01-22

Sub Project:

User Guide

Page:

3 of 5

Revision:

V1.03

Confidential:

External Documentation

1. Copyright and Disclaimer

Information in this user guide may be changed at any time without prior notification.

This user guide nor any parts thereof may not be reproduced for any purpose whatsoever without the written

consent of Meiligao (MEITRACK), nor transmitted in any form either electronically or mechanically, including

photocopying and recording.

In no event shall Meiligao (MEITRACK) be liable for direct, indirect, special, incidental, or consequential damages

(including but not limited to economic loss, personal injury, and loss of asset and property) arising out of the use

or inability or illegality to use the product or documentation.

2. Applications

Personal Tracking and Protection

Pet Tracking

Asset Tracking and Security

Vehicle Tracking

3. Features

SiRF III GPS and Quad Band GSM 850/900/1800/1900Mhz

AGPS ( with GSM Base Station ID)

Mini Size (49.30mm x 37.80mm x 18.00mm) and Weighs only 40g

Low Power Consumption and Long Standby Time

Recessed Braille SOS Button

Track by SMS/GPRS (MEITRACK Protocol)

Track on Demand

Track by Time Interval

Track by Distance Interval

Track on Mobile Phone

Listen-in (Voice Monitoring)

Internal 4Mb Memory for Logging

Inbuilt Motion Sensor

Inbuilt Battery

SOS Alarm

Geo-fence Alarm

GPS Blind Area Alarm

Low Battery Alarm

Speeding Alarm

Mileage Report

File Name:

MEITRACK MT88 User Guide

Creator:

Cavana Cheung

Project:

MT88

Creation Date:

Update Date:

2010-07-12

2011-01-22

Sub Project:

User Guide

Page:

4 of 5

Revision:

V1.03

Confidential:

External Documentation

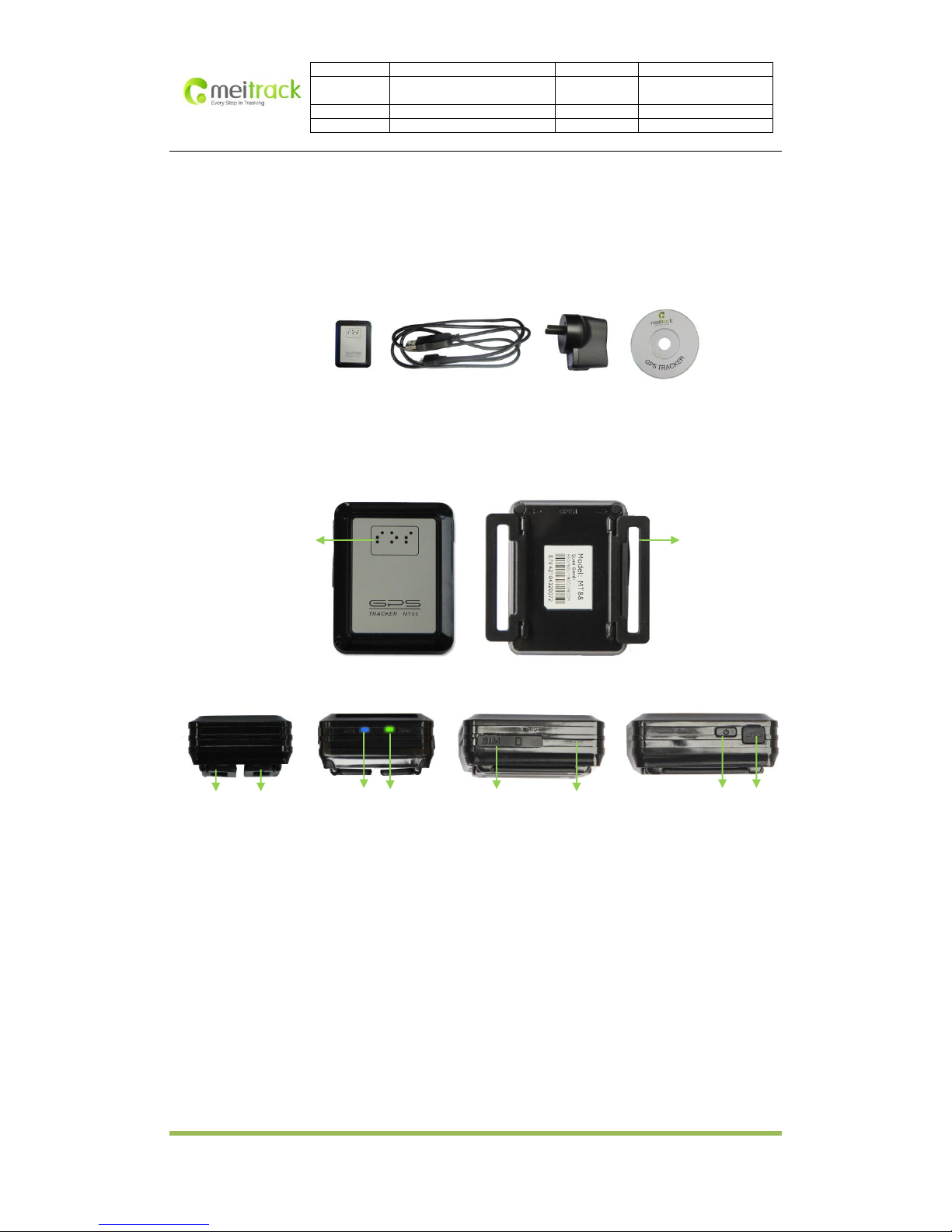

4. MT88 and its Accessories

MT88 Main Unit with Battery

USB Data Cable

Wall Charger

CD

5. View

Front & Back View

Side View

6. Install SIM Card

Check that the SIM has not run out of credit (test the SIM in a phone to make sure it can send and receive SMS);

Check that the SIM Lock code is turned off;

If you require the function of sending an SMS location report to the authorized phone number when it makes a

call to the MT88, please make sure the SIM installed supports displaying caller ID.

Before installing the SIM card, turn off the power for MT88.

Turn off the rubber cover for SIM Card holder and then insert the SIM Card.

7. Charging

For the unit’s first use, it will take around 3 hours to fully charge the battery of MT88.

Clip for Collar or Belt

GPS LED

GSM LED

SIM Card Holder

(with Rubber Cover)

Microphone

For Voice Monitoring

On/Off

USB

Recessed SOS Button

Clip for Collar or Belt

File Name:

MEITRACK MT88 User Guide

Creator:

Cavana Cheung

Project:

MT88

Creation Date:

Update Date:

2010-07-12

2011-01-22

Sub Project:

User Guide

Page:

5 of 5

Revision:

V1.03

Confidential:

External Documentation

8. LED Indications

Press and hold the Power On/Off button for 3~5 seconds to turn on/off MT88.

GPS LED (Blue)

One button is pressed or charging.

Flashing ( every 0.1 second)

Initializing or Power is not enough

Flashing (0.1 second on and 2.9 seconds off)

MT88 has a GPS fix

Flashing (1 second on and 2 seconds off)

MT88 has no GPS fix

GSM LED (Green)

One call is coming in / one call is being made

Flashing ( every 0.1 second)

Initializing

Flashing (0.1 second on and 2.9 seconds off)

MT88 is connected to the GSM network

Flashing (1 second on and 2 seconds off)

MT88 is not connected to the GSM network

9. Unit Configuration

Connect the USB Data Cable between MT88 and PC and use MEITRACK Parameter Editor to configure the MT88.

Please refer to MEITRACK Parameter Editor User Guide for more information regarding configuration and

functions.

Please refer to MEITRACK SMS/GPRS Protocol for more information regarding SMS and GPRS commands.
