Mellanox Technologies MIS5024 Manuale utente

Document no. 3396

Mellanox Technologies Confidential

http://www.mellanox.com

Dismantling Guide

OPNs MIS5024, MIS5023

Rev. 1.0

Dismantling Guide

Rev. 1.0

Mellanox Technologies Confidential

2 of 12

NOTE:

THIS INFORMATION IS PROVIDED BY MELLANOX FOR INFORMATIONAL PURPOSES ONLY

AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE

IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE

ARE DISCLAIMED. IN NO EVENT SHALL MELLANOX BE LIABLE FOR ANY DIRECT,

INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES

(INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES;

LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND

ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT

(INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF

THIS HARDWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Mellanox Technologies, Inc.

350 Oakmead Parkway Suite 100

Sunnyvale, CA 94085

U.S.A.

www.mellanox.com

Tel: (408) 970-3400

Fax: (408) 970-3403

Mellanox Technologies Ltd

PO Box 586 Hermon Building

Yokneam 20692

Israel

Tel: +972-4-909-7200

Fax: +972-4-959-3245

Mellanox®, BridgeX®, ConnectX®, InfiniBlast®, InfiniBridge®, InfiniHost®, InfiniRISC®,

InfiniScale®, InfiniPCI®, PhyX® and Virtual Protocol Interconnect® are registered trademarks of

Mellanox Technologies, Ltd. CORE-Direct and FabricIT are trademarks of Mellanox Technologies, Ltd.

All other marks and names mentioned herein may be trademarks of their respective companies.

Contact Information

Should you have any questions regarding our Products, please feel free to contact us directly or contact our

local distributors.

Mellanox Technologies Call Center

Tel: +

Email: Mellanox_WEEE@mellanox.com

Dismantling Guide

Rev. 1.0

Mellanox Technologies Confidential

3 of 12

Table of Contents

Revision .......................................................................................................................................... 4

Preface............................................................................................................................................. 4

Intended Audience .......................................................................................................................... 4

Switch OPNs................................................................................................................................... 4

Policy Statement ............................................................................................................................. 5

1Dismantling Instructions......................................................................................................... 6

1.1 InfiniBand switch systems - General.............................................................................. 6

1.2 General Preparations....................................................................................................... 6

1.3 Cover............................................................................................................................... 6

1.4 Extracting the Power Supply Unit .................................................................................. 7

1.5 Extracting the Fan Unit................................................................................................... 9

1.6 Extracting the Board ..................................................................................................... 11

List of Tables

Table 1: Revision............................................................................................................................ 4

Table 2: Switch OPNs for this Procedure....................................................................................... 4

List of Figures

Figure 1 Remove the Cover....................................................................................................... 7

Figure 2 PSU Location.............................................................................................................. 8

Figure 3 PSU Screw Locations ................................................................................................. 8

Figure 4 Fan Location ............................................................................................................... 9

Figure 5 Fan Bottom Side Screw Locations............................................................................ 10

Figure 6 Fan Top Side Screw Locations................................................................................. 10

Figure 7 Main Board Removal................................................................................................ 11

Figure 8 Main Board Screws................................................................................................... 12

Dismantling Guide

Rev. 1.0

Mellanox Technologies Confidential

4 of 12

Revision

Table 1: Revision

Revision

Date

1.0

January 2011

Preface

This manual is intended as a reference for dismantling MIS 502[34]Q switch

systems in preparation of meeting the requirements of WEEE recycling.

Intended Audience

This manual is intended for technicians who dismantle the switch systems as a

reference for WEEE recyclers.

Mellanox Technologies emphasizes the importance of carefully following all

procedures described in this guide to prevent personal injury.

Switch OPNs

This document is valid for all of the switch OPNs listed in Table 2.

Table 2: Switch OPNs for this Procedure

MIS5023Q-1BFR

MIS5023Q-1BRR

MIS5024Q-1BFR

MIS5024Q-1BRR

Dismantling Guide

Rev. 1.0

Mellanox Technologies Confidential

5 of 12

Policy Statement

Mellanox Technologies recognizes the importance of developing connectivity

solutions that not only enable our customers to optimize their data centers

performance, but also protect the environment and ensure that future generations

enjoy its bounties. Mellanox Technologies is committed, therefore, to meeting the

requirements of the European Union’s WEEE (waste electrical and electronic

equipment) directive. The directive mandates how the materials used in electrical

and electronic equipment must be disposed of.

Mellanox Technologies has worked closely with its suppliers to eliminate

hazardous materials from its products. There are instances, however, where it has

not proven possible to completely eliminate all hazardous materials.

Consequently, all applicable products are labeled with a crossed out “wheelie” bin

symbol, indicating that special care must be applied to their disposal and / or

recycling.

Dismantling Guide

Rev. 1.0

Mellanox Technologies Confidential

6 of 12

1Dismantling Instructions

This chapter provides detailed instructions for dismantling the InfiniBand switch

systems. Follow the instructions in the order they are presented.

1.1 InfiniBand switch systems - General

The InfiniBand switch system complies with RoHS directive under the exemption

known as RoHS-6.

The last digit of the product part number represents the RoHS type.

For example

MIS5024Q-1BRR —the last R = RoHS-6

InfiniBand switch system systems are comprised of:

Main Board

Fan unit

Harnesses

Power Supply Unit (PSU)

Cover

1.2 General Preparations

The InfiniBand switch system is assembled using Philips screws.

To disassemble the InfiniBand switch system you will need a small Philips

screwdriver.

The pictures displayed in the following pages provide visual guidance explaining

how to remove the modules from the mechanical base.

1.3 Cover

Unscrew the rear-side screws, and slide the cover to the back for opening it.

Dismantling Guide

Rev. 1.0

Mellanox Technologies Confidential

7 of 12

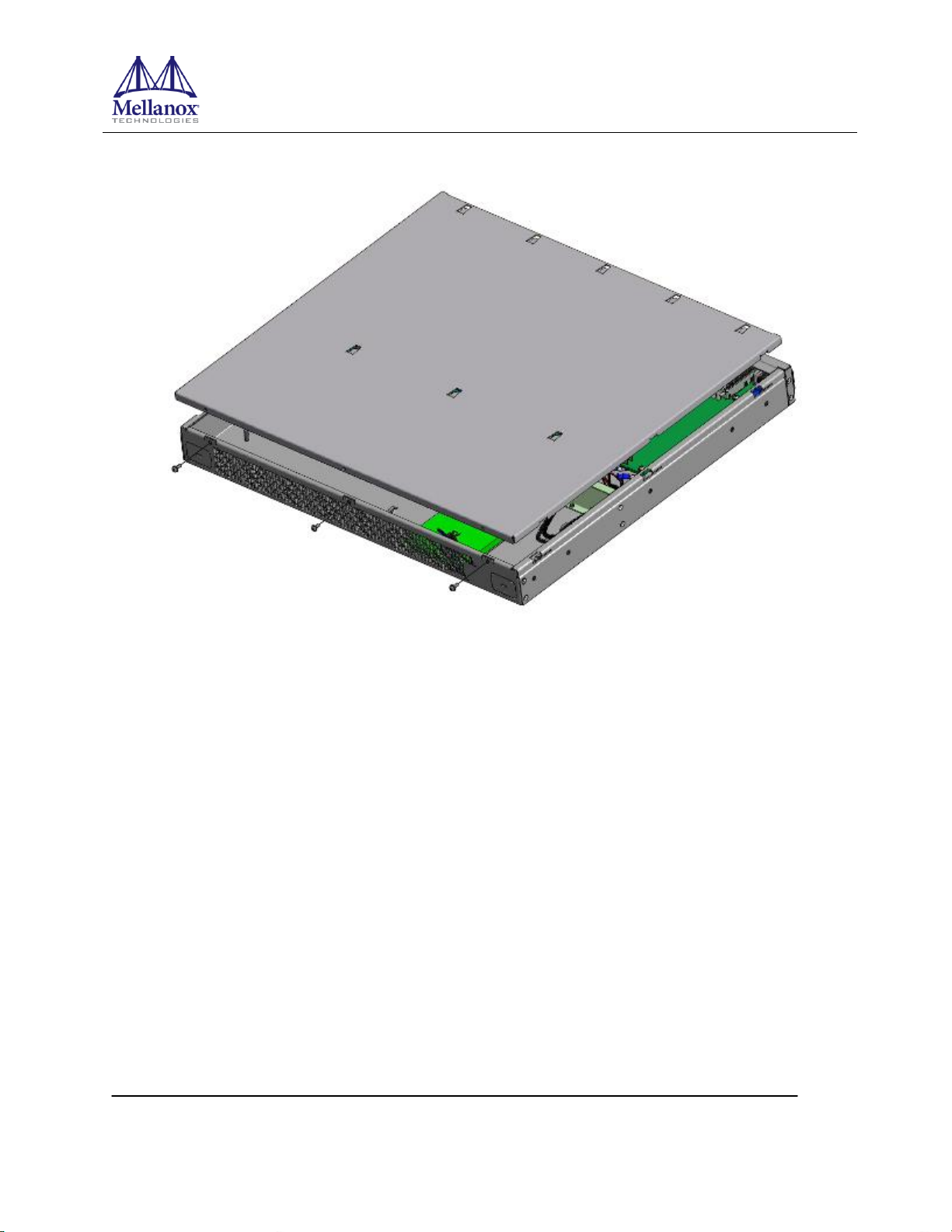

Figure 1 Remove the Cover

1.4 Extracting the Power Supply Unit

The power supply unit is located on the rear side of the switch unit.

Disassemble the 4 screws attaching the Power Supply to its mechanical base.

Dismantling Guide

Rev. 1.0

Mellanox Technologies Confidential

8 of 12

Figure 2 PSU Location

Figure 3 PSU Screw Locations

Power Supply Schema

Screws for disassembling the PS from the base

Dismantling Guide

Rev. 1.0

Mellanox Technologies Confidential

9 of 12

To extract a PSU:

1. Disconnect the ground from the power supply.

2. Disconnect, cut or unscrew the power supply cord from the power supply unit.

3. Unscrew the power supply from the mechanical enclosure.

1.5 Extracting the Fan Unit

The Fan unit is located in the middle of the system.

Figure 4 Fan Location

1. Disconnect the harnesses from the fan unit to the board.

2. Disassemble the 3 screws attaching the Fan wall to the bottom of the mechanical

enclosure base.

Dismantling Guide

Rev. 1.0

Mellanox Technologies Confidential

10 of 12

Figure 5 Fan Bottom Side Screw Locations

3. Disassemble the 2 screws attaching the Fan wall to the sides of the mechanical base.

4. Remove the fan unit.

5. Disconnect harness tie downs and remove harnesses from the base.

Figure 6 Fan Top Side Screw Locations
