Messoa NCR375 Manuale utente

IR Bullet Network Camera

Quick Start

Guide

201410 375 A1

NCR375

English

Safety Instructions

Make sure the supplied voltage meets the power consumption requirements of the camera before powering the camera on.

Incorrect voltage may cause damage to the camera.

The camera should be protected from water and moisture, excessive heat, direct sunlight and cold.

This installation should be made by a qualied service person and should conform to all local codes.

Unplug the camera during lightning storms or when unused for long periods of time.

Compliance

This equipment complies with the requirements as listed below:

FCC Part 15 Class B

CE: 2004/108/EC-Electromagnetic Compatibility (EMC) directive of EN55022 and EN55024.

WEEE

Waste Electrical and Electronic Equipment

Correct disposal of this product (applicable in the European Union and other European countries

with separate collection systems). This product should be disposed of, at the end of its useful life, as

per applicable local lows, regulations and procedures.

English

1 Introduction

1.1 Package Contents

IR Bullet Network Camera x1

Quick Start Guide x1

Guide Pattern x1

Insulation caps x3

Self-tapping Screw (TP4 x 31mm) x3

Plastic Anchor x3

2-pin Screw Terminal Block x1

RJ45 waterproof connector x1

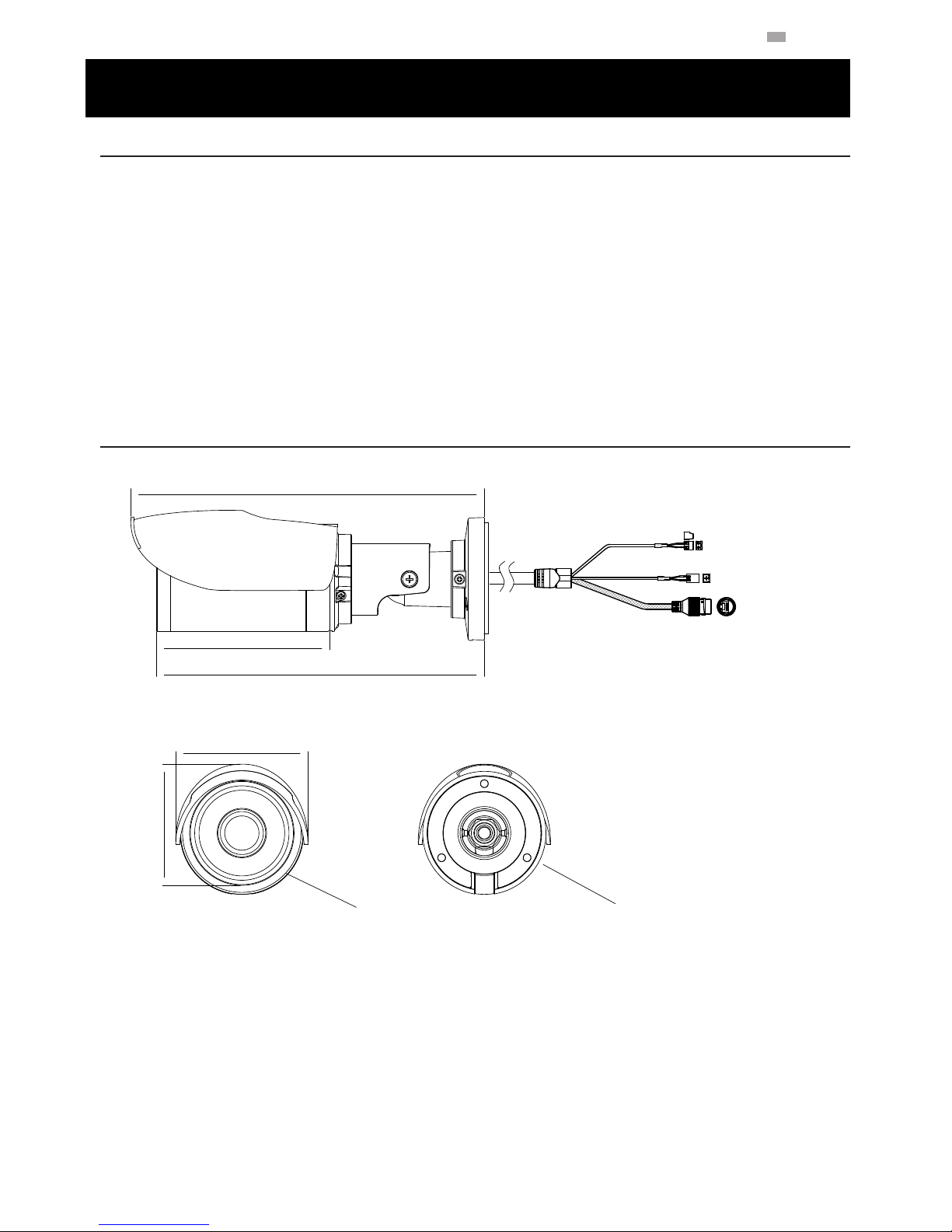

1.2 Dimensions

244mm (9.61”)

91mm (3.58”)

226mm (8.90”)

Ø72mm (2.83”)

Ø85mm (3.35”)

120mm (4.72”)

83mm (3.27”)

Alarm In

Power

RJ45

English

2Installation

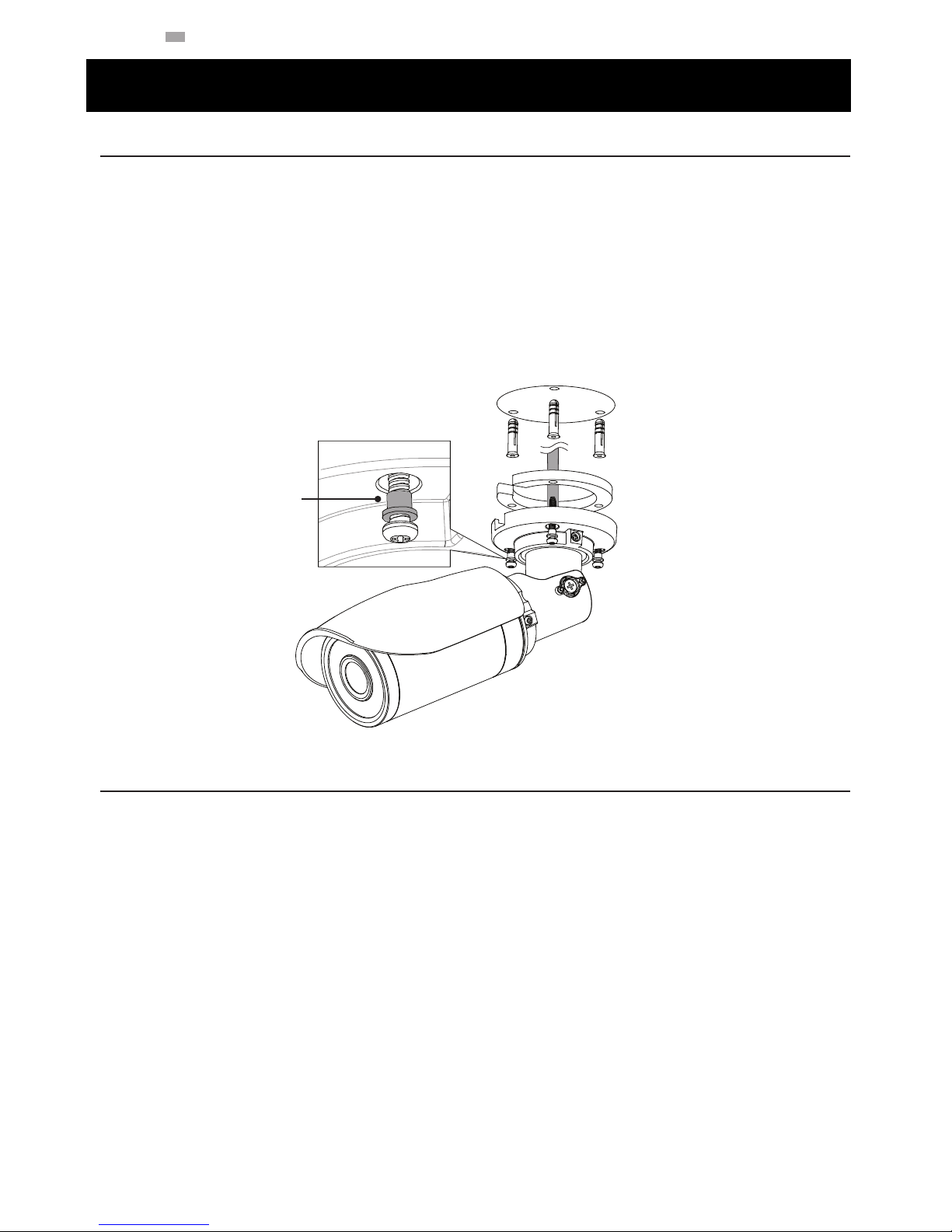

2.1 Mounting the Camera

1. Drill mounting holes and insert anchors.

In desired location, use the supplied Guide Pattern to drill three 5mm mounting holes. Then insert the supplied anchors

into the holes.

2. Pass all the signal cables through the hole for the cables.

Optionally connect a video monitor to the BNC connector if you want to perform focus/zoom adjustments during the

installation.

3. For static electricity protection, ensure that the rubber pad is placed inside the mounting bracket base.

4. Place the three provided insulation caps onto the three tapping screws. Insert the screws to the screw holes on the

camera bracket, and then tighten the screws to the anchors to attach the camera .







Rubber Pad

Insulation Cap



2.2 Making the Connection

1. Power(2-pin Red/Black): Connect to AC 24V power supply. If you are to use power via the PoE connection, this

connector is not used.

2. RJ-45 (PoE): Connect to the LAN port of a standard 10BaseT/100BaseTX device, e.g., hub, switch or router. If you are

going to use PoE function, connect to a PoE-capable network device. Power will be supplied through the Ethernet

cable.

Note: Remember to use the RJ45 waterproof connector supplied to ensure waterproof protection.

3. Alarm In (2-pin White/Black): alarm signal input port

English

2.3 Initial Conguration

Before connecting the camera to your network infrastructure, it’s suggested that you connect the camera to a computer rst

to perform initial congurations.

1. Congure the computer’s IP address to one other than the camera’s default IP address, such as:

IP Address: 192.168.1.100

Subnet Mask: 255.255.255.0

2. Using an Ethernet cable, connect the camera to the computer.

The LAN port of the camera supports auto MDI/MDIX so there is no need to use a cross-over cable.

3. On the PC, launch a web browser and enter the IP address of the camera in the URL eld:

http://192.168.1.30

4. When prompted for login, enter the default user name: admin and password: 1234 to login. Note that the user name

and password are case-sensitive.

5. Congure the settings to meet your requirements. For more information, refer to the User Manual on MESSOA website.

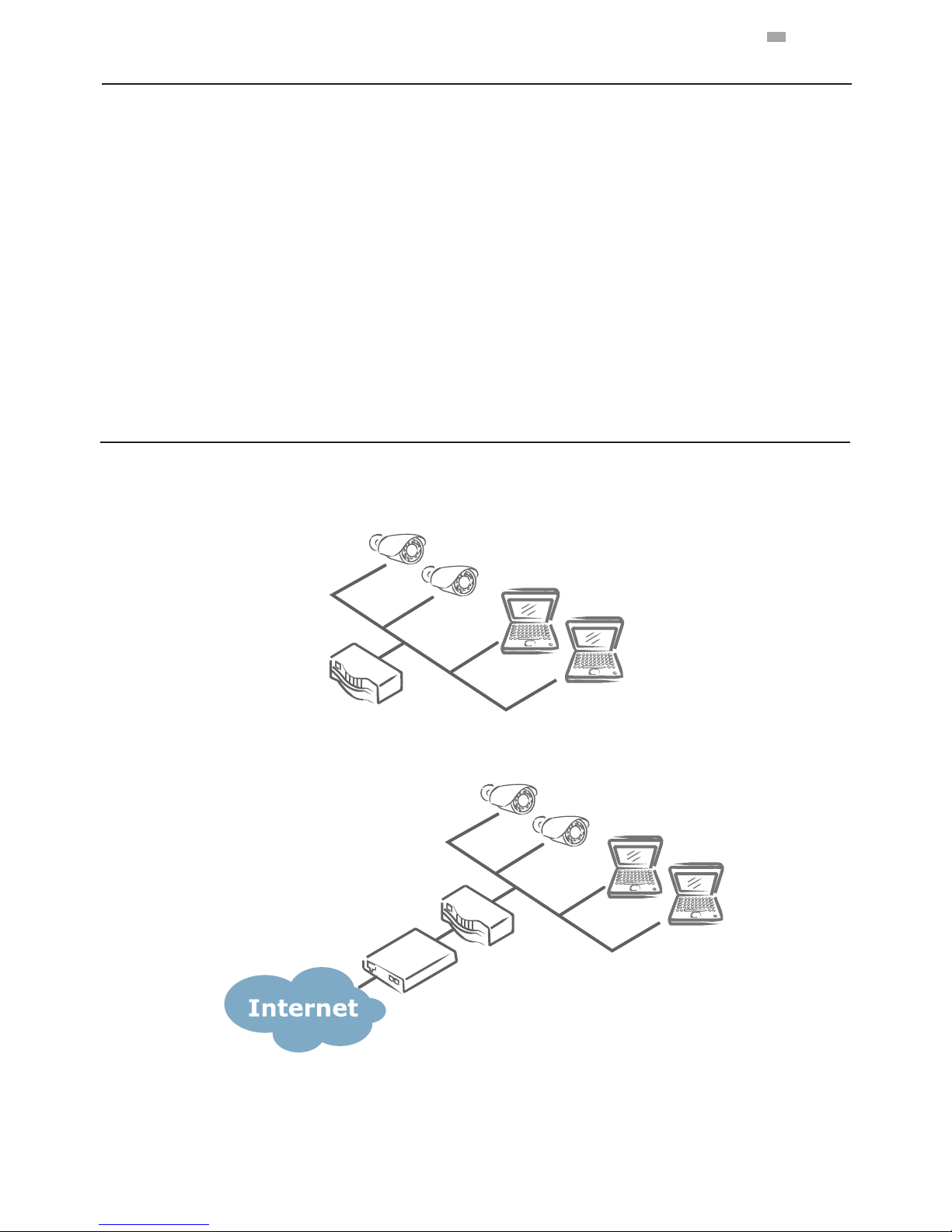

2.4 Connecting to Your Network

Connecting to a LAN

If you have multiple cameras installed on your network, you can use the provided IP Finder utility to manage the cameras.

For more information, refer to the User Manual on MESSOA website..

Connecting to the Internet

To enable remote access to the cameras, you must configure your router/firewall to open port numbers. For more

information, refer to the User Manual on MESSOA website..

Router/Switch/Hub

xDSL/Cable

Modem

Router
