Metra Electronics 95-7863 Manuale utente

METRA. THE WORLD’S BEST KITS.™

APPLICATIONS

1-800-221-0932 metraonline.com

INSTALLATION INSTRUCTIONS FOR PART 95-7863

REV. 12/28/11

WIRING & ANTENNA CONNECTIONS (Sold Separately)

Wiring Harness:

• 70-1721 - Honda/Acura harness 1998-up

• 70-7863 - Element sub and AUX integration

Antenna Adapter:

• 40-hd10 - Honad/Acura antenna adapter

(for Element 2005-up)

• Panel removal tool • Phillips screwdriver

TOOLS REQUIRED

Honda Element 2003-2010

95-7863

B CA

• A) Double DIN trim plate • B) Double DIN brackets • C) O.E. Replacement panel

KIT FEATURES

KIT COMPONENTS

• Double DIN head radio provision

• Textured to match factory dash

Table of Contents

Dash Disassembly

–Honda Element 2003-2010 .......................................................................3

Kit Assembly

–Double DIN head radio provision ...............................................................4

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by

enrolling in the most recognized and respected

mobile electronics school in our industry.

Log onto www.installerinstitute.com or call

800-354-6782 for more information and take steps

toward a better tomorrow.

Metra recommends MECP

certified technicians

95-7863

CAUTION: Metra recommends disconnecting the negative battery terminal before

beginning any installation. All accessories, switches, and especially air bag indicator

lights must be plugged in before reconnecting the battery or cycling the ignition.

Note: Refer also to the instructions included with the aftermarket radio.

1. Disconnect the negative battery

terminal to prevent an accidental

short circuit.

2. Unsnap and remove shift lever trim

panel. For manual transmission models,

untwist shift knob. (Figure A)

3. Unsnap and remove center dash panel.

(Figure B)

4. Remove (4) Phillips screws and remove

radio.

Tip: As an option, the center panel

(the smaller piece around radio) is all

that needs to be removed. Note, it is

prone to damage--full panel removal is

recommended. (Figure C)

Continued to kit assembly

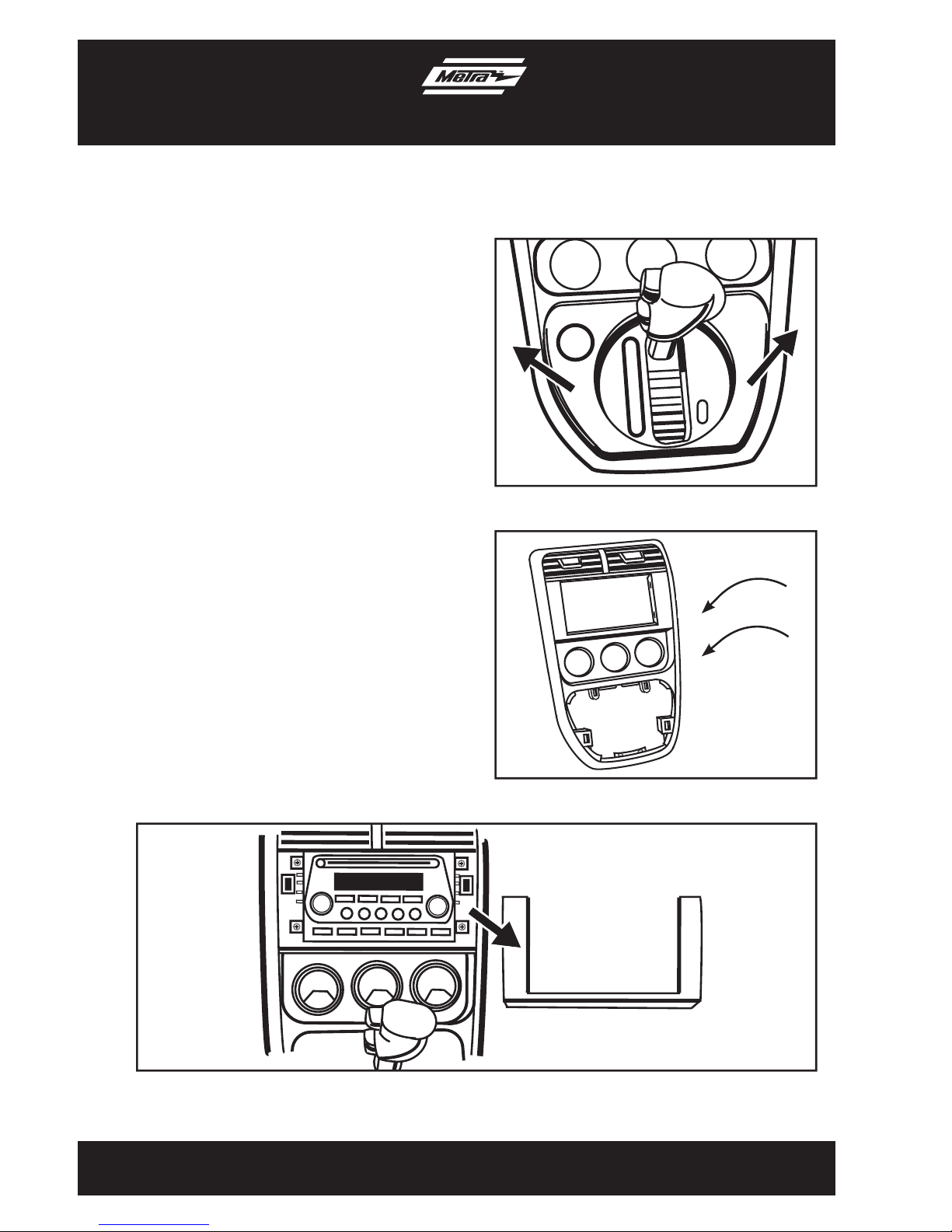

Honda Element 2003-2010

Dash Disassembly 95-7863

(Figure A)

(Figure C)

(Figure B)

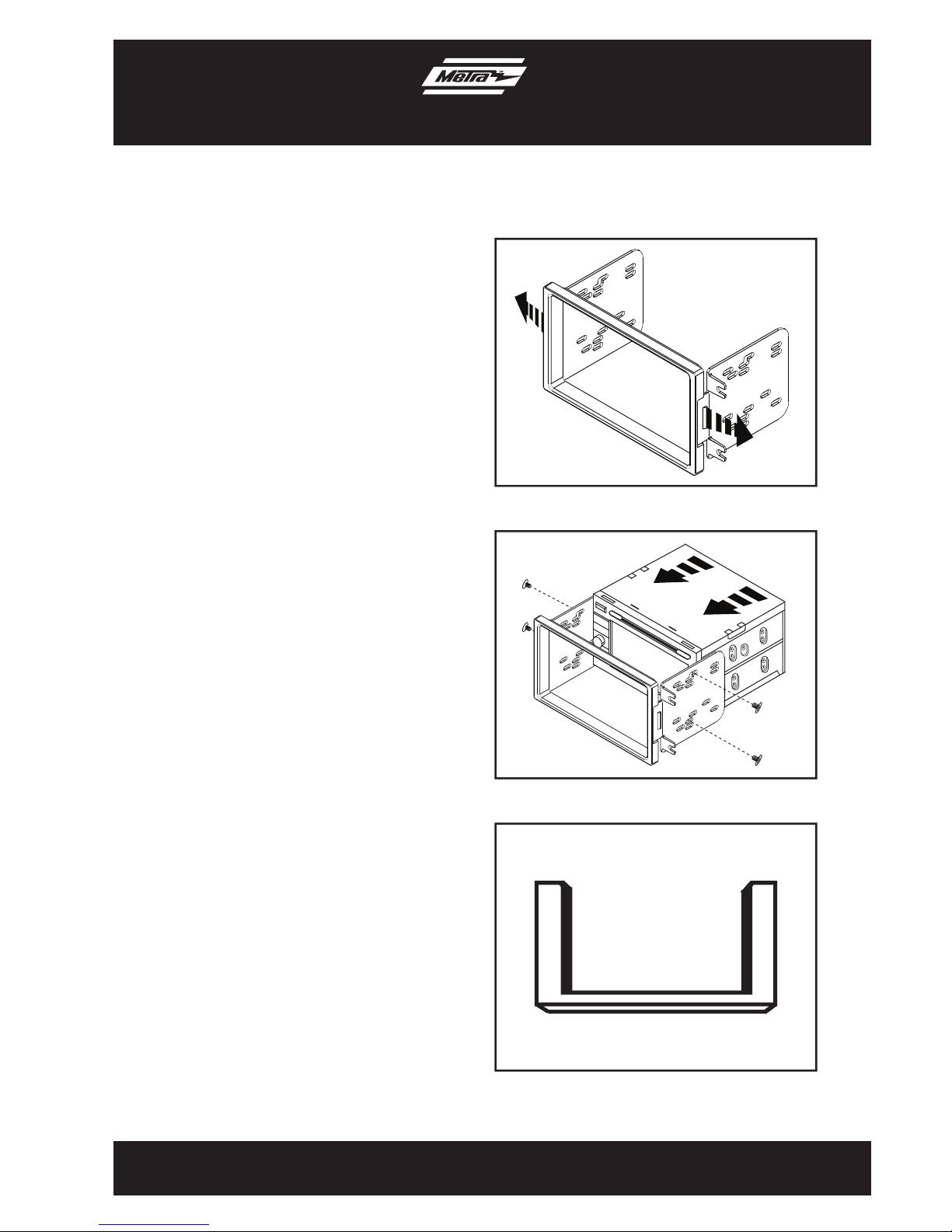

Kit Assembly 95-7863

Double DIN head radio provision

1. Attach the Double DIN brackets to the

Double DIN trim plate. (Figure A)

2 Slide the Double DIN head unit into the

bracket/radio housing assembly and

secure the Double DIN head unit to the

assembly using the screws supplied

with the radio. (Figure B)

3. Locate the factory wiring harness in the

dash. Metra recommends using the

proper mating adapter from Metra or

AXXESS. Re-connect the negative

battery terminal and test the unit for

proper operation.

Note: Models equipped with factory

DDIN radio will require supplied O.E.

Replacement panel. (Figure C)

4. Reassemble dash in reverse order

of disassembly.

(Figure A)

(Figure C)

(Figure B)

Notes

METRA. THE WORLD’S BEST KITS.™

1-800-221-0932 metraonline.com

INSTALLATION INSTRUCTIONS FOR PART 95-7863

REV. 12/28/11

METRA. THE WORLD’S BEST KITS.™

1-800-221-0932 metraonline.com

INSTRUCCIONES DE INSTALACIÓN PARA LA PIEZA 95-7863

REV. 12/28/11

CABLEADO Y CONEXIONES DE ANTENA (se venden por separado)

Arnés de cableado:

• 70-1721 - Arnés para Honda/Acura 1998 y más recientes

• 70-7863 - Integración sub y AUX con Element

Adaptador de antena:

• 40-hd10 - Adaptador de antena para Honda/Acura

(para Element 2005 y más recientes)

• Herramienta de remoción de panel • Destornillador Phillips

TOOLS REQUIRED

Honda Element 2003-2010

95-7863

B CA

• A) Placa de moldura DDIN • B) Soportes DDIN • C) O.E. Panel de reemplazo

CARACTERÍSTICAS DEL KIT

COMPONENTES DEL KIT

• Provisión de unidad central doble DIN

• Texturizado para igualar el tablero de fábrica

Indice

Desmontaje del tablero

–Honda Element 2003-2010 .......................................................................3

Ensamble del kit

–Provisión de unidad central doble DIN .......................................................4

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by

enrolling in the most recognized and respected

mobile electronics school in our industry.

Log onto www.installerinstitute.com or call

800-354-6782 for more information and take steps

toward a better tomorrow.

Metra recommends MECP

certified technicians

95-7863

PRECAUCIÓN: Metra recomienda desconectar el terminal negativo de la batería

antes de comenzar cualquier instalación. Todos los accesorios, interruptores y,

especialmente, las luces indicadoras de airbag deben estar enchufados antes de

volver a conectar la batería o comenzar el ciclo de ignición.

Nota: Asimismo, remítase a las instrucciones incluidas con el radio de posventa.
