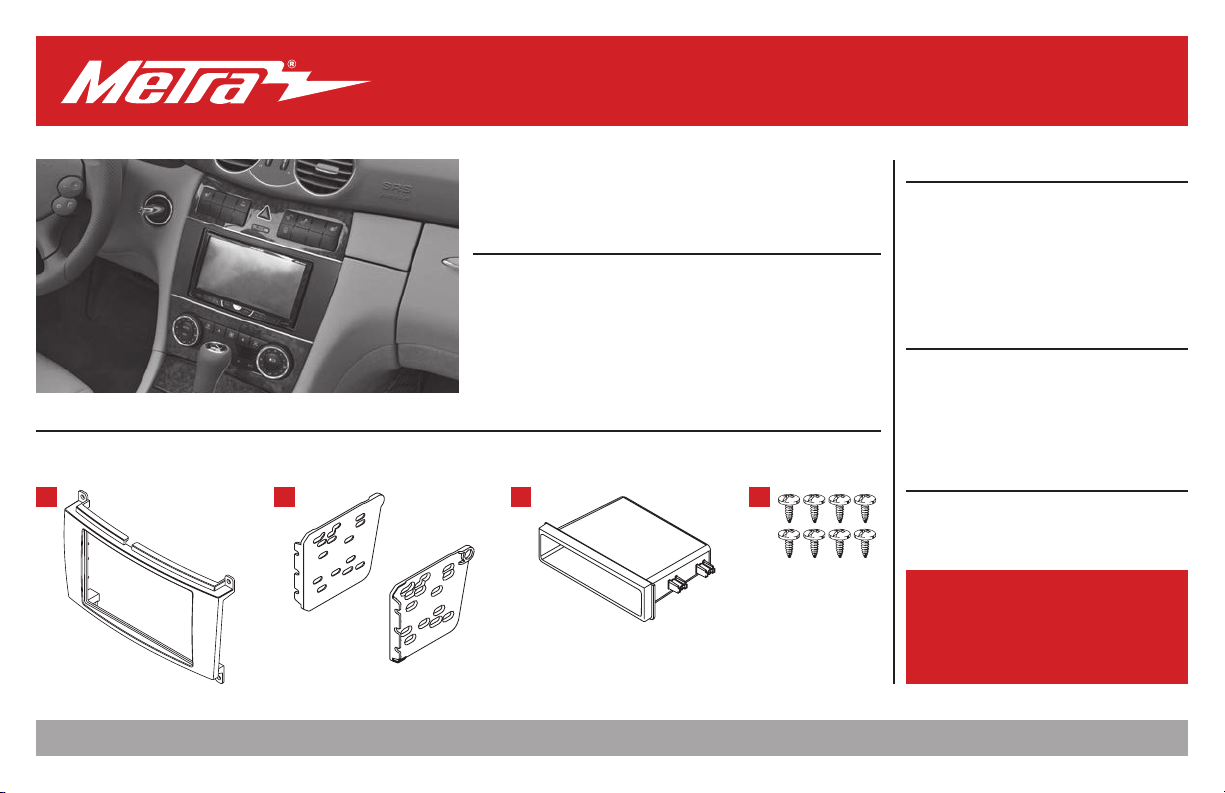

Metra Electronics 99-8724B Manuale utente

CAUTION!

All accessories, switches, climate

controls panels, and especially air bag indicator

lights must be connected before cycling the

ignition. Also, do not remove the factory radio

with the key in the on position, or while the

vehicle is running.

INSTALLATION INSTRUCTIONS

99-8724B

KIT FEATURES

• ISO DIN radio provision with pocket

• ISO DDIN radio provision

• Painted matte black

KIT COMPONENTS

• A) Radio trim panel • B) Radio brackets • C) Pocket • D) (8) #8 x 3/8” Phillips screws

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

• Socket wrench • T-20 Torx screwdriver

TABLE OF CONTENTS

Dash Disassembly ..................................................2

Kit Assembly

–ISO DIN radio provision with pocket ..................3

–ISO DDIN radio provision .....................................3

WIRING & ANTENNA CONNECTIONS

(sold separately)

Wiring Harness: XSVI-9005-NAV

Antenna Adapter: 40-EU10

Steering Wheel Control Interface: ASWC-1

A B C D

Mercedes-Benz CLK-Class 2005-2009

1.800.221.0932

MetraOnline.com

1. Unclip the shifter trim panel, then unclip

the shifter boot from the panel. Slide

the shifter boot through the panel, then

unplug and remove the panel. (Figure A)

2. Unclip the ashtray and set to the side.

(Figure B)

3. Remove (2) T-20 Torx screws securing the

bottom of the climate control panel, then

unplug and remove the panel. (Figure C)

(Figure D)

(Figure E)

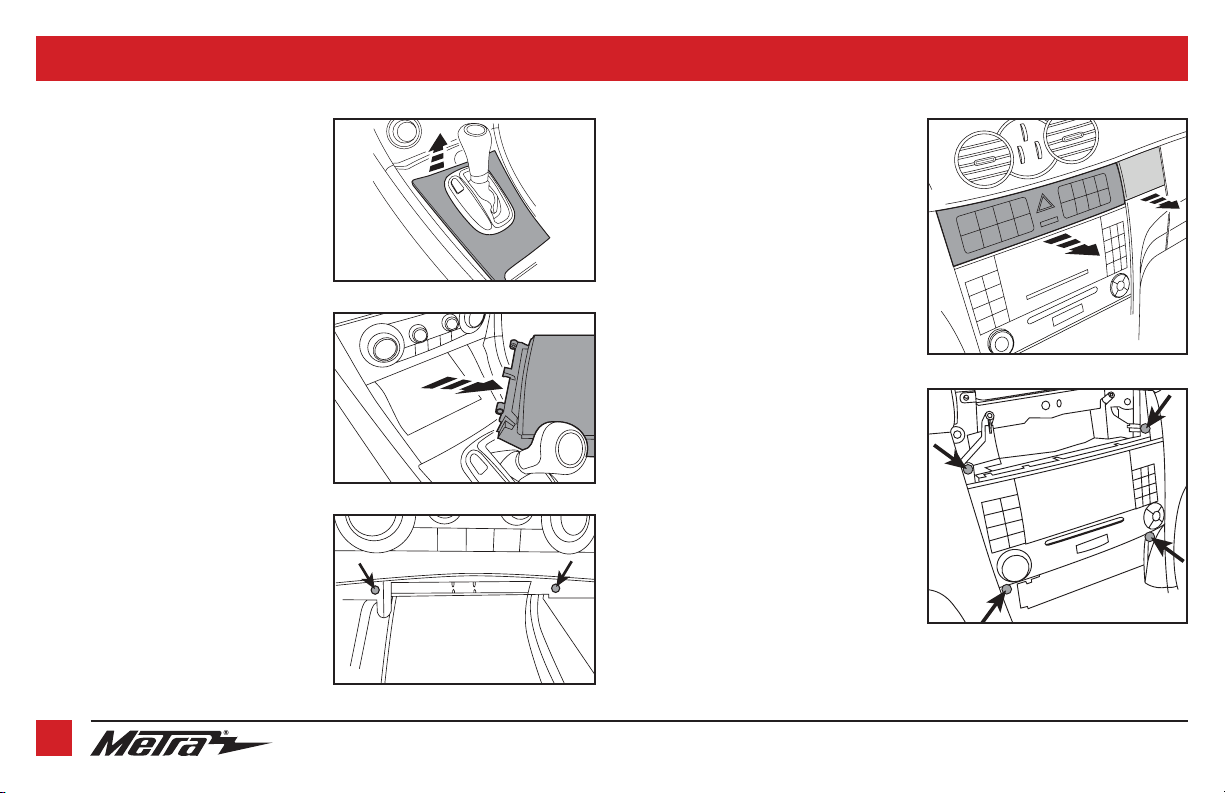

DASH DISASSEMBLY

(Figure A)

(Figure B)

(Figure C)

4. Open the cup-holder, then unclip,

unplug, and remove the hazard button

panel. (Figure D)

Remove (4) T-20 Torx screws securing the

radio, then unplug and remove the radio.

(Figure E)

Continue to Kit Assembly

REV. 8/27/2018 INST99-8724B 3

(Figure A)

(Figure B)

(Figure C)

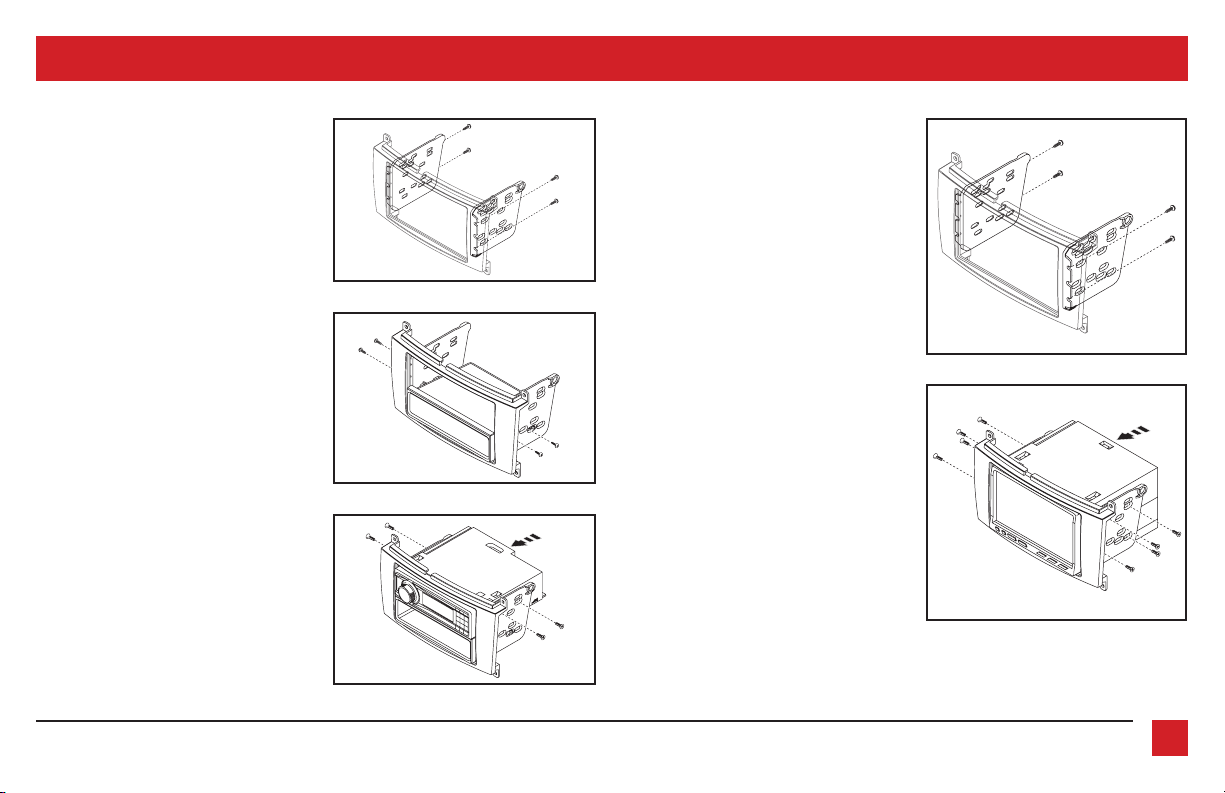

KIT ASSEMBLY

(Figure B)

(Figure A)

ISO DIN radio provision with pocket

1. Attach the

radio brackets

to the

radio

trim panel

using (4) #8 x 3/8” Phillips

screws supplied. (Figure A)

2. Attach the

pocket

to the bracket

assembly using the (4) #8 x 3/8” Phillips

screws. (Figure B)

3. Remove the metal DIN sleeve and trim

ring from the aftermarket radio.

4. Slide the radio into the completed

assembly, and then secure it using

screws supplied with the radio.

(Figure C)

5. Locate the factory wiring harness and

antenna connector in the dash, and

complete all necessary connections to

the radio. Metra recommends using the

proper mating adapter from Metra and/

or AXXESS. Test the radio for proper

operation.

6. Reassemble the dash in reverse order of

disassembly.

ISO DDIN radio provision

1. Attach the

radio brackets

to the

radio

trim panel

using (4) #8 x 3/8” Phillips

screws supplied. (Figure A)

2. Slide the radio into the completed

assembly, and then secure it using

screws supplied with the radio.

(Figure B)

3. Locate the factory wiring harness and

antenna connector in the dash, and

complete all necessary connections to

the radio. Metra recommends using the

proper mating adapter from Metra and/

or AXXESS. Test the radio for proper

operation.

4. Reassemble the dash in reverse order

of disassembly.

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by

enrolling in the most recognized and respected

mobile electronics school in our industry.

Log onto www.installerinstitute.com or call

800-354-6782 for more information and take steps

toward a better tomorrow.

Metra recommends MECP

certiﬁed technicians

IMPORTANT

If you are having difﬁculties with the installation of this product,

please call our Tech Support line at 1-800-253-TECH. Before

doing so, look over the instructions a second time, and make

sure the installation was performed exactly as the instructions

are stated. Please have the vehicle apart and ready to perform

troubleshooting steps before calling.

INSTALLATION INSTRUCTIONS

99-8724B
