METROLOGIC INSTRUMENTS, INC.

MS1690 Focus

Series

Area Imaging Bar Code Scanner

Installation and User's Guide

work may be reproduced, transmitted, or stored in any form or by any means

without prior written consent, except by reviewer, who may quote brief

passages in a review, or provided for in the Copyright Act of 1976.

Trademarks

Metrologic is a registered trademark of Metrologic Instruments, Inc.

Products identified in this document are hereby acknowledged as

trademarks, registered or otherwise, of Metrologic Instruments, Inc. or their

respective companies.

ABLE OF

ONTENTS

Introduction

Product Overview ............................................................................................. 1

Scanner and Accessories................................................................................. 2

Scanner Components....................................................................................... 4

The PowerLink Cable ....................................................................................... 5

Labels............................................................................................................... 6

Maintenance..................................................................................................... 6

Installing the Scanner to the Host System

RS232 MS1690-14........................................................................................... 7

Keyboard Wedge MS1690-47 .......................................................................... 8

Stand Alone Keyboard MS1690-47 .................................................................. 9

IBM MS1690-11 ............................................................................................. 10

Full Speed USB MS1690-40 (Integrated)....................................................... 11

Low Speed USB MS1690-38 (Integrated) ...................................................... 11

Stand Kits

Stand Components, MLPN 46-00147............................................................. 12

Hard Mounting the Stand................................................................................ 13

Assembling the Stand .................................................................................... 14

Scanner Operation

Two Default Modes of Operation.................................................................... 15

Audible Indicators........................................................................................... 16

Visual Indicators ............................................................................................. 17

Failure Modes................................................................................................. 18

Depth of Field by Minimum Bar Code Element Width .................................... 19

IR Activation Range........................................................................................ 20

Troubleshooting Guide ....................................................................................... 21

Design Specifications ......................................................................................... 25

Applications and Protocols ................................................................................. 27

Default Settings – Communication Parameters.................................................. 28

iii

ABLE OF

ONTENTS

Configuration Modes .......................................................................................... 32

Upgrading the Flash ROM Firmware.................................................................. 33

Scanner and Cable Terminations

Scanner Pinout Connections .......................................................................... 34

Cable Connector Configurations .................................................................... 36

Limited Warranty ................................................................................................ 38

Regulatory Compliance

Safety ............................................................................................................. 39

EMC ............................................................................................................... 40

Patents ............................................................................................................... 42

Index .................................................................................................................. 43

Contact Information and Office Locations........................................................... 45

NTRODUCTION

Product Overview

Metrologic's MS1690 Focus

series of high performance hand-held area imaging

bar code scanners utilizes high-resolution CMOS imaging sensors for superior

image quality. Omniplanar, Inc.’s SwiftDecoder

software, for provides reliable

decoding of both 1D and 2D bar code symbologies. Sharp images can be

captured and transmitted in a variety of outputs including: .jpg, .bmp, and .tiff.

Omnidirectional scanning capabilities and an extended depth of field provides

aggressive scanning of all standard 1D, RSS, PDF417, microPDF, Composite,

Matrix and Postal Codes symbology types. Firmware updates are easily loaded

via Flash ROM.

The MS1690 series provides an extended depth of field and a built in object

detection sensor (IR) that instantly turns on the scanner when an object is

presented within the scanner’s field of view. Automatic in-stand detection

switches the scanner to a “presentation” mode for convenient in-stand scanning.

Model Interface

MS1690 – 11 IBM 468X/469X, RS232-TXD, RXD, RTS, CTS

MS1690 – 14 RS232 (TX, RX, RTS, CTS, DTR)

MS1690 – 38 Low Speed USB

MS1690 – 40 Full Speed USB

MS1690 – 47 Keyboard Wedge, Stand-Alone Keyboard and

RS232 Transmit/Receive

NTRODUCTION

Scanner and Accessories

ASIC

Part # Description

MS1690 Area Imaging Bar Code Scanner

00-02544 MetroSelect

Single-Line Configuration Guide*

00-02281 Supplemental Configuration Guide*

00-02098 MS1690 Series Area Imaging Bar Code Scanner

Installation and User’s Guide*

Available on the Metrologic website - www.metrologic.com

PTIONAL

CCESSORIES

Part # Description

AC to DC Power Transformer - Regulated 5.2VDC @ 1 A output.

46-00525 90VAC-255VAC United States, Canada, and Japan

46-00526 90VAC-255VAC Continental European

46-00527 90VAC-255VAC United Kingdom

46-00528 90VAC-255VAC Australia

46-00529 90VAC-255VAC China

53-53000-3 RS232 PowerLink Cable with Built in Power Jack

2.7 m (9 ft.) coiled cord, long strain relief, black

53-53002-3 Keyboard Wedge PowerLink Cable with Adapter Cable

2.7 m (9 ft.) coiled cord, long strain relief, black

53-53020-3 Stand Alone Keyboard PowerLink Cable

2.7 m (9 ft.) coiled cord, long strain relief, black

Other items may be ordered for the specific protocol being used. To order additional items,

contact the dealer, distributor or call Metrologic’s Customer Service Department at

1-800-ID-METRO or 1-800-436-3876.

NTRODUCTION

Scanner and Accessories

PTIONAL

CCESSORIES

Part # Description

53-53213x-N-3 USB Full Speed Cable, Locking Plus-Power™ Type A,

2.7 m (9 ft.) coiled cord, long strain relief, black

53-53214x-N-3

USB Full Speed Cable, Locking Plus-Power™ Type A,

4.5 m (15 ft.) coiled cord, long strain relief, black

This cable is for use with full speed

USB (-40) interface only.

53-53235x-N-3 USB Low Speed Communication Cable Type A,

2.7 m (9 ft.) coiled cord, long strain relief, black

MVC-2MPC-IB9

IBM Applications

Metrologic Voltage Converter (MVC) Cable*

±12VDC to +5.2VDC

* Contact a Metrologic customer service representative for additional

information on the MVC cable series and the host connections available.

00-02001 MS1690 Stand (46-00147) Installation Guide

46-00147 Modular Presentation Stand

Other items may be ordered for the specific protocol being used. To order additional items,

contact the dealer, distributor or call Metrologic’s Customer Service Department at

1-800-ID-METRO or 1-800-436-3876.

NTRODUCTION

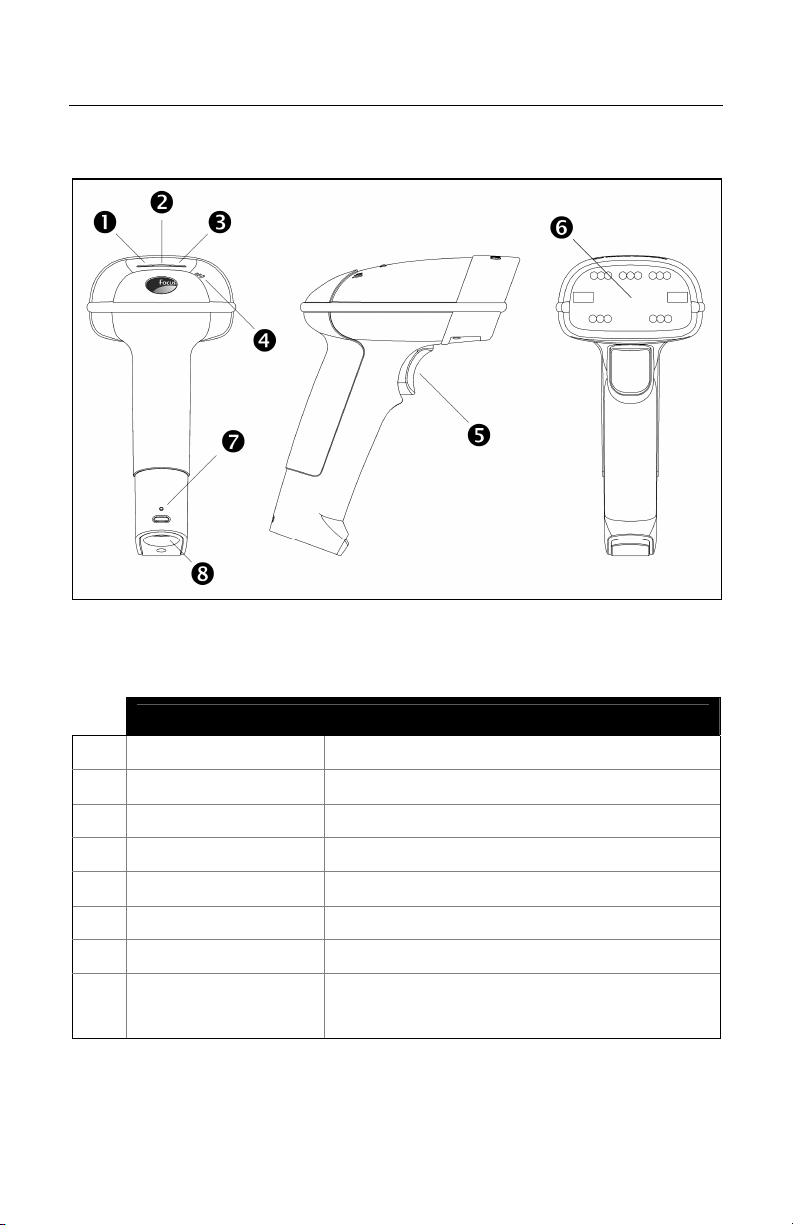

Scanner Components

Figure 1. Scanner Components

Item Description

1 Yellow LED See Visual Indicators (on page 17)

2 White LED See Visual Indicators (on page 17)

3 Blue LED See Visual Indicators (on page 17)

4 Speaker See Audible Indicators (on page 16)

5 Trigger

6 Red Window LED Aperture

7 Cable Release See The PowerLink Cable (on page 5)

8 Cable Connection 10-pin RJ45, Female Socket,

See Scanner Pinout Connections (on page 34)

NTRODUCTION

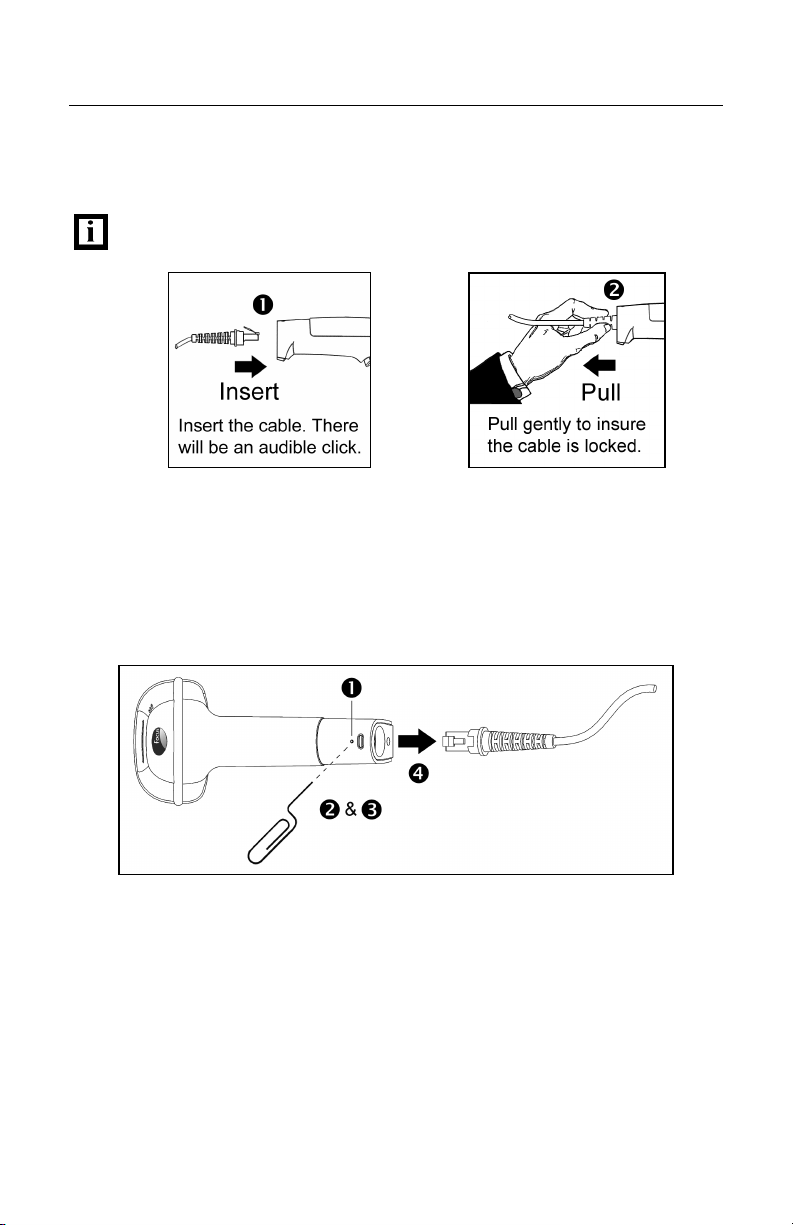

The PowerLink Cable

Connecting

Important: If the PowerLink cable is not fully ‘latched’ the unit can

power intermittently.

Figure 2. Figure 3.

Disconnecting

Before removing the cable from the scanner, Metrologic recommends that the

power on the host system is off and the power supply has been disconnected

from the PowerLink cable.

Figure 4. Releasing the PowerLink Cable

1. Locate the small ‘pin-hole’ on the handle of the unit near the cable.

2. Bend an ordinary paperclip into the shape shown above.

3. Insert the paperclip (or other small metallic pin) into the small ‘pin-hole’.

4. There will be a faint ‘click’ when the lock is released. Pull gently on the

strain-relief of the PowerLink cable to remove the cable from the unit.

NTRODUCTION

Labels

Each scanner has a label located on the underside of the head. This label

provides the unit’s model number, date of manufacture, serial number, CE and

caution information. The following figure gives an example of the label and its

location.

Figure 5. Label Sample and Location

Caution:

To maintain compliance with applicable standards, all circuits connected to the scanner must

meet the requirements for SELV (Safety Extra Low Voltage) according to EN/IEC 60950-1.

To maintain compliance with standard CSA-C22.2 No. 60950-1/UL 60950-1 and norm EN/IEC

60950-1, the power source should meet applicable performance requirements for a limited

power source.

Maintenance

Smudges and dirt can interfere with the proper scanning of a bar code.

The output window should be routinely cleaned with glass cleaner sprayed onto a

lint free, non-abrasive cloth.
