METROLOGIC INSTRUMENTS, INC.
MS3580 QuantumT™
Installation and User's Guide
Copyright
© 2005 by Metrologic Instruments, Inc. All rights reserved. No part of this
work may be reproduced, transmitted, or stored in any form or by any means
without prior written consent, except by reviewer, who may quote brief
passages in a review, or provided for in the Copyright Act of 1976.
Products and brand names mentioned in this document are trademarks of
their respective companies.
ii
TABLE OF CONTENTS
Introduction
Product Overview ............................................................................................. 1
Scanner and Accessories................................................................................. 2
Scanner Components....................................................................................... 4
Caution and Serial Number Labels................................................................... 5
Cable Removal................................................................................................. 5
Maintenance..................................................................................................... 5
Mounting Specifications and Stand Assembly.................................................. 6
Installation
RS232, RS232 TTL, Light Pen or Laser Emulation .......................................... 8
IBM 46xx or OCIA ............................................................................................ 9
Keyboard Wedge............................................................................................ 10
Stand-Alone Keyboard Wedge....................................................................... 11
Full Speed or Low Speed USB (Integrated) ................................................... 12
Scanner Operation
Configurable Primary and Secondary Scan Pattern Modes ........................... 13
Configurable Button Functions ....................................................................... 13
Indicators
Audible ....................................................................................................... 19
Visual ......................................................................................................... 20
Failure ........................................................................................................ 21
Depth of Field Specifications
Normal Scan Zone ..................................................................................... 22
Reduced Scan Zone................................................................................... 23
Depth of Field by Bar Code Element Width
Normal Scan Zone ..................................................................................... 24
Reduced Scan Zone................................................................................... 25
IR Activation Range
Normal........................................................................................................ 26
Reduced..................................................................................................... 26
iii
TABLE OF CONTENTS
Troubleshooting Guide ....................................................................................... 27
Design Specifications ......................................................................................... 31
Applications and Protocols ................................................................................. 33
Default Settings - Communication Parameters................................................... 34
Upgrading the Flash ROM Firmware.................................................................. 39
Scanner and Cable Terminations ....................................................................... 40
Scanner Pinout Connections .......................................................................... 40
Cable Connector Configurations (Host End) .................................................. 42
Laser and Product Safety................................................................................... 44
Limited Warranty ................................................................................................ 46
Patents ............................................................................................................... 47
Index .................................................................................................................. 48
Contact Information and Office Locations........................................................... 50
1
INTRODUCTION
The QuantumT™is a hands-free, omnidirectional bar code scanner with optional
single-line scanning capabilities. It utilizes the powerful Metrologic QuantumE™
scan engine to provide an outstanding scan performance on all standard 1D
barcode symbologies, including RSS. This fully enclosed scanner includes large
easily visible LEDs and a rugged protective boot with an adjustable stand. The
QuantumTcan be mounted to a countertop, wall or be left free standing for
handheld scanning.
Key Product Features
•Fully Automatic Scanning Operation
•Single-Line Mode for Menu Reading
•Custom Configurable Scan Pattern
•User-Replaceable Single Cable Interface to Host (PowerLink Compatible)
•Decoding of All Standard 1D, RSS-14, RSS Limited and Expanded RSS
Bar Codes
•7 Beeper Tones
•Configurable Depth of Field
•Flash - Upgradeable Firmware
•OPOS and JPOS System Compatible
•CodeGate®
•Sunrise 2005 Compliant
QUANTUMTINTERFACE
MS3580-9 OCIA and RS232 Transmit/Receive
MS3580-11 IBM 46xx and Full RS232
MS3580-38 RS232 Low Speed USB,
Keyboard Emulation Mode or Serial Emulation Mode*
MS3580-40 Full Speed USB
MS3580-41 RS232/Light Pen Emulation
MS3580-47 Keyboard Wedge, Stand-Alone Keyboard and
RS232 Transmit/Receive
MS3580-104 RS232 TTL, Laser Emulation
* Configurable for Keyboard Emulation Mode or Serial Emulation Mode.
Default setting is Keyboard Emulation Mode.
2
INTRODUCTION
Scanner and Accessories
BASIC KIT COMPONENTS
Part No. Description
MS3580 QuantumTOmni \ Single-Line Scanner
00-02026 QuantumTOmni \ Single-Line Scanner
Installation and User’s Guide *
00-02407 MetroSelect®Configuration Guide *
* Guides also available for download at www.metrologic.com.
OPTIONAL ACCESSORIES
Part No. Description
AC to DC Power Transformer - Regulated 5.2VDC @ 650 mA output.
45-45593 120V United States and Canada
45-45591 220V-240V Continental European
45-45592 220V-240V United Kingdom
46-46803 220V-240V Australia
46-46983 220V-240V China
54-54000x -3 RS232 PowerLink Cable with Built in Power Jack
2.1 m (7 ft.) straight cord, short strain relief
MVC** Metrologic Voltage Converter Cable ±12VDC to +5.2VDC
** Contact a Metrologic customer service representative for additional
information on the MVC cable series and the host connections available.
Other items may be ordered for the specific protocol being used. To order additional items,
contact the dealer, distributor or call Metrologic’s customer service department at
1-800-436-3876.
3
INTRODUCTION
Scanner and Accessories
OPTIONAL ACCESSORIES
Part No. Description
54-54002x-3 Keyboard Wedge PowerLink Cable
2.1 m (7 ft.) straight cord, short strain relief
54-54020x-3 Stand Alone Keyboard PowerLink Cable
2.1 m (7 ft.) straight cord, short strain relief
54-54213x-N-3 USB Full Speed Cable, Locking Plus-Power™Type A
3 m (10 ft.) straight cord, short strain relief
54-54214x-N-3
USB Full Speed Cable, Locking Plus-Power™ Type A
5 m (17 ft.) straight cord, short strain relief
This cable is for use with full speed
USB (-40) interface only.
54-54235x-N-3 USB Low Speed Communication Cable, Type A
2.8 m (9.2 ft.) straight cord, short strain relief
54-54249x-N-3 Communication Cable, Host End Not Terminated
203 mm (8") straight cord, short strain relief
46-00288 Flex Stand (3")
46-00289 Flex Stand (6")
Other items may be ordered for the specific protocol being used. To order additional items,
contact the dealer, distributor or call Metrologic’s customer service department at
1-800-436-3876.
4
INTRODUCTION
Scanner Components
Figure 1. Scanner Components
ITEM NO. DESCRIPTION
1 Red Output Window (Laser Aperture)
2 Pin Hole for Cable Release
3 10-Pin RJ45, Female Socket
4 Speaker
5 Blue and White LED Indicators
6 Button
7
Protective Boot and Stand Connection
Never remove the protective boot from the MS3580.
Removing the protective boot will expose electrical
components of the scanner that are highly susceptible to
electrostatic discharge (ESD).
8
Pedestal Stand
The type of stand provided is dependent on the specific
MS3540 kit purchased.
5
INTRODUCTION
Caution and Serial Number Labels
Figure 2.
Cable Removal
1. Locate the small ‘pin-hole’ on the side of
the QuantumTnear the cable.
2. Bend an ordinary paperclip into the shape
shown.
3. Insert the paperclip (or other small metallic
pin) into the small ‘pin-hole’.
4. You will hear a faint ‘click’ when the cable
lock is released. Pull gently on the strain-
relief of the PowerLink cable to remove it
from the scanner.
Figure 3.
Maintenance
Smudges and dirt can interfere with the proper scanning of a bar code.
Therefore, the output window will need occasional cleaning.
1. Spray glass cleaner onto a lint free, non-abrasive cleaning cloth.
2. Gently wipe the scanner window.
6
INTRODUCTION
Mounting Specifications and Stand Assembly
Pedestal Stand

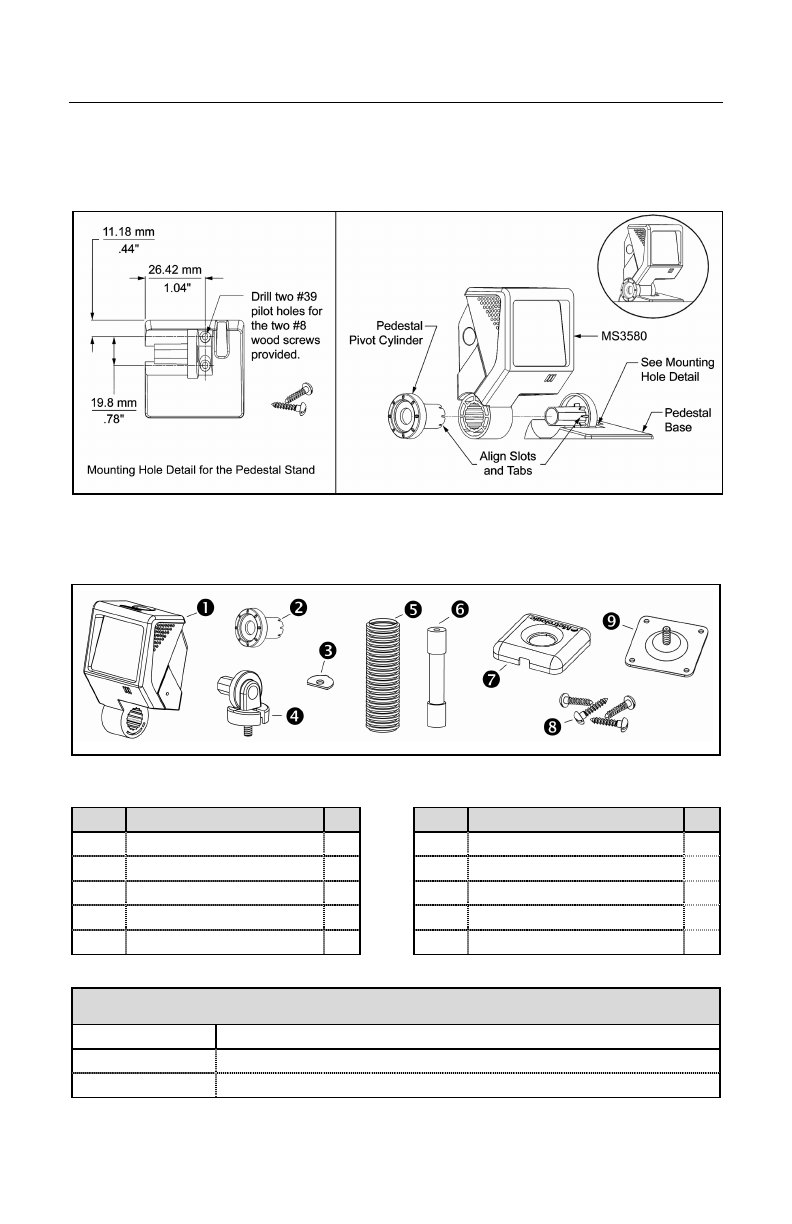

Figure 4. Pedestal Stand Assembly
Optional Flex Stand
Figure 5. Assembly Components for Optional Flex Stand
Item Description Qty. Item Description Qty
1 MS3580, QuantumT1 6 Flexible Shaft* 1
2 Pivot Cylinder 1 7 Base Plate Cover 1
3 Bearing Plate 1 8 #8 x 1.00" Wood Screw 4
4 Pole Mount Adapter 1 9 Base Plate 1
5 Flexible Shaft Cover* 1
10 Cable (Not Shown) 1
* Length of the Flexible Shaft and Shaft Cover are Kit Dependent
Kit Number Length of Flexible Shaft and Flexible Shaft Cover
46-00288 3 inches
46-00289 6 inches
