Microchip Technology PIC32CM JH01 Manuale utente

EV81X90A

PIC32CM JH01 Curiosity Pro Evaluation Kit User Guide

Preface

The Microchip® PIC32CM JH01 Curiosity Pro evaluation kit is a hardware platform to evaluate the Microchip

PIC32CM JH01 microcontroller (MCU). Each evaluation kit is supported by the MPLAB® X Integrated Development

Environment (IDE) and MPLAB® Harmony v3, featuring application examples.

The Curiosity Pro evaluation kits include an on-board embedded debugger (EDBG) to program or debug the target

microcontroller. This enables an easy start to a project, and provides application examples that can be used in the

design of a custom application.

The Curiosity Pro evaluation kits provide easy access to the features of the microcontroller, and are integrated

with Arduino Uno, mikroBUS™, and extension headers to interface with Xplained Pro extension boards for a rapid

prototyping and expanded functionality. The figure below shows the PIC32CM JH01 Curiosity Pro evaluation kit.

Figure 1. PIC32CM JH01 Curiosity Pro Evaluation kit

JAM1

and its subsidiaries

User Guide DS70005482B-page 1

Table of Contents

Preface........................................................................................................................................................... 1

1. Introduction............................................................................................................................................. 3

1.1. Features....................................................................................................................................... 3

1.2. Overview...................................................................................................................................... 4

2. Getting Started........................................................................................................................................ 7

3. Curiosity Pro............................................................................................................................................8

3.1. Embedded Debugger................................................................................................................... 8

4. Hardware User Guide............................................................................................................................. 9

4.1. Power Sources............................................................................................................................. 9

4.2. Headers and Connectors............................................................................................................11

4.3. Peripherals................................................................................................................................. 19

4.4. Kit Modifications......................................................................................................................... 23

4.5. Embedded Debugger Implementation........................................................................................29

5. Identifying Product ID and Revision...................................................................................................... 31

6. References............................................................................................................................................32

7. Revision History.................................................................................................................................... 33

The Microchip Website.................................................................................................................................34

Product Change Notification Service............................................................................................................34

Customer Support........................................................................................................................................ 34

Microchip Devices Code Protection Feature................................................................................................ 34

Legal Notice................................................................................................................................................. 35

Trademarks.................................................................................................................................................. 35

Quality Management System....................................................................................................................... 36

Worldwide Sales and Service.......................................................................................................................37

EV81X90A

and its subsidiaries

User Guide DS70005482B-page 2

1. Introduction

1.1 Features

The following are key features of the PIC32CM JH01 Curiosity Pro evaluation kit.

• 100-pin TQFP PIC32CM5164 JH01 microcontroller

• Embedded Debugger

– micro-USB interface

– Auto-ID for daughter board identification in MPLAB X IDE

– One yellow status LED

– One green board power LED

– Symbolic debug of complex data types including scope information

– Programming and debugging of on-board PIC32CM JH01 through Serial Wire Debug (SWD)

– Data Gateway Interface: SPI, I2C, and four GPIOs

– Virtual COM port (CDC)

– Control of on-board power switch to protect connected extensions against high voltage

• Digital I/O

– Two mechanical buttons (user and reset button)

– One driven shield Touch button

– One yellow user LED

– Three extension headers compatible with a wide range of Xplained Pro extension kits

– Arduino uno connector

• Two selectable target voltages

– 3.3V

– 5.0V

• Voltage Level Shifters between target section and EDBG section

• 32.768 kHz crystal mounted

• 32 MHz crystal mounted

• Trust Anchor (TA100) Secure Element

• Two CAN transceivers with jumpers for connection to external device or loopback between the two CAN

interfaces

• LIN transceiver

– Wake-up button

– Host node pull-up jumper

– Alternate LIN power jumper

• DAC output connector

• Analog voltage reference connector with filtered power supply

– ADC/DAC VREF

• 5-pin Position Decoder (PDEC) connector

• Supported with application examples in MPLAB Harmony v3

EV81X90A

Introduction

and its subsidiaries

User Guide DS70005482B-page 3

1.2 Overview

The PIC32CM JH01 Curiosity Pro evaluation kit is a hardware platform to evaluate the Microchip PIC32CM JH01

microcontroller, and the evaluation kit part number is EV81X90A.

The evaluation kit offers a set of features that enables the PIC32CM JH01 users to get started with the PIC32CM

JH01 peripherals, and to obtain an understanding of how to integrate the device in their own design. The following

figure illustrates the top and bottom view of the PIC32CM JH01 Curiosity Pro evaluation kit.

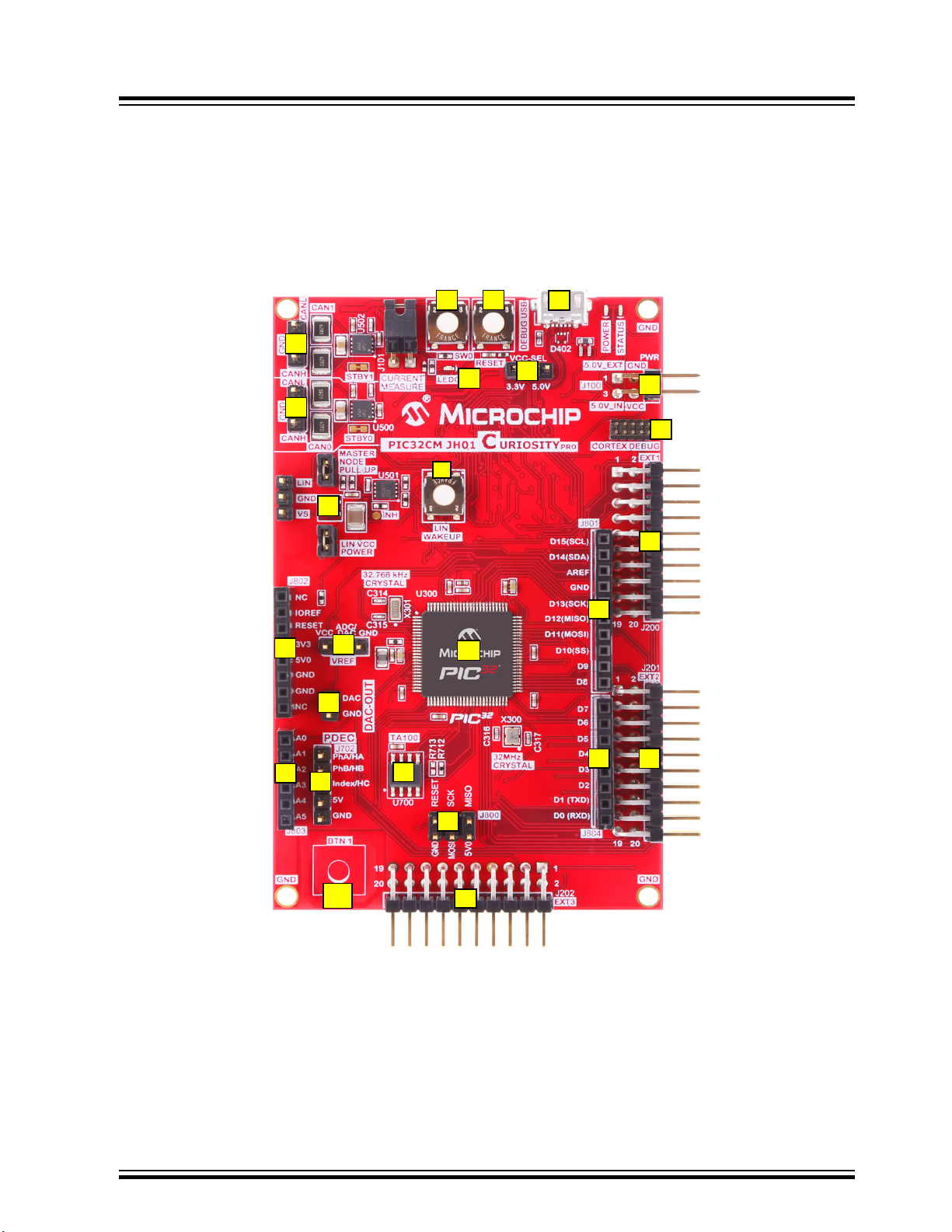

Figure 1-1. PIC32CM JH01 Curiosity Pro Evaluation Kit Layout (Top View)

17 18

DD-M2

EV81X90A

Introduction

and its subsidiaries

User Guide DS70005482B-page 4

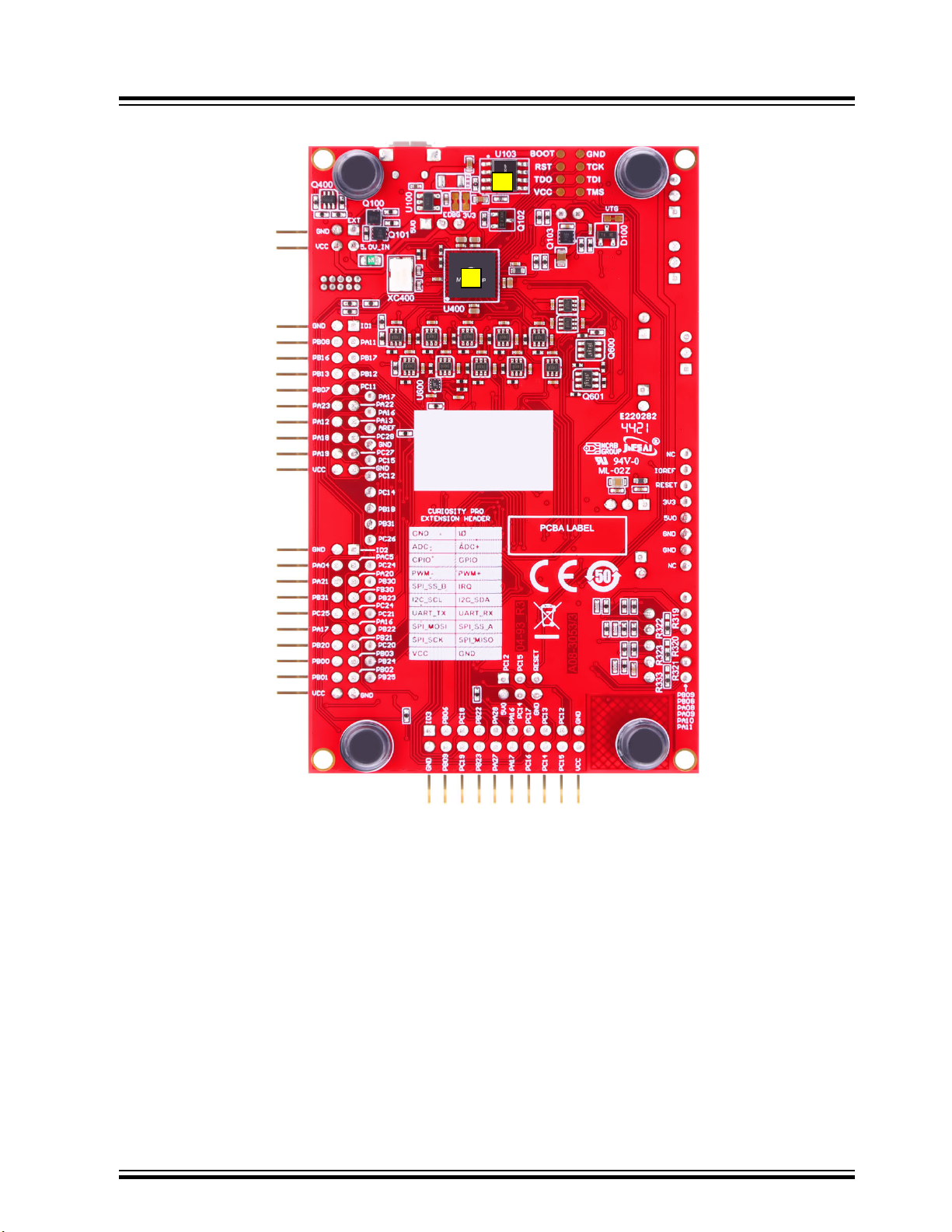

Figure 1-2. PIC32CM JH01 Curiosity Pro Evaluation Kit Layout (Bottom View)

DD-M8

EV81X90A

Introduction

and its subsidiaries

User Guide DS70005482B-page 5

Table 1-1. PIC32CM JH01 Curiosity Pro Kit Features and Location

Number Item Description

1 PIC32CM JH01

2 EDBG USB power supply

3 3-pin VCC Selection header (3.3V or 5.0V)

4 Reset button

5 Programmable button

6 Power header for external power sources

7 Touch button

8 LIN Wakeup button

9 User LED (Yellow)

10 10-pin Cortex® debug header (SWD)

11 Extension headers

12 Arduino Uno header connectors

13 LIN header

14 CAN headers

15 3-pin ADC/DAC VREF header

16 2-pin DAC output header

17 PDEC header connectors

18 Trust Anchor 100 (TA100) secure element

19 Target Voltage power switch with slew rate control

20 Embedded Debugger (EDBG)

Table 1-2. PIC32CM JH01 Curiosity Pro Evaluation Kit Microchip Total System Solutions (TSS)

TSS Component Qty (Per Kit) Function

PIC32CM5164JH01100-I/PF 1 Target MCU

MIC5504-3.3YM5-TR 1 3.3V, 300 mA LDO

MIC5209-3.3YM 1 3.3V, 500 mA LDO

AT32UC3A4256HHB-C1UR 1 EDBG Debugger

ATA6561-GBQW 2 CAN Transceiver

ATA663211-GBQW 1 LIN Transceiver

TA100-Y240C2X01-00B-VAO 1 TA100 Authentication Chip

VXM8-9015-32M0000000 1 Primary 32 MHz crystal

VMK3-9001-32K7680000TR 1 Secondary 32.768 kHz crystal

EV81X90A

Introduction

and its subsidiaries

User Guide DS70005482B-page 6

2. Getting Started

Follow these steps to explore the evaluation kit platform:

1. Download MPLAB® X IDE.

2. Launch MPLAB X IDE.

3. Connect the DEBUG USB port on the evaluation kit to the computer using a USB cable (Standard-A to

Micro-B or Micro-AB).

Note: When the evaluation kit is connected to the computer for the first time, the operating system will install

the software driver. The driver file supports both 32-bit and 64-bit versions of Microsoft Windows XP®, Windows

Vista®,Windows 7®, Windows 8®, Windows 10®, and Windows Server 2012®.

When the evaluation kit is powered, the green power LED will glow and MPLAB X IDE will auto-detect the specific

Curiosity Pro evaluation kit and extension boards that are connected to it. MPLAB X IDE will present relevant

information, such as data sheets and kit documentation.

The kit landing page in MPLAB X IDE also has an option to launch MPLAB Harmony v3 example applications for the

kit.

The PIC32CM JH01 device is programmed and debugged by the on-board Embedded Debugger (EDBG), hence no

external programmer or debugger tool is required.

Note: Users can connect external debugger tools using the Cortex-M Debug connector.

EV81X90A

Getting Started

and its subsidiaries

User Guide DS70005482B-page 7

3. Curiosity Pro

The PIC32CM JH01 Curiosity Pro evaluation kit is a user-friendly rapid prototyping platform. It is supported with

MPLAB X IDE and MPLAB Harmony v3 software development framework that comes with demonstration codes,

middleware, PLIBs, and drivers.

The Curiosity Pro evaluation kits support a wide range of extension boards which are connected through a set

of standardized headers and connectors. Each extension board has an identification (ID) chip to uniquely identify

which boards are connected to the Curiosity Pro evaluation kit. When an extension board is connected, some

relevant information, such as board features, supported interfaces, serial number, links to documentation, is read and

displayed on the MPLAB X IDE window.

3.1 Embedded Debugger

The PIC32CM JH01 Curiosity Pro evaluation kit contains the Microchip Embedded Debugger (EDBG) for on-board

debugging. The EDBG is a composite USB device of the following three interfaces:

• Debugger

• Virtual COM Port

• Data Gateway Interface (DGI)

Together with MPLAB X IDE, the EDBG debugger interface programs and debugs the microcontroller. On the

Curiosity Pro evaluation kit, the SWD interface is connected between the EDBG and the microcontroller.

The Virtual COM Port is connected to a UART on the PIC32CM JH01 and provides an easy way to communicate with

the target application through terminal software. It offers variable baud rate, parity, and stop bit settings. The settings

on the PIC32CM JH01 must match the settings given in the terminal software.

Note: The virtual COM port in the EDBG requires the terminal software to set the data terminal ready (DTR) signal

to enable the UART pins connected to the PIC32CM JH01. If the DTR signal is not enabled, the UART pins on the

EDBG are kept in high-z (tristate) rendering the COM port unusable. The DTR signal is set automatically by some

terminal software, but it may have to be manually enabled in your terminal.

The DGI consists of several physical interfaces for communication with the Host computer. Communication over

the interfaces is bidirectional. It can be used to send events and values from the PIC32CM JH01. Traffic over the

interfaces can be timestamped by the EDBG for accurate tracing of events. time stamping imposes an overhead that

reduces maximal throughput. The MPLAB Data Visualizer is used to send and receive data through DGI.

The EDBG controls two LEDs: a power LED and a status LED. The following table provides how LEDs are controlled

in different operation modes.

Table 3-1. EDBG LED Control

Operation mode Power LED Status LED

Normal operation Power LED is lit when power is applied

to the kit.

Activity indicator, LED flashes when any

communication happens to the EDBG.

Bootloader mode (idle) The power LED and the status LED blink simultaneously.

Bootloader mode

(firmware upgrade) The power LED and the status LED blink in an alternating pattern.

For additional information on the EDBG, refer to the Microchip EDBG User Guide.

EV81X90A

Curiosity Pro

and its subsidiaries

User Guide DS70005482B-page 8

4. Hardware User Guide

4.1 Power Sources

The PIC32CM JH01 Curiosity Pro evaluation kit can be powered by the following power sources:

• Embedded Debugger USB

• An external power

Table 4-1. Power Sources

Power input Voltage requirements Current requirements Connector

marking

External power 4.3V to 5.5V. Recommended maximum is 2A due to

the input protection maximum current

specification.

PWR

Embedded

debugger USB

4.4V to 5.25V (according to

USB spec.)

500 mA (according to USB spec.) DEBUG USB

The evaluation kit will automatically detect which power source is available, and choose which one to use according

to the following priority:

• External power

• Embedded Debugger USB

Note: External power is required when 500 mA from a USB connector is not enough to power the evaluation kit with

possible extension boards.

The EDBG controls an on-board power switch to the PIC32CM JH01, on-board peripherals, and extension

connectors. When the kit is powered up, the EDBG reads the ID chip information from all connected extension

boards and checks they are compatible with the voltage selected by the power selection jumper. If the selected

voltage is within the connected extensions ranges, the switch will open. If not, the EDBG power LED will blink rapidly

and the switch will stay closed resulting in no power provided to the PIC32CM JH01, on-board peripherals, and

connectors.

CAUTION

The evaluation kit can be powered by 5.0V. Care must be taken not to connect any extension board that

does not support this voltage, as it might results in permanent damage. Check the respective extension

kit's user guide to see which voltages are acceptable.

Remember: The EDBG only reads the ID information and controls the power switch when the kit is

powered up. This mechanism does not check hot plugging of extension boards.

EV81X90A

Hardware User Guide

and its subsidiaries

User Guide DS70005482B-page 9

Figure 4-1. Power Supply Block Diagram

EDBGUSB

External 5V Input

AutoMUX

Regulator3.3V EDBG

PowerSelect

(Jumper)

PowerSwitch

Jumper

Peripherals PIC32CMJH01

VCC_P5V0 VCC_P3V3

VCC_TARGET VCC_MCU

On/off

Powersource

Powerswitch

Powerconverter

Powerconsumer

DD-M1

EV81X90A

Hardware User Guide

and its subsidiaries

User Guide DS70005482B-page 10

Indice

Altri manuali Microchip Technology Scheda madre

Microchip Technology

Microchip Technology MCP73871 Manuale utente

Microchip Technology

Microchip Technology SAM-IoT Wx v2 Manuale di installazione

Microchip Technology

Microchip Technology OS81210 Manuale utente

Microchip Technology

Microchip Technology SMSC USB3503 Manuale utente

Microchip Technology

Microchip Technology BM62 Manuale utente

Microchip Technology

Microchip Technology SAM D21 Manuale utente

Microchip Technology

Microchip Technology SAMA5D3 XPLAINED Manuale utente

Microchip Technology

Microchip Technology MCP661 Manuale utente

Microchip Technology

Microchip Technology MCP8063 Manuale utente

Microchip Technology

Microchip Technology Curiosity Low Pin Count Manuale utente

Microchip Technology

Microchip Technology PIC32CM LE00 Manuale utente

Microchip Technology

Microchip Technology Explorer 16 Manuale utente

Microchip Technology

Microchip Technology dsPICDEM 1.1 Manuale utente

Microchip Technology

Microchip Technology MCP7386X Manuale utente

Microchip Technology

Microchip Technology MCP73830L Manuale utente

Microchip Technology

Microchip Technology MCP1632 Manuale utente

Microchip Technology

Microchip Technology EVB-UPD301A SRC Manuale utente

Microchip Technology

Microchip Technology ATtiny1627 Curiosity Nano Manuale di installazione

Microchip Technology

Microchip Technology MCP43XXEV Manuale utente

Microchip Technology

Microchip Technology EVB-LAN9254-DIGIO Manuale utente

Microchip Technology

Microchip Technology AVR-IoT WG Manuale utente

Microchip Technology

Microchip Technology ATtiny104 Xplained Nano Manuale utente

Microchip Technology

Microchip Technology PIC32CM LS60 Manuale utente

Microchip Technology

Microchip Technology EV20F92A Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente
