PD-IM-7648 Evaluation System - User Guide

PD-IM-7648

Evaluation System User Guide

Including:

PD69208 – PoE Manager,

PD69200 – PoE Controller

Document Issue: 1.0

Security Status: Restricted

Date: Dec 2013

PRODUCTION DATA:Information contained in this document is proprietary to Microsemi and is current as of

publication date. This document may not be modified in any way without the express written consent of Microsemi.

Product processing does not necessarily include testing of all parameters. Microsemi reserves the right to change

the configuration and performance of the product and to discontinue product at any time.

PD-IM-7648 Evaluation System - User Guide

Rev 1.0 / 25 Dec 13 Analog Mixed Signal Group

1 Enterprise, Aliso Viejo, CA 92656, USA; Phone (USA): (800) 713-4113, (ROW): (949) 221-7100 Fax: (949) 756-0308

Reference Documents

IEEE 802.3af-2003 Standard, DTE Power via MDI

IEEE802.3at-2009 Standard, DTE Power via MDI

PD69208 and PD69200 datasheet, catalogue number DS_PD69208_PD69200

Application note 211: Designing a PD69208 48-port Enhanced PoE Systems and Layout

Design Guidelines, catalogue PD69208_AN_211

PD63000 & PD69000/G Serial Communication Protocol User Guide,

catalogue number PD63000_UG

Software GUI user guide catalog number 06-0027-05

The above documents can be obtained via Microsemi customer support. To access other documents, go to our

website at http://www.microsemi.com/, and under Tech Support\Documentation look up the relevant documents.

PD-IM-7648 Evaluation System - User Guide

Rev 1.0 / 25 Dec 13 Analog Mixed Signal Group

1 Enterprise, Aliso Viejo, CA 92656, USA; Phone (USA): (800) 713-4113, (ROW): (949) 221-7100 Fax: (949) 756-0308

Table of Contents

1About this Guide...................................................................................................................................4

1.1 Objectives ....................................................................................................................................4

1.2 Audience......................................................................................................................................4

1.3 Organization.................................................................................................................................4

2Introduction...........................................................................................................................................5

2.1 Evaluation Board/System Ordering Information ..........................................................................7

2.2 Evaluation System Features........................................................................................................7

2.3 Evaluation System Interfaces & Connections..............................................................................7

2.4 Physical Characteristics...............................................................................................................7

3Physical Description .............................................................................................................................8

3.1 Switches and Jumpers.................................................................................................................8

3.1.1 UART Communication Selection............................................................................................8

3.1.2 Reset Button...........................................................................................................................8

3.2 Connectors...................................................................................................................................8

3.2.1 Connectors Table ...................................................................................................................8

3.2.2 Connectors Detailed Explanation...........................................................................................9

4Electrical Characteristics....................................................................................................................17

5Installation...........................................................................................................................................18

5.1 Mechanical Assembly................................................................................................................18

5.2 Electrical Assembly....................................................................................................................18

5.3 Initial Configuration....................................................................................................................18

PD-IM-7648 Evaluation System - User Guide

Rev 1.0 / 25 Dec 13 Analog Mixed Signal Group

1 Enterprise, Aliso Viejo, CA 92656, USA; Phone (USA): (800) 713-4113, (ROW): (949) 221-7100 Fax: (949) 756-0308

1 0BAbout this Guide

1.1 5BObjectives

This user guide provides both a description of, and operating procedures for, Microsemi's PD-IM-7648 evaluation

system. This system is used to evaluate the performance of DB's (daughterboard) PoE applications.

1.2 6BAudience

This user guide is intended for qualified personnel, meaning operators and technicians who have a background in

basic electronics.

1.3 7BOrganization

This guide is divided into several sections:

Chapter

“About this Guide,” which describes the objectives, audience and organization.

Chapter

“Introduction,” which gives an overview of the main functions, features, physical

characteristics, and ordering information.

Chapter

“Physical Description,” which provides a physical description of the components (switches,

jumpers, connectors).

Chapter

“Electrical Characteristics,” which lists the electrical characteristics of the PoE evaluation

system.

Chapter 5

“Installation,” which describes the installation process.

PD-IM-7648 Evaluation System - User Guide

Rev 1.0 / 25 Dec 13 Analog Mixed Signal Group

1 Enterprise, Aliso Viejo, CA 92656, USA; Phone (USA): (800) 713-4113, (ROW): (949) 221-7100 Fax: (949) 756-0308

2 1BIntroduction

Microsemi’s PD-IM-7648 evaluation system consists of: PD-IM-7500 MB Motherboard (see Figure 2),

PD-DB-7648 Daughterboard (see Figure 3), power supply, case, and cables. The evaluation system (Figure 1)

provides designers with the needed environment to evaluate the performance and implementation of PD69208-

PoE Manager and PD69200-PoE Controller mounted on the PD-DB-7648 Daughterboard.

POWER

SUPPLY

MOTHER BOARD DAUGHTER BOARD

SWITCH DOMAIN

PoE DOMAIN

LINE

VMAIN

3.3V

ISOLATING

SUPPLY

DIGITAL

SIGNAL

ISOLATOR

COMMUNICATIONS

+SIGNALS +SUPPLY

COMMUNICATIONS

+SIGNALS +SUPPLY

AGND

PORT

CONNECTORS

4 GANGS-OF-

12-RJ45

STATUS

PoE

CONTROLLER

(MCU)

6 PoE

MANAGERS

8-PORTS

EACH

UART

USB

Figure 1:PD-IM-7648 Evaluation System Block Diagram

This document details the steps and connection instructions required to install and operate this board.

The Evaluation Board enables PoE designers to evaluate Microsemi's PoE solution with maximum flexibility and

ease in configuration.

Figure 2: PD-IM-7500 MB (Motherboard) Evaluation Board – General View

PD-IM-7648 Evaluation System - User Guide

Rev 1.0 / 25 Dec 13 Analog Mixed Signal Group

1 Enterprise, Aliso Viejo, CA 92656, USA; Phone (USA): (800) 713-4113, (ROW): (949) 221-7100 Fax: (949) 756-0308

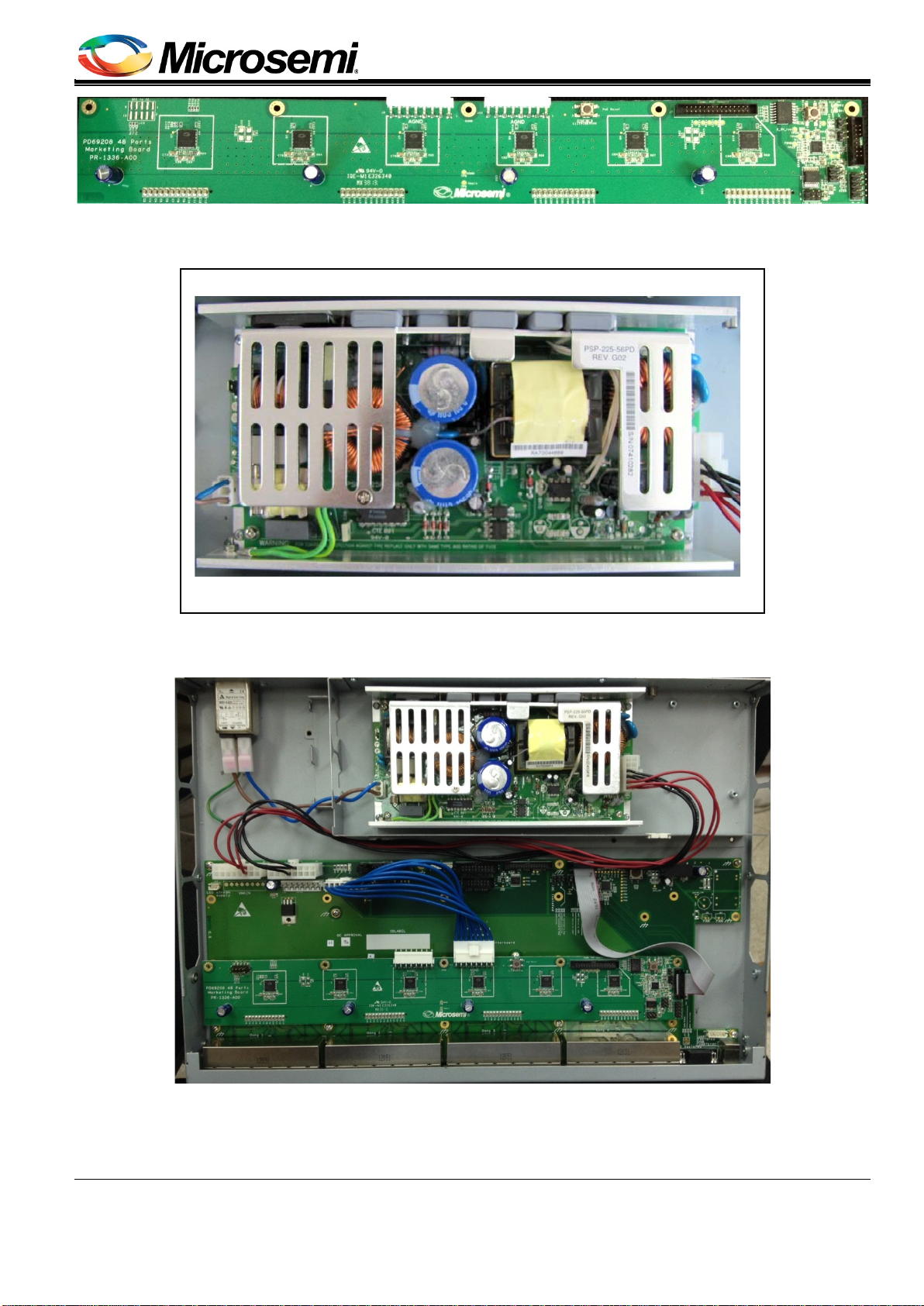

Figure 3: PD-DB-7648 (Daughterboard) Evaluation Board – General View

VMAIN power supply can output 225W. It supplies power via connector J6 (Vmain) and J7 (AGND).

Figure 4: Power Supply

The enclosure houses power supply, motherboard, and the daughterboard.

Figure 5: System in the Enclosure

PD-IM-7648 Evaluation System - User Guide

Rev 1.0 / 25 Dec 13 Analog Mixed Signal Group

1 Enterprise, Aliso Viejo, CA 92656, USA; Phone (USA): (800) 713-4113, (ROW): (949) 221-7100 Fax: (949) 756-0308

2.1 8BEvaluation Board/System Ordering Information

The following table lists EVB ordering information.

Ordering Number Description

PD-IM-7648

48 ports PoE system: MB evaluation board (PD-IM-7500), DB evaluation

board (PD-DB-7648) in an enclosure with power supply.

2.2 9BEvaluation System Features

Four gangs (each contains 12 X RJ45 connectors)

Switch domain isolated from PoE domain

Switch domain USB interface

Switch domain UART (RS232) interface

External power supplies interface

PoE Manager Manual Reset (on daughterboard)

PoE Controller Manual Reset (on motherboard)

There are no pulse transformers and common mode chocks per port

Evaluation system working temperature: 0° to +50°C

RoHS compliant

2.3 10BEvaluation System Interfaces & Connections

The board has several interfaces:

RJ45: Running from MB to PD (powered device) (MB:J29-J32)

Ports Interface: Ports connection between MB (J22-J25) and DB (J11-J14)

Vin Connectors: DC in (Vmain) connection to MB (J6, J7), and MB (J15, J18) to DB (J9, J10)

Communication and Indication: Communication and indication signals transferred from MB

(J2, J3) to DB (J4, J7)

Isolated Host Control and Indication: Hosting system to MB (J4)

Isolated USB: USB to UART communication between hosting system and MB (U7)

Isolated RS232: RS232 communication between hosting system and MB (J33)

Isolated UART: UART communication between hosting system and MB (J26)

Isolated I2C: I2C communication between hosting system and MB (J14)

External Power Supplies: 'Power good' signals coming from power supplies indicates

operational/failed power supply to MB (J1)

JTAG/SWD: PoE controller burning interface to DB (J3)

2.4 11BPhysical Characteristics

Table 1 lists the evaluation system’s physical characteristics.

Table 1: Physical Characteristics

Parameter Value

Mechanical dimensions: MB 420 x 168 x 30mm (l x w x h)

Mechanical dimensions: DB 420 x 50 x 20mm (l x w x h)

Mechanical dimensions: Case 435 x 305 x 42mm (l x w x h)

PD-IM-7648 Evaluation System - User Guide

Rev 1.0 / 25 Dec 13 Analog Mixed Signal Group

1 Enterprise, Aliso Viejo, CA 92656, USA; Phone (USA): (800) 713-4113, (ROW): (949) 221-7100 Fax: (949) 756-0308

3 2BPhysical Description

3.1 12BSwitches and Jumpers

The evaluation system comprises switches and jumpers used to select the desired configuration states of the

board. Default configurations are indicated as 'default.'

3.1.1 17BUART Communication Selection

There are three UART communication options:

USB to UART (connecting USB cable to U7).

For this connection a driver for CP210x should be installed. The driver can be downloaded

from http://www.silabs.com/products/mcu/Pages/USBtoUARTBridgeVCPDrivers.aspx.

RS232 to UART (connecting RS232 cable to J33).

UART input (connecting UART cable to J26).

J6 on DB must be open in order to work in UART mode.

Using J11 and J12 jumpers, the following three options are available (see Table 2).

Table 2: UART Communication Selection

UART inputUSB to UARTRS232 to UART

Short from J11 pin

2 to J12 pin 2

J11 – Short from pin "1" to "2"

J12 – N.C

J11 – N.C

J12 – Short from pin "1" to "2"

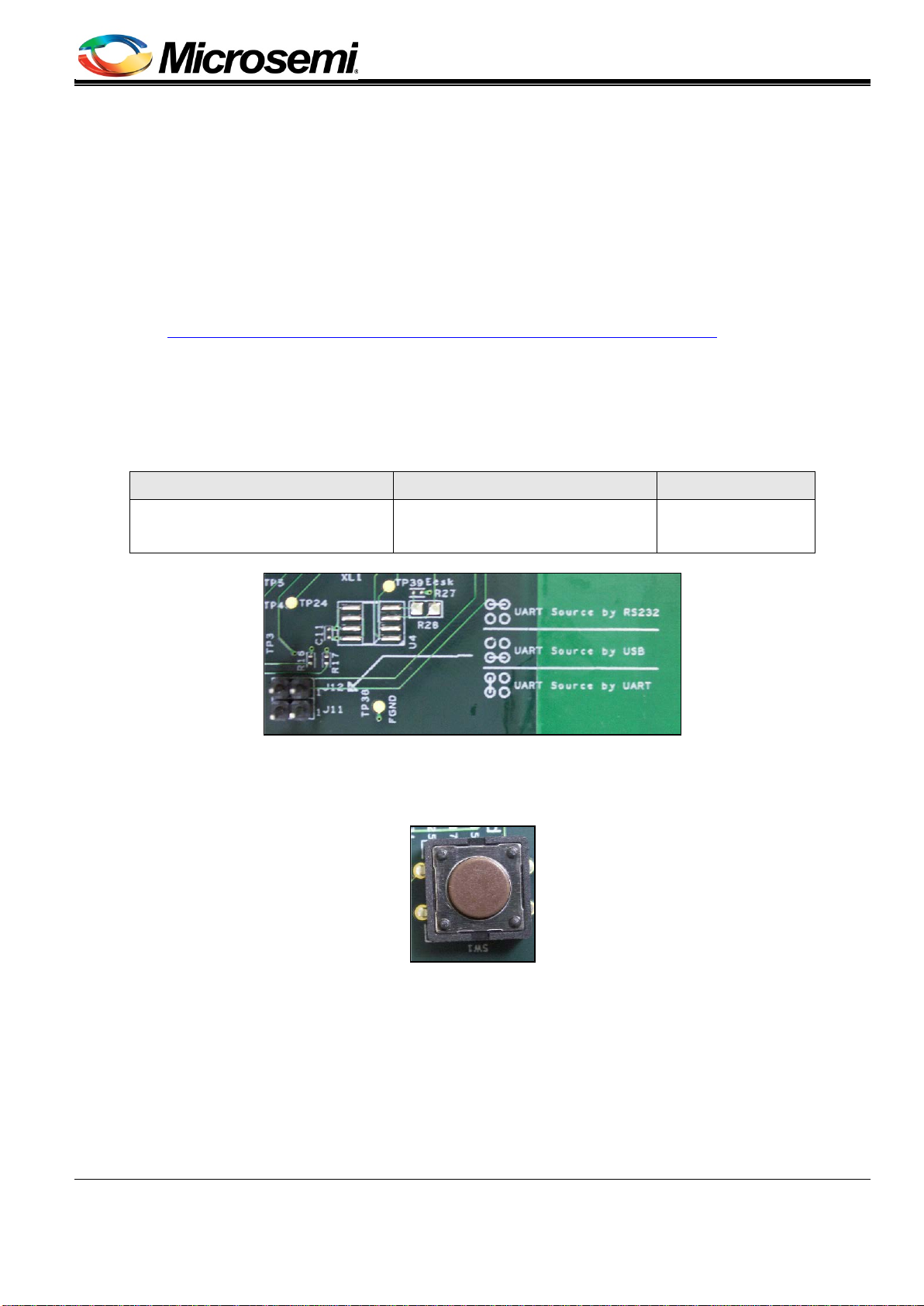

Figure 6: UART Communication Selection (J11, J12)

3.1.2 18BReset Button

The dedicated Reset push button SW1 (see Figure 7) resets DB PoE controller PD69200.

Figure 7: Reset Push Button (SW1)

3.2 13BConnectors

The following sections provide both a general and a detailed description of the board connectors.

3.2.1 19BConnectors Table

The evaluation system's connectors are listed in Table 3.

PD-IM-7648 Evaluation System - User Guide

Rev 1.0 / 25 Dec 13 Analog Mixed Signal Group

1 Enterprise, Aliso Viejo, CA 92656, USA; Phone (USA): (800) 713-4113, (ROW): (949) 221-7100 Fax: (949) 756-0308

Table 3: Connector List

Number Connector Name Description

1 MB: J29-J32RJ45 Connectors

48 'RJ45' ports connecting MB to Powered Device

load.

2 MB: J22-J25

DB: J11-J14 Port Connection

Port connection (Vport_pos and Vport_neg)

between MB and DB implemented by using four

connectors.

MB: J6, J7, J15,

J17, J18

DB: J9, J10

(GND only)

Vin Connectors DC in (Vmain) connection used to power MB and

DB Evaluation systems.

4 MB: J2, J3

DB: J4, J7 Communication

and Indication

Communication (UART, I2C and ESPI) and

indication signals (reset, disable, etc) running

between MB and DB, using flat cables connected

to J2 (PoE domain) and J3 (Host Domain)

connectors.

5 MB: J4 Isolated External

HOST

Control and indication signals running between an

external hosting system and MB (Host Domain on

the daughterboard), of limited use as most of the

communication is via USB, UART, and RS232.

6 MB: U7 Isolated USB

USB communication coming from hosting system

(U7), converted to UART or I2C communication

and directed to DB (Host Domain on

daughterboard)

7 MB: J33 Isolated RS232

RS232 signal levels coming from the hosting

system (J33) and converted to UART signal levels,

then directed to DB (Host Domain on

daughterboard).

8 MB: J26 Isolated UART

UART interface from hosting system and MB, then

directed to DB (Host Domain on daughterboard).

MB: J16

LEDs Indication

Not Used

MB: J8

Daisy Chaining

Not Used

11 MB: J1 External Power

Supplies

'Power Good' indication signals coming from power

supplies, indicating operating/failed power supply

status. It is also a hot-swap signal for hot

swappable PoE applications.

MB: J5

Tester

Not Used

MB: J13

BDM

Not Used

14 DB: J1 LED Stream

Port's status presented via LEDs indication signals

running to LED board.

DB: J3

JTAG

PoE Controller burning interface

3.2.2 20BConnectors Detailed Explanation

The numbering is in reference to the numbers given in Table 3.

1. RJ45 Connectors (see Figure 8)

There are four dedicated RJ45 connectors; each contains 12 RJ45 ports.

Pin No. (Each RJ45) Signal Name Description

4, 5

SPARE - Vport_Pos

The PoE's Positive spare port

7, 8

SPARE - Vport_Neg

The PoE's Negative spare port

1, 2

DATA - Vport_neg

The PoE's negative data port

3, 6

DATA - Vport_neg

The PoE's positive data port

Manufacturer: FOXCONN

Manufacture part number: JM371B3-KD10-4F

PD-IM-7648 Evaluation System - User Guide

Rev 1.0 / 25 Dec 13 Analog Mixed Signal Group

1 Enterprise, Aliso Viejo, CA 92656, USA; Phone (USA): (800) 713-4113, (ROW): (949) 221-7100 Fax: (949) 756-0308

Figure 8: RJ45 Connectors

2. Port Connection (see Figure 9)

Ports Connection (spare_NEG, spare_POS, data_NEG and data_POS) between MB's RJ45 and DB PoE circuitry

is utilized by four connectors.

Pin No. Signal Name Description

1, 5, 9, 13, 17, 21, 25, 29, 33, 37,

41, 45

spare_NEGx PoE's negative spare port

2, 6, 10, 14, 18, 22, 26, 30, 34, 38,

42, 46

spare_POSx PoE's positive spare port

3, 7, 11, 15, 19, 23, 27,31, 35, 39,

43, 47

data_NEGx PoE's negative data port

4, 8, 12, 16, 20, 24, 28, 32, 36, 40,

44, 48

data_POSx PoE's positive data port

Manufacturer: CviLux

Manufacture part number: CH57482M100-PA

Figure 9: Port Connection

3. Vin Connectors (see Figure 10)

DC in (Vmain) connection, used for powering the MB and DB Evaluation systems. 44 VDC > Vmain> 57 V DC.

MB: J6

Pin No. Signal Name Description

1-16

Vmain (Vin +)

Main positive voltage (referenced to AGND)

MB: J7

Pin No. Signal Name Description

1-16

AGND (Vin -)

Analog ground

Manufacturer: CviLux

Manufacture part number: CP01-316130

MB: J17

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Microsemi Scheda madre

Microsemi

Microsemi VSC8221 Manuale utente

Microsemi

Microsemi VSC8502 Manuale utente

Microsemi

Microsemi DS3106DK Manuale utente

Microsemi

Microsemi SmartFusion UG0209 Manuale utente

Microsemi

Microsemi PD-IM-7401 Manuale utente

Microsemi

Microsemi LX7165 Manuale utente

Microsemi

Microsemi PD-IM-7504B Manuale utente

Microsemi

Microsemi LX7720 Manuale utente

Microsemi

Microsemi PD70211EVB50FW-5 Manuale utente

Microsemi

Microsemi SmartFusion2 MSS Manuale utente

Microsemi

Microsemi VSC8574 Manuale utente

Microsemi

Microsemi PD70210EVB Manuale utente

Microsemi

Microsemi PD-IM-7608M Manuale utente

Microsemi

Microsemi LX7302 Manuale utente

Microsemi

Microsemi ZLE30267 Istruzioni per l'installazione

Microsemi

Microsemi VSC8257 Manuale utente

Microsemi

Microsemi FlashPro5 Manuale tecnico

Microsemi

Microsemi FlashPro Lite Manuale tecnico

Microsemi

Microsemi SmartFusion2 MSS Manuale tecnico

Microsemi

Microsemi LX7180A Manuale utente

Microsemi

Microsemi IGLOO PLUS Starter Kit Manuale utente

Microsemi

Microsemi ProASIC3/E Proto Kit Manuale tecnico

Microsemi

Microsemi FlashPro4 Manuale utente

Microsemi

Microsemi Actel IGLOO Icicle Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente
