Microtek C997SD Manuale utente
•
•
•
Ｃ９９７ＳＤ Ｅｎｇｌｉｓｈ．ｐ６５ 03-3-26, 13:391
The Federal Communications Commission warns that changes or
modifications of the unit not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
CE mark for Class B ITE (Following European standard EN55022/1998;
EN61000-3-2/1995;EN61000-3-3/1995,EN55024/1998,EN60950/
1992+A1+A2+A3+A4+A11)
Radio Frequency Interference Statement
Warning:
This is a Class B product. In a domestic environment, this product may
cause radio interference in which case the user may be required to take
adequate measures.
Canadian Doc Notice
For Class B Computing Devices
This digital apparatus does not exceed the Class B limits for radio noise
emissions from digital apparatus as set out in the Radio Interference
Regulation of the Canadian Department of Communications.
“Le présent appareil numérique n’èmet pas de bruits radioélectriques
dépassant les limites applicables aux appareils numériques de la class
B prescrites dans le Règlement sur le brouillage radioélectrique édicté
par le ministère des Communications du Canada”
Ｃ９９７ＳＤ Ｅｎｇｌｉｓｈ．ｐ６５ 03-3-26, 13:392
Table of Contents
Your New LCD Monitor
Unpacking
Identifying Components
Hot Keys for Quick Adjustment of Monitor Settings
Adjusting the Viewing Angle
Connecting AC Power
Connecting Video
Connecting the Stereo Speakers
Power Management System
The LCD Monitor’s Display Controls
Adjusting the Monitor’s Display
LCD Monitor Specifications
SupportedTiming
TroubleshootingProcedures
Ｃ９９７ＳＤ Ｅｎｇｌｉｓｈ．ｐ６５ 03-3-26, 13:393
The LCD Monitor
Your New LCD Monitor!
Your LCD Monitor has been designed to be versatile, ergonomic and
user-friendly. The LCD Monitor is capable of displaying most standards,
from 640 x 400 VGA to 1280 x 1024 SXGA. The digital controls located
on the front panel allows the user to easily adjust the Monitor’s display
parameters, and the LCD Monitor’s small footprint allows you more
room in your workspace for other peripherals. Lightweight and compact,
the LCD Monitor is the perfect solution for users on the go. You can
use the LCD Monitor for everything from making business presentations
to playing computer games. The two stereo speakers allow you to
further expand your computer’s multimedia capabilities by connecting
your computer’s Audio out port to the LCD Monitor’s Audio in port. The
Monitor also has a wall-mountable stand for added convenience.
The architecture of the LCD Monitor incorporates an LCD panel that
produces a clear display with low radiation emission. And with its low
power consumption, the LCD Monitor helps you reduce your power bill.
Unpacking
Before you unpack your LCD Monitor, prepare a suitable workspace for
your LCD Monitor and computer. You need a stable, level and clean
surface near a wall outlet. Even though the LCD Monitor uses very little
power, you should put it in a location which allows sufficient airflow to
ensure that the LCD Monitor and your computer do not overheat. Set up
your LCD Monitor so that the panel is not facing a window where sun-
light often comes in. The glare caused by sunlight reflecting off of the
LCD Monitor’s screen will make it difficult to use the Monitor for viewing.
Ｃ９９７ＳＤ Ｅｎｇｌｉｓｈ．ｐ６５ 03-3-26, 13:394
Note:
Using a computer for an extended period of time with a poor
workstation set-up and incorrect working habits can cause health
problems. The science of ergonomics studies the relationship between
health and a suitable working environment. There is a section on
ergonomics at the end of this chapter. For more information on
ergonomics, contact your nearest computer bookstore, or local library.
The Internet also has information on this and other subjects.
After unpacking your LCD Monitor; make sure the following items are
included in the box and are in good condition:
•LCD Monitor
•Monitor-to-PC Analog signal cable (15-pin)
•Monitor-to-PC Digital signal cable (24-pin)
•Mini stereo audio cable
•AC Adapter
•Power cord
•User’s manual
If you find that any of these items are missing or appear damaged,
contact your dealer immediately. Do not throw away the packing mate-
rial or shipping carton in case you need to ship or store the LCD Moni-
tor in the future.
Identifying Components
This LCD Monitor has been designed to provide easy access to
all controls and peripheral ports. The illustrations below will help
you in identifying the LCD Monitor’s controls and ports.
Ｃ９９７ＳＤ Ｅｎｇｌｉｓｈ．ｐ６５ 03-3-26, 13:395

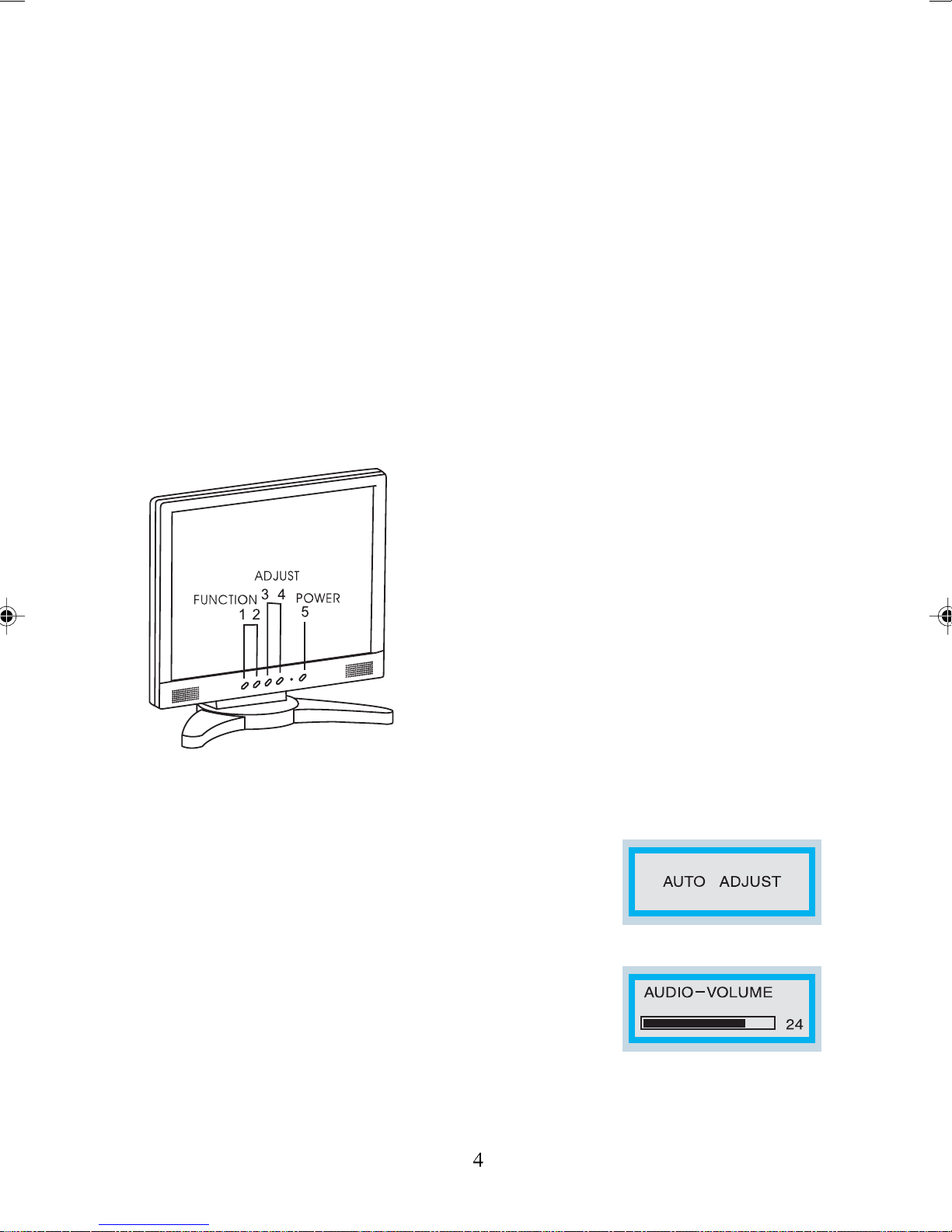

The LCD Monitor — Front View
Figure 1-1: The LCD Monitor Panel and Controls
1. LCD Screen
The LCD Monitor Screen is a 19” TFT 1280 x 1024 SXGA screen.
2. Function Control Buttons /OSD Menu Button
The 1st button allows you to display the OSD (On-Screen Display)
Menu and to select the function group. The 2nd button allows you
to select one of the control functions within each function group.
3. Adjustment Control Buttons
These two buttons allow you to adjust the selected control function
to accommodate your specific working environment. Press the
upper button (+) to increase the setting of the selected control
function and press the lower (-) button to decrease the setting of
the selected control function.
4. Power-On Indicator
This LED indicator lights up when the power is on. The LED
indicator will blink when the LCD Monitor is in power-saving mode.
Ｃ９９７ＳＤ Ｅｎｇｌｉｓｈ．ｐ６５ 03-3-26, 13:396
5. Power Button
Press this button to turn the Monitor on/off.
6. Monitor Stand
The Monitor Stand supports the LCD Panel. Loop the VGA signal
cable through the hole on the Monitor Stand.
7. Stereo Speakers
You can connect your PC’s Audio out port to the LCD Monitor’s
Audio in port and listen to your PC’s audio output with these
speakers.
Hot Keys for Quick Adjustment of Monitor Settings
1.”Auto-adjust” hot key:
Press the 2nd function button to apply monitor
settings automatically. A small “AUTO ADJUST”
OSD is also displayed.
2.” Adjust-volume” hot key:
Press the 1st adjustment control button to adjust the
audio volume directly.
Figure 1-2: Hot Keys
Ｃ９９７ＳＤ Ｅｎｇｌｉｓｈ．ｐ６５ 03-3-26, 13:397
3.” Contrast-adjust” hot key:
Press the 2nd adjustment control button to adjust
the contrast of the display directly.
** To close the OSD windows, press the power button once.

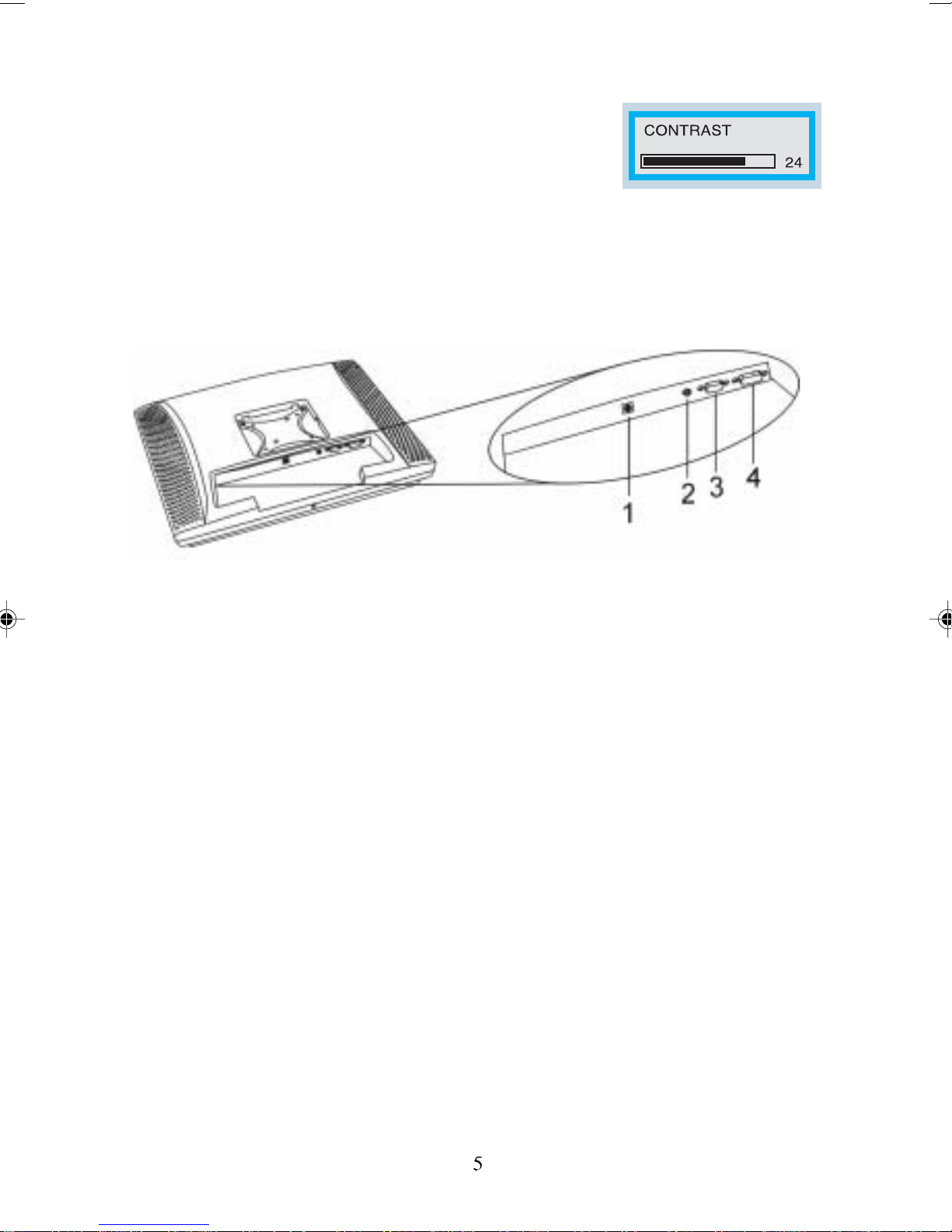

The LCD Monitor — Rear View
Figure 1-3: LCD Monitor’s Rear Ports
1. DC Power Jack for AC adaptor
Connect the AC adapter cable to this jack.
2. Audio Line-in
Connect your PC’s line-out to this jack to listen the PC’s audio on
the LCD monitor’s stereo speakers. (You can also connect your
CD-ROM’s line-out to this jack.)
3. VGA Cable Connector
This 15-pin D-Sub VGA connector is used to connect to your PC’s
VGA card.
4. Digital VGA Cable Connect
This 24-pin DVI connector is used to connect to your PC’s Graphic
card if it is equipped a DVI connector.
Ｃ９９７ＳＤ Ｅｎｇｌｉｓｈ．ｐ６５ 03-3-26, 13:408
Adjustsing the Viewing Angle
Your LCD Monitor is designed to allow you to adjust it to a comfortable
viewing angle. The LCD Monitor’s vertical angle setting range is from -5°
to 20°. Please see
Figure 1-3
.
Figure 1-4: Angle Settings
•When positioning the equipment, make sure that the
main ports and sockets are easily accessible.
•Do not place your LCD Monitor close to a heat source.
•Do not place the LCD Monitor in direct sunlight or near a
window. Moisture and direct sunlight exposure can
seriously damage the LCD Monitor.
