Microtek LightLidTM 35

Installing and Getting Started

The LightLid 35 is a bonus accessory

included with your Microtek scanner. It gives

you the versatility to scan 35mm slides and

filmstrips on your flatbed scanner.

Microtek recommends the use of this

accessory to scan slides for on-screen display

purposes or where high resolution is not

critical. For high-quality print reproduction,

we recommend purchasing a dedicated slide

scanner or a Microtek scanner with built-in

film-scanning features.

Please note: Scanning of color transparencies may vary, depending on the quality of

your film original.

Insert slide front side up

Grip prong for securing slide

A. Installing the LightLid 35

1. Unpack the LightLid 35.

2. Remove the scanner lid.

3. Connect the LightLid 35 to your scanner. To do this:

Connect the 15-pin connector (A in diagram) of your

LightLid 35 to the accessory port (B) at the back panel

of your scanner.

B. Operating the LightLid 35

1. Mount the 35mm slide or filmstrip on the LightLid 35.

A. Mounting a slide:

Turn the LightLid 35 over. Insert the

35mm slide front side up into the

recessed area at the center of the

LightLid. Secure the slide by gripping it

with the grip prong provided at the

connector side of the recessed area. For

added stability, you may wish to secure

the slide with a piece of adhesive tape.

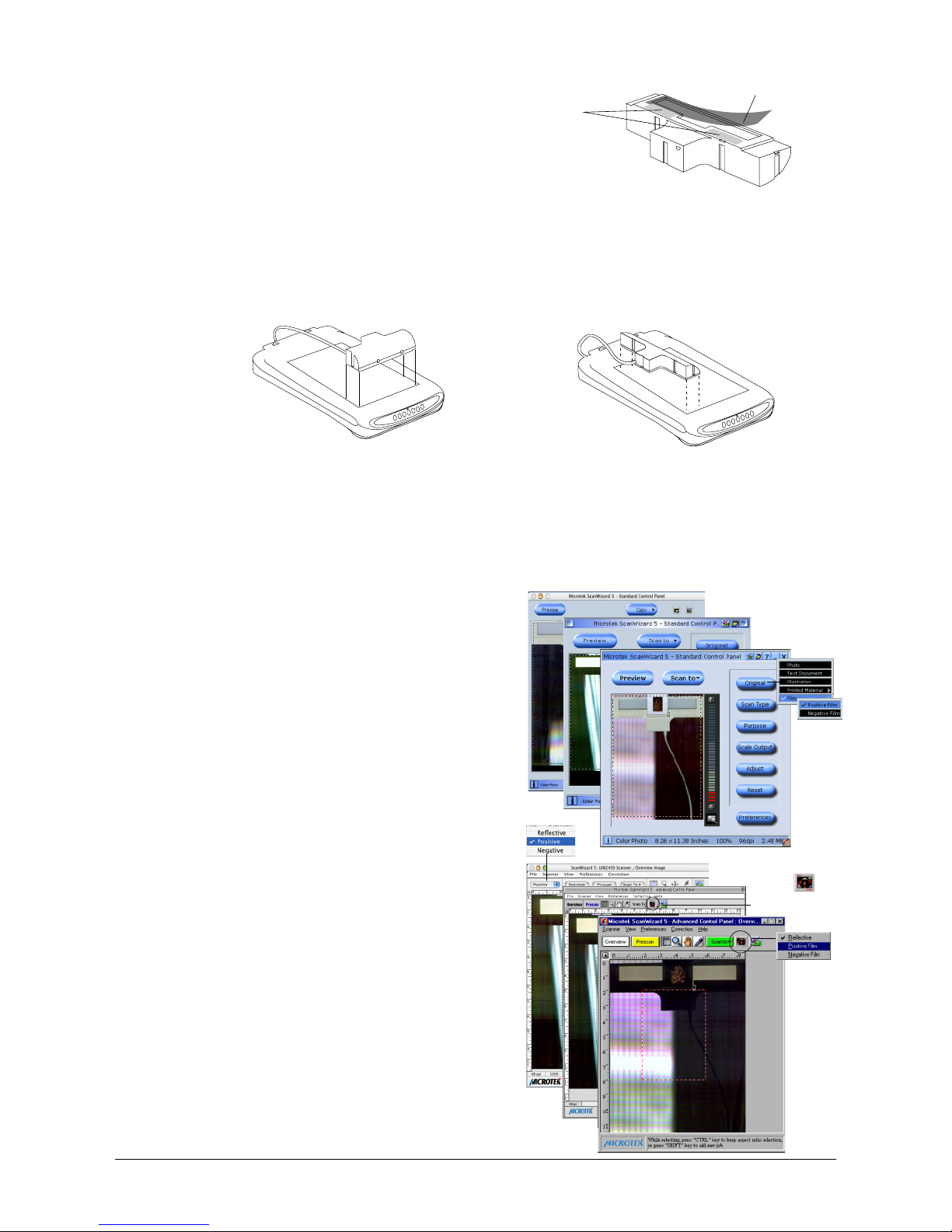

B. Mounting filmstrips:

Turn the LightLid 35 over. Insert the

35mm filmstrip front side up along the

recessed area, with one perforated side

of the filmstrip tucked under the mylar

sheets. For added stability, secure the

other perforated side of the filmstrip

with a piece of adhesive tape.

2. Place the LightLid 35 (with the secured filmstrip or slide to be scanned) on the glass

surface of the scanner. The LightLid 35 can be placed horizontally at the front edge

of the scanner glass bed, or vertically at anywhere on the glass surface, as shown

below.

Filmstrip front side up

Mylar

sheets

Horizontal Vertical

3. Select your Scan Material and start scanning.

Launch the ScanWizard 5 scanning software in stand-alone mode or from your

image-editing software, then select your scan material and start scanning. For details

on how to do this, see other documentation included in your scanner package.

ScanWizard 5 has two modes — Standard and Advanced — and each mode has its own

way of selecting the scan material and scanning. Each mode of operation is shown

below.

• Standard Control Panel: In the

Preview window, click the Original

button, and choose Positive Film or

Negative Film, depending on the

material you are scanning. When you

are ready to scan, click on the Scan

To button, and select where the

scanned image will be sent (to image

or OCR editing application, to disk, to

printer, or to e-mail or website

program). For more details, see your

ScanWizard 5 documentation.

• Advanced Control Panel: In the

Preview window, click on the Scan

Material icon, and choose Positive

Film or Negative Film, depending on

the material you are scanning; for

Mac OS X, select Positive or Negative

from the Scan Material drop-down

menu. When you are ready to scan,

click the Scan to button, and select

where the scanned image will be sent

(to image or OCR editing application,

to disk, to printer, or to e-mail or

website program ). For more details,

see your ScanWizard 5

documentation.

2 Microtek LightLid 3 Installing and Getting Started

Scan

Material icon

ScanWizard 5 Standard Control Panel

ScanWizard 5 Advanced Control Panel

C. Getting the best results

To obtain the best results when scanning with the LightLid 35, set the scan Resolution

to a minimum 600 dpi and the Scaling to 100%. Refer to the diagrams below for more

information on how to set these values in ScanWizard 5 Standard and Advanced Control

Panels.

Microtek LightLid 3 Installing and Getting Started 3

Set Scaling here to 100%

Click the Purpose button to

select your Resolution value.

When the drop-down menu

appears, select Custom and

type 600 at the dpi box, as

shown below.

Set Scaling here to

100%

Set Resolution here to

600 dpi

Settings window

in Mac OS 9.x

Settings window

in Mac OS X

Settings window in Windows

D. Using the LightLid 35 Calibrator

The LightLid 35 Calibrator is a program designed for calibrating your LightLid 35 to

ensure that it captures colors accurately when scanning slides and filmstrips. Calibration

is strongly recommended as a procedure for optimizing your scanned image.

A. Install the LightLid 35 Calibrator.

On PC:

1. Place the Microtek CD into your CD-ROM drive. When the Installer screen

comes up, click Exit.

2. Double-click the My Computer icon on the desktop.

3. Locate your CD-ROM drive icon, and right-click the icon to bring up the

Context menu.

4. Choose Open, then double-click the LL35 Calibrator folder to open it.

5. Double-click the setup.exe icon to install the Calibrator. Follow the on-screen

instructions until installation is complete.

On Mac OS 9.x:

1. Place the Microtek CD into your CD-ROM drive. When the Microtek CD icon

appears on the desktop, double-click it.

2. Double-click “For OS 9.x” icon to open Installer screen.

3. Open the folder “LightLid 35 Calibrator”, and double-click the Installer icon.

Follow the on-screen instructions until installation is complete. Once the

Calibrator is successfully installed, the “LightLid 35 Calibrator” icon appears on

the desktop.

On Mac OS X:

1. Place the Microtek CD into your CD-ROM drive. When the Microtek CD icon

appears on the desktop, double-click it.

2. Double-click “For OS X” icon to open the Installer screen.

3. Double-click “LightLid 35 Calibrator” to mount the LightLid 35 Calibrator on

the desktop.

4. Open the “LightLid 35 Calibrator” on the desktop, and double-click “LightLid

35 Calibrator.pkg”.

5. Enter the administrator's name and password when the installation dialog box

comes up. Follow the on-screen instructions until installation is complete. Once

the Calibrator is successfully installed, the “LL35 Calibrator” icon appears on

the desktop.

B. Launch the LightLid 35 Calibrator.

Make sure that ScanWizard 5 is already installed on your system and that your scanner

is powered up. Launch the LightLid 35 Calibrator (Mac OS 9.x) or LL35 Calibrator

(Mac OS X) from your desktop. Alternatively, you

can launch the LightLid 35 Calibrator from the

LightLid 35 Calibrator folder (PC and Mac OS 9.x)

or from the Applications/ScanWizard 5 Folder

(Mac OS X).

Follow the on-screen instructions as shown in the

Calibrator window right (sample taken from

Windows version, which is identical to the

Macintosh except for the Title bar).

Click the Calibrate button

to start calibration

4 Microtek LightLid 3 Installing and Getting Started
