NOTE: Drawing is not to scale.

SPECIFICATION SHEETS 010405

Product and Cut-out Dimensions

Built-in Coffee System

CVA 2650 - Wall cabinet installation

E -

O -

5 foot - 120 Volt - 15 Amp 3-wire

molded plug connects left upper rear.

Standard NEMA 5-15 outlet.

Location must be accessible.

Location Codes

Notes

• All installations must be done in

accordance with local codes.

12" min.

13 3/4"

11 5/ 8"

19 1/2"

7/ 8"

14 5/ 8"

13 3/ 4"

See Detail

18 1/ 8" - 18 3/ 8"

18 1/16""

1/ 2"

Lower Edge Detail - Full overhang

CVA Housing

Cabinet base

Front of Unit

5/8"

Unit should be installed without removable feet.

Unit will overhang cabinet base

www.dexpress.com Page 2 of 105 12/31/2010

CVA2650

Mfr Guide

NOTE: Drawing is not to scale.

SPECIFICATION SHEETS 010405

Product and Cut-out Dimensions

Built-in Coffee System

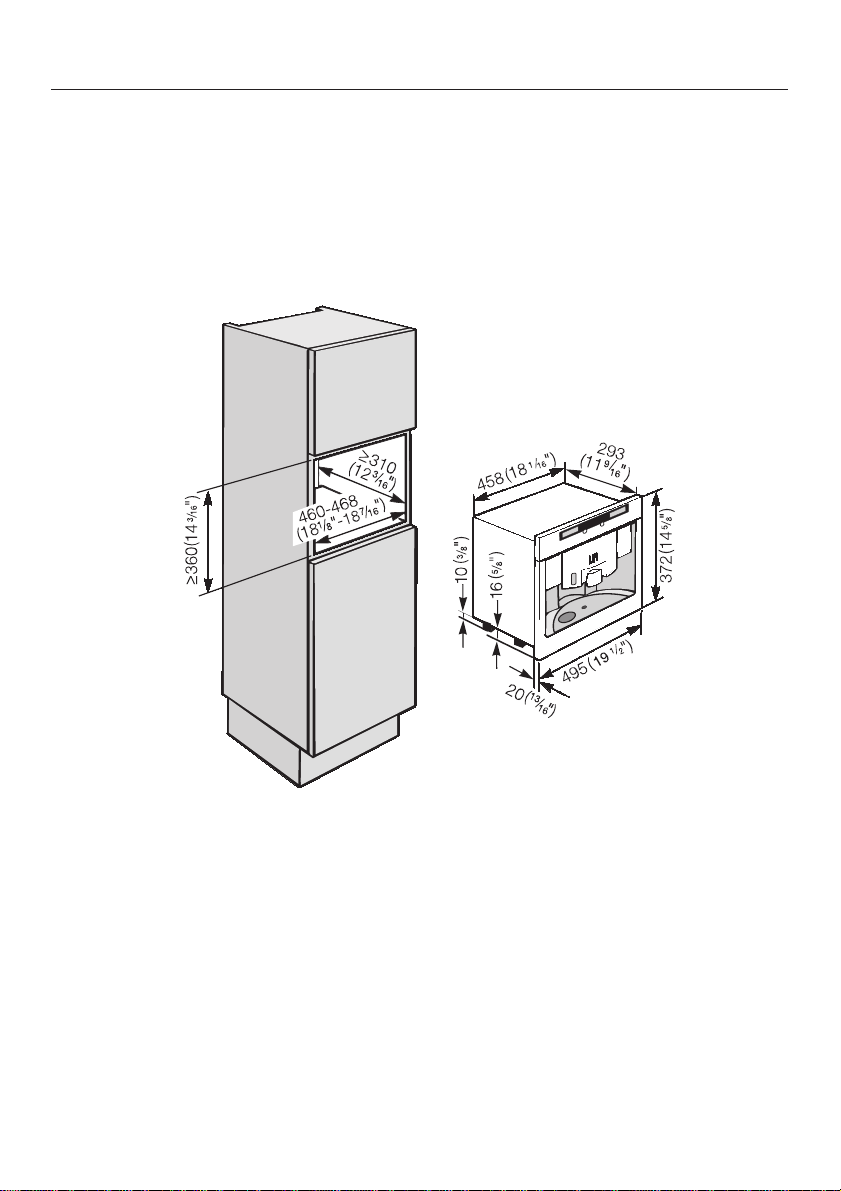

CVA 2650 - Tall cabinet installation

E -

O -

5 foot - 120 Volt - 15 Amp 3-wire

molded plug connects left upper rear.

Standard NEMA 5-15 outlet.

Location must be accessible.

Location Codes

Notes

• All installations must be done in

accordance with local codes.

12" min.

13 3/4"

11 5/ 8"

19 1/2"

7/ 8"

14 5/ 8"

14 3/16"

See Detail

18 1/8" - 18 3/ 8"

18 1/16"

1/ 2"

Lower Edge Detail - Limited overhang

CVA Housing

Cabinet Shelf

Front of Unit

Removable feet (4)

1/4"

Unit should be installed with removable feet in

place to prevent contact with cabinet doors

www.dexpress.com Page 3 of 105 12/31/2010

CVA2650

Mfr Guide

The coffee system comes equipped

with a 6 ft. (1.8 m) power cord with a

NEMA 5-15P molded plug for

connection to a 120 V, 15 A, 60 Hz

power supply.

Connection should be made via a

suitable isolator, with an on-off switch

which should be easily accessible for

servicing work.

Installation, repairs and other work by

unqualified persons could be

dangerous. The manufacturer cannot

be held responsible for unauthorized

work.

Verify that the voltage, load and circuit

rating information found on the data

plate match that of the household

electrical supply before installing the

coffee system.

If there is any question concerning the

electrical connection of this appliance

to your power supply, please consult a

licensed electrician or call Miele’s

Technical Service Department.

U1-800-999-1360

V1-800-565-6535

Electrical connection

www.dexpress.com Page 4 of 105 12/31/2010

CVA2650

Cond Inst

Installation options

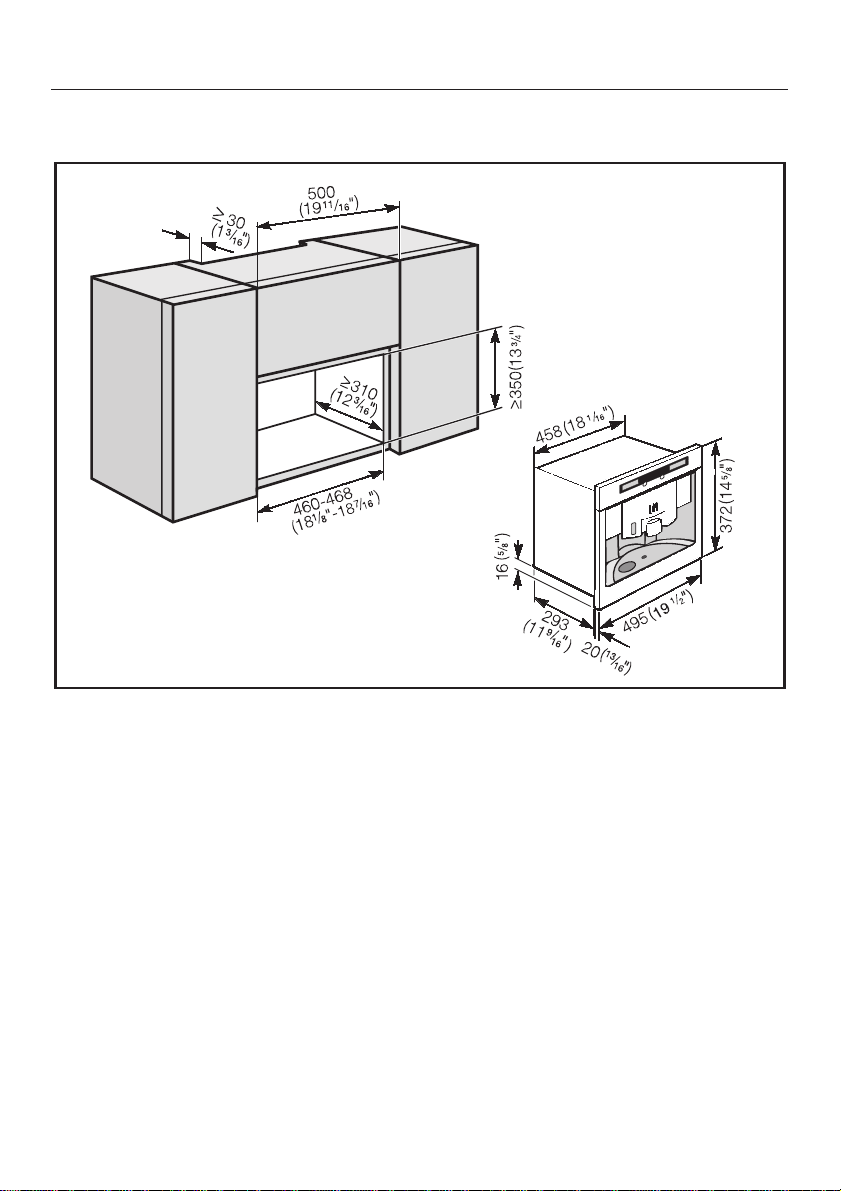

A countertop option for the CVA 2650 is possible with the CVSG 50 casing.

The coffee system is designed to be built into cabinetry.

Installation

www.dexpress.com Page 5 of 105 12/31/2010

CVA2650

Cond Inst

Installation

www.dexpress.com Page 6 of 105 12/31/2010

CVA2650

Cond Inst

Installation

www.dexpress.com Page 7 of 105 12/31/2010

CVA2650

Cond Inst

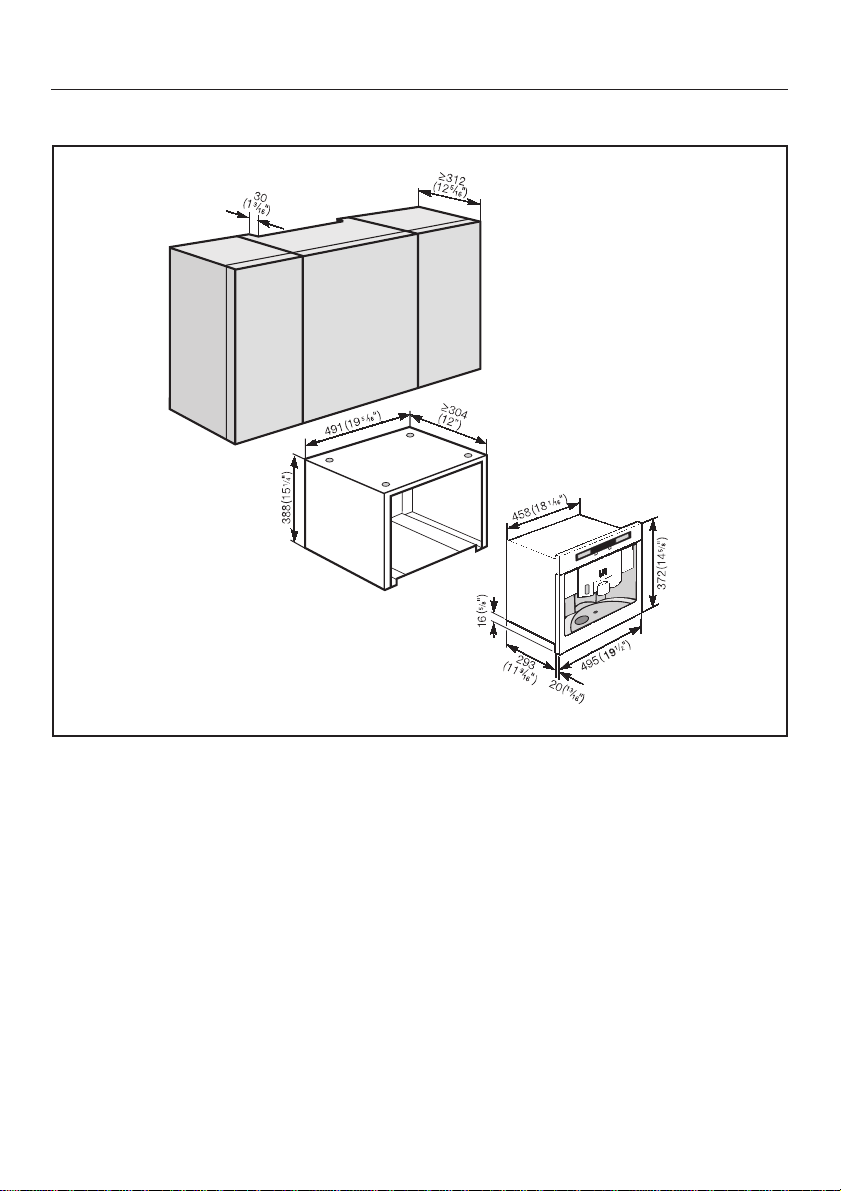

To install the CVA 2650 below a hanging cabinet a CVUG 50 casing (optional

accessory) is required.

Installation

www.dexpress.com Page 8 of 105 12/31/2010

CVA2650

Cond Inst

Installation

Make sure power is not supplied to

the appliance while installation or

maintenance work is performed.

Disconnect the power supply to the

work area by unplugging the unit,

tripping the circuit breaker or

removing the fuse. The coffee

system must be properly installed

before being used.

^Plug the appliance into the electrical

outlet.

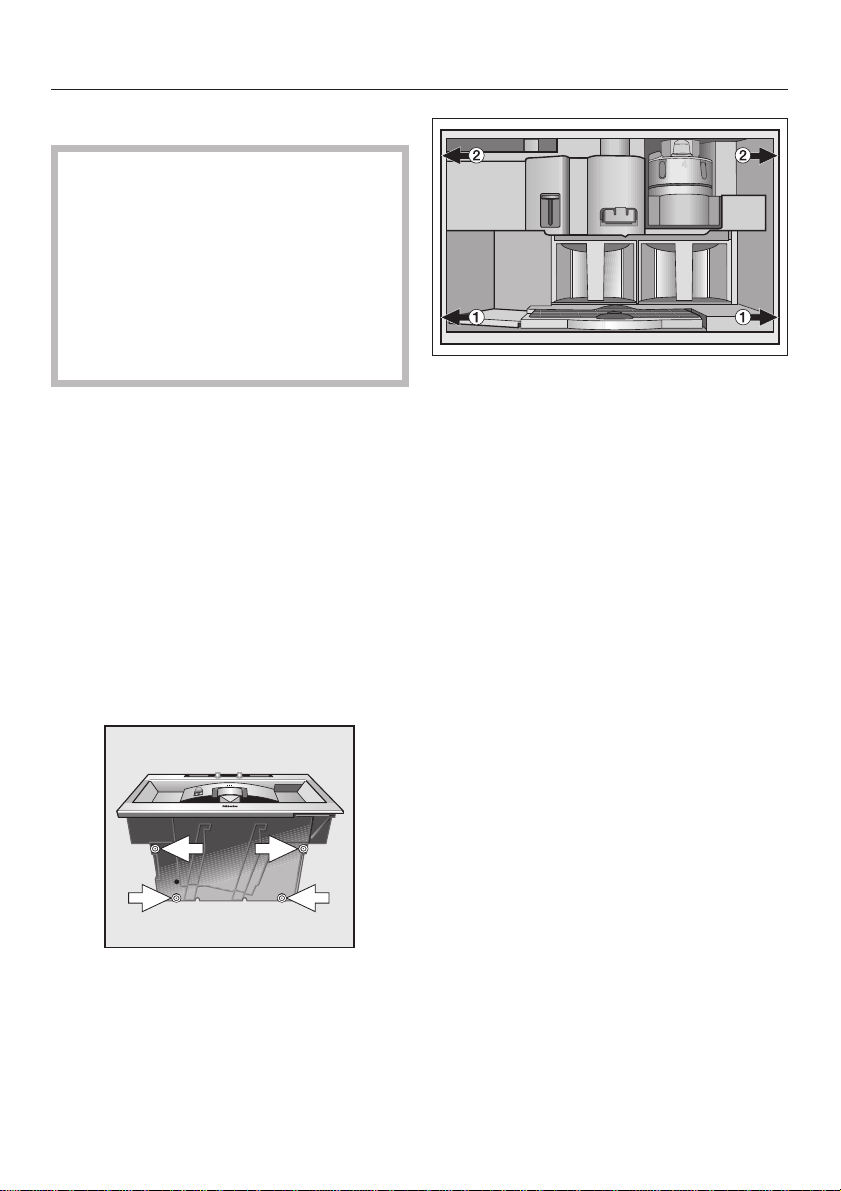

^If you have a cabinet with 3/4"

(19 mm) side panels, you will need to

drill four holes first.

– Center the machine in the

cabinet.

– Tighten the screws just so they

leave a mark in the panel.

– Remove the machine from the

cabinet and drill four holes 1/16"

(2 mm) with a diameter of 3/16"

(4.5 mm).

^Level the machine with the four

height adjustable feet.

The feet can be turned out up to 3/8"

(10 mm).

^Push the appliance all the way back

into the cabinet.

^Open the door and partially tighten

the screws by hand. Do not use an

electric screwdriver.

^Carefully turn the lower screws to

center the machine.

^To fix the machine in the cabinet,

tighten the upper screws.

Installation

www.dexpress.com Page 9 of 105 12/31/2010

CVA2650

Cond Inst

Operating instructions

Coffee System

CVA 2650

To prevent accidents

and machine damage

read these instructions

before

installation or use.

M.-Nr. 06 221 360

www.dexpress.com Page 10 of 105 12/31/2010

CVA2650

Mfr Sup
