Miele PT 7135 C Manuale utente

Operating and Installation

Instructions Condenser Dryer

PT 7135 C Vario

To prevent accidents

and machine damage

read these instructions

before

installation or use. M.-Nr. 10 278 390

en-US

IMPORTANT SAFETY INSTRUCTIONS.................................4

Operating the dryer ................................................7

Control panel ......................................................7

Before using for the first time..........................................7

Display ...........................................................8

Operating the tumble dryer in Laundromat mode .........................10

Notes and tips on laundry care .....................................11

1. Sort the laundry .................................................11

2. Load the tumble dryer ............................................12

3. Select a program ................................................12

Short instructions ................................................13

Selecting a program ..............................................17

Selecting/changing a program .......................................17

Low temperature ..................................................19

Saving a favorite program ...........................................19

Timer ...........................................................20

Changing the program sequence ...................................21

Payment system...................................................21

Once a program has started .........................................21

- changing the program ..........................................21

- cancelling the program .........................................21

Adding or removing laundry after a program has started ...................21

Power outage.....................................................21

Time remaining ...................................................21

Cleaning and care ................................................22

Cleaning the lint filters ..............................................22

Cleaning them while dry ..........................................22

Cleaning them with water .........................................23

Replacing the filters .............................................23

Cleaning the tumble dryer ...........................................24

Cleaning the heat exchanger ........................................25

Removing the heat exchanger .....................................25

Checking the condenser unit (heat exchanger unit) ....................26

To clean the condenser unit .......................................26

Replacing the condenser unit......................................27

Contents

Frequently asked questions ........................................28

Check and fault messages in the display ...............................28

An unsatisfactory drying result .......................................30

Other problems ...................................................31

Changing the light bulb .............................................34

After sales service ................................................35

Repairs..........................................................35

PC / Optical interface...............................................35

Optional accessories ...............................................35

INSTALLATION INSTRUCTIONS.....................................36

IMPORTANT SAFETY INSTRUCTIONS................................37

Installation ......................................................38

Front view .....................................................38

Side view......................................................39

Rear view .....................................................39

View from above ................................................39

Washer-dryer stack..............................................39

Installing the tumble dryer ...........................................40

Transporting the dryer to its installation site ...........................40

Levelling the machine............................................40

Room in which the dryer is located .................................41

Securing the dryer against slippage ................................41

Payment system ................................................41

External drainage of the condensed water ..............................42

Electrical connection ...............................................43

Technical data ...................................................44

Caring for the environment.........................................45

Contents

,WARNING - To reduce the risk of

fire, electric shock, or injury to

persons when using your appliance,

follow basic precautions, including

the following:

~It is essential to read all instructions

before using this appliance.

,This machine conforms to

current safety requirements.

However, inappropriate installation

and use can lead to personal injury

and property damage. Read the

operating and installation

instructions carefully before using

this machine.

The manufacturer cannot be held

responsible for damage caused by

non-observance of these Important

Safety Instructions.

Keep these operating instructions in

a safe place and pass them on to

any future user.

~The tumble dryer is only intended for

drying fabrics washed in a water

solution. Check fabric care labels to

verify materials can be machine dried.

~Before maintenance, or cleaning

and care disconnect the dryer from the

electrical supply pulling the plug or

tripping the circuit breaker.

~Make sure that no unattended

children can access the machine.

There is a potential danger that children

can be trapped in the drum. This may

cause major injuries or the death of the

child.

~Do not reach into the dryer if the

drum is moving.

~Do not install or store this appliance

where it will be exposed to the weather.

~Do not tamper with the controls.

~Do not repair or replace any part of

the appliance or attempt any servicing

unless specifically recommended in

these operating instructions. Repairs to

electrical appliances should only be

performed by qualified personnel.

Incorrectly repaired machines may

pose a considerable risk to the user.

~Clean the lint filter before or after

each load.

~Keep the area around the exhaust

opening (toe-kick) and adjacent

surrounding areas free of lint, dust and

dirt.

~The interior of the machine and

exhaust duct should be cleaned

periodically by qualified personnel.

~Only use genuine Miele accessories

and replacement parts. If other parts

are used, warranty, performance and

product liability claims may become

void.

IMPORTANT SAFETY INSTRUCTIONS

~To prevent the risk of fire, the

following articles must not be dried in

this tumble dryer:

–items which have not been washed.

–items, such as workwear, which have

not been thoroughly cleaned and are

still soiled with grease, oil or other

substances (such as cosmetics,

lotions, etc.).

If items have not been thoroughly

cleaned there is a danger that they

could ignite when heated, even after

they have been removed from the

dryer at the end of the program.

– items that have been previously

cleaned, washed, soaked or spotted

with gasoline, dry-cleaning solvents,

wax, wax remover, chemicals for

buffing (e.g. mops and floor cloths)

or other flammable or explosive

substances. They may give off

vapors that could ignite or explode.

– items which have been spattered

with hair spray, nail polish remover or

similar substances.

~When washing heavily soiled items

ensure that you use sufficient detergent

and select a high temperature. If in

doubt, wash the items several times.

~To prevent the risk of fire, the

following articles or items must not be

dried in this tumble dryer:

–fabrics which contain a large amount

of rubber, foam rubber or rubber-like

materials. For example, products

made from latex, shower caps,

waterproof textiles, rubberized

articles, and items of clothing and

pillows with foam rubber filling, or

similarly textured rubber-like

materials.

–which contain padding or fillings

(e.g. pillows, jackets). If these were

damaged the filling could get out

with the risk of igniting in the dryer.

~In many programs, the heating

phase is followed by a cooling down

phase to ensure that the items are not

too hot to handle when you remove

them (this also avoids the danger of the

laundry self-igniting). The program is

not finished until the cooling down

phase is complete.

Always wait until the end of the

program before removing the laundry.

~Warning: Do not switch the tumble

dryer off before the end of the drying

program. If this was done and the

laundry was then removed immediately

it could give off a great amount of heat.

~Do not use fabric softeners or

products to eliminate static unless

recommended by the manufacturer of

the fabric softener or product.

IMPORTANT SAFETY INSTRUCTIONS

~GROUNDING INSTRUCTIONS

This appliance must be grounded. In

the event of a malfunction or

breakdown, grounding will reduce the

risk of electric shock by providing a

path of least resistance for electric

current.

This appliance is equipped with a cord

having an equipment-grounding

conductor and a grounding plug. The

plug must be inserted into an

appropriate outlet that is properly

installed and grounded in accordance

with all local codes and ordinances.

,WARNING – Improper

connection of the equipment

grounding conductor can result in a

risk of electric shock. Contact a

qualified electrician if you are in

doubt as to whether the appliance is

properly grounded.

~Do not modify the plug provided

with the appliance: if it will not fit the

outlet, have a proper outlet installed by

a qualified electrician.

~Before this appliance is removed for

service or discarded, remove the door

to the drying compartment.

SAVE THESE

INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

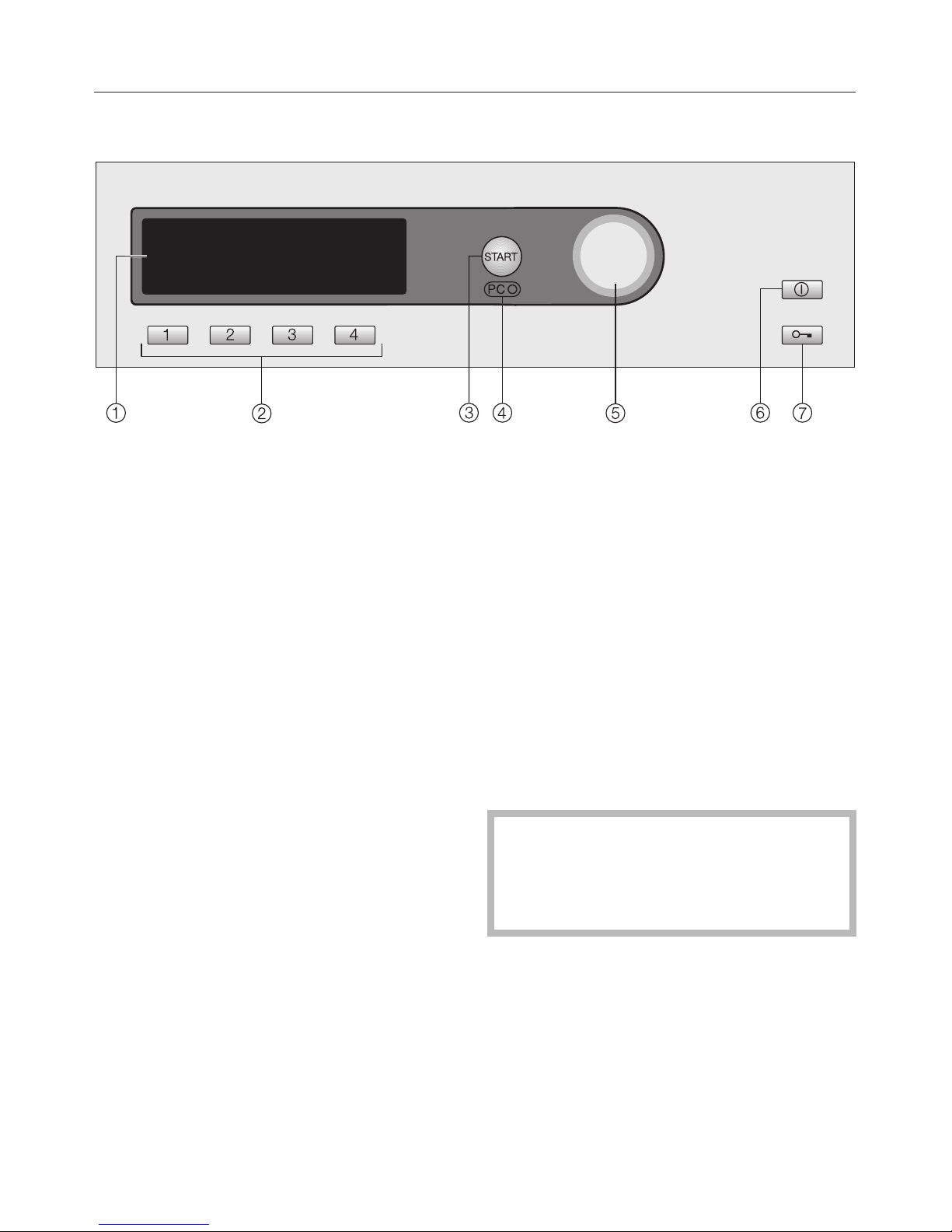

Control panel

aDisplay

After the machine has been switched

on, the display lights up.

As soon as the dryer is ready to use,

the Main menu appears in the

display.

bDirect select buttons

For selecting an individual drying

program quickly. These buttons can

be programmed to select your own

favorite drying programs.

cStart button

The indicator light flashes when a

program can be started and lights

up when the program starts.

dPC/Optical interface

This is used by Miele service

technicians during servicing work for

testing purposes.

eMulti-function selector

This is used to select menu options

(by turning it) and to confirm your

selection (by pressing it).

fOn/Off button K

For switching the dryer on and off.

To save energy the dryer will switch

off automatically 15 minutes after the

end of the program/anti-crease

phase or 15 minutes after the dryer is

switched on if it no other selection is

made.

gabutton

Opens the machine door

independently of the electrical

supply.

Before using for the first time

Before using the machine for the first

time, ensure that it is correctly

installed and connected. See

"Installation".

Commission the machine as described

in the separate booklet

"Commissioning, Program chart and

Settings" supplied with the machine.

Operating the dryer

Display

Main menu

1 Cottons Program selection ...

2 Minimum iron Settings F...

3 Woollens handcare

4 Smoothing 10:00

When the dryer is switched on, the Main menu (with four

favorite programs listed) appears with Program selection

highlighted.

Multi-function selector

Turning the multi-function selector moves the highlighting to

the next option.

Pressing the multi-function selector selects the highlighted

option.

Direct select buttons

Pressing a direct select button will select one of the four

favorite programs shown on the left of the display.

If you wish to change the programs shown in this list you can

do so (see "Selecting a program - Saving a favorite program"

for more information).

The direct select buttons have different functions in the other

menus. Where this is the case, an arrow Hwill appear in the

display above the direct select buttons, together with a

description of its function .

program selection

There are two ways of selecting a program:

–Option 1: Select the Program selection menu in the display

and confirm your selection by pressing the multi-function

selector.

–Option 2: Press direct select buttons D E F or G.

This will automatically take you into the main menu for that

program.

Operating the dryer

program selection menu

Program

selection

Back A

Cottons

Minimum iron

Delicates H

You can use the multi-function selector to select any

program. The highlighting will move up or down depending

on the direction the multi-function selector is turned in.

The HVarrows on the right of the display, indicate further

options.

Pressing the multi-function selector takes you to the main

menu of the program selected.

Drying program main menu

Cottons Normal

Duration 0:50 h

Low temp.

Timer Y

Save

Back A

^Turn the multi-function selector to highlight either the

"Drying level" or the "program".

– Pressing the multi-function selector selects the highlighted

option and opens the relevant sub-menu.

–Low temperature and Timer can be selected by pressing

direct select buttons Dor E.

–To go back to the Main menu press direct select button

Alternatively, you can also highlight and confirm all options by

just using the multi-function selector.

Settings menu J

The Settings menu Jis used to alter the tumble dryer's

electronics to suit different requirements. See the separate

booklet "Commissioning, Program chart and Settings" for

further information.

Operating the dryer

Operating the tumble dryer in Laundromat mode

The Main menu will vary depending on the Controls setting

selected.

^The dryer is operated either with direct select buttons D,

E,F,Gor the multi-function selector.

WS-direct select buttons, basic

1Cottons Normal+

2 Minimum iron Normal

3 Woollens handcare

4 Cool air

4 programs are available to choose from. To specify which

programs are available go to the Settings/supervisor level

menu.

WS-direct select buttons + Logo

PROFESSIONAL

12 drying levels and timed programs are available to choose

from. To specify which programs are available go to the

Settings/supervisor level menu.

WS-direct select buttons, ex/int time

PROFESSIONAL

4 timed programs with different temperature levels are

available to choose from. To specify which programs are

available, go to the Settings/supervisor level menu.

Operating the dryer

Altri manuali per PT 7135 C

Indice

Altri manuali Miele Asciugatrice

Miele

Miele PDR 507 HP Manuale utente

Miele

Miele PT 8507 D Manuale utente

Miele

Miele TWF 760 WP Manuale utente

Miele

Miele PDR 910 EL Manuale utente

Miele

Miele PT 8807 D (Steam) Manuale utente

Miele

Miele 11 663 610 Manuale utente

Miele

Miele VENTED DRYER T 1302 Manuale utente

Miele

Miele T 1332C CONDENSER DRYER Manuale utente

Miele

Miele PT 7135 C Manuale utente

Miele

Miele PT 7135 C Manuale utente

Miele

Miele Novotronic T 510 Manuale utente

Miele

Miele PT 7136 Manuale utente

Miele

Miele PDR 514 Manuale utente

Miele

Miele MIWADREW201 Manuale utente

Miele

Miele Touchtronic T 1339 C Manuale utente

Miele

Miele PT 5136 OS Manuale utente

Miele

Miele T 6251 Manuale utente

Miele

Miele PT 7135 C Manuale utente

Miele

Miele T 1322 C Manuale utente

Miele

Miele T 1570C CONDENSER DRYER Manuale utente

Miele

Miele PT 5136 EL Manuale utente

Miele

Miele NOVOTRONIC T 7644 C Manuale utente

Miele

Miele PT 8407 EL Manuale utente

Miele

Miele TDA150C Manuale utente

Manuali Asciugatrice popolari di altre marche

Bosch

Bosch WTA79200GB Manuale utente

Amana

Amana W10233410A Manuale utente

Asko

Asko T760 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manuale utente

Bosch

Bosch Logixx 10 WTB76556GB Scheda tecnica

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Manuale di istruzioni

Electrolux

Electrolux EW2H328R2 Manuale utente

Beko

Beko DS8433RX1M Manuale utente

Dawlance

Dawlance Spinner DS 6000 C Manuale utente

Electrolux

Electrolux TP5080TW Manuale utente

AEG

AEG TR838P4OB Manuale utente

Indesit

Indesit IDV 75 Manuale utente

Infiniton

Infiniton SD-DG85C Manuale utente

BOMANN

BOMANN WT 5019 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuale utente

Asko

Asko T793C Manuale utente

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuale utente

Frigidaire

Frigidaire CAQE7077KW0 Manuale del proprietario
