Operating instructions

for condenser tumble dryer

T 8623 C

To avoid the risk of accidents

or damage to the machine

it is essential to read these

instructions before it is installed

and used for the first time.

M.-Nr. 06 874 400

Disposal of the packing

material

The transport and protective packing

has been selected from materials which

are environmentally friendly for disposal

and can normally be recycled.

Ensure that any plastic wrappings,

bags etc. are disposed of safely and

kept out of the reach of babies and

young children. Danger of suffocation!

Rather than just throwing these

materials away, please ensure they are

offered for recycling.

Disposal of your old appliance

Electrical and electronic appliances

often contain materials which, if

handled or disposed of incorrectly,

could be potentially hazardous to

human health and to the environment.

They are, however, essential for the

correct functioning of your appliance.

Please do not therefore dispose of your

appliance with your household waste.

Please dispose of it at your local

community waste collection / recycling

centre and ensure that it presents no

danger to children while being stored

for disposal.

It should be unplugged or disconnected

from the mains electricity supply by a

competent person. The plug must be

rendered useless and the cable cut off

directly behind it to prevent misuse.

See the "Warning and Safety" section of

this booklet for further details.

Energy saving tips

To avoid unnecessarily long drying

times and high consumption of energy:

–Make sure that your laundry is

thoroughly spun before drying.

The higher the spin, the greater the

savings that can be made in energy

and time during drying.

– Load according to the optimum

amount of laundry recommended for

the programme being used (see

Programme chart).

Underloading is uneconomical.

Overloading gives a poorer quality of

drying and may cause unnecessary

creasing.

–Make sure the room in which the

dryer is located is well ventilated.

–Make sure the fluff filters are clean

before using the dryer.

–Check the condenser unit from time

to time and clean it when necessary.

Caring for the environment

Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Disposal of the packing material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Disposal of your old appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Energy saving tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Operating the tumble dryer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Before using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Notes on laundry care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Care symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Tips on drying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

How to dry correctly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Brief instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Extra options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Low temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Short. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Anti-crease. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Delay start. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Programme chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Changing the programme sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Changing a programme while it is running . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Cancelling a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Interrupting a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Adding or removing laundry after a programme has started . . . . . . . . . . . . . . . . 25

Contents

Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Emptying the condensed water container. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Cleaning the fluff filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Cleaning them whilst dry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Cleaning them with water . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Cleaning the tumble dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Cleaning the condenser unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Removing the condenser unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Checking the condenser unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Cleaning the condenser unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Replacing the condenser unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Problem solving guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Fault messages in the display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Other problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Changing the lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

After Sales service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Future updates (PC). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Appliance guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Optional accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Front view. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Rear view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Installation site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Transporting the machine to its installation site . . . . . . . . . . . . . . . . . . . . . . . . 41

Building under a continous worktop / in a kitchen run . . . . . . . . . . . . . . . . . . . 41

Levelling the machine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Room in which the dryer is located . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Washer-dryer stack. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Before moving the machine again

(e.g. when moving house) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

External condensed water outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Arranging the drain hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

External drainage via a sink or gully . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Installation conditions requiring a non-return valve . . . . . . . . . . . . . . . . . . . . . 44

Contents

Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Electrical connection U.K. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Consumption data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Settings menu J. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

To open the Settings menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

To close the Settings menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Language J. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Time (of day) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Drying levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Extended cool down . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Airways indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Lock code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Keypad tone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Contrast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Brightness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Standby display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Contents

To avoid the risk of accidents and

damage to the machine please read

these instructions carefully before

using it for the first time. They

contain important information on its

safety, installation, use and

maintenance.

Keep these instructions in a safe

place and ensure that new users are

familiar with the content. Pass them

on to any future owner of the

machine.

Correct use

The tumble dryer is only intended

for drying fabrics which have been

washed in a water solution, marked on

the manufacturer's care label as being

suitable for tumble drying.

"Dry cleaning kits" for freshening up

garments in a tumble dryer are

increasingly available on the market. If

using, do so at your own risk, and

follow the instructions provided on the

packaging.

Any other applications may be

dangerous. The manufacturer is not

liable for damage resulting from

improper use or operation.

Technical safety

Before setting up the machine,

check it for any externally visible

damage.

Do not install or use a damaged

machine.

Before connecting the machine,

ensure that the connection data on

the data plate match the mains

electricity supply. If in any doubt,

consult a qualified electrician.

The electrical safety of this

machine can only be guaranteed

when continuity is complete between it

and an effective earthing system which

complies with local and national safety

regulations. It is most important that this

basic safety requirement is present and

regularly tested, and where there is any

doubt the household wiring system

should be inspected by a qualified

electrician. The manufacturer cannot be

held liable for the consequences of an

inadequate earthing system (e.g.

electric shock).

Do not connect the machine to the

mains electricity supply by an

extension lead. Extension leads do not

guarantee the required safety of the

appliance (e.g. danger of overheating).

Warning and Safety instructions

The machine is built in accordance

with current safety requirements.

Unauthorised repairs could result in

unforeseen dangers for the user, for

which the manufacturer cannot accept

liability. Repairs should only be

undertaken by a Miele approved

technician.

Ensure current is not supplied to the

machine until after maintenance or

repair work has been carried out.

Faulty components must only be

replaced by genuine Miele original

spare parts. Only when these parts are

fitted can the safety standards of the

machine be guaranteed.

If the connection cable is faulty it

must only be replaced by a Miele

approved service technician to protect

the user from danger.

In countries where there are areas

which may be subject to infestation

by cockroaches or other vermin, pay

particular attention to keeping the

machine and its surroundings in a

clean condition at all times. Any

damage which may be caused by

cockroaches or other vermin will not be

covered by the machine guarantee.

Warning and Safety instructions

In the event of a fault or for

cleaning purposes, the machine is

only completely isolated from the

electiricty supply when:

–it is switched off at the wall socket

and the plug is withdrawn, or

–it is switched off at the mains, or

–the mains fuse is withdrawn, or

–the screw-out fuse is removed (in

countries where this is applicable).

Operation

This equipment may only be used

in mobile installations such as

ships, caravans, aircraft etc. if a risk

assessment of the installation has been

carried out by a suitably qualified

engineer.

The dryer must not be used without

the fluff filters in place or if the fluff

filters are damaged in any way.

The fluff filters must be thoroughly

dried after cleaning. If they are still

damp or wet when replaced there is a

risk of faults occurring when the

machine is used.

The dryer must not be used without

the condenser unit in place.

Do not install the machine in a

room where there is a risk of frost

occurring. At temperatures around

freezing point the machine may not be

able to operate properly.

There is a risk of damage if the

condensed water is allowed to freeze in

the pump, hoses and / or condensed

water container.

The ambient room temperature should

be between +2°C and +35°C.

If the water is drained externally

through the drain hose instead of

being collected in the condensed water

container, make sure the drain hose is

securely attached if you hang it in a

sink or basin to avoid the hose slipping

and the water causing damage.

Condensed water is not drinking

water. It can cause health

problems in both people and animals.

Always keep the area around the

machine free of dust and fluff. Dust

drawn into the machine can, over time,

cause blockages in the condenser unit.

Warning and Safety instructions

To prevent the risk of fire the

following textiles must not be

dried in this machine:

–fabrics which contain a large

proportion of rubber, foam rubber or

rubber like materials.

–items which contain damaged

padding or fillings (e.g. pillows,

jackets).

–items which have been treated with

inflammable cleaning agents.

–items which have been splashed with

hair lacquer, hair spray, nail varnish

remover or similar substances.

– items which have been soiled with

oils or residues containing grease

(kitchen oils, cosmetics etc.).

– items soiled with wax or other

chemicals (e.g. mops and floor

cloths).

– items which have not been

thoroughly cleaned and which are

still soiled with grease or oil, e.g.

workwear. Such clothing may require

a heavy duty detergent to get them

clean. If necessary consult the

detergent manufacturer for advice.

Do not let anyone sit or lean on the

door, as this can cause the

machine to tip up.

Always close the door after use.

This way you will avoid the danger

of:

–children climbing onto or into the

dryer or hiding things in it.

–pets or other small animals climbing

into it.

Safety with children

This machine is not a toy. To avoid

the risk of injury keep children

away from the machine at all times and

supervise them whilst you are using it.

Do not allow children to play on or near

it or to play with its controls. Supervise

its use by the elderly or infirm.

Using accessories

Accessory parts may only be fitted

when expressly approved by Miele.

If non-Miele parts are used with this

machine, guarantee, performance and

product liability claims may be

invalidated.

Disposal of your old machine

Before discarding an old machine,

switch it off at the wall socket and

unplug it. Render the plug useless and

cut off the cable directly behind the

machine. This should be done by a

competent person.

The manufacturer cannot be held

liable for damage caused by

non-compliance with these Warning

and Safety instructions.

Warning and Safety instructions

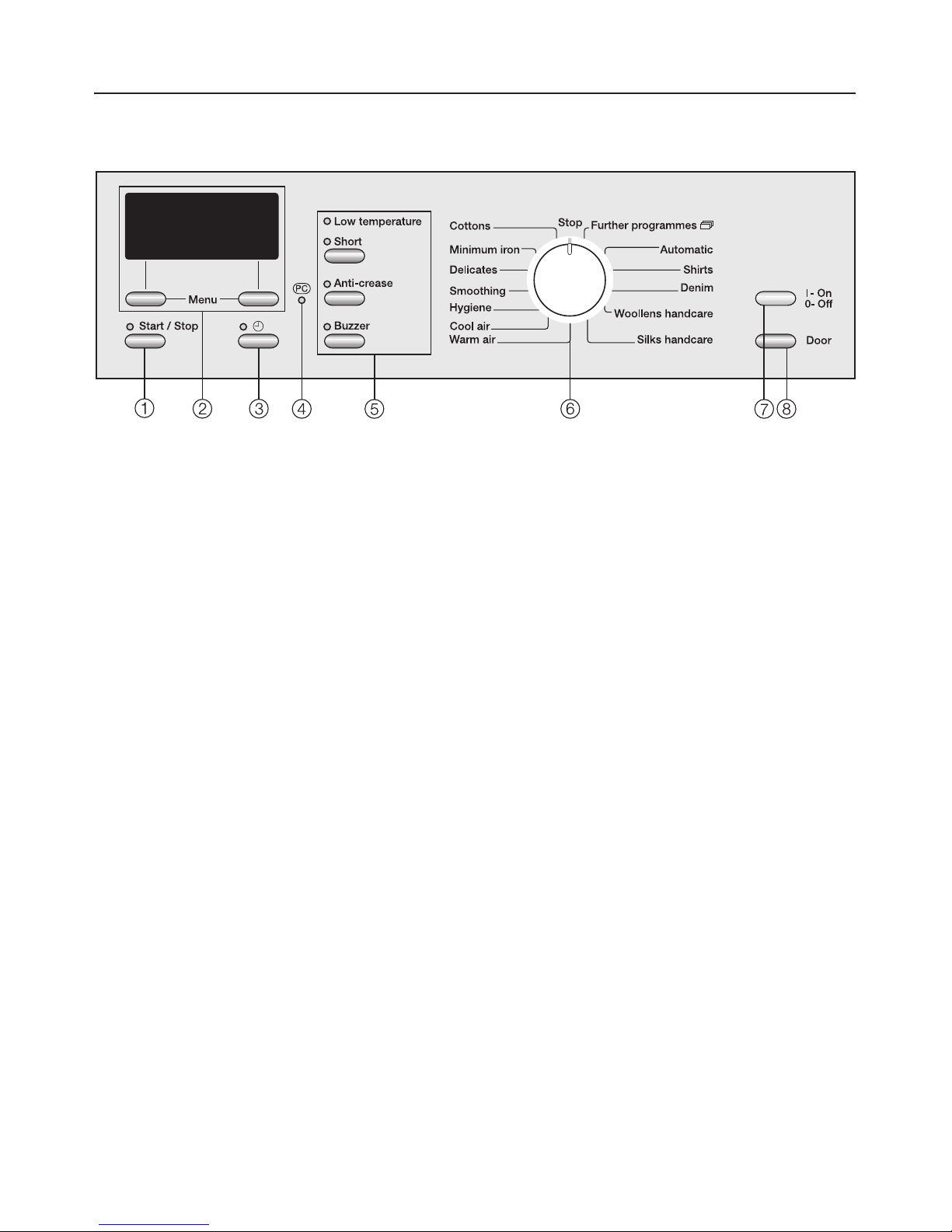

Control panel

aStart/Stop button

For starting the programme selected

and cancelling a programme once it

has started.

The indicator light flashes while a

programme is being selected and

then is on constantly when the

programme has started.

bDisplay with Menu buttons

See the next page for more

information.

cmbutton

For selecting delay start and calling

up the time of day in the display.

dPC / Optical interface

This is used by service technicians

to run diagnostic checks on your

machine and can also be used to

update programming data in the

future.

eExtra option buttons

Various extra options can be added

to the drying programmes.

fProgramme selector

The programme selector can be

turned clockwise or anti-clockwise.

gI-On/0-Off button

To switch the machine on or off or to

interrupt a programme.

hDoor button

Pressing this button will open the

door even when the machine is

switched off at the mains.

Operating the tumble dryer

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Miele Asciugatrice

Miele

Miele TWB 120 WP Manuale utente

Miele

Miele TOUCHTRONIC T 9820 Manuale utente

Miele

Miele T 7950 WP Manuale utente

Miele

Miele PT 5137 WP Manuale utente

Miele

Miele NOVOTRONIC T 7634 Manuale utente

Miele

Miele PDR 510 EL Manuale utente

Miele

Miele TOUCHTRONIC T 1312 Manuale utente

Miele

Miele T 4423 C Manuale utente

Miele

Miele PT 7135 C Manuale utente

Miele

Miele PDR 922 EL Manuale utente

Miele

Miele T 490 Manuale utente

Miele

Miele Touchtronic T 1329 C Manuale utente

Miele

Miele T 7634 Manuale utente

Miele

Miele T 1039C CONDENSER DRYER - OPERATING Manuale utente

Miele

Miele T 380 VENT ED DRYER - OPERATING Manuale utente

Miele

Miele TEL 785 WP Manuale utente

Miele

Miele T 1520i Manuale utente

Miele

Miele T 7944 C Manuale utente

Miele

Miele TCE530 WP Active Plus Manuale utente

Miele

Miele Touchtronic T 1339 C Manuale utente

Miele

Miele TWF 760 WP Manuale utente

Miele

Miele TCA 220 WP Active Manuale utente

Miele

Miele T 4882 C Manuale utente

Miele

Miele Touchtronic T 9800 Manuale utente

Manuali Asciugatrice popolari di altre marche

Bosch

Bosch WTA79200GB Manuale utente

Amana

Amana W10233410A Manuale utente

Asko

Asko T760 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manuale utente

Bosch

Bosch Logixx 10 WTB76556GB Scheda tecnica

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Manuale di istruzioni

Electrolux

Electrolux EW2H328R2 Manuale utente

Beko

Beko DS8433RX1M Manuale utente

Dawlance

Dawlance Spinner DS 6000 C Manuale utente

Electrolux

Electrolux TP5080TW Manuale utente

AEG

AEG TR838P4OB Manuale utente

Indesit

Indesit IDV 75 Manuale utente

Infiniton

Infiniton SD-DG85C Manuale utente

BOMANN

BOMANN WT 5019 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuale utente

Asko

Asko T793C Manuale utente

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuale utente

Frigidaire

Frigidaire CAQE7077KW0 Manuale del proprietario
