Operating instructions

for condenser tumble dryer

T 494 C

It is essential to read these

operating instructions before Q}

installing or using the machine

to avoid the risk of accident,

or damage to the machine. M.-Nr. 05 039 522

Contents

Guide to the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Warning and safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Brief instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Notes on laundry care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

How to dry correctly

Hints on saving energy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

1Switching on and loading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

2Selecting a programme. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

3Selecting additional option(s) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

4Starting a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

After drying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Altering a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Programme chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Programmable functions

Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Correcting the drying level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Buzzer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Anti-crease . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Activating and storing in the memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Contents

Cleaning and care

Cleaning the fluff filters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Cleaning the tumble dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Emptying the condensed water container . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Cleaning the condenser unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Problem solving guide

What to do if ... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

After sales service

Repairs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Future updates. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Installation

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

External condensed water outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Consumption data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Contents

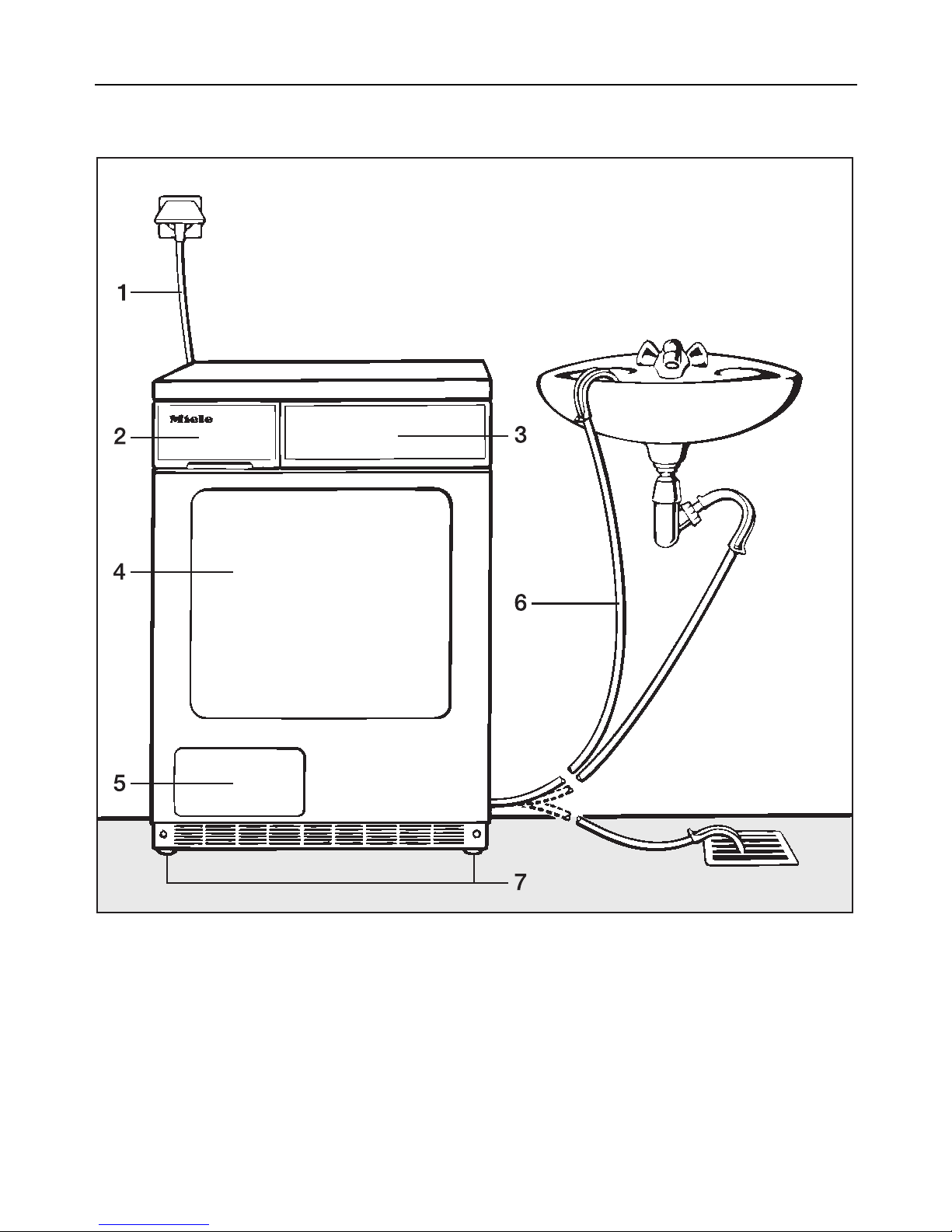

Guide to the appliance

General view

1Supply cable for electrical connection

2Condensed water container

3Control panel

4Door

5Condenser unit cover

6Drain hose for condensed water (if fitted)

7Four height-adjustable screw feet

Guide to the appliance

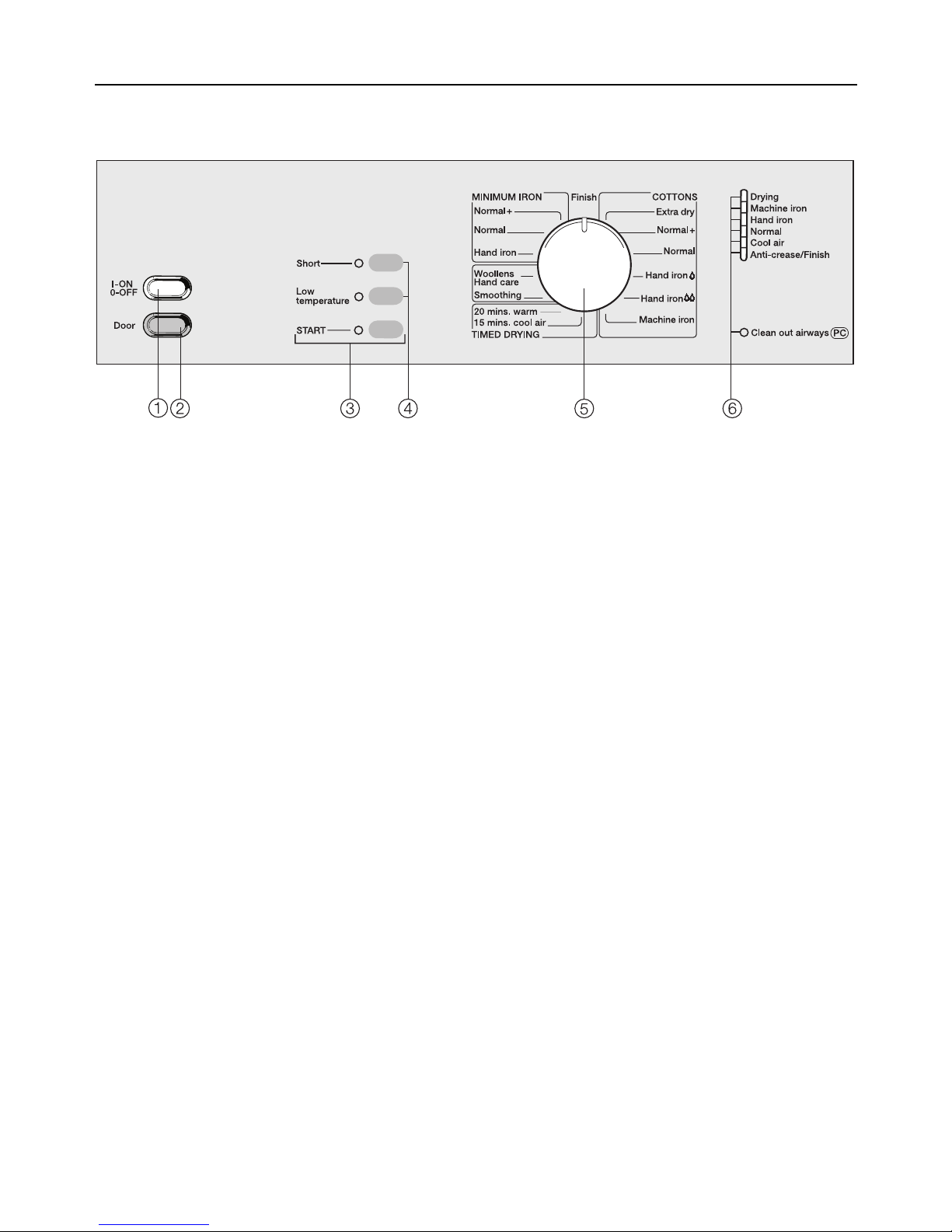

Control panel

b“I-On/0-Off” button

for switching the appliance on and off.

When the machine is switched on, the

drum light will come on as you open

the door.

c“Door” button

to open the door/cancel a programme.

This button does not stay pressed in.

d“START” button

starts a drying programme.

The indicator light:

– flashes to indicate that the pro-

gramme can be started;

– remains on once the programme has

commenced.

eAdditional option buttons

Indicator lights: on= option selected

off= option not selected

fProgramme selector

can be turned clockwise or anti-clock-

wise.

gSequence indicator and check

lights

Please consult the section “Problem

solving guide” for the check lights.

Guide to the appliance

Caring for the environment

Disposal of packing

The transport and protective packing

has been selected from materials

which are environmentally friendly for

disposal and can normally be recycled.

Rather than just throwing these ma-

terials away, please ensure they are of-

fered for recycling.

Disposal of your old

machine/appliance

Old machines/appliances contain ma-

terials which can be recycled. Please

contact your dealer, your local waste

collection centre or scrap merchant

about potential recycling schemes. En-

sure that the machine/appliance pres-

ents no danger to children while being

stored for disposal. See the appropri-

ate advice in the “Warning and safety”

instructions.

Caring for the environment

Warning and safety instructions

Please read the operating instruc-

tions before using the tumble dryer

for the first time. They contain im-

portant information about the safety,

use and maintenance of the

machine. This will avoid the risk of

accidents and damage to the ma-

chine. Keep these operating in-

structions in a safe place and en-

sure that new users are familiar with

the content. Pass them on to any fu-

ture owners of the machine.

Correct usage

The tumble dryer is only intended

for drying fabrics which have been

washed in a water solution and are

marked on the manufacturer’s wash

care label as being suitable for tumble

drying.

Any other applications may be dan-

gerous. The manufacturer is not liable

for damage resulting from improper

use or operation.

Do not let small children play with

the machine and its controls or

operate it. Please supervise its use by

the elderly or infirm.

Technical safety

Check for visible external damage

before installation.

Do not install or operate a damaged

machine or appliance.

Before connecting the machine,

ensure that the connection data on

the data plate (fusing, voltage and fre-

quency) matches the mains electricity

supply. If in any doubt, consult a quali-

fied electrician.

The electrical safety of this ma-

chine can only be guaranteed

when continuity is complete between

the appliance and an effective earthing

system which complies with local and

national regulations. It is most import-

ant that this basic safety requirement is

regularly tested by a qualified electri-

cian. The manufacturer cannot be held

responsible for the consequences of

an inadequate earthing system.

The machine is built in accordance

with current safety requirements.

Unauthorised repairs could result in un-

foreseen dangers for the user, for which

the manufacturer cannot accept respon-

sibility. Repairs should only be under-

taken by a Miele approved engineer.

In the event of a fault, or for clean-

ing purposes, the machine is only

completely isolated from the electricity

supply when:

– the plug is withdrawn, or

– it is switched off at the mains, or

– the mains fuse is withdrawn.

Warning and safety instructions

For safety reasons, do not use an ex-

tension cable. There is a danger of

overheating.

Faulty components must only be

exchanged for Miele original spare

parts. Only when these parts are fitted

can the safety standards of the ma-

chine be guaranteed.

Use

This equipment is not designed for

maritime use or for use in mobile in-

stallations such as caravans, aircraft

etc. However, it may be suitable for

such usage subject to a risk assess-

ment of the installation being carried

out by a suitably qualified engineer.

Do not install the machine in a

room where the temperature may

drop below freezing, as temperatures

below zero could damage the ma-

chine.

Frozen condensed water in the pump,

hose and condensed water container

could also lead to damage.

If the water is drained externally

through the drain hose instead of

being collected in the condensed

water container, make sure the drain

hose is securely attached if you hang it

in a sink or basin to avoid the hose slip-

ping and the water causing damage.

Condensed water is not drinking

water. It can cause health prob-

lems in people and animals.

Always close the door after use to

avoid the danger of:

– someone leaning on the door which

could cause the machine to tip;

– children climbing into the machine or

hiding objects in it.

There is a danger of fire with fab-

rics which:

– contain rubber, foam rubber or rub-

ber-like materials;

– have been treated with inflammable

cleaning agents;

– have been splashed with hair lac-

quer, hair spray, nail varnish

remover or similar;

– also padded items (eg cushions,

jackets) which have been damaged,

as the padding could fall out and

catch fire;

– are soiled with grease or oil.

Always keep the area around the

machine free of dust and fluff.

Warning and safety instructions

In countries where there are areas

which may be subject to infesta-

tion by cockroaches or other vermin,

pay particular attention to keeping the

appliance and its surroundings in a

clean condition at all times. Any dam-

age which may be caused by cock-

roaches or other vermin will not be

covered by the appliance guarantee.

Using accessories

Accessory parts may only be fitted

when expressly approved by

Miele. If other parts are used, guaran-

tee, performance and product liability

claims may be invalidated.

Disposing of your old machine

Before discarding an old machine,

unplug it and render the plug use-

less. Cut off the cable directly behind

the appliance to prevent misuse.

Warning and safety instructions

Brief instructions

Brief description

Programmes are selected by turning

the programme selector and can be

supplemented by pressing the addi-

tional option buttons.

Press the “START” button to begin a

programme.

The indicator lights in the sequence dis-

play (on the right hand side of the con-

trol panel) show which stage has been

reached in the programme.

The Sensitive system automatically ad-

justs drying to suit the water quality

and ensure more precise results.

The Novotronic controls measure and

and compensate for variations to

achieve a uniform residual moisture

level.

The automatic reversing action turns

the drum clockwise and anti-clockwise

to loosen the laundry and prevent

uneven drying, ensuring good results.

Once the required degree of dryness is

achieved, the laundry is allowed to cool

down.

At the end of the programme the anti-

crease action period begins. The drum

turns intermittently to reduce the forma-

tion of creases and folds.

Programmable functions can be used

to select or de-select some of the addi-

tional options and introduce further

functions. These combinations can be

stored in the machine’s memory and

called up.

Please read the sections on “Warn-

ing and safety” and “Notes on

laundry care”.

1Switching the machine on and

loading the laundry

Switch on by pressing the “I-On/0-

Off” button.

Press the “Door” button to open the

door.

Place the laundry loosely in the drum.

Close the door.

2Selecting a programme

Turn the programme selector to the

drying level you require.

3Selecting additional options

Press the buttons to switch addi-

tional options on or off as required.

4Starting the programme

Press the “START” push button.

Brief instructions

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Miele Asciugatrice

Miele

Miele T 1322C CONDENSER DRYER Manuale utente

Miele

Miele T 4472 Manuale utente

Miele

Miele Touchtronic T 1403 Manuale utente

Miele

Miele T382C - Manuale utente

Miele

Miele PDR 944 EL Manuale utente

Miele

Miele T 1050 VENT ED DRYER - OPERATING Manuale utente

Miele

Miele T 366 VENT ED DRYER - OPERATING Manuale utente

Miele

Miele T 8000 WP SUPERTRONIC Manuale utente

Miele

Miele PDR 511 SL HP Manuale utente

Miele

Miele T 659 C Manuale utente

Miele

Miele PDR 514 Manuale utente

Miele

Miele PT 7188 Manuale utente

Miele

Miele PDR 914 Manuale utente

Miele

Miele PDR 516 SL EL Manuale utente

Miele

Miele T 4888 C Manuale utente

Miele

Miele TMB140 WP Eco Manuale utente

Miele

Miele TWV 680 WP Manuale utente

Miele

Miele PT 8301 SL Manuale utente

Miele

Miele PDR 510 EL Manuale utente

Miele

Miele PDR 914 Manuale utente

Miele

Miele T 8033 C Manuale utente

Miele

Miele MIWADREW201 Manuale utente

Miele

Miele T 4462 C Manuale utente

Miele

Miele T 1413 T 1415 Manuale utente

Manuali Asciugatrice popolari di altre marche

Bosch

Bosch WTA79200GB Manuale utente

Amana

Amana W10233410A Manuale utente

Asko

Asko T760 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manuale utente

Bosch

Bosch Logixx 10 WTB76556GB Scheda tecnica

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Manuale di istruzioni

Electrolux

Electrolux EW2H328R2 Manuale utente

Beko

Beko DS8433RX1M Manuale utente

Dawlance

Dawlance Spinner DS 6000 C Manuale utente

Electrolux

Electrolux TP5080TW Manuale utente

AEG

AEG TR838P4OB Manuale utente

Indesit

Indesit IDV 75 Manuale utente

Infiniton

Infiniton SD-DG85C Manuale utente

BOMANN

BOMANN WT 5019 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuale utente

Asko

Asko T793C Manuale utente

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuale utente

Frigidaire

Frigidaire CAQE7077KW0 Manuale del proprietario
