Installation Instructions
M 6160 TC
M 6260 TC
Disposal of packaging material
The cardboard box and packing
materials protect the appliance during
shipping. They have been designed to
be biodegradable and recyclable.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of children.
Danger of suffocation!Ensure that any
plastic wrap is disposed of safely and
kept out of the reach of children.
Danger of suffocation!
Disposal of your old appliance
Old appliance may contain materials
that can be recycled. Please contact
your local recycling authority about the
possibility of recycling these materials.
Before discarding an old appliance
ensure that it presents no danger to
children while being stored for
disposal. Unplug it from the outlet, cut
off its power cord and remove any
doors to prevent hazards.
Caring for the environment
58
,CAUTION: Before servicing,
disconnect the power supply by
either removing the fuse, shutting off
the power main or manually
"tripping" the circuit breaker.
Installation work and repairs should
only be performed by a qualified
technician in accordance with all
applicable codes and standards.
Repairs and service by unqualified
persons could be dangerous and
the manufacturer will not be held
responsible.
Before connecting the appliance to
the power supply, make sure that
the voltage and frequency listed on
the data plate correspond with the
household electrical supply. This
data must correspond in order to
prevent machine damage. Consult
an electrician if in doubt.
Only operate the appliance after it
has been installed into cabinetry.
The appliance must be plugged into
an appropriate outlet that is installed
and grounded in accordance with
all local codes and ordinances.
Power supply
The microwave comes equipped with a
power cord with a NEMA 5-15 P
molded plug ready plug ready for
connection to a:
120 V, 15 A, 60 Hz power supply.
WARNING: THIS APPLIANCE
MUST BE GROUNDED
Installer:
Please leave these instructions with the
consumer.
Electrical connection
59
NEMA 5-15P, 15 amp, L1, N, G
When installing the microwave oven,
ensure that there is unhindered
ventilation at the front of the
appliance.
Do not block the ventilation slots
with any objects.
When transporting the microwave
oven, do not carry the appliance by
the door handle. Doing so may
damage the door.
Use the handle recesses on the
sides of the casing.
Installation dimensions
Installation
60
Installation instructions
The microwave oven may not be
operated until it has been properly
installed in a cabinet.
^Slide the microwave oven into the
cabinet space, and pull the cable
with the plug through the rear wall of
the cabinet.
Installation
61
^Align the appliance.

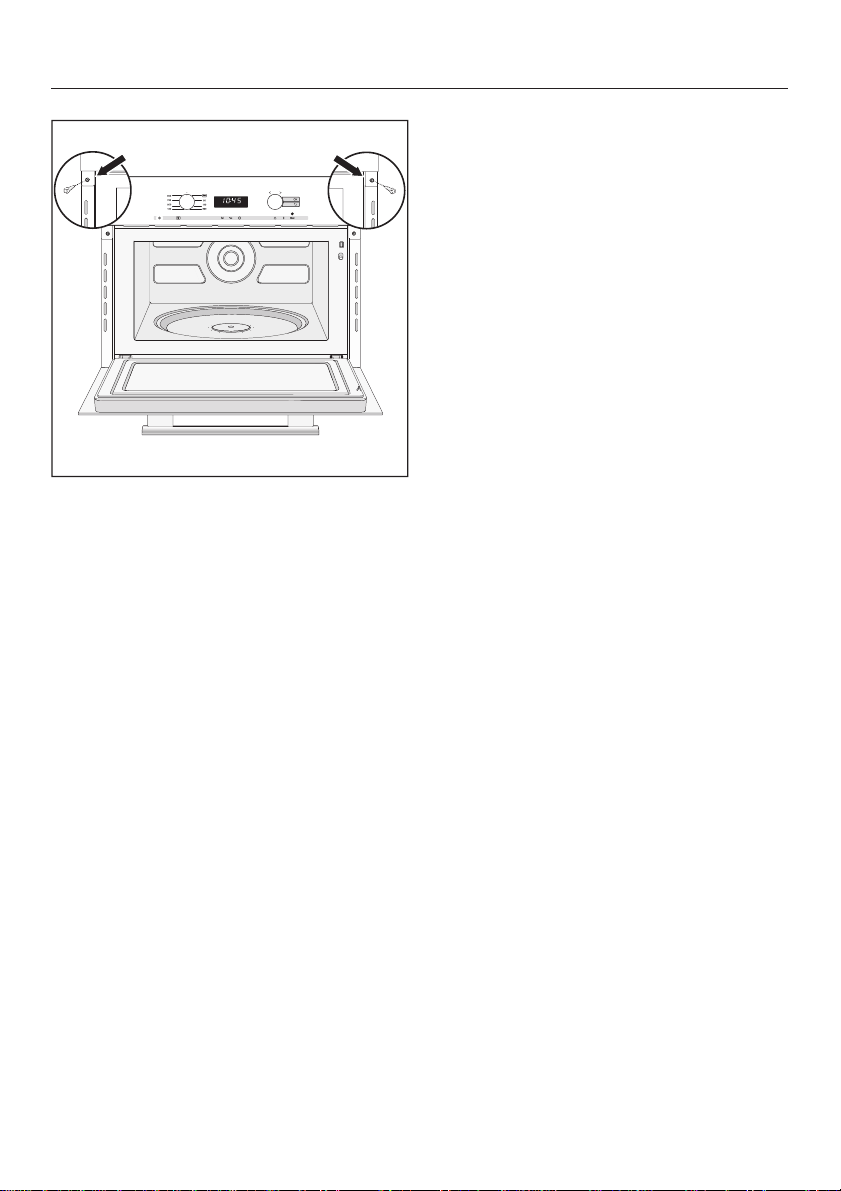

^Open the microwave door and screw
the appliance into the side walls of
the cabinet using the screws
provided.
Installation
62
63
9 Independence Way
Princeton, NJ 08540
Phone:
Fax:
www.mieleusa.com
U.S.A.
Miele, Inc.
National Headquarters
Please have the model and serial number
of your appliance available before
contacting Technical Service.
Canada
Importer
Miele Limited
Headquarters and Miele Centre
800-843-7231
609-419-9898
609-419-4298
Technical Service & Support
Nationwide
Phone:
Fax:
T
161 Four Valley Drive
Vaughan, ON L4K 4V8
www.miele.ca
800-999-1360
888-586-8056
Customer Care Centre
Phone:
800-565-6435
905-532-2272
Germany
Manufacturer
Miele & Cie. KG
Carl-Miele-Straße 29
33332 Gütersloh
M.-Nr. 09 798 370 / 00en - US, CA, MX
M 6160 TC, M 6260 TC
