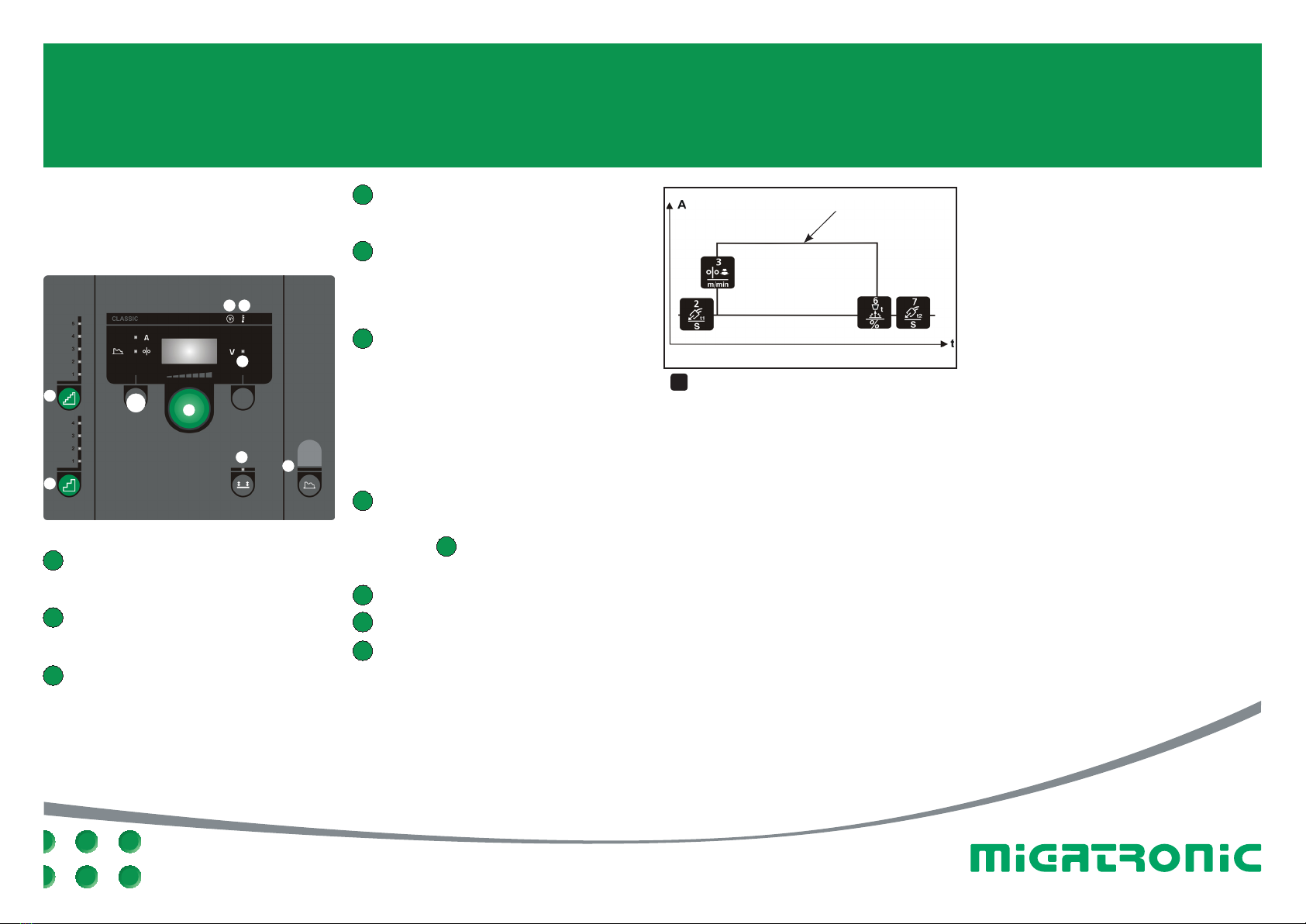

Migatronic FOCUS MIG Manuale utente

QUICKGUIDE

FOCUS MIG

50113753

CLASSIC - Factory setting

Setting possibilities Area Step Factory setting Unit

2T/4T

Primary parameters:

1 Wire feed speed FOCUS MIG 300 1.5-15 0.1 3 m/min

Wire feed speed FOCUS MIG 400 1.5-27 0.1 3 m/min

2 Arc voltage FOCUS MIG 300 13-32 0.1 18 V

Arc voltage FOCUS MIG 400 13-37 0.1 18 V

Secondary parameters:

1 Inductance -5.0- +5.0 0.1 0.0 -

2 Gas pre ﬂow 0.0-10.0 0.1 0.2 s

3 Soft start Off / 1.5-15.0 0.1 3 m/min

6 Burnback 1-30 1 5 ms

7 Gas post ﬂow 0.0-10.0 0.1 3 s

QUICKGUIDE FOCUS MIG

4 Wire feed speed

Press the key and turn the control knob until

the desired wire feed speed is achieved.

5 Control knob

Adjustment of wire feed speed and arc

voltage. If the key for secondary parameters

is active, it is possible to adjust the

parameters lying behind.

6 Selecting trigger mode

Change between 2-stroke (indicator off) and

4-stroke (indicator on).

2-stroke: The welding process starts when

the torch trigger is activated and ends when

the torch trigger is released.

4-stroke: The welding process starts when

the torch trigger is activated and released,

and ends when the torch trigger is activated

again.

7 Secondary parameters

Press the key until the desired parameter is

shown on the display.

Press key 4 brieﬂy to ﬁnish.

AWelding voltage

B Warning – overheating

CWire inching

Press the key and hold it down while

activating the torch trigger. Release the key

when wire inching starts. Wire inching stops

when the torch trigger is deactivated.

CLASSIC control panel

I. Switch on the machine

II. Set wire feed speed

III. Set arc voltage

1 Arc voltage - ﬁne steps

Push of the key increases the arc voltage in

ﬁne steps.

2 Arc voltage - rough steps

Push of the key increases the arc voltage in

rough steps.

3 Arc voltage - inﬁnitely variable

The arc voltage can be adjusted as required.

Press the key under the symbol and turn the

control knob until the desired arc voltage is

achieved.

FOCUS MIG 300: 13-32 V

FOCUS MIG 400: 13-37 V

Arc adjust (electronic choke)

Set welding current (A)

Soft start

(m/min.)

Gas pre ﬂow (t)

Burnback

Gas post

ﬂow (t)

4/C
