Milly and Coup Milo2 Manuale utente
Second Rule of Parent Club: always read your
Milo2
IMPORTANT! READ CAREFULLY
AND KEEP FOR FUTURE REFERENCE
2
Thanks for choosing Milly + Coup.
We bet you can’t wait to meet Milo2,
but before you do, please ensure you
carefully read your manual and all
safety information.
Milo2 complies with both mandatory
and voluntary Australian and New
Zealand Safety Standards, however if
you’re not using it correctly or are not
aware of the safety features, serious
accidents can occur.
Wishing you many fun, happy and safe
adventures out and about with Milo2!
Safety First
3
Contents
4.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
1 7.
18.
20.
22.
24.
25.
25.
Safety warnings
Parts checklist
Setting up your frame
Setting up your seat
Removing your seat
Setting up your canopy
Using the harness
Setting up your bassinet
Attaching and removing
the bassinet
Using your bassinet
Folding the stroller
Using your Milo2
Using Milo2 with a car
capsule
Accessories
Milo2 maintenance
Cleaning instructions
Spare Parts
Warranty
Tips to avoid tears
Safety Warnings
Milo2 is designed and tested to comply with AS 2088:2022,
Consumer Protections Notice No. 8 of 2007 and AS/NZS ISO
8124-3.
4
• FOLLOW THE MANUFACTURER’S INSTRUCTIONS.
• PUT ON ALL THE BRAKES WHENEVER YOU PARK THE STROLLER.
• DO NOT LEAVE CHILDREN UNATTENDED.
• DO NOT CARRY EXTRA CHILDREN OR BAGS ON THIS STROLLER.
• MAKE SURE CHILDREN ARE CLEAR OF ANY MOVING PARTS IF YOU
ADJUST THE STROLLER, OTHERWISE THEY MAY BE INJURED.
• USE THE HARNESS AT ALL TIMES.
• USE THE TETHER STRAP TO STOP THE STROLLER ROLLING AWAY.
• DO NOT USE THIS SEAT WITH ANY OTHER MODELS OF STROLLER.
• DO NOT USE THIS BASSINET ONCE THE CHILD CAN SIT UP UNAIDED
• DO NOT USE FOR UNSUPERVISED SLEEPING
Weight limits
• Maximum weight for a child
in the seat is 22kg.
• Maximum weight for a baby
in the bassinet is 9kg.
• Maximum weight for items
in the basket is 10kg.
• Maximum weight that
can be hung from the
handlebar:
• Seat facing parent: 2kg
• Seat world facing: 4kg
• Maximum weight for
the toddler board (sold
separately) is 20kg
• Maximum weight limited for
the handlebar bag is 2kg.
Baby (0-6 months) specific
• Do not use the bassinet
once the child can sit up
unaided (typically 4-6
months).
• Seat must be reclined to
the flattest position for use
with babies under 6 months
of age until they can sit-up
unaided and support their
head. Without this neck
strength there is a risk their
head could fall forward and
block oxygen flow.
• The harness must be used
at all times when your baby
or child are in the seat.
General Safety
• Never use the stroller in a
manner for which it is not
designed.
• Do not allow your child to
climb, stand on or play with
the stroller.
• Always ensure that the
frame and the seat/
bassinet/car capsule are
correctly engaged before
using the product.
• Do not use parts or
accessories that are not
approved for use with the
Milo2 range. Doing so may
be unsafe and may also
void your warranty.
• Ensure you carefully explain
usage and safety features
to new carers before they
use the pram.
Unsafe Conditions
• Remove your child and
take care when going
up or down stairs or
escalators.
• We recommend you take
your child out of the stroller
when travelling by bus,
tram, or train. Even with
the brake engaged, the
stroller may slide when the
vehicle brakes suddenly or
is travelling on an incline/
decline.
5
• This stroller is designed
for use on flat or gently
sloping surfaces and may
be unstable or even tip
over on higher sloping
and uneven surfaces.
• Do not use or leave the
pram near open fire or
an exposed flame.
• Not suitable for running,
rollerblading or skating.
• Never leave rain covers
or other covers over the
stroller indoors, in a hot
atmosphere or near a
heat source.
Carrying & transporting your
stroller
• Do not lift or carry
the stroller when fully
assembled or when
occupied by your child.
Only lift and carry after
folding.
• Make sure the stroller and
all parts are secured when
being transported in a
vehicle.
• Ensure that the frame lock
is engaged before lifting or
carrying the stroller.
• Always remove the
bassinet or car capsule
and adaptors prior
to folding and carry
separately.
• Take care when folding
and unfolding the stroller
as there is potential for
fingers or other body parts
to be injured.
Accessories
• Milo2 is compatible with
the Milly + Coup Toddler
Board, sold as a separate
accessory. The maximum
weight of a child on the
toddler board is 20kg.
• Milo2 is only compatible
with select car capsule
models using the
compatible capsule
adaptors (both capsule &
adaptors sold separately).
Refer to our website for full
compatibility.
You’re now ready
to set up your Milo2!
6
Canopy
Frame, Basket +
Front Swivel Wheels
UV/Sleep cover
Seat
Belly Bar
1
2
3
4
5
3 x Harness Covers
2 x Rear Wheels
Seat Liner
Infant support set
Handlebar bag
Bassinet set only
Meet Milo2!

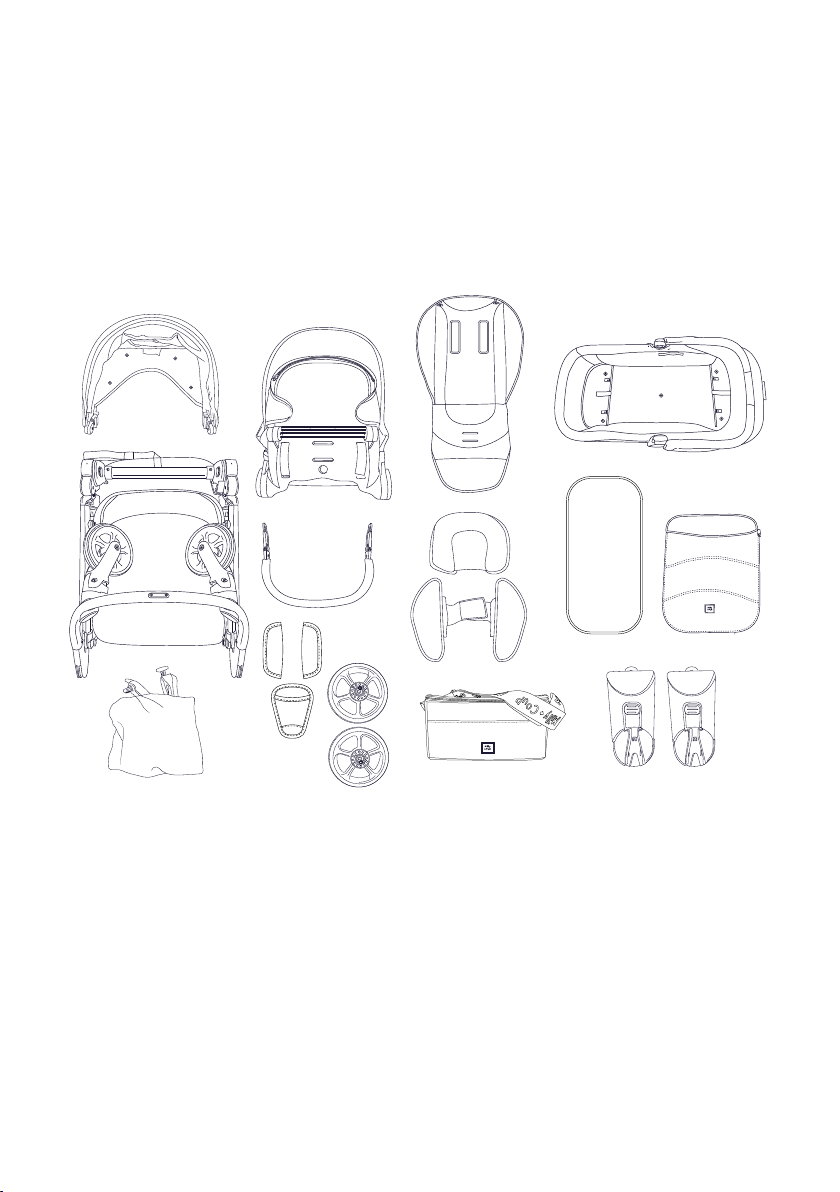

Parts Checklist
Please check that you have all of the parts and accessories
that you have ordered.
7
6
7
8
9
10
Bassinet
Bassinet mattress
Bassinet cover
Bassinet adaptors
11
12
13
14
1
2
3
4
5
6
7
8
9
10
11
12 13
14
8
Setting up your frame
Release the black plastic
frame lock on the left of the
frame and lift the handlebar
up until it clicks into place.
Insert the rear wheels into
both ends of the brake axle
until you hear a click.
To adjust the handlebar, unclip
the black plastic locks on each
side and pull or push to the
desired height.
Handy hint: the handlebar
needs to sit within the grooves
on the frame. If the locks won’t
close, give the bar a jiggle to
ensure it’s within a groove.
Setting up your seat
9
The seat can be used in a forward
or parent facing position.
Line up the round seat connectors
on the seat with the frame
connectors and lower the seat
onto the frame. Push the leg-rest
down and seat back backwards
into the normal seated position.
To adjust footrest, simultaneously
press both round buttons on the
sides of the footrest and adjust
down to the desired position. To
raise the footrest, simply lift it up
into position (no need to push the
buttons).
To recline the seat, fully lift the
latch on the back of the seat and
adjust the seat forward or back as
required.
Insert the belly bar into the belly
bar slots on the seat frame.
Note: To remove from one side or
both, press the button on the side
you want to release, and pull the
belly bar out.
10
Removing your seat
Lift the foot rest and seat
base up to meet the seat
back, simultaneously lifting
the seat recline latch and
moving the seat back to the
fully upright position.
Lift the entire seat unit directly
up and out of the frame
connectors.
The strap hanging from your handlebar is a wrist tether
strap. Please ensure you slip your hand through here
whenever you’re using the stroller. It’s designed to prevent
the stroller rolling away and is a requirement of the safety
standards for all prams and strollers.
• The seat must be fully reclined to the flattest position. (An
upright or semi reclined seat can increase the risk of your
child’s head tilting/falling forwards resulting in reduced
airflow which can lead to serious injury or even death)
• Always use the harness with all 5 straps secured.
• The seat can be used with or without the newborn
attachments provided.
Tips to avoid tears
Using Milo2 with a baby under 6 months
