Mini Gadgets BBS Manuale utente

1 Version 2.1

Bush Baby Stealth Manual

For Custom-Built Products

THANK YOU FOR PURCHASING YOUR BBS

CAMERA

2 Version 2.1

Please read this manual before operating the

device, and keep it handy.

Your purchase should include:

1 x BushBaby Stealth Camera

1 x Remote Control

1 x Charging Adapter with Indicator Lights

1 x MicroUSB Cable

1 x Removable Battery

1 x Wall AC Adapter

1 x MicroSD Card Reader

1 x 16GB MicroSD Card

1 x User Manual

GET FAMILIAR WITH YOUR BBS CAMERA

3 Version 2.1

4 Version 2.1

5 Version 2.1

BEFORE YOU START

To preserve battery power, your product will

come with the battery connector disconnected.

Before attempting to use the device, be sure to

connect the battery’s connector to the circuit

board power lead (red plastic pieces at the end of

black and red wires).

Note: If you are not located in the US, or if you

intend to use this product anywhere other than the

US, you will need to purchase a converter in order

to use the AC wall plug in and avoid damaging the

product. Because different countries use different

voltages in their electrical wiring, you will need a

converter that adapts to the current in your

particular country.

IMPORTANT WARRANY INFORMATION: If the

warranty sticker on your device has been removed

or tampered with, your lifetime warranty will be

voided. You may be charged fees or denied a

return should this happen.

6 Version 2.1

OPERATING THE BUSHBABY STEALTH CAMERA

IMPORTANT NOTICE: Allow the device to charge 6 –

8 hours before using.

REMOVING AND CHARGING THE BATTERY

1. Remove battery from your device.

2. Disconnect the battery connector that is

connecting the battery to the circuit board.

Be careful not to pull on the wires as that

could damage them –gently pull on the

plastic pieces instead.

3. Connect the connector on the battery to

the connector on the charging adapter (see

page 4).

4. Plug the provided USB cable into the other

end of the charging adapter.

5. Plug the other end of the USB cable into

the wall AC adapter and plug it into the

wall.

6. Wait 6 to 8 hours.

7 Version 2.1

a. The larger the battery capacity, the

longer it takes to charge.

HOW TO TURN ON THE BUSHBABY STEALTH

CAMERA

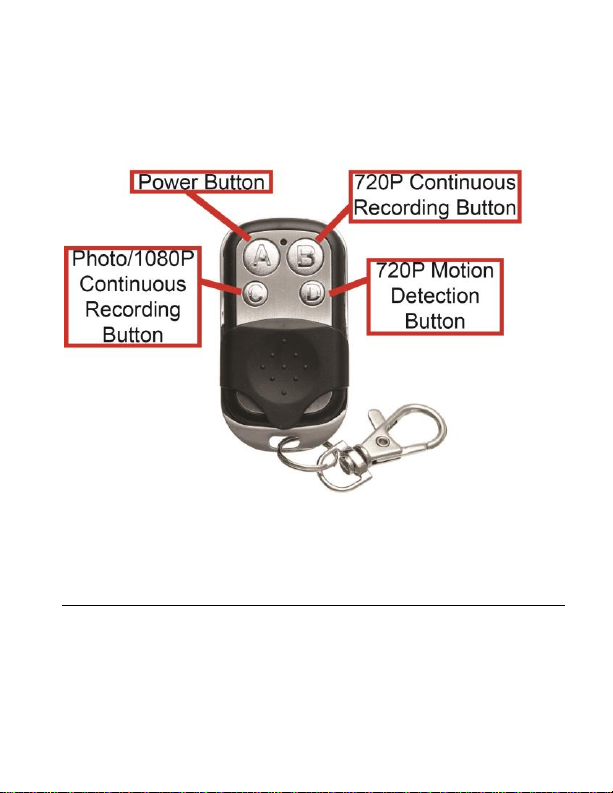

1. Press the Power Button on the remote

control one time (see page 3).

2. The device is automatically in Standby

mode.

HOW TO RECORD CONTINUOUS VIDEO (720P)

1. When the camera is in Standby Mode,

press the “B” button once quickly (see

page 3). The unit will vibrate twice.

2. Once the device stops vibrating, it will start

recording video.

3. To stop the recording, press the “B”button

again, and wait three seconds. The device

will return to standby mode.

HOW TO RECORD CONTINUOUS VIDEO (1080P)

8 Version 2.1

1. While the camera is in standby mode, hold

the “C” button for 3 seconds then release.

2. The unit will vibrate three times. When the

device stops vibrating, the camera is

recording 1080P video.

3. To save video and return to standby mode,

quickly press the “C”button, and wait

three seconds.

HOW TO RECORD MOTION DETECTION

1. In Standby mode, press the “D” button one

time (see page 3). The unit will vibrate 3

times.

2. The unit is now in motion detection mode

and will begin recording video once motion

is detected. Note: there will be no

indication when the device detects motion

–it will simply start recording.

3. To return to standby mode and stop

motion detection, press the “D” button

again. The unit will vibrate, and

automatically return to standby mode.

9 Version 2.1

HOW TO TAKE PICTURES

1. When the camera is in Standby Mode,

press the “C” button (see page 3). The unit

will vibrate, and then take a picture. It then

returns to standby mode.

MICROSD CARD SLOT

To access the MicroSD Card Slot, you must check

inside the hat’s bill to find the camera board. It is

inside a black rectangle next to the battery.

1. Gently push the MicroSD Card into the slot.

The gold contacts on the card will be

inserted first, and they should face the

main circuit board. You will feel some

spring resistance before the card clicks in

to place.

2. Never force the card into the Card Slot

under any circumstance. Otherwise the

unit or the MicroSD card itself will be

damaged.

10 Version 2.1

3. To remove the SD card, gently push the

card in so that it clicks.

4. The internal spring tension will eject the

card.

64GB and 128GB microSD cards will require

special formatting to work. The device will not

function with these cards if they are not properly

formatted beforehand.

Visit www.mgidownloads.com/Software and

download the “guiformat.zip” file. Extract the files

and follow the instructions in the “64GB SD Card

Formatting.pdf” document.

IMPORTANT NOTICE: Ensure that the bottle is off

before inserting the MicroSD card. Otherwise

potential corruption of the card file(s) may occur.

RETRIEVE THE FILES TO YOUR PC
