MINOLTA-QMS Magicolor 2210 GN Manuale utente

English

magicolor 2210

Installation Guide

1800668-001C

English

Thank You

Thank you for purchasing a magicolor 2210. Your magicolor 2210 is specially

designed for optimal performance in Windows, Macintosh, and networking

environments.

Trademarks

The following are registered trademarks of MINOLTA-QMS, Inc.: QMS, the MINOLTA-

QMS logo, Crown, CrownNet, and magicolor.

Minolta is a trademark of Minolta Co., Ltd. Other product names mentioned in this

guide may also be trademarks or registered trademarks of their respective owners.

Proprietary Statement

ified, displayed, transferred, or copied in any form or in any manner or on any media,

in whole or in part, without the express written permission of MINOLTA-QMS, Inc.

part, nor transferred to any other media or language, without written permission of

MINOLTA-QMS, Inc.

Notice

MINOLTA-QMS, Inc. reserves the right to make changes to this guide and to the

equipment described herein without notice. Considerable effort has been made to

ensure that this guide is free of inaccuracies and omissions. However, MINOLTA-

QMS, Inc. makes no warranty of any kind including, but not limited to, any implied

warranties of merchantability and fitness for a particular purpose with regard to this

guide. MINOLTA-QMS, Inc. assumes no responsibility for, or liability for, errors

contained in this guide or for incidental, special, or consequential damages arising

out of the furnishing of this guide, or the use of this guide in operating the equipment,

or in connection with the performance of the equipment when so operated.

Registering the Printer

Mail—Fill out and send in the

registration card enclosed in

your shipment or downloaded

from www.onlineregister.com/

minolta-qms/

Internet—Follow the

instructions on

www.onlineregister.com/minolta-

qms/

Software Utilities

CD-ROM—

Follow the instructions on the

CD-ROM.

Contents

English

Getting Acquainted with Your Printer ...........................................................1

Features 1

Front/Right Side View 1

Front Internal View 2

Left/Rear Side View 2

Location Requirements 2

Documentation Set .........................................................................................3

Setting up Your Printer ...................................................................................4

Shipment Contents 4

Unpacking the Printer 4

Loading Media 11

Installing Accessories 15

Plugging in/Turning on the Printer ..............................................................16

About the Control Panel ...............................................................................17

Control Panel Indicators 17

Control Panel Keys 18

Printer Menu Overview .................................................................................18

Menu Chart Conventions 18

Security Menu 19

Operator Control Menu 20

Contentsii

English

Administration Menu 21

Selecting a Message Window Language .....................................................22

Printer Control Panel 22

About the Interface Panel .............................................................................23

Software Utilities CD-ROM ............................................................................24

Regional Settings 24

Drivers and Utilities 24

Installing Printer Drivers and Software .......................................................26

Installing Windows Drivers and Utilities via a Parallel Connection 26

Installing Windows Drivers and Utilities via an Ethernet TCP/IP

Interface Configuration 28

Installing Macintosh Drivers and Utilities 30

Installing Drivers and Utilities on UNIX and Others 31

Troubleshooting ............................................................................................32

Solving Problems during Installation 32

Accessories and Consumables ...................................................................36

Accessories 36

Consumables 37

Regulatory Compliance ................................................................................38

FCC Compliance Statement 39

EN 55022 40

Canadian Users Notice 40

Laser Safety 40

International Notices 41

Warranty Considerations ..............................................................................41

Consumables and Your Warranty 41

Manufacturer’s Declaration of Conformity ..................................................42

Europe 42

Latin America 110 Volt 43

Latin America 220 Volt 43

Getting Acquainted with Your Printer 1

English

Getting Acquainted with Your Printer

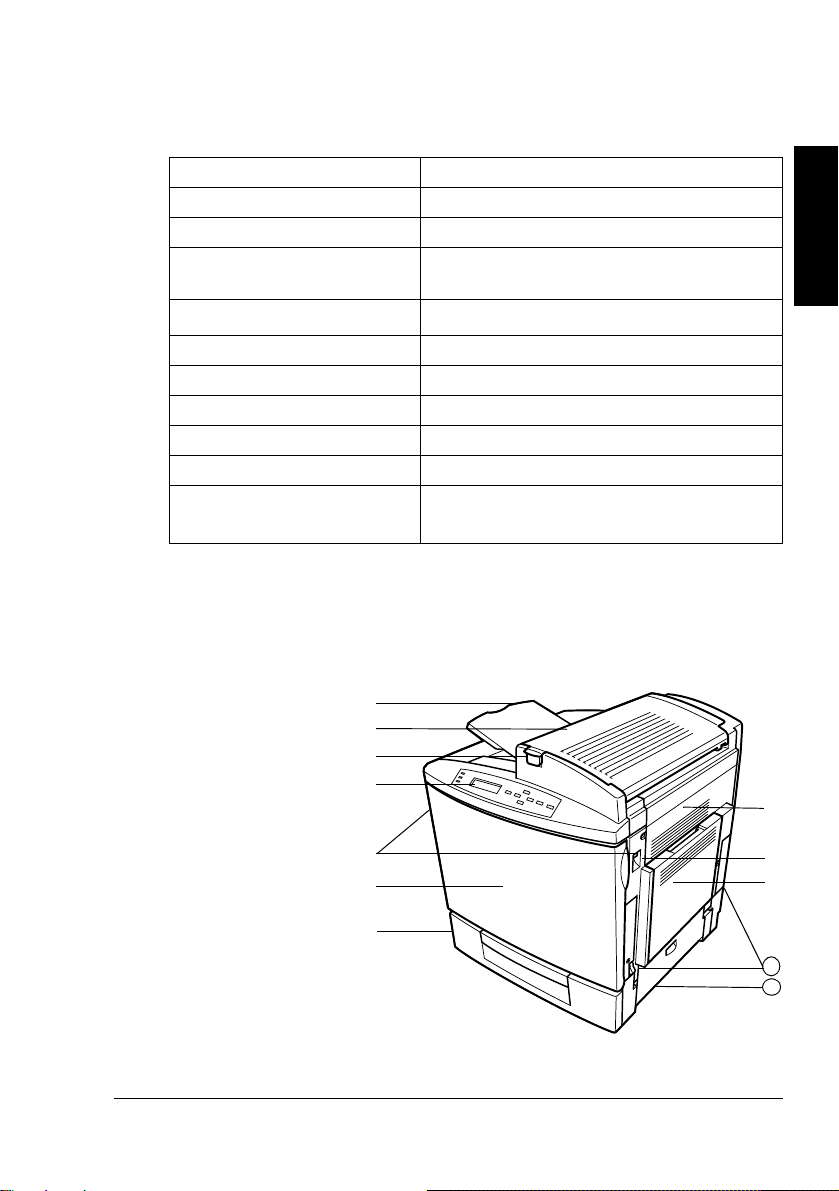

Features

The following drawings illustrate the parts of your printer referred to through-

out this guide, so please take some time to become familiar with the printer.

Front/Right Side View

Print Speed 5/20* pages per minute

SDRAM 128 MB

Resolution 1200 x 1200 dpi

500-sheet Letter/A4/Legal

(Upper Media Tray) z

Multipurpose Tray z

Internal IDE Hard Disk •

Time-of-Day Clock •

Lower Feeder Unit •

5-bin Mailbox •

Duplex Unit •

Notes *5 = color; 20 = monochrome black.

z= Standard •= Optional

1—Output tray

2—Top cover

3—Top cover latch

4—Control panel and

message window

5—Front cover latch (one

on each side)

6—Front cover

7—Upper media tray (tray

also known as

a cassette)

8—Right-side cover

9—Right-side cover latch

10—Multipurpose tray (closed)

11—Pull-out carrying bars

(one on each side)

12—Upper feed path cover

Getting Acquainted with Your Printer2

English

Front Internal View

Left/Rear Side View

Location Requirements

WARNING!

Obstructing the ventilation grilles could present a fire hazard.

1—Toner ejection lever

2—Toner cartridge slot

3—Toner carousel release

button

4—Toner rotation knob

5—Waste toner pack

6—Transfer belt unit right

release lever

7—OPC drum cartridge

1—Ventilation grille

2—Interface panel

3—AC power connector

4—Top cover

5—Output tray

6—Main power switch

7—Hand grips for moving printer

8—Media tray (left side)

015mati.eps

28 inches

(70 cm)

8inches

(20 cm)

20 inches

(50 cm)

Front

4 inches

(10 cm)

Documentation Set 3

English

Documentation Set

Your magicolor

2210 comes with two CD-ROMs. All the documentation is on

the

Documentation

CD-ROM unless otherwise noted below. It is provided in

Adobe Acrobat PDF format.

Look for the movie camera icons in the manuals. If you’re using the

Acrobat PDF version of this guide, click the icon to play a QuickTime

video clip of the procedure described in the text.

Quick Setup

Guide

Use this sheet when unpacking the printer.

Service &

Support

Guide

This lists global sources of service and support for your

printer. Further information about MINOLTA-QMS printers is

available through the Internet.

Installation

Guide

You’re looking at this document right now. This assists in set-

ting up the printer, installing a printer driver, and connecting

to a network. It also briefly describes the control panel and

configuration menu.

User’s Guide

This guides you through the day-to-day operation of your

printer, including information on printing files, loadling print

media, and replacing toner. It also includes information on

handling, cleaning, and maintaining your printer; improving

print quality; and troubleshooting printer problems.

Maintenance

Guide

This guide is a handy item to keep at the printer for quick ref-

erence information regarding operation and care of the

printer.

CrownBooks

These manuals provide detailed information about Crown

architecture, color printing, menu configuration, and

advanced computer/network connection and configuration.

They can be found in PDF format on the

Software Utilities

CD-ROM.

Registration

Card Registration and warranty information is included.

Setting up Your Printer4

English

Setting up Your Printer

WARNING!

The printer weighs 87.1 lbs (39.5 kg) without consumables. To avoid

personal injury or damage to your printer, at least two people must lift

and move the printer.

Attention

During installation, do not plug in the printer’s power cord until told to

do so.

Shipment Contents

„Printer with a 500-sheet letter/A4/legal media tray

„Consumables kit

Fuser oil roller Waste toner pack

„Power cord

„Documentation (see “Documentation Set” on page 3)

„Two CD-ROMs

Interface cables aren’t included in the shipment. If you need

cables, contact your local vendor or computer store.

Unpacking the Printer

Save the packing materials in case you ever have to relocate your

printer or for future storage.

After removing the carton, use the following instructions to unpack your

printer.

1Remove the protective plastic cover.

Setting up Your Printer 5

English

2Remove the tape from the outside

of the printer.

3Take the tape off of the pull-out

carrying bars cand slide them

outward from the printer.

4With another person’s help, lift

the printer from the carton, and

place it inits intended location. A

third person’s assistance may be

required if the printer is lifted

above waist level.

When lifting and carrying the

printer, use the hand grips

and

the pull-out carrying bars

5Open the front cover.

Use both hands to avoid

putting uneven strain on

the front cover’s hinges.

Setting up Your Printer6

English

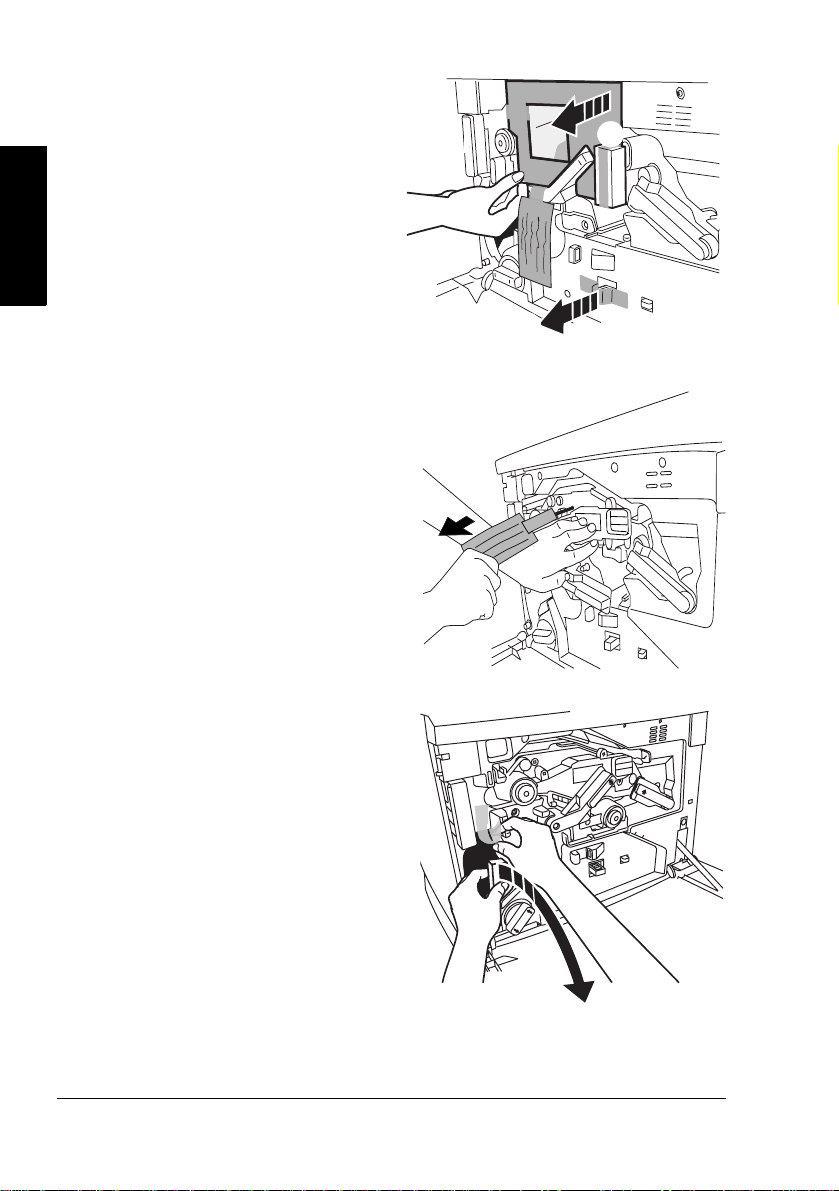

6Remove the cardboard/

foam spacers cand the

tape dfrom the laser lens

cover.

The transfer belt left

release lever will move

to the 4 o’clock position

when you remove the

spacers.

7Pressing on the transfer

belt unit front handle with

one hand, take the yellow

tag attached to the transfer

belt unit fixture with your

other hand, and pull the fix-

ture straight toward you.

This fixture protects the

transfer belt during initial

transportation.

Dispose of the fixture

according to your local

regulations.

8Removethe tape holding the

toner cartridge carousel in

place.

9Remove the piece of foam

attached to the front of the

toner cartridge carousel.

Altri manuali per Magicolor 2210 GN

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali MINOLTA-QMS Stampante

MINOLTA-QMS

MINOLTA-QMS PagePro 1250E Manuale utente

MINOLTA-QMS

MINOLTA-QMS PagePro 4100 Manuale utente

MINOLTA-QMS

MINOLTA-QMS Magicolor 2 Desklaser Manuale

MINOLTA-QMS

MINOLTA-QMS PagePro 4100GN Manuale utente

MINOLTA-QMS

MINOLTA-QMS Magicolor 6110 GN Manuale utente

MINOLTA-QMS

MINOLTA-QMS magicolor 2300 DL Manuale utente

MINOLTA-QMS

MINOLTA-QMS PagePro 4100 Series Manuale utente

MINOLTA-QMS

MINOLTA-QMS PagePro 4100E Manuale utente

MINOLTA-QMS

MINOLTA-QMS Magicolor 2300W Manuale utente

MINOLTA-QMS

MINOLTA-QMS Magicolor 2200 DP Manuale utente

MINOLTA-QMS

MINOLTA-QMS PagePro 4100W Manuale utente

MINOLTA-QMS

MINOLTA-QMS Magicolor 2300W Manuale

MINOLTA-QMS

MINOLTA-QMS Magicolor 6100 Manuale operativo

MINOLTA-QMS

MINOLTA-QMS ENord magicolor 3100 Manuale utente

MINOLTA-QMS

MINOLTA-QMS magicolor 2300 DL Manuale utente

MINOLTA-QMS

MINOLTA-QMS PagePro 4110W Manuale utente

MINOLTA-QMS

MINOLTA-QMS Magicolor 2210 GN Manuale utente

MINOLTA-QMS

MINOLTA-QMS PagePro 9100 Manuale utente

MINOLTA-QMS

MINOLTA-QMS ENord magicolor 3100 Manuale utente

MINOLTA-QMS

MINOLTA-QMS PagePro 1200 Series Manuale utente

MINOLTA-QMS

MINOLTA-QMS Magicolor 2200 DeskLaser Manuale utente

MINOLTA-QMS

MINOLTA-QMS PagePro 9100 Manuale utente

MINOLTA-QMS

MINOLTA-QMS PagePro 4100W Manuale utente

MINOLTA-QMS

MINOLTA-QMS magicolor 6100 Series Manuale utente

Manuali Stampante popolari di altre marche

Lexmark

Lexmark 1400 Series Manuale

Canon

Canon i70 Series Manuale utente

Evolis

Evolis Elypso Manuale utente

Kyocera

Kyocera FS-9530DN Manuale utente

Canon

Canon LASER SHOT LBP-1210 Manuale utente

Samsung

Samsung BIXOLON SRP-350plusF Manuale utente

Canon

Canon PIXMA PRO-1 Series Manuale utente

Canon

Canon PIXMA G3560 Guida all'installazione

Dell

Dell Color Laser Printer 2130cn Manuale utente

Tektronix

Tektronix Phaser 840 Manuale utente

Epson

Epson ET-7750 Istruzioni operative

Canon

Canon CLBR 460ps Manuale utente

Eltron

Eltron P210 Guide Manuale utente

Ricoh

Ricoh MD-P1 Manuale utente

Epson

Epson SC-F7100 series Manuale utente

Epson

Epson Stylus C40UX Manuale utente

Canon

Canon imagePASS-A2 Manuale utente

Canon

Canon S820D Manuale utente
