Minolta PageWorks Pro 18L Manuale utente

PageWorks 18L

Step 1

Unpacking the Printer.....................1

Reference 1

Printer Parts..................................... 3

Reference 2

Control Panel ................................... 4

Step 2

Attaching the Face-Down Tray

and Tray 1....................................... 11

Step 3

Loading Paper................................ 13

Step 4

Connecting the Power Cord ......... 14

Step 5

Turning the Power On/Off ............. 14

Step 6

Connecting the Printer to the

Computer (Local Connection)......15

Step 7

Installing the Printer Driver .......... 16

Reference 3

Troubleshooting ............................ 18

Contents

Before operating your printer, read the Set-Up Instructions

carefully from cover to cover. Use this guide for reference.

Take the items and accessories shown above out of the carton.

Remove the plastic bag and peel off the shipping tape from the printer.

Unpacking the Printer

Step 1

1.Face-down tray

2.Printer

3.Accessories

User’s Manual

Quick Guide

Warranty card

Registration card

CD-ROM

Power cord

4.Tray 1

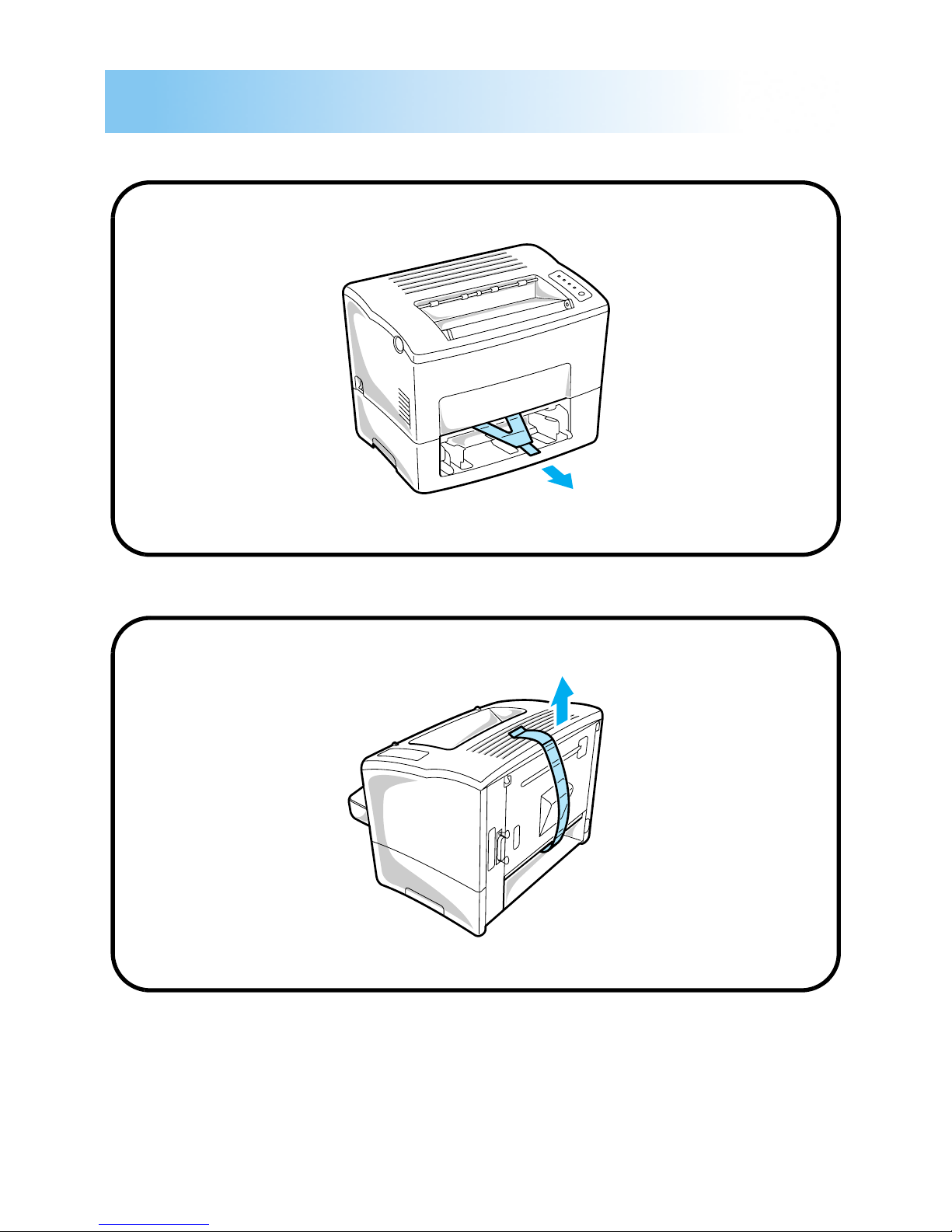

Pull out the plastic-lead strip from the paper feed inlet.

Remove the tape strip from the back of the printer.

Step 1

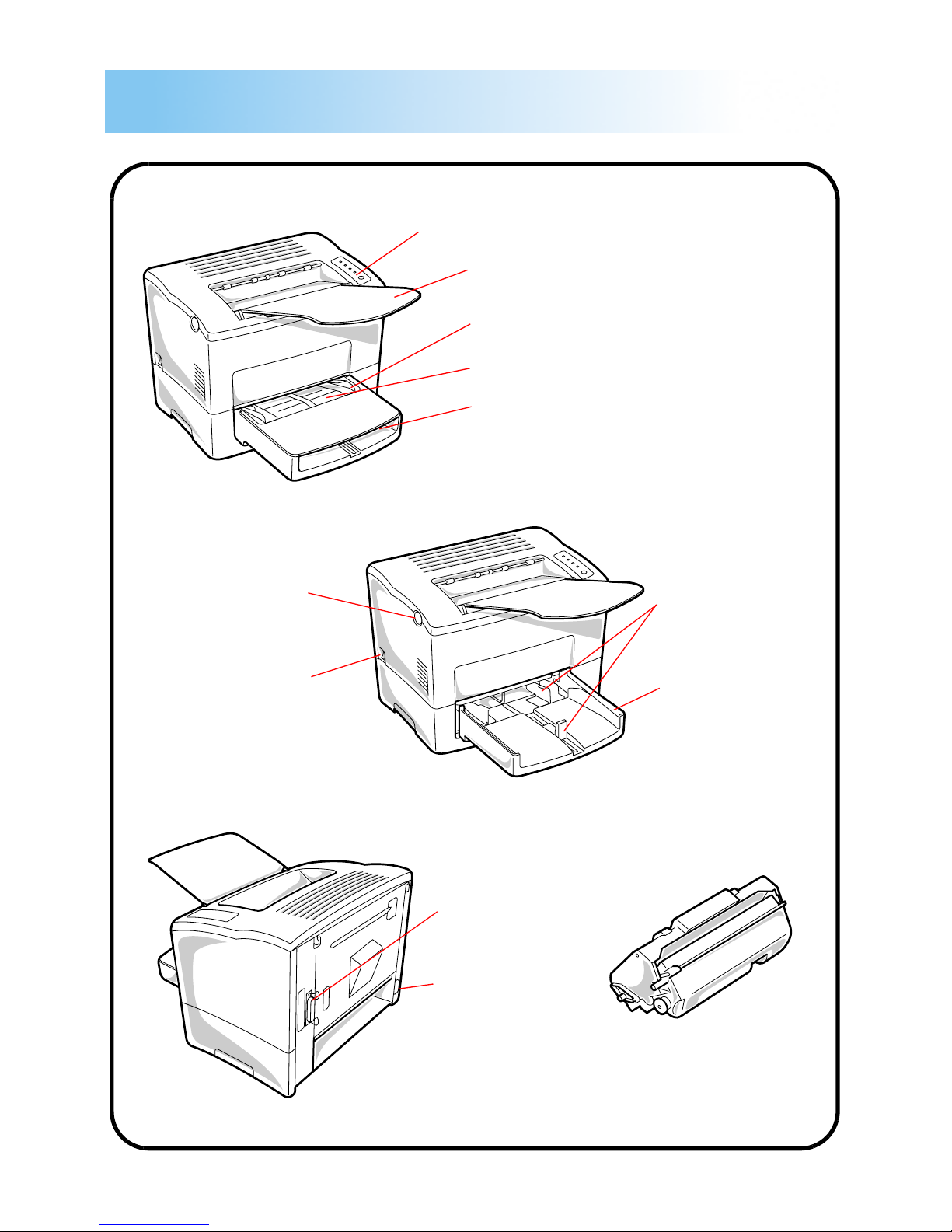

Printer Parts

Reference 1

Control panel

Face-down tray

Paper size guide

Manual feed tray

Tray cover

Tray 1

(multipurpose tray)

Paper size guide

Top cover release

button

Power switch

Power cord socket

Parallel interface

connector

Imaging

cartridge

The control panel has four indicator lights and one button.

Note

On or blinking

Ready LED See the explanation for Ready on the

LED chart. ☞p. 5

On or blinking

Error LED See the explanation for Error on the LED

chart. ☞p. 7

• The LED display will change as you press the Action key.

• The appearance of this icon throughout this manual indicates

when you need to press the Action key.

Control Panel

Reference 2

Error (amber)

Toner empty (amber)

Paper empty (amber)

Ready (green)

Action key

Off

Blinking

Indicator lights

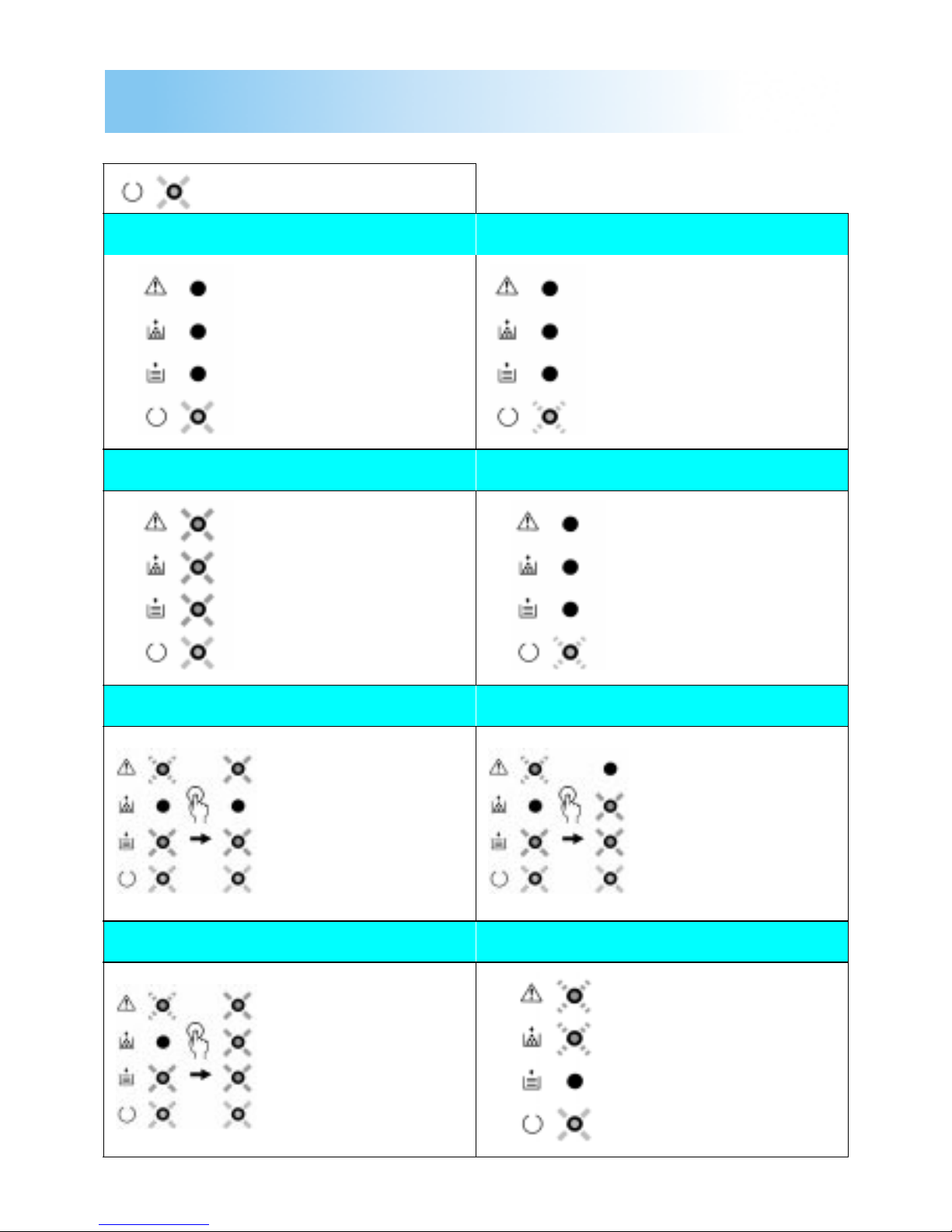

When the Ready LED is on

Ready Power Save

Printer is ready and

able to print.

See page 6-16 of the

User’s Manual.

Printer has entered the

Power Save Mode.

See page 6-17 of the

User’s Manual.

Initializing Warming Up

Power on, initializing.

See page 6-16 of the

User’s Manual.

Printer is warming up.

See page 6-16 of the

User’s Manual.

Tray 1 Paper Empty Tray 2 Paper Empty

The paper supply of

Tray 1 is empty.

See page 2-10, 3-4 or

6-18 of the User’s

Manual.

The paper supply of

Tray 2 is empty.

See page 3-7 or 6-18 of

the User’s Manual.

Tray 3 Paper Empty Toner Low

The paper supply of

Tray 3 is empty.

See page 3-7 or 6-18 of

the User’s Manual.

The imaging cartridge

is low on toner but

printing is still possible.

See page 5-1 or 6-17 of

the User’s Manual.

Reference 2

Slowly

blinking

When the Ready LED is on

Wait Action Size Mismatch

Press the Action key in

the event of a paper

size error or when

operating in the manual

mode.

See page 6-17 of the

User’s Manual.

The wrong size of

paper has been

detected in Tray 1,

Tray 2 or Tray 3.

See page 3-1, 4-50 or

6-18 of the User’s

Manual.

Tray 2 No Cassette/No Tray 2 Tray 3 No Cassette/No Tray 3

The cassette for Tray 2

is not in place or a print

job was sent using the

Tray 2 setting in the

printer driver, even

though Tray 2 is not

installed on the printer.

See page 2-22, 4-51 or

6-19 of the User’s

Manual.

The cassette for Tray 3

is not in place or a print

job was sent using the

Tray 3 setting in the

printer driver, even

though Tray 3 is not

installed on the printer.

See page 2-22, 4-51 or

6-19 of the User’s

Manual.

Duplex Unit Not Available

A duplex print job has

been sent to a printer

that is not equipped

with a duplex unit.

See page 4-56, 4-59 or

6-19 of the User’s

Manual.

Reference 2

When the Error LED is on

Buffer Overflow Cover Open

The buffer cannot

handle the volume of

data being sent.

See page 6-20 of the

User’s Manual.

The cover is open.

See page 1-3 or 6-20 of

the User’s Manual.

Paper Size Error Cover Open (Duplex Unit)

The paper-size setting

of the printer driver

doesnotmatchthesize

of paper that has been

detected in the tray.

See page 3-1, 4-50 or

6-20 of the User’s

Manual.

The cover of the duplex

unit is open.

See page 2-19, 6-9 or

6-23 of the User’s

Manual.

Wrong Media (Duplex Unit) Wrong Size (Duplex Unit)

The wrong media has

been loaded into the

duplex unit.

See page 3-16 or 6-23

of the User’s Manual.

The wrong size of

paper has been loaded

into the duplex unit.

See page 3-16 or 6-23

of the User’s Manual.

Video Under Run Replace Imaging Cartridge

The buffer cannot

handle the volume of

data being sent.

See page 6-24 of the

User’s Manual.

The imaging cartridge

is out of toner.

See page 5-1 or 6-24 of

the User’s Manual.

Reference 2

When the Error LED is on

Paper Misfeed 1 Paper Misfeed 2

A paper misfeed

occurred near the

multipurpose tray.

See page 6-7 or 6-21 of

the User’s Manual.

A paper misfeed

occurred near Tray 2.

See page 6-8 or 6-21 of

the User’s Manual.

Paper Misfeed 3 Paper Misfeed 4

A paper misfeed

occurred near Tray 3.

See page 6-8 or 6-21 of

the User’s Manual.

A paper misfeed

occurred near the

manual feeding tray.

See page 6-7 or 6-21 of

the User’s Manual.

Paper Misfeed 5 Paper Misfeed 6

A paper misfeed

occurred near the

lower-duplex unit.

See page 6-9 or 6-22 of

the User’s Manual.

A paper misfeed

occurred near the

imaging cartridge.

See page 6-2 or 6-22 of

the User’s Manual.

Paper Misfeed 7 Paper Misfeed 8

A paper misfeed

occurred near the

fuser.

See page 6-2 or 6-22 of

the User’s Manual.

A paper misfeed

occurred near the

upper-duplex unit.

See page 6-9 or 6-22 of

the User’s Manual.

Reference 2
