Minolta PageWorks Pro 18N Manuale utente

User’s Manual

PageWorks 18N

As an ENERGY STARPartner, we have determined

that this machine meets the ENERGY STARGuidelines

for energy efficiency.

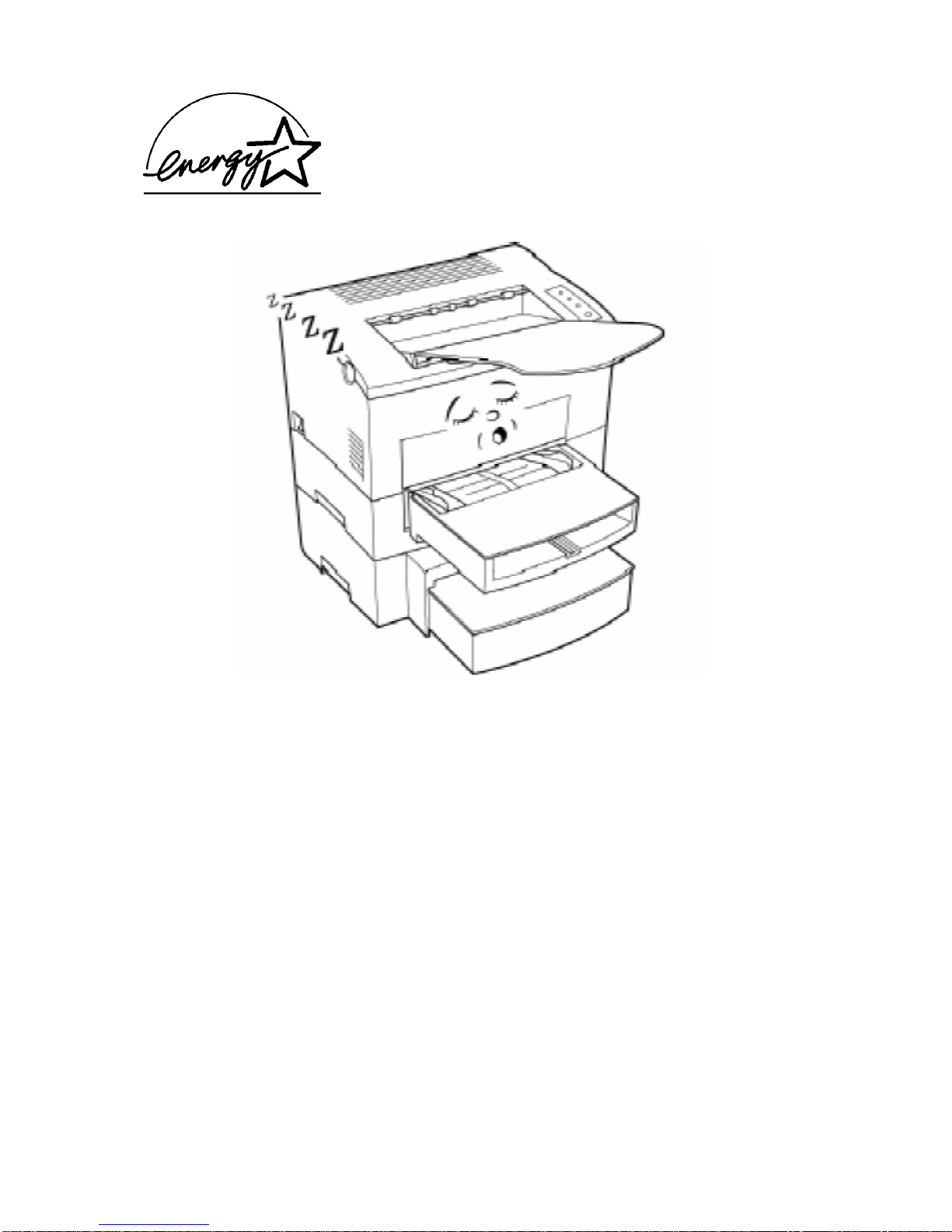

What is an ENERGY STARPrinter ?

ENERGY STARprinters have a feature that allows them to automatically “go to sleep” after a

period of inactivity. This auto-feature can reduce a machine’s annual electricity cost by 60 percent.

Foreword

Safety Information

Laser Safety

This is a page printer which operates by means of a laser. There is no

possibility of danger from the laser, provided the printer is operated

according to the instructions in this manual.

Since radiation emitted by the laser is completely confined within pro-

tective housing, the laser beam cannot escape from the machine during

any phase of user operation.

Internal Laser Radiation

Maximum Radiation Power : 1.03 (mW) at laser aperture of the print

head unit

Wavelength : 770-810 (nm)

This product employs Class IIIb Laser Diode.

Laser Diode and Scanning Polygon Mirror are incorporated in the print

head unit.

The print head unit is NOT A FIELD SERVICE ITEM.

Therefore, the print head unit should not be opened under any circum-

stance.

Laser Safety

This printer is certified as a Class 1 Laser product under the U.S.

Department of Health and Human Services (DHHS) Radiation Per-

formance Standard according to the Radiation Control for Health and

Safety Act of 1968. This means that the printer does not produce haz-

ardous laser radiation.

CDRH Regulations

The Center for Devices and Radiological Health (CDRH) of the U.S.

Food and Drug Administration implemented regulations for laser prod-

ucts on August 2, 1976. Compliance is mandatory for products mar-

keted in the United States. The label shown on the following page

indicates compliance with the CDRH regulations and must be attached

to laser products marketed in the United States.

Foreword

WARNING LABEL

WARNING: Use of controls, adjustments or performance of procedures

other than those specified in this manual may result in hazardous radia-

tion exposure.

This is a semiconductor laser. The maximum power of the laser diode is

5mW and the wavelength is 770-810 nm.

Foreword

iii

USER INSTRUCTIONS (For U.S.A. Users)

FCC PART 15 - RADIO FREQUENCY DEVICES WARNING

This equipment has been tested and found to comply with the limits for

a Class B digital device, pursuant to Part 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful interfer-

ence to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which

can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interface by one or more of the follow-

ing measures:

●Reorient or relocate the receiving antenna.

●Increase the separation between the equipment and the receiver.

●Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

●Consult the dealer or an experienced radio/TV technician for

help.

FCC: Declaration of Conformity

Product Type Laser Beam Printer

Product Name PageWorks 18N

Options

Accessories Third Paper Cassette Unit (4166)

Duplex Unit (4168)

DRAM SIMM (Maximum 64MB)

Adobe PostScript SIMM (4179-291)

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following conditions;

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

Minolta Corporation

101 Williams Drive, Ramsey, New Jersey 07446

Telephone number: 201-825-4000

Foreword

This device must be used with a shielded interface cable and shielded

network (10/100BaseT) cable. The use of non-shield cables is likely to

result in interference with radio communications and is prohibited

under FCC rules.

The design and production of this unit conform to FCC regulations,

and any changes or modifications must be registered with the FCC and

are subject to FCC control. Any changes made by the purchaser or user

without first contacting the manufacturer will be subject to penalty

under FCC regulations.

USER INSTRUCTIONS (For Canada Users)

INTERFERENCE-CAUSING EQUIPMENT STANDARD

(ICES-003 ISSUE 3) WARNING

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-

003 du Canada.

Foreword

OZONE RELEASE (For All Users)

During printer operation, a small quantity of ozone is released. This

amount is not large enough to harm anyone adversely. However, be

sure the room where the machine is being used has adequate ventila-

tion, especially if you are printing a high volume of materials, or if the

machine is being used continuously over a long period.

WARNING LABEL

Foreword

Welcome

And thank you for selecting a Minolta PageWorks 18N Printer!

This User’s Manual explains the functions of the printer and how it

operates. It also provides you with troubleshooting tips as well as gen-

eral precautions you should observe when operating the printer. To

ensure the top performance and effective use of your printer, read this

manual carefully from cover to cover, and keep it at hand for later ref-

erence.

No part of this document may be reproduced, transmitted, transcribed,

stored in a retrieval system, or translated into other languages without

the express written prior consent of Minolta Co., Ltd.

The contents of this manual are subject to change without notice.

Trademark Acknowledgments

PCL is a registered trademark of Hewlett-Packard Company.

Centronics is a registered trademark of Centronics Inc.

MS-DOS, Microsoft, Windows, and Windows NT are registered trade-

marks of Microsoft Corporation.

IBM is a registered trademark of International Business Machines Cor-

poration.

Adobe and PostScript are registered trademarks of Adobe Systems,

Inc.

PageWorks is a trademark of Minolta in the U.S. and Canada.

Fine-ART and Fine Micro Toning are trademarks of Minolta Co., Ltd.

All other brand or product names are trademarks or registered trade-

marks of their respective companies or organizations.

Foreword

vii

Technical Support

Technical support for all Minolta PageWorks printer products is avail-

able 24 hours a day, seven days a week by calling 1-800-459-3250

(from within North America). Minolta also maintains a Web site which

provides printer driver downloads, Frequently Asked Questions and

handles all e-mail requests for technical assistance at:

http://www.minoltaprinters.com.

Please be prepared to provide the following information when contact-

ing Minolta Technical Support:

• Model Name

• Serial number

• A detailed description of the problem

For questions or problems with installation, please be prepared to pro-

vide the following additional information:

• Brand name and model number of the computer

• Type of processor

• Type of operating system

• Amount of installed RAM

viii

Contents

CONTENTS

Chapter 1: Introduction

Features..................................................................1-1

Printer Parts and Accessories .............................1-2

Control Panel .........................................................1-4

Indicator Lights...................................................1-4

Control Panel Button..........................................1-8

Job Cancel....................................................1-8

Print Configuration........................................1-8

Form Feed ....................................................1-8

Chapter 2: Setting-up

Installation Precautions........................................2-1

Selecting a Location for the Printer....................2-1

Power Source.....................................................2-2

Grounding ..........................................................2-2

Space Requirements..........................................2-3

Operational Precautions.......................................2-4

Operating Environment ......................................2-4

Printer ................................................................2-4

Printer Supplies..................................................2-6
