Mitsubishi Electric EB-50GU-A Manuale utente

Air Conditioning Control System

Centralized Controller

EB-50GU-A/EB-50GU-J

Before using the controller, please read this Instruction Book carefully to ensure proper operation.

Retain this manual for future reference.

Instruction Book

–Web Browser for Initial Settings–

1. Introduction...........................................................................2

1-1. Terms Used in This Manual .........................................................2

1-2. PC Requirements.........................................................................2

2. Setting the Operating Environment ......................................3

2-1. Setting the IP Address of the PC .................................................3

2-2. Setting the Web Browser .............................................................5

3. Logging in to the Web Browser for Initial Settings................8

4. Initial Settings ..................................................................... 11

4-1. Date and Time............................................................................11

4-2. Basic System .............................................................................12

4-3. Groups .......................................................................................20

4-4. Interlocked LOSSNAY................................................................23

4-5. Blocks ........................................................................................24

5. Functions 1.........................................................................25

5-1. E-Mail.........................................................................................25

5-2. Peak Cut (Energy-save control function) ...................................29

5-3. Measurement .............................................................................36

5-4. Energy Management Settings....................................................40

6. Functions 2.........................................................................42

6-1. Set Temperature Range Limit ....................................................42

6-2. Night Mode (quiet operation) Schedule .....................................44

6-3. System-changeover...................................................................45

7. Functions 3 ........................................................................46

7-1. External Temperature Interlock ..................................................46

7-2. Night Setback Control................................................................48

7-3. Interlock control..........................................................................50

7-4. AHC Port Name Settings ...........................................................58

8. User Settings......................................................................59

9. Utility...................................................................................61

9-1. Back up/import settings data......................................................61

10. License registration for optional functions ........................63

Contents

1. Introduction

Mitsubishi Electric Corporation’s Centralized Controller EB-50GU-A/EB-50GU-J features functions to allow users

to monitor and operate the air conditioning units and to make initial settings from a PC over the LAN.

This Instruction Book explains how to make initial settings for the EB-50GU-A/EB-50GU-J using a Web browser.

1-1. Terms Used in This Manual

- "Centralized Controller EB-50GU-A/EB-50GU-J" is referred to as "EB-50."

- "Booster unit" and "Water HEX unit" are referred to as "Air To Water (PWFY) unit."

- "Advanced HVAC CONTROLLER" is referred to as "AHC."

- Screen images used in this manual are from Windows 7®and Internet Explorer 9.0.

Note: Windows is a registered trademark or trademark of Microsoft Corporation in the United States and other

countries.

1-2. PC Requirements

Table 1-1 PC Requirements

Item Requirement

CPU 1 GHz or faster

Memory 512 MB or more

Screen resolution 1024 x 768 or higher recommended

Browser

Microsoft®Internet Explorer 8.0

Microsoft®Internet Explorer 9.0

* Java execution environment is required.

(Oracle®Java Plug-in Ver. 1.7.0_11)

* Install Oracle®Java Plug-in that is appropriate for your operating system. When

using a 64-bit Internet Explorer, install a 64-bit Java Plug-in.

* The version of the Oracle®Java Plug-in can be verified by clicking [Java] in the

Control Panel.

On-board LAN port or LAN card 100 BASE-TX

Pointing device e.g., mouse

Note: Microsoft is a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.

Oracle and Java are trademarks or registered trademarks of Oracle Inc. in the United States and/or other countries.

2. Setting the Operating Environment

This chapter explains how to make PC settings and Web browser settings to monitor and operate the air

conditioning units.

2-1. Setting the IP Address of the PC

Follow the instructions below to set the PC's IP address for the Web browser to recognize the EB-50 unit.

The PC's IP address must have the same network address as the EB-50's IP address.

(i.e., EB-50's IP address: [192.168.1.1], PC's IP address: [192.168.1.101])

When connecting an EB-50 to an existing LAN, consult the system administrator to decide the IP address of the

PC.

Note: When using an EB-50-dedicated LAN, it is recommended that the main EB-50 unit be assigned an IP address

between the range [192.168.1.1] and [192.168.1.40] and that the PC connected to the EB-50 be assigned an IP

address between the range [192.168.1.101] and [192.168.1.150].

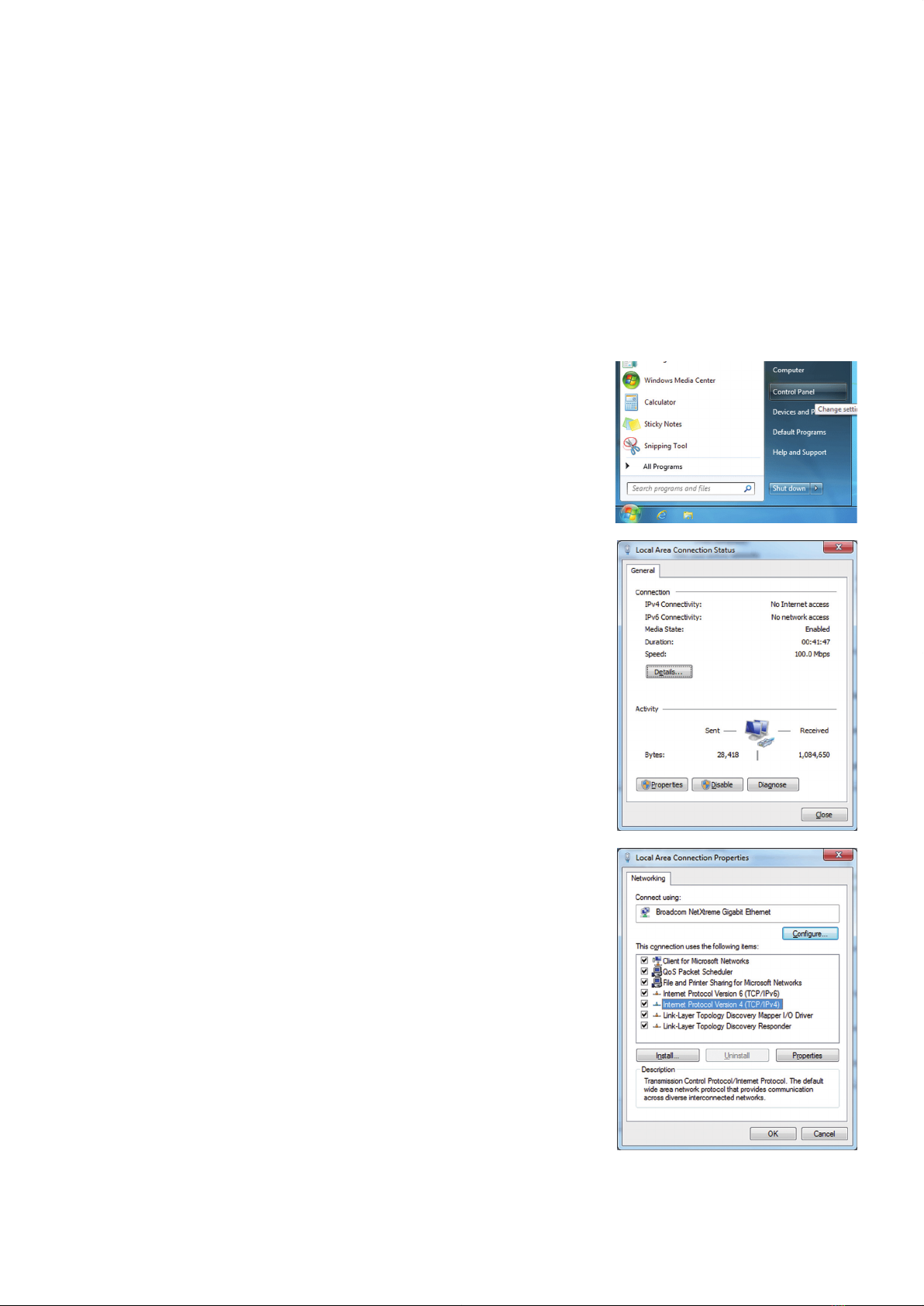

(1) Click [Control Panel] in the Start menu.

(2) Click [Network and Sharing Center]>[Local Area Setting].

In the [Local Area Connection Status] window, click [Properties].

(3) Click [Internet Protocol Version 4 (TCP/IPv4)] to select it, and click

[Properties].

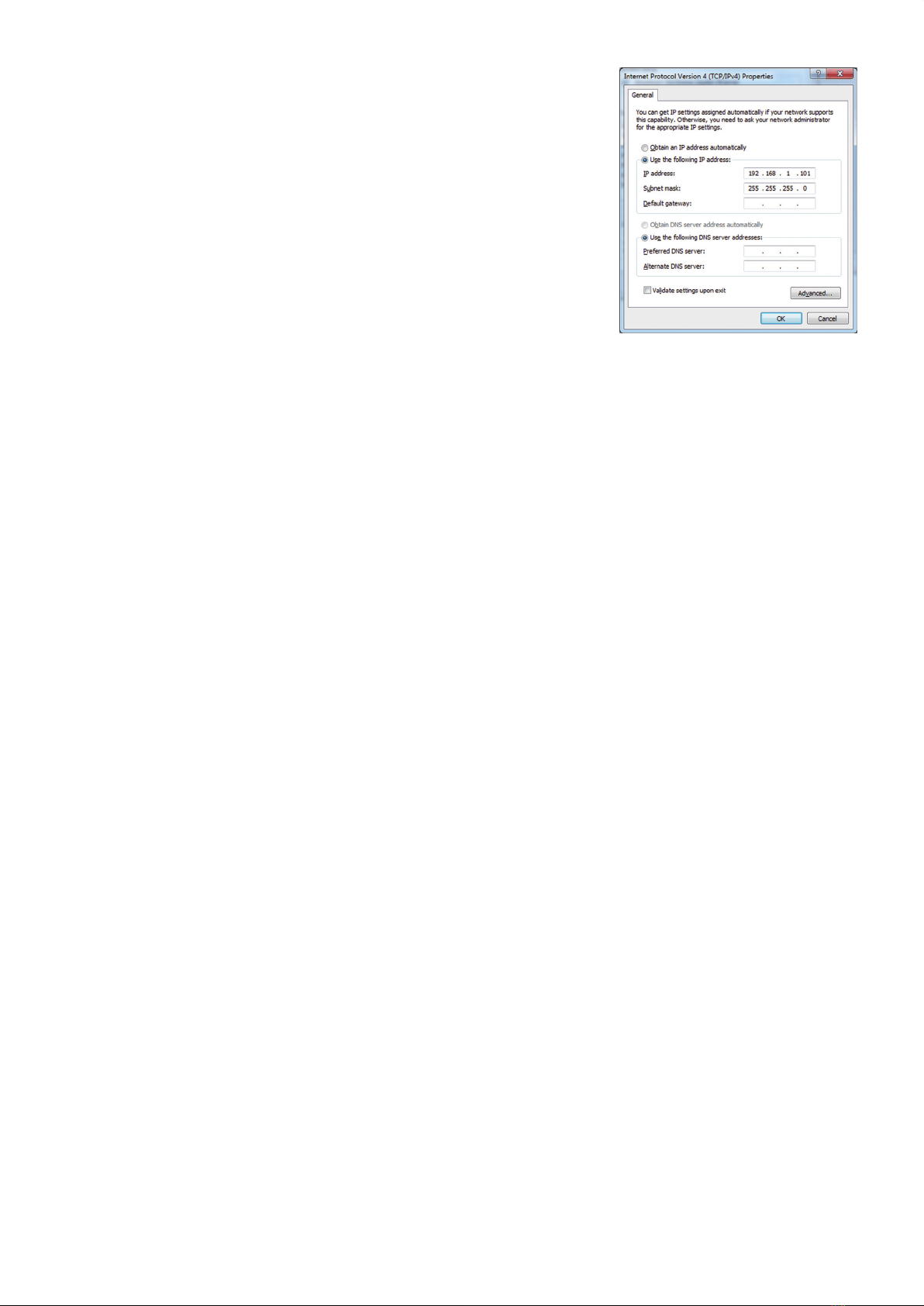

(4) In the [Internet Protocol Version 4 (TCP/IPv4) Properties] window,

check the radio button next to [Use the following IP address].

Enter the PC’s IP address (e.g., [192.168.1.101]) in the [IP address]

field, and enter the subnet mask [255.255.255.0] (unless otherwise

specified) in the [Subnet mask] field.

In the [Default gateway] field, enter the gateway address as

necessary. (Refer to section 4-2-5 for details.)

Note: Consult the system administrator to decide the IP, subnet

mask, and gateway addresses.

(5) Keep clicking [OK] or [Close] to close all windows.

2-2. Setting the Web Browser

Web browser setting varies with the Internet connection type. See the sections below for how to make Web

browser settings for different types of Internet connection.

To prevent unauthorized access, always use a security device such as a VPN router when

connecting the EB-50 to the Internet.

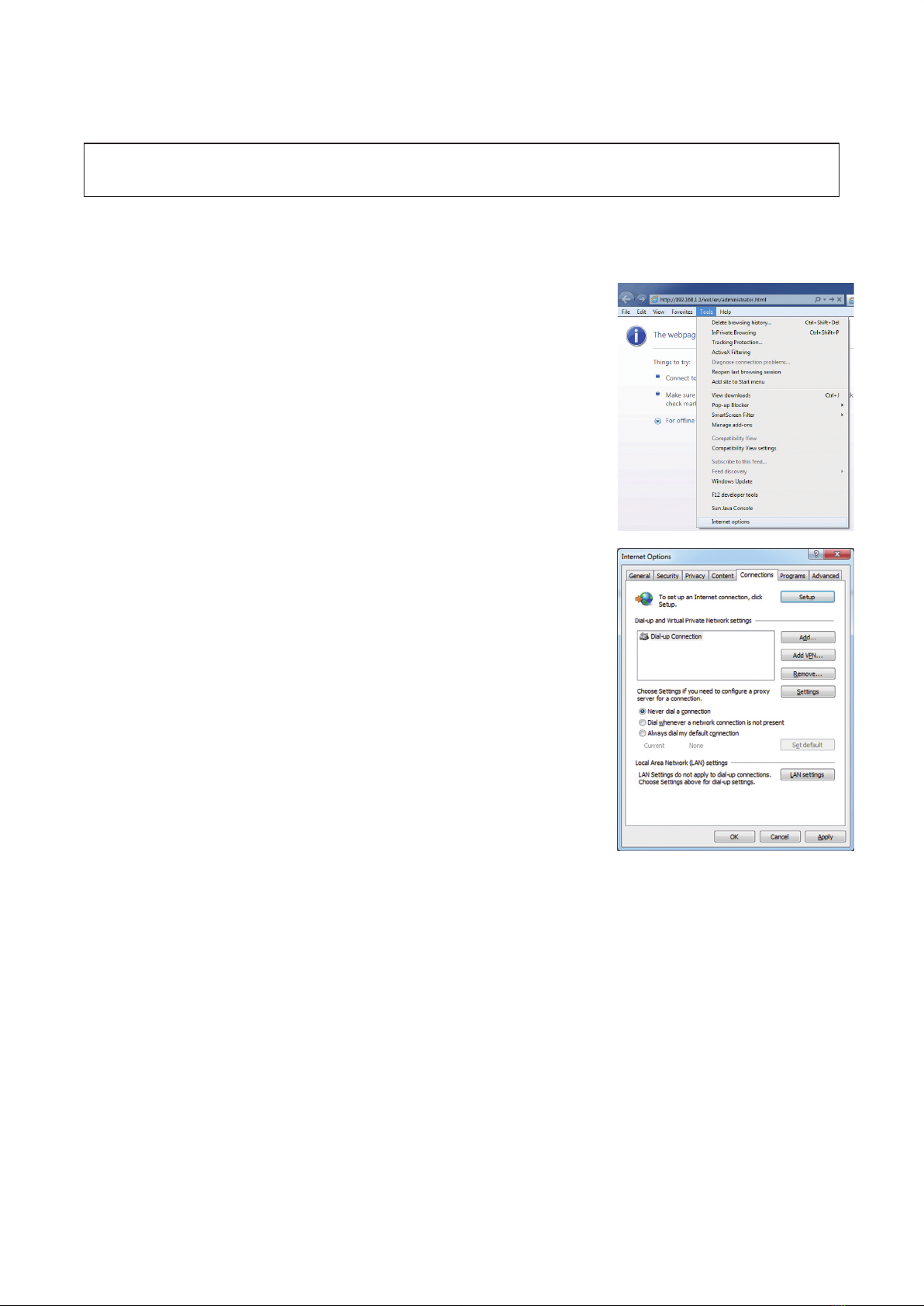

2-2-1. No Internet connection

To monitor and operate the air conditioning units from a PC with no Internet connection, follow the instructions

below to set the environment for the Web browser.

(1) Click [Tools] in the menu bar, then click [Internet options].

(2) In the [Internet Options] window, click the [Connections] tab.

(3) Check the radio button next to [Never dial a connection] in the middle

of the window, and click [OK] to close the window.

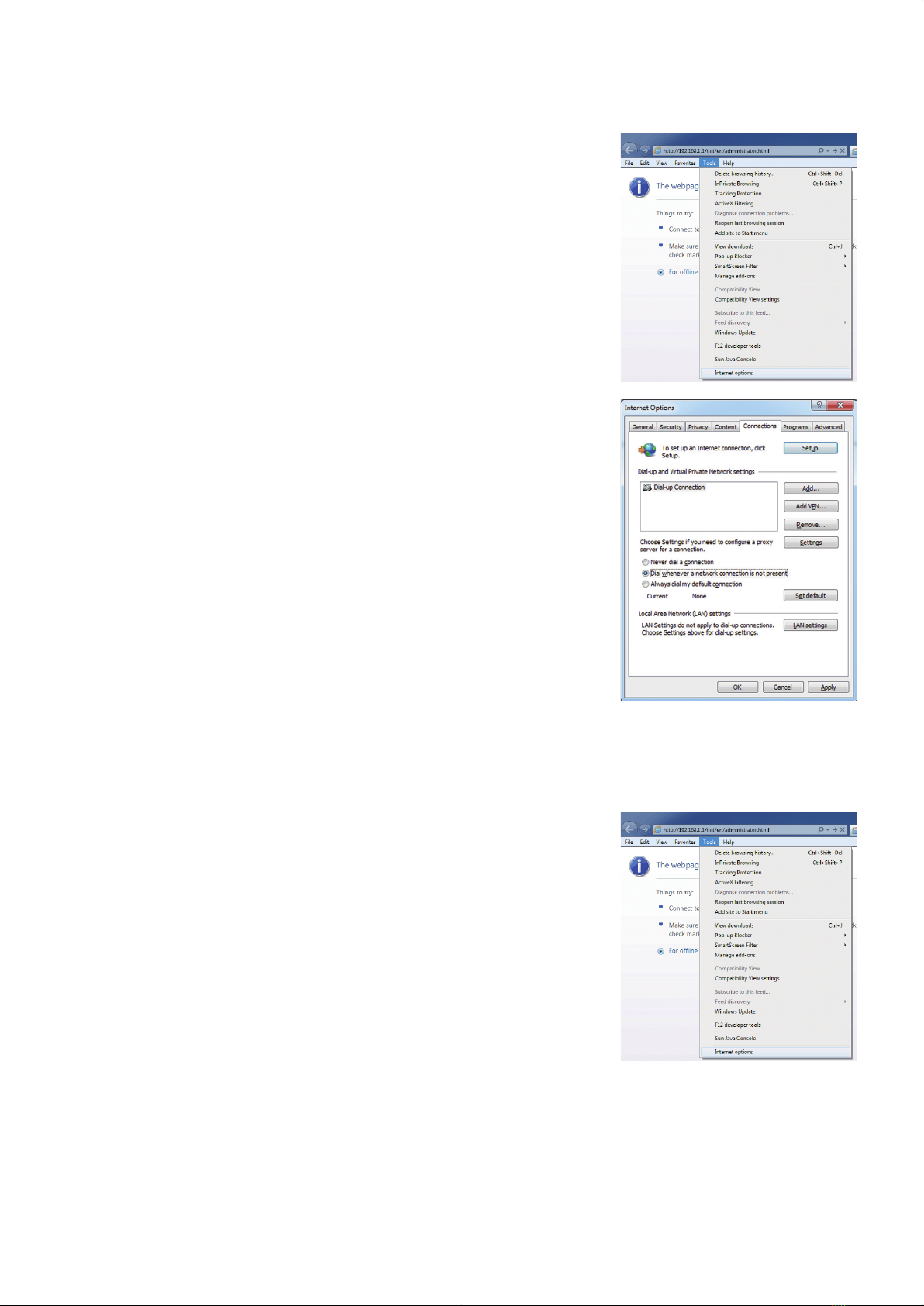

2-2-2. Dial-up Internet connection

To monitor and operate the air conditioning units from a PC that connects to the Internet through a dial-up

connection, follow the instructions below to set the environment for the Web browser.

(1) Click [Tools] in the menu bar, then click [Internet options].

(2) In the [Internet Options] window, click the [Connections] tab.

(3) Check the radio button next to [Dial whenever a network connection

is not present] in the middle of the window, and click [OK] to close the

window.

By making these settings, a message will appear asking whether

or not to use a dial-up connection when an Internet connection is

necessary. Follow the message to connect to the Internet.

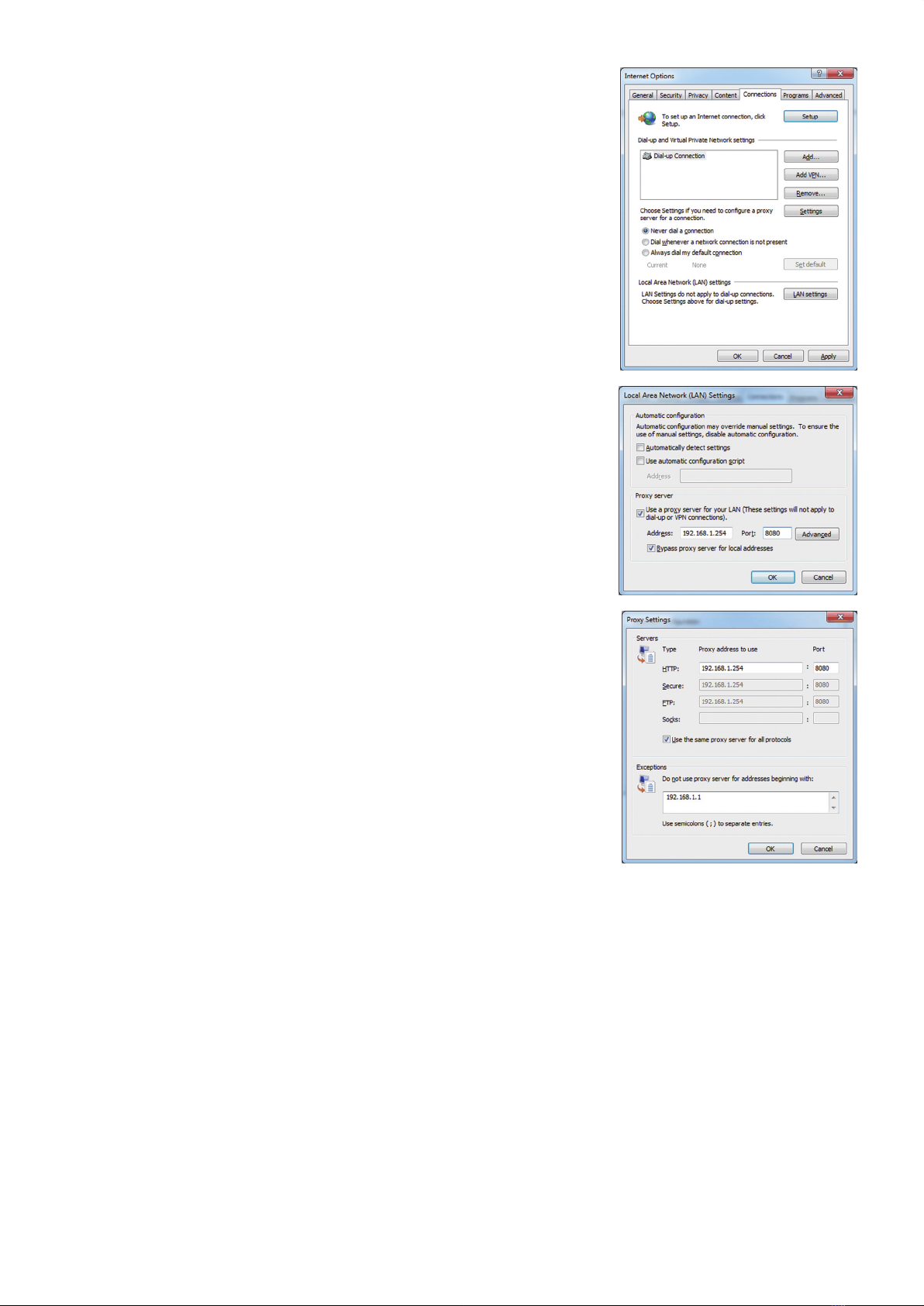

2-2-3. Connecting to the Internet via proxy server using an existing LAN

To monitor and operate the air conditioning units from a PC that connects to the Internet through a proxy server

by connecting to an existing LAN, such as a LAN within your company, follow the instructions below to set the

environment for the Web browser.

(1) Click [Tools] in the menu bar, then click [Internet options].

(2) In the [Internet Options] window, click the [Connections] tab.

(3) Check the radio button next to [Never dial a connection] in the middle

of the window.

(4) Click [LAN settings] under [Local Area Network (LAN) settings].

(5) In the [Local Area Network (LAN) Settings] window, check [Bypass

proxy server for local addresses], and click [Advanced].

(6) In the [Proxy Settings] window, enter the EB-50’s IP address (e.g.,

192.168.1.1) in the [Exceptions] field. Then, keep clicking [OK] or

[Close] to close all windows.

If connecting multiple EB-50 units, enter the addresses of all EB-50

units (e.g., [192.168.1.1; 192.168.1.2]). It is also possible to use an

asterisk as a wildcard (e.g., [192.168.1.*]).

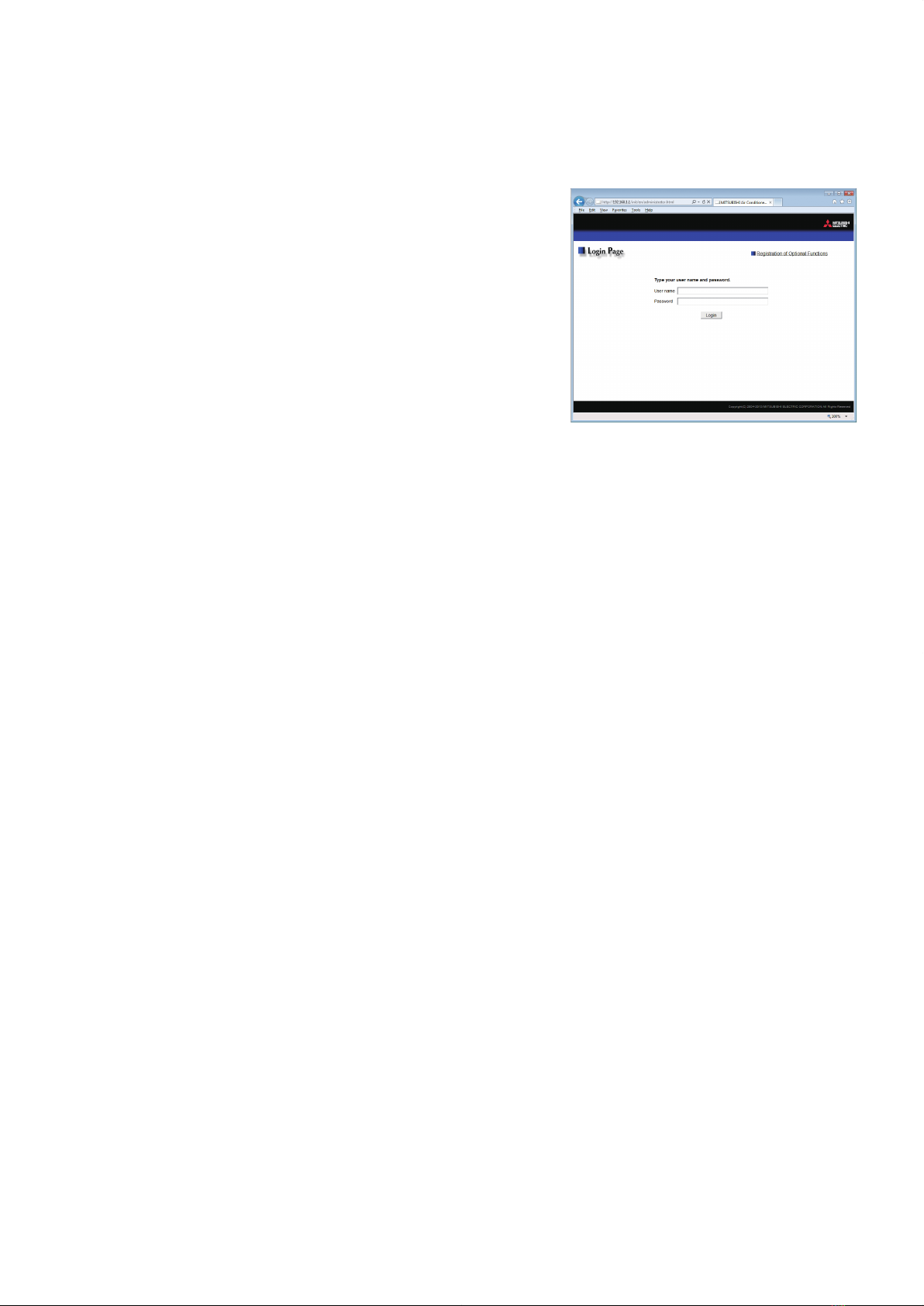

3. Logging in to the Web Browser for Initial Settings

(1) Enter the web page address in the address field of the Web browser as follows:

http:// [IP address of the EB-50]/init/administrator.html

Press the [Enter] key. A login screen will appear.

Note: If the IP address of the EB-50 is [192.168.1.1], the web page

address is [http://192.168.1.1/init/administrator.html].

Note: Default IP address of EB-50 is [192.168.1.1].

Note: If the login screen does not appear then take the steps below

to delete the temporary files.

1. Click [Tools] in the menu bar, then click [Internet options].

2. On the [General] tab, click [Delete] in the middle of the

window.

3. In the [Delete Browsing History] window, click [Delete].

<Java>

1. Click [Control Panel] from the Start menu.

2. Click the [Java] icon to launch the Java Control Panel.

3. On the [General] tab, click [Settings] in the [Temporary

Internet Files] section.

4. Click [Delete Files].

5. In the [Delete Files and Applications] window, click [OK].

Note: The web page will be displayed in the same language as the operating system on the PC.

The web page can be displayed in other languages by entering the web page address as follows:

Chinese http://[IP address of the EB-50]/init/zh/administrator.html

English http://[IP address of the EB-50]/init/en/administrator.html

French http://[IP address of the EB-50]/init/fr/administrator.html

German http://[IP address of the EB-50]/init/de/administrator.html

Italian http://[IP address of the EB-50]/init/it/administrator.html

Japanese http://[IP address of the EB-50]/init/ja/administrator.html

Portuguese http://[IP address of the EB-50]/init/pt/administrator.html

Russian http://[IP address of the EB-50]/init/ru/administrator.html

Spanish http://[IP address of the EB-50]/init/es/administrator.html

Note: You can add the web page address to your Favorites for easy access in the future.

(2) Enter the user name and the password in the login screen, and click [Login]. A setting screen will appear.

The table below shows the default user names, passwords, and functions that are available for

maintenance users and building managers.

User Default

user name

Default

password Available functions

Maintenance

user initial init

Initial Settings Date and Time, Basic System, Groups,

Interlocked LOSSNAY, Blocks

Functions 1 E-Mail, Peak Cut, Measurement,

Energy Management Settings

Functions 2 Set Temperature Range Limit,

Night Mode Schedule, System-changeover

Functions 3

External Temperature Interlock,

Night Setback Control, Interlock control,

AHC Port Name Settings

User Settings User Settings

Utility Back up/import settings data

Building

manager administrator admin Out of the functions listed above, the items to which access rights

have been given on the User Settings screen are available.

Note: A building manager will use the same user name and password for the Web Browser for System Maintenance Engineer.

Note: A maintenance user can specify the functions to be made available for building managers. Refer to chapter 8 "User Settings" for

details.

Note: It is recommended to change the default user name and password so that the users other than the maintenance users and

building managers will not be able to change the settings.

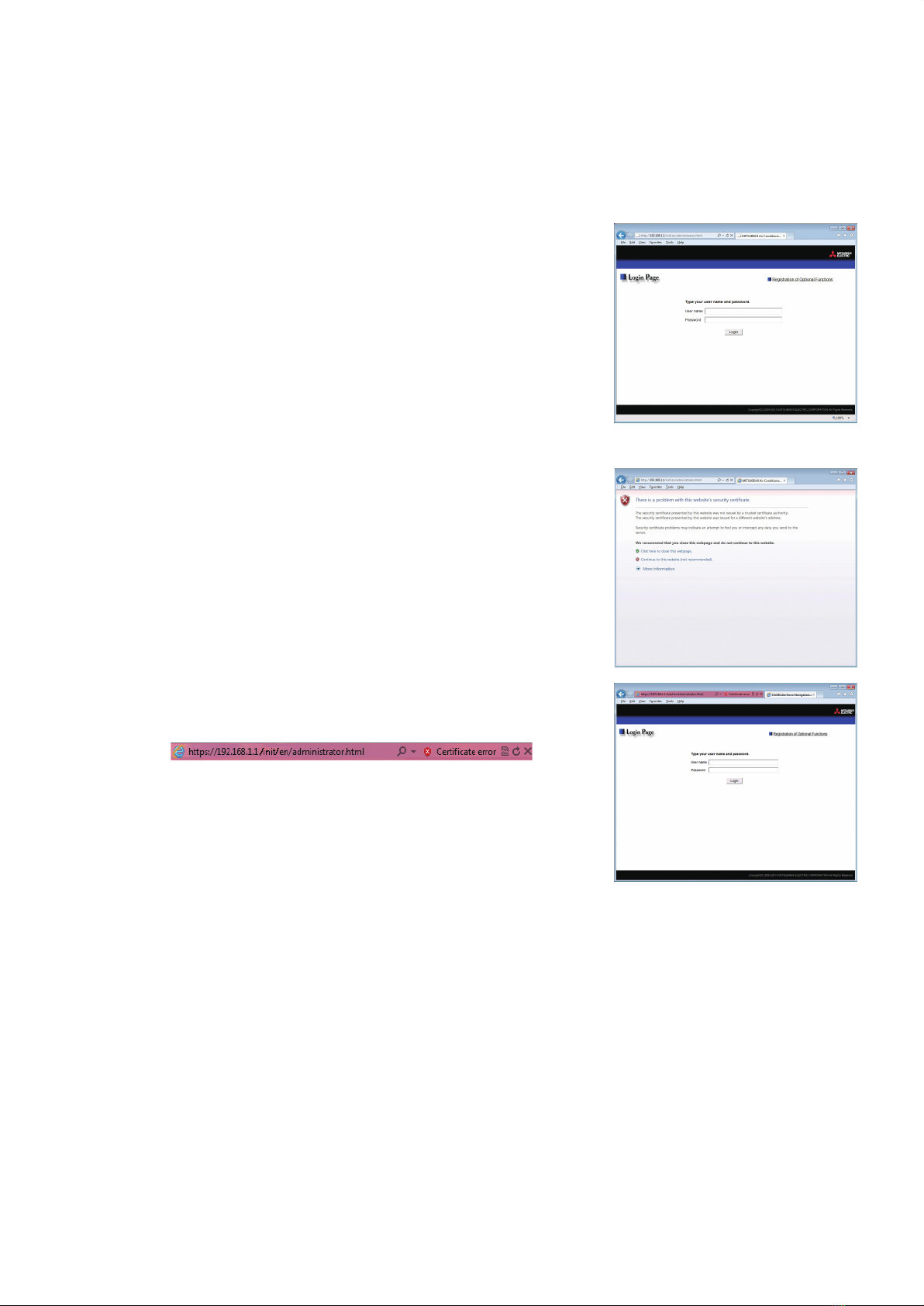

Encrypting the communication data and logging in to the Web browser

(HTTPS connection)

EB-50 can encrypt communication data using HTTPS (SSL).

When connecting the EB-50 to the LAN that is accessible to the general public, it is recommended that the

following settings be made so that the units are monitored and controlled on the encrypted web page.

Note: Depending on the operating system or the Java version, HTTPS encrypted communication may not be enabled

properly. If this happens, use an HTTP connection as explained in the previous page.

(1) Prefix the web address with [https], enter the rest of the address, and

press the [Enter] key.

https://[IP Address of the EB-50]/init/administrator.html

Note: If the IP address of the EB-50 is [192.168.1.1], the web page address is

[https://192.168.1.1/init/administrator.html].

The encrypted data communication will begin, and the Login screen

will appear.

If a security certificate error page appears instead of the Login

screen, go to step (2) below.

(2) If the security certificate is invalid, a security certificate error page (as

shown at right) will appear.

Click [Continue to this website (not recommended)].

(3) If the connection is successfully made, the Login screen will appear.

Note: Although the address bar will turn red and a message "Certificate

error" will appear, you can still access the Web browser.

Altri manuali per EB-50GU-A

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Mitsubishi Electric Unità di controllo

Mitsubishi Electric

Mitsubishi Electric MELSEC iQ-R Series Manuale utente

Mitsubishi Electric

Mitsubishi Electric AJ65DBTB1-32D Manuale utente

Mitsubishi Electric

Mitsubishi Electric GT1695M-XTBA Istruzioni operative e di manutenzione

Mitsubishi Electric

Mitsubishi Electric CC-Link IE Field NZ2GF12A-60IOLH8 Manuale utente

Mitsubishi Electric

Mitsubishi Electric MELSEC Q Series Manuale utente

Mitsubishi Electric

Mitsubishi Electric MELSEC iQ-R Series Manuale utente

Mitsubishi Electric

Mitsubishi Electric CC-Link IE-NZ2GNSS2-8D Manuale utente

Mitsubishi Electric

Mitsubishi Electric NZ2MF2S1-32D Manuale utente

Mitsubishi Electric

Mitsubishi Electric Q68AD-G Manuale utente

Mitsubishi Electric

Mitsubishi Electric MELSEC iQ-R Series Manuale utente

Mitsubishi Electric

Mitsubishi Electric Trane TE-200A Manuale utente

Mitsubishi Electric

Mitsubishi Electric A1S64TCTT-S1 Manuale utente

Mitsubishi Electric

Mitsubishi Electric MELSEC iQ-R Series Manuale di installazione e funzionamento

Mitsubishi Electric

Mitsubishi Electric GT1030-HBD Istruzioni operative e di manutenzione

Mitsubishi Electric

Mitsubishi Electric CC-Link IE TSN Manuale utente

Mitsubishi Electric

Mitsubishi Electric MELSEC iQ-RX40NC6B Manuale utente

Mitsubishi Electric

Mitsubishi Electric Q64AD2DA Manuale utente

Mitsubishi Electric

Mitsubishi Electric EMU4-CNT-MB Manuale utente

Mitsubishi Electric

Mitsubishi Electric SWL31-ETMC Manuale utente

Mitsubishi Electric

Mitsubishi Electric MELSEC-QS Series Manuale utente

Mitsubishi Electric

Mitsubishi Electric MELSEC iQ-R Series Manuale utente

Mitsubishi Electric

Mitsubishi Electric Q173HCPU Manuale del proprietario

Mitsubishi Electric

Mitsubishi Electric A1S68DAV Manuale utente

Mitsubishi Electric

Mitsubishi Electric PAC-AH125 Manuale utente

Manuali Unità di controllo popolari di altre marche

Festo

Festo Compact Performance CP-FB6-E Manuale elenco delle parti

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuale utente

JS Automation

JS Automation MPC3034A Manuale utente

JAUDT

JAUDT SW GII 6406 Series Guida rapida

Spektrum

Spektrum Air Module System Manuale utente

BOC Edwards

BOC Edwards Q Series Manuale utente

KHADAS

KHADAS BT Magic Manuale utente

Etherma

Etherma eNEXHO-IL Manuale utente

PMFoundations

PMFoundations Attenuverter Manuale utente

GEA

GEA VARIVENT Manuale utente

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuale utente

Altronix

Altronix LINQ8PD Istruzioni per il montaggio

Eaton

Eaton Powerware Series Manuale utente

WAGO

WAGO 750-407/040-000 Manuale utente

Sony

Sony CCU-590 Manuale utente

Graco

Graco 25D614 Manuale utente

Task Force Tips

Task Force Tips YE-RF-900 Manuale di programmazione

Shini

Shini SPV-U Series Manuale utente
