Monitor Audio Bronze BX Series Manuale utente
owners manual
Bx
Bronze
1
centre
2
5
series
Bx
Bronze
Bx
Bronze
Bx
Bronze
6
Bx
Bronze
Bx
Bronze
Bronze
Bronze BXW-10
BX-FX
monitoraudio.co.uk
Bronze BX Manual.indd 1 10/03/2010 10:55:26
Bronze BX Manual.indd 2 10/03/2010 10:55:26
monitoraudio.co.uk 1
CONTENTS PAGE
Introduction 3
Positioning 4
AV Positioning 4
2 Channel Positioning 7
Setting up the BX-FX 7
Plinth Fixing 8
Spikes and Feet 8
Grilles 9
Fixing the BX-FX to a Wall 9
Port Bungs 10
Specifications 11
Owner Information 12
Bronze BX Manual.indd 1 10/03/2010 10:55:26
Bronze BX2
Bronze BX Manual.indd 2 10/03/2010 10:55:26
monitoraudio.co.uk 3
INTRODUCTION
This is Bronze BX, Monitor Audio’s most affordable speaker range. Blending the best of
its award-winning predecessors with advanced technologies from our up-market RX and
flagship Platinum ranges, Bronze BX far exceeds the standards of performance and quality
you’d normally expect from an ‘entry level’ range.
By using ever more accurate computer simulations and introducing still more refined
materials and structures, we’ve fine-tuned our acclaimed Bronze Reference range to a new
industry high, developing its astonishingly precise and naturally dynamic sound to place
its successor, Bronze BX, on a level way beyond the capabilities of many more expensive
rivals.
In Bronze BX the benefits of our ceaseless search for audio purity are dedicated to your
enjoyment of music and film audio. And BX is engineered for stunning aesthetic results
as well. By harvesting greater accuracy and efficiency from comprehensive test and
measurement data, our in-house teams have created a beautiful union of breathtaking
fidelity and slender lifestyle design that represents the truest spirit of Monitor Audio.
Paradoxically for an entry level range, Bronze BX is a class apart.
Resplendent in a stunning Natural Oak, Rosemah, Walnut or black oak vinyl furniture finish
and built with the accuracy that exemplifies the Monitor Audio brand world-wide, the seven
slender Bronze BX models will look gorgeous in any room. Their understated elegance
hides a sophisticated ergonomic design, which includes multi-chamber cabinet structures
to optimise driver performance, high quality connections for ease-of-use and perfect signal
transfer and discreet precision-machined footings for excellent stability.
Bronze BX Manual.indd 3 10/03/2010 10:55:26
Bronze BX4
POSITIONING
AV Positioning
In the following pages, there are illustrations showing optimal positioning and some
suggested room layouts for AV applications. For advice on configuring a 2 channel system,
please refer to page 7.
The front, and in some cases rear, floor standing and stand mount speakers should be
positioned approx 6 - 9 feet apart (1.8m - 2.5m) and start with them about 10 inches
(25cm) from the wall.
When playing music, if the sound is too bass heavy or there is bass boom from the room,
then try moving the loudspeakers slightly further away from the wall(s). If this is not possible,
then try the supplied port bungs (not included in the BX-FX or BX Centre). Refer to Page
10.
The BX Centre should be positioned so that it is pointing at you, in your viewing position,
and at approximate ear height. If it is below or above ear height, use some rubber feet
(small feet supplied) to angle it slightly.

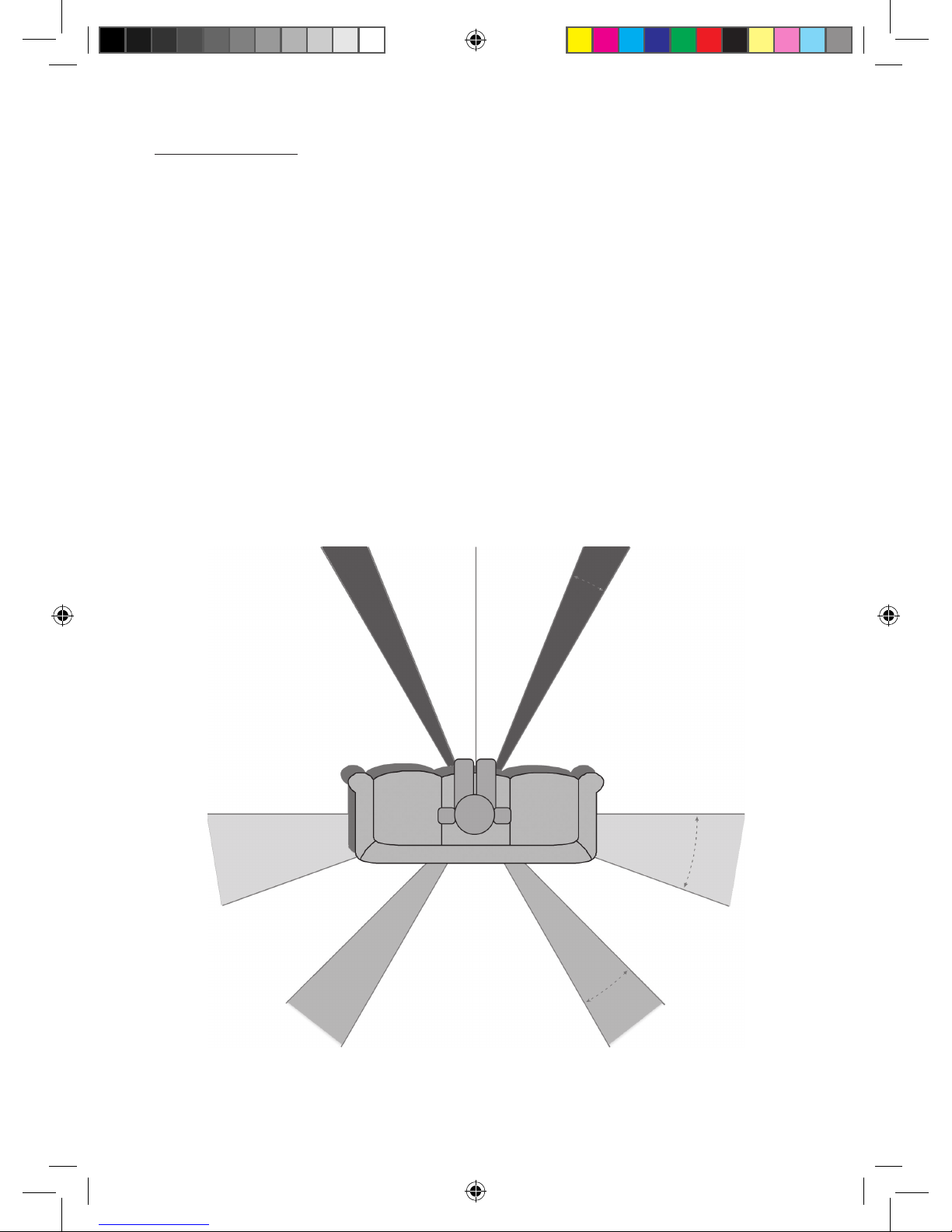

The BX-FX’s should be positioned in accordance with the below illustrations and approx 2
feet (60cm) above ear height when in your listening position.
22°
0°
30°
90°
110°
135°
150°
CentreLeft Right
Surround
Right
Surround
Left
Rear
Surround
Left
Rear
Surround
Right
Bronze BX Manual.indd 4 10/03/2010 10:55:27

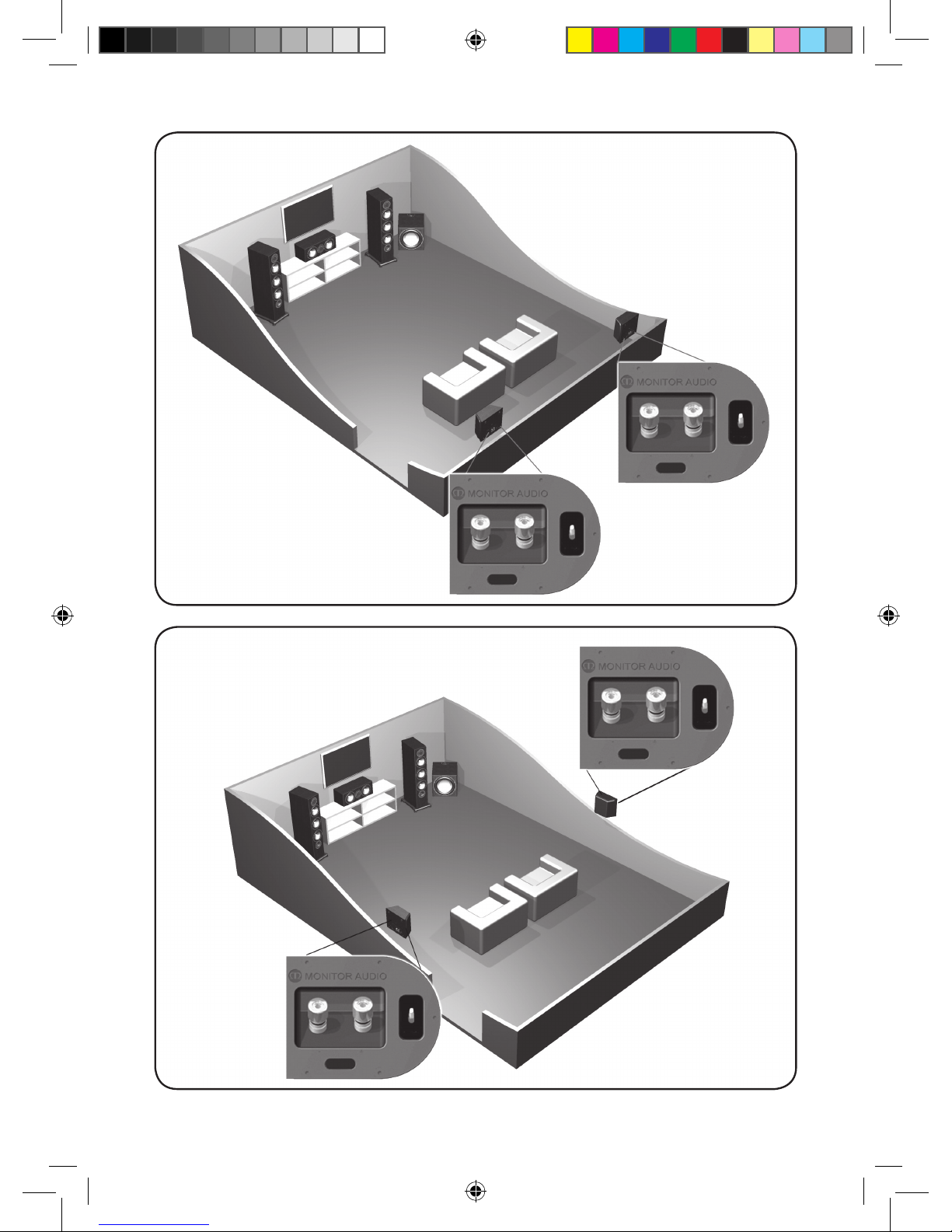

monitoraudio.co.uk 5
Di-Pole
Bi-Pole
LEFT
Di-Pole
Bi-Pole
RIGHT
Di-Pole
Bi-Pole
LEFT
Di-Pole
Bi-Pole
RIGHT
Bronze BX Manual.indd 5 10/03/2010 10:55:29

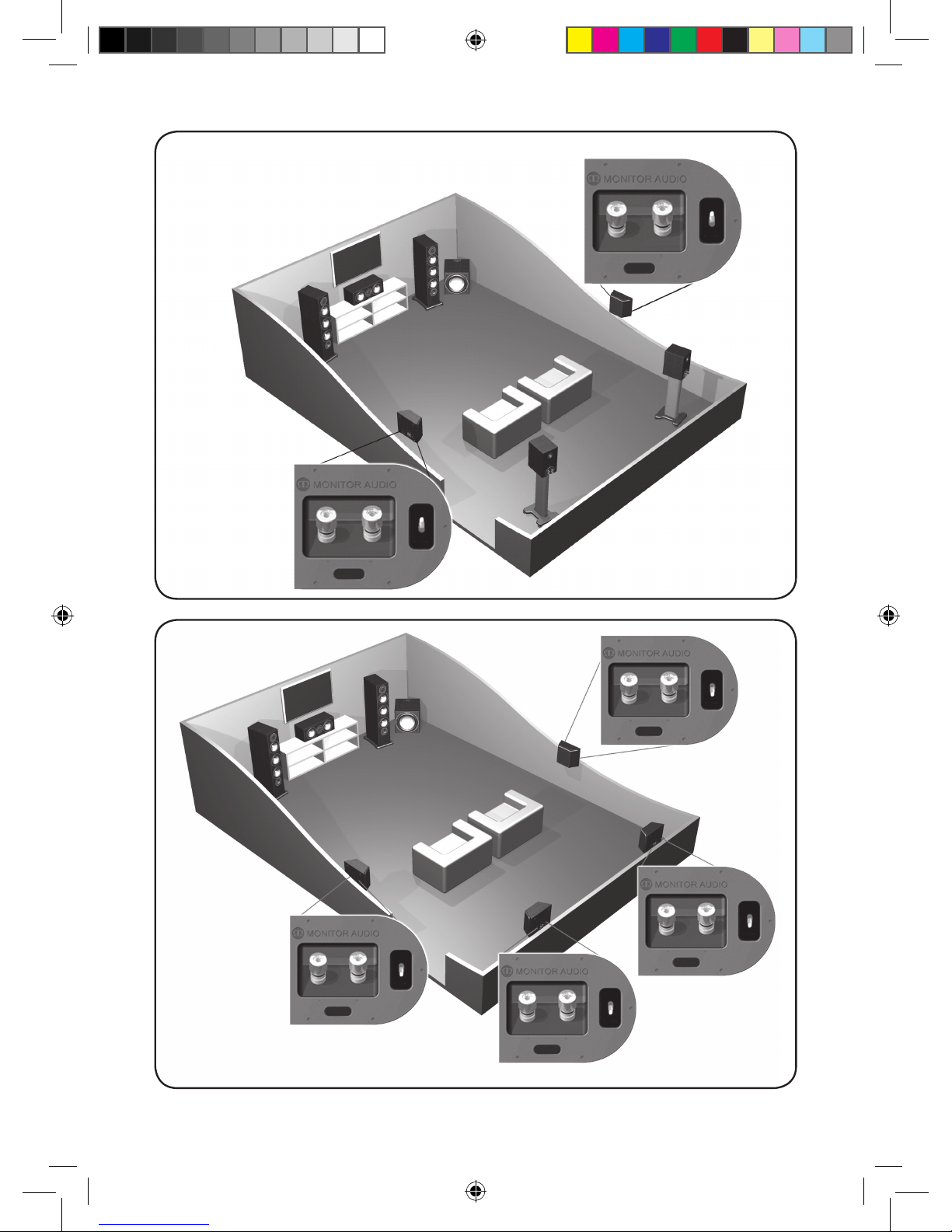

Bronze BX6
Di-Pole
Bi-Pole
RIGHT
Di-Pole
Bi-Pole
LEFT
Di-Pole
Bi-Pole
RIGHT
Di-Pole
Bi-Pole
RIGHT
Di-Pole
Bi-Pole
LEFT
Di-Pole
Bi-Pole
LEFT
Bronze BX Manual.indd 6 10/03/2010 10:55:31
monitoraudio.co.uk 7
NOTE: When using 2 pairs of BX-FX in a 7.1 system, you need to use the RIGHT
hand speaker for the rear surround left and the LEFT hand speaker for the rear
surround right. This is because of the tweeter phasing.
2 Channel Positioning
For use in a 2 channel system, the listening position and the loudspeakers should form an
equilateral triangle. The speakers should be positioned approximately 6 - 10 feet (1.8 - 3m)
apart. They ideally need to be between 8 - 18 inches (20 - 45cm) away from the rear and
3 feet (1m) from the side walls.
Experimentation is strongly advised when initially setting up your speakers, as environments
and personal preference differ with each installation. If there is not enough bass, for
example, then try moving your speakers closer to a wall. The opposite, if there is too much
bass. Also see the information on page 10 refering to Port Bungs. If you are loosing stereo
imaging, try ‘toeing’ them in slightly. The sound should appear to originate from the centre
point between the speakers, not the actual speakers themselves.
SETTING UP THE BX-FX
The Bronze BX-FX’s are paired, but specifically, right hand and left hand units. Of which
both can be configured to bi-pole (normal operation) or di-pole modes. The factory setting
is bi-pole.
In bi-pole mode, all speaker units (mid/bass unit and tweeters) are in phase. This feature is
designed for when the BX-FX is set up as a rear/surround speaker in a typical 5.1 channel
system, or alternatively in a 7.1 channel system without a second pair of BX-FX’s for rear/
surround duties.
In di-pole mode, the rear firing tweeters are out of phase with the other tweeter and mid/
bass unit. It is best to implement this configuration when using the two pairs BX-FX as part
of a 7.1 channel system, with the BX-FX’s taking up positions on the side and rear walls.
Please note that the BX-FX’s are left and right handed. This is not an issue when used in bi-
pole mode. It is essential that they are positioned correctly if used in a 7.1 channel system.
Please refer to the positioning section on page 6.
NOTE: Before changing your BX-FX’s from bi-pole mode to di-pole mode,
please ensure that the speaker wires are disconnected from your loudspeakers.
This helps to protect your amplifier.
Bronze BX Manual.indd 7 10/03/2010 10:55:32
Bronze BX8

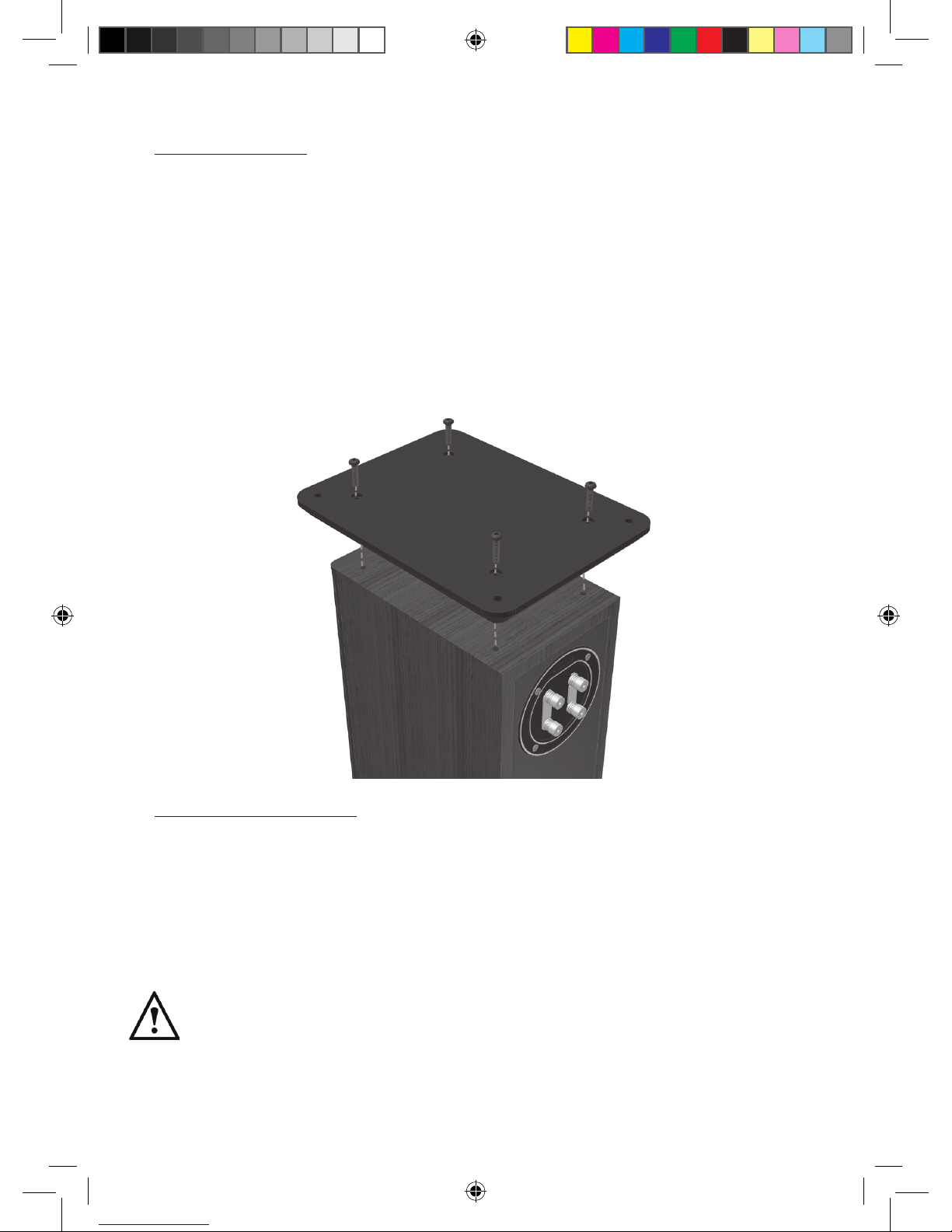

PLINTH FIXING
(BX5 & BX6 only)
The Bronze BX5 & BX6’s are provided with plinths to improve stability and acoustic response.
The plinths are secured in place by using the supplied bolts.
Before you fit the plinth ensure the floor area is clear of any hard/sharp objects. To fit the
plinth turn the cabinet over so that the bottom is facing upwards. Then, place the plinth
onto the cabinet ensuring the plinth is orientated correctly, lining up the bolt holes in the
plinth with the inserts in the cabinet. Using the bolts, secure the plinth to the cabinet.
Tighten them up gradually at first and ensure the plinth is fitted securely to the cabinet. Fit
the feet to the plinth before turning the loudspeaker back over. (Please read the instructions
opposite). The spikes are used to improve sound quality and bass performance
SPIKES AND FEET
The floorstanders from the Bronze BX Series come with spikes and separate rubber feet.
The spikes are to be used on carpeted floors and the rubber feet for use on hard floors
where spikes are not appropriate.
The spikes screw into the threaded inserts on the underside of the plinth. If you do not wish
to use the plinth, spikes can be fixed directly into the bottom of the cabinet. Ensure there
are no trailing cables where the speakers will be sited.
NOTE: When used without the plinth the stability of the cabinet will be reduced
because the cabinet footprint will be reduced.
When used on hard floor, the rubber feet simply push into the same inserts that would
usually be occupied by the spikes.
Bronze BX Manual.indd 8 10/03/2010 10:55:34
