DT-5BT Desktop Speakers

P/N 36573

User's Manual

SAFETY WARNINGS AND GUIDELINES

Please read this entire manual before using this device, paying extra attention to these

safety warnings and guidelines. Please keep this manual in a safe place for future

reference.

These speakers are intended for indoor use only.

Do not expose these speakers to water or moisture of any kind. Do not place

drinks or other containers with moisture on or near them. If moisture does get in

or on them, immediately unplug them from the power outlet and allow them to

fully dry before reapplying power.

Do not touch these speakers, the power cord, or any other connected cables

with wet hands.

If operating these speakers in a humid environment, ensure that no

condensation occurs. Condensation could cause damage to the speaker cone

and could cause a short in the amplifier, which in turn could cause fire or severe

electric shock.

Do not expose these speakers to excessively high temperatures. Do not place

them in, on, or near heat sources, such as a fireplace, stove, radiator, etc. Do not

leave them in direct sunlight.

Prior to operation, check the speakers and power cord for physical damage. Do

not use if physical damage has occurred.

Before plugging these speakers into a power outlet, ensure that the outlet

provides the same type and level of power required.

Take care to prevent damage to the power cord. Do not allow it to become

crimped, pinched, walked on, or become tangled with other cords. Ensure that

the power cord does not present a tripping hazard.

Never unplug the speakers by pulling on the power cord. Always grasp the

connector head or adapter body.

Clean using a soft, dry cloth only. Do not use chemical cleaners, solvents, or

detergents. For stubborn deposits, moisten the cloth with warm water.

This device has no user serviceable parts. Do not attempt to open, service, or

modify this device.

FEATURES

5.25" polypropylene cone woofer

0.75" silk dome tweeter

45Hz ~ 20kHz frequency response

Class AB amplifiers with 2x 15 watts to the woofers and 2x 10 watts to the

tweeters

Stereo RCA, stereo 3.5mm TRS, stereo 1/4" TRS balanced inputs, and Bluetooth®

inputs

Includes 3.5mm headphone output

CUSTOMER SERVICE

The Monoprice Customer Service department is dedicated to ensuring that your

ordering, purchasing, and delivery experience is second to none. If you have any

problem with your order, please give us an opportunity to make it right. You can

contact a Monoprice Customer Service representative through the Live Chat link on our

website www.monoprice.com or via email at su[email protected]. Check the

website for support times and links.

PACKAGE CONTENTS

Please take an inventory of the package contents to ensure you have all the items listed

below. If anything is missing or damaged, please contact Monoprice Customer Service

for a replacement.

1x Pair DT-5BT Speakers

1x Speaker Interconnect Cable

1x 3.5mm Stereo Audio Cable

1x Stereo RCA Audio Cable

1x Foot Mat

1x User's Manual

PRODUCT OVERVIEW

Front View

1. 0.75" Silk Dome Tweeters

2. 5.25" Polypropylene Cone Woofers

3. 3.5mm AUX Input

4. 3.5mm Headphone Output

5. LED Bluetooth® Indicator

6. LED Power Indicator

7. Volume Knob

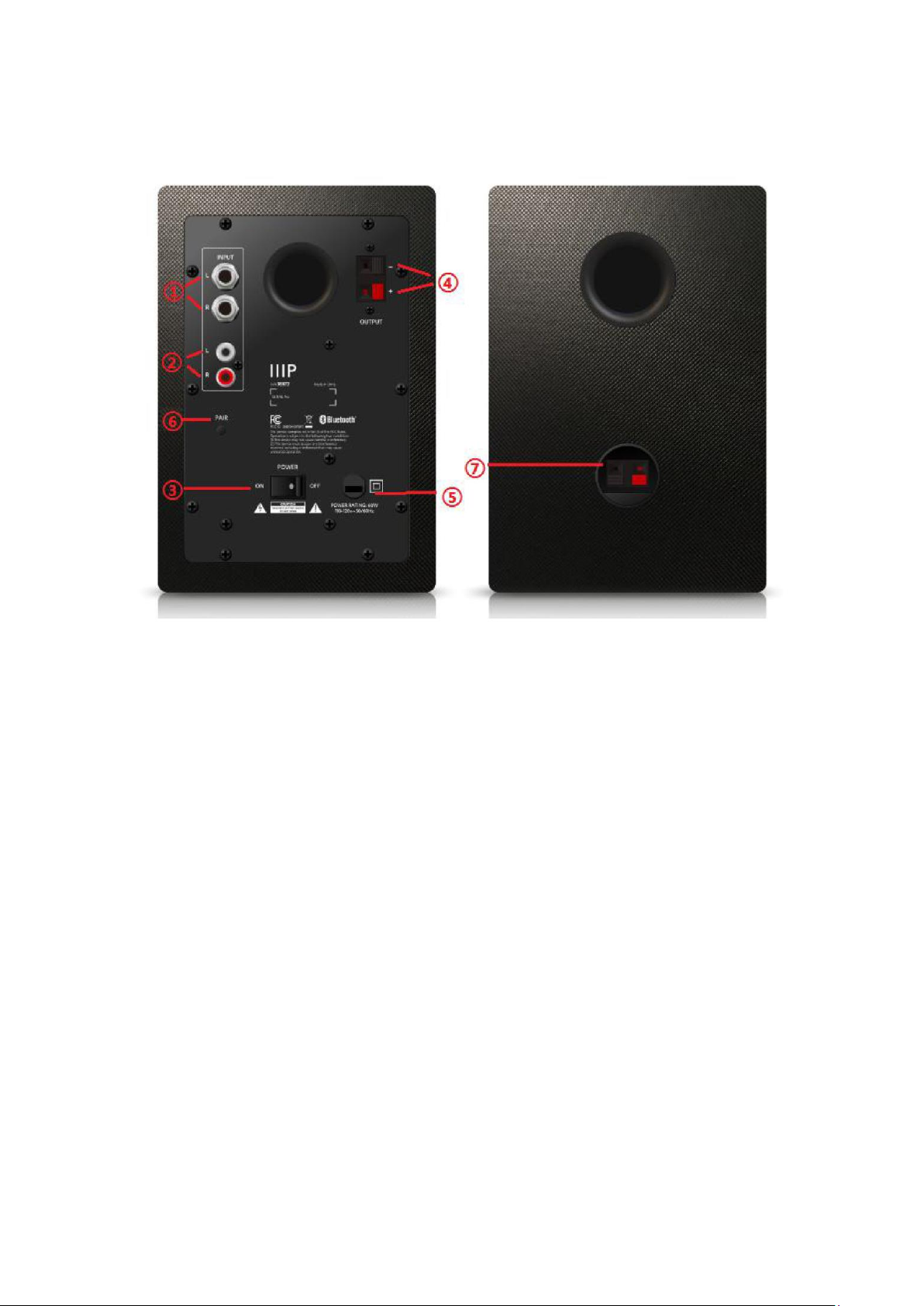

Rear View

1. Stereo 1/4" TRS Balanced Input

2. Stereo RCA Input

3. Power Switch

4. Speaker Output Connector (Master Speaker)

5. AC Power Cord

6. Bluetooth® Pairing Button

7. Speaker Input Connector (Slave Speaker)

INSTALLATION

Perform the following steps to install these speakers.

1. Ensure that the Power Switch on the Master Speaker is in the OFF position.

2. Rotate the Volume Knob on the Master Speaker fully counterclockwise.

3. Connect one end of the included Speaker Interconnect Cable to the Speaker

Input Connector on the rear panel of the Slave Speaker, then connect the other

end to the Speaker Output Connector on the rear panel of the Master Speaker.

4. (Optional) Plug one end of the included 3.5mm Stereo Audio Cable into the

3.5mm AUX Input on the front panel of the Master Speaker, then plug the other

end into the output of your audio source device.

5. (Optional) Plug one end of the included Stereo RCA Audio Cable into the Stereo

RCA Input on the rear panel of the Master Speaker, then plug the other end into

the output of your audio source device.

6. (Optional) Plug one end of a 1/4" TRS or TS audio cable (not included) into the

left channel Stereo 1/4" TRS Balanced Input on the rear panel of the Master

Speaker, then plug the other end into the left channel output of your audio

source device. Repeat for the right channel.

7. Plug the AC Power Cord into a nearby AC power outlet.

Note that the output of the speakers is the sum of all inputs. Unless you specifically

want to listen to a mix of different sources, only one audio input should be in active use

at a time.

BLUETOOTH PAIRING

Perform the following steps to pair your mobile device with the speakers.

1. Flip the Power Switch on the rear panel of the Master Speaker to the ON

position. The LED Power Indicator on the front panel will illuminate.

2. Momentarily press and release the Bluetooth Pairing Button on the rear panel of

the Master Speaker. The LED Bluetooth Indicator on the front panel will begin

flashing, indicating that the speaker is in Bluetooth pairing mode.

3. Open the Bluetooth settings on your mobile device, then scan for nearby

Bluetooth devices.

4. Locate and select the DT-5BT entry. If prompted for a passcode, enter 0000 (four

zeroes). The LED Bluetooth Indicator will cease flashing, indicating that the

Bluetooth connection has been successfully made.

Note that once paired with your mobile device, the speakers will remember the pairing.

To reconnect after the connection has been broken, open the Bluetooth settings on

your mobile device and select Connect to reestablish the connection.

OPERATION

1. Rotate the Volume Knob on the front panel of the Master Speaker fully

counterclockwise.

2. Flip the Power Switch on the rear panel of the Master Speaker to the ON

position. The LED Power Indicator on the front panel will illuminate.

3. Start audio playback on your audio source device.

4. Slowly rotate the Volume Knob clockwise until the volume is at a comfortable

listening level.

TECHNICAL SUPPORT

Monoprice is pleased to provide free, live, online technical support to assist you with

any questions you may have about installation, setup, troubleshooting, or product

recommendations. If you ever need assistance with your new product, please come

online to talk to one of our friendly and knowledgeable Tech Support Associates.

Technical support is available through the online chat button on our website

www.monoprice.com or through email by sending a message to [email protected]om.

Check the website for support times and links.

SPECIFICATIONS

Model

36573

Woofer

5.25" polypropylene cone

Tweeter

0.75" silk dome

Amplifier Type

Class AB

Woofer Amplifier Power

15 watts/channel

Tweeter Amplifier Power

10 watts/channel

Frequency Response

45Hz ~ 20kHz

Inputs

1x 3.5mm AUX, 1x Stereo RCA,

1x stereo balanced 1/4" TRS, Bluetooth®

Output

1x 3.5mm headphone

Bluetooth Version

Bluetooth Pairing Name

DT-5BT

Input Power

110 ~ 120 VAC, 50/60 Hz

Dimensions (each)

7.3" x 10.3" x 8.0" (185 x 261 x 203 mm)

REGULATORY COMPLIANCE

Notice for FCC

This device complies with Part 15 of the FCC rules. Operation is subject to the following

two conditions: (1) this device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that may cause undesired

operation.

Modifying the equipment without Monoprice's authorization may result in the

equipment no longer complying with FCC requirements for Class B digital devices. In

that event, your right to use the equipment may be limited by FCC regulations, and you

may be required to correct any interference to radio or television communications at

your own expense.

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on,

the user is encouraged to try to correct the interference by one or more of the

following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Radio Notice for FCC

Caution

This FCC Part 15 radio device operates on a non-interference basis with other devices

operating at this frequency. Any changes or modification to said product not expressly

approved by Monoprice, including the use of non-approved antennas, could void the

user’s authority to operate this device.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) this device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that may cause undesired

operation.

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

This equipment should be installed and operated with minimum distance 20cm between the radiator &

your body.

Notice for Industry Canada

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

Radio Notice for Industry Canada

Caution

This IC RSS-210 radio device operates on a non-interference basis with other devices

operating at this frequency. Any changes or modification to said product not expressly

approved by Monoprice, including the use of non-approved antennas, could void the

user’s authority to operate this device.

This device complies with IC RSS-210. Operation is subject to the following two

conditions: (1) this device may not cause harmful interference, and (2) this device must

accept any interference received, including interference that may cause undesired

operation.

The Bluetooth® word mark and logos are registered trademarks of Bluetooth SIG, Inc.
