Monster Medium Articulating Mount Manuale tecnico

Medium Articulating Mount

Support de montage

articulé, format moyen

Base articulada mediana

Suporte articulado médio

FLATSCREEN

MOUNTS

USER GUIDE & WARRANTY

GUIDE DE L’UTILISATEUR ET GARANTIE

GUÍA DEL USUARIO Y GARANTÍA

GUIA DO USUÁRIO E GARANTIA

ENGLISH

A NOTE FROM THE HEAD MONSTER

THANK YOU for purchasing

a Monster Flatscreen™ Articulating

Mount. This mount reects our passion

for creating the most innovative and

practical AV solutions on the market

to enhance your viewing experience.

Monster Flatscreen Articulating

Mounts are safe, secure, and easy to

install. Extending swing arms and

an all-directional pivot joint provide

almost innite viewing possibilities. Start enjoying TV on your

terms—when, where and how you want to watch.

Noel Lee,

The Head Monster

ENGLISH

More Great Products from Monster FlatScreen™

Get the Look You Want and the Performance You Need.

Monster FlatScreen CleanView™ Cable Manager

Conceal unruly cords and cables for a clean, sleek look.

Easy to install with paintable covers to match any décor.

Monster FlatScreen Cables™

Monster Flatscreen Cables are compact

and exible for easy routing and installation.

Exclusive Monster patented technologies

deliver the advanced performance you need

from your atscreenTV.

Monster FlatScreen PowerProtect™and PowerCenters™

Protect your atscreenTV from harmful surges

and spikes and maximize performance with

Monster Tri-Mode® surge protection and HD

Clean Power® ltering, designed specically

for HDTVs.

Monster FlatScreen Clean™

Safely clean your LCD or plasma atscreen

TV without staining, streaking, or dripping.

Ultra-soft MicroFiber cloth won’t scratch

delicate screen coatings.

For more details on all our Monster FlatScreen products,

visit us at MonsterCable.com/FlatScreen

ENGLISH

Medium Articulating FlatScreen Mount

This mount is designed to mount 27"-to-46" atscreen

televisions to vertical walls. Maximum weight capacity

is 100 lbs.

SAFETY WARNING: If you don’t understand these

directions, or have doubts about this product’s installation,

please call a qualied contractor or contact Monster Cable

Products, Inc.

U.S. and Mexico customers: call 1-877-800-8989

Canada customers: call 1-866-348-4171

Before installing, carefully review the instructions

to ensure that no parts are missing or defective. Improper

installation can cause damage or serious injury. Do not use

this product for any purpose not explicitly specied

by Monster. Monster is not liable for damage or injury

caused by incorrect assembly, incorrect mounting

or incorrect use.

All hardware is supplied for the following wall conditions:

Wood stud, brick, solid concrete, and concrete block.

Note: The supplied hardware is not for steel stud walls.

If you are uncertain about the nature of your wall

construction, consult an installation contractor.

FLATSCREEN

MOUNTS

ENGLISH

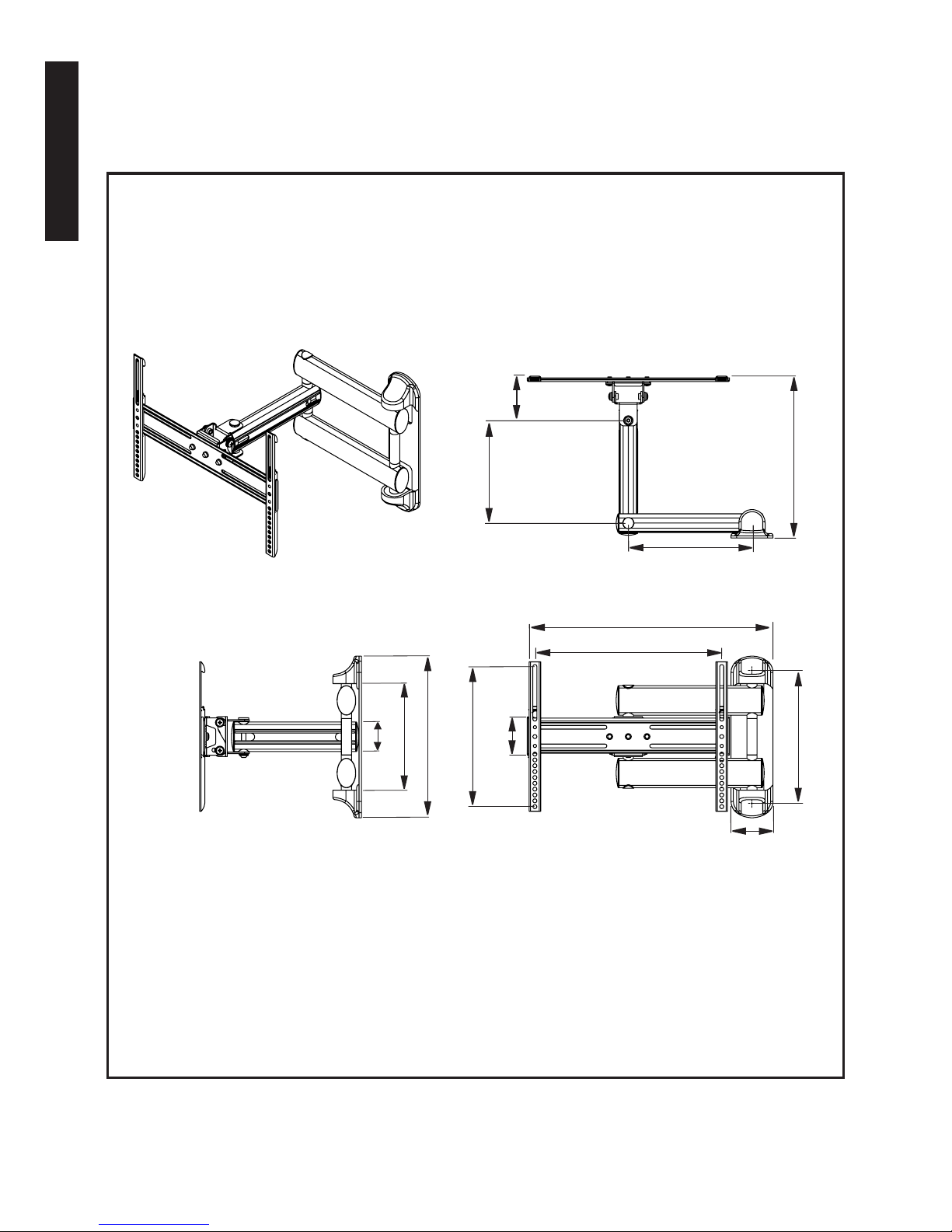

Specications and Notes:

8.7" (22cm) 3.7"

(9.5cm)

13.6" (34.6cm)

10.5" (26.6cm)

20.7" (52.6cm)

15.7" (40cm)

11.2" (28.5cm)

3.5" (9cm)

11.8" (30cm)

(7.5cm)

2.5" (6.3cm)

9" (22.8cm)

13.6" (34.6cm)

Monster is constantly striving to improve its products.

Specications are subject to change without notice.

VESA™100x100/200x100/200x200/300x200/400x200/300x300/

400x300/400x400 Compliant

ENGLISH

Required Tools

Wood Stud Mounting:

Electronic stud sensor•

Level (included)•

Electric hand drill•

3/16" drill bit•

Phillips screwdriver•

Combination wrenches or socket set•

Masonry Mounting

(brick, solid concrete, concrete blocks):

Above tools, plus hammer•

Replace 3/16" drill bit with 1/2" masonry drill bit•

Adapter Included for VESA™400x400 Pattern:

VESA is an international organization that

sets industry-wide standards for consumer

electronics. VESA information referred

to in this manual describes the patterns

of holes in the back of your TV and how they

match to specic Monster Flatscreen™mounts.

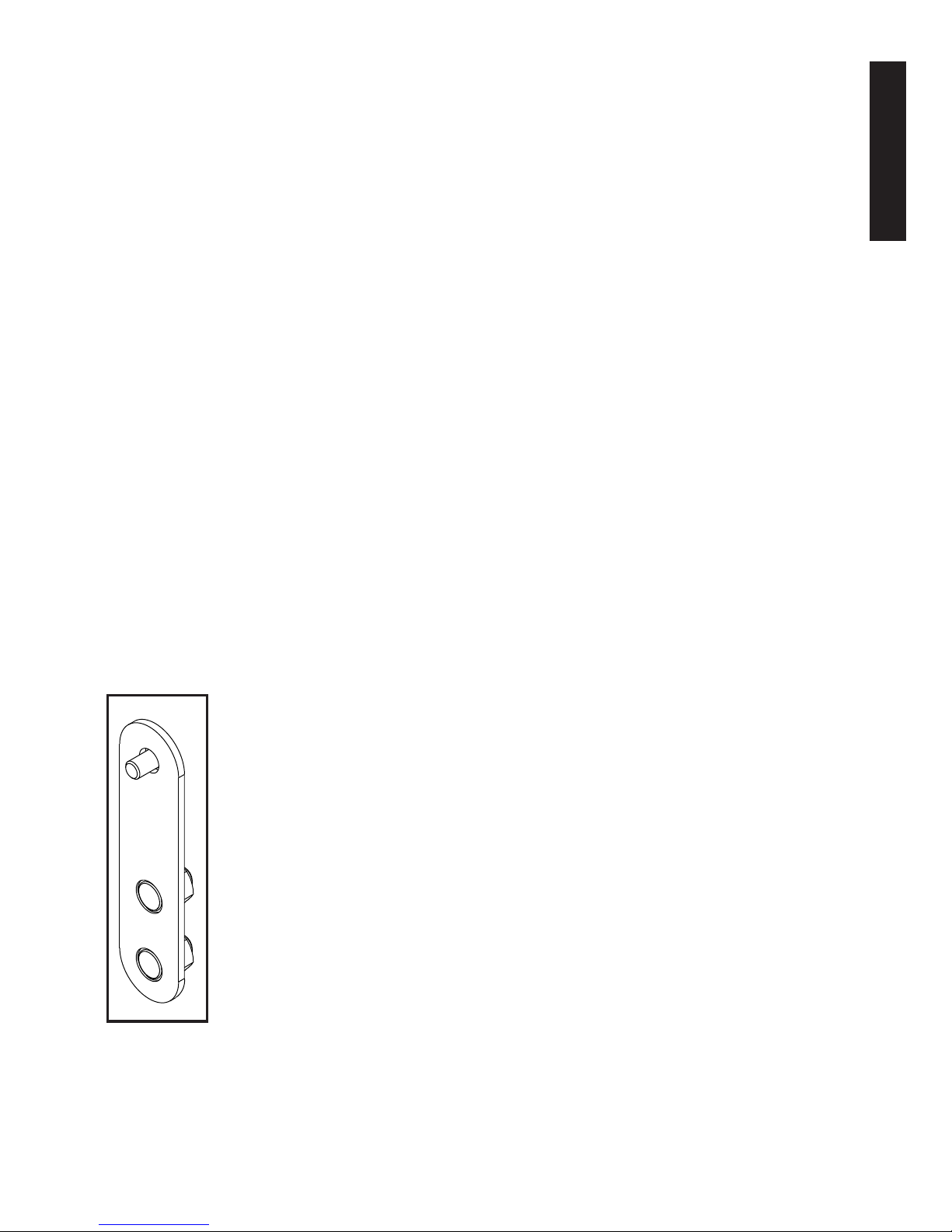

Four extension adapters are included to extend

the mount’s VESA compliant standard to 400x

400mm. If your TV’s VESA pattern requires this

adapter, refer to pages 14-15 for instructions.

3.9" (10cm)

2" (5cm)

3" (7.5cm)

1" (2.5cm)

ENGLISH

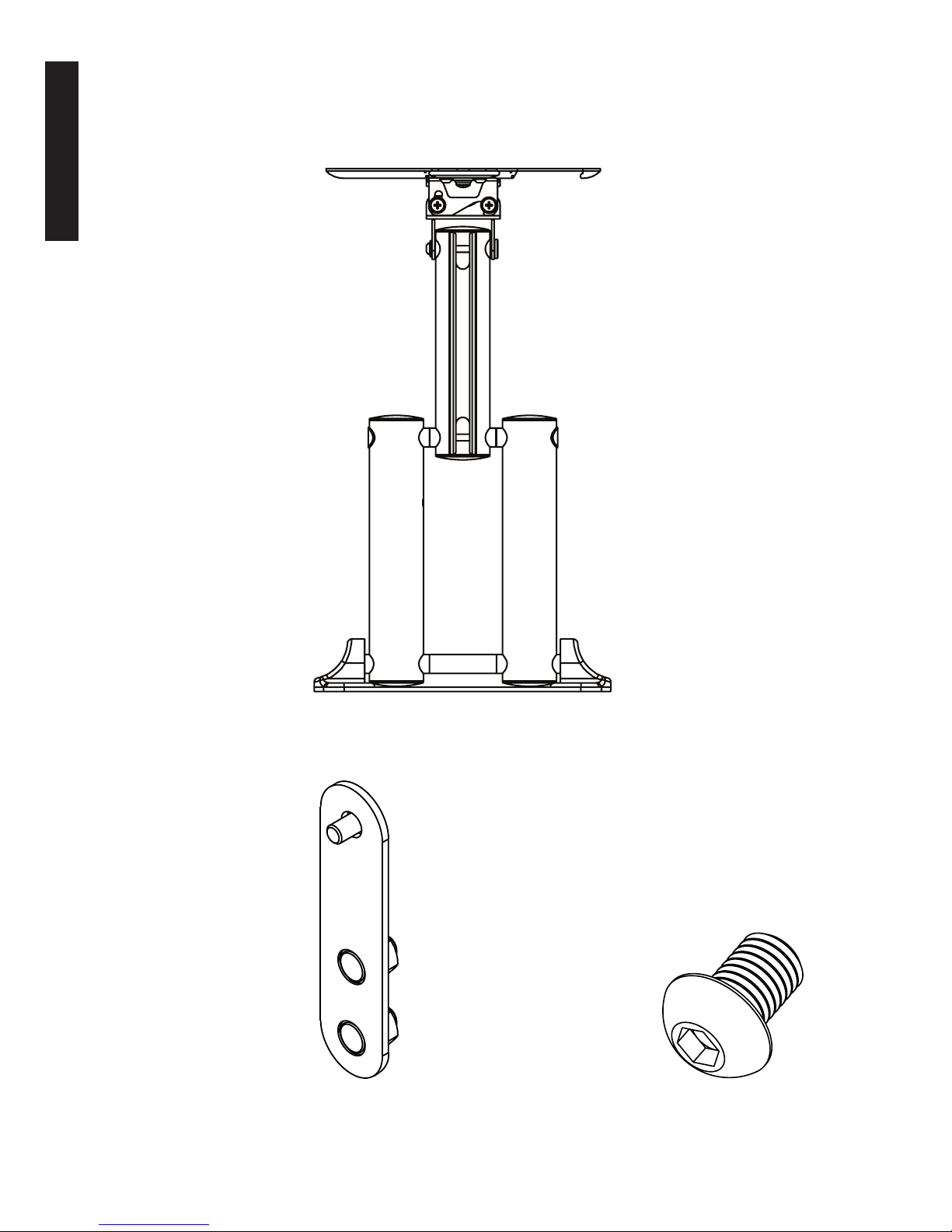

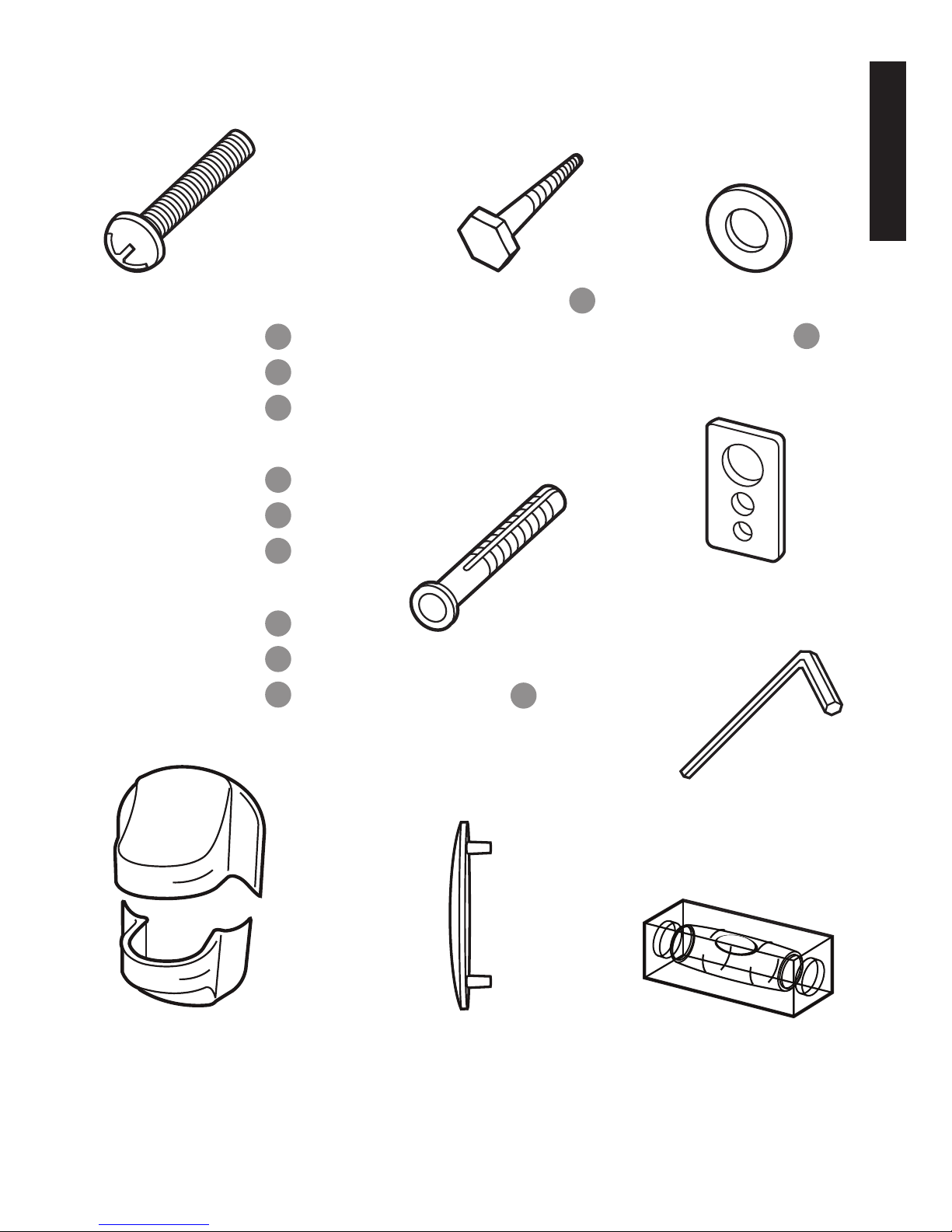

Package Contents

1 Mounting System

4 Adapters 4 Allen Head Screws

ENGLISH

2 Allen

Wrenches

Phillips Screws

4 ea. M4x12 A

4 ea. M4x25 B

4 ea. M4x40 C

4 ea. M5x12 D

4 ea. M5x25 E

4 ea. M5x40 F

4 ea. M6x12 G

4 ea. M6x25 H

4 ea. M6x40 I

Bubble

Level

2 Round

Washers K

2 Lag Bolts J

2 Concrete

Anchors L

If any parts are missing, please call 800-877-8989. Parts in supplied hardware kit

are numbered as above.

2 Quick-Snap

Screw Caps

5 End Caps

4 Square Washers

ENGLISH

Important: Read Before Installing

Warning:

DO NOT install on a sloping surface. Install

exclusively on a vertical surface.

DO NOT mount to cabinetry made of particleboard.

DO NOT install in a room with excessively high

temperatures or high humidity. Install at least 3 ft.

from all water sources.

DO NOT install near an air conditioner.

DO NOT install in a location where there

is excessive dust, smoke or moisture.

These sources can create a re.

DO NOT apply unnecessary stress or load

on the installed unit. Never hang on the unit.

DO NOT install the unit alone. Safe installation

requires at least two people.

DO NOT route your atscreen TV’s power cord

in wall. Check local building/electrical codes

for more information.
