Monster TABLE MOUNT Manuale utente
TABLE MOUNT
Instruction Manual
Bedienungsanleitung
Mode d‘emploi
2MTSIM TABLE MOUNT INSTRUCTION MANUAL

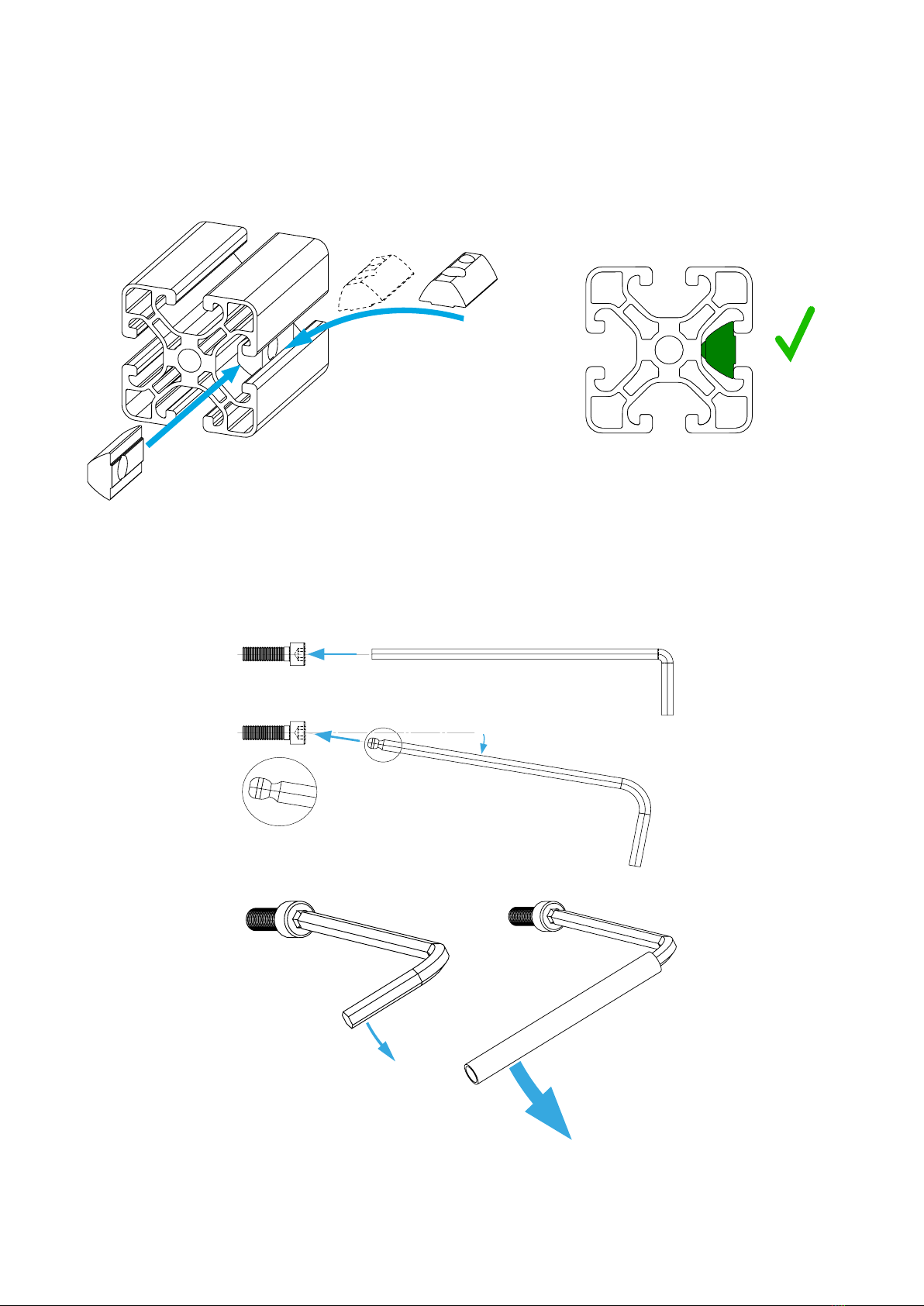

GENERAL ASSEMBLY INFO AND HOW TO
PROFILE NUT
HEX KEY SET WITH BALL HEAD + EXTENSION OR SIMILAR REQUIRED
3MTSIM TABLE MOUNT INSTRUCTION MANUAL
UNIVERSAL CONNECTOR
M8x30
Nut M8
Ø8mm
35
8
25
8
M8x35 M8x25
BOLT DIMENSIONS AND HOW TO MEASURE THEM [mm]
4MTSIM TABLE MOUNT INSTRUCTION MANUAL
PROFILE CAP ASSEMBLY
5MTSIM TABLE MOUNT INSTRUCTION MANUAL
TABLE MOUNT ASSEMBLY
2x
slot nut
M8
6MTSIM TABLE MOUNT INSTRUCTION MANUAL
2x
M8x30
2x
universal
connector
7MTSIM TABLE MOUNT INSTRUCTION MANUAL
2x
slot nut
M8
8MTSIM TABLE MOUNT INSTRUCTION MANUAL
2x
M8x16
9MTSIM TABLE MOUNT INSTRUCTION MANUAL

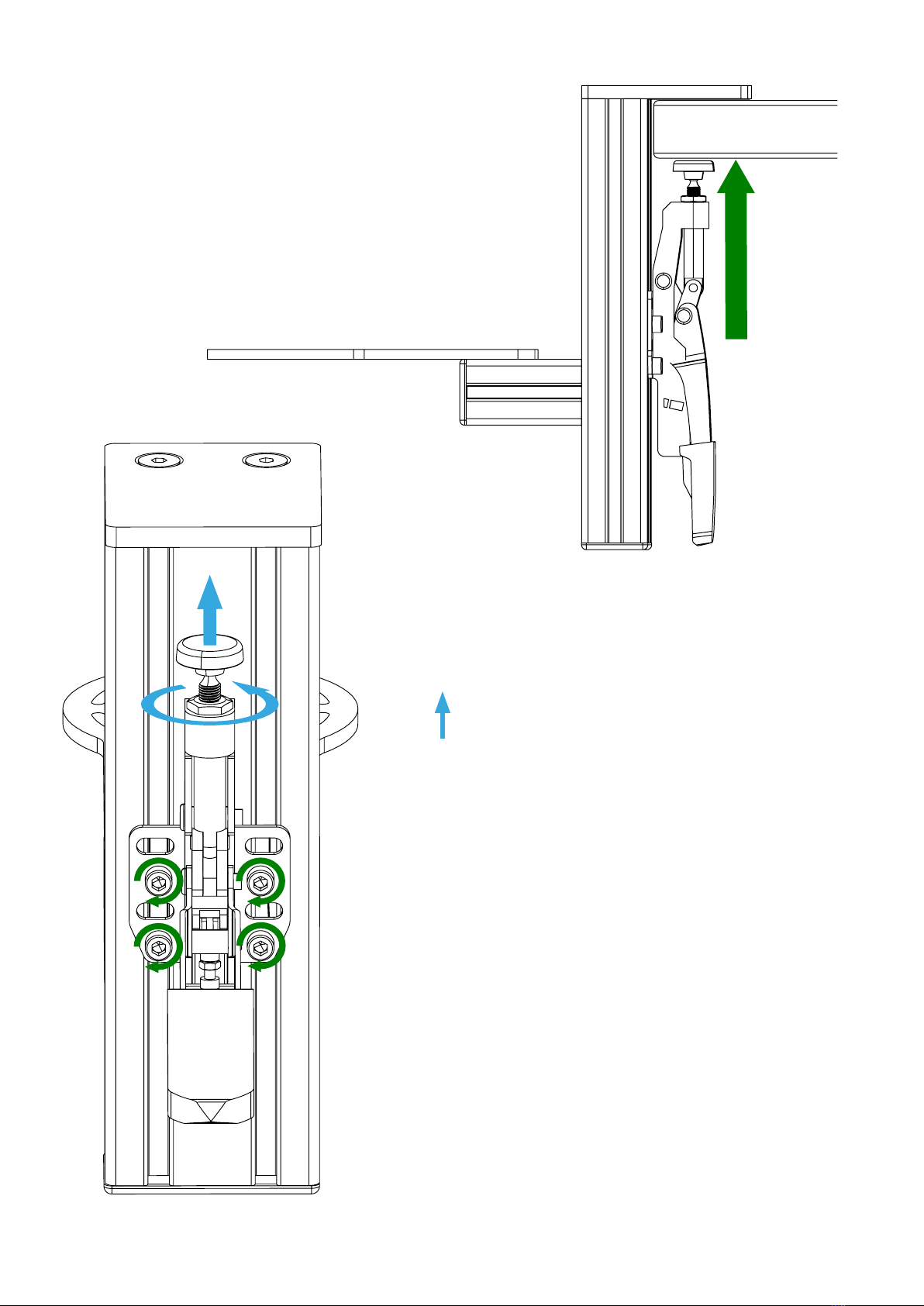

CLAMPING ADJUSTMENT
10MTSIM TABLE MOUNT INSTRUCTION MANUAL
1.
screw out approx. 5mm
to adjust the clamping
force
3.
2.
