59cm Ceramic Hob - Side Control

MCH59CK

Please read these instructions carefully before attempting to install or use this appliance.

We recommend that you keep these instructions in a safe place for future reference.

We recommend that you keep this manual in a safe place for future

reference.

Your appliance is covered by a comprehensive two year Parts & Labour

Guarantee. In the unlikely event that you experience a problem with your

appliance, you can rest assured that you are fully protected against the cost of

repairs for the first 24 months . Please note that any claim must be accompanied

by the model reference number, serial number and proof of purchase.

To activate your guarantee, you will need your product serial number. This can

be found inside your appliance.

NB: Please make sure that you keep a copy of your original sales invoice as this

will be needed if any service call is required.

There are three ways to register your Guarantee:

•

Online: Visit the Support page on our website and complete the online

Product Registration form. www.montpellier-appliances.com

By Post: Simply detach and fill in the form provided, attach a stamp and send

it in the post. Don't forget to include your e-mail address so that we can send

confirmation through to you.

By Phone: Contact our warranty registration department on 0808 1961388

Welcome

Thank you for choosing this Montpellier appliance.

Our appliances have been designed to provide you with the best combination of style, reliability and performance to

give you years of trouble-free use.

You may be familiar with a similar product, but please take time to read these instructions carefully before installing or

using your appliance to ensure you get the most from your purchase.

ACROSS ALL OUR MODELS

YEAR

GUARANTEE

PA R T S & L A B O U R

www.montpellier-appliances.com

•

Thank you for choosing this product.

This User Manual contains important safety information and instructions on the operation and

maintenance of your appliance.

Please take the time to read this User Manual before using your appliance and keep this book for

future reference.

The design and specifications are subject to change without prior notice for product improvement.

THANK YOU LETTER

Thank you for choosing Montpellier! Before using your new Montpellier product, please

read this manual thoroughly to ensure that you know how to operate the features and

functions that your new appliance offers in a safe way.

CONTENTS

THANK YOU LETTER

SAFETY INSTRUCTIONS

SPECIFICATIONS

PRODUCT INSTALLATION

PRODUCT OVERVIEW

QUICK START GUIDE

OPERATION INSTRUCTIONS

CLEANING AND MAINTENANCE

TROUBLESHOOTING

DISPOSAL AND RECYCLING

HERE FOR YOU

Intended Use

The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe

or incorrect operation of the appliance. Please check the packaging and appliance on arrival to

make sure everything is intact to ensure safe operation. If you find any damage, please contact

the retailer or dealer. Please note modifications or alterations to the appliance are not allowed

for your safety concern. Unintended use may cause hazards and loss of warranty claims.

SAFETY INSTRUCTIONS

SAFETY WARNINGS

Electrical Shock Hazard

Your safety is important to us. Please read this information before using your cooktop.

INSTALLATION

•Disconnect the appliance from the mains electricity supply before carrying out any work or

maintenance on it.

•Connection to a good earth wiring system is essential and mandatory.

•Alterations to the domestic wiring system must only be made by a qualified electrician.

•Failure to follow this advice may result in electrical shock or death.

Cut Hazard

•Take care - panel edges are sharp.

•Failure to use caution could result in injury or cuts.

Important Safety Instructions

•Read these instructions carefully before installing or using this appliance.

•No combustible material or products should be placed on this appliance at any time.

•Please make this information available to the person responsible for installing the appliance as

it could reduce your installation costs.

•In order to avoid a hazard, this appliance must be installed according to these instructions for

installation.

•This appliance is to be properly installed and earthed only by a suitably qualified person.

•This appliance should be connected to a circuit which incorporates an isolating switch providing

full disconnection from the power supply.

•Failure to install the appliance correctly could invalidate any warranty or liability claims.

•This appliance can be used by children aged from 8 years and above and persons with

reduced physical, sensory or mental capabilities or lack of experience and knowledge if they

have been given supervision or instruction concerning use of the appliance in a safe way and

understand the hazards involved.

OPERATION AND MAINTENANCE

Electrical Shock Hazard

•Do not cook on a broken or cracked cooktop. If the cooktop surface should break or crack,

switch the appliance off immediately at the mains power supply (wall switch) and contact a

qualified technician.

•Switch the cooktop off at the wall before cleaning or maintenance.

•Failure to follow this advice may result in electrical shock or death.

•Children shall not play with the appliance. Cleaning and user maintenance shall not be made

by children without supervision.

•If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or

similarly qualified persons in order to avoid a hazard.

•WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric

shock, for hob surfaces of glass-ceramic or similar material which protect live parts.

•Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface

since they can get hot.

•A steam cleaner is not to be used.

•Do not use a steam cleaner to clean your cooktop.

•The appliance is not intended to be operated by means of an external timer or separate

remote-control system.

•WARNING: Danger of fire: do not store items on the cooking surfaces.

•The cooking process has to be supervised. A short term cooking process has to be supervised

continuously.

•WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in

fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame

e.g. with a lid or a fire blanket.

•During use, accessible parts of this appliance will become hot enough to cause burns.

•Do not let your body, clothing or any item other than suitable cookware contact the glass

until the surface is cool.

•Keep children away.

•Handles of saucepans may be hot to touch. Check saucepan handles do not overhang other

cooking zones that are on. Keep handles out of reach of children.

•Failure to follow this advice could result in burns and scalds.

Hot Surface Hazard

Cut Hazard

•The razor-sharp blade of a cooktop scraper is exposed when the safety cover is retracted. Use

with extreme care and always store safely and out of reach of children.

•Failure to use caution could result in injury or cuts.

Important safety instructions

•Never leave the appliance unattended when in use. Boil over causes smoking and greasy spill

overs that may ignite.

•Never use your appliance as a work or storage surface.

•Never leave any objects or utensils on the appliance.

•Never use your appliance for warming or heating the room.

•After use, always turn off the cooking zones and the cooktop as described in this manual.

•Do not allow children to play with the appliance or sit, stand, or climb on it.

•Do not store items of interest to children in cabinets above the appliance. Children climbing on

the cooktop could be seriously injured.

•Do not leave children alone or unattended in the area where the appliance is in use.

•Children or persons with a disability which limits their ability to use the appliance should have a

responsible and competent person to instruct them in its use. The instructor should be satisfied

that they can use the appliance without danger to themselves or their surroundings.

•Do not repair or replace any part of the appliance unless specifically recommended in the

manual. All other servicing should be done by a qualified technician.

•Do not place or drop heavy objects on your cooktop.

•Do not stand on your cooktop.

•Do not use pans with jagged edges or drag pans across the Induction glass surface as this can

scratch the glass.

•Do not use scourers or any other harsh abrasive cleaning agents to clean your cooktop, as

these can scratch the ceramic glass.

•This appliance is intended to be used in household and domestic applications only.

•WARNING: The appliance and its accessible parts become hot during use.

•Care should be taken to avoid touching heating elements.

•Children less than 8 years of age shall be kept away unless continuously supervised.

SPECIFICATIONS

MCH59CK

Cooking Hob

Cooking Zones

Supply Voltage

Installed Electric Power

Product Size L×W×H(mm)

Building-in Dimensions A°B (mm)

4 Zones

220-240V~ 50Hz or 60Hz

5500-6600W

590X520X55

Weight and Dimensions are approximate. Because we continually strive to improve our

products we may change specifications and designs without prior notice.

560X490

PRODUCT INSTALLATION

Selection of Installation Equipment

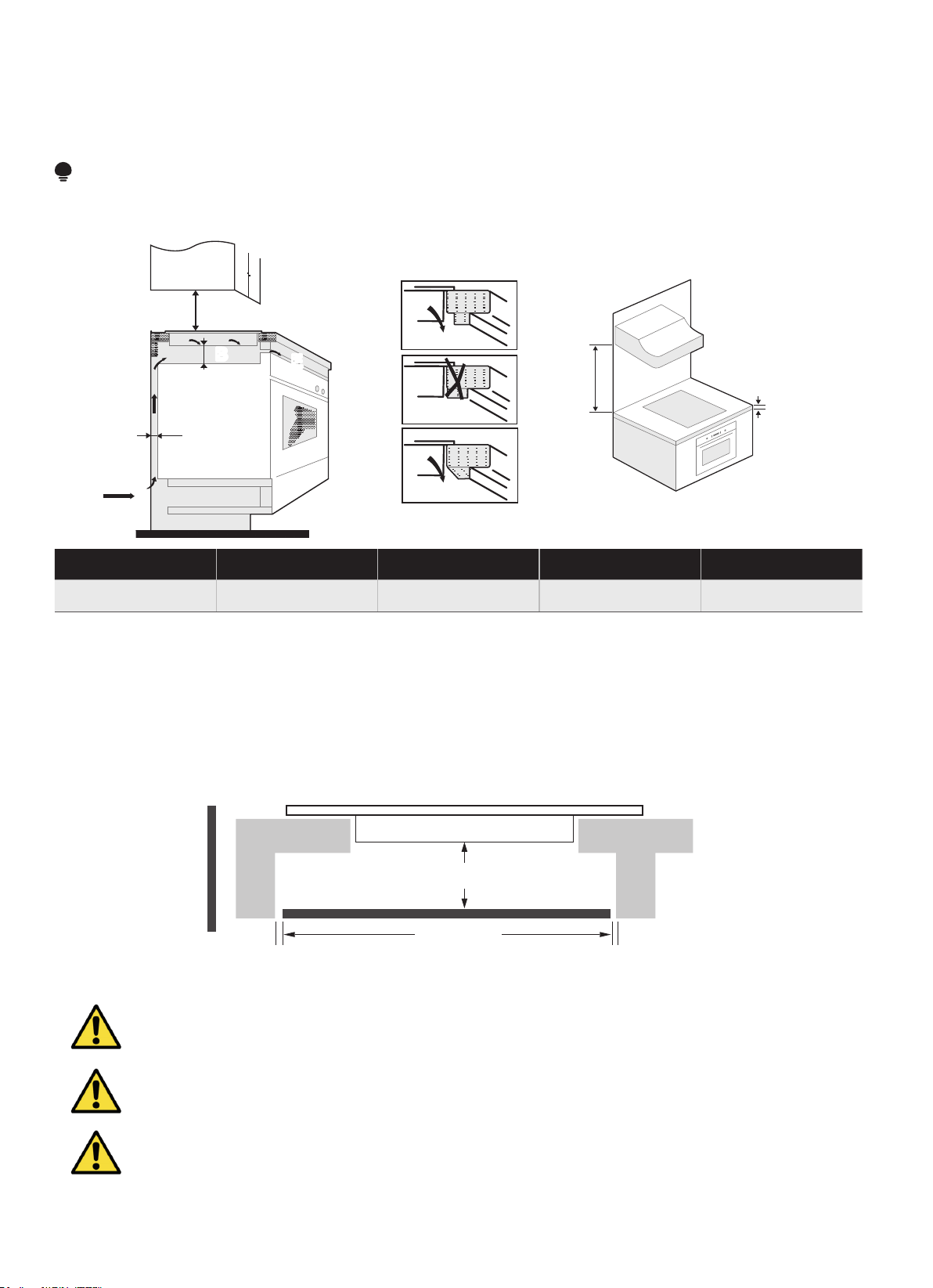

Cut out the work surface according to the sizes shown in the drawing.

For the purpose of installation and use, a minimum of 5cm space shall be preserved around

the hole. Be sure the thickness of the work surface is at least 30mm. Please select heat-

resistant and insulated work surface material (Wood and similar fibrous or hygroscopic material

shall not be used as work surface material unless impregnated) to avoid the electrical shock

and larger deformation caused by the heat radiation from the hotplate. As shown below:

Note: The safety distance between the sides of the hob and the inner surfaces of the

worktop should be at least 3mm.

590

L(mm)

520

W(mm)

H(mm)

D(mm)

560±4

A(mm)

490±4

B(mm)

50 min

X(mm)

3 min

F(mm)

Min. 3mm

SEAL

There are ventilation holes around outside of the hob. YOU MUST ensure these holes

are not blocked by the worktop when you put the hob into position.

•Be aware that the glue that joins the plastic or wooden material to the furniture, has

to be resist to a temperature not below 150°C, to avoid unstucking of the paneling.

•The rear wall, adjacent and surrounding surfaces must therefore be able to

withstand a temperature of 90°C.

WARNING: Ensuring Adequate Ventilation

Make sure the ceramic hob is well ventilated and that air inlet and outlet are not blocked. In

order to avoid accidental touch with the overheating bottom of the hob, or getting unexpectable

electric shock during working, it is necessary to put a wooden insert, fixed by screws, at a

minimum distance of 50mm from the bottom of the hob. Follow the requirements below.

Min. 50mm

Max. 5mm Max. 5mm

Note: The safety distance between the hotplate and the hood/cupboard above the hotplate

should be at least 650mm (refer to the installation instructions for hoods as the measurements

may vary).

650

A(mm)

50 min

B(mm)

20 min

C(mm)

Air intake

Air exit 5mm

BEE

wall

Min.30mm

650mm

Under any circumstances, make sure the ceramic cooker hob is well ventilated and the air

inlet and outlet are not blocked. Ensure the ceramic cooker hob is in good work state. As

shown below.

Indice

Altri manuali montpellier Piano cottura

montpellier

montpellier CKH61 Manuale utente

montpellier

montpellier MON-CT251 Manuale utente

montpellier

montpellier GH71X Manuale utente

montpellier

montpellier MON-INT30TT2 Manuale utente

montpellier

montpellier GH91X Manuale utente

montpellier

montpellier CT750 Manuale utente

montpellier

montpellier MCH29 Manuale utente

montpellier

montpellier INT61T99-13A Manuale utente

montpellier

montpellier MINH59 Manuale utente

montpellier

montpellier SP200X Manuale utente

montpellier

montpellier INT750 Manuale utente

montpellier

montpellier INT300 Manuale utente

montpellier

montpellier MON-INT251 Manuale utente

montpellier

montpellier INT400 Manuale utente

montpellier

montpellier CT400 Manuale utente

montpellier

montpellier INT61NT Manuale utente

montpellier

montpellier CT200 Manuale utente

montpellier

montpellier CS440 Manuale utente

montpellier

montpellier MCH77 Manuale utente

montpellier

montpellier MON-GH75BG Manuale utente

montpellier

montpellier INT750 Manuale utente

montpellier

montpellier INT780 Manuale utente

montpellier

montpellier CT780 Manuale utente

montpellier

montpellier MON-INT30T15 Manuale utente

Manuali Piano cottura popolari di altre marche

Siemens

Siemens EX875KYV1E Scheda tecnica

AEG

AEG CERAMIC HOB 6010 K Manuale utente

VALERA

VALERA CT 70A Manuale utente

Zanussi

Zanussi ZGF 6420 Manuale utente

Gaggenau

Gaggenau CI 273 Manuale utente

G3 Ferrari

G3 Ferrari Energy Manuale utente

Pkm

Pkm IN4B Manuale utente

Award

Award H903BG Manuale utente

Zanussi

Zanussi VCH 5005 RZ Manuale utente

Miele

Miele KM 523 Manuale utente

Hotpoint

Hotpoint IS67V8CCXT/E Manuale utente

AEG

AEG HK854870XB Manuale utente

Cookology

Cookology SEP600BK Manuale utente

Bauknecht

Bauknecht Hob Manuale utente

Zanussi

Zanussi ZGM 782 Manuale utente

dipo INDUCTION

dipo INDUCTION DIBK218S Manuale utente

Miele

Miele KM 5987 Manuale utente

Miele

Miele KM 360 G Manuale utente

montpellier MCH59CK Manuale utente

Manuali Piano cottura popolari di altre marche
