Installation and Operating Instructions

60cm Solid Plate Hob - Side Control

SP601W/X - White / Stainless Steel





Thank you for choosing this Montpellier appliance.

Our appliances have been designed to provide you with the best combination of style, reliability and performance to

give you years of trouble-free use.

You may be familiar with a similar product, but please take time to read these instructions carefully before installing

or using your appliance to ensure you get the most from your purchase.

We recommend that you keep this manual in a safe place for future

reference.

Your appliance is covered by a comprehensive two year Parts & Labour

Guarantee. In the unlikely event that you experience a problem with your

appliance, you can rest assured that you are fully protected against the cost of

repairs for the first 24 months . Please note that any claim must be

accompanied by the model reference number, serial number and proof of

purchase.

To activate your guarantee, you will need your product serial number. This can

be found inside your appliance.

NB: Please make sure that you keep a copy of your original sales invoice as this

will be needed if any service call is required.

There are three ways to register your Guarantee:

• Online: Visit the Support page on our website and complete the online

Product Registration form. www.montpellier-appliances.com

•By Post: Simply detach and fill in the form provided, attach a stamp and send

it in the post. Don't forget to include your e-mail address so that we can send

confirmation through to you.

By Phone: Contact our warranty registration department on 0808 1961388

Welcome

ACROSS ALL OUR MODELS

YEAR

GUARANTEE

PA R T S & L A B O U R

www.montpellier-appliances.com

•

Thank you for choosing this product.

This User Manual contains important safety information and instructions on the operation and

maintenance of your appliance.

Please take the time to read this User Manual before using your appliance and keep this book for

future reference.

The design and specifications are subject to change without prior notice for product improvement.

SP601X BUILT-IN ELECTRIC HOB

INSTALLATION AND OPERATION MANUAL

THIS APPLIANCE MUST BE INSTALLED ONLY BY A QUALIFIED PERSON IN

INSTRUCTIONS PROVIDED. THE MANUFACTURER DECLINE ALL RESPONSIBILITY

FOR IMPROPER INSTALLATION WHICH MAY HARM PERSONS AND ANIMALS OR

CAUSE

DAMAGE TO PROPERTY. THE APPLIANCE MUST BE USED ONLY FOR THE PURPOSE

FOR WHICH IT WAS EXPRESSLY DESIGNED. ANY OTHER USE (e.g. HEATING ROOMS)

IS CONSIDERED TO BE IMPROPER AND MANUFACTURER DECLINES ALL

RESPONSIBILITY

FOR DAMAGE RESULTING FROM IMPROPER AND IRRESPONSIBLE USE.

SAFETY WARNING

1. Please check the built-in electric hob's integrity after opening the package. If there

are any problems please refer to the supplier.

2. Do not throw the package materials (plastic bag, foam, nails, package etc) in a

place where children can easily access. Please dispose of packaging in an

environmentally friendly manner.

3. Do not change the wiring under any circumstances.

4. Dispose of the appliance in an environmentally friendly manner.

5. If the supply cord is damaged,it must be replaced by the manufacturer its service

agent or similarly qualified persons in order to avoid a hazard.

6. This appliance can be used by children aged from 8 years and above and

persons with reduced physical, sensory or mental capabilities or lack of experience

and knowledge if they have been given supervision or instruction concerning use of

the appliance in a safe way and understand the hazards involved

7. Children should be supervised to ensure that they do not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

8. Do not stare at the hob elements when the appliance is working.

9. Accessible parts may become hot during use. To avoid burns young children should

be kept away

10. WARNING: If the surface is cracked, switch off the appliance to avoid the

possibility of electric shock, for hob surfaces of glass-ceramic or similar material

which protect live parts

11.A steam cleaner is not be used.

12.Metallic objects such as knives, forks, spoons and lids should not be placed on the

hob surface since they can get hot.

13.CAUTION: The surface temperature exceeds 95°C.To avoid a hazard,under bench

access must be restricted. Refer to the installation instructions.

14.WARNING: The appliance and its accessible parts become hot during use. Care

should be taken to avoid touching heating elements. Children less than 8 years of

age shall be kept away unless continuously supervised.

15.The appliance is not intended to be operated by means of an external timer or

separate remote-control system.

16.WARNING: Unattended cooking on a hob with fat or oil can be dangerous and

may result in fire. NEVER try to extinguish a fire with water, but switch off the

appliance and then cover flame e.g. with a lid or a fire blanket.

17.WARNING: Danger of fire: do not store items on the cooking surfaces.

18.CAUTION: The cooking process has to be supervised. A short term cooking

process has to be supervised continuously.

19.WARNING: Use only hob guards designed by the manufacturer of the cooking

appliance or indicated by the manufacturer of the appliance in the instructions for use

as suitable or hob guards incorporated in the appliance. The use of inappropriate

guards can cause accidents.

A duplicate data label and wiring diagram are contained in this booklet. Please attach

these labels to an accessible and near by surface for easy reference. The Manufacturer

shall not be held responsible for any inaccuracies in this handbook due to printing or

transcription errors,also the designs in the figures are purely indicative. The Manufacturer

also reserves the right to make any modifications to the products as may be considered

necessary or useful also in the interests of the user, without jeopardizing the main

functional and safety features of the products themselves.

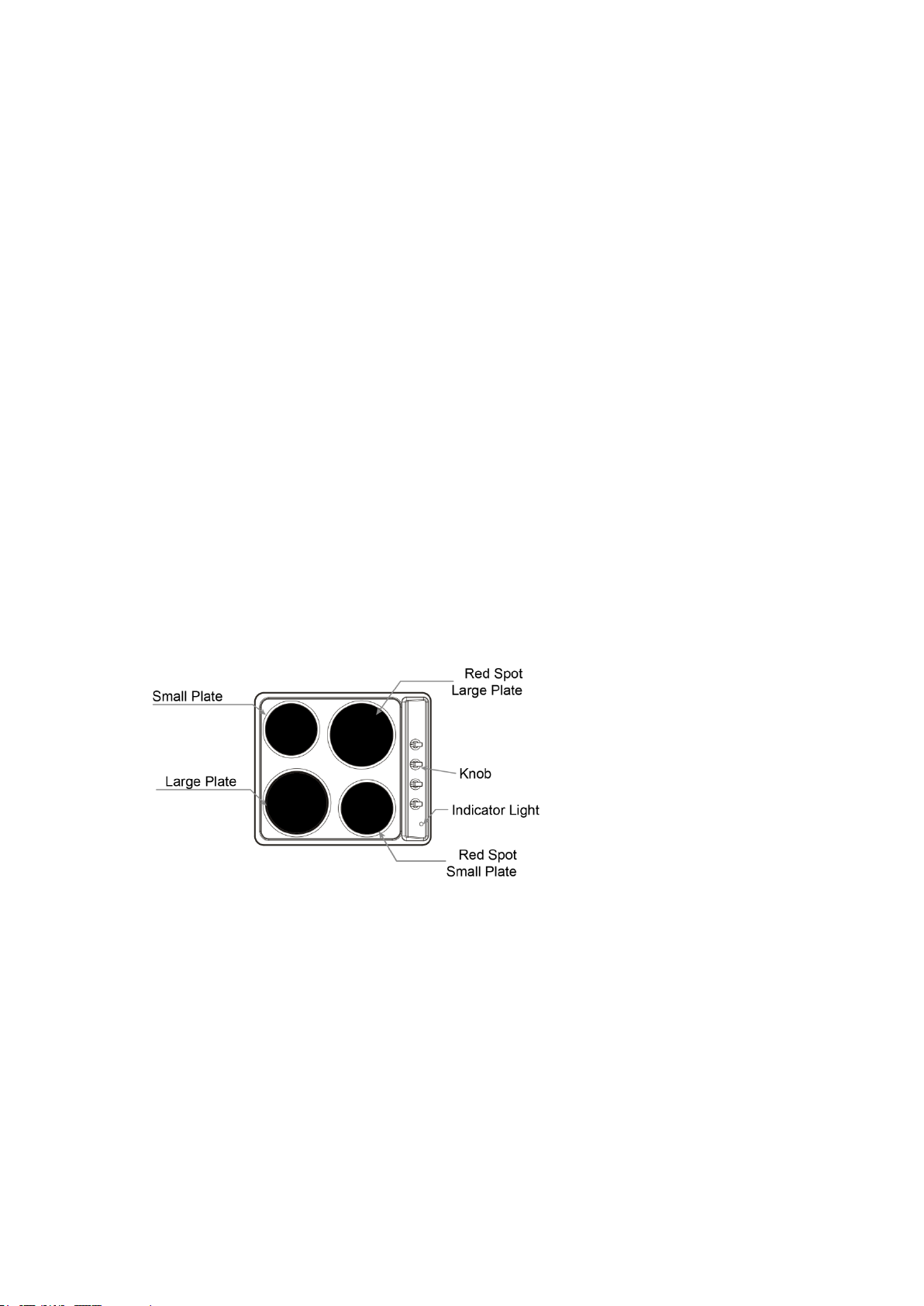

Description of the hot plates

Use

Directions for Use

1. Do not touch the appliance with wet hands.

2. Do not operate the appliance when barefoot.

3. Do not allow children to operate the hob.

4. Please disconnect the power supply before any maintenance and cleaning.

5. Electric hobs become and remain hot during and immediately after use. Do not touch

the hob

until it has been allowed to cool.

6. Steam cleaners must not be used to clean the appliance.

7. The appliance is not intended to be operated by means of an external timer or

separate remote-control system.

8. The power supply should use H05VV-F.

9. The hob must be built into a heat-resistant cabinet. Smoke may be visible when first

used –this is normal. Please leave on for a few minutes to burn off excess sealant.

Operation

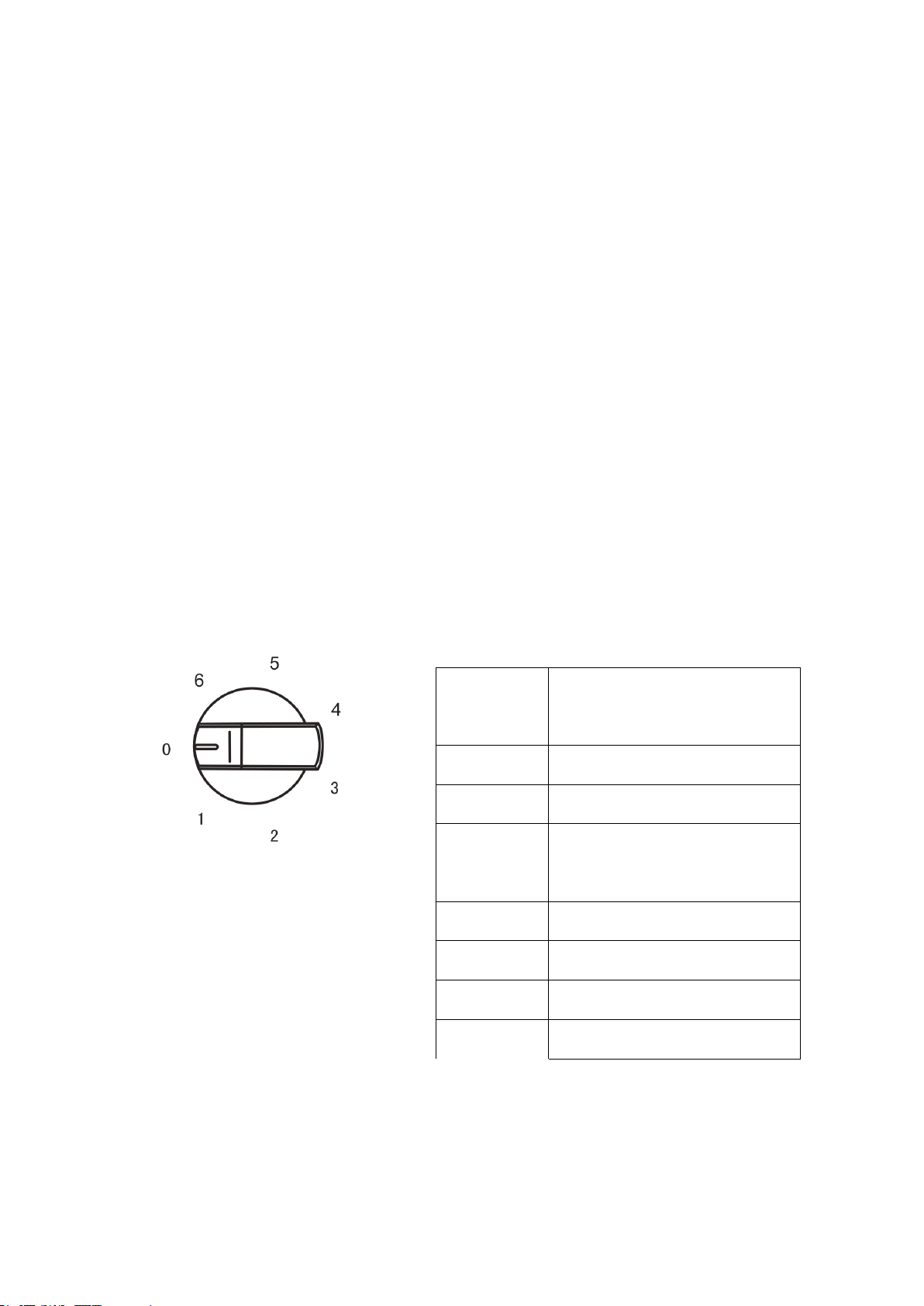

The temperature of the hot plates can be adjusted by turning the knobs either clockwise

or anti-clockwise to any of the 6 positions besides the 0 position (Off). The higher the

number, the greater the output of heat (see table below). The indicator light is a signal that

the electric plates are switched on.

The level of heat can be adjusted gradually by turning the appropriate knob to the right or

left. The indicator light can be found on the control panel – please see above diagrams.

The correct pan should have a thick, flat base, with a diameter equal to the plate

diameter, so that heat is transferred more efficiently.

Advice on the Use of Electric Plates

HEAT

SETTING

DESCRIPTION

0 OFF position

1 VERY GENTLE - warming up

2 GENTLE - stewing

vegetables, slow cooking

3 SLOW - cooking soups, larger dishes

4 MEDIUM - slow frying

5 HIGH - grilling meat, fish

An appropriately sized pan saves energy.

VERY HIGH - grilling meat, fish

To save energy and ensure longer life of the electric plates, we advise using pans

with a flat bottom and with a diameter no less than the diameter of the plates.

Never leave the plates on without pans on them, or with empty pans and never use

the plates to heat crockery. Switch on the plates after having set the pans on them.

Do not touch the hob until it has been allowed to cool as the plates remain hot for a

short period of time after being switched off.

Switch off the heating plate before removing the pans.

Technical Data

Model Power Supply Electric Plate Power(W) Size Built-in

Hole Size

145mm 145mm

(Red)

180mm 180mm

(Red)

SP601X AC220-240V

50Hz

1000 1500 1500 2000 580X500X78 557(L)X477(W)

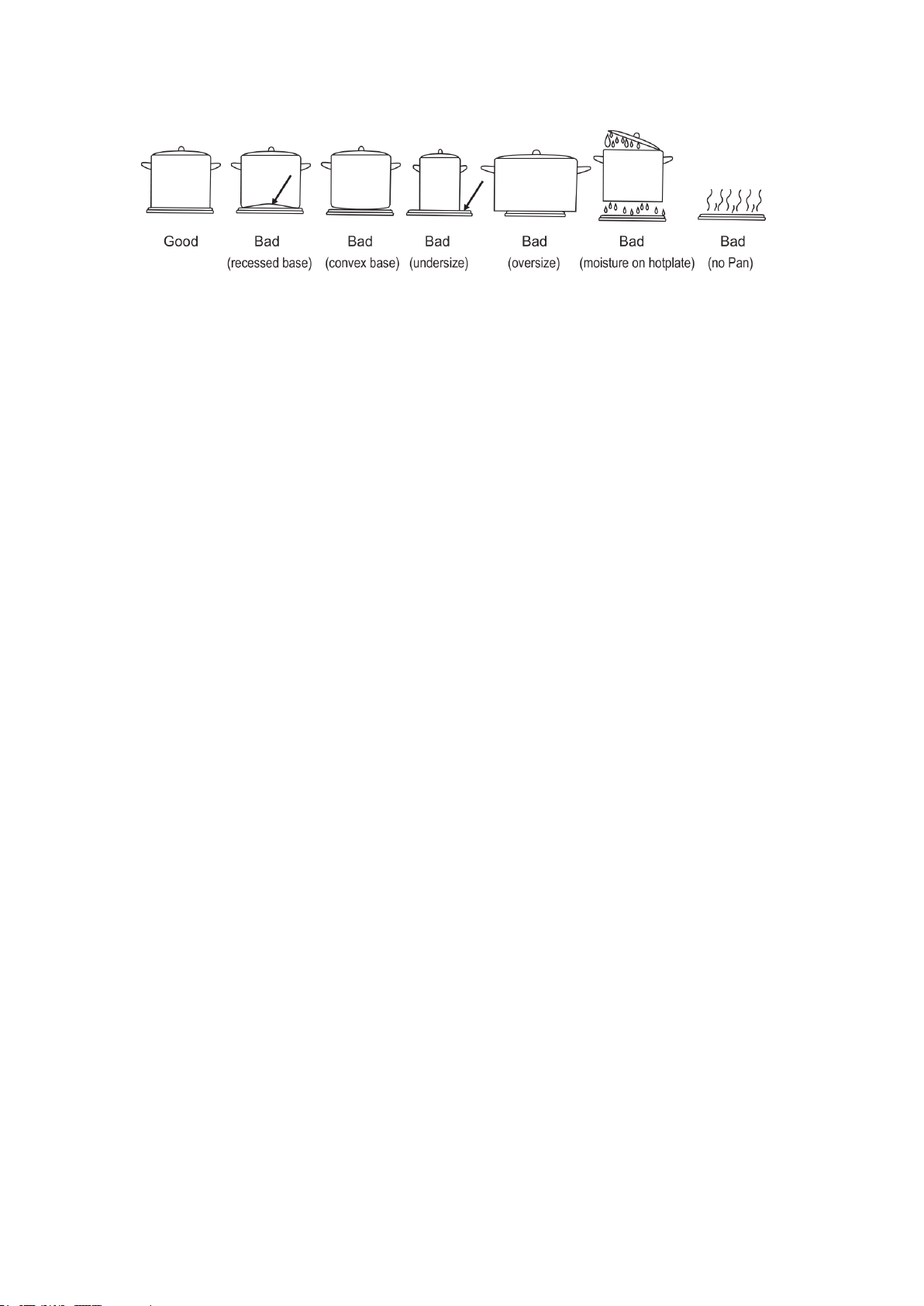

Pans

-Use pans with flat bottoms. Uneven or thin bottoms will waste energy and are slow to cook.

-Smaller pans will waste energy.

-Do not use oversized pans. More than 50mm overhang can cause components to overheat

and cause fine cracks in enamel or even damage heating elements.

-Use only dry pans. Do not place wet or condensated items (eg. lids) on the hotplates.

-Do not use pots and pans that are unsteady and likely to rock or overturn.

-Do not operate the hob for an extended time without a pan on the hotplate.

CLEANING

The appliance must be turned off at the mains before carrying out any maintenance. Make

sure the hob plates are not hot prior to any cleaning or maintenance. Any abrasive cleaners

(such as Cif) will scratch the surface and could erase the control panel markings. Stainless

steel can be effectively cleaned by simply using a dilute solution of water and washing up

liquid and drying to a shine with a clean cloth. Over time with use, the stainless steel surface

may discolour – this is normal and does not constitute a fault with this appliance. Proprietary

stainless steel cleaners are available.

HOTPLATE CARE

The finish of the cast iron hotplates is designed to be durable in use. The following tips should

be observed to get the best from your hob:

1. Do not use decorative covers as these can cause damage to the surface and lead to rust.

2. Use a special hotplate surface cleaner to protect and restore the surface of the hotplates.

3. Do not use soap and water on the hotplates. Wipe up spills and splashes immediately.

4. Never operate the hob without a pan, unless it is for a few seconds (as below).

5. Deposits of fat can be burned off by turning the hotplate on for a few seconds. The fat will

brush off when the appliance has cooled down.

TECHNICAL INFORMATION FOR INSTALLATION (Qualified Personnel Only)

Electrical Connection

Appliances with three-pole cables are set up for operation with alternating current at the

voltage and frequency indicated on the rating plate. Please ensure you have studied and are

familiar with the connection wiring diagram provided prior to installation. Note that the earth

conductor is yellow/green. The connection to the electricity supply must be made by a

qualified person and following the regulations in force. When the appliance is to be

installed above a built-in oven, the two appliances must be connected separately.

The supply cable must be so positioned that no point can reach a temperature 50° C

higher than the ambient temperature. Also check that the supply system has an

effective earth connection and corresponds to the standards in force and that the

plug (or omnipolar switch) can be reached easily when the appliance is installed.

Fitting Guidelines

The voltage rating of the hob heating elements is 220-240V. Adapting the hob to

operate with one-phase current is possible by appropriate bridging in the connection

box according to the connection diagram below. The connection diagram is also

shown on the cover of the connection box. Remember that the connection wire

should match the connection type and the power rating of the hob.

The connection cable must be secured in a strain-Relief clamp.

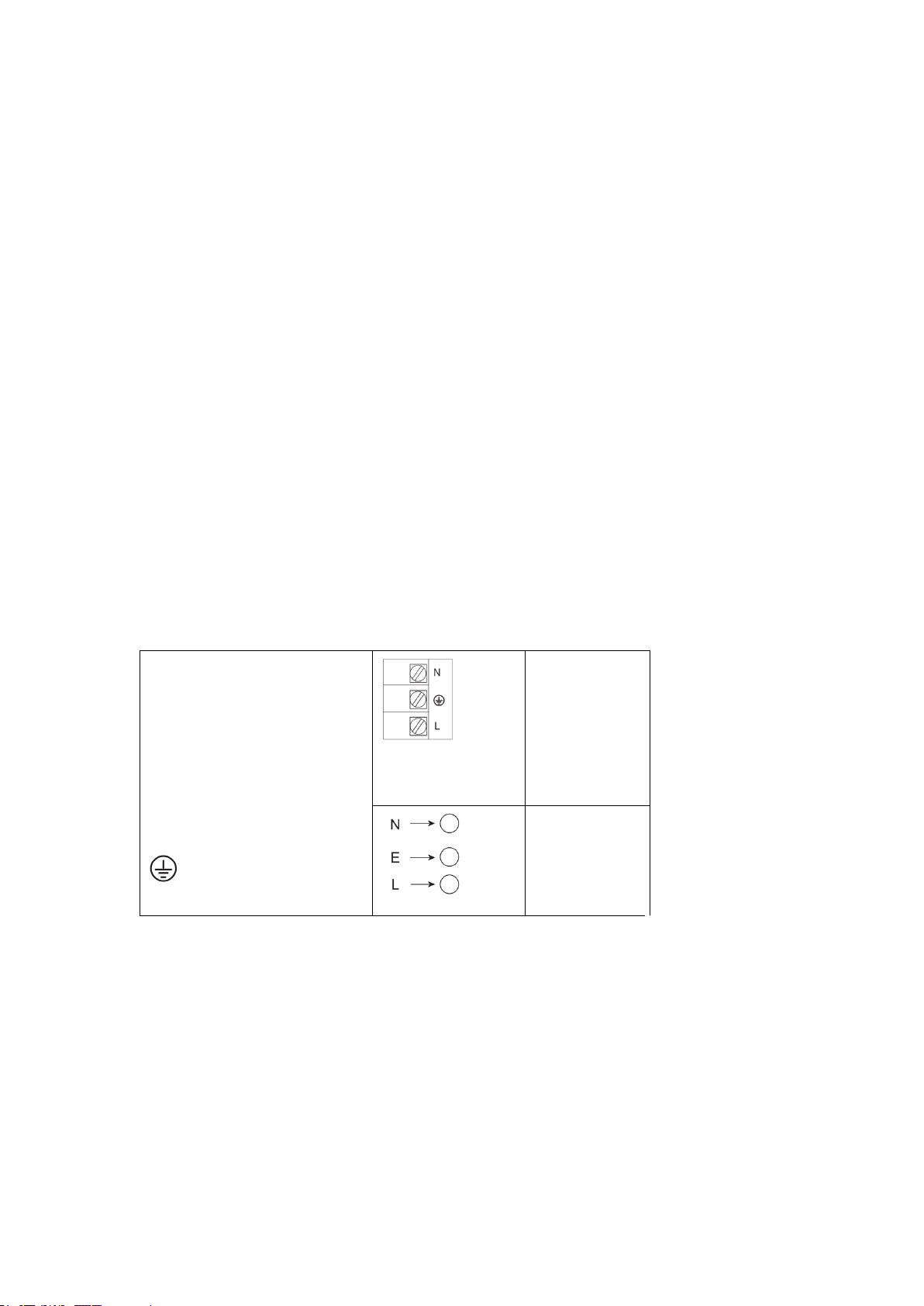

CONNECTION DIAGRAM

Caution! Voltage of

heating elements 220-240V

Caution! In the event of

any connection the safety

wire must be connected to

the

E terminal.

Recommended

type of

connection lead

•If the cable is damaged or to be replaced, the operation must be carried out

the by after-sale agent with dedicated tools to avoid any accidents.

•If the appliance is being connected directly to the mains an omnipolar circuit-

breaker must be installed with a minimum opening of 3mm between contacts

•The installer must ensure that the correct electrical connection has been made

and that it is compliant with safety regulations.

•The cable must not be bent or compressed.

•The cable must be checked regularly and replaced by authorised technicians only.

Caution!

Remember to connect the safety circuit to the connection box terminal marked with

The electricity supply for the hob must have a safety switch which enables the power to be

cut off in case of emergency. The distance between the working contacts of the safety

switch must be at least 3 mm. Before connecting the cooker to the power supply it is

important to read the information on the data plate and the connection diagram.

The manufacturer will not accept any responsibility if the applicable standards are

not respected.

This appliance must be installed only by authorised personnel and in accordance

with UK regulations. The surfaces must be capable of sustaining temperatures of

80°C. All laminates, fixing adhesive and surface materials should be certified suitable

for this temperature.

According to the diagrams below, cut a hole in the worktop and insert the hob. The

hob can be fitted to any worktop with a thickness of 40mm or 50mm.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali montpellier Piano cottura

montpellier

montpellier MON-CKH60 Manuale utente

montpellier

montpellier MON-INT251 Manuale utente

montpellier

montpellier MON-CDH2 Manuale utente

montpellier

montpellier INT750 Manuale utente

montpellier

montpellier MINH59 Manuale utente

montpellier

montpellier MON-INT30TT2 Manuale utente

montpellier

montpellier GH91X Manuale utente

montpellier

montpellier CKH61 Manuale utente

montpellier

montpellier MON-CT251 Manuale utente

montpellier

montpellier INT400 Manuale utente

montpellier

montpellier MGB60X Manuale utente

montpellier

montpellier CT750 Manuale utente

montpellier

montpellier INT61T99-13A Manuale utente

montpellier

montpellier INT300 Manuale utente

montpellier

montpellier INT750 Manuale utente

montpellier

montpellier MON-INT30T15 Manuale utente

montpellier

montpellier MCH59CK Manuale utente

montpellier

montpellier MCH29 Manuale utente

montpellier

montpellier MON-GH75BG Manuale utente

montpellier

montpellier INT900 Manuale utente

montpellier

montpellier SP200X Manuale utente

montpellier

montpellier CT400 Manuale utente

montpellier

montpellier INT61NT Manuale utente

montpellier

montpellier MON-INT785 Manuale utente

Manuali Piano cottura popolari di altre marche

Siemens

Siemens EX875KYV1E Scheda tecnica

AEG

AEG CERAMIC HOB 6010 K Manuale utente

VALERA

VALERA CT 70A Manuale utente

Zanussi

Zanussi ZGF 6420 Manuale utente

Gaggenau

Gaggenau CI 273 Manuale utente

G3 Ferrari

G3 Ferrari Energy Manuale utente

Pkm

Pkm IN4B Manuale utente

Award

Award H903BG Manuale utente

Zanussi

Zanussi VCH 5005 RZ Manuale utente

Miele

Miele KM 523 Manuale utente

Hotpoint

Hotpoint IS67V8CCXT/E Manuale utente

AEG

AEG HK854870XB Manuale utente

Cookology

Cookology SEP600BK Manuale utente

Bauknecht

Bauknecht Hob Manuale utente

Zanussi

Zanussi ZGM 782 Manuale utente

dipo INDUCTION

dipo INDUCTION DIBK218S Manuale utente

Miele

Miele KM 5987 Manuale utente

Miele

Miele KM 360 G Manuale utente

montpellier SP601W Manuale utente

Manuali Piano cottura popolari di altre marche
