MoreSense WiFi & BLE Module
User Manual V1.2
MSWB2213
Revision History
Revision
Description
Release Date
V1.0
MSWB2213 User Manual Initial Version
V1.1
Revised The Dimension
2021-11-8
V1.2
Updated Internal And External Antennas
2021-12-3
Proprietary Statement:
Shenzhen MoreSense Technology Co., Ltd.
All Rights Reserved
Copyright © 2021 by MoreSense
MSWB2213
Catalog
1 Product Description...................................................................................................... 1
2 System Block Diagram................................................................................................. 2
3 Product Features........................................................................................................... 3
4 Key Application............................................................................................................4
5 Parameter for MSWB2213........................................................................................... 4
6 Pin Definition................................................................................................................6
7 Module Dimension....................................................................................................... 9
8 Name Rules...................................................................................................................9
9 Precautions..................................................................................................................10
10 Hardware Typical Application................................................................................. 11
11 Package Information ...............................................................................................12
11.1 Recommended Relow Soldering Profile...........................................................12
11.2 Instruction.......................................................................................................... 13
11.3 MSWB2213 Package Method........................................................................... 13
MSWB2213
Shenzhen MoreSense Technology Co., Ltd.
１
1 Product Description
The module of MSMB2213 series is ultra low-powered and highly integrated modules that
integrates 2.4GHz Wi-Fi and low-powered Bluetooth (Bluetooth®LE) dual-mode wireless
communication.It has the following features:
▶Complete Wi-Fi subsystem, in line with IEEE802.11b/g/n protocol,with Station mode,SoftAP
mode,SoftAP+Station mode and Promiscuous mode(a special mode);
▶Low-powered Bluetooth subsystem,supporting Bluetooth5 and Bluetoothmesh •leading
low-powered performance and radio frequency performance in the industry;
▶RISC-V 32-bit single-core processor,four-stage pipeline architecture,main frequency up to
160MHz •Built-in 400KB SRAM(in which 16KB dedicated to cache),384KBROM storage
space,and supports multiple external SPI,Dual SPI,QuadSPI,QPI flash;
▶Perfect security mechanism-hardware encryption accelerator supports AES-128/256,Hash,RSA,
HMAC,digital signature and secure boot-integrated hardware random number generator-support;
▶Abundant communication interfaces and GPIO pins,which can support a variety of scenarios and
complex applications.

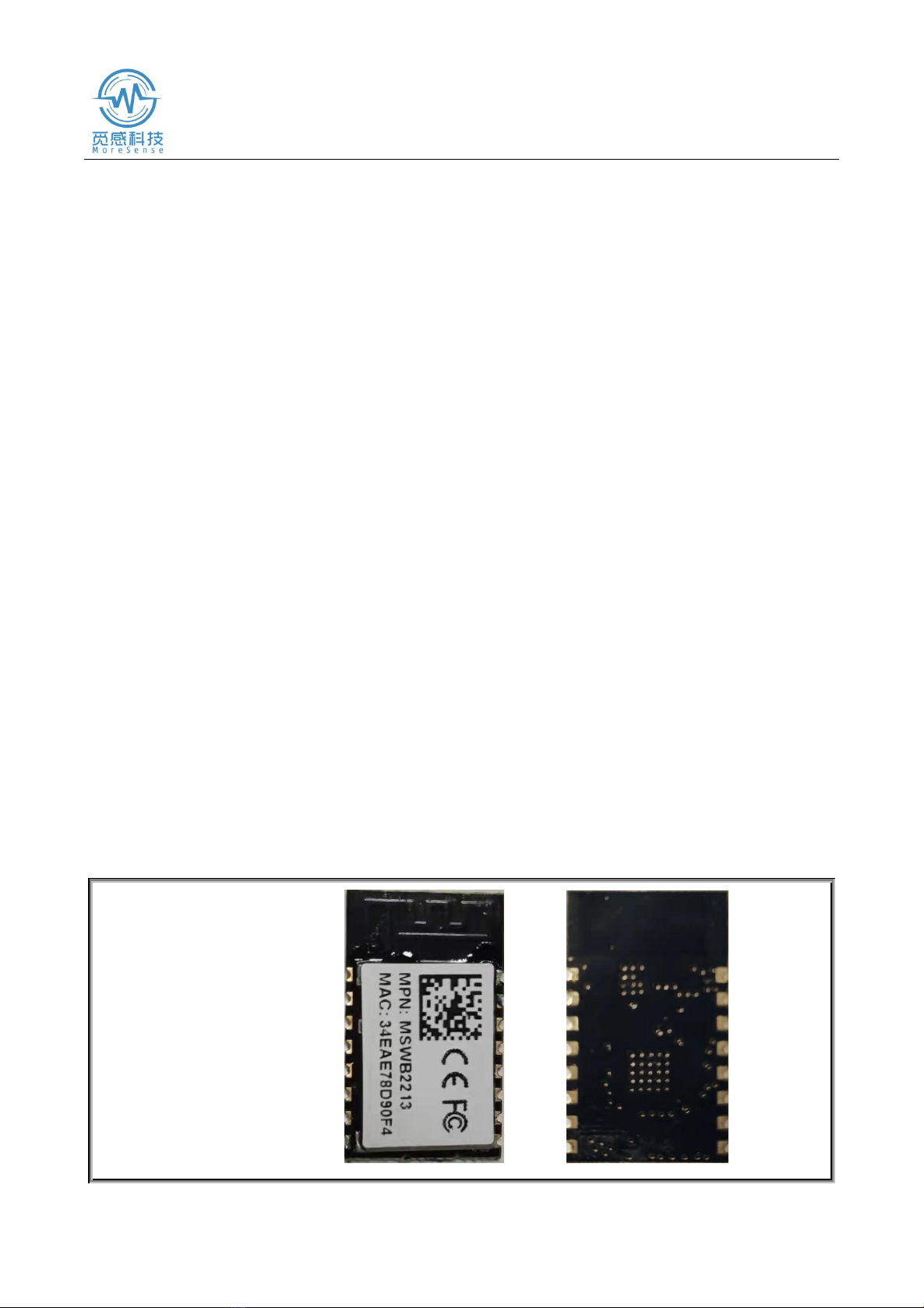

Physical Map
Built-in Antenna:
MSWB2213
Shenzhen MoreSense Technology Co., Ltd.
２

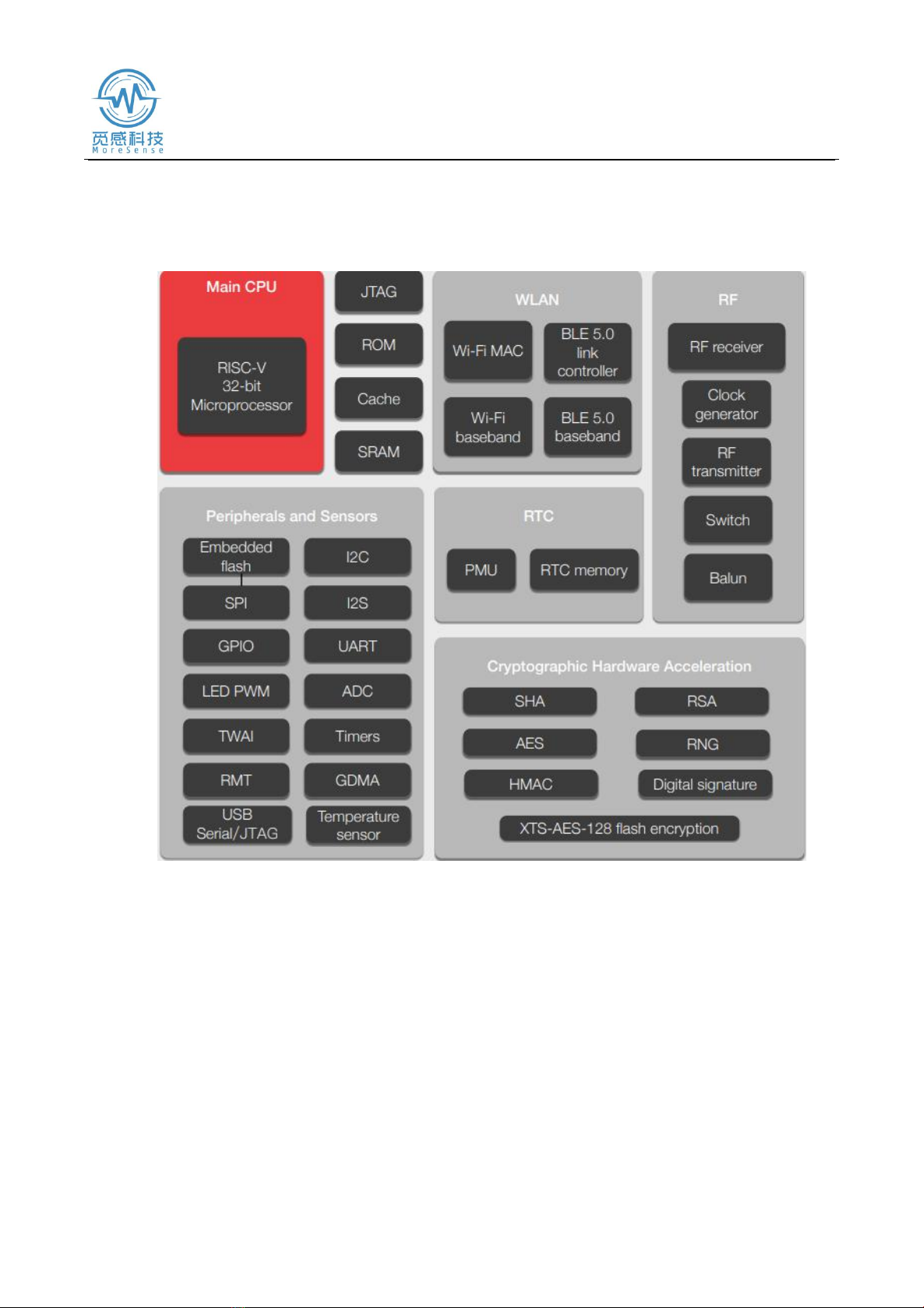

2 System Block Diagram
MSWB2213
Shenzhen MoreSense Technology Co., Ltd.
３
3 Product Features
•Support IEEE802.11b/g/n protocol;
•Support 20MHz and 40MHz bandwidth in 2.4GHz band;
•Support 1T1R mode,data rate up to 150Mbps;
•4 x Virtual Wi-Fi Interfaces •Support infrastructure network (Infrastructure BSS)
Station mode,SoftAP mode,Station+SoftAP mode and promiscuous mode;
•Bluetooth Low Energy (BluetoothLE):Bluetooth5,Bluetoothmesh;
•The rate supports 125Kbps,500Kbps,1Mbps;
•Advertising Extensions;
•Multiple Advertisement Sets;
•Channel Selection Algorithm#2);
•32-bit RISC-V single-core processor with a main frequency of up to
160MHz;
•384KBROM;
•400KBSRAM (in which 16KB is dedicated to cache);
•8KBRTCSRAM;
•Embedded Flash 4M.
MSWB2213
Shenzhen MoreSense Technology Co., Ltd.
４
4 Key Application
• Security and Smart Surveillance:Cameras...
• Smart Home:smart lighting,smart buttons,smart sockets,indoor positioning
•Industrial Automation:industrial robots,Mesh networking,human-machine interface,industrial bus
applications
• Healthcare:health monitoring,baby monitor
• Consumer Electronics:smart watches,smart bands – OTT TV boxes,set top box devices – Wi-Fi
and Bluetooth speakers,toys with data upload and proximity sensing toys
•Smart Agriculture:smart greenhouse,smart irrigation,agricultural robots
• Retail Catering: POS systems,service robots,cloud printers
• Universal Low-powered IoT data logger
5 Parameter for MSWB2213
Type
Parameter
Value
WIFI
Parameter
Certification Standards
FCC/CE/SRRC/RoHS
Wireless Standards
802.11 b/g/n
Frequency Range
2.412GHz-2.462GHz
Transmit Power
802.11b: +16dBm(@11Mbps)
802.11g: +14dBm(@54Mbps)
802.11n: +13dBm(@HT20,MCS7)
Receiver Sensitivity
802.11b: -87dBm (@11Mbps,CCK)
802.11g: -87dBm (@54Mbps,OFDM)
802.11n: -85dBm (@HT20,MCS7)
Antenna
MSWB2213:
Built-in: PCB antenna
MSWB2213
Shenzhen MoreSense Technology Co., Ltd.
５
Bluetooth
Parameters
Wireless Protocol
BLE5.0
Frequency Range
2.402GHz-2.480GHz
Transmit Power
-1.5dbm
Receiver Sensitivity
-90dBm
Hardware
Parameters
Data Interface
UART
GPIO,SPI
Operating Voltage
3.0~3.6V
Working Current
Peak(continuous transmission): 260mA
Average (STA,connected and standby): 24mA
(DTIM1)
Average (STA,1KB/s): 54mA
Average (AP): 85mA
Operating Temperature
-40℃- 85℃
Storage Temperature
-40℃- 125℃
Humidity
<85%
DIM.
MSWB2213：
22mm x 13.5mm x 3mm
Software
Wireless Network Type
STA/AP/AP+STA/BLE5.0
Security Mechanism
WEP/WPA-PSK/WPA2-PSK
Encryption Type
WEP64/WEP128/TKIP/AES
MSWB2213
Shenzhen MoreSense Technology Co., Ltd.
６
6 Pin Definition
Parameters
Upgrade Firmware
Local Wireless
Remote upgrade
Customization
Development
Provide SDK for customer’s 2nd development
Network Protocol
IPv4,TCP/UDP/HTTP/MQTT
User Configuration
AT+ command set,Web page
Android/iOS terminal
Smart Link smart configuration APP
MSWB2213
Shenzhen MoreSense Technology Co., Ltd.
７

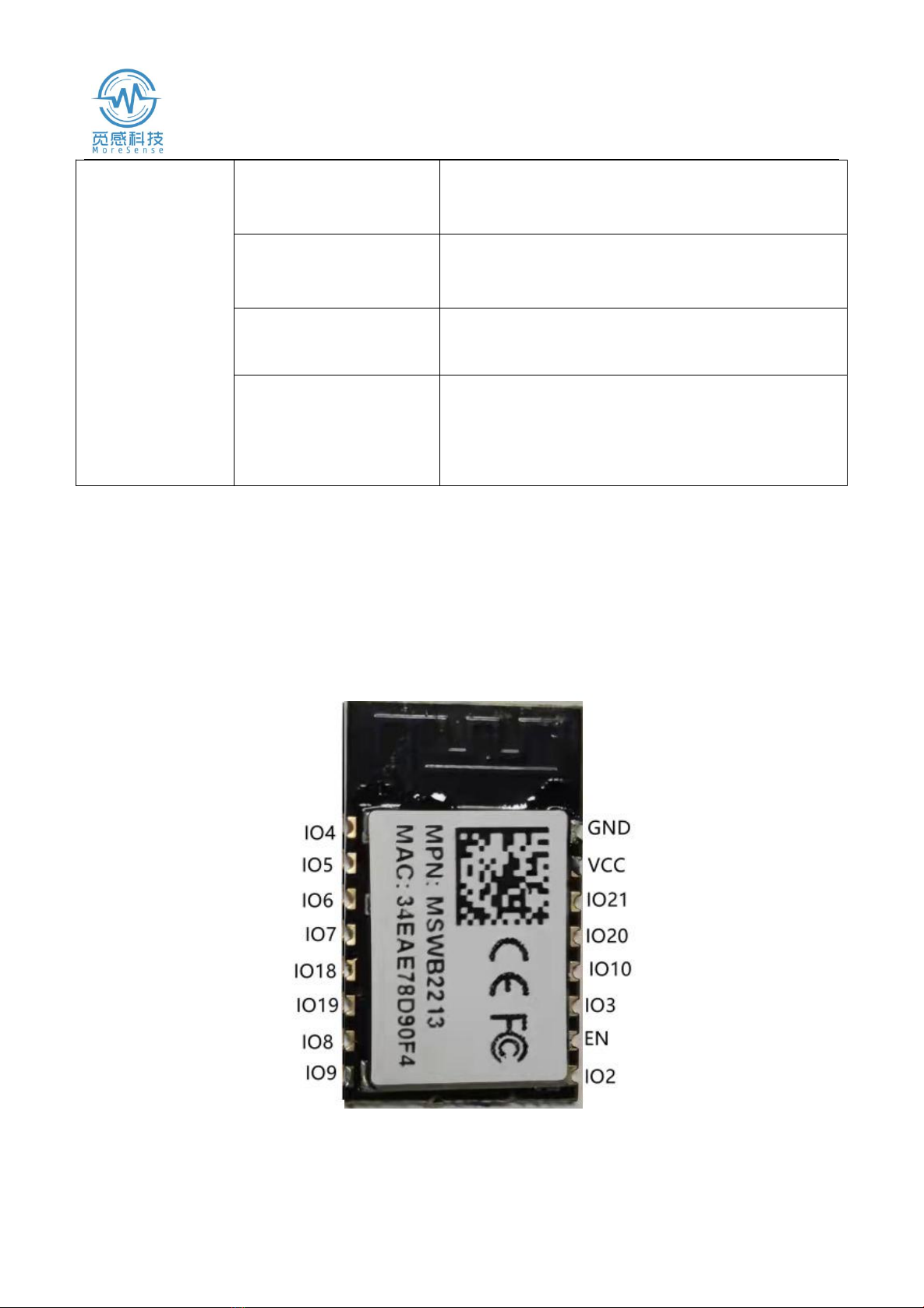

Table.1 MSWB2213 Pin Function Definition
Pin
Name
Type
Description
1
IO4
I/O/T
GPIO4,if it does not use-NC
2
IO5
I/O/T
GPIO5,if it does not use-NC
3
IO6
I/O/T
GPIO6,if it does not use-NC
4
I07
I/O/T
GPIO7,if it does not use-NC
5
UART0
O
3.3V Communication Serial Port 0 Output
GPIO18
6
UART0
I
3.3V Communication Serial Port 0 Input
GPIO19
7
UART0_CTS
I/O/T
GPIO8,if it does not use-NC
can do PWM0 function
8
UART0_RTS
I/O/T
GPIO9,if it does not use-NC
can do PWM1 function
9
IO2
I/O
GPIO2,ADC function
10
Module Reset
I
Low active hardware reset input pin,there has
internal reset circuit,external pull-up resistance is
not allowed,avoiding prolong the reset time and
cause abnormal startup.
11
Module Startup Instructions
(can be configured as
GPIO3)
I/O/T
"0" - complete startup;
"1" - do not complete startup;
if it does not use-NC
GPIO3,can do PWM2 function
