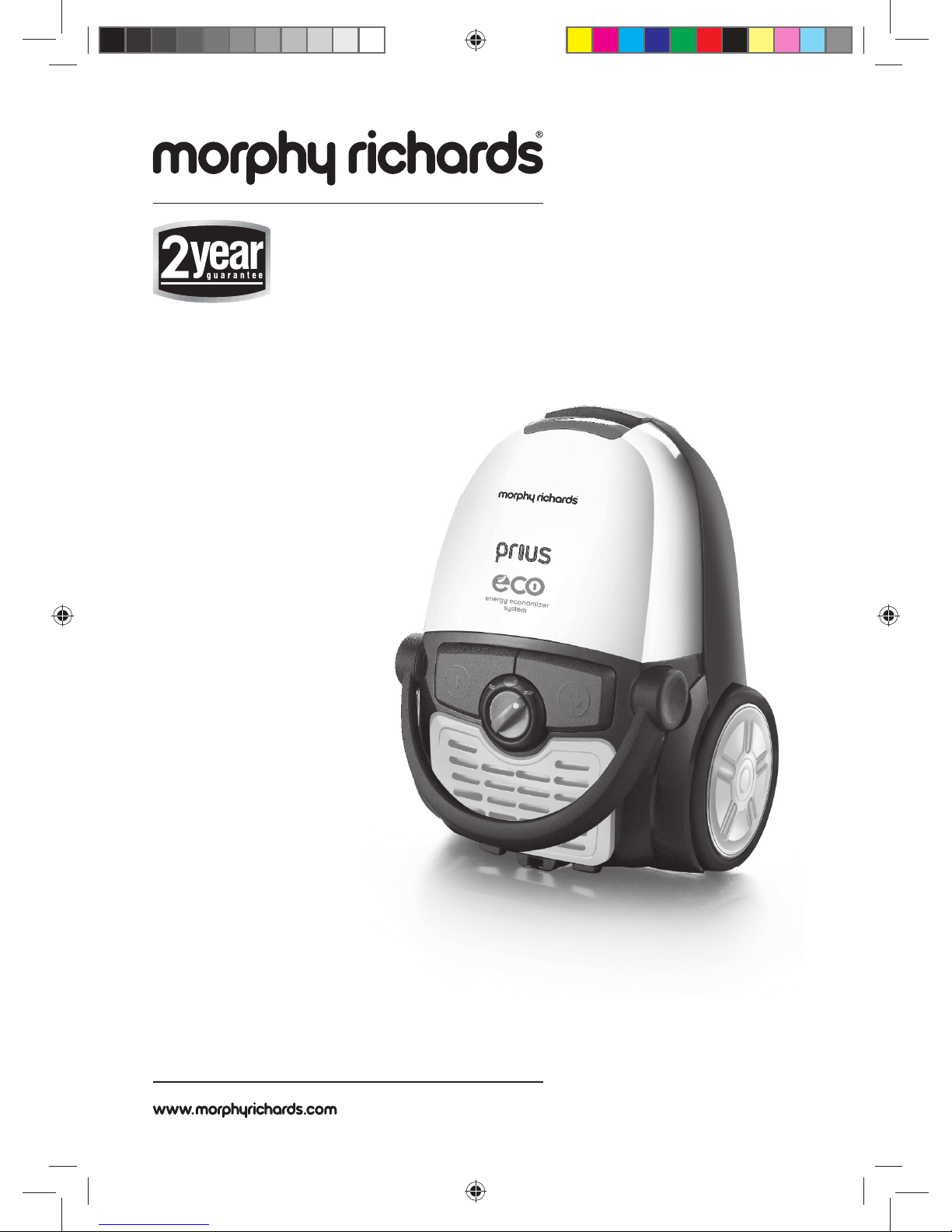

Morphy Richards ECO PRIUS Manuale utente

ECO PRIUS VACUUM CLEANER

Please read and keep these instructions

71600SA_IM revised_4NOV2010.indd 171600SA_IM revised_4NOV2010.indd 1 2010/11/08 08:49:43 AM2010/11/08 08:49:43 AM

Dear customer,

Many thanks for choosing to purchase a MORPHY RICHARDS branded product. Thanks to its

technology, design and operation and the fact that it exceeds the strictest quality standards, a

fully satisfactory use and long product life can be assured.

FEATURES

Extension tube

Handle

Hose

Cable rewind button

Power regulation knob

On / Off switch

4 5

Hose connector

Floor tool

71600SA_IM revised_4NOV2010.indd 271600SA_IM revised_4NOV2010.indd 2 2010/11/08 08:49:45 AM2010/11/08 08:49:45 AM

IMPORTANT SAFEGUARDS

• Read all instructions before using.

• The useof any electrical appliance

requires the following common

sense safety rules.

• Primarily there is a danger of injury

or death and secondarily the dan-

ger of damage to the appliance.

LOCATION

• Do not use or keep this product

outside.

• Do not store the appliance near hot

surfaces eg. ovens or heating ap-

pliances.

MAINS LEAD

• Do not allow the mains lead to be-

come strained or run this appliance

over it.

• If the electrical cable becomes

damaged the cable assembly must

be replaced. Do not attempt this

task yourself, contact the helpline

number found at the back of this

booklet.

PERSONAL SAFETY

• The plug must be removed from

the wall socket before cleaning or

maintaining the appliance.

• Never modify the cleaner in any

way.

• Never use in the presence of explo-

sive liquids or vapours.

• Never pick up inflammable or

poisonous liquids such as petrol,

copier toner or other volatile sub-

stances. Never pickup acids, as-

bestos or asbestos dust.

• Repairs to electrical appliances are

only to be undertaken by trained

personnel. Unprofessional repairs

can be dangerous for users.

• Use only genuine Morphy Richards

spare parts and accessories.

• The appliance must never be left

running when unsupervised.

• This vacuum cleaner is intended

for household use only. Misuse

or use for commercial or any

other purpose will render the

guarantee invalid.

• This appliance is not intended

for use by persons (including

children) with reduced physical,

sensory or mental capabilities,

or lack of experience and knowl-

edge, unless they have been

given supervision or instruction

concerning use of the appliance

by a person responsible for their

safety.

PRODUCT SAFETY

• Never use the appliance without

the filters being installed.

• Never use the appliance to vac-

uum hot ashes, broken glass,

sharp objects or liquids.

• Never use this appliance with wet

hands.

• Never insert or remove the plug

from the mains with wet hands.

CHILDREN

• Children do not understand the

dangers associated with operat-

ing electrical appliances. Never

allow children to use this appli-

ance unless properly supervised.

• Young children should be super-

vised to ensure that they do not

play with the appliance or stumble

over the power cord.

ELECTRICAL REQUIREMENTS

• Check that the voltage on the rat-

ing label of your appliance cor-

responds with your house elec-

tricity supply which must be AC

(alternating current).

OPERATING THE APPLIANCE

1. Fitting or removing the flexible

hose

• Fitting:

Insert the flexible hose into the air in-

take duct on the front of the appliance.

Press until it clicks into position.

71600SA_IM revised_4NOV2010.indd 371600SA_IM revised_4NOV2010.indd 3 2010/11/08 08:49:45 AM2010/11/08 08:49:45 AM

• Removing:

First remove the plug from the power

socket, before releasing the flexible

hose firmly from the air intake duct.

To release, squeeze the clips either

side and pull.

2. Fitting the extension tubes and

accessories.

a) Assemble the combination floor

tool, telescopic tube and hose as

shown. To extend the telescopic

tube to the required length, push the

slider release and pull out the tube.

b) Attach your choice of floor tool to

the telescopic tube.

Floor tool:

Ideal for daily cleaning of carpets

and hard floors, such as wood, lami-

nate, tile and vinyl flooring.

Crevice tool:

For awkward places, ie. behind ra-

diators, corners, baseboards and

between cushions.

Round brush:

Used for furniture, venation blinds,

books, lamp shades and shelves.

Small brush:

Used for curatins and upholstery.

INSTRUCTIONS FOR USE

• Before using appliance, un-

wind sufficient length of cable

and insert the plug into the

power socket. A yellow mark

on the power cable shows

the ideal cable length. Do not

extend the cable beyond the

red mark.

• Press the on / off button to

switch the appliance on.

Eco switch:

A variable Eco switch varies the suc-

tion power as required. For example,

maximum suction can be used for

cleaning carpets, hard floors etc.

and reduced suction for cleaning

upholstery and curtains.

Suction can also be controlled us-

ing the airflow regulator on the hose

handle. Closed for maximum suc-

tion, open for reduced suction.

Automatic cable rewind:

Afer use, unplug and press the cable

rewind switch to retract the cable.

Emptying the dust bag:

To obtain the best from your cleaner,

change the dust bag regularly. other-

wise the airflow and cleaning power

will be reduced.

NOTE: If you forget to attach the dust

bag or attach it incorrectly, the dust

cover may not close properly.

1. Remove the flexible tube, and open

the front cover.

2. Pull clip backwards to unsecure the

dust bag.

3. Remove the dust bag.

4. Replace the dust bag when it is full

of dirt and put in a new one.

5. Close the cover by pressing down

until it clicks into place.

Cleaning the filter:

The filter should be cleaned at least

twice a year, or when it becomes vis-

ibly soiled. A clogged filter will result in

reduced suction or even motor dam-

age.

Always operate the cleaner with the

filter installed.

Disconnect from the electrical outlet

before cleaning the filter.

Do not use a washing machine to rinse

the filter.

Do not use a hairdryer to dry it.

1. Pull the dust bag upward.

2. Pull the filter supporter upwards.

3. Remove the filter.

4. Rinse the filter in lukewarm water

and dry it completely.

5. Put the filter back.

Changing the HEPA filter:

1. Open the cover for the HEPA filter by

unclipping the cover.

2. Use both fingers to pull out the

HEPA filter by pulling upwards.

71600SA_IM revised_4NOV2010.indd 471600SA_IM revised_4NOV2010.indd 4 2010/11/08 08:49:45 AM2010/11/08 08:49:45 AM

3. Take the HEPA filter out and replace

with a clean one.

4. Close the HEPA filter cover until the

cover clicks into place.

SAFETY CUT-OUT

This appliance has been fitted with a

thermal cut-out to prevent the motor

from overheating and burning out. If

this happens, switch the cleaner off,

unplug from the power supply and

leave the cleaner to cool for at least 60

minutes. Check the airways for block-

ages, empty the dust bag and clean

the filters before restarting.

CLEANING AND MAINTENANCE

Remove plug from the the mains be-

fore cleaning. The vacuum cleaner,

especially the dust compartment and

all accessories can be cleaned using a

damp cloth or a non-abrasive cleaner

and wiped.

71600SA_IM revised_4NOV2010.indd 571600SA_IM revised_4NOV2010.indd 5 2010/11/08 08:49:46 AM2010/11/08 08:49:46 AM

27 Nourse Avenue Epping 2 Cape Town

P.O. Box 975 Eppindust 7475 South Africa

Tel: +27 21 534 8114 Fax: +27 21 534 8086

Service Centre Share Call: 086 111 5006

web: www.creativehousewares.co.za

71600SA_IM revised_4NOV2010.indd 671600SA_IM revised_4NOV2010.indd 6 2010/11/08 08:49:47 AM2010/11/08 08:49:47 AM
