Morphy Richards IB70045 Manuale utente

Fusion bagless cylinder vacuum cleaners

Please read and keep these instructions

www.morphyrichards.co.uk

getting the best from your

new cleaner...

If your cleaner is not picking up as well as it should,

please check

•Filters

It is important that the airbox and filters are cleaned regularly to allow

air through the appliance. Tap to remove dust, the filter can also be

washed in warm water and left to air dry.

IMPORTANT - Ensure filter is totally dry before refitting into machine.

A spare pleated filter is provided, this allows one to be washed

and dried whilst the other is in use.

If you find that washing the filter is a problem we can help. Call our

dedicated helpline on 0870 060 2604 for further details.

• Blockages

Check the hose, handle and tools for blockages.

•Overheating protection

The cleaner automatically cuts off in the event of overheating caused

by blocked hoses / filters. Remove plug, clear blockage and allow 15

minutes for the cleaner to automatically reset.

Important safety

instructions

The use of any electrical appliance

requires the following common sense safety

rules.

Primarily there is danger of injury or

death and secondly the danger of damage

to the appliance. These are indicated in the

text by the following two conventions:

WARNING: Danger to the person!

IMPORTANT: Damage to the appliance! In

addition we offer the following safety advice.

Location

•Do not use or keep this product outside

when it is raining.

•Do not store the appliance near hot

ovens or heating appliances.

Children

•Children do not understand the dangers

associated with operating electrical

appliances. Never allow children to use

this appliance.

Personal safety

•The plug must be removed from the wall

socket before cleaning or maintaining

the appliance.

•Never modify the cleaner in any way.

Other safety considerations

•Never use in the presence of explosive

liquids or vapours.

•Never pick up inflammable or poisonous

liquids such as petrol, copier toner or

other volatile substances. Never pick up

acids, asbestos or asbestos dust.

•Repairs to electrical appliances are only

to be undertaken by trained personnel.

Unprofessional repairs can be

dangerous for users.

•Use only genuine Morphy Richards

spare parts and accessories.

•If the electrical cable becomes damaged

the complete cable assembly must be

replaced. Do not attempt this task

yourself, contact Morphy Richards using

the replacement parts number on the

front of this leaflet.

•The appliance must never be left running

when unsupervised.

•This vacuum cleaner is intended for

domestic use only. Misuse or use for

commercial or any other purpose will

render the guarantee invalid.

•Always disconnect the appliance from

the mains supply after use or prior to

cleaning or replacing the airbox or filters.

Product safety

•Never use the appliance without the

airbox or filters being installed.

•Never use the appliance to vacuum hot

ashes, broken glass or sharp objects.

•Never modify the cleaner in any way.

•To protect against fire, electric shock and

personal injury do not immerse cord,

plug or cleaner in water or other liquid.

Electrical requirements

Check that the voltage on the rating

plate corresponds with your house

electricity which must be A.C. (alternating

current).

If the socket outlets in your home are not

suitable for the plug supplied with this

appliance the plug should be removed and

the appropriate one fitted.

If you cut off the plug and let go of the

cable it will rewind into the machine.

Therefore you must pull out a length of

cable and secure it before cutting off the

plug and refitting a new one.

IMPORTANT: The plug removed from

the mains lead, if severed, must be

destroyed as a plug with a bared flexible

cord is hazardous if engaged into a live

socket outlet.

Should the fuse in the 13 amp plug

require changing a 13 amp BS1362 fuse

must be fitted.

›

ﬂ

‚

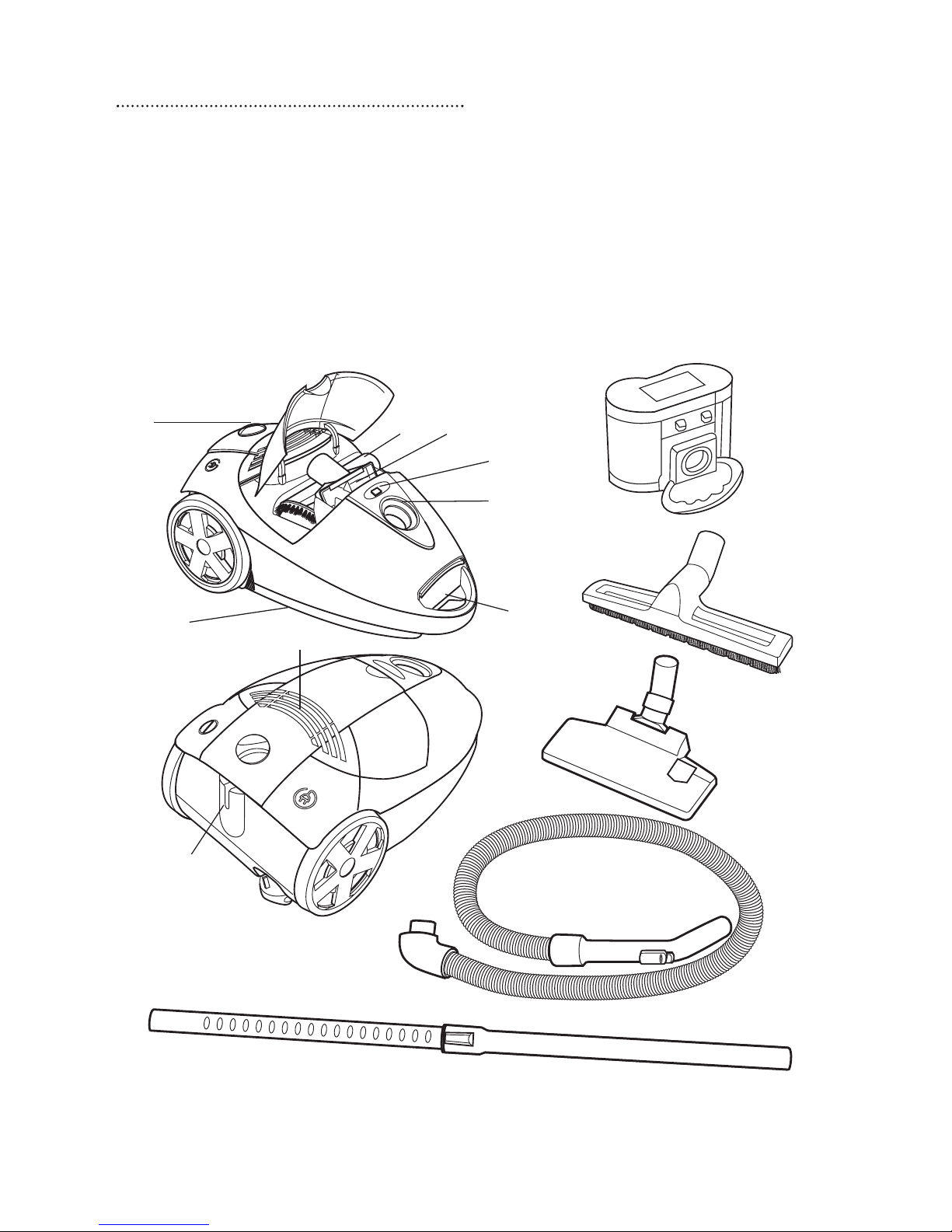

Features

⁄Dust compartment cover

¤Inlet for suction hose

‹Dust compartment release button

›Tool storage compartment cover

ﬁAir box

ﬂElectronic suction power control

‡On/off foot switch

·Cable rewind foot switch

‚Exhaust filter cover

„Carrying handle

‰Tube park (on underside of cleaner)

ÂTube standby slot

Accessories you should have

13 and 14 come assembled as one piece

ÊSuction hose with 360˚swivel connector

ÁHandle with airflow control

ËFloor nozzle

ÈTelescopic metal tube

ÍUpholstery tool

ÎCrevice tool

ÏFurniture brush

ÌSuction gauge

ÓHard floor brush

‰

‹

ÎÍ

⁄

ﬁ

‡

„

Assembly

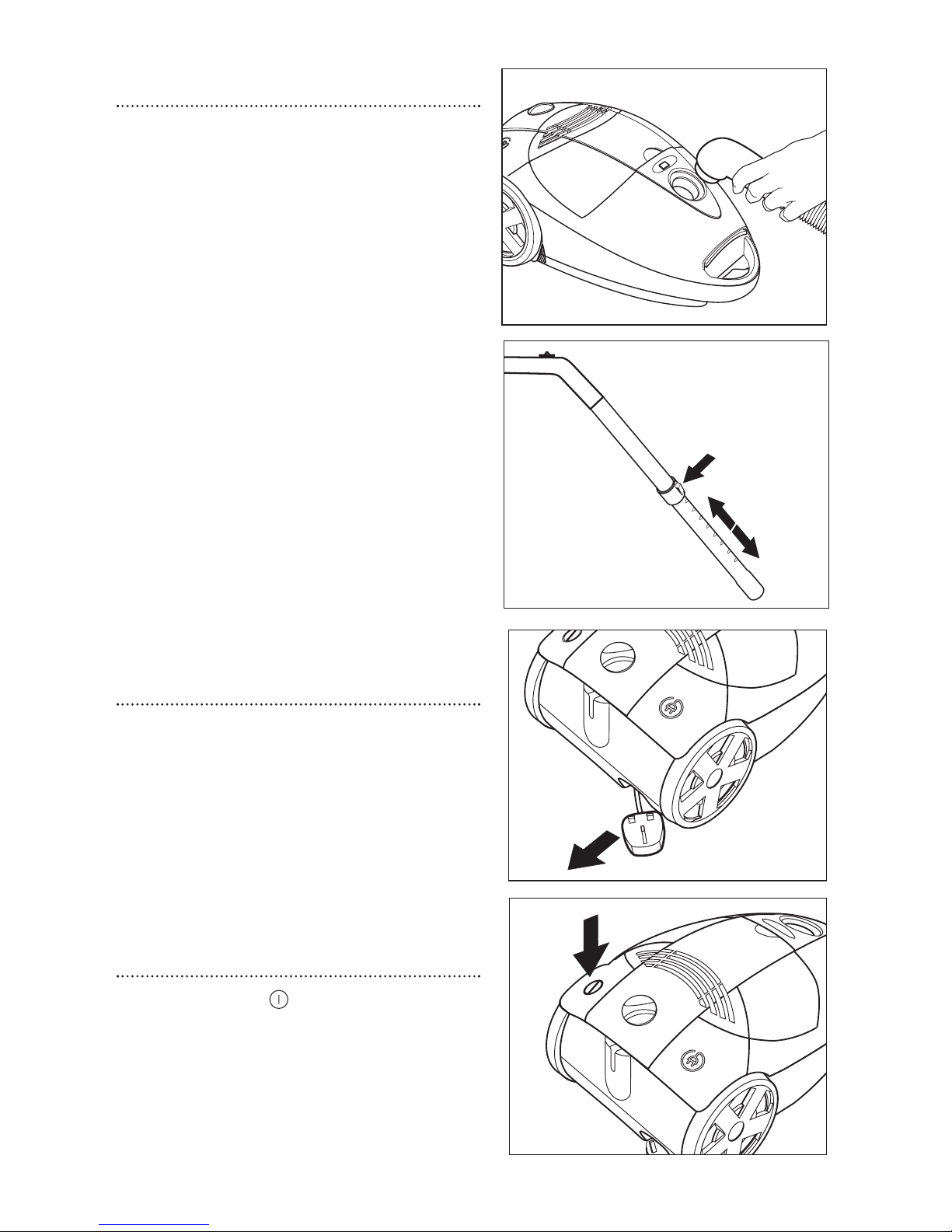

Push the elbow-shaped end of the suction

hose into the housing until it clicks into place.

Te lescopic tube È

Attach the tube to the handle.

To adjust the length, press the release button

as indicated and pull or push the tube to the

desired length.

Floor nozzle Ë

This nozzle is suitable for general purpose

cleaning on a wide variety of floor coverings.

Hard floor nozzle Ó

This nozzle is suitable for hard floors, such

as wood, laminate and tiled surfaces.

Operation

The cable should always be fully withdrawn

before plugging into an electrical socket.

Switching on

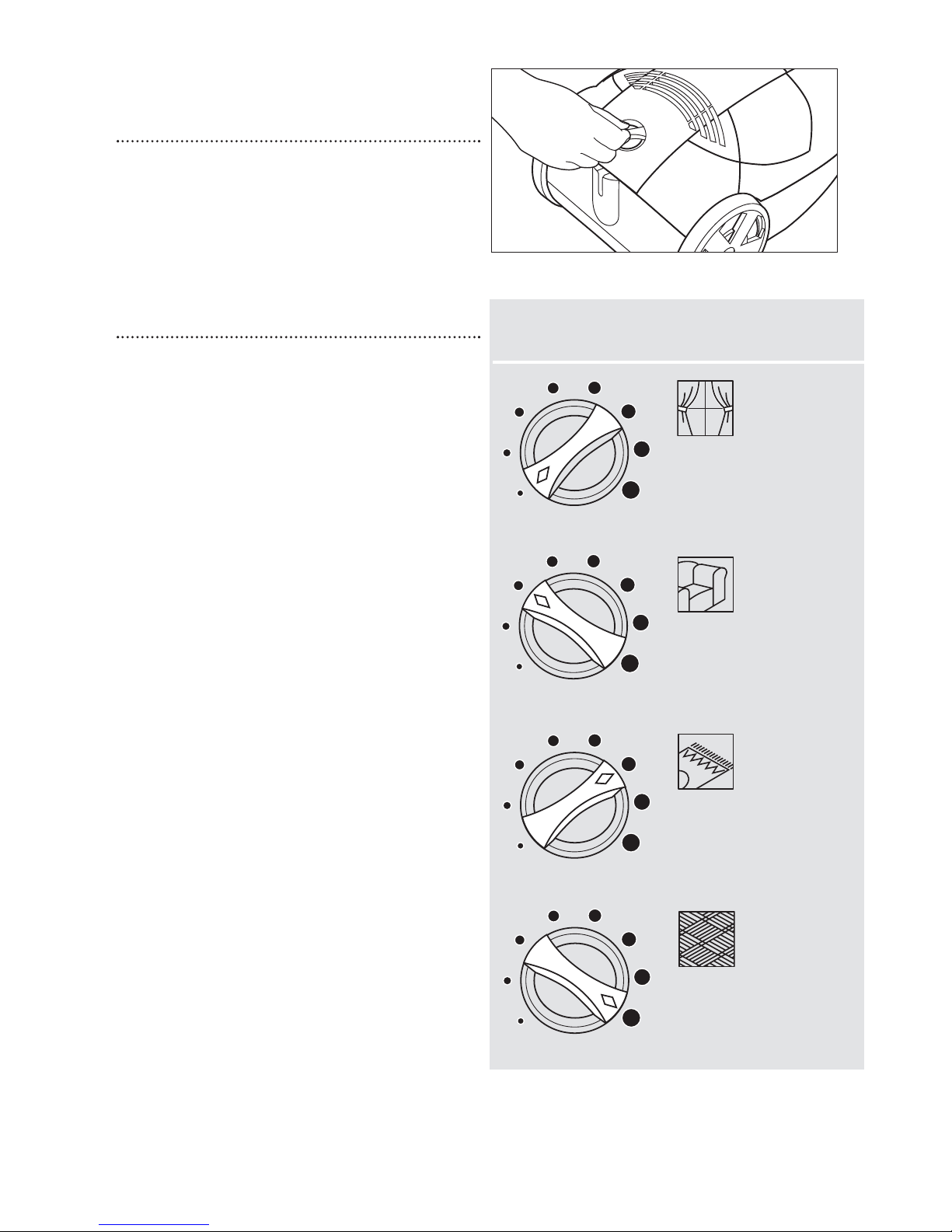

Press foot pedal to start the motor.

Controlling suction

power

The suction power can be varied to suit the

surface being cleaned, by using the electronic

suction power regulator. See table for guideline

settings.

Overheating protection

In the event of a motor overload, your

vacuum cleaner will switch off automatically.

Press the on/off switch and let the motor cool

down.

The vacuum cleaner cuts out automatically

when:

•The floor nozzle or tubes become blocked

•The airbox filter is very dirty.

•The motor protection filter is very dirty

•The exhaust filter is very dirty

Rectify the cause of the cut out and do not

use for 15 minutes to allow the motor to cool.

Power setting Application

Curtains

and delicate

fabrics

Textiles and

upholstery

Floor

coverings

such as rugs

or economy

setting

for carpets

Carpets or

hard floor

coverings

Accessories

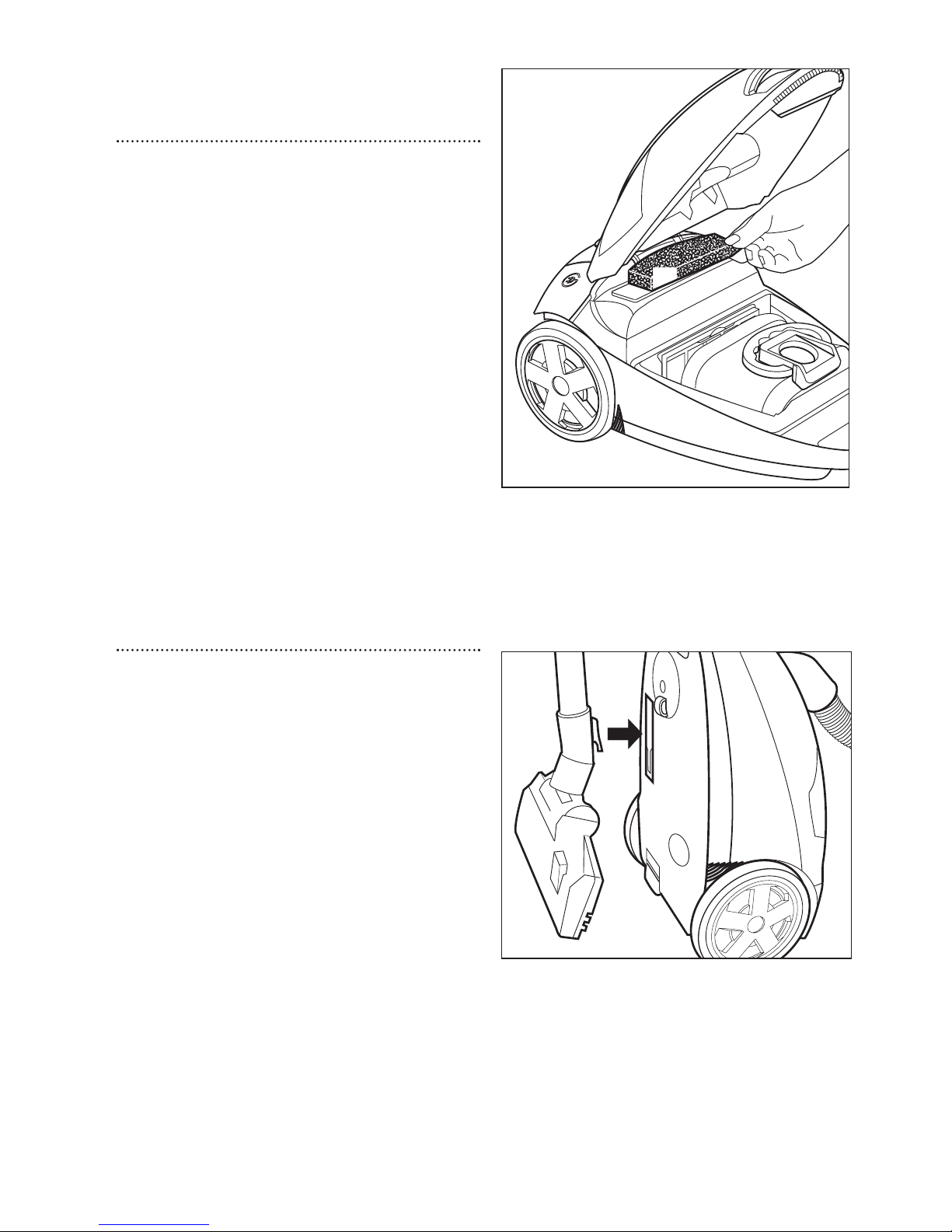

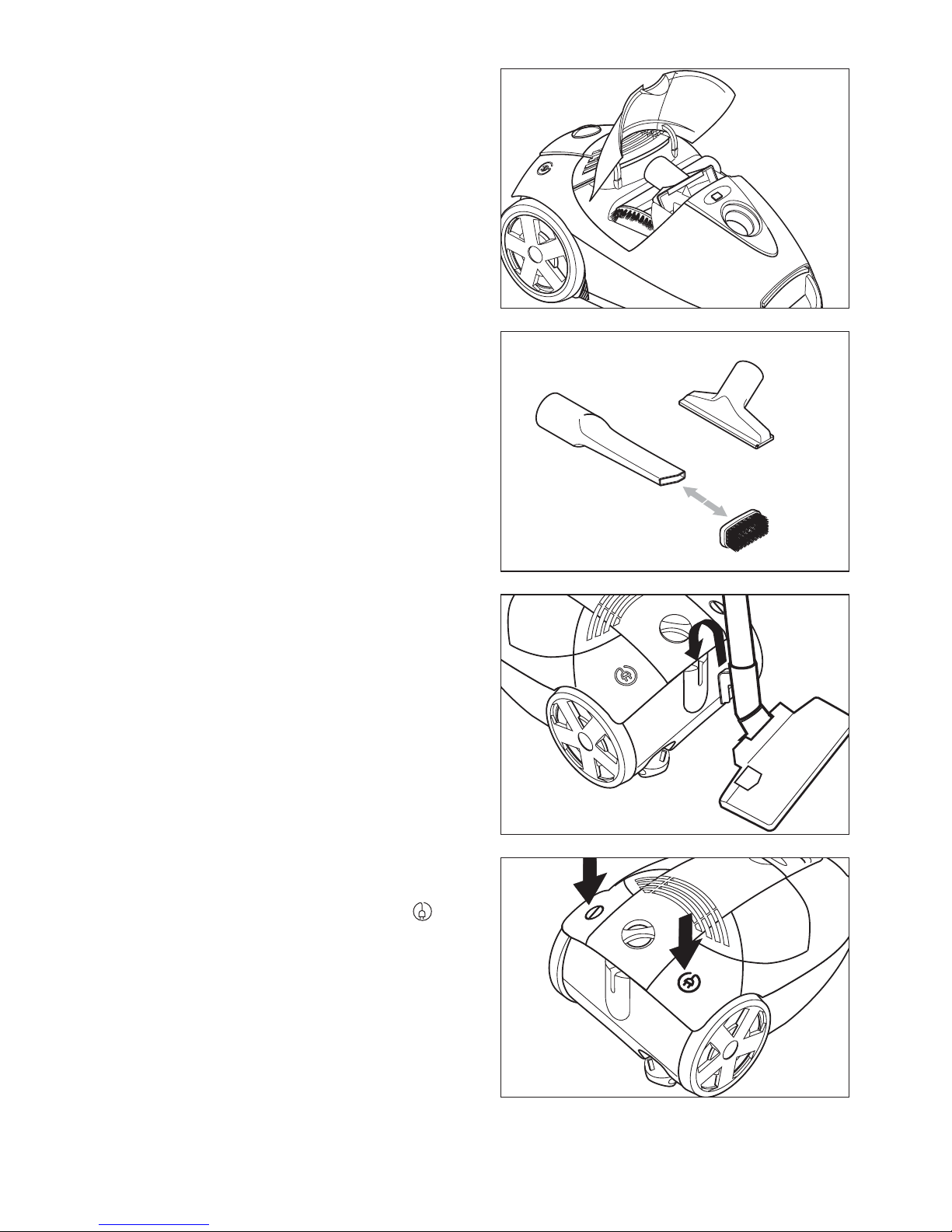

The accessories are stored in the tool

compartment as shown.

The accessories can be attached to the end

of the tube or to the handle.

•Upholstery tool Ífor curtains and

sofas/armchairs.

•Crevice tool Îfor small gaps - various

surfaces.

•Furniture brush Ïfor dusting shelves etc,

(pushes onto the crevice tool).

Tube standby

During short breaks in cleaning the tubes

can be held in an upright, ‘standby’ position,

whilst you move furniture for instance.

CAUTION: Ensure that the appliance is never

left unattended whilst it is switched on.

After vacuum-cleaning

1Switch off the vacuum cleaner.

2Unplug from the mains.

3Use a hand or foot to operate pedal to

rewind the cable.

CAUTION: When using the cable rewind,

always hold the plug as the cable will rewind

quickly.

Emptying the air box

To maintain the performance of your vacuum

cleaner the airbox must be emptied regularly

and the filters cleaned.

The suction gauge indicates the air flow

through the cleaner. If in use, the suction gauge

is continuously in the red, the airbox must be

emptied and the filters cleaned. The suction

gauge will also go into the red if the hose or

nozzles become blocked.

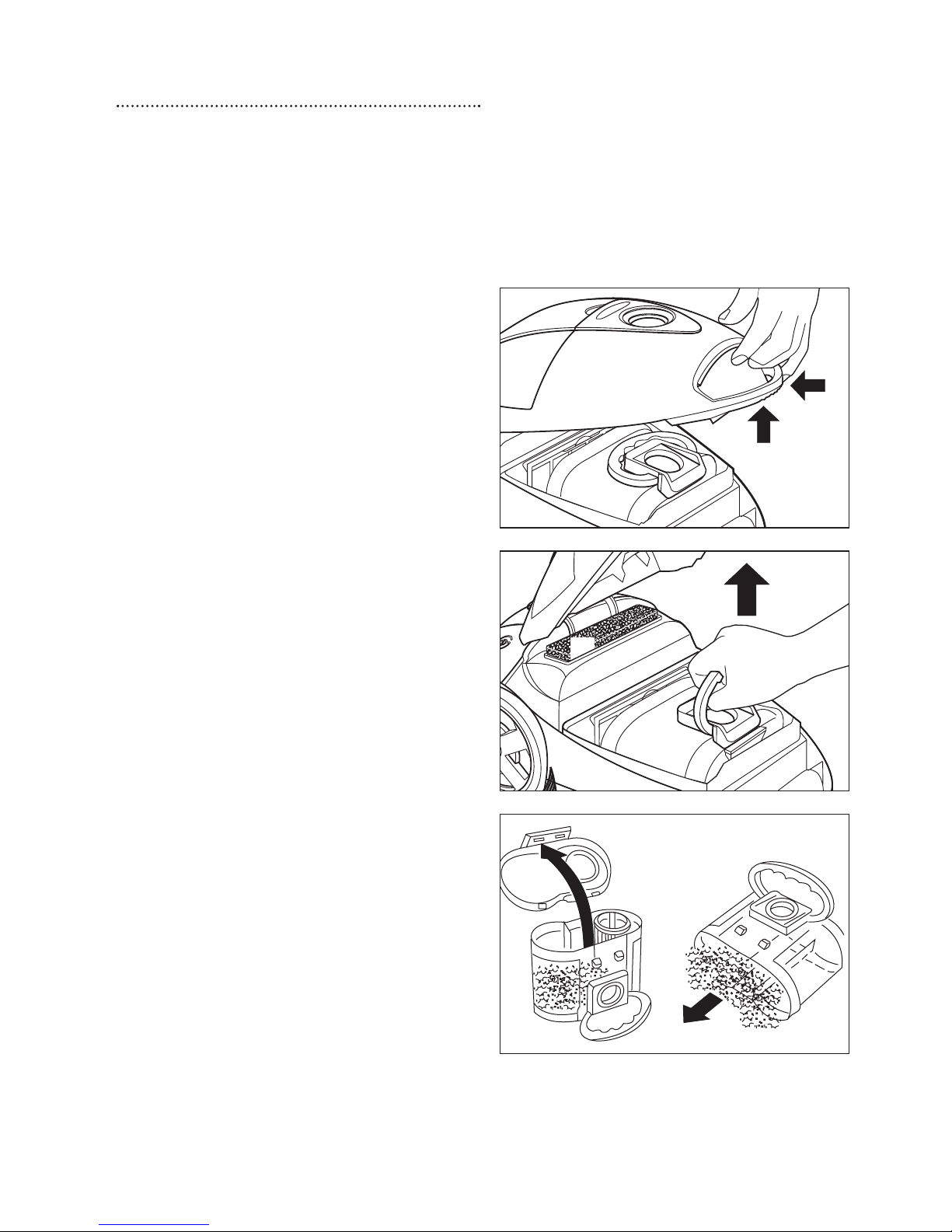

•Press the dust compartment release button

‹indicated by arrow 1 and lift up the dust

compartment lid. (arrow 2)

•Holding the handle on the airbox lift upwards

and remove the airbox from the machine.

Take the airbox to the dustbin.

•Unclip the airbox lid as shown (from the

handle side first). Place the lid to one side

and empty the contents of the airbox into the

dustbin.

Cleaning the airbox filter

IT IS IMPORTANT TO CLEAN THE FILTER

TO MAINTAIN PERFORMANCE, EVERY TIME

THE AIRBOX IS EMPTIED.

•After emptying the dust, twist the filter

assembly anti-clockwise to remove as

shown.

•Slide off the outer mesh filter.

•Tap the pleated filter over a dustbin to

remove any remaining dust.

Washing the airbox filter

IT IS IMPORTANT TO REGULARLY WASH

THE PLEATED FILTER TO MAINTAIN

PERFORMANCE.

Wash in warm water and leave to air dry. Do

not use detergents as this can affect the

performance of the filter.

CAUTION: THE FILTER MUST BE TOTALLY

DRY BEFORE REPLACING INTO THE

MACHINE.

A spare pleated filter is provided.

Replacement filters can be purchased from

our Replacement Parts Helpline Number

0870 167 6635.

•To reassemble, slide the mesh filter over the

pleated filter then lock the filter assembly into

the airbox by twisting clockwise 1/4of a turn.

Replace the airbox lid by locating the two

tabs on the underside of the airbox (opposite

side of handle) into the lid and clip into

place.

•Slide the airbox back into the dust

compartment ensuring that the front hook of

the airbox is located into the slot provided.

DO NOT FIT THE AIRBOX WITHOUT THE

FILTER BEING IN PLACE.

Cleaning the motor

protection filter

The motor protection filter is accessible from

the dust compartment only when the airbox has

been removed first.

WARNING: NEVER USE THE APPLIANCE

WITHOUT THE MOTOR PROTECTION FILTER

INSTALLED, OTHERWISE DAMAGE TO THE

MOTOR MAY OCCUR WHICH WOULD NOT BE

COVERED BY THE GUARANTEE.

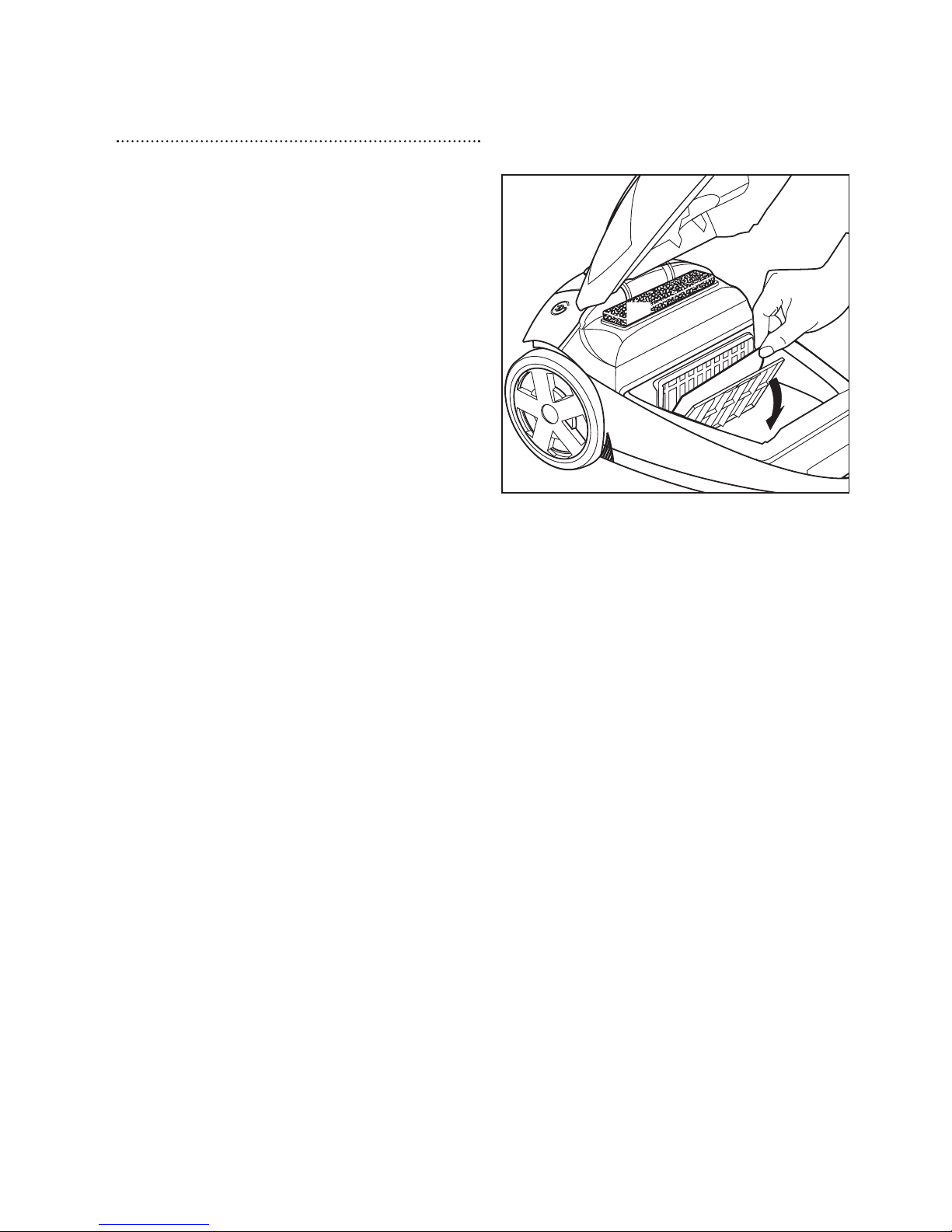

1Open the flap on the filter cassette.

2Take out the micro hygiene filter.

3Wash in warm water and leave to air dry. DO

NOT USE DETERGENTS.

4Replace the dry filter and close the filter

cassette.

5Insert the airbox and close the dust

compartment cover.

Recommendation

The micro hygiene filter should be cleaned

when you have emptied the airbox 5 times.

Important

Ensure the filter is completely dry before

reinserting into the machine.

Replacement filters can be purchased from

our Replacement Parts Helpline Number

0870 167 6635.

Cleaning the exhaust

air filter

The exhaust air filter cleans the air before it

exits the vacuum cleaner.

Recommendation

The exhaust air filter should be cleaned

when you have emptied the airbox 5 times.

How to clean the exhaust air filter

1Push the lock and remove the cover in an

upward direction.

2Lift the exhaust air filter upwards and

remove.

3Wash in warm water and leave to air dry. DO

NOT USE DETERGENTS.

4Replace the dry filter and close the cover.

Important

Ensure the filter is completely dry before

reinserting into the machine.

Replacement filters can be purchased from

our Replacement Parts Helpline Number

0870 167 6635.

Storage

Tube park

The vacuum cleaner can be stored in an

upright position. Rotate the floor nozzle until the

lug on the back of it can be fitted into the tube

park slot on the base of the appliance.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Morphy Richards Aspirapolvere

Morphy Richards

Morphy Richards IB73170 Manuale utente

Morphy Richards

Morphy Richards Bagged cylinder Vacuum Manuale utente

Morphy Richards

Morphy Richards ULTRALIGHT CYCLONE VACUUM CLEANER Manuale utente

Morphy Richards

Morphy Richards 73333 Manuale utente

Morphy Richards

Morphy Richards Orb vacuum cleaner Manuale utente

Morphy Richards

Morphy Richards BAGLESS UPRIGHT VACUUM CLEANER - REV 1 Manuale utente

Morphy Richards

Morphy Richards POD CYCLONE VACUUM CLEANER - REV 1 Manuale utente

Morphy Richards

Morphy Richards BAGLESS CYLINDER VACUUM CLEANER - REV 2 Manuale utente

Morphy Richards

Morphy Richards POD COMPACT BAGLESS VACUUM CLEANER - REV 2 Manuale utente

Morphy Richards

Morphy Richards 700006 Manuale utente

Morphy Richards

Morphy Richards IB70240 Manuale utente

Morphy Richards

Morphy Richards Supervac Deluxe Manuale utente

Morphy Richards

Morphy Richards Upright Bagless Vacuum Cleaner Manuale utente

Morphy Richards

Morphy Richards ESSENTIALS COMPACT BAGLESS VACUUM CLEANER - REV... Manuale utente

Morphy Richards

Morphy Richards Goblin Manuale utente

Morphy Richards

Morphy Richards LOX VACUUM CLEANER Manuale utente

Morphy Richards

Morphy Richards Storm Manuale utente

Morphy Richards

Morphy Richards ESSENTIALS CYLINDER VACUUM CLEANER - REV 3 Manuale utente

Morphy Richards

Morphy Richards Supervac 732009 Manuale utente

Morphy Richards

Morphy Richards 73380 Manuale utente

Morphy Richards

Morphy Richards Supervac Deluxe Manuale utente

Morphy Richards

Morphy Richards STORM LIGHT UPRIGHT VACUUM CLEANER - REV 3 Manuale utente

Morphy Richards

Morphy Richards VC73215 MUK Manuale utente

Morphy Richards

Morphy Richards GOBLIN 1400W WET AND DRY CLEANER Manuale utente

Manuali Aspirapolvere popolari di altre marche

Bissell

Bissell LittleGreen Proheat 1425 Series Manuale utente

Panasonic

Panasonic MC-YL637S147-AE Manuale utente

NEFF

NEFF N17XH10 0 Series Manuale utente

LG A9 Series Manuale utente

Oreck

Oreck Cordless Captura BK51700 Series Manuale utente

Kogan

Kogan KAVACROBVWA Manuale utente

Kränzle

Kränzle VENTOS 50 ID Guida utente

EVVO

EVVO Ai35 Manuale utente

DeWalt

DeWalt DWH200D Manuale utente

Pontec

Pontec Pondomatic Vacuum Cleaner Manuale utente

Cleanmaxx

Cleanmaxx PC-P007E Manuale utente

Exido

Exido 240-114 Manuale utente

RIDGID

RIDGID WD1685AU0 Manuale utente

Ezviz

Ezviz RE4P Manuale utente

STG global

STG global TANVAC HDV3000 Manuale utente

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Manuale utente

Factory

Factory M3340 Manuale utente

Shop-Vac

Shop-Vac VN92 SERIES Manuale utente
