MODEL 400Z-60

Hydra-Lift, 60”, Manual Lift, Manual Tilt

Contents

Page

Receiving Procedures. . . . . . . . . . . . . . . . . 1

Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Safety Information. . . . . . . . . . . . . . . . . . . . . 1 - 2

Machine Description. . . . . . . . . . . . . . . . . . . 3 - 4

Assembly Instructions. . . . . . . . . . . . 5

Operating Instructions. . . . . . . . . . . . . . . . . . . 6

Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . 7

Parts Lists and Diagrams. . . . . . . . . . . . 8 - 9

In all instances, liability is limited to the purchase price paid or to

repairing or replacing the product. Customer assumes liability for

any modications, unauthorized repairs or parts substitution.

Safety Information

While Morse Manufacturing Co. drum handling equipment

is engineered for safety and efficiency, a high degree of

responsibility must be placed upon the machine operator to

follow safe practices, based primarily on common sense, upon

which true safety depends.

Failure to follow the safety precautions in this manual can

result in personal injury or property damage. Observe the same

precautions as with similar machinery where carelessness

in operating or maintenance is hazardous to personnel.

Carefully read the safety precautions below and throughout

this manual.

Receiving Procedures

Every Morse drum handler is inspected prior to shipping.

However, damage may be incurred during transit.

• Check for visible damage. If you choose to accept damaged

freight, always sign noting the damage on the BILL OF

LADING.

• Document the damage and have the truck driver sign. We

recommend keeping a digital camera at your receiving dock

for this purpose.

• Open packages expeditiously to check the condition of the

goods. There is only a 24 hour window to notify the carrier of

any concealed damage.

• IMMEDIATELY REPORT ALL DAMAGE TO THE SHIPPING

COMPANY! Then you may contact Morse for assistance with

your freight claim.

• Morse Manufacturing will not be held responsible for any

damaged freight that is not signed for as damaged.

Delivery to non-business addresses without a loading dock

result in additional freight charges. Residential delivery fees,

inside delivery fees, re-delivery charges, and lift gate services

will be added by the truck line, and are non-negotiable.

Limited 2 Year Warranty

Morse drum handling equipment is guaranteed against defects

in workmanship or materials for TWO YEARS when used

properly within its rated capacity. Warranty does not cover

wear from normal use or damage from accident or abuse.

Motors and other purchased parts carry the warranties of their

manufacturers.

For warranty claims, contact your Morse Dealer to obtain a

return authorization number, and for return freight advice. Return

freight must be prepaid.

Operator’s Manual

for Morse Hydra-Lift Drum Karrier

Model 400Z-60

Serial Number 0604 to 0110 (MMYY)

Safety Information (continued)

DANGER - Indicates a situation which, if not avoided, will result in

serious injury or death. This signal word is limited to the most extreme

situations.

WARNING - Indicates a situation which, if not avoided, could result in

serious injury or death.

CAUTION - Indicates a situation which, if not avoided, can result in

damage to the machine.

CAUTION – Do Not Transport with Drum Raised

ALWAYS LOWER THE DRUM HOLDER TO LOWEST POSITION BEFORE TRANSPORTING. The unit

can become unstable when transporting with a raised load.

DANGER - Stay Clear of Power Lines

KEEP WELL CLEAR OF POWER LINES. Never approach a power line. Current in a high voltage line may

arc some distance from the wire to the steel framed, grounded machine.

WARNING

The Hydra-Lift Karrier is designed to handle one drum of the types listed at the top of page 3, under 2.

Machine Description. DO NOT attempt to handle any other type of drum or object. DO NOT exceed the

weight capacity of 800 Lb.

WARNING - Level Floors Only

For operation only on clean, level oors of suitable bearing capacity. Do not use on sloped surfaces, ramps,

irregular or debris strewn oors.

WARNING - Do Not Modify the Unit

Under no circumstances should any modications be made to the Morse machinery without factory

authorization. Any modications may void the warranty. This machine was designed to perform a specic

job and alterations may result in injury to operator or machine.

WARNING - No Loose Fitting Clothing

Wear close-tting clothing and safety equipment appropriate to the job. Loose tting clothing may become

caught on the machinery and cause severe personal injury.

WARNING - Hydraulic Fluid Under Pressure Can Be Hazardous

Escaping hydraulic uid under pressure can penetrate the skin, causing serious injury. Avoid the hazard

by relieving pressure before disconnecting hydraulic lines. Keep hands and body away from pinholes and

nozzles, which eject uid under high pressure. Use a piece of cardboard to search for leaks. If an accident

occurs, see a doctor immediately and inform them of the nature of the accident.

CAUTION - Wear Safety Shoes

Wear safety shoes with non-slip soles and hard toe protection.

Operator’s Manual for Morse Hydra-Lift Drum Karrier Model 400Z-60

Serial Number 0604 to 0110 (MMYY)

The Specialist In Drum Handling Equipment

MODEL 400Z-60

Hydra-Lift, 60”, Manual Lift, Manual Tilt

Machine Description

The Model 400Z-60 Hydra-Lift Karrier will pour a drum up to 60” high, measured from the oor to the lowest point of a horizontal

drum. It is designed to lift, transport, and dispense a ribbed 55-gallon steel drum 22.5” in diameter. The maximum full-drum

capacity is 800 Lb. The capacity is derated to 500 Lb. for a half-full drum. The half-full rating is based on the tilt mechanism’s

capacity for handling an unbalanced bottom-heavy drum.

Options

• A smaller diameter drum can be handled with the correct size 55/30 Series Diameter Adaptor installed

(see Diameter Adaptor literature)

• A 55-gallon plastic drum can be handled with either the Adjustable Bracket (Part # 1465-P) or the Top Rim Clamp

(Part # 3540-P). Use the Top Rim Clamp with a plastic drum that has a suitable top rim (see gure 2.1). Use the Adjustable

Bracket for a drum with or without a top rim (see gure 2.2).

Operator’s Manual for Morse Hydra-Lift Drum Karrier Model 400Z-60

Serial Number 0604 to 0110 (MMYY)

The Specialist In Drum Handling Equipment

MODEL 400Z-60

Hydra-Lift, 60”, Manual Lift, Manual Tilt

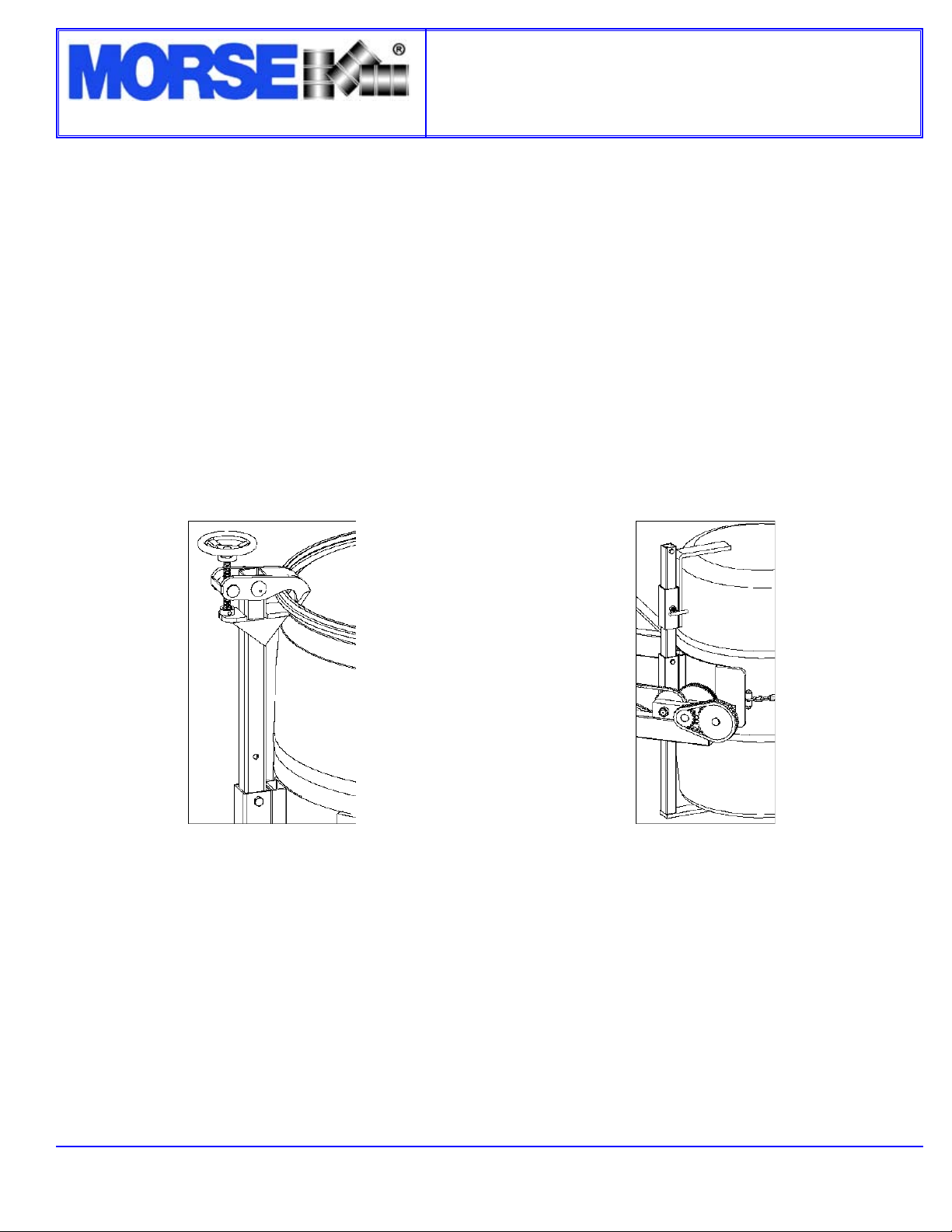

Figure 2.1

Plastic drum being lifted with

part number 3540-P Rim Clamp

Assembly installed.

Figure 2.2

Plastic drum being lifted with part

number 1465-P Bracket Assembly

installed.

Controls

The Morse Hydra-Lift Karrier is manually propelled and steered.

There are two functions for the operator to control (Figure 3):

1. “LIFT” and lower function for vertical positioning of the drum

2. “TILT” function to control the degree of rotation of the drum

1. LIFT and Lower Function

To raise the drum

a. Insert pump lever handle into pump socket.

b. With the release valve closed, begin to pump the lever handle. The

drum will lift.

To lower the drum

a. Open the release valve slowly, a part of a turn. Allow the drum to descend

at a controlled rate. The valve may be reclosed to hold the drum at any

height.

2. TILT Function

To tilt the drum

a. Turn the hand crank (item 90) to turn the drum.

b. Before releasing your grip on the hand crank, pull out the crank stop pin

(item 89) to block the hand crank from spinning freely.

c. If the drum handler is equipped with the MORStop Tilt-Brake,

there is no need to use the stop pin. Braking is immediate and

self-actuating, without additional steps by the operator.

Note: To add the MORStop Tilt-Brake to an existing drum handler, order

part # 3900-P for a eld installation kit.

WARNING - Watch Out for Pinch Points

Stay clear of moving parts. Operator should remain behind the push handle during the lift operation.

Floor Lock

The screw-down oor lock is located on the base of the tower (gure 3.1).

Turning the oor lock clockwise until it locks in the down position activates

the oor lock. When the oor lock is activated it prevents unwanted free

wheeling of the unit. Floor conditions determine the effectiveness of the

oor lock. The operator should verify its holding action before depending

on it to hold.

Drum Holder Assembly

The drum holder assembly (or “saddle assembly”) is the component on

the Hydra-Lift Karrier that is intended to hold the drum. The drum holder

assembly is designed to secure a standard ribbed 55-gallon steel drum

around it’s middle using a cinch chain and ratchet tightening system. The

drum holder accepts accessories for handling a 55-gallon plastic drum or a

smaller diameter drum.

Operator’s Manual for Morse Hydra-Lift Drum Karrier Model 400Z-60

Serial Number 0604 to 0110 (MMYY)

The Specialist In Drum Handling Equipment

MODEL 400Z-60

Hydra-Lift, 60”, Manual Lift, Manual Tilt

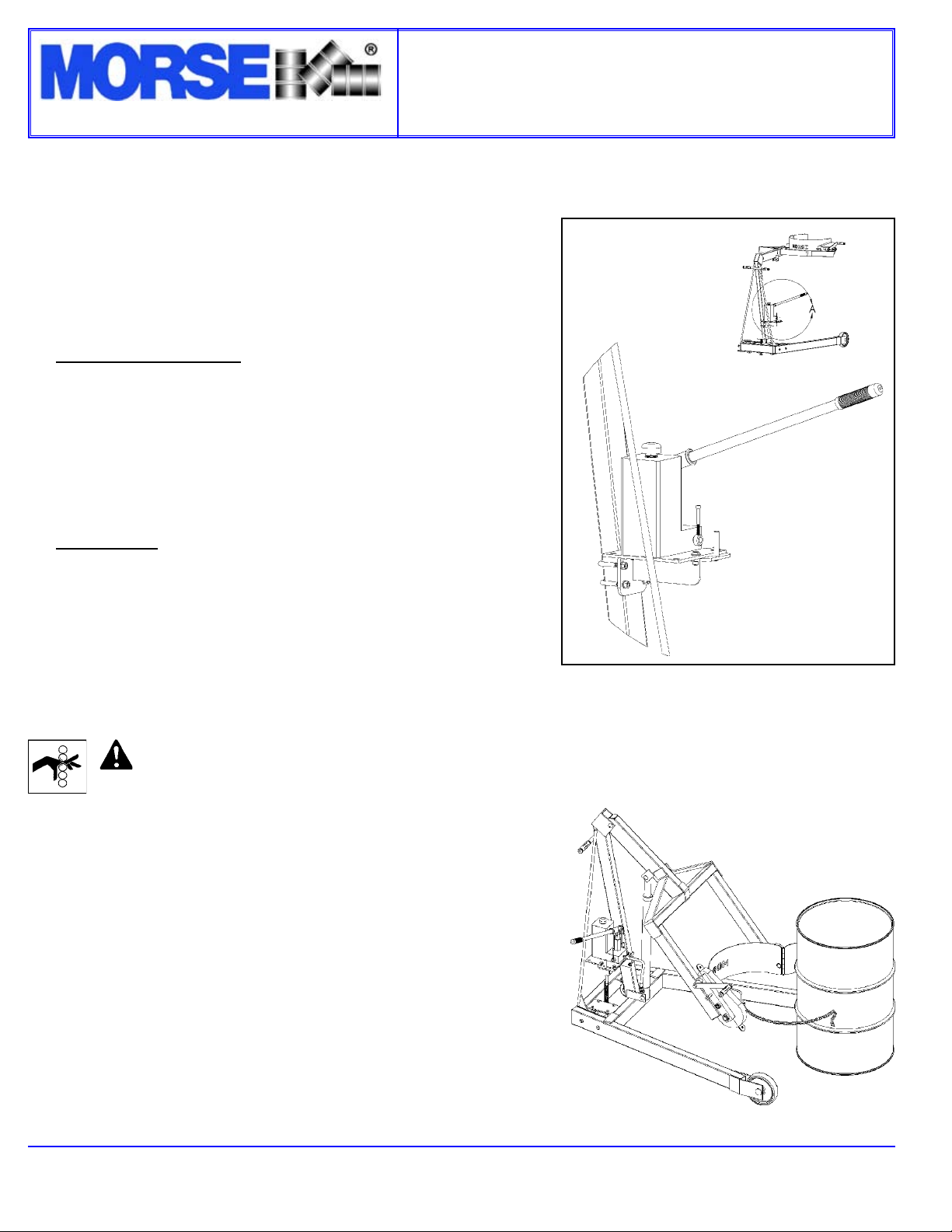

Figure 3.1

Figure 3.

Assembly Instructions for Morse Hydra-Lift Drum Karrier Model 400Z-60

Serial Number 0604 to 0110 (MMYY)

Step #1: Place tower on oor, push-handle down. See gure 1.

Step #2: Attach each leg (item 4) using two 3/8-16x3” grade 5 bolts

(item 2), at washers (item 3), and lock nuts (item 13) as

shown. Wheels should be parallel when assembled properly.

See gures 1 & 2.

Step #6: Remove sealing plug from the top of hydraulic reservoir and ll reservoir with included container of hydraulic uid. Replace sealing plug

with the included breather plug. Your Hydra-Lift Karrier is now ready for service. Please refer to the operating and maintenance instructions

provided.

Step #3: Tip the tower up so it stands on the casters and wheels.

Step #4: Lift overhead assembly into position. A drift pin can help align the holes. Insert a greased clevis pin (item 12) through mast cap and boom.

Install a 5/8” washer (item 9) and 3/16” roll pin (item 8) in the end of the clevis pin. See gure 3.

Step #5: Next, connect the cylinder (item 16) to the overhead assembly: Align ram eye with holes in boom clevis plates and insert a greased clevis pin

(item 12) with four 5/8”washers (item 9). Place another washer (item 9) on outer end of clevis pin and drive a 3/16” roll pin (item 8) into the

hole at the end of clevis pin. See gure 4.

Please unpack and identify the following parts:

1 ea. Tower with hydraulic pump and cylinder, etc.

2 ea. Legs with wheels

1 ea. Overhead assembly with drum holder, etc.

1 ea. Package with hardware

NOTE: The clevis pins and mating surfaces at their joints should be

coated with grease during assembly.

FIGURE 4FIGURE 3

FIGURE 1 FIGURE 2

The Specialist In Drum Handling Equipment

MODEL 400Z-60

Hydra-Lift, 60”, Manual Lift, Manual Tilt

Operating Instructions

1.) Push the Hydra-Lift Karrier to the drum.

2.) Using the “LIFT” control as described in “Machine Description

- Controls” (page 3) , position the drum holder assembly with

the back band at the middle of the drum. (Figure 3.1). With

the ratchet plate swung open and the cinch chain hanging

from the chain hook, push the unit until the back band rests

rmly against the drum. Some adjustment to the tilt angle of

the saddle may be necessary to ensure band ts ush on the

drum.

3.) Attaching the drum:

Drape the chain across the front of the drum and engage a link

into the slot in the ratchet (Figure 3.2). Turn the ratchet clockwise to tighten chain. If ratchet turns until the pawl is beyond the

last ratchet tooth, turn the ratchet back and slide the next link into the ratchet slot and try tightening again. The chain must

be held tightly against the drum with the pawl engaged securely in the ratchet teeth.

4.) Operate the lift function to lift drum clear of oor. Roll to dispensing location. NOTE: Do not allow the drum to impact on oor,

pouring station, etc. or a spill or damage could occur.

CAUTION – Do Not Transport with Drum Raised

ALWAYS LOWER THE DRUM HOLDER TO LOWEST POSITION BEFORE TRANSPORTING. The unit

can become unstable when transporting with a raised load.

5.) Lift drum to desired pouring height. Operate the tilt control as described in “Machine Description - Controls” (page 3)

to adjust the drum attitude. This is especially important when lifting an open drum. The oor lock should be engaged while

dispensing / draining.

6.) When dispensing is complete, tilt drum back to upright position. Disengage the oor lock and lower the drum to transporting

height; about 6” off the oor.

WARNING - Stay Clear of Raised Drum

NEVER allow anyone to be below any part of a raised drum handler or drum. Remain behind the push handle

while handling a drum.

WARNING – Do NOT Disengage the Cinch Chain When Drum is off the Ground

When the drum is in the upright position, lower the drum to the oor before releasing the cinch chain.

7.) Push the unit to the drum storage area and lower to the oor in an upright position. Release the cinch chain from the

ratchet by applying pressure to the ratchet handle in a clockwise direction with one hand and opening the pawl to free the

ratchet with the other hand. Remove the cinch chain link from the ratchet.

Figure 3.2

Operator’s Manual for Morse Hydra-Lift Drum Karrier Model 400Z-60

Serial Number 0604 to 0110 (MMYY)

The Specialist In Drum Handling Equipment

MODEL 400Z-60

Hydra-Lift, 60”, Manual Lift, Manual Tilt

Maintenance

Periodic inspection for the general condition of structural and mechanical components is imperative for safe and efcient

operation.

Periodically inspect all moving parts, framework, and contact areas for signs of wear, fatigue, or loosening. Tighten, adjust, or

replace parts as necessary to prevent failure and maintain proper function.

Inspect the hydraulic system for oil drips, hose damage, or other signs of wear. Inspect the level and condition of the hydraulic

uid. Replace any parts that show signs of wear.

Grease wheel bearings periodically. Oil or grease all moving parts including: the three clevis pins and the surfaces of the boom

which contact the inside of the mast cap, the hinge pin, the gears and sprockets in the tilt drive, and the ratchet and pawl.

Worn or damaged parts must be properly replaced with the correct, genuine Morse parts.

Operator’s Manual for Morse Hydra-Lift Drum Karrier Model 400Z-60

Serial Number 0604 to 0110 (MMYY)

The Specialist In Drum Handling Equipment

MODEL 400Z-60

Hydra-Lift, 60”, Manual Lift, Manual Tilt

Parts List for Morse Hydra-Lift Drum Karrier Model 400Z-60

Serial Number 0604 to 0110 (MMYY)

The Specialist In Drum Handling Equipment

MODEL 400Z-60

Hydra-Lift, 60”, Manual Lift, Manual Tilt

ITEM QTY. PART # DESCRIPTION

1 1 3676-60-P OVERHEAD ASM, 400Z-60 W/ APS

2 4 1521-P HHCS, 3/8-16 X 3 GR5

3 4 1166-P WASHER, 3/8 USS 1” OD

4 2 134-P LEG WELD, 400A-72, 60

5 2 704-P AXLE, 3/4”, USE WITH PUSH-ON

6 2 705-P CAP, HUB, PUSH-ON, 3/4”

7 * 2 87-P WHEEL, MORTUF, 8”, 3/4” BRG

8 3 64-P ROLL PIN, 3/16 X 1-1/4

9 7 17-P WASHER, 5/8 SAE FL 1-5/16 OD

10 * 2 3308-P CASTER, 4” SWIVEL, DBL RACE

11 12 491-P NUT, 5/16-18 REV HEX LOCK

12 3 138-P CLEVIS PIN 5/8 X 3”

13 4 1169-P NUT, 3/8-16 REV HEX LOCK

14 8 215-P HHCS, 5/16-18 X 5/8 GR2

ITEM QTY. PART # DESCRIPTION

15 1 3610-P HYD FIT, MALE ELBOW, SAE

16 1 781-P CYLINDER, 1.5 X 22.625”, SAE

17 2 136-P GRIP, HANDLE 7/8” X 4-3/4”

18 1 135-P ASM, TOWER, 400A-60, 72

19 1 3679-P KIT, PUMP MOUNT PLATE, ML MT

20 8 1570-P WASHER, 5/16 USS 7/8 OD

21 2 3641-P U-BOLT, 3/8-16, 400 PUMP MOUNT

22 1 3642W-P MOUNT PLATE WELD, MANUAL PUMP

23 4 1474-P WASHER, 3/8 SPLIT LOCK

24 4 149-P NUT, 3/8-16 FIN HEX

25 4 35-P HHCS, 5/16-18 X 1 GR2

26 1 766-P HYD HOSE ASM, 12”

27 1 96MK1939-P PUMP, HYD, HAND STAR

28 1 96CP13-23 HANDLE, LEVER W/ GRIP, STAR

* Recommended spare parts

Overhead Assembly (Part Number 3676-60-P)

for Morse Hydra-Lift Drum Karrier Model 400Z-60

Serial Number 0604 to 0110 (MMYY)

The Specialist In Drum Handling Equipment

MODEL 400Z-60

Hydra-Lift, 60”, Manual Lift, Manual Tilt

ITEM PART # DESCRIPTION

50 1 725Z-P SADDLE ASM, W/ APS SOCKET, 285

51* 1 726-P A RATCHET HINGE PLATE CPT 1/4”

52* 1 1296-P HHCS, 1/4-20 X 7-1/2 GR5

53* 1 1297-P NUT, LOCK, 1/4-20 REV HEX

54* 1 180-P CHAIN, CINCH, 3/16 ALLOY 33 LK

55* 1 4081-P NUT, M8 ESNA, 8MM

56* 1 4079-P HHCS, M8 X 60 MM CL8.8, 8MM

57 1 23-P GEAR, SPUR, 72T, 1” HOLE

58 2 22-P SHCS, 3/8-24 X 5/8

59 1 29-P SPACER, SPUR GEAR .15”

60 1 731-P A RATCHET HINGE PLATE ONLY 1/4

(not sold separately)

61 1 165KIT-P KIT, RATCHET CHAIN TIGHTENER

62 1 168-P PAWL, WITH DRILLED HOLE

63 1 169-P PAWL SPRING

64 1 170-P SCREW, SHOULDER, 3/8 DIA X 5/8

65 1 710-P RETAINER, RATCHET PUSH NUT 3/4

66 1 165-P RATCHET, MALLEABLE, FOR SADDLE

67 2 136-P GRIP, HANDLE 7/8” X 4-3/4”

68 1 790-72-P OVERHEAD WELD, 400A-72

69 2 64-P ROLL PIN, 3/16 X 1-1/4

70 2 55-P WASHER, 3/4 SAE FL 1-1/2 OD

71* 1 735-P KEY, WOODRUFF, SIZE 9, ASA606

72* 1 14-P GEAR, PINION, 7 TOOTH

73* 1 12-P CHAIN, ROLLER, #35 W/ M LINK

74 1 795-P LINK, MASTER, #35 CHAIN

75 1 13-P SPROCKET #35 36T, 3/4” BORE

76* 1 1302-P SHAFT W/ 12T SPROCKET, POCKET

77* 1 1411-P SPACER FOR SHAFT W/ 12T

78* 1 19-P BEARING, 3/4” ID X 2-1/2”

79* 1 7-P BEARING, 3/4” ID X 1-1/2”

80* 1 18-P BEARING, 1” ID X 2-1/2”

81 1 16-P COLLAR, 1” ID

82 1 15-P COLLAR, 3/4” ID

83 1 4062-P KIT, POLY COVER, 185, 285, 400

84 1 4060-P COVER HALF, TOP, PLASTIC, A

85 1 4061-P COVER, BOTTOM, PLASTIC, A

86 2 1517-P SCREW, PANHEAD, 1/4-20 X 5/8

87 2 1518-P NUT, LOCK, 1/4-20 NYLON

88* 1 718-P NUT, PUSH, 1/2

89* 1 100-P STOP PIN, HAND CRANK, 1/2 X 5

90* 1 5U-P HAND CRANK, W/ SOCKET TUBE

* Recommended spare parts

Indice

Altri manuali morse Sistema di sollevamento

morse

morse 42 Series Manuale utente

morse

morse 400A-96SS-117 Manuale utente

morse

morse 400AM-60 Manuale utente

morse

morse 515-N-115 Manuale utente

morse

morse 86 Manuale utente

morse

morse 515-N Manuale utente

morse

morse 520-120 Manuale utente

morse

morse Hydra-Lift 400A-96 Manuale utente

morse

morse 285AM Manuale utente

morse

morse Hydra-Lift Drum Karrier 400AM-60-124 Manuale utente

morse

morse 510-120 Manuale utente

morse

morse 400A-96SS-110 Manuale utente

morse

morse 400A-60-117 Manuale utente

morse

morse 400A-72-117 Manuale utente

morse

morse 515M-T-114 Manuale utente

morse

morse 400A-60-125 Manuale utente

morse

morse 400A-72-115 Manuale utente

morse

morse 82H-120 Manuale utente

morse

morse 195A Series Manuale utente

morse

morse 400A-96SS-125 Manuale utente

morse

morse 510SS-114 Manuale utente

morse

morse 400A-60-127 Manuale utente

morse

morse 400A-72SS-114 Manuale utente

morse

morse 520-114 Manuale utente

Manuali Sistema di sollevamento popolari di altre marche

Braun

Braun NL955 Series Manuale utente

haacon

haacon 1889.10 Manuale utente

Protekt

Protekt AT 252 Manuale utente

R. Beck Maschinenbau

R. Beck Maschinenbau HS 600 Manuale utente

Nova Technology International, LLC

Nova Technology International, LLC NAS Series Manuale utente

Genie

Genie Z-60/34 Manuale utente

Screen Technics

Screen Technics INTERFIT Vertical Up Lift Manuale utente

Mortuary Lift

Mortuary Lift ULTIMATE 1000 Manuale utente

Custom Equipment

Custom Equipment Hy-Brid 3 Series Manuale di programmazione

Custom Equipment

Custom Equipment Hy-Brid Lifts 2 Series Manuale di programmazione

Hy-Brid Lifts

Hy-Brid Lifts HB-P3.6 Manuale di programmazione

BERG

BERG BeNomic EasyLeaf Manuale utente

Powermate

Powermate LiftGate LG-3 Manuale utente

Snorkel

Snorkel TM12 Series Manuale utente

Terberg

Terberg OMNIDEKA Manuale utente

Harmar Mobility

Harmar Mobility AL625 Istruzioni operative

Rotary

Rotary SPO16 Manuale utente

Ricon

Ricon Mirage F9T Manuale utente

morse 400Z-60 Manuale utente

Manuali Sistema di sollevamento popolari di altre marche
