Motorola RS507 Series Manuale utente

RS507 Hands-Free Imager

Quick Reference Guide

2 RS507 Hands-Free Imager

Motorola reserves the right to make changes to any product to improve reliability,

function, or design.

Motorola does not assume any product liability arising out of, or in connection

with, the application or use of any product, circuit, or application described herein.

No license is granted, either expressly or by implication, estoppel, or otherwise

under any patent right or patent, covering or relating to any combination, system,

apparatus, machine, material, method, or process in which Motorola products

might be used. An implied license exists only for equipment, circuits, and

subsystems contained in Motorola products.

MOTOROLA and the Stylized M Logo are registered trademarks of Motorola, Inc.

Other product names mentioned in this manual may be trademarks or registered

trademarks of their respective companies and are hereby acknowledged.

Motorola, Inc.

One Motorola Plaza

Holtsville, N.Y. 11742-1300

www.motorola.com/enterprisemobility.

Warranty

For the complete Motorola hardware product warranty statement, go to:

www.motorola.com/enterprisemobility/warranty.

Patents

This product is covered by one or more patents. For patent information go to:

www.motorola.com/enterprisemobility/patents.

Quick Reference Guide 3

Introduction

The RS507 Hands-Free Imager (also referred to as the Imager) is a wearable bar

code scan solution for both 1D and 2D bar code symbologies. The Imager is also

compatible with a wide range of mobile computers communicating over Bluetooth.

The Imager is designed for a wide range of applications from management of

products in a warehouse, to processing deliveries at a courier facility to

processing prescription drugs at the pharmaceutical distribution center.

The Imager uses camera-based scanning technology, designed to offer flexible

hands-free operation with ergonomic comfort for right or left hand users.

The Imager can be operated in both manual and auto-triggering modes.

Auto-triggering is a patent-pending Intelligent Sensing Technology combining

motion and proximity sensing for triggering the Imager.

The Imager is built to last and rated for indoor and outdoor daily use in

scan-intensive environments. Built on a magnesium chassis, the Imager offers the

durability associated with the most rugged mobile computers.

About this Guide

This guide provides basic information on the following topics:

•Cordless Configuration Features on page 5

•Corded Configuration Features on page 6

•Getting Started - Cordless Configuration on page 8

•Getting Started - Corded Configuration on page 9

•Status Indications on page 11

•Bluetooth Connection on page 12

•Scan on page 14

•Customize the Imager on page 16

•Resetting the Imager on page 18

•Troubleshooting on page 19

•Field Replaceable Parts on page 20

•Cleaning on page 24

•Regulatory Information on page 25

•Health and Safety Recommendations on page 26

•Batteries on page 29

For more information, refer to the RS507 Hands-Free Imager Product Reference

Guide, p/n 72E-120802-01 available at:

www.motorola.com/enterprisemobility/manuals.

4 RS507 Hands-Free Imager

Unpacking the Imager

After opening the shipping box, inspect the contents. You should have received

the following:

NOTE - Standard Range (SR): The SR focusing is used to maximize the far reading

distance and is the standard offering on all mobile computing products using same

imager. The SR focusing is not specified to read 5 mil code 128 or 6.6 mil Databar

and is thus inadequate for applications that have these somewhat higher density

reading requirements. This is the default configuration and the configuration of choice

where the far reading range is more important than the ability to read high density

symbols.

- Driver License (DL): The DL focusing is optimized for reading all drivers license

and is also specified to read higher density codes such as 5 mil code 128 and

Databar and 5 Mil PDF417. As a result it has a slightly reduced range on EAN/UPC

codes (typically 12" on photographic quality symbol). This is the preferred

configuration where the ability to read these higher density codes is more important

than range on medium or low density codes (10 mil and above). DL is recommended

in electronics, pharmacy or when handling small items.

Inspect the equipment for damage. If you are missing any equipment or if you find

any damaged equipment, contact Motorola Enterprise Mobility Support

immediately. See Service Information on backcover for contact information.

Model

yy:

IM = SR focus

DL = DL focus

Description

Standard Battery

Extended Battery

Corded Adapter

Trigger

Quick Reference Guide

RS507-yy2xxxxSTWR

Cordless, triggered RS507 with

standard battery

RS507-

2xxxxSNWR Cordless, triggerless RS507 with

standard battery

RS507-

2xxxxENWR Cordless, triggerless RS507 with

extended battery.

RS507-yy2xxxxCTWR

Corded and triggered RS507

RS507-yy2xxxx0TWR

Cordless, triggered RS507 with

no battery

Quick Reference Guide 5

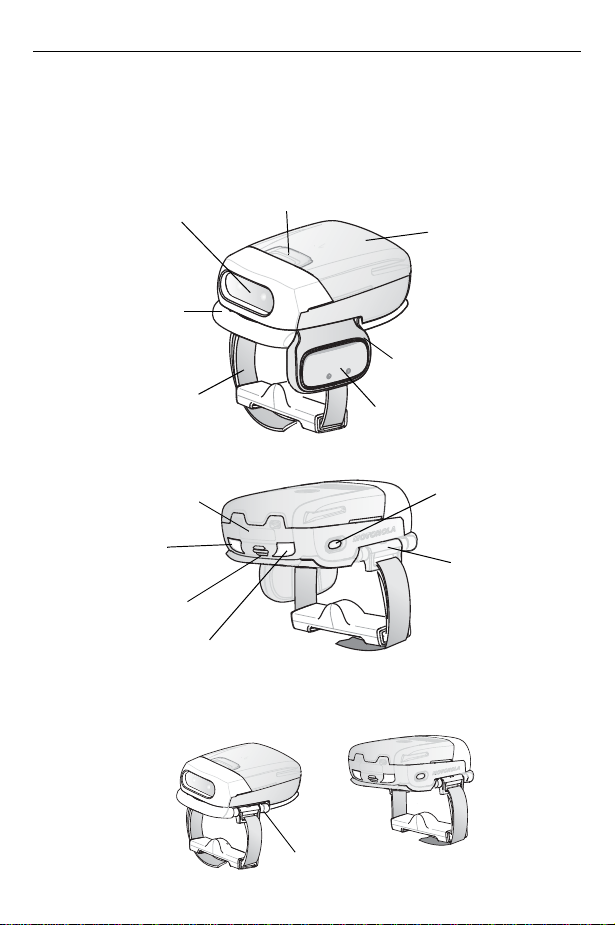

Cordless Configuration Features

Imager Window Battery

Battery Release Latch

Finger Strap Scan Trigger

Strap Buckle

Beeper

Restore Key

Left Scan LED

Right Scan LED

Comfort Pad

Trigger Swivel Assembly

Asset Control Label

Triggerless Configuration

Triggerless Strap Holder

Trigger Configuration

6 RS507 Hands-Free Imager

Corded Configuration Features

Release Latch

Imager Window

Finger Strap Scan Trigger

Comfort Pad

Corded Adapter

Strap Buckle

Beeper

Restore Key

Left Scan LED

Right Scan LED

Trigger Swivel Assembly

Interface Cable Connector to WT4090

Asset Control Label

Quick Reference Guide 7

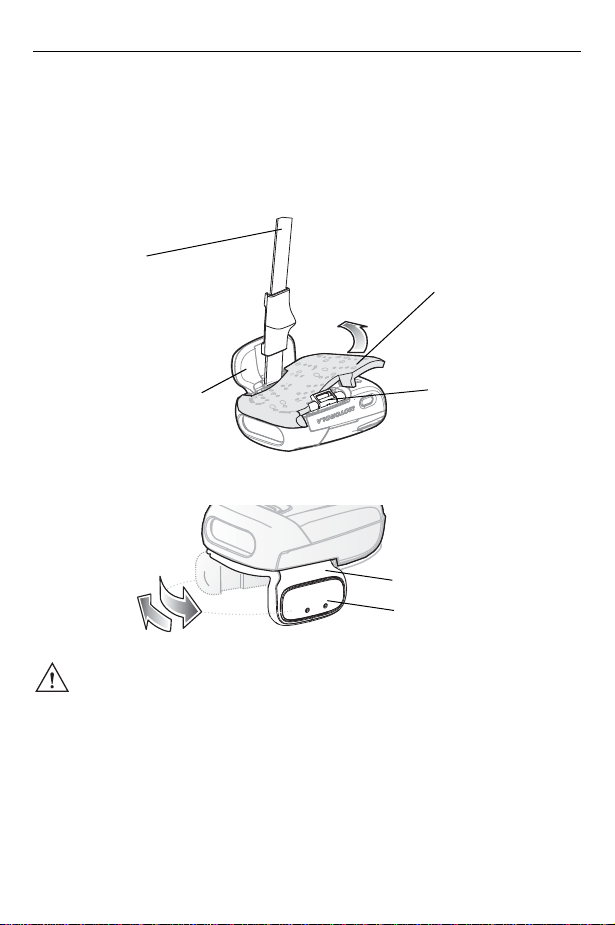

Change Trigger Position

The Trigger Swivel Assembly of the Imager rotates to provide left-hand or

right-hand use.

1. From the bottom of the Imager, hold and pull the Comfort Pad out of the

Imager.

2. Determine whether the Imager is used on the right or left hand and rotate the

Trigger Swivel Assembly.

3. Rotate the Trigger Swivel Assembly so that the Scan Trigger is positioned next

to the thumb when the Imager is placed on the index and middle fingers.

4. Position the Comfort Pad onto the Imager.

5. Press the Comfort Pad onto the Imager. When properly installed, the Comfort

Pad “locks” into place.

6. Insert the Finger Strap into the Strap Buckle.

CAUTION The Trigger Swivel Assembly only rotates 180° around the

bottom of the Imager. Do not rotate the Trigger Swivel Assembly

past the designed stops.

Finger Strap

Strap Buckle

Comfort Pad

Trigger Swivel

Assembly

Note: It is not necessary

to remove the Finger

Strap from the Trigger

Swivel Assembly.

Trigger Swivel Assembly

Scan Trigger

8 RS507 Hands-Free Imager

Getting Started - Cordless Configuration

Charge the Battery

Before using the Imager, charge the battery. The 8-Bay Battery Charger supports

both standard and extended capacity batteries.

To charge the Imager battery, refer to the SAC5070 8-Bay Battery Charger Quick

Reference Guide, p/n 72-11589-01 available at:

www.motorola.com/enterprisemobility/manuals.

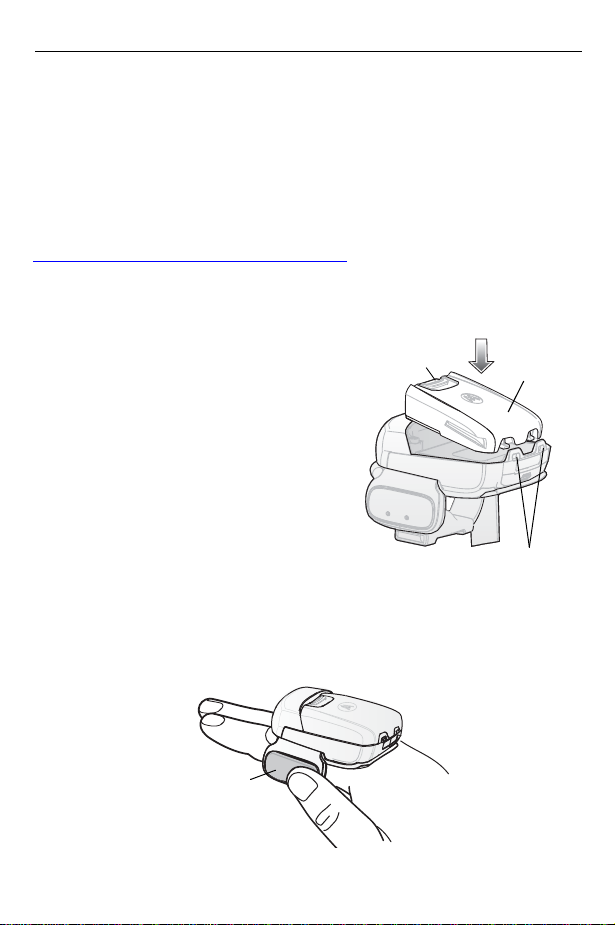

Install the Battery

1. Align the Battery on top of the Imager.

2. Push the battery all the way into the

Locking Slots of the Imager.

3. Firmly press the Battery into the Imager

until a “click” is heard ensuring the

Battery Release Latch is fully engaged

with the Imager.

Remove the Battery

1. Hold the Imager in one hand.

2. Press the Battery Release Latch.

3. Pull up the Battery to release from the Locking Slots of the Imager.

Wear the Imager

1. Slide the Imager onto the index and middle fingers with the Scan Trigger next

to the thumb.

Locking Slots

Battery

Battery Release

Latch

Scan Trigger

Quick Reference Guide 9

2. Tighten the Finger Strap.

NOTE When using the Imager for the first time, after power up, press and release

the Scan Trigger to enable the manual triggering mode (this operation

disables the default auto triggering mode).

Getting Started - Corded Configuration

In order to start using the Imager you must install the Corded Adapter.

Connect Corded Adapter

1. Align the Corded Adapter on top of the

Imager.

2. Push the Corded Adapter all the way

into the Locking Slots of the Imager.

3. Firmly press the Corded Adapter into the

Imager until a “click” is heard ensuring

the Adapter Release Latch is fully

engaged with the Imager.

Remove the Corded Adapter

1. Hold the Imager in one hand.

2. Press the Adapter Release Latch.

3. Pull up the Corded Adapter to release

from the Locking Slots of the Imager.

aaaaaaaaaaaaaaa

Finger

Strap

Locking Slots

Adapter Release

Latch Corded

Adapter

10 RS507 Hands-Free Imager

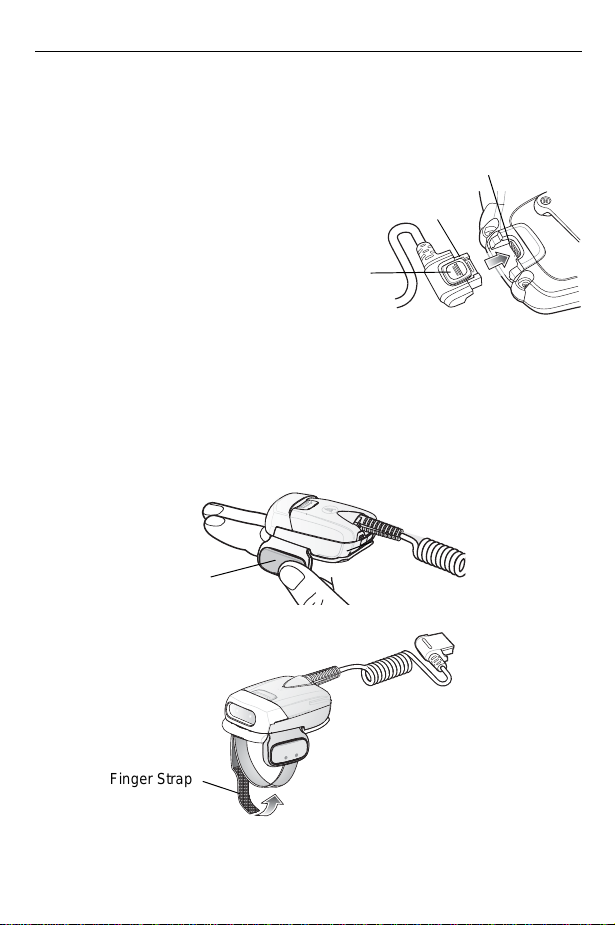

Connect to a Wearable Terminal

The Imager connects to a terminal and mounts on the fingers.

To connect the Imager to the

terminal:

1. On the terminal, remove the

cover from the Terminal

Interface Connector.

2. Connect the Interface Cable

Connector of the Imager to the

Terminal Interface Connector.

To disconnect the Imager from the terminal:

1. Press the Disconnect Button on the Interface Cable Connector.

2. Pull the Interface Cable Connector out of the terminal.

Wear the Imager

1. Slide the Imager onto the index and middle fingers with the Scan Trigger next

to the thumb.

2. Tighten the Finger Strap.

NOTE When using the Imager for the first time, press and release the Scan

Trigger to enable the manual triggering mode (this operation disables the

default auto triggering mode).

Interface Cable Connector

Terminal Interface Connector

Disconnect

Button

Scan Trigger

aaaaaaaaaaaaaaaaa

4t×Q

Finger Strap

Altri manuali per RS507 Series

Indice

Altri manuali Motorola Lettore di codici a barre

Motorola

Motorola Symbol DS6708 Manuale di installazione e funzionamento

Motorola

Motorola Symbol DS3407 Manuale di installazione e funzionamento

Motorola

Motorola Symbol DS6607 Manuale di installazione e funzionamento

Motorola

Motorola RS409 Manuale utente

Motorola

Motorola Symbol LS1203 Manuale di installazione e funzionamento

Motorola

Motorola Symbol DS6878 Manuale utente

Motorola

Motorola Symbol DS6878 Manuale di installazione e funzionamento

Motorola

Motorola Symbol DS6878 Manuale di installazione e funzionamento

Motorola

Motorola Symbol Manuale utente

Motorola

Motorola SYMBOL DS3578 Manuale di installazione e funzionamento

Motorola

Motorola CA50 Manuale utente

Motorola

Motorola MC3090G - Win CE 5.0 Core Manuale utente

Motorola

Motorola Symbol DS6878 Manuale utente

Motorola

Motorola DS3508 Manuale di installazione e funzionamento

Motorola

Motorola Symbol LS9208 Manuale di installazione e funzionamento

Motorola

Motorola DS4800 Series Manuale di installazione e funzionamento

Motorola

Motorola MK1250-0N0DAKBNTWR - Symbol Micro Kiosk MK... Manuale di installazione e funzionamento

Motorola

Motorola FX9500 Manuale utente

Motorola

Motorola Symbol LS9208 Manuale di installazione e funzionamento

Motorola

Motorola MC55 - Enterprise Digital Assistant Manuale utente

Motorola

Motorola MC17 Manuale di installazione e funzionamento

Motorola

Motorola DS9808 - Symbol - Wired Handheld Barcode... Manuale utente

Motorola

Motorola Symbol DS3407 Manuale utente

Motorola

Motorola CS4070 Manuale utente

Manuali Lettore di codici a barre popolari di altre marche

POSMicro

POSMicro Datalogic PowerScan D7100 Manuale utente

Marson

Marson MT780 Guida rapida alla configurazione

NCR

NCR RealPOS Manuale utente

Element

Element P130BT Manuale utente

Meec tools

Meec tools OBD-II / VAG Manuale utente

SICK

SICK CLP 100 Manuale utente

Royal Tag SA

Royal Tag SA I-Read Manuale utente

Welch Allyn

Welch Allyn IMAGETEAM 3800 Manuale utente

Meteor

Meteor 8310 Manuale utente

Denso

Denso BHT-500B Manuale utente

Datalogic

Datalogic Heron HD3130 Manuale utente

Newland

Newland NLS-HR15-BT Manuale utente

ARTDEV

ARTDEV AS-1310 Manuale utente

Aopos

Aopos AS290 Manuale utente

ENS

ENS 367-5455 Manuale utente

Atid

Atid AT188N Plus Manuale utente

AZENTA

AZENTA 281947 Manuale utente

Datalogic

Datalogic DS2x00N-DS4800 Series Guida
