Motorola FTN6304 Manuale utente

Mini Lapel Microphone Kit

Mini-Reversmikrofon-Kombination

Mini-kit micro cravate

Kit de Micrófono de Solapa Reducido

Kit minimicrofono a bavero

Minireversmicrofoonset

Êîìïëåêò ìèíèàòþðíîãî ïåòëè÷íîãî

ìèêðîôîíà

FTN6304/FTN6595

English

DESCRIPTION

The Mini Lapel Microphone Kit can be used

when the operator would like to conceal two-

way radio usage from others.

The kit consists of a Surveillance Earpiece

with a Push-to Talk (PTT) switch and a lapel

microphone. These surveillance accessories

are also used in quiet environments to

prevent others from hearing radio

transmission.

Wearing the FTN6304/FTN6595

The Mini Lapel Microphone Kit can easily be

concealed. There are 3 cords; one for the

earpiece, one for the microphone and one for

the Push-To-Talk (PTT) switch.

The cords are long enough to place

underneath a shirt, jacket, or other clothing.

The microphone operates with a Push-To-Talk

(PTT) switch that is small enough to fit into the

palm of a hand and is easily concealed by

closing the hand. The microphone has a clip

to secure it to clothing; the collar of a shirt or

jacket for example.

English

Operation

1. Always switch the radio OFF before

connecting the Mini Lapel Microphone Kit.

2. Plug the accessory connector into the

accessory jack on the side of the

radio.

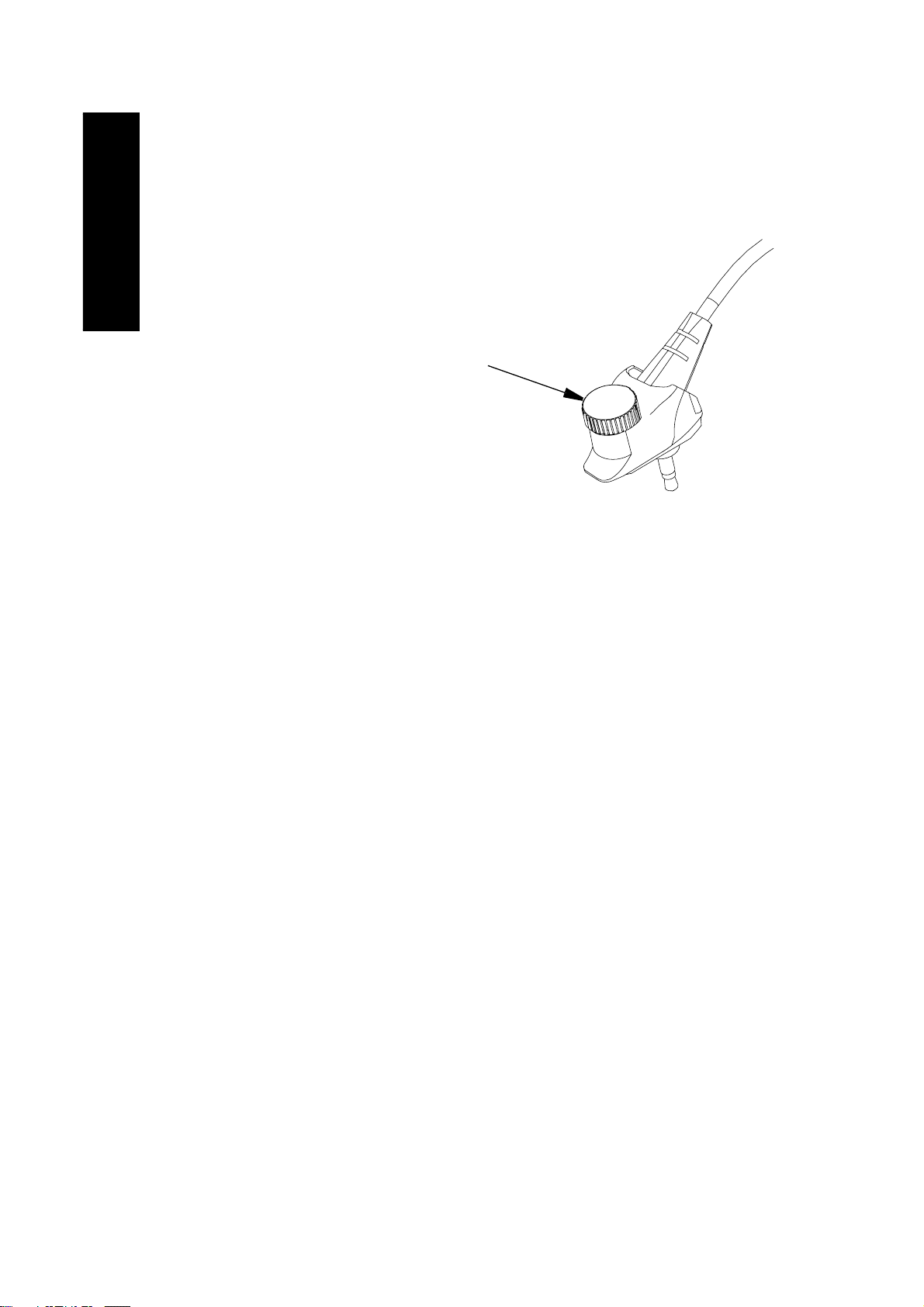

3. FTN6595 only - secure the

connector with the captive

screw

4. Switch the radio ON - care

should be taken not to set

the volume level too loud.

Note: Once the kit has been installed the

radio microphone and the radio speaker

will be disabled. The user must use the lapel

microphone and the surveillance earpiece to

transmit and listen to incoming calls.

5. Press the surveillance Push-To-Talk button

(PTT) and speak into the lapel microphone

to check that the two-way communication is

working, the red radio light (LED) will be

illuminated.

6. Always switch the radio OFF before

disconnecting the kit.

7. FTN6595 only - release the captive screw

before removing the accessory connector.

English

SERVICE

The replacement parts and alternate

configurations shown in Table 1 are available

for the Mini Lapel Microphone kits. Please

contact your local Motorola Representative or

Dealer for details.

* A custom earpiece requires the NTN8371

Acoustic Tube.

Table 1 Replacement Parts

Part Description Part number

EARLOOP, Plastic, black 5080370E92

EARPHONE 1.5KΩblack 5080370E91

EARTIP, Rubber; regular, clear 5080370E97

Noise Attenuating Foam EARPLUG 5080384F72

Noise Attenuating 25 dB EARPLUG,

with Acoustic tube; (foam)

NTN8370

TUBE Acoustic; with Rubber Tip NTN8371

*EARPIECE,Custom; R Ear, Small RLN4760

*EARPIECE,Custom; R Ear, Medium RLN4761

*EARPIECE,Custom; R Ear, Large RLN4762

*EARPIECE,Custom; L Ear, Small RLN4763

*EARPIECE,Custom; L Ear, Medium RLN4764

*EARPIECE,Custom; L Ear, Large RLN4765

Earphone Adapter 5880377E06

English

@6866537D52@

6866537D52-A

and Motorola are registered trademarks of Motorola, Inc.

und Motorola sind Warenzeichen von Motorola Inc.

et Motorola sont des marques déposées de Motorola, Inc.

y Motorola son marcas registradas de Motorola, Inc.

e Motorola sono marchi registrati di Motorola, Inc.

en Motorola zijn gedeponeerde handelsmerken van

è Motorola ÿâëÿþòñÿ òîâàðíûìè çíàêàìè êîìïàíèè

Motorola Inc. 08/04.Âñå ïðàâà ñîõðàíÿþòñÿ.
