Motorola PMMN4015 Manuale utente

English

Remote Speaker Microphone

User Guide

PMMN4015

RSM.book Page 1 Thursday, August 4, 2005 9:54 AM

English

FOREWORD

Product Safety and RF Exposure Compliance

ATTENTION!

This RSM, when attached to the radio, is restricted to

occupational use only to satisfy FCC RF energy exposure

requirements. Before using this product, read the RF

energy awareness information and operating instructions in

the Product Safety and RF Exposure booklet enclosed with

your radio to ensure compliance with RF energy exposure

limits.

For information regarding radio use in a hazardous

atmosphere, please refer to the Factory Mutual (FM)

Approval Product Listing, which is included with radio

models that offer this capability.

Before using this product, read the operating

instructions for safety usage contained in the

Product Safety and RF Exposure booklet enclosed

with your radio.

RSM.book Page 1 Thursday, August 4, 2005 9:54 AM

English

DESCRIPTION

The PMMN4015 Remote Speaker/Microphone (RSM)

provides convenient means of communicating by having a

speaker, a microphone, and a PTT in a single, hand-held or

clip-on accessory. The PMMN4015 also includes an

emergency button and a 3.5 mm audio jack to accept

secondary receiver audio accessories.

OPERATION

Attaching the RSM to the Radio

1. Turn the radio off.

2. Remove the universal connector seal from the side of

the radio and attach the RSM.

3. Turn the radio on.

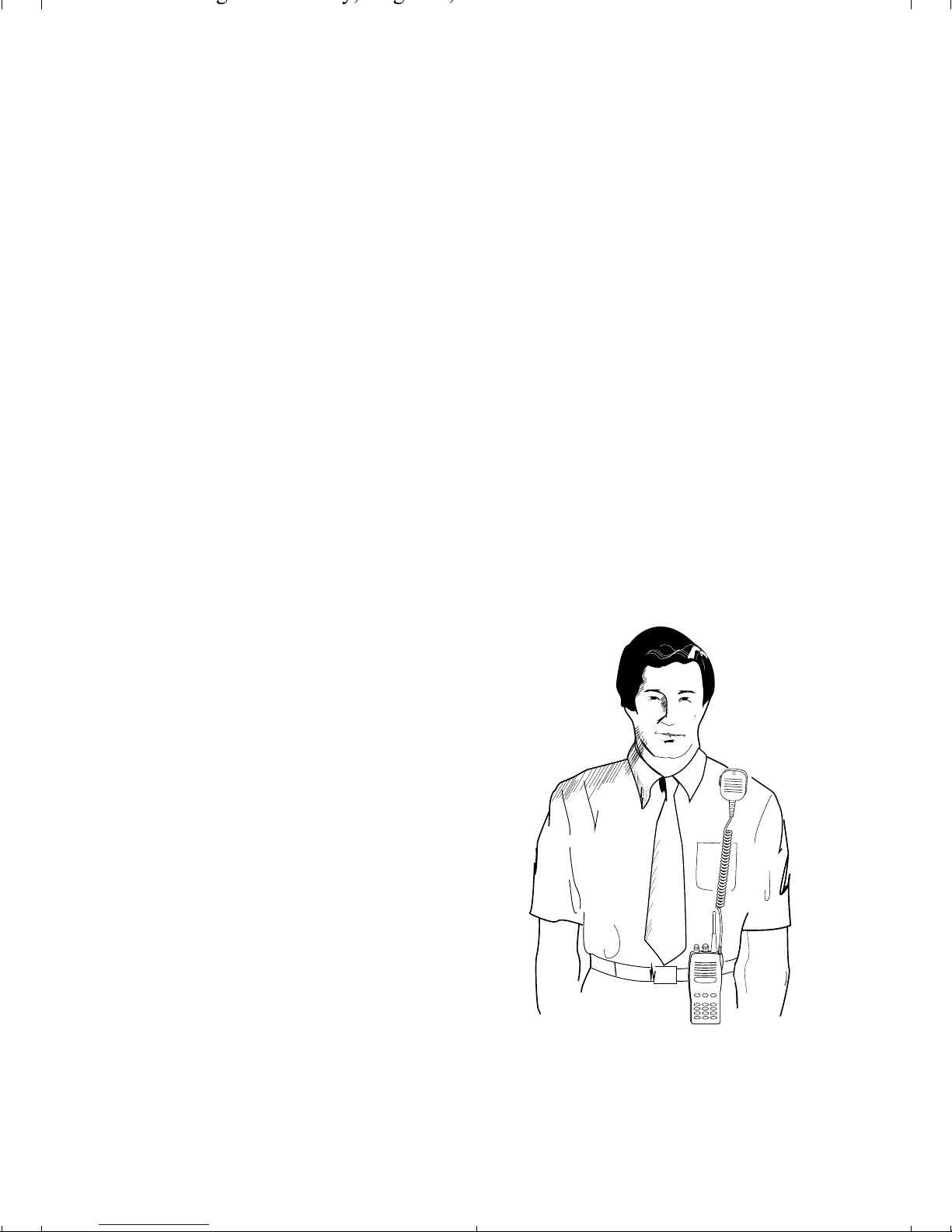

Wearing the RSM

(See Figure 1)

For optimum performance

from your RSM, wear the

radio and RSM so that the

accessory cord does not

cross over or touch the

antenna. Also, try to wear

the radio and accessory

combination fairly close to

each other to avoid strain

on the accessory connector.

FL0830064O

igure1. Wearing Your Accessory

RSM.book Page 2 Thursday, August 4, 2005 9:54 AM

English

Receiving

When the RSM is connected to the radio accessory

connector, the radio’s speaker is muted, and the audio is

only heard from the RSM speaker. Similarly, when a

secondary receiver audio accessory is plugged into the 3.5

mm audio jack (PMMN4015), audio to the RSM is rerouted

to the secondary accessory.

Transmitting

To transmit using your RSM:

1. Press and hold the Push-To-Talk (PTT) button on the

RSM.

2. Speak into the RSM.

3. Release the PTT when finished.

Note: Connecting the RSM to the radio does not disable the

radio’s microphone and PTT.

REMOVING THE RSM

Turn the radio off before removing the RSM from the radio.

Remember to reattach the radio accessory connector seal

to the side of the radio when an accessory is not being

used.

USING THE ORANGE EMERGENCY BUTTON

The orange button on the RSM remotely activates the

same function that is programmed for the radio’s orange

button. Your radio’s user guide contains a full description of

the emergency mode and other programmable functions

that are available through these buttons.

Note: 1. The RSM Emergency button does not turn radio on as

does the radio’s emergency button.

2. The RSM orange button does not exit emergency mode.

Use radio control to exit emergency mode.

RSM.book Page 3 Thursday, August 4, 2005 9:54 AM

English

SERVICE AND WARRANTY

Other than the replaceable cable assembly and clip, the

PMMN4015 Remote Speaker/Microphone is not repairable.

The RSM is covered under the standard Motorola one-year

limited warranty.

The following audio accessories and replacement parts are

available through your Motorola service representative.

Part Number Description

4205823V06 Short swivel clip

RLN5934 Replacement coil cord

RLN4885 Receive-only foam-covered earbud.

WADN4190 Receive-only flexible earpiece.

PMLN4620 D-Shell Style Receive-only earpiece

RLN4941 Receive-only earpiece with

translucent tube and rubber eartip

RLN4760 (S-right) Clear and comfortable earpieces for

use with RLN4941 above. These

earpieces are alternatives to the

standard rubber eartip. Available in

Small, Medium, and Large; for the Left

or Right Ear.

RLN4761 (M-right)

RLN4762 (L-right)

RLN4763 (S-left)

RLN4764 (M-left)

RLN4765 (L-left)

RSM.book Page 4 Thursday, August 4, 2005 9:54 AM

English

Motorola Technology Sdn. Bhd. (Co. No. 455657-H),

Plot 2, Bayan Lepas Technoplex Industrial Park,

Mukim 12, S.W.D., 11900 Penang, Malaysia

and Motorola are registered trademarks of Motorola, Inc.

*6816241H01*

6816241H01-A
