Click your selection (there is a complete Contents on page iv):

Introduction

Introduces your SURFboard VoIP cable modem and the controls on the Top and Front

Panel and Rear Panel.

Before You Begin

Lists the items needed to install your SURFboard VoIP cable modem and describes

Precautions, Signing Up for Service, and Computer System Requirements.

Installation and Configuration Overview

Provides an overview and links to cable and configure your SURFboard VoIP cable

modem, including Setting Up a USB Driver.

Troubleshooting

Provides suggestions to fix common problems.

Provides contact information.

Frequently Asked Questions

Provides answers to common questions about the SURFboard VoIP cable modem.

SURFboard

Cable Modem

ii SURFboard®SBV4200 VoIP Cable Modem User Guide

Home Print Exit

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. THE APPARATUS MUST

NOT BE EXPOSED TO DRIPPING OR SPLASHING AND NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, MUST BE PLACED ON THE

APPARATUS.

CAUTION: TO PREVENT ELECTRICAL SHOCK,IF THE UNIT IS PROVIDED WITH A POLARIZED PLUG, DO NOT CONNECT THE PLUG INTO

AN EXTENSION CORD, RECEPTACLE, OR OTHER OUTLET UNLESS THE PLUG CAN BE FULLY INSERTED WITH NO PART OF THE

BLADES EXPOSED.

CAUTION: TO ENSURE REGULATORY AND SAFETY COMPLIANCE, USE ONLY THE PROVIDED POWER AND INTERFACE CABLES.

CAUTION: DO NOT OPEN THE UNIT. DO NOT PERFORM ANY SERVICING OTHER THAN THAT CONTAINED IN THE INSTALLATION AND

TROUBLESHOOTING INSTRUCTIONS UNLESS YOU ARE QUALIFIED TO DO SO. REFER ALL SERVICING TO QUALIFIED SERVICE PERSONNEL.

It is recommended that the customer install an AC surge arrestor in the AC outlet to which this device is connected. This is to avoid damaging the

equipment by local lightning strikes and other electrical surges.

This product was qualified under test conditions that included the use of the supplied cable between system components. To be in compliance with

regulations, the user must use this cable and install it properly.

Different types of cord sets may be used for connections to the main supply circuit. Use only a main line cord that complies with all applicable

product safety requirements of the country of use.

Installation of this product must be in accordance with national wiring codes.

To prevent overheating, do not block the ventilation holes on the sides of the unit or lay the unit on its side.

Wipe the unit with a clean, dry cloth. Never use cleaning fluid or similar chemicals. Do not spray cleaners directly on the unit or use forced air to

remove dust.

Postpone cable modem installation until there is no risk of thunderstorm or lightning activity in the area. Avoid damaging the cable modem with

static by touching the coaxial cable connector when it is attached to the earth grounded coaxial cable TV wall outlet. Always first touch the coaxial

cable connector on the cable modem when you are disconnecting or re-connecting your USB or Ethernet cable from the cable modem or your PC.

iii SURFboard®SBV4200 VoIP Cable Modem User Guide

Home Print Exit

This product is provided with a separate a separate Regulatory, Safety, Software License, and Warranty Information card. If one is not provided

with this product, please ask your service provider or point-of-purchase representative, as the case may be.

■ THIS PRODUCT IS IN COMPLIANCE WITH ONE OR MORE OF THE STANDARDS LISTED ON THE REGULATORY, SAFETY,

SOFTWARE LICENSE, AND WARRANTY INFORMATION CARD. NOT ALL STANDARDS APPLY TO ALL MODELS.

■ NO WARRANTIES OF ANY KIND ARE PROVIDED BY MOTOROLA WITH RESPECT TO THIS PRODUCT, EXCEPT AS STATED ON THE

REGULATORY, SAFETY, SOFTWARE LICENSE, AND WARRANTY INFORMATION CARD. MOTOROLA’S WARRANTIES DO NOT

APPLY TO PRODUCT THAT HAS BEEN REFURBISHED OR REISSUED BY YOUR SERVICE PROVIDER.

without written permission from Motorola, Inc.

Motorola reserves the right to revise this publication and to make changes in content from time to time without obligation on the part of Motorola to provide notification of such revision or

change. Motorola provides this guide without warranty of any kind, either implied or expressed, including, but not limited to, the implied warranties of merchantability and fitness for a

particular purpose. Motorola may make improvements or changes in the product(s) described in this manual at any time.

MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. Microsoft and Windows are registered trademarks and

Windows Me and Windows XP are

trademarks of

Microsoft Corporation. Microsoft Windows screen shots are used by permission of Microsoft Corporation. Macintosh is a registered

trademark

of Apple Computer, Inc.

Netscape and Navigator are registered trademarks of

Netscape Communications Corporation

. UNIX is a registered trademark of the Open Group in the United States and other countries. All

other

product or service names are the property of their respective owners. © Motorola, Inc. 2003.

iv SURFboard®SBV4200 VoIP Cable Modem User Guide

Home Print Exit

Contents

Introduction ..............................................................................................................................1

Top and Front Panel .................................................................................................................2

Rear Panel .................................................................................................................................3

Before You Begin .....................................................................................................................4

Precautions ...............................................................................................................................5

Signing Up for Service .............................................................................................................6

Computer System Requirements ............................................................................................7

Ethernet Card ........................................................................................................................7

USB Connection ...................................................................................................................7

Installation and Configuration Overview ...............................................................................8

Cabling and Startup for a Single User ....................................................................................9

Setting Up a USB Driver ........................................................................................................11

Setting Up a USB Driver in Windows 98 ..............................................................................12

Setting Up a USB Driver in Windows 2000 ..........................................................................16

Setting Up a USB Driver in Windows Me .............................................................................20

Setting Up a USB Driver in Windows XP ..............................................................................21

Configuring TCP/IP ................................................................................................................22

vSURFboard®SBV4200 VoIP Cable Modem User Guide

Home Print Exit

Configuring TCP/IP in Windows 95, 98, or Me .....................................................................23

Configuring TCP/IP in Windows 2000 ..................................................................................26

Configuring TCP/IP in Windows XP ......................................................................................30

Verifying the IP Address in Windows 95, 98, or Me ...........................................................36

Verifying the IP Address in Windows 2000 or XP ...............................................................37

Cabling for Multiple Users .....................................................................................................39

Ethernet and USB ...............................................................................................................39

Ethernet ..............................................................................................................................40

Troubleshooting .....................................................................................................................41

Front-Panel Lights and Error Conditions .............................................................................43

Removing the USB Driver from Windows 98 or Me ............................................................44

Removing the USB Driver from Windows 2000 ...................................................................48

Removing the USB Driver from Windows XP ......................................................................53

Contact Us ..............................................................................................................................60

Frequently Asked Questions .................................................................................................61

Glossary ..................................................................................................................................64

Software License ....................................................................................................................66

License

1SURFboard®SBV4200 VoIP Cable Modem User Guide

Home Print Exit

Introduction Before You Begin Installation & Configuration FAQ

Troubleshooting

Glossary

Introduction

Congratulations, you have a new Motorola SURFboard Voice over Internet Protocol

(VoIP) cable modem! It provides high-speed access to the Internet and other online

services. This VoIP cable modem transmits and receives data much faster than

traditional dial-up or ISDN modems. Unlike a dial-up modem, your SURFboard VoIP

cable modem is always online. Just open your browser and surf!

You can use your high-speed, upgradeable VoIP cable modem to connect one or more

computers in your home or business to the Internet. You can connect:

■ A single computer equipped with a Universal Serial Bus (USB) port directly to the

USB port on the SURFboard VoIP cable modem

■ A single computer equipped with anEthernet adapter directly to the Ethernet port on

the SURFboard VoIP cable modem

■ Two computers; one to the USB port and one to the Ethernet port

■ Up to 31 computers to a single SURFboard VoIP cable modem using an Ethernet

hub, as shown in “Cabling for Multiple Users” on page 39

You can connect up to two standard telephone lines using your SURFboard VoIP cable

modem, which supports:

■ Standard features such as caller ID, call waiting, and call forwarding

■ Software upgrades over the network to provide new or improved services

Easier!

Unlike dial-up modems or ISDN, you’re always on,

always connected. For easiest set-up, use the

Installation Assistant on the SURFboard VoIP

Cable Modem CD-ROM.

Faster!

Your VoIP cable modem is up to 100 times faster

than a dial-up modem. It lets you enjoy surfing the

web without the long wait. Because many network

and other factors can affect performance, the

actual speed will vary.

Better!

Your VoIP cable modem is made by the company

with over 50 years of cable TV expertise.

License

2SURFboard®SBV4200 VoIP Cable Modem User Guide

Home Print Exit

Introduction Before You Begin Installation & Configuration FAQ

Troubleshooting

Glossary

Top and Front Panel

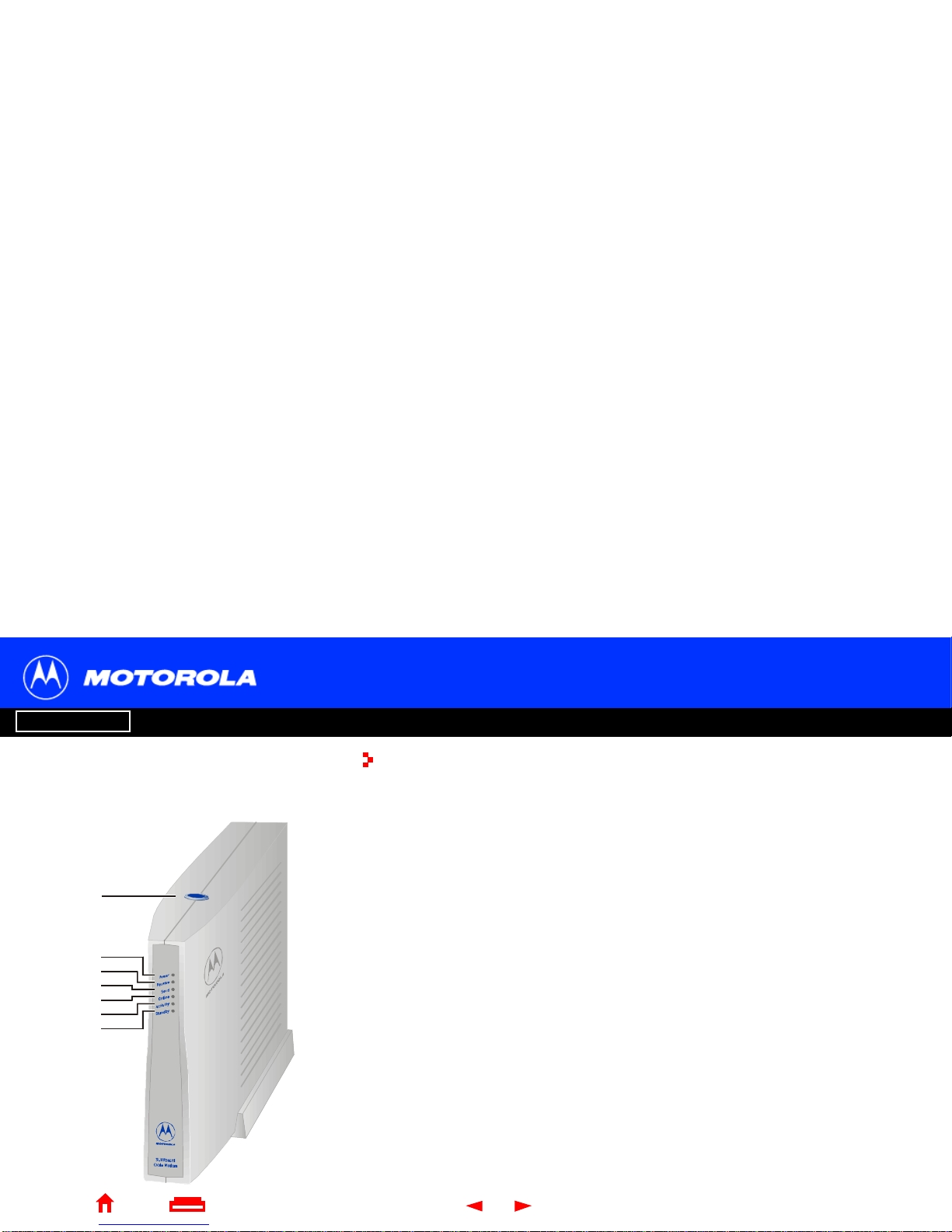

For added security, you can press the Standby button (1) to suspend your Internet

connection. No data is transmitted or received from the Internet when the Standby light is

on. All other front-panel lights turn off until you press the Standby button again.

The lights provide information about power, communications, and errors:

During normal operation, the Power, Receive, Send, and Online lights are on and the

Activity light flashes when the VoIP cable modem is transferring data.

Key Light Flashing On

2Power Startup diagnostics in progress The VoIP cable modem is powered on

3 Receive Scanning for a receive

(downstream) channel connection The downstream channel is

connected

4Send Scanning for a send (upstream)

channel connection The upstream channel is connected

5Online Scanning for a network

connection The startup process is complete

6 PC Activity Transmitting or receiving data A device, such a computer or hub, is

connected through USB or Ethernet

7 Standby This light does not flash Internet service is blocked because

the Standby button was pressed.If this

light is on, all other lights are off.

The model number on your VoIP cable modem

may be different than in the illustrations and

screen images in this guide.

License

3SURFboard®SBV4200 VoIP Cable Modem User Guide

Home Print Exit

Introduction Before You Begin Installation & Configuration FAQ

Troubleshooting

Glossary

Rear Panel

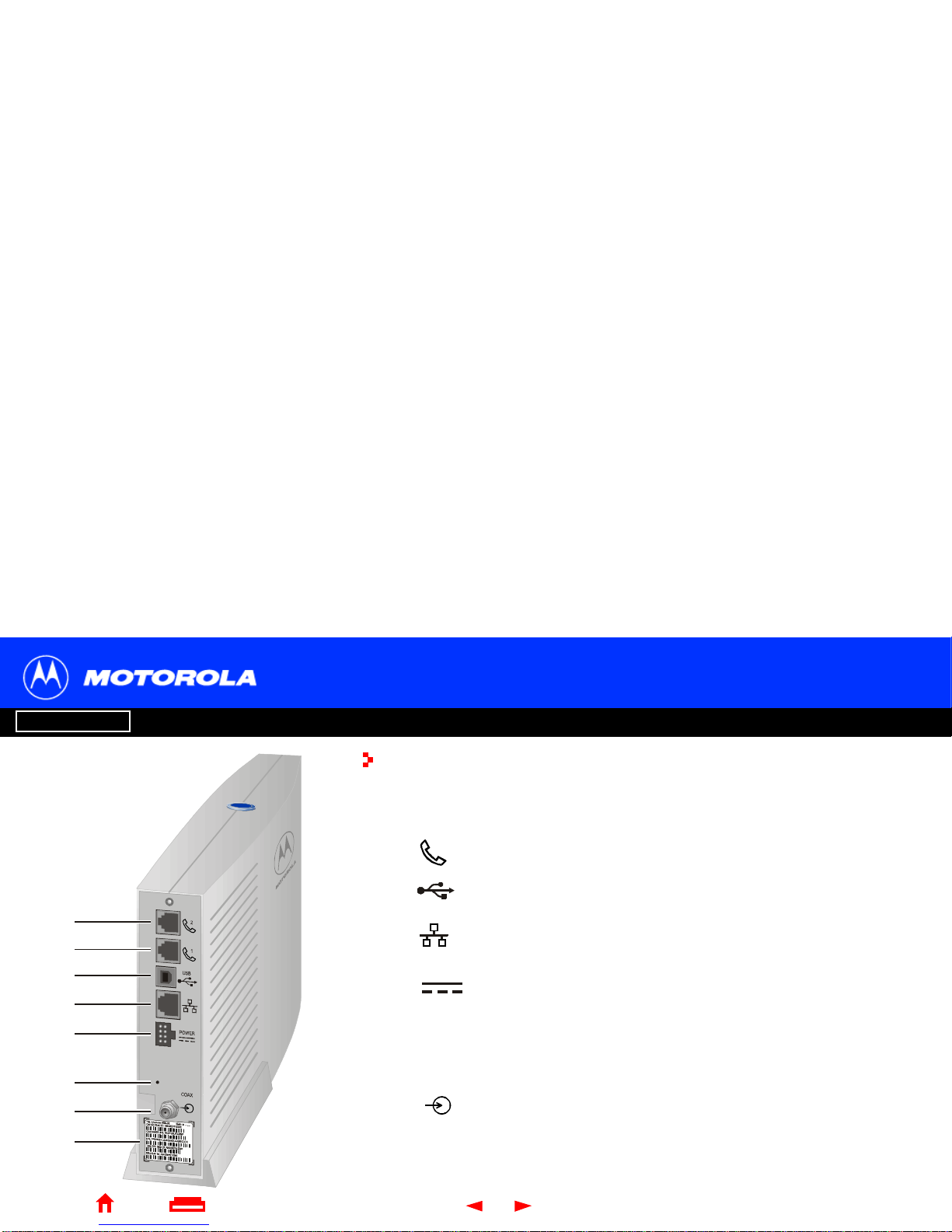

The rear panel provides cabling connectors and the power receptacle.

Key Item Description

1 & 2 Phone ports 1 and 2 provide connections for up to two telephone lines.

3The USB connector provides a connection to USB equipped computers. For

the SBV4200E, the cable length must be 3 meters or less.

4The Ethernet connector provides a connection to Ethernet equipped

computers using a cable terminated with an RJ-45 connector. For the

SBV4200E, the cable length must be 3 meters or less.

5The POWER connector provides a connection to the power adapter or

uninterruptible power source (UPS).

6•If you experience a problem, you can push this recessed button to reset the

VoIP cable modem (see “Troubleshooting” on page 41). Resetting may take

5 to 30 minutes because the VoIP cable modem must find and lock on the

appropriate communications channels.

7The COAX connector provides a connection to the coaxial cable outlet.

8The barcode label provides the data and telephony MAC addresses.

License

4SURFboard®SBV4200 VoIP Cable Modem User Guide

Home Print Exit

Introduction Before You Begin Installation & Configuration FAQ

Troubleshooting

Glossary

Before You Begin

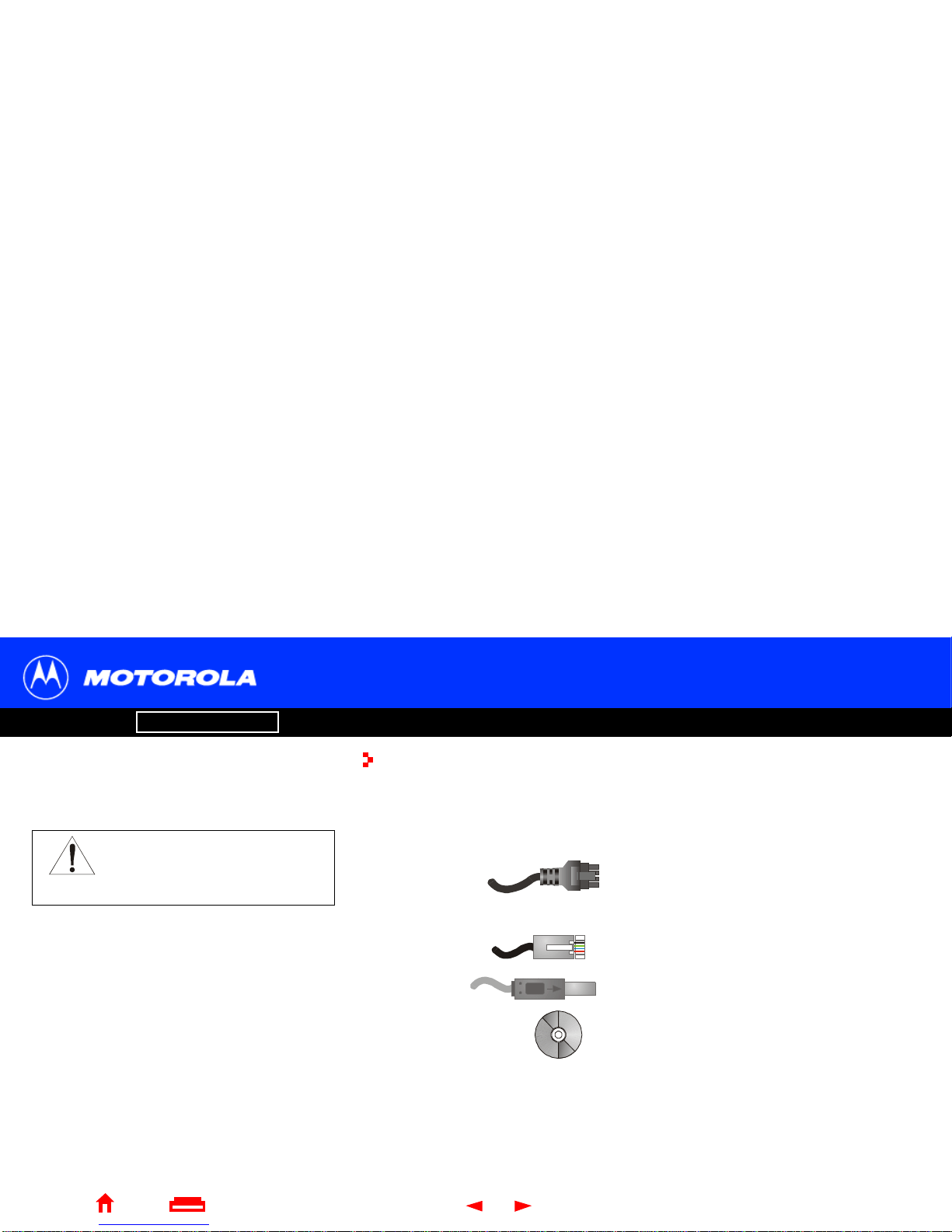

Before you begin the installation, check that you received the following items with your

SURFboard VoIP cable modem:

You will need 75-ohm coaxial cable with F-type connectors to connect your VoIP cable

modem to the nearest cable outlet. If a TV is connected to the cable outlet, you may

need a 5-900 MHz RF splitter and two additional coaxial cables to use both the TV and

the VoIP cable modem. The coaxial cable and RF splitter are available at consumer

electronic stores.

Item Description

Power adapter

or cable The SBV4200 is supplied with one of the following

powering options:

■ A power adapter to connect to the power outlet

■ A power cable to connect to an UPS

10/100Base-T

Ethernet cable Connects to the Ethernet port

USB cable Connects to the USB port

SURFboard VoIP

Cable Modem

CD-ROM

Contains the User Guide and USB drivers

Caution

To comply with all national safety

regulations, do not route the USB,

Ethernet, or telephone cables

outside of the building.

License

5SURFboard®SBV4200 VoIP Cable Modem User Guide

Home Print Exit

Introduction Before You Begin Installation & Configuration FAQ

Troubleshooting

Glossary

Precautions

PostponeVoIP cable modem installation until thereis no risk of thunderstorm or lightning

activity in the area.

To avoid damaging the VoIP cable modem with static electricity:

■ Always first connect the coaxial cable to the grounded cable TV wall outlet.

■ Before you connect or disconnect the USB or Ethernet cable from your VoIP cable

modem or PC, always touch the coaxial cable connector on the VoIP cable modem

to release any static charges.

To prevent overheating the VoIP cable modem, do not block the ventilation holes on its

sides.

Do not open the VoIP cable modem. Refer all service to your cable service provider.

Wipe the VoIP cable modem with a clean, dry cloth. Never use cleaning fluid or similar

chemicals. Do not spray cleaners directly on the unit or use forced air to remove dust.

Caution

Contact your cable service provider before connecting your VoIP cable

modem to your existing telephone wiring. Do not connect the telephone

wire to a traditional telephone (PSTN) service.

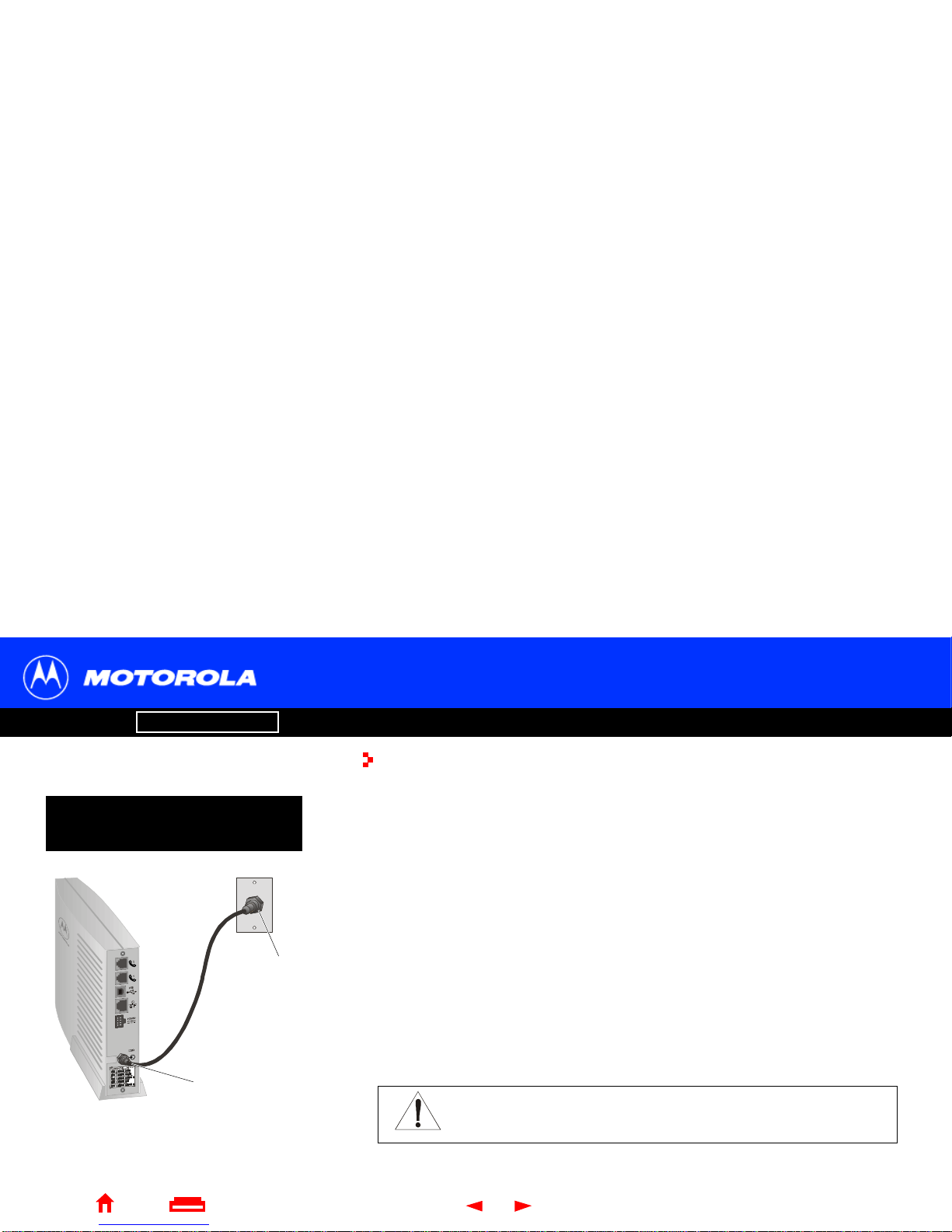

To avoid damaging your VoIP cable

modem or PC with static electricity:

Always make the

wallconnectionfirst.

Before you connect or

disconnect the USB or

Ethernet cable, always

touch the coaxial cable

connector on the VoIP

cable modem.

Indice

Altri manuali Motorola Modem

Motorola

Motorola NETOPIA 2210-02 Manuale utente

Motorola

Motorola SURFboard SB6182 Manuale utente

Motorola

Motorola SURFboard SB6141 Manuale utente

Motorola

Motorola SURFboard SBV6120 Istruzioni per il montaggio

Motorola

Motorola SB4200 - SURFboard - 38 Mbps Cable Modem Manuale utente

Motorola

Motorola MD1600 Manuale utente

Motorola

Motorola VT2442 - VONAGE Manuale utente

Motorola

Motorola SURFboard SBG900 Manuale di formazione

Motorola

Motorola SURFboard SBV5120 Guida

Motorola

Motorola SURFboard SBV5322 Manuale utente

Motorola

Motorola SURFboard SB6121 Manuale utente

Motorola

Motorola SM56 Guida all'installazione

Motorola

Motorola SURFboard SB3100 Manuale utente

Motorola

Motorola SURFboard SB6121 Manuale utente

Motorola

Motorola SB5101 - SURFboard - 30 Mbps Cable Modem Manuale utente

Motorola

Motorola SURFboard SB6121 Manuale utente

Motorola

Motorola CPEI 150 series Manuale utente

Motorola

Motorola SURFboard SB3500 Manuale utente

Motorola

Motorola SURFboard SB4200E Manuale utente

Motorola

Motorola ME-560M Manuale utente

Motorola

Motorola Codex 3500 DSU/CSU Manuale utente

Motorola

Motorola iM1000 Manuale utente

Motorola

Motorola SURFboard SB4000 Manuale utente

Motorola

Motorola SURFboard SBV5122 Manuale utente

Manuali Modem popolari di altre marche

Davicom

Davicom DM562AP Manuale utente

EpiValley

EpiValley TATA indicom SXC-1080 Manuale utente

Zte

Zte WiMAX Manuale utente

Intelimax

Intelimax MA-2060 Manuale utente

SMC Networks

SMC Networks D3CM1604V Manuale per l'uso e la cura

Telstra

Telstra Wi-Fi 4G Advanced Pro X Manuale utente

Thrane&Thrane

Thrane&Thrane imarsat EXPLORER 300 Manuale utente

Samsung

Samsung AceLink SAM-335A Manuale utente

Enfora

Enfora Enabler-G Guida rapida alla configurazione

iRZ

iRZ ATM2-232 Manuale utente

Zhone

Zhone 6310 Manuale utente

Paradyne

Paradyne Hotwire 7976 Manuale utente

US Robotics

US Robotics 3453C Manuale utente

MaxTech

MaxTech Plug & Play Internal Voice/FAX/Data/SVD... Manuale utente

Zte

Zte MF823 Manuale utente

Four-Faith

Four-Faith F1403 Manuale utente

Sierra Wireless

Sierra Wireless AIRLINK MP595W Manuale utente

Gemtek

Gemtek WiMAX WIXFBR-103 Manuale utente
