Motorola AP 5131 - Wireless Access Point Manuale utente



Motorola AP-5131 Access Point

Quick Setup Guide



Ishida / Rice Lake

Wireless Communications



P/N 109422

Motorola AP-5131 Access Point Quick Setup Guide

GettingStarted

1. These instructions were written for the AP-5131 using firmware version 1.1.0.0-045R.

The configuration steps and screens may vary with different firmware.

2. Confirm the following programs are available on the computer used to configure the

AP-5131.

•Internet Explorer 6.0, or higher, set as the computer’s default browser.

•Sun Microsystems’ Java 2 (JRE) version 1.5 or higher (available from Sun’s

Website).

oDisable Microsoft’s Java Virtual Machine if installed.

oTo test the computer’s Java 2 environment, visit

http://www.java.com/en/download/help/testvm.jsp

3. Assemble the AP-5131 and cable connections

•Remove device from box and attach antenna.

•Attached the power cord to the power injector.

•Connect the power injector to an AC outlet.

•Connect the Ethernet cables as listed. Cross or straight cables may be used.

oAP-5131 “WAN” port and the computer.

oAP-5131 “LAN” port and the Power Injector “Data and Power Out” connector.

•Both lights on the Power Injector should be green and steady: “Port” and “AC”.

BasicAP5131Configuration

1. Change the computer’s IP Address to 10.1.1.2.

Windows XP

a. Click on Start

b. Select Control Panel

c. Select Network Connections.

d. Right Click Local Area Connections

e. Select Properties.

f. Select Internet Protocol, (TCP/IP)

g. Select Properties

h. Select “Use the following IP

address”.

i. IP Address = 10.1.1.2

j. Subnet mask = 255.0.0.0.

k. Click “Ok” and “Ok”.

l. Close the Local Area Connection

Status.

Windows Vista

a. Click on Windows Start icon

b. Select Control Panel.

c. Select Network and Internet.

d. Select Network and Sharing Center.

e. Select Manage network connections

(left column).

f. Right click on Local Area Connection

g. Select Properties.

h. Select Internet Protocol Version 4

(TCP/IPv4)

i. Select Properties.

j. Select “Use the following IP

address”.

k. IP Address = 10.1.1.2

l. Subnet mask = 255.0.0.0.

m.Click “Ok” and “Ok”.

n. Close Network connections.

o. Close Network and Sharing Center.

Rev 1, February 2009 (1) Motorola_AP5131_Quick_Setup

Motorola AP-5131 Access Point Quick Setup Guide

2. Open Internet Explorer and enter http://10.1.1.1

3. Press ENTER.

4. The AP-5131 log in screen is displayed. See figure 1.

Figure 1. AP-5131 Login Screen

If the Help Viewing Java message is the only information displayed it indicates

the Java software required by the Motorola AP-5131 configuration software is

not installed on the computer.

Click the link and follow the instructions to download Sun Java 1.5.0 or

greater.

5. Enter the default values (use lower case for both):

•Username: admin

•Password: symbol (Note: “motorola” may be required for newer firmware)

6. Click Login.

7. If the default login is successful the Change Admin Password window is displayed.

See figure 2.

Rev 1, February 2009 (2) Motorola_AP5131_Quick_Setup

Motorola AP-5131 Access Point Quick Setup Guide

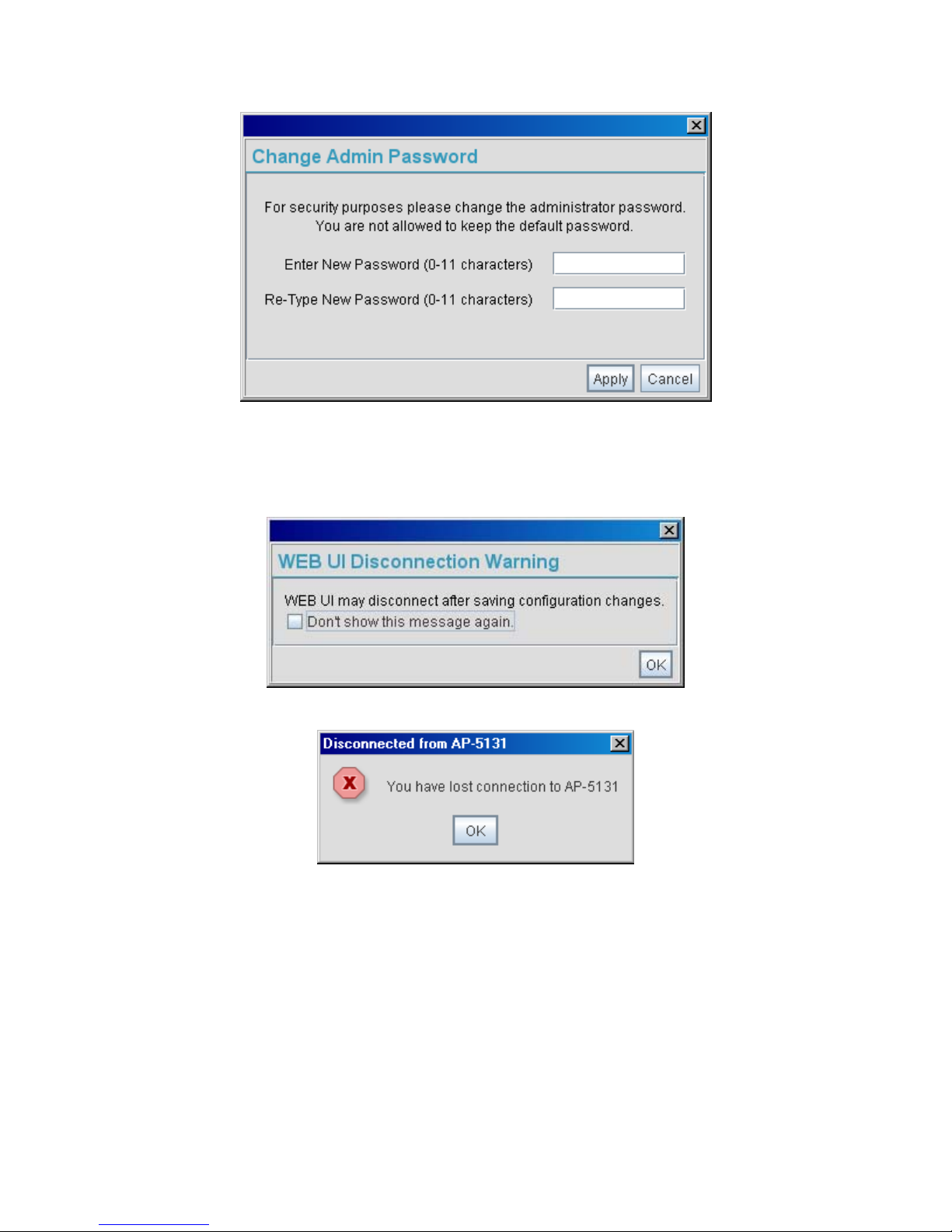

Figure 2. Default Login Change Admin Password

8. Change the password to “ishida”, all lower case. Re-type to verify.

9. Select “Apply”.

10. When the WEB UI Disconnection Warning appears, select “OK”. See figures 3, 4.

Figure 3. Disconnection Warning Message

Figure 4. Disconnected from AP-5131

11. If disconnect occurs, at the AP login screen enter the user name and password.

See figure1.

Username: admin

Password: ishida (Note: if not “ishida”, enter the appropriate password)

12. Click Login.

13. Configuration cannot proceed until a country has been selected. At the warning

message, click “OK”. See figure 5.

Rev 1, February 2009 (3) Motorola_AP5131_Quick_Setup

Motorola AP-5131 Access Point Quick Setup Guide

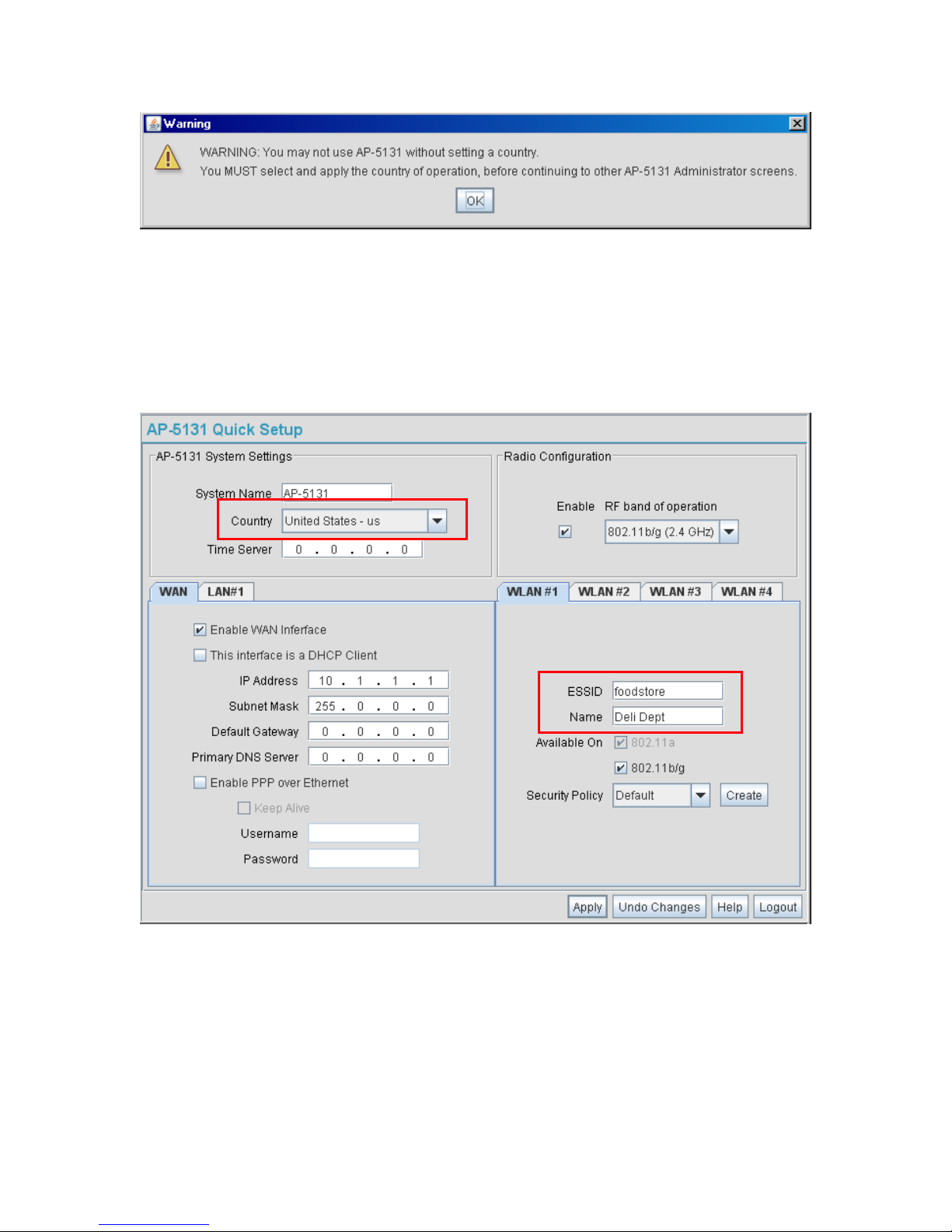

Figure 5. Warning: Select and Country of Operation

14. Select “United States” using drop down menu. See figure 6.

15. Under WLAN#1 settings, enter the ESSID name (Wireless Network Name). The

store’s name is normally used – entered in lower case with no spaces.

Example: foodstore

16. Enter the Name. Normally, this indicates the Access Point’s location in the store.

Example: Deli Dept

Figure 6. Select Country, Enter WLAN #1 settings: ESSID and Name

17. Click on the “LAN #1” tab. See figure 7.

18. Set “This interface” as “use static IP address” from the drop down menu.

19. Enter the IP Address and Subnet Mask as provided by the store.

Example: IP Address: 192.168.10.10

Subnet Mask: 255.255.255.0.

Rev 1, February 2009 (4) Motorola_AP5131_Quick_Setup

Motorola AP-5131 Access Point Quick Setup Guide

20. Enter the Default Gateway address. This is the IP Address of the store’s router. It

must be in the same range as the Access Point and scales.

Example: 192.168.10.1

21. Set the Primary DNS Server as zeros.

Figure 7. Enter LAN #1 settings

22. Click “Apply”.

23. When the WEB UI Disconnection Warning appears, select “OK”. See figure 8.

Figure 8. Disconnection Warning Message

24. Internet Explorer has logged out of the AP-5131 configuration application.

25. Close Internet Explorer.

Rev 1, February 2009 (5) Motorola_AP5131_Quick_Setup

Motorola AP-5131 Access Point Quick Setup Guide

26. Move the Ethernet cable from the “WAN” port on the AP-5131 to “Data In” on the

Power Injector. The Ethernet cables should be connected as listed below.

•Power Injector “Data In” to the computer.

•Power Injector “Data and Power Out” to the AP-5131 “LAN” port.

27. Change the computer’s IP address and subnet to the range of the Access Point.

Example: IP Address: 192.168.10.2

Subnet Mask: 255.255.255.0.

28. Basic setup is complete.

29. The scale(s) may now be configured to communicate on the wireless network.

The IP addresses of the scale(s) and the computer must be in the same range

as the access point.

ConfiguringEncryptionontheAP5131

Add encryption to all scales prior to encrypting the Access Point.

Once the AP is encrypted it cannot connect to any unencrypted scale(s).

1. Open Internet Explorer and enter the IP Address that was assigned to the Access

Point during basic configuration: http://xxx.xxx.xxx.xxx

Example: http://192.168.10.10

2. Press “Enter”.

3. At the AP log in screen enter the user name and password. See figure 1.

Username: admin

Password: ishida (Note: if not “ishida”, enter the appropriate password)

4. Click Login.

5. Select “Quick Setup” from the left side menu bar. See figure 9.

6. Locate “Security Policy” on the bottom right of the screen, select “Create”.

Rev 1, February 2009 (6) Motorola_AP5131_Quick_Setup

Motorola AP-5131 Access Point Quick Setup Guide

Figure 9. AP-5131 Quick Setup Screen

7. On the New Security Policy screen enter the new Name. For the new name use

“scales”. (lower case).

8. On the left side of the screen choose the encryption method to be used.

The AC-4000, BC4000, and OMNi-4000 support both WEP and WPA.

The SR-2000a, IL-2000sa, and IL-EMZ support only WEP.

Use extreme care when entering the encryption key. An incorrect key will

prevent communication with the wireless scale(s) in the network.

9. Choose the encryption type and enter the key as designated by the encryption

selection. (See Appendix 1 for information on WPA encryption).

10. Leave “Pass Key” blank

•WEP 64 (40 bit key) See figure 10.

For Key #1 enter 10 hexadecimal characters

Example: 12345abcde

Rev 1, February 2009 (7) Motorola_AP5131_Quick_Setup

Motorola AP-5131 Access Point Quick Setup Guide

Figure 10. New Security Policy Screen – WEP 64 Encryption

•WEP 128 (104 bit key) See figure 11.

For Key #1 enter 26 hexadecimal characters

Example: 1234567890abc1234567890abc

Figure 11. New Security Policy Screen – WEP 128 Encryption

Rev 1, February 2009 (8) Motorola_AP5131_Quick_Setup

Motorola AP-5131 Access Point Quick Setup Guide

11. Click on “Apply” after selecting the encryption type and entering the key.

12. When the WEB UI Disconnection Warning appears, select “OK”. See figure 8.

13. Set the Security Policy to “scales” using the drop down menu on the Quick Setup

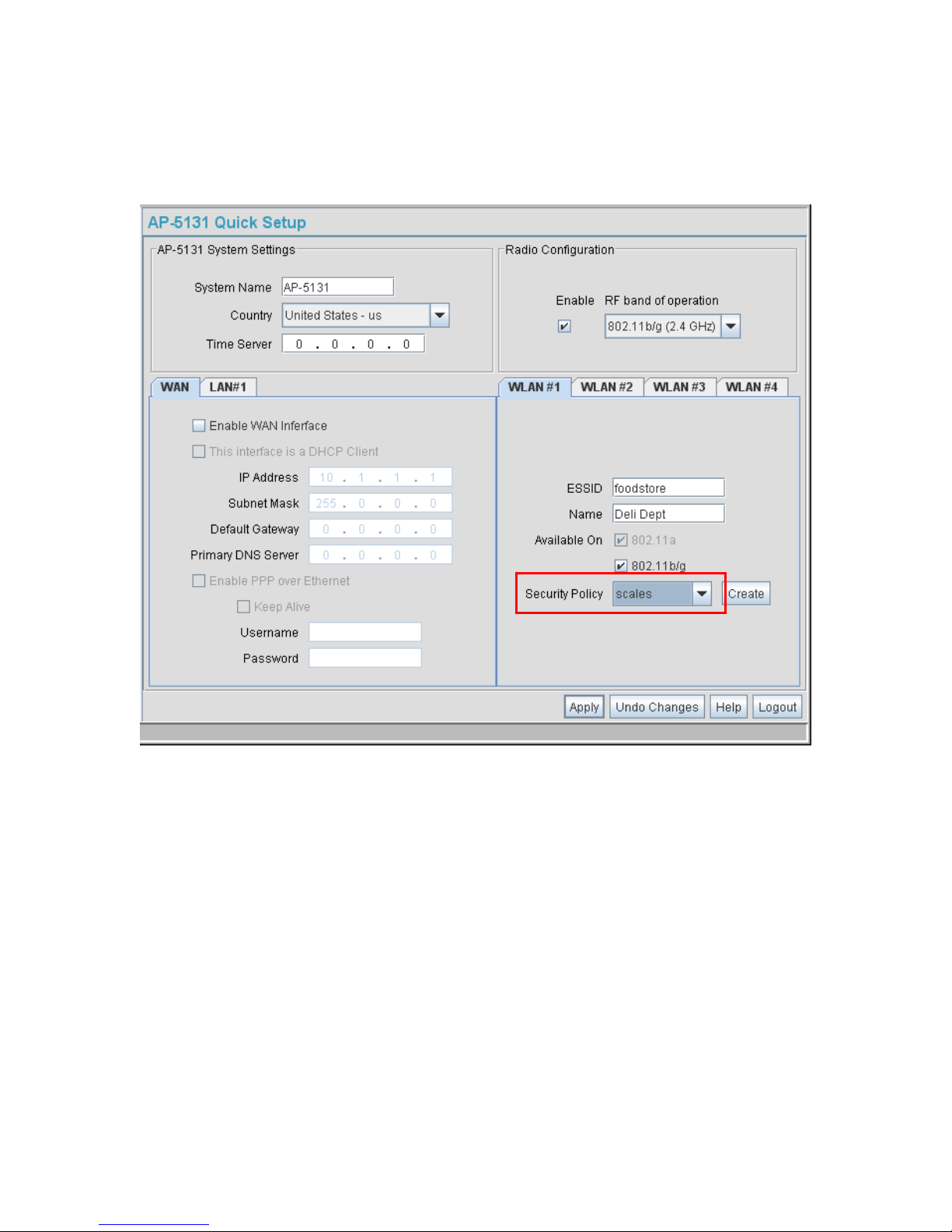

window. See figure 12.

Figure 12. Set Security Policy to “scales”

14. Click on “Apply”

15. When the WEB UI Disconnection Warning appears, select “OK”. See figure 8.

16. Close Internet Explorer.

17. Setup with Encryption is complete.

Rev 1, February 2009 (9) Motorola_AP5131_Quick_Setup
