Monitor and Laptop Mount
Instruction Manual
If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of
this product,please contact us.
Before starting assembly, verify all parts are included and undamaged. Improper installation may cause damage or
serious injury. Do not use this product for any purpose that is not explicitly specied in this manual. Do not exceed
weight capacity. We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or
inappropriate use.
This product contains small items that could be a choking hazard if swallowed. NOT FOR CHILDREN UNDER 3 YEARS.
ADULT SUPERVISION IS REQUIRED.
NOTE: Not all hardware included will be used.
DO NOT EXCEED WEIGHT CAPACITY.
WARNING!

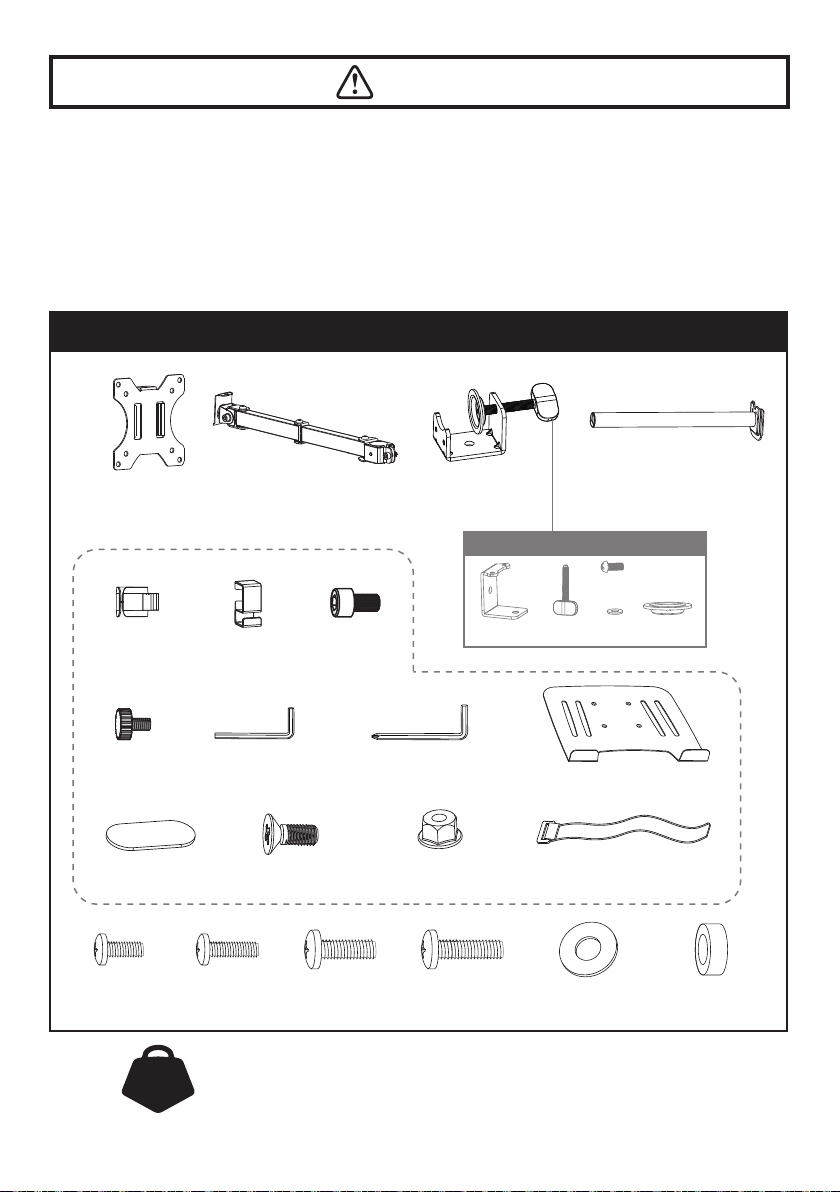

PACKAGE CONTENTS
17.6 lbs
8 kg
B (x1)
Swivel Arm
C (x1)
Clamp
D (x1)
Pole
G (x2)
Bolt
F (x1)
Wire Clip
I(x1)
5mm Allen Key
K(x1)
Laptop Tray
J(x1)
6mm Allen Key
E(x1)
Wire Clip
A (x1)
VESA Plate
01
H(x1)
Bolt
L(x4)
Pad
M(x4)
Screw
O(x1)
Strap
N(x4)
Nut
M-E(x4)
Washer D6mm
M-F (x4)
Spacer H5mm
M-C (x4)
M6 x 12mm
M-D (x4)
M6 x 16mm
M-B (x4)
M4 x 16mm
M-A (x4)
M4 x 12mm
C1
Bracket
C2
Bolt Y
C3
Bolt
C4
Washer
C5
Clip Plate
All are included in C
02
ASSEMBLY STEPS

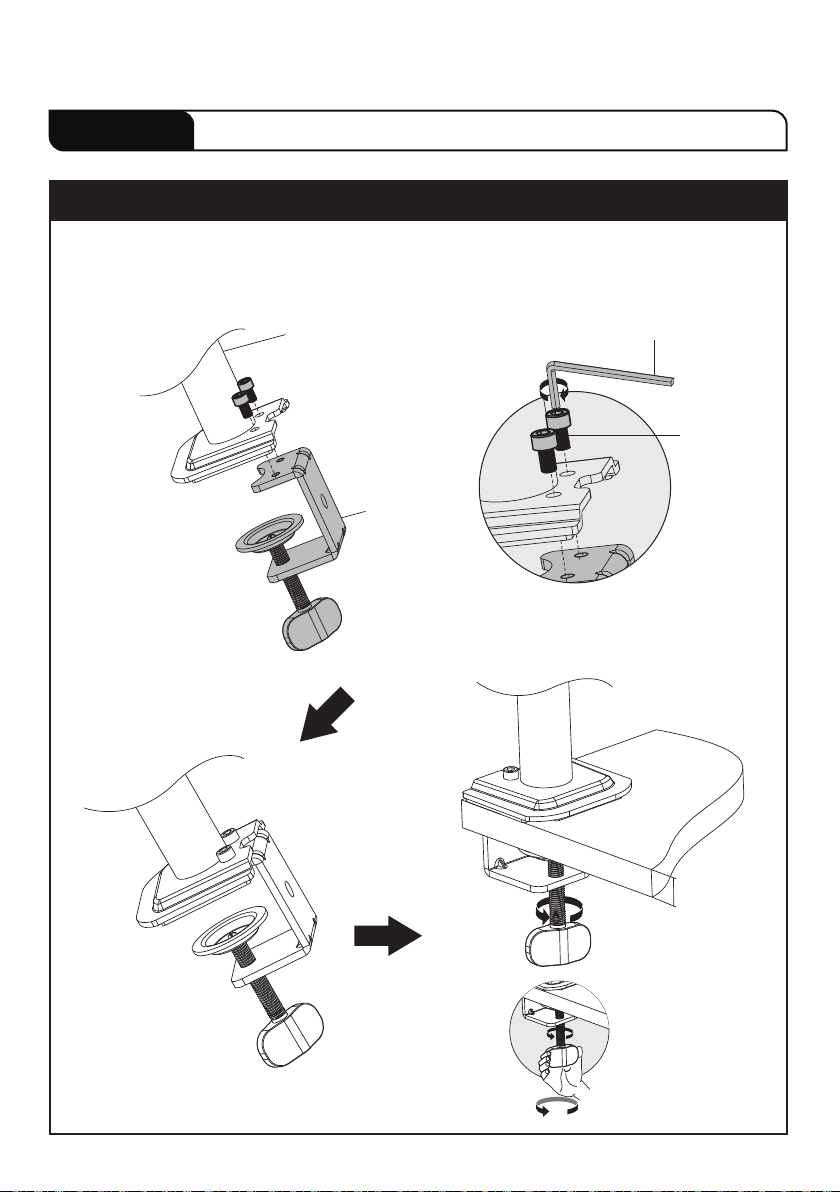

OPTION A: Clamp Installation
Mount Clamp (C) to the bottom of Pole (D) by tightening bolts (G) with 5mm Allen Key (I).
Adjust the Clamp width to t your desk. Secure stand to the desktop by tightening Clamp (C).
STEP 1: Clamp Installation OR Grommet Base Installation
D
C
G
I
10-50mm
0-1.97"
Warm Tips You could also refer to the Video Guide about installation on our product page.
03
STEP 1: (Continued)
OPTION B: Grommet Base Installation
If existing grommet hole comes with a plastic protector, remove it to ensure a at surface before installing
the desk mount.
Detach Bracket (C1) and Bolt Y (C2) from Clamp (C).
Position pole (D) on the mounting surface and then secure it by tightening the plastic knob after making
Bolt Y (C2) through the Bracket (C1), desk hole, and the bottom of Pole (D) sequentially.
DESK
DESK
ø 10~60mm
ø 0.39~2.36"
0-1.97"
C
C1 C2
10-50mm
C1 C2
D
STEP 2 : Arm Installation
04
Install wire clip (E) and swivel arms (B) to the pole (D). Fasten the bolt with supplied 6mm Allen key (J).
Attached the wire clips (F) to the swivel arm (B).
B
F
E
D
J
05
STEP 3: Attach the VESA Plate to the Laptop Tray or Monitor
OPTION B: Flat Back Monitor
Attach the VESA plate (A) to the back of monitor and
secure it by using a 6 mm Allen Key (J) to tighten
screws (M-A or M-C) along with washers (M-E).
Do not tighten the screws excessively or your
monitor might be damaged.
A
M-A
M-C
M-E
J
Monitor Monitor Monitor
OPTION C: Curved Back Monitor
Attach the VESA plate (A) to the back of monitor and
secure it by using a 6 mm Allen Key (J) to tighten
screws (M-B or M-D) along with washers (M-E) and
spacers (M-F).
Do not tighten the screws excessively or your
monitor might be damaged.
M-B
M-D
M-E
M-F
J
A
monitor monitormonitor
L
L
NOTE: Attach the pads on the tray
based on the size of the laptop.
M
K
N
A
J
OPTION A: Laptop Tray
Install the VESA plate (A) to the laptop tray (K) using
4pcs screws (M) and 4pcs nuts (N) , tighten by 6mm
Allen key (J) . Apply pads (L) to the laptop tray to
avoid laptop scratches.
STEP 4 : Hang Monitor or Laptop Tray
06
H
Slide the laptop tray onto the head of swivel arm (B). Install the security bolt (H).
Make sure the security bolt is installed before you rotate the laptop tray.
B
STEP 5 : Secure the Laptop on the Laptop tray
07
O
Blank side
Untie the strap before
you cover the laptop.
Loop&Hook side
STEP 6: Tilt Adjustment
Tighten the bolt with the supplied 6mm Allen key (J) to x the tilt angle.
08
J
L
Guideline to adjust monitor tilting angle.
Solution:
1. Loosen the tilting bolt.
2. Hold the bottom of monitor with
one hand and adjust to determine
your desired tilt angle.
3. Retighten the tilting bolt to x
the intended angle.
Problem:
If monitor face down.
+
-

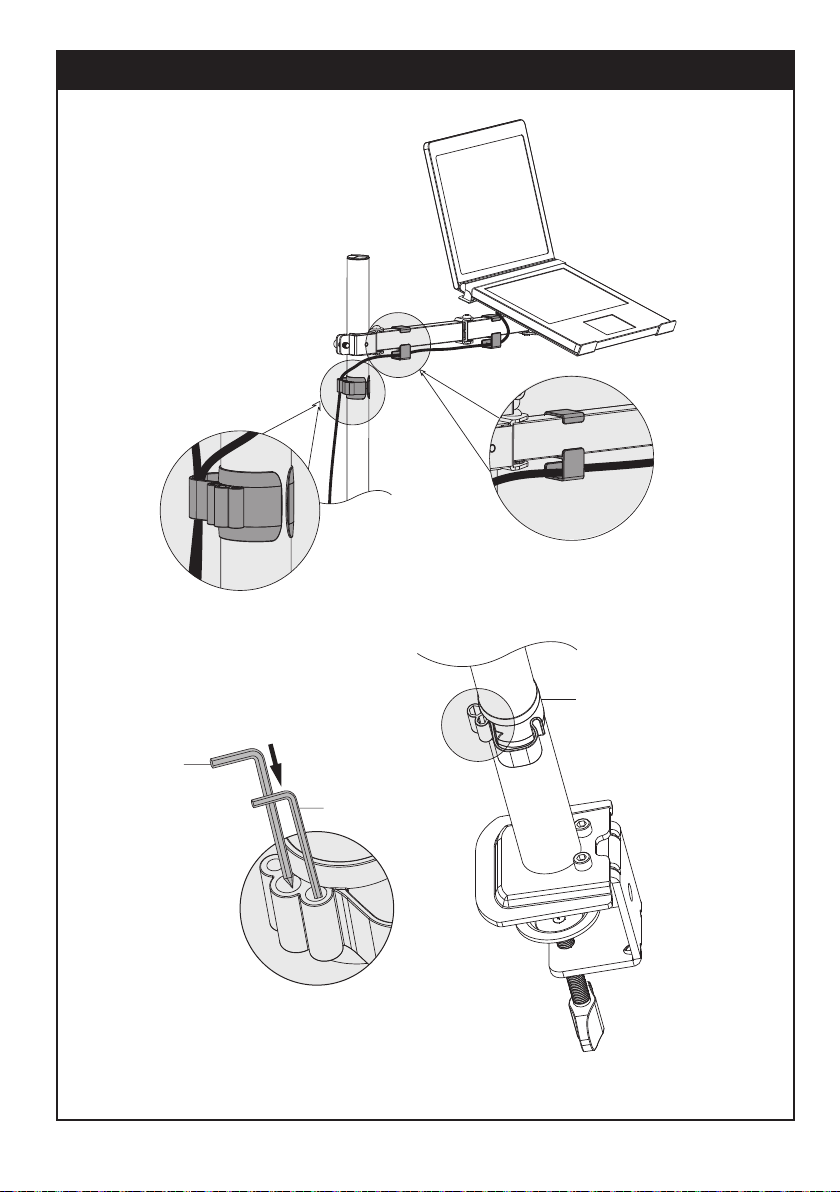

STEP 7: Cable Management
09
Manage cables and store Allen keys (H,I) in wire clip (E) for future use.
H
E
I
