AWK-5222

Quick Installation Guide

Moxa AirWorks

Edition 3.0, July 2016

Technical Support Contact Information

www.moxa.com/support

Moxa Americas:

Toll

-free: 1-888-669-2872

Tel:

1-714-528-6777

Fax:

1-714-528-6778

Moxa China (Shanghai office):

Toll

-free: 800-820-5036

Tel:

+86-21-5258-9955

Fax:

+86-21-5258-5505

Moxa Europe:

Tel:

+49-89-3 70 03 99-0

Fax:

+49-89-3 70 03 99-99

Moxa Asia-Pacific:

Tel:

+886-2-8919-1230

Fax:

+886-2-8919-1231

Moxa India:

Tel:

+91-80-4172-9088

Fax:

+91-80-4132-1045



- 2 -

Overview

The AWK-5222 dual-RF wireless AP/bridge/client provides a flexible and

highly reliable solution for your industrial wireless networks.

The AWK-5222 is rated to operate at temperatures ranging from 0 to

60°C for standard models and -40 to 75°C for extended temperature

models, and it is rugged enough for industrial applications.

With two independent RF modules, the AWK-5222 supports a greater

variety of wireless configurations and applications, and the redundant

wireless connections increase the reliability of your entire wireless

network.

The AWK-5222’s two DC power inputs make the power supply more

reliable, and it can also be powered via PoE for easier deployment.

Package Checklist

Moxa’s AWK-5222 is shipped with the following items. If any of these

items is missing or damaged, please contact your customer service

representative for assistance.

•AWK-5222 wireless AP/bridge/client

•DIN-rail kit

•2 plastic RJ45 protective caps for LAN &

•Console ports

•Cable holder with one screw

•Documentation and software CD

•Quick installation guide (printed)

•Warranty card

Installation and Configuration

Before installing the AWK-5222, make sure that all items in the Package

Checklist are in the box. In addition, you will need access to a notebook

computer or PC equipped with an Ethernet port. The AWK-5222 has a

default IP address that you must use when connecting to the device for

the first time.

Step 1: Select the power source

The AWK-5222 can be powered by a DC power input or PoE (Power over

Ethernet). The AWK-5222 will use whichever power source you choose.

Step 2: Connect the AWK-5222 to a notebook or PC

Since the AWK-5222 supports MDI/MDI-X auto-sensing, you can use

either a straight-through cable or crossover cable to connect the

AWK-5222 to a computer. If the LED indicator on the AWK-5222’s LAN

port lights up, it means the connection is established.

Step 3: Set up the computer’s IP address

Set an IP address on the same subnet as the AWK-5222. Since the

AWK-5222’s default IP address is 192.168.127.253, and the subnet mask

is 255.255.255.0, you should set the IP address of the computer to

192.168.127.xxx and subnet mask to 255.255.255.0.

- 3 -

Step 4: Use the web-based manager to configure AWK-5222

Open your computer’s web browser and then type

http://192.168.127.253 in the address field to access the homepage of

the web-based management. Before the homepage opens, you will need

to enter the user name and password. For first-time configuration, enter

the default user name and password and then click on the Login button:

User name: admin

Password: root

ATTENTION

For security reasons, we strongly recommend ch

anging the

password. To do so,

select Maintenance



Password

, and then

follow the on-screen instructions.

Step 5: Select the operation mode for the AWK-5222

By default, the AWK-5222’s operation mode is set to Wireless

Redundancy. You can change the setting in Wireless Settings 

Operation mode if you would like to use the Wireless Bridge or AP-Client

mode.

NOTE

To make the change effective, you must click Save

Configura

tion to save the change or Restart



Save and

Restart button to apply all changes).

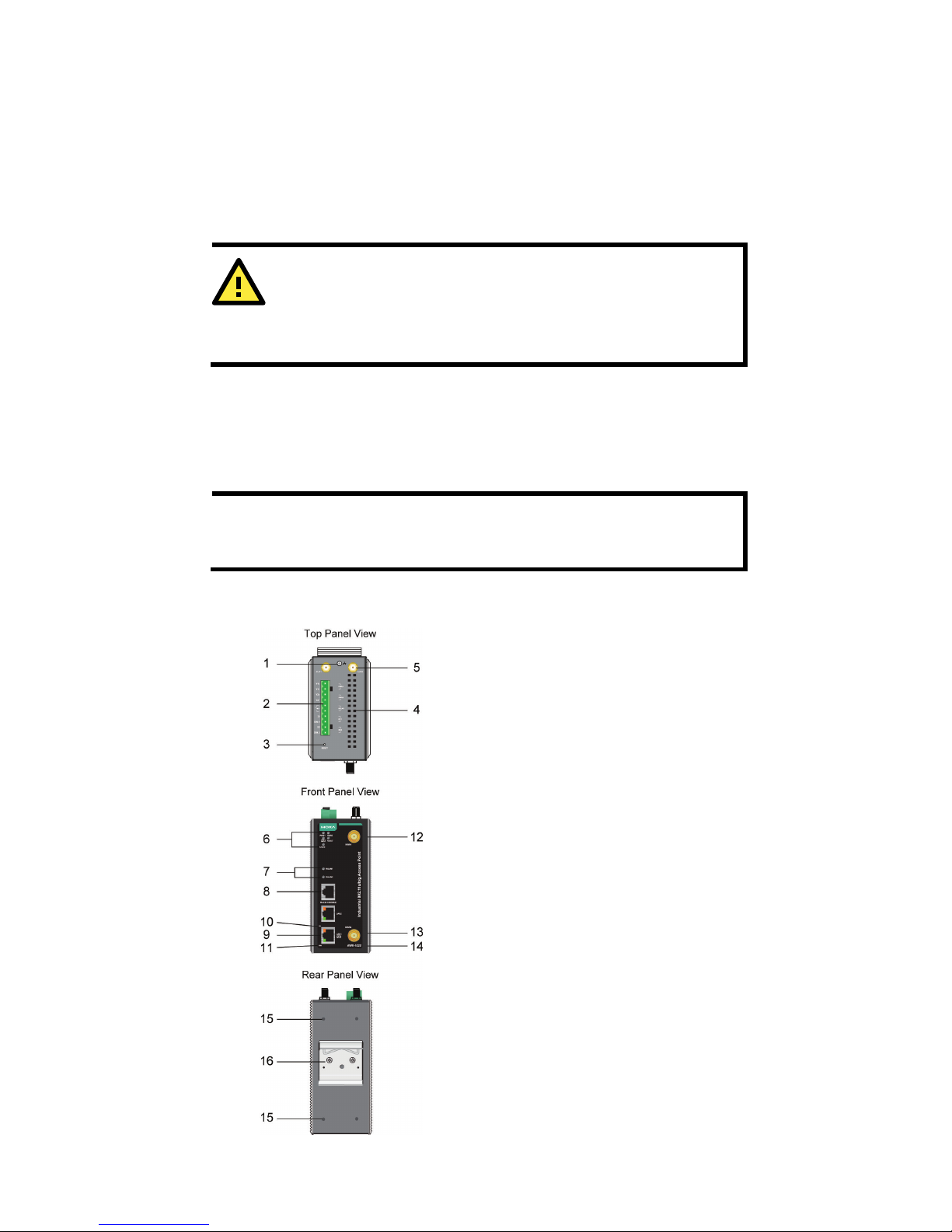

Panel Layout of the AWK-5222

1. Grounding screw

Terminal block for PWR1, PWR2,

relay, DI1, and DI2

3. Reset button

4. Heat dissipation orifices

5. AUX1 and AUX2 antenna ports

6. System LEDs: PWR1, PWR2,

PoE, FAULT, and STATE LEDs

7. WLAN LEDs: WLAN 1 and

WLAN2 LEDs

8. RS-232 console port

9. 10/100BaseT(X) RJ45 Port :

LAN1 and LAN2

10.

10M LED

11.

100M LED

12.

MAIN 1 antenna port

13.

MAIN 2 antenna port

14.

Model name

15.

Screw hole for wall-

mounting kit

16.

DIN-rail mounting kit

- 4 -

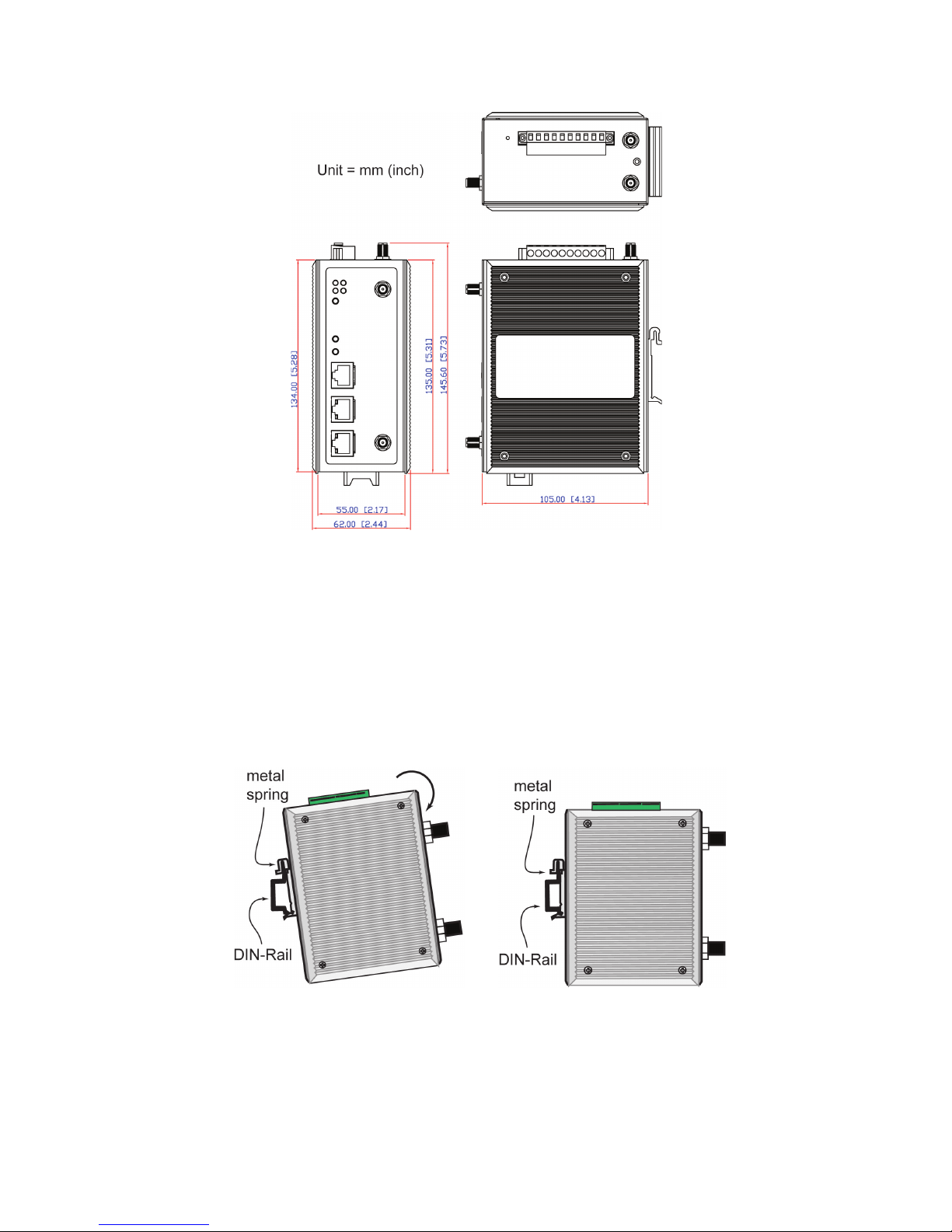

Mounting Dimensions

DIN-Rail Mounting

The aluminum DIN-rail attachment plate should be fixed to the back panel

of the AWK-5222 when you take it out of the box. If you need to reattach

the DIN-rail attachment plate to the AWK-5222, make sure the stiff metal

spring is situated towards the top, as shown in the figures below.

STEP 1:

Insert the top of the DIN r

ail into

the slot just

below the stiff metal

spring.

STEP 2:

The DIN

-rail attachment unit will

snap into place as shown below.

To remove the AWK-5222 from the DIN rail, simply reverse Steps 1 and 2.

- 5 -

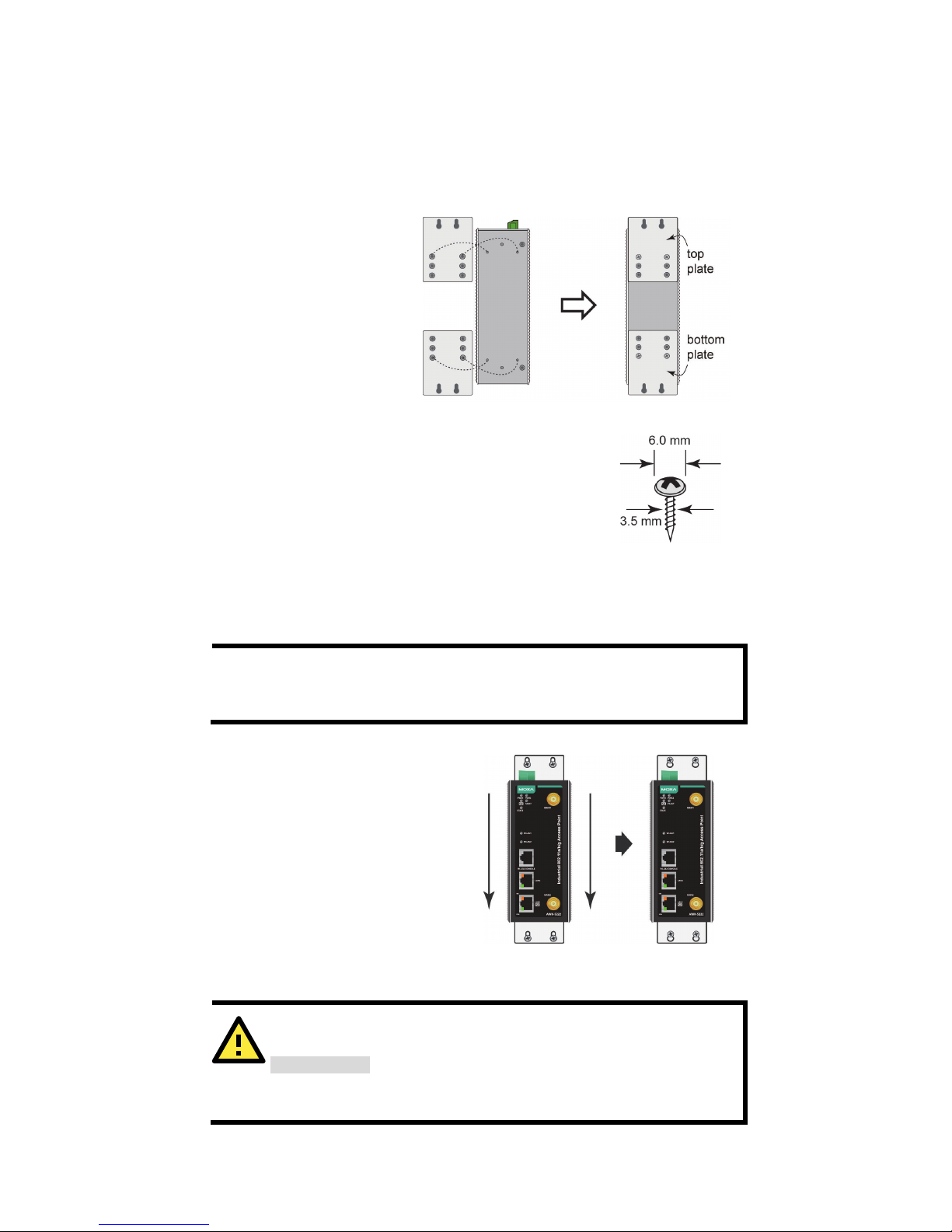

Wall Mounting (optional)

For transportation applications that require an EN50155 certification

report, you should purchase the optional wall mount for the AWK-5222,

since the wall mount has passed EN50155 testing. The wall mount is also

convenient for other applications that require mounting the AWK-5222 to

a wall.

STEP 1:

Remove the aluminum

DIN

-rail attachment plate

from the AWK

-5222, and

then attach the

wall

-mounting plates with

screws, as shown in the

adjacent diagrams.

STEP 2:

Mounting the AWK

-5222 to a wall requires 4 screws.

Use the AWK

-5222 device, with wall-mounting

plates

attached, as a guide to mark the correct locations of

the 4 screws. The heads of the screws should be less

than 6.0 mm in diameter, and the

shafts should be

less than 3.5 mm in diameter, as shown in the figure

at the right.

Do not drive the screws in all the way into the wall—leave a space of about

2 mm to allow room for sliding the wall-mounting panel between the wall

and the screws.

NOTE

Test the screw

head and shank size by inserting the screws

into

one of the k

eyhole shaped apertures of the wall-mounting p

lates

before attaching the plates to the wall.

STEP 3:

Once the screws are fixed into the

wall, insert the four screw heads

through the large

opening of the

keyhole

-shaped apertures, and

then slide the AWK

-5222

downwards, as indicated to the

right. Tighten the four screws for

added stability.

Wiring Requirements

WARNING

Safety First!

Be sure to disconnect the

power cord before installing and/or

wiring your Moxa AWK-5222.

- 6 -

WARNING

Safety First!

Calculate the maximum possible current in each power wire and

common wire. Observe all electrical codes dictating the

maximum current

allowed for each wire size.

If the current goes

above the maximum ratings, the wiring could overheat, causing

serious damage to your equipment.

You should also pay attention to the following items:

•Use separate paths to route wiring for power and devices. If power

wiring and device wiring paths must cross, make sure the wires are

perpendicular at the intersection point.

NOTE

Do not run signal or communications wiring and power wiring in

the same wire conduit. To avoid interference, wires with different

signal characteristics should be routed separately.

•You can use the type of signal transmitted through a wire to

determine which wires should be kept separate. The rule of thumb is

that wiring with similar electrical characteristics can be bundled

together.

•Keep input wiring and output wiring separate.

•It is strongly advised that you label wiring to all devices in the system

when necessary.

ATTENTION

This product is

intended to be supplied by a Listed Power Unit

marked

“Class 2” or “LPS” and rated O/P: 12 to 48 VDC, 800 m

(max.)

ATTENTION

Make sure

the external power adapte

r (includes power cords and

plug assemblies) provided with the unit is certified and suitable

for use in your country.

Grounding the Moxa AWK-5222

Grounding and wire routing help limit the effects of noise due to

electromagnetic interference (EMI). Run the ground connection from the

ground screw to the grounding surface prior to connecting devices.

ATTENTION

This product is intended to be mounted to a well

-grounded

mounting surface, such as a metal panel.

- 7 -

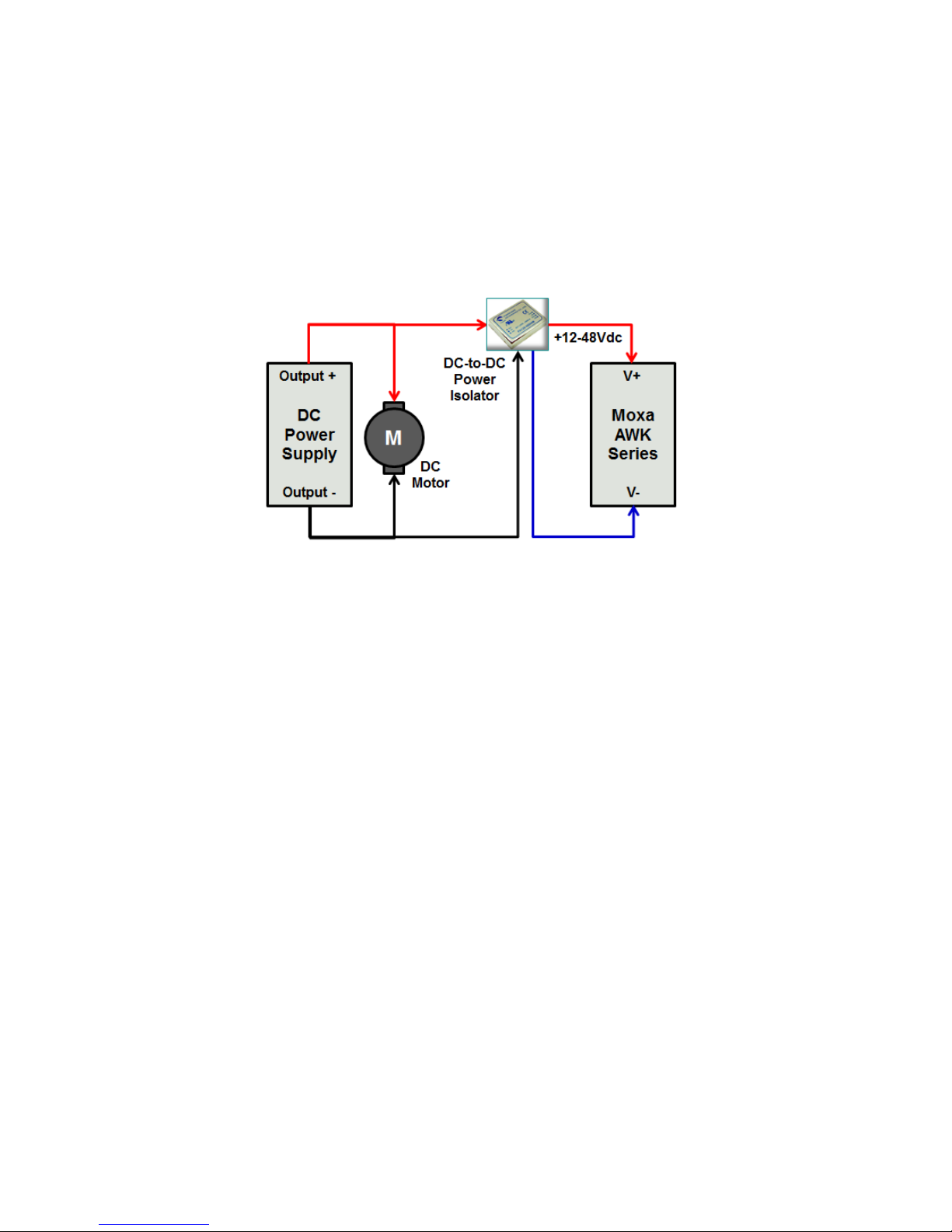

Installations with Unstable Power Inputs

There are cases where the device has to be wired to the same power

source as other equipment. In such cases if equipment such as motors

that are connected in the circuit draw a large amount of current during

operation, the transient voltage drop could potentially cause the AWK to

become unstable. Installing a DC/DC power isolator in between the two

equipment is recommended to isolate the transient effect and to ensure a

stable power input for the AWK.

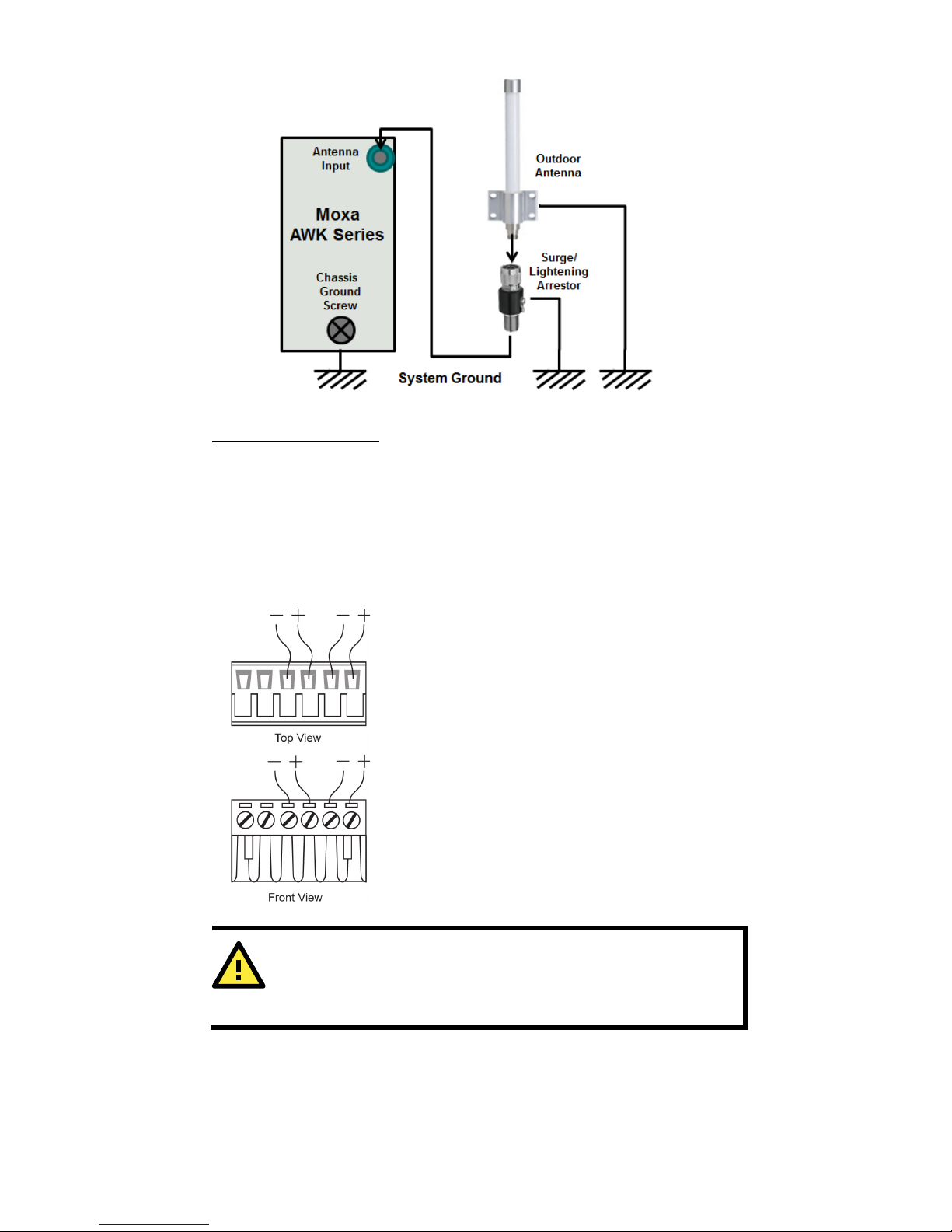

Installations with Cable Extended Antennas for Outdoor

Applications

If the antenna or the AWK device is installed outdoors or in an open-air

setting, proper lightning protection is required to prevent direct lightning

strikes on the AWK device. In order to prevent coupling currents from

nearby lightning strikes, a lightning arrester should be installed as part of

your antenna system. Ground the device, antenna, as well as the arrester

properly to provide maximum outdoor protection for the device.

- 8 -

Arrester Accessories

•SA-NMNF-01: Surge arrester, N-type (male) to N-type (female)

•SA-NFNF-01: Surge arrester, N-type (female) to N-type (female)

Wiring the Redundant Power Inputs

The top two pairs of contacts of the 10-contact terminal block connector

on the AWK-5222’s top panel are used for the AWK-5222’s two DC inputs.

Top and front views of the terminal block connector is shown here.

STEP 1: Insert the negative/positive DC wires

into the

V-/V+ terminals.

STEP 2:

To keep the DC wires from pulling

loose,

use a small flat

blade screwdriver to tighten the

wire

-clamp screws on the front of the terminal

block connector.

STEP 3:

Insert the plastic terminal block

connector prongs into the terminal block

receptor, which is

located on the AWK-5222’s t

panel.

ATTENTION

Before connecting

the AWK-5222

to the DC power inputs, make

sure the DC power source voltage is stable.

- 9 -

Wiring the Relay Contact

The AWK-5222 has one relay output, which consists of the two contacts of

the terminal block on the AWK-5222’s top panel. Refer to the previous

section for detailed instructions on how to connect the wires to the

terminal block connector, and how to attach the terminal block connector

to the terminal block receptor. These relay contacts are used to indicate

user-configured events. The two wires attached to the Relay contacts

form an open circuit when a user-configured event is triggered. If a

user-configured event does not occur, the Relay circuit will be closed.

Wiring the Digital Inputs

The AWK-5222 has two sets of digital input—DI1 and DI2. Each DI

comprises two contacts of the 10-pin terminal block connector on the

AWK-5222’s top panel. You can refer to the “Wiring the Redundant Power

Inputs” section for detailed instructions on how to connect the wires to

the terminal block connector, and how to attach the terminal block

connector to the terminal block receptor.

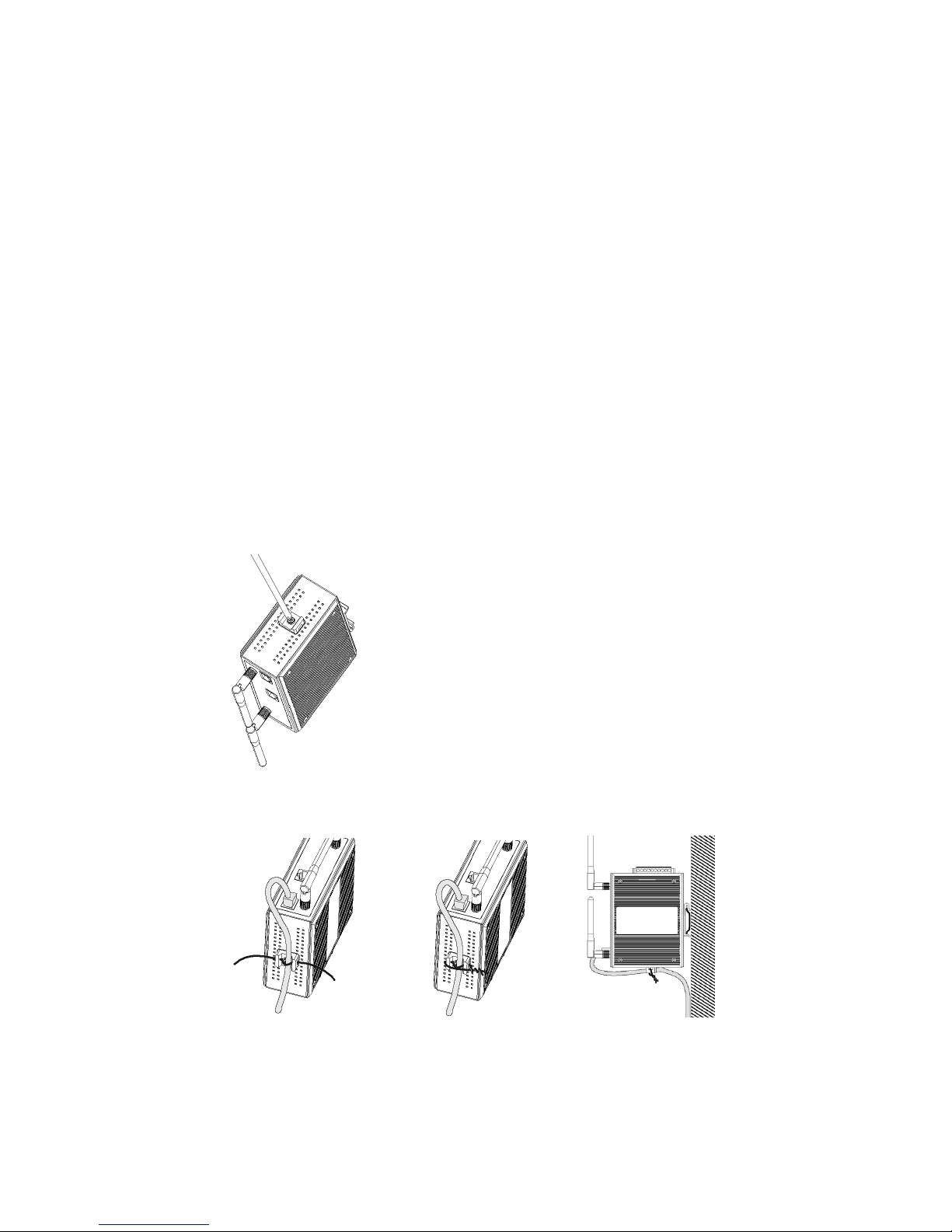

Cable Holder Installation (Optional)

You can attach the cable holder to the bottom of the AWK-5222. This

helps to keep cabling neat and avoid accidents that result from untidy

cables.

STEP 1: Screw the cable holder onto the bottom

of the AWK

-5222.

STEP 2: After mounting the AWK-5222 and plugging in the LAN cable,

tighten the cable along the device and wall.

Communication Connections

10/100BaseT(X) Ethernet Port Connection

The 10/100BaseT(X) ports located on the AWK-5222’s front panel are

used to connect to Ethernet-enabled devices.

- 10 -

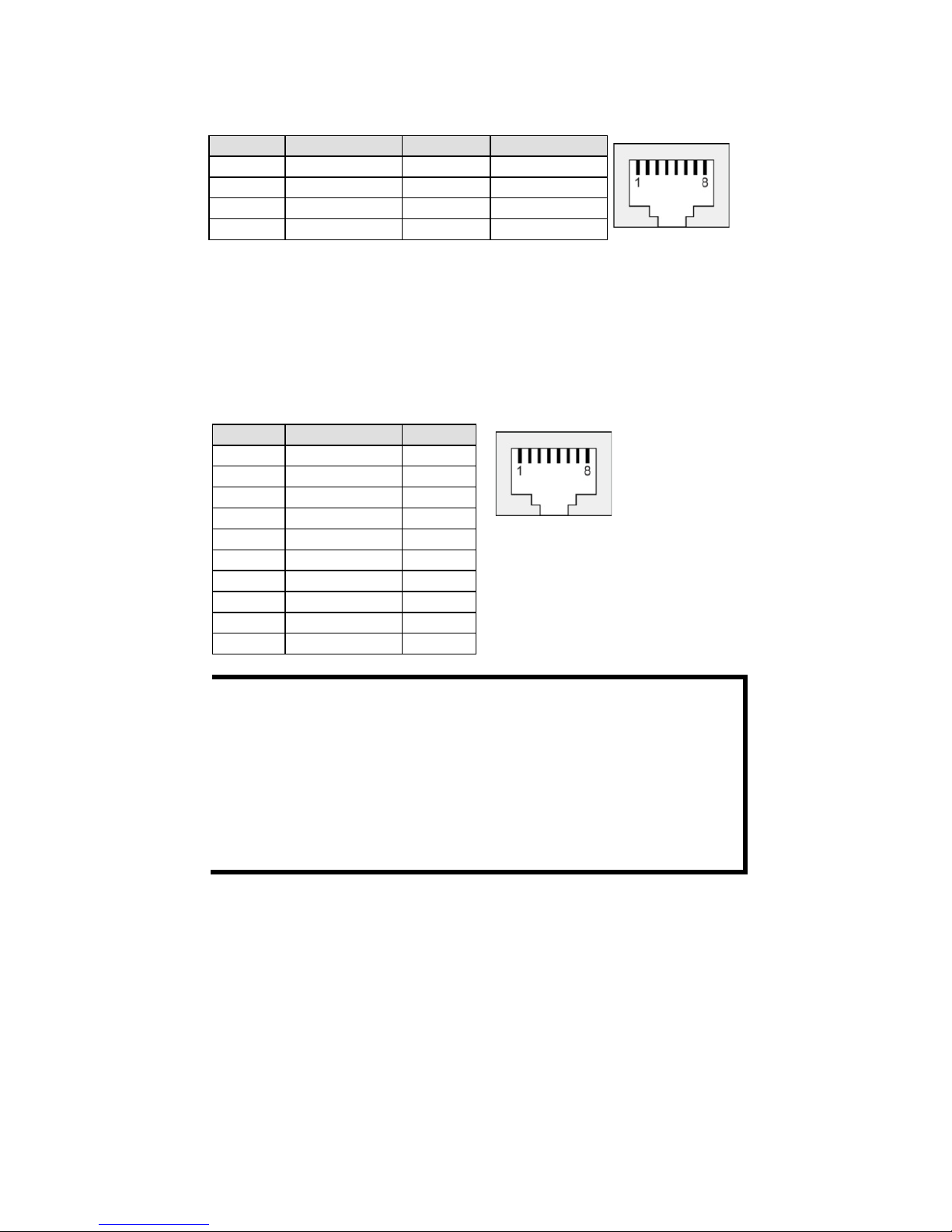

The pinouts for both MDI (NIC-type) ports and MDI-X (HUB/Switch-type)

ports are given below:

MDI Port Pinouts

MDI-X Port Pinouts

8-pin RJ45

Signal

Tx+

Rx+

Tx-

Rx-

Rx+

Tx+

Rx-

Tx-

RS-232 Connection

The AWK-5222 has one RS-232 (8-pin RJ45) console port located on the

front panel. Use either an RJ45-to-DB9 or RJ45-to-DB25 cable to connect

the Moxa AWK-5222’s console port to your PC’s COM port. You may then

use a console terminal program to access the AWK-5222 for console

configuration.

Console Pinouts for 10-pin or 8-pin RJ45

10-Pin

Description

8-Pin

–

DSR

RTS

GND

TxD

RxD

DCD

CTS

DTR

–

NOTE

1. The pin numbers for DB9 and DB25 male connectors, and

hole numbers for DB9 and DB25 female connectors are

labeled on the connector strip. However, the numbers are

typically quite small, so you may need to use a magnifying

glass to see the numbers clearly.

2. The pin numbers for both the 8-pin and 10-pin RJ45

connectors (and ports) are typically not labeled on the

connectors (or ports). Refer to the pinout diagram above

for

details.

Altri manuali per AirWorks AWK-5222

Indice

Altri manuali Moxa Technologies Scheda di rete

Moxa Technologies

Moxa Technologies UPORT 1110 Manuale utente

Manuali Scheda di rete popolari di altre marche

FirstComm

FirstComm OBiWiFi5G Manuale utente

Sun Microsystems

Sun Microsystems Interface Adapter Manuale utente

TRENDnet

TRENDnet TU2-ETG Manuale utente

YASKAWA

YASKAWA SI-EN3 Manuale utente

Paradyne

Paradyne BitStorm 2600 IP DSLAM Manuale utente

Belkin

Belkin F5D7050 Manuale utente

3Com

3Com EtherLink 3C509B Manuale utente

TRENDnet

TRENDnet TEG-PCITX Manuale utente

Cisco

Cisco MC16E Manuale utente

Delta Electronics

Delta Electronics Braking Modules VFDB Series Manuale utente

TwinMOS

TwinMOS Booming Manuale utente

Dialogic

Dialogic Media Board DM/V1200BTEPEQ Manuale utente

Buffalo

Buffalo AirStation WLI-PCM-L11GP Manuale utente

National Instruments

National Instruments NI 9234 Manuale utente

Hama

Hama 49276 Manuale utente

Linksys

Linksys WCF54G - Wireless-G Compact Flash Card Manuale operativo

Compaq

Compaq Wireless LAN 100 Manuale utente

Bose

Bose PowerMatch Dante Manuale utente
